浙江大学学报(工学版)
Journal of ZheJiang University (Engineering Science)  2019, Vol. 53 Issue (12): 2365-2371    DOI: 10.3785/j.issn.1008-973X.2019.12.014
Computer Science and Artificial Intelligence
Facial landmark localization based on cascaded hourglass network with residual features
Ai-dong XU1(),Wen-qi HUANG2,Zhe MING2,Wei-liang CHEN3,Roland HU3,*(),Hang YANG2
1. Electric Power Research Institute, Southern Power Grid, Guangzhou 510080, China
2. Digital Grid Research Institute, Southern Power Grid, Guangzhou 510080, China
3. College of Information Science and Electronic Engineering, Zhejiang University, Hangzhou 310027, China
Download: HTML     PDF(1010KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

The principles and defects of full convolutional network (FCN), which was widely utilized in facial landmark localization, were studied to improve the facial landmark localization accuracy. Discuss the side effects introduced by the kernel function in the feature of FCN, that the evaluation criteria were inconsistent during training and testing. Firstly, theoretically analyze the possibility and the universality of this problem, and then design experiments to verify the existence of this problem in actual situation. To solve this problem, a hourglass network structure was proposed for facial landmark localization combining residual features; the cascaded hourglass network structure was given. The experimental results show that the two-stage cascade structure can obtain comparable accuracy compared with the four-stage stack structure, which means that the model parameter quantity and time complexity will be reduced greatly. The average normalization error of the proposed method on the difficult subset of the 300-W database was 6.84%, which is better than the previous best result.

Key words： facial landmark localization      fully convolutional network (FCN)      residual feature      cascaded structure
Received: 05 November 2018      Published: 17 December 2019
CLC:  TP 391.4
Corresponding Authors: Roland HU     E-mail: xuad@csg.cn;haoji_hu@zju.edu.cn
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Ai-dong XU
Wen-qi HUANG
Zhe MING
Wei-liang CHEN
Roland HU
Hang YANG
Cite this article:

Ai-dong XU,Wen-qi HUANG,Zhe MING,Wei-liang CHEN,Roland HU,Hang YANG. Facial landmark localization based on cascaded hourglass network with residual features. Journal of ZheJiang University (Engineering Science), 2019, 53(12): 2365-2371.

URL:

http://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2019.12.014     OR     http://www.zjujournals.com/eng/Y2019/V53/I12/2365


基于级联网络和残差特征的人脸特征点定位

为进一步提高人脸特征点定位精度，探究当前广泛用于人脸关键点定位的全卷积神经网络（FCN）架构的原理和缺陷，讨论FCN核函数在特征点定位中引入的副作用，即训练和测试时评判准则不一致的问题. 理论分析该问题存在的可能性和普遍性，设计实验验证在实际场景下此问题存在的广泛性. 提出结合残差特征的沙漏网络结构并将其应用于人脸特征点检测；提出多级沙漏网络的级联结构，并将其与经典的栈式沙漏网络进行对比分析. 实验结果表明：二级级联结构获得了与四级栈式结构相当的特征点定位精度，大幅降低了模型参数量和时间复杂度. 所提方法在300-W数据库的困难子集上的平均归一化误差为6.84%，优于已有最好方法.


关键词： 人脸特征点检测,  全卷积神经网络（FCN）,  残差特征,  级联结构
Fig.1 Relationship between cross entropy loss and normalized Euclidean loss
Fig.2 Diagram of hourglass network based on residual characteristics

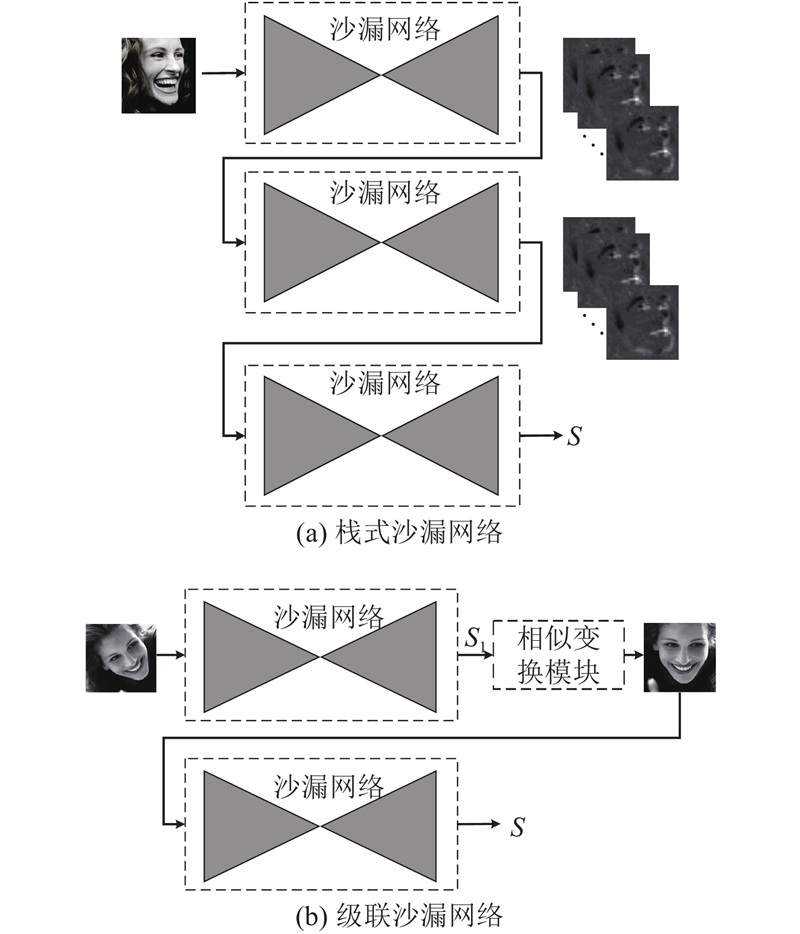

Fig.3 The structure of stacked hourglass network (SHN) and cascaded hourglass network
数据集 k m n
300-W 3 148 689 68
Menpo正脸 6 679 12 006 68
Menpo侧脸 2 300 4 253 39
Tab.1 Testing protocol of different datasets
%
方法 常规子集 困难子集 全集
文献[7] 8.22 18.33 10.20
SDM[6] 5.57 15.40 7.50
LBF[9] 4.95 11.98 6.32
CFSS[19] 4.73 9.98 5.76
RAR[12] 4.12 8.35 4.94
DCR[10] 4.07 8.29 4.90
TR-DRN[21] 4.36 7.56 4.99
DAN[20] 4.42 7.57 5.03
CHN 4.22 7.97 4.95
RF-CHN 4.18 7.39 4.81
Tab.2 Normalized mean error (NME) on 300-W test dataset with 300-W training data only
%
算法名称 常规子集 困难子集 完全集
DAN-Menpo[20] 4.29 7.05 4.83
CHN 4.11 6.98 4.67
RF-CHN 4.03 6.84 4.58
Tab.3 NME on 300-W test dateset using additionaltraining data

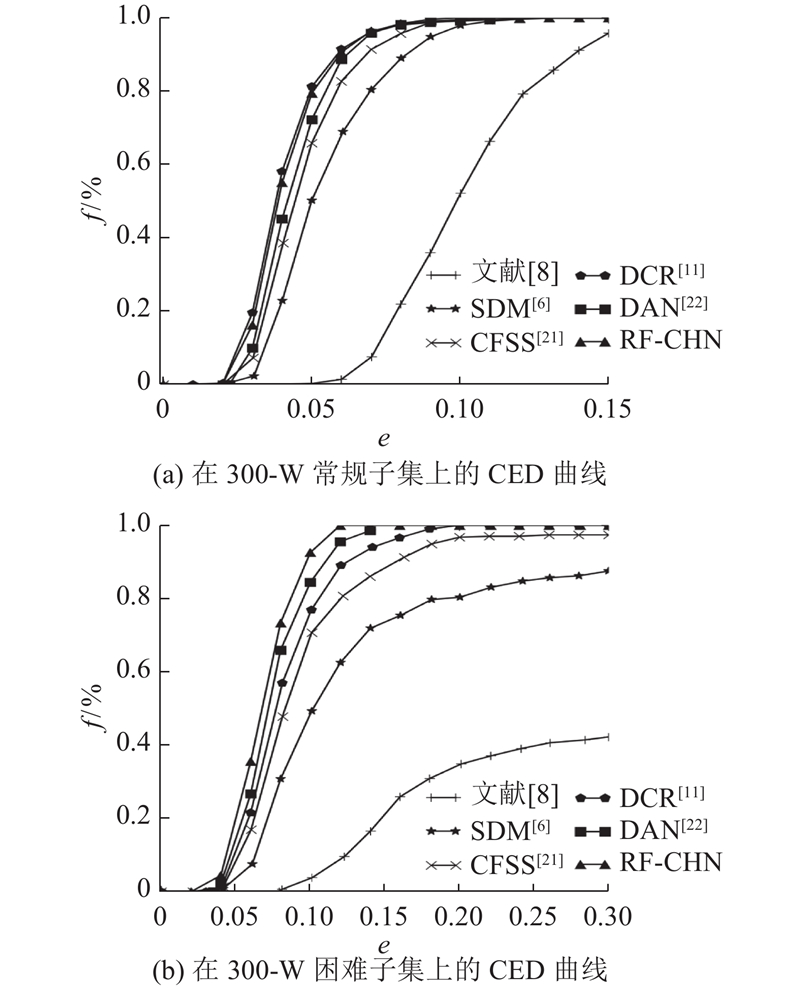

Fig.4 Cumulative error distribution (CED) curves on common and challenging test sets of 300-W database

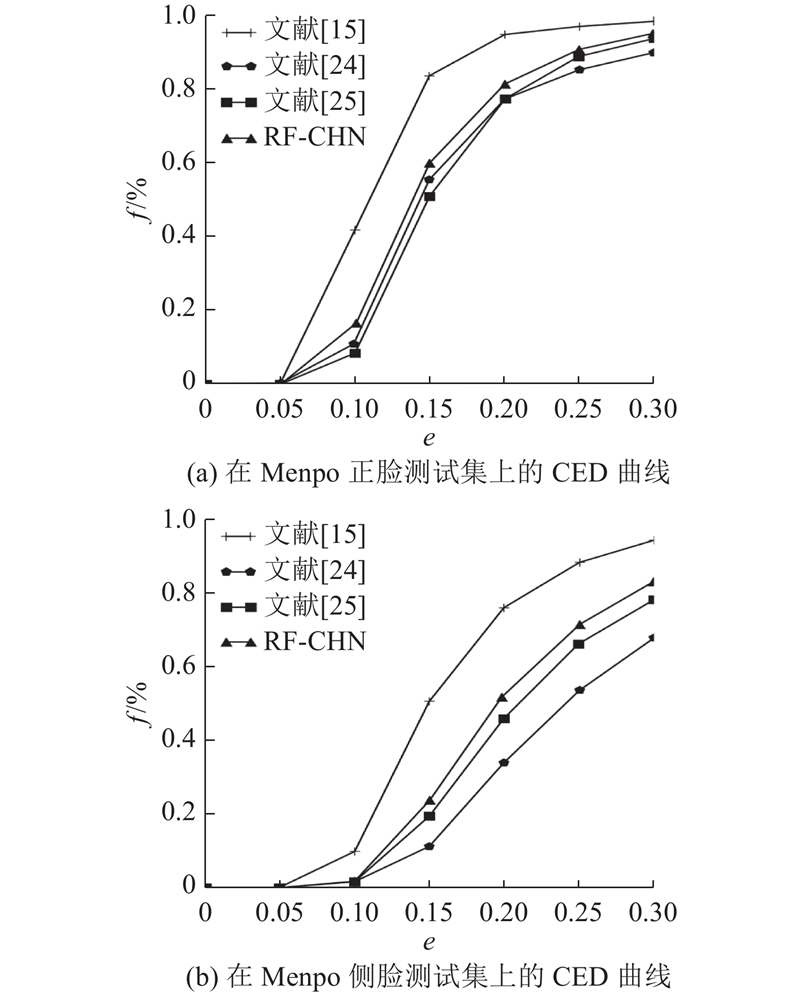

Fig.5 CED curves on Menpo test dataset
Fig.6 Comparison of real value and detection results of face feature point by proposed algorithm
方法 t e p/M
SHN 4 7.00 62.63
CHN 2 6.98 30.08
RF-CHN 2 6.84 34.34
Tab.4 NME on 300-W test dataset %
