1. School of Biomedical Engineering (Suzhou), University of Science and Technology of China, Suzhou 215163, China 2. Suzhou Institute of Biomedical Engineering and Technology, Chinese Academy of Sciences, Suzhou 215163, China 3. The Second Affiliated Hospital of Suzhou University, Suzhou 215000, China

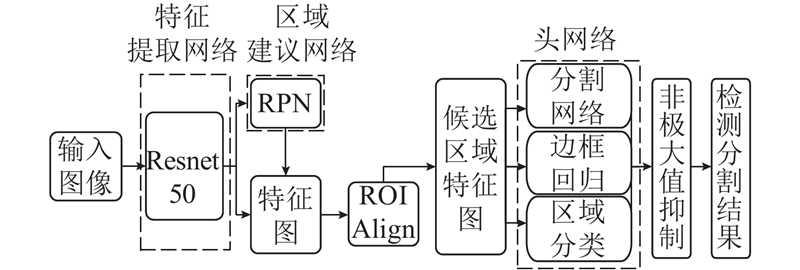

A new deep convolutional neural network model called SE-Mask-RCNN was proposed to automatically segment prostate cancer regions in multi-parametric magnetic resonance imaging (mp-MRI) images. The candidate regions were extracted from the feature maps, and the possible lesions were segmented within the candidate regions. The feature maps were obtained from apparent diffusion coefficient (ADC) maps and T2-weighted (T2W) images through two parallel convolution networks, which were fused to fully use complementary information. The squeeze-and-excitation block was employed to automatically boost effective features and suppress the useless features. The experiments were conducted on a dataset containing 140 patients. The experimental results showed that the proposed model achieved a Dice coefficient of 0.654, a sensitivity of 0.695, a specificity of 0.970, and a positive predictive value of 0.685. The proposed SE-Mask-RCNN can effectively improve the segmentation accuracy of prostate cancer lesions in mp-MRI images compared with U-net, V-net, Resnet50-U-net and Mask-RCNN.
Fig.4mp-MRI information fusion method improved by SE-block
Fig.5Example of data preprocessing
网络模型
MRI类型
DSC
敏感度
特异度
PPV
U-net
ADC
0.539
0.639
0.970
0.324
V-net
ADC
0.525
0.707
0.945
0.472
Resnet50-U-net
ADC
0.525
0.720
0.956
0.462
Mask-RCNN
ADC
0.592
0.582
0.979
0.680
U-net
T2W
0.370
0.651
0.886
0.283
V-net
T2W
0.343
0.580
0.896
0.282
Resnet50-U-net
T2W
0.349
0.624
0.902
0.276
Mask-RCNN
T2W
0.403
0.395
0.962
0.473
U-net
ADC+T2W
0.562
0.765
0.955
0.480
V-net
ADC+T2W
0.553
0.763
0.949
0.476
Resnet50-U-net
ADC+T2W
0.561
0.683
0.972
0.532
Mask-RCNN
ADC+T2W
0.612
0.653
0.968
0.650
Tab.1Quantitative comparison of different network model results of prostate cancer lesion segmentation
Fig.6Examples of prostate cancer lesion segmentation results from different network models on mp-MRI
Fig.7Four methods of mp-MRI information fusion
融合方式
卷积网络
DSC
敏感度
特异度
PPV
输入图像串联（Mask-RCNN）
Resnet50
0.612
0.653
0.968
0.650
特征图相加
Resnet50
0.611
0.667
0.966
0.643
特征图串联
Resnet50
0.609
0.645
0.968
0.659
SE-特征图串联
Resnet50
0.630
0.676
0.970
0.663
输入图像串联
SE-Resnet
0.637
0.660
0.970
0.685
特征图相加
SE-Resnet
0.638
0.684
0.970
0.658
特征图串联
SE-Resnet
0.640
0.697
0.967
0.652
SE-特征图串联（SE-Mask-RCNN）
SE-Resnet
0.654
0.695
0.970
0.685
Tab.2Comparison of four methods of mp-MRI information fusion
Fig.8Comparison of candidate regions and heat maps
融合方式
ADC SE-Resnet是否去掉SE-block
T2W SE-Resnet是否去掉SE-block
DSC
敏感度
特异度
PPV
SE-特征图串联
否
否
0.654
0.695
0.970
0.685
SE-特征图串联
否
是
0.633
0.722
0.960
0.634
SE-特征图串联
是
否
0.633
0.726
0.960
0.630
SE-特征图串联
是
是
0.621
0.641
0.975
0.670
Tab.3Performance comparison of SE-block removal methods for convolutional networks
模型
运算时间/ms
U-net
78
V-net
84
Resnet50-U-net
85
Mask-RCNN
131
SE-Mask-RCNN
144
Tab.4Average image processing time for different models
