动车组锥齿轮箱飞溅润滑特性及箱体结构改进
邵帅1(),张开林1,*(),姚远1,刘逸1,王正洋2
1. 西南交通大学 轨道交通运载系统全国重点实验室，四川 成都 610000
2. 苏州舜云工程软件有限公司 仿真部，江苏 苏州 215000
Splash lubrication characteristics and structure improvement of spiral bevel gearbox for electrical multiple unit
Shuai SHAO1(),Kailin ZHANG1,*(),Yuan YAO1,Yi LIU1,Zhengyang WANG2
1. State Key Laboratory of Rail Transit Vehicle System, Southwest Jiaotong University, Chengdu 610000, China
2. Simulation Department, Suzhou ShonCloud Engineering Software Limited Company, Suzhou 215000, China
 全文: PDF(4124 KB)   HTML
摘要：

为了分析动车组齿轮箱的润滑机理，以某型螺旋锥齿轮传动齿轮箱为研究对象，运用移动粒子半隐式(MPS)法建立高精度的流场仿真模型. 引入薄膜流动模型，对无滑移壁面边界条件进行改进，使移动粒子半隐式法具有预测液膜流动特性的功能. 研究输入齿轮转速、初始润滑油量对箱体内壁和齿轮表面的润滑油覆盖率、油膜分布特性及功率损失的影响. 结果表明，箱体内壁面的润滑油覆盖率和液膜厚度主要受润滑油飞溅效应的影响，齿轮表面受到润滑油飞溅效应和自身运动的共同影响. 功率损失分析显示，功率损失与输入齿轮转速和初始润滑油油量均呈正相关关系，对高转速更敏感. 对箱体结构进行改进，消除箱体凸台，扩大与输出齿轮的距离，该措施可以显著改善齿轮箱的润滑条件.
关键词： 齿轮箱;  飞溅润滑;  薄膜流动;  油膜厚度;  功率损失
Abstract:

A high-precision flow field simulation model was established by using the moving particle semi-implicit (MPS) method in order to analyze the lubrication mechanism of electrical multiple unit gearbox, taking a certain type of spiral bevel gear transmission gearbox as the research object. The film flow model was introduced to improve the non-slip wall boundary conditions so that the MPS has the function of predicting the flow characteristics of the liquid film. The effects of input gear rotating speed and initial lubricating oil volume on the lubricating oil coverage rate, oil film distribution characteristics and power loss of the inner wall of the gearbox and the gear surface were analyzed. Results show that the lubricating oil coverage and liquid film thickness on the inner wall of the gearbox are mainly affected by the splash effect of lubricating oil, and the gear surface is affected by the splash effect of lubricating oil and its own motion. The power loss analysis indicates that the power loss is positively correlated with the input gear rotating speed and the initial lubricating oil volume, and is more sensitive to high rotating speed. The box structure is improved, the box boss is eliminated and the distance from the output gear is expanded, which can significantly improve the lubrication conditions of the gearbox.
Key words: gearbox    splash lubrication    thin film flow    oil film thickness    power loss
收稿日期: 2023-04-24 出版日期: 2024-04-26
CLC:  TP 393
基金资助: 国家自然科学基金资助项目（U2268211）；四川省自然科学基金资助项目（2022NSFSC0034，2022NSFSC0034）；大功率交流传动电力机车系统集成国家重点实验室开放课题（R111720H01385）.
通讯作者: 张开林     E-mail: swjtushaoshuai@163.com;zhangkailin@swjtu.cn
作者简介: 邵帅（1993—），男，博士生，从事动车组齿轮箱润滑与传热的研究. orcid.org/0000-0001-5076-3477. E-mail：swjtushaoshuai@163.com
服务　　
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章　　
邵帅
张开林
姚远
刘逸
王正洋

引用本文:

邵帅,张开林,姚远,刘逸,王正洋. 动车组锥齿轮箱飞溅润滑特性及箱体结构改进[J]. 浙江大学学报(工学版), 2024, 58(5): 1060-1071.

Shuai SHAO,Kailin ZHANG,Yuan YAO,Yi LIU,Zhengyang WANG. Splash lubrication characteristics and structure improvement of spiral bevel gearbox for electrical multiple unit. Journal of ZheJiang University (Engineering Science), 2024, 58(5): 1060-1071.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2024.05.019    或    https://www.zjujournals.com/eng/CN/Y2024/V58/I5/1060

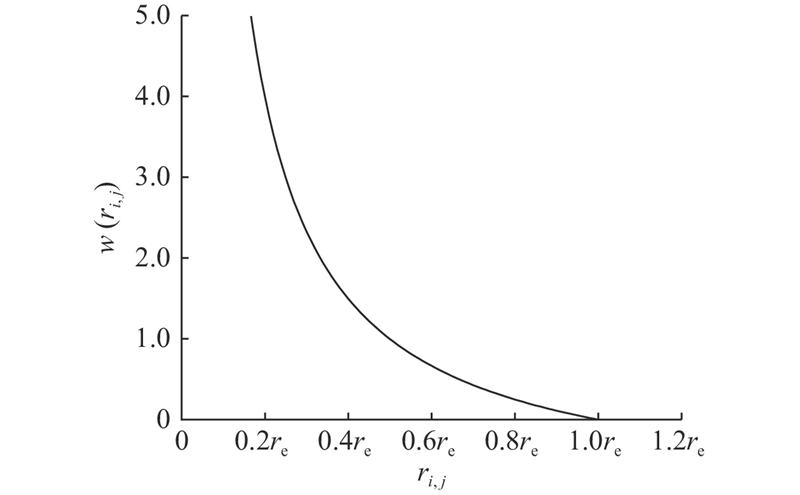

图 1  核函数作用模型
图 2  薄膜流动模型的示意图

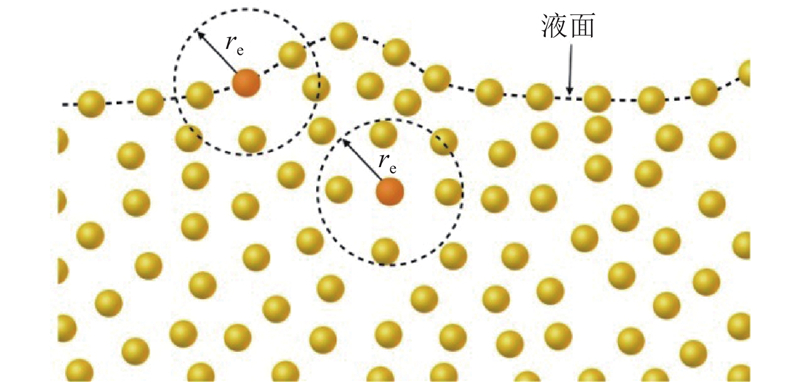

图 3  自由液面判别的示意图
图 4  边界粒子布置的示意图

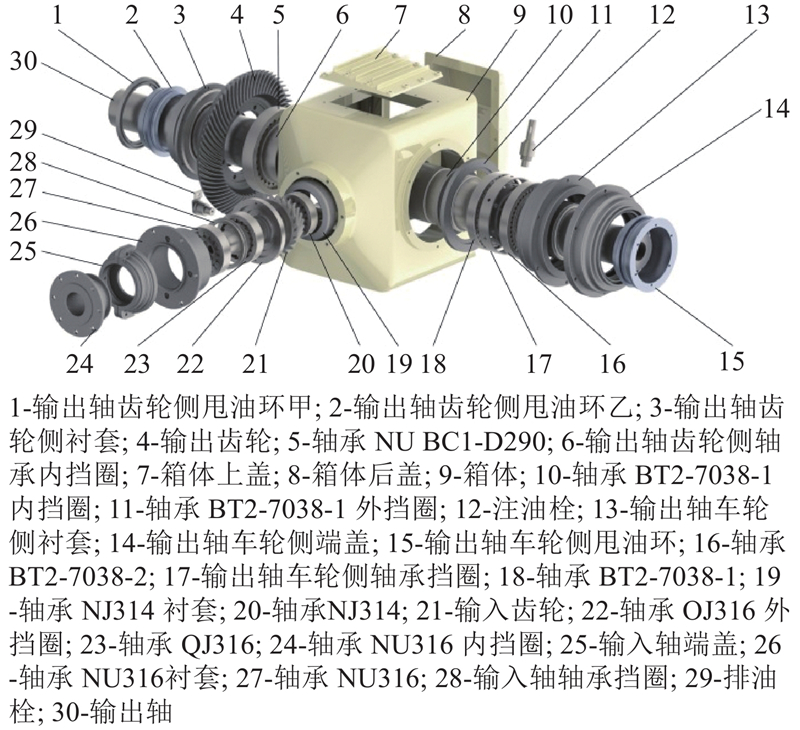

图 5  齿轮箱部件的分解图
名称输入齿轮输出齿轮
齿面类型格里森式格里森式
齿数2255
模数/mm9.29.2
齿宽/mm8282
压力角/（°）2020
螺旋角/（°）3030
表 1  动车组齿轮箱的锥齿轮参数
参数数值
ρ15/（kg·m?3）867
ν40/（mm2·s?1）116
ν100/（mm2·s?1）16.6
表 2  润滑油75W-90的物性参数
θ/℃ρ/ (kg·m?3)ν/ (mm2·s?1)
40852116
6084050.2
8082825.9
10081616.6
表 3  不同温度下润滑油的属性
工况序号nd/(r·min?1)V0/L箱体结构改进
160015改进前
21 20015
31 80015
42 40015
53 00015
61 20012
71 20018
81 20021
91 20024
1060015改进后
113 00015
表 4  齿轮箱内流场仿真计算工况表
参数数值
Z1/Z224/24
m/mm6.5
B/mm40
β/(°)35
α/(°)20
Σ/(°)90
表 5  试验齿轮箱齿轮副的参数

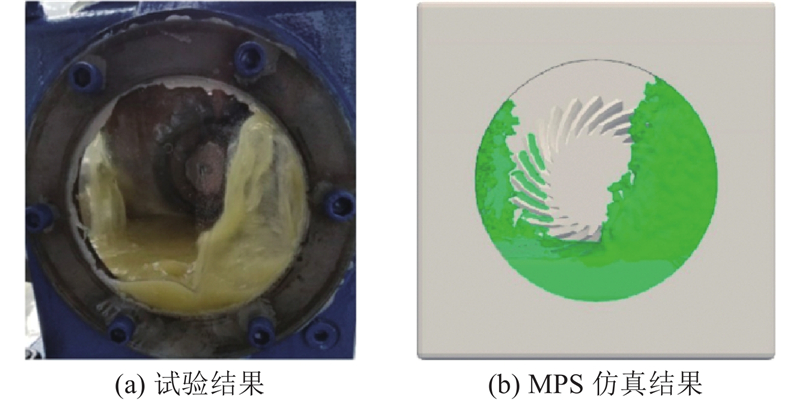

图 6  螺旋锥齿轮箱内油液分布的对比

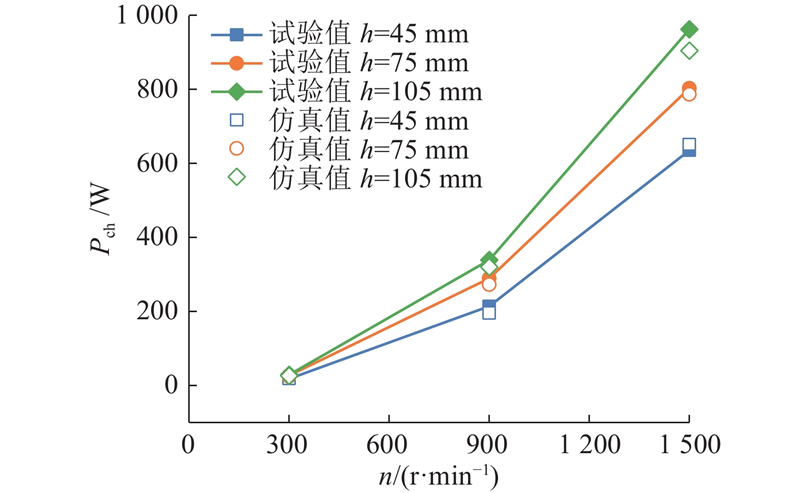

图 7  螺旋锥齿轮箱的搅油功率损失对比

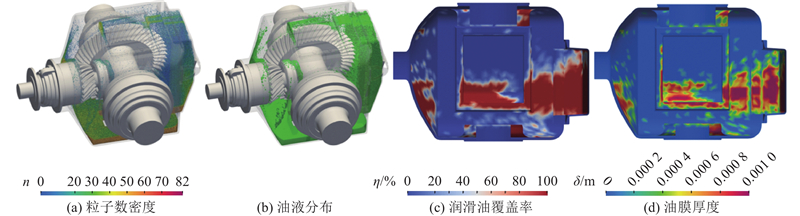

图 8  齿轮箱的瞬时油液分布

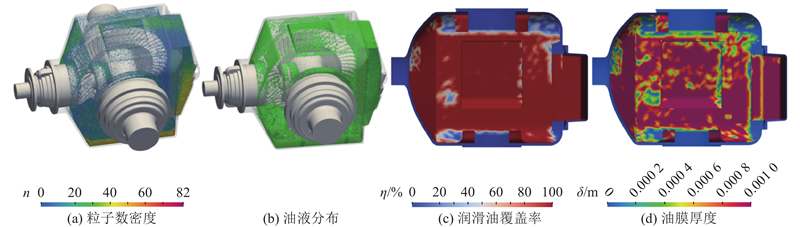

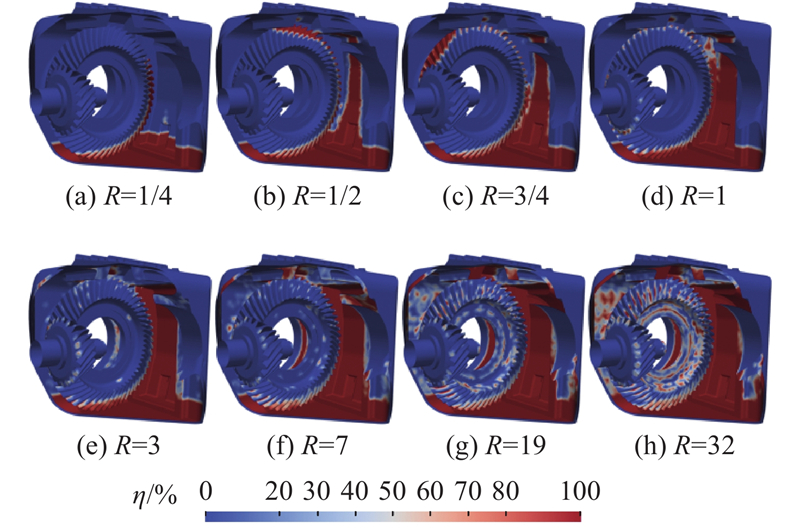

图 9  齿轮箱的瞬时油液覆盖率

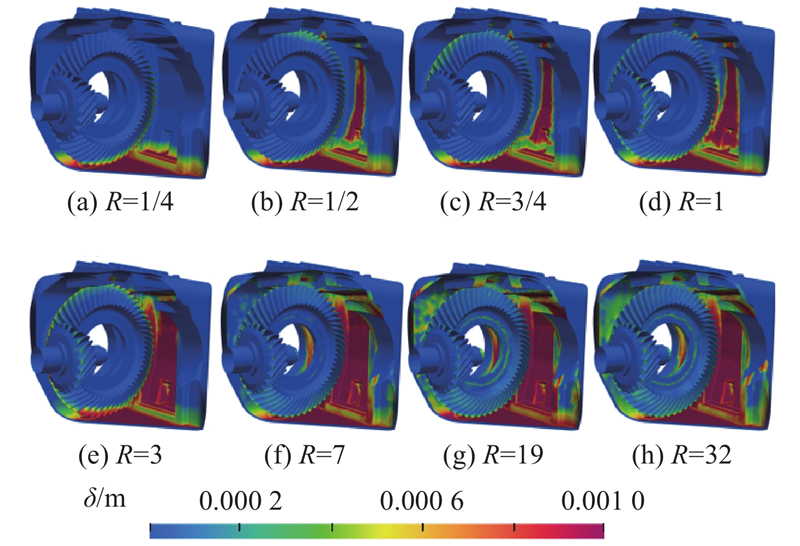

图 10  齿轮箱的瞬时油膜分布

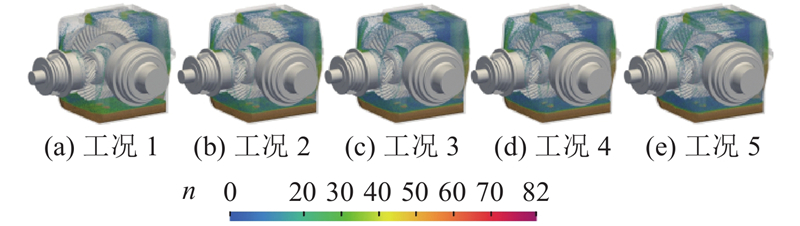

图 11  不同转速下的粒子数密度分布
图 12  不同转速下箱体内壁油膜的分布

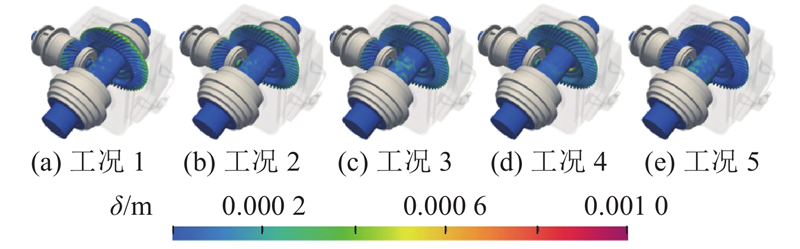

图 13  不同转速下齿轮表面油膜的分布
工况nd/(r·min?1)Td/(N·m)ns/(r·min?1)Ts/(N·m)Ploss/W
16000.0562400.88925.86
21 2000.1934801.22986.07
31 8000.3477201.556182.64
42 4000.40496011.5661 264.25
53 0000.8111 20047.7826 258.77
表 6  不同转速下的搅油阻力矩和功率损失

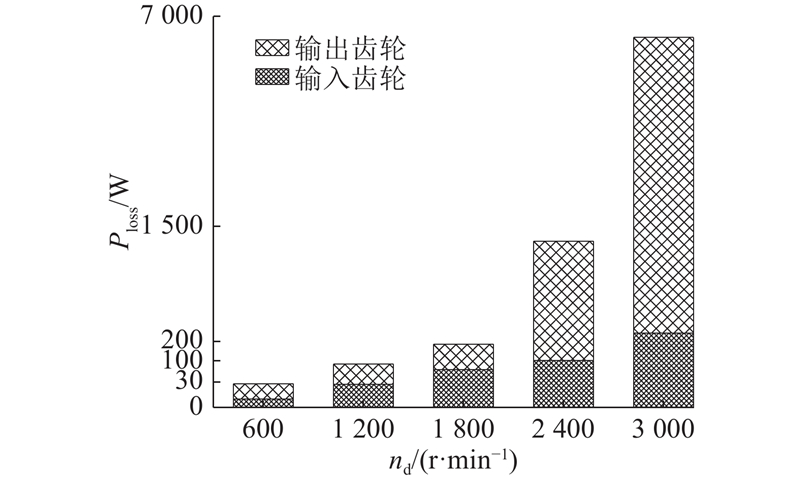

图 14  齿轮箱在不同转速下的功率损失
