液氢容器真空夹层氢吸附剂研究进展
刘磊1,2(),潘权稳2,王博2,赵钦宇2,江龙1,何远新1,3,周伟明4,甘智华1,2,*()
1. 浙江省制冷与低温技术重点实验室 浙江大学,浙江 杭州 310027
2. 浙大城市学院 低温中心,浙江 杭州 310015
3. 中车长江车辆有限公司 冷运装备研究所,湖北 武汉 430212
4. 全国锅炉压力容器标准化技术委员会,移动式压力容器分技术委员会,上海 200030
Progress of hydrogen adsorbents in vacuum jacket of liquid hydrogen vessels
Lei LIU1,2(),Quan-wen PAN2,Bo WANG2,Qin-yu ZHAO2,Long JIANG1,Yuan-xin HE1,3,Wei-ming ZHOU4,Zhi-hua GAN1,2,*()
1. Zhejiang Key Laboratory of Refrigeration and Cryogenic Technology, Zhejiang University, Hangzhou 310027, China
2. Cryogenics Center, Zhejiang University City College, Hangzhou 310015, China
3. Institute of Cold Transportation Equipment, Yangtze Corporation of China Railway Rolling Stock Corporation, Wuhan 430212, China
4. Mobile Pressure Vessel Subcommittee, National Boiler and Pressure Vessel Standardization Technical Committee, Shanghai 200030, China
 全文: PDF(1134 KB)   HTML
摘要:

基于液氢容器高效氢吸附剂对使用方式、材料改性、性能评价和用量计算的需求,讨论真空夹层中的气体负荷来源和真空寿命,总结液氢容器常用氢吸附剂的种类、材料以及吸附性能研究方法. 真空夹层主要的残余气体是材料放出的氢气,通过合理使用吸附剂可以显著延长容器寿命. 根据吸气机理可将氢吸附剂分为低温吸附剂、金属氧化物、离子交换沸石分子筛和非蒸散型吸气剂4类,并从实验测试和理论模型2个方面总结了吸附性能的研究方法.

关键词: 氢能液氢容器真空多层绝热氢吸附剂吸附性能
Abstract:

The sources of gas load and vacuum life of the vacuum jacket were discussed based on the requirements of usage mode, material modification, performance evaluation and amount calculation for efficient hydrogen adsorbent in liquid hydrogen vessels. The types and ingredients of common hydrogen adsorbents and research methods of adsorption commonly used in liquid hydrogen containers were summarized. The hydrogen released by the materials was the main residual gas in the vacuum jacket and the vessel life can be significantly extended by the rational use of adsorbents. The hydrogen adsorbents can be classified into four categories according to adsorption mechanism: low temperature adsorbents, metal oxides, ion exchanged zeolite molecular sieves and non-evaporable getters. The research methods of adsorption performance were summarized in aspects of both experimental test and theoretical model.

Key words: hydrogen energy    liquid hydrogen vessel    vacuum multilayer insulation    hydrogen adsorbent    adsorption performance
收稿日期: 2022-07-08 出版日期: 2022-12-02
CLC:  TB 658
基金资助: 广东省重点领域研发计划资助项目(2021B0101300004); 国家自然科学基金资助项目(52006190)
通讯作者: 甘智华     E-mail: 22127036@zju.edu.cn;gan_zhihua@zju.edu.cn
作者简介: 刘磊(1999—),男,硕士生,从事低温吸附研究. orcid.org/ 0000-0003-4219-2015. E-mail: 22127036@zju.edu.cn
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章
刘磊
潘权稳
王博
赵钦宇
江龙
何远新
周伟明
甘智华

引用本文:

刘磊,潘权稳,王博,赵钦宇,江龙,何远新,周伟明,甘智华. 液氢容器真空夹层氢吸附剂研究进展[J]. 浙江大学学报(工学版), 2022, 56(11): 2194-2203.

Lei LIU,Quan-wen PAN,Bo WANG,Qin-yu ZHAO,Long JIANG,Yuan-xin HE,Wei-ming ZHOU,Zhi-hua GAN. Progress of hydrogen adsorbents in vacuum jacket of liquid hydrogen vessels. Journal of ZheJiang University (Engineering Science), 2022, 56(11): 2194-2203.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2022.11.010        https://www.zjujournals.com/eng/CN/Y2022/V56/I11/2194

图 1  真空夹层气体负荷来源
放置位置 种类 吸氢机理 常用材料 液氢容器中的应用
低温侧
(低温吸附剂)
物理吸附剂 利用大比表面积和多孔结构捕集气体 活性炭、分子筛 当20 K时吸氢量大,但温度提高后性能明显下降
常温侧
(常温吸附剂)
金属氧化物 和H2的氧化还原反应 PdO 吸氢量大,但价格昂贵,吸氢存在一定危险
离子交换沸石分子筛 气体先由微孔物理吸附,再被交换的活性离子催化形成稳定氢键 Ag沸石分子筛 成本低,吸氢稳定,市场潜力大
非蒸散型吸气剂 气体在活性材料表面发生吸附、渗透并往体内扩散 Zr-V-Fe合金、Ti合金等 受限于激活温度和工艺,应用集中在国外
表 1  不同氢吸附剂的分类与比较
图 2  低温容器氢吸附剂典型布置
图 3  在77 K下金属氧化物的吸氢等温线[38]
氧化物 S/(m2·g?1 T/K QH/(cm3·g?1
Fe2O3 12.50 473.00
Pd-Fe2O3 12.00 293.00 0.01
WO3 2.50 700.00
Pd-WO3 2.50 293.00 0.01
NiO+Ni2O3 170.00 330.00
Pd-(NiO+Ni2O3) 170.00 293.00 0.10
CuO 100.00 300.00 3.00
Pd-CuO 100.00 293.00 50.00
Co3O4 140.00 293.00 15.00
Pd-Co3O4 135.00 293.00 180.00
MnO2 180.00 293.00 2.50
Pd-MnO2 180.00 293.00 286.00
PdO 293.00 110.00
Ag2O 1.30 293.00 1.50
表 2  金属氧化物掺Pd前后的吸氢变化[31]
图 4  管式吸气剂示意图[50]

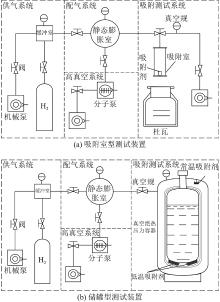

图 5  静态定容法实验装置示意图
图 6  低温制冷机冷却的吸附室型静态定容法实验装置[57]
等温式类型 方程形式 模型特点
Langmuir $ \theta = \dfrac{{{k_1}p}}{{1+{k_1}p}} $ 单分子层吸附,
吸附热不变
Henry $\theta = { {{k} }_1}p$ 低压吸附, $ {k_1}\ll 1 $
BET $\theta = \dfrac{{cp}}{{({p_0} - p)[1+(c - 1){p /{{p_0}}}]}}$ 多分子层吸附,
各层吸附热为常数
Freundlich $\theta = {K_1}{p^{{1 / n}}}$ 吸附位数目随吸附
热指数性减少
Temkin $\displaystyle \theta = \dfrac{{RT}}{{\beta {q_0}}}\ln ({K_2}p)$ 吸附热随表面覆盖
度线性减少
DubDubinin-Radushkevch $\ln \theta = - B{(RT\ln ({{{p_0}} \mathord{\left/ {\vphantom {{{p_0}} p}} \right. } p}))^2}$ 低温下稀薄气体的吸附
表 3  常见吸附等温式类型[59]
图 7  吸附等温线模型和吸附势理论的应用
