浙江大学学报(工学版)  2021, Vol. 55 Issue (9): 1734-1743    DOI: 10.3785/j.issn.1008-973X.2021.09.015
土木工程、水利工程
考虑温—压耦合影响的水合物沉积物宏细观Duncan-Chang损伤模型
王辉1(),郇筱林1,陈宇琪1,周博1,*(),薛世峰1,林英松2
1. 中国石油大学(华东) 储运与建筑工程学院，山东 青岛 266580
2. 中国石油大学(华东) 石油工程学院，山东 青岛 266580
Macro-mesoscopic Duncan-Chang damage model for hydrate-bearing sediments considering coupling effect of temperature-pore pressure condition
Hui WANG1(),Xiao-lin HUAN1,Yu-qi CHEN1,Bo ZHOU1,*(),Shi-feng XUE1,Ying-song LIN2
1. College of Pipeline and Civil Engineering, China University of Petroleum, Qingdao 266580, China
2. School of Petroleum Engineering, China University of Petroleum, Qingdao 266580, China
 全文: PDF(1222 KB)   HTML
摘要：

为了反映温—压环境对水合物沉积物力学特性的影响，定义新的温—压状态参数. 从温—压环境对沉积物细观结构的作用机制出发，采用三相球模型提出考虑温—压环境对水合物沉积物细观各组分和各组分间接触界面影响的多尺度弹性参数预测模型. 基于传统Duncan-Chang模型与统计损伤理论，引入极限损伤值，建立Duncan-Chang统计损伤模型. 对比在不同温—压环境条件下水合物沉积物的三轴试验结果与模型预测结果，验证所提模型的有效性和合理性. 结果表明：该模型能够考虑水合物饱和度、温—压环境以及沉积物骨架的粒径级配影响，能够较好地模拟水合物沉积物在不同温—压环境下应力—应变全过程.

关键词： 水合物沉积物;  温?压状态参数;  Duncan-Chang模型;  统计损伤;  极限损伤
Abstract:

A new temperature-pressure state parameter was defined in order to reflect the influence of temperature-pressure environment on the mechanical properties of hydrate-bearing sediments. Based on the mechanism of temperature-pressure environment on the mesoscopic structure of the sediments, a multi-scale elastic parameter prediction model was proposed by using the three-phase sphere model considering the influence of temperature-pressure environment on the mesoscopic components and the contact interface of each component. Then, based on the traditional Duncan-Chang model and the statistical damage theory, a Duncan-Chang statistical damage model was established by introducing the ultimate damage value. The validity and reasonability of the proposed model were verified by comparing the triaxial tests data of hydrate-bearing sediments under different temperature and pore pressure conditions with the predicted results of the model. Results show that the model can take into account the effects of hydrate saturation, temperature and pore pressure environment, grain size grading of sediments skeleton. It can well simulate the stress-strain characteristics of hydrate-bearing sediments under different temperature and pore pressure environments.
Key words: hydrate-bearing sediments    temperature and pore pressure state parameter    Duncan-Chang constitutive model    statistical damage    ultimate damage
收稿日期: 2020-10-12 出版日期: 2021-10-20
CLC:  TE 133
基金资助: 国家重点研发计划资助项目(2017YFC0307604)
通讯作者: 周博     E-mail: upc_wanghui@163.com;zhoubo@upc.edu.cn
作者简介: 王辉（1995—），男，硕士生，从事水合物沉积物的力学性质研究. orcid.org/0000-0001-5968-3473. E-mail: upc_wanghui@163.com
服务　　
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章　　
王辉
郇筱林
陈宇琪
周博
薛世峰
林英松

引用本文:

王辉, 郇筱林, 陈宇琪, 周博, 薛世峰, 林英松. 考虑温—压耦合影响的水合物沉积物宏细观Duncan-Chang损伤模型[J]. 浙江大学学报(工学版), 2021, 55(9): 1734-1743.

Hui WANG, Xiao-lin HUAN, Yu-qi CHEN, Bo ZHOU, Shi-feng XUE, Ying-song LIN. Macro-mesoscopic Duncan-Chang damage model for hydrate-bearing sediments considering coupling effect of temperature-pore pressure condition. Journal of ZheJiang University (Engineering Science), 2021, 55(9): 1734-1743.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2021.09.015    或    https://www.zjujournals.com/eng/CN/Y2021/V55/I9/1734

图 1  水合物沉积物的细观接触示意
图 2  甲烷水合物相平衡曲线
图 3  水合物沉积物的均匀化程序示意图

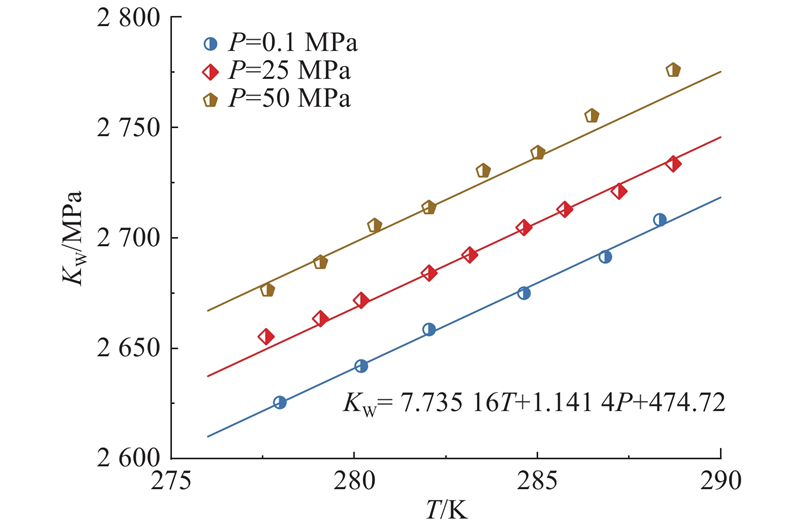

图 4  孔隙中液态水的体积模量与环境温度和孔隙压力的关系

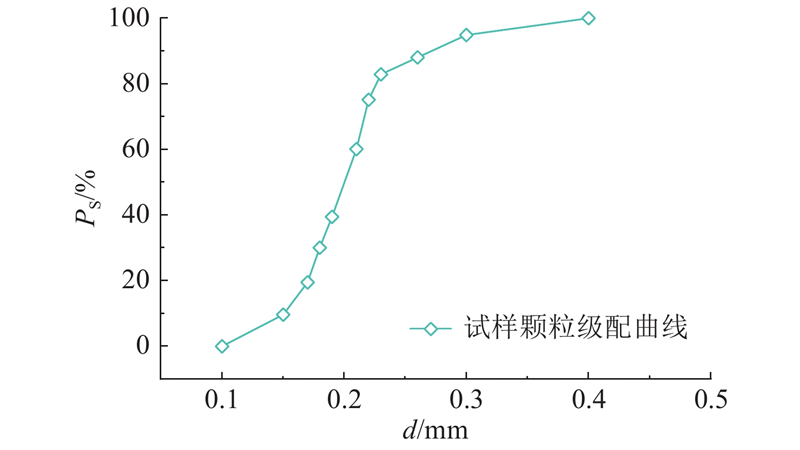

图 5  Toyoura砂土粒径级配曲线

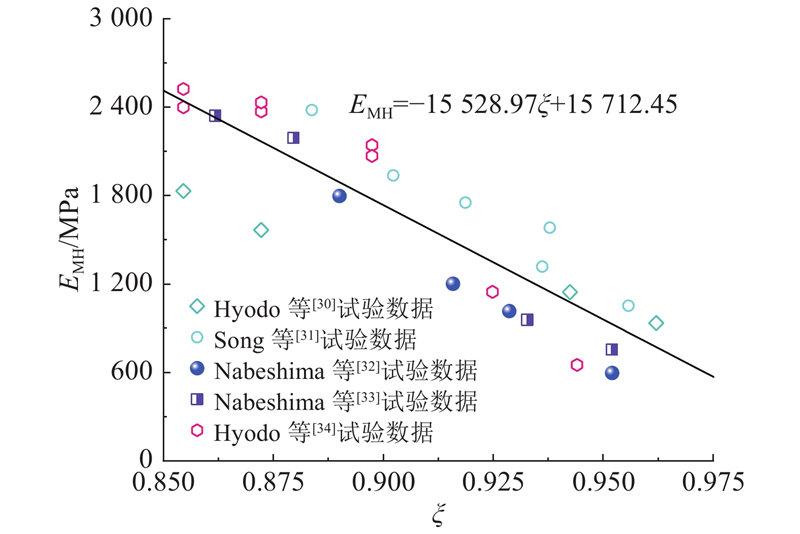

图 6  甲烷水合物弹性模量与温−压状态参数的关系
ξ SMH/% φMH/% F0 m
0.971 0 0 0 18.183 0 1.949 1
0.971 0 26.6 11.69 21.359 4 3.731 3
0.971 0 46.6 18.85 28.047 9 5.422 5
表 1  不同饱和度的Weibull模型参数
σ3/MPa SMH/% φMH/% F0 m
1 34.8 0.147 6 10.894 4 4.574 4
2 34.8 0.147 6 16.695 5 3.809 9
3 34.8 0.147 6 22.361 9 2.908 9
表 2  不同有效围压的Weibull模型参数
ξ SMH/% φMH/% F0 m
0.957 0 23.2 10.35 27.297 1 4.393 3
0.965 6 23.2 10.35 22.533 3 4.091 9
0.971 0 24.7 10.95 18.896 6 3.726 8
0.971 0 46.6 18.85 29.168 8 4.591 3
0.991 3 42.5 17.45 23.110 3 3.427 5
表 3  不同温−压环境下的Weibull模型参数
图 7  不同条件下水合物沉积物的应力−应变曲线的试验结果与计算结果对比
