浙江大学学报(工学版)
浙江大学学报(工学版)  2021, Vol. 55 Issue (7): 1299-1307    DOI: 10.3785/j.issn.1008-973X.2021.07.009
土木工程、水利工程
基于剪切带扩展法的海底斜坡稳定性分析
沈佳轶1(),库猛1,王立忠2,3
1. 浙江大学 海洋学院，浙江 舟山 316000
2. 浙江大学 建筑工程学院，浙江 杭州 310058
3. 浙江大学 浙江省海洋岩土工程与材料重点实验室，浙江 杭州 310058
Stability analyses of submarine slopes based on shear band propagation method
Jia-yi SHEN1(),Meng KU1,Li-zhong WANG2,3
1. Ocean College, Zhejiang University, Zhoushan 316000, China
2. College of Civil Engineering and Architecture, Zhejiang University, Hangzhou 310058, China
3. Key Laboratory of Offshore Geotechnics and Material of Zhejiang Province, Zhejiang University, Hangzhou 310058, China
 全文: PDF(1093 KB)   HTML
摘要：

简介剪切带扩展法（SBP）的原理及其在海底滑坡稳定性分析的应用；以舟山六横岛典型海底斜坡为分析案例，开展基于高斯函数的SBP和极限平衡法（LEM）斜坡稳定性对比分析研究；进行SBP输入参数对剪切带扩展系数R的敏感度分析. 研究结果显示，对于斜坡剪切带破坏长度，当剪切带扩展系数R不大于1时，LEM与SBP得到的滑坡滑裂面区域一致，当R大于1时，SBP计算得到的最终滑动区域比LEM计算得到的区域大；在斜坡发生滑动破坏区域SBP比LEM计算得到的安全系数低；地震影响因素和土体特征位移对R的影响较大.
关键词： 海底滑坡;  稳定性分析;  剪切带扩展法（SBP）;  敏感度分析
Abstract:

The principle of shear band propagation method (SBP) and its application in the stability analysis of submarine landslides were briefly introduced. Then, Limit equilibrium method（LEM）and the SBP based on the Gauss formula were used to analyze the stability of a typical submarine slope in Liuheng island, Zhoushan, China. Finally, parametric studies were carried out to investigate the effects of input parameters of the SBP on the shear band propagation coefficient R. Results show that when R no more than 1, the failure length of the slope shear zone obtained by the LEM is the same as that of the SBP. However, when R more than 1, the failure length of the slope shear zone calculated by the SBP is larger than that calculated by the LEM. Besides, it can be seen that the factor of safety calculated by the SBP is lower than that of the LEM in the failure zone of the slope. It is found that both the seismic factors and characteristic displacement have a great influence on R values.
Key words: submarine landslide    stability analysis    shear band propagation method (SBP)    sensitivity analysis
收稿日期: 2020-07-24 出版日期: 2021-07-05
CLC:  P 751
基金资助: 国家自然科学基金资助项目（51939010）；中央高校基本科研业务费专项资金资助项目（2021QNA4037）
作者简介: 沈佳轶（1983—），男，副教授，从事岩土工程研究. orcid.org/0000-0001-6967-1468. E-mail： jiayi@zju.edu.cn
服务　　
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章　　
沈佳轶
库猛
王立忠

引用本文:

沈佳轶,库猛,王立忠. 基于剪切带扩展法的海底斜坡稳定性分析[J]. 浙江大学学报(工学版), 2021, 55(7): 1299-1307.

Jia-yi SHEN,Meng KU,Li-zhong WANG. Stability analyses of submarine slopes based on shear band propagation method. Journal of ZheJiang University (Engineering Science), 2021, 55(7): 1299-1307.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2021.07.009    或    https://www.zjujournals.com/eng/CN/Y2021/V55/I7/1299

图 1  应力应变关系与不稳定带示意图
图 2  海底斜坡剪切带与切应力比分布[22]

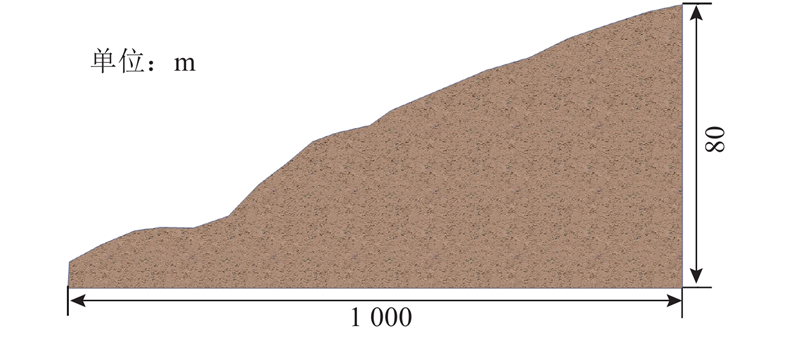

图 3  六横岛海底斜坡地形图
参数类型 参数 符号/单位 取值
地震参数 地震影响系数 kh 0.08
地震折减系数 δd 0.6
土体物理力学参数 不排水抗剪强度系数 k 0.25
峰值抗剪强度/残余抗剪强度 s 5.0
土体的特征位移 $\bar \delta $/m 0.5
归一化超孔隙水压力 ru 0.0
土体的有效重度 γ′/（kN·m?3） 8.0
加荷弹性模量 E1 300τp
卸荷弹性模量 Eu 600τp
表 1  SBP输入参数取值
图 4  海底斜坡高斯函数曲线拟合图
图 5  切应力比分布图
图 6  海底斜坡安全系数分布图

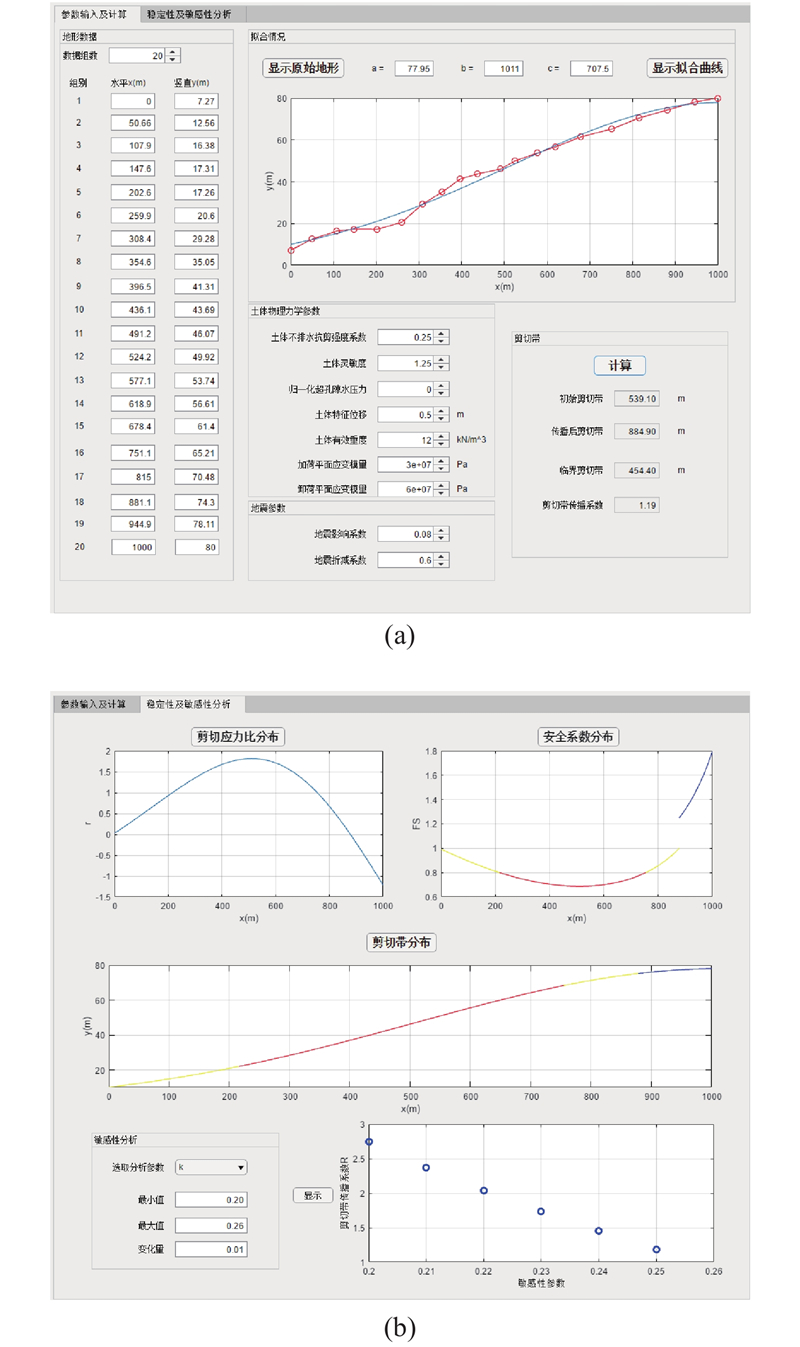

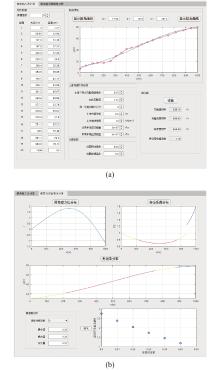

图 7  基于SBP的海底斜坡稳定性分析程序界面
参数 符号/单位 取值范围
不排水抗剪强度系数 k 0.23~0.27
峰值抗剪强度/残余抗剪强度 s 4~8
地震影响系数 kh 0.06~0.10
地震折减系数 δd 0.45~0.65
土体特征位移 $\bar \delta $/m 0.2~1.0
土体的有效重度 γ′/（kN·m?3） 8~12
表 2  SBP输入参数的取值范围

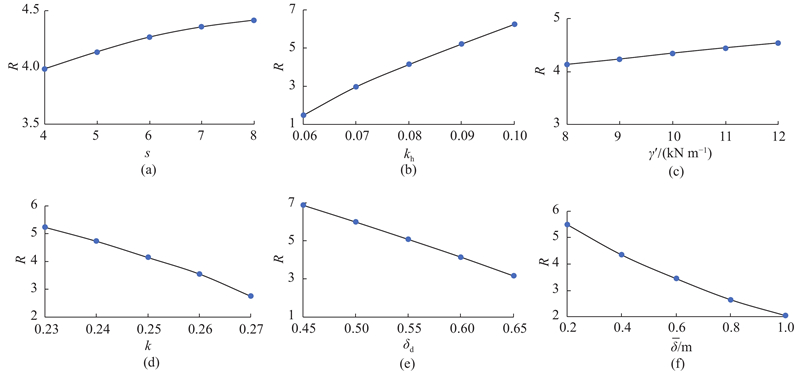

图 8  SBP输入参数对剪切带扩展系数的影响
参数 符号/单位 $\overline S \ $
地震影响系数 kh 1.14
地震折减系数 δd 1.07
土体特征位移 $\bar \delta $/m 0.85
不排水抗剪强度系数 k 0.48
土体有效重度 γ′/（kN·m?3） 0.23
峰值抗剪强度/残余抗剪强度 s 0.09
表 3  SBP输入参数的平均敏感度系数
