A rapid reconstruction method of simulation model based on point cloud and design model

doi:10.3785/j.issn.1008-973X.2021.05.011

Journal of ZheJiang University (Engineering Science)

2021, Vol. 55

Issue (5): 905-916 DOI: 10.3785/j.issn.1008-973X.2021.05.011

A rapid reconstruction method of simulation model based on point cloud and design model

Jun CAI1(

),Gang ZHAO1,2,Yong YU1,3,*(

),Qiang-wei BAO1,Sheng DAI1

1. School of Mechanics and Automation, Beihang University, Beijing 100191, China
2. Key Laboratory of Aeronautics Smart Manufacturing, Beihang University, Beijing 100191, China
3. Beijing Engineering Technological Research Center of High-Efficient and Green CNC Machining Process, Beijing 100191, China

Download:

HTML

PDF(1861KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

The high fidelity of CAD model in simulation test has been unsatisfied with the continuous improvement of product assembly quality requirements. A rapid reconstruction method of simulation model based on point cloud and design model was proposed in order to express the actual machining quality of parts quickly and accurately in the simulation experiment. The method of "one-plane and two-hole registration" was adopted to register the measured point cloud data to the design model. The control vertices in the boundary of the design model were extracted for surface reconstruction. Non-uniform rational B-spline (NURBS) method was used to fit the surface. The partial and efficient replacement of the model surface was realized, which combined boundary representation (BREP) and constructive solid geometry (CSG), with the simulation requirements. A rapid reconstruction module based on actual measured point cloud and design model, and a digital preinstalled module based on extensible markup language (XML) and fully features matched, were developed in CATIA. The reconstruction accuracy and efficiency of the proposed method, as well as its high efficiency and accuracy in the simulation of preassembly, were verified by taking a typical part of an aviation enterprise and assembly of aircraft door as examples.

Key words： point cloud refactoring point cloud registration point cloud extraction non-uniform?rational?B-spline?(NURBS) surface replacement

Received: 29 April 2020 Published: 10 June 2021

CLC:

TP 391

Fund: 工信部2017民用飞机专项科研技术资助项目

Corresponding Authors: Yong YU E-mail: 15600260806@163.com;yuyong@buaa.edu.cn

	Service
	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Jun CAI
	Gang ZHAO
	Yong YU
	Qiang-wei BAO
	Sheng DAI

Cite this article:

Jun CAI,Gang ZHAO,Yong YU,Qiang-wei BAO,Sheng DAI. A rapid reconstruction method of simulation model based on point cloud and design model. Journal of ZheJiang University (Engineering Science), 2021, 55(5): 905-916.

URL:

http://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2021.05.011 OR http://www.zjujournals.com/eng/Y2021/V55/I5/905

基于点云和设计模型的仿真模型快速重构方法

随着产品装配质量要求的不断提高，为了在CAD模型仿真试验中快速且准确地表达零件实际加工质量，提出基于点云和设计模型的仿真模型快速重构方法. 采用“一面两孔配准”方法，将零件实测点云数据配准到设计模型上；根据设计模型边界提取出曲面重构所需的控制顶点；采用非均匀有理B样条（NURBS）方法对控制顶点进行曲面拟合；根据仿真需求，结合边界表示法（BREP）和构造实体表示法（CSG）实现模型表面的局部和快速替换. 在CATIA中开发基于实测点云数据和设计模型的仿真模型快速重构模块，和基于可拓展标记语言（XML）和特征完全匹配的数字预装配模块. 以某航空企业典型零件和舱门预装配为例，验证该方法的重构精度和效率及其在预装配仿真中的高效性和准确性.

关键词： 点云重构, 点云配准, 点云提取, 非均匀有理 B 样条（NURBS）, 曲面替换

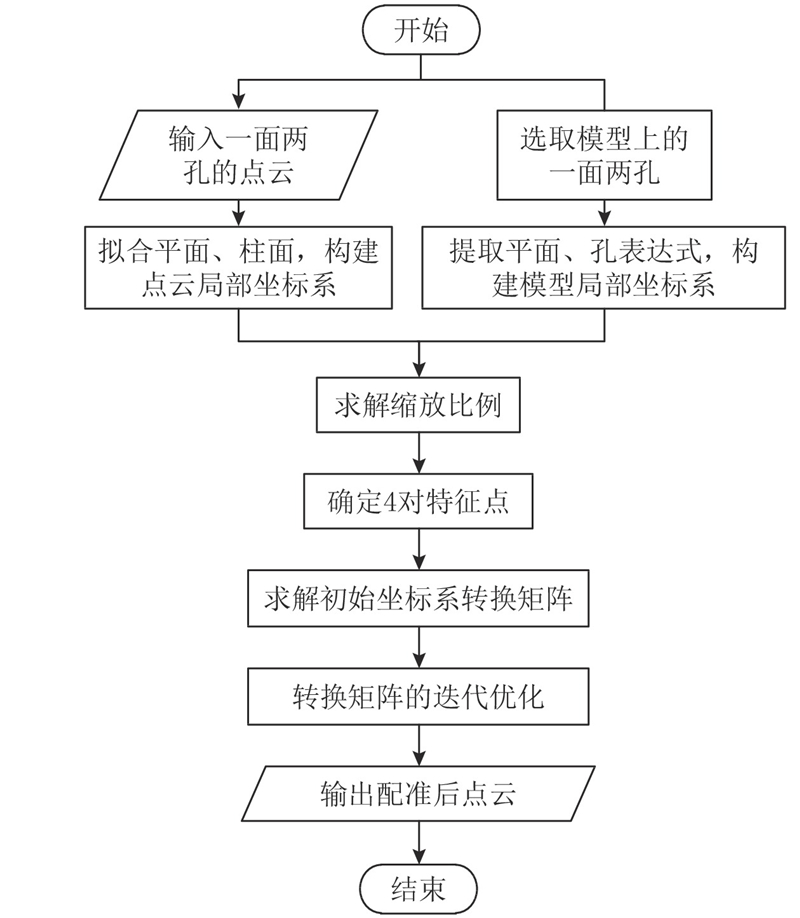

Fig.1 Point cloud registration flow chart based on one plane and two holes

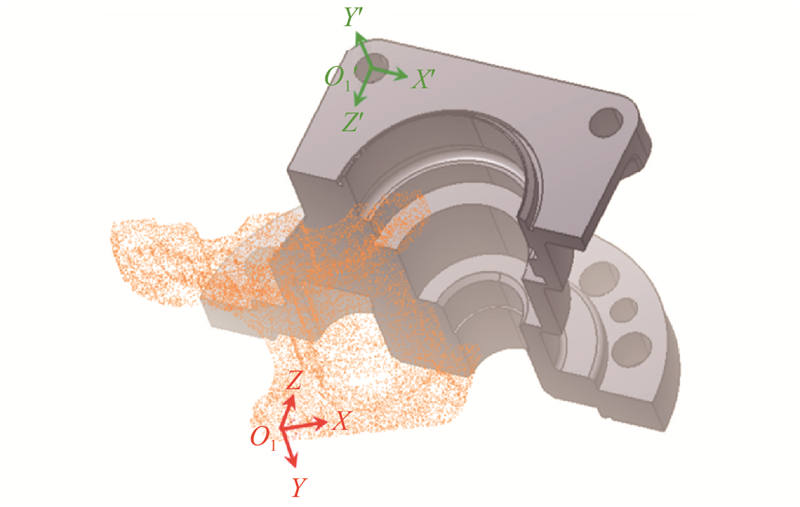

Fig.2 Local coordinates creating on point cloud and model

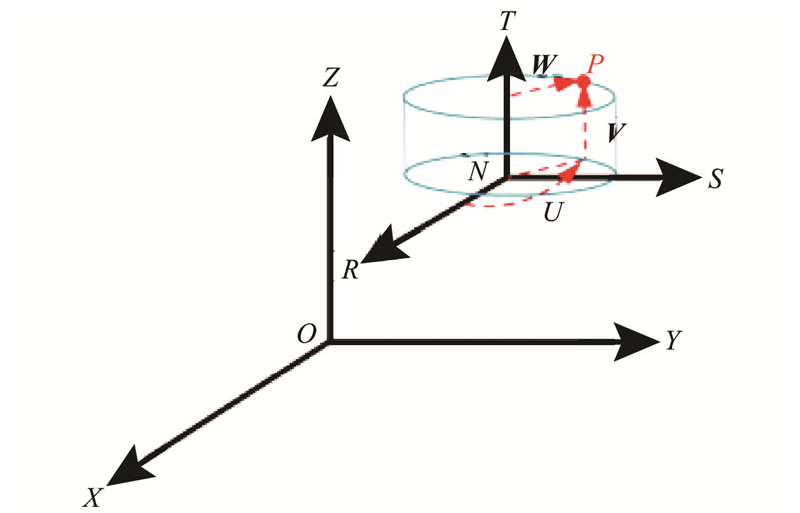

Fig.3 Transformation of coordinate system of target point

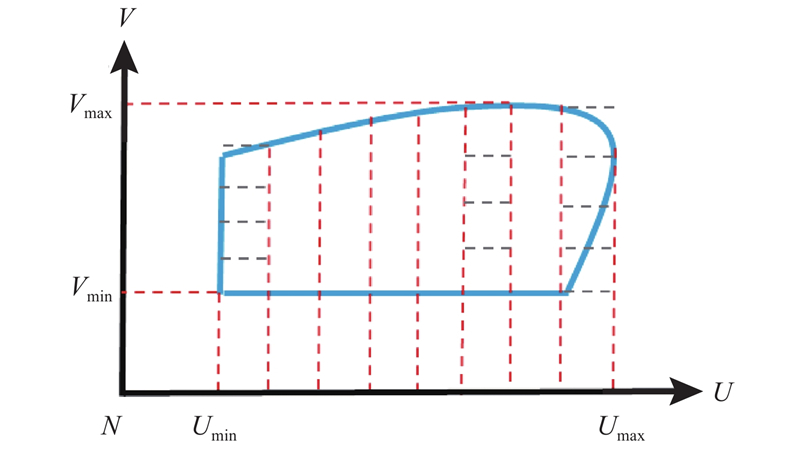

Fig.4 Uniform grid boxes creation on NUV plane

Fig.5 Flow of surface replacement based on BREP/CSG

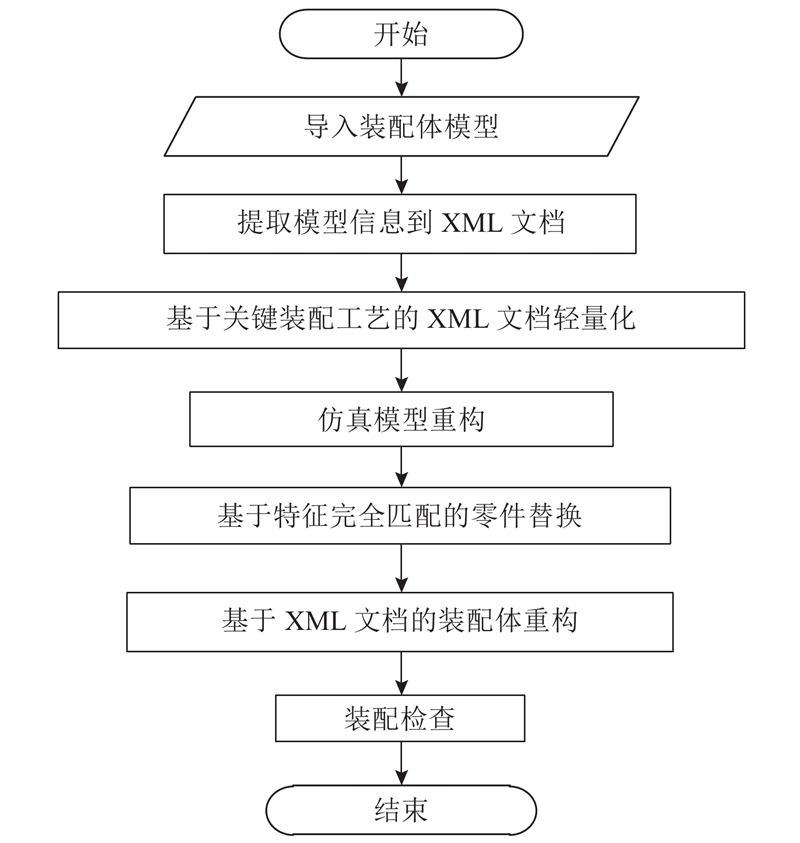

Fig.6 Flow of simulation for digital preassembly

Tab.1 Extraction of assembly information

Fig.7 XML document recording assembly information

Tab.2 Shape features and matching parameters

Tab.3 Development environment and tools for component

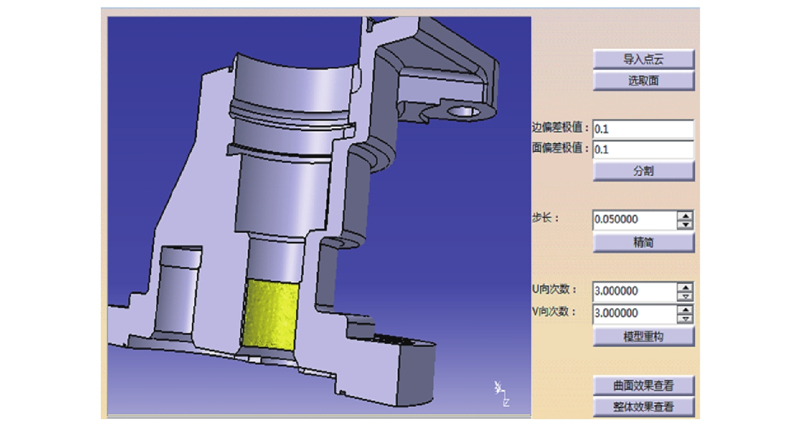

Fig.8 Interface of design model reconstruction based on CAA development

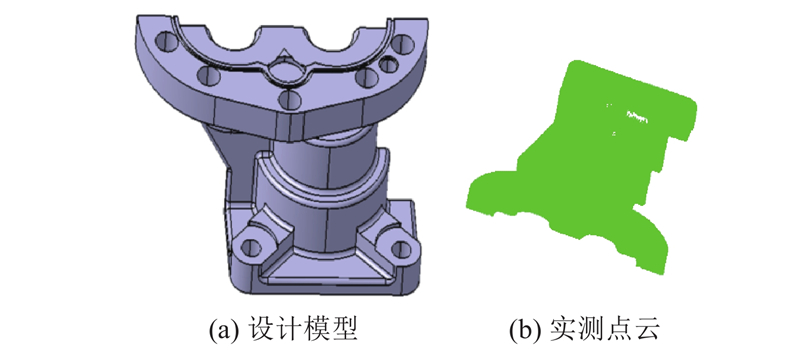

Fig.9 Measured point cloud data of test part

Tab.4 Technical parameters of PTS-HS717 handheld 3D laser scanner

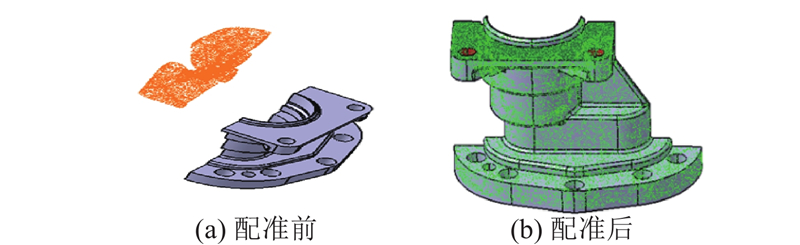

Fig.10 Schematic diagram of ane-plane and two-hole registration

Fig.11 Results of point cloud segmentation

Fig.12 Comparison of point cloud simplification effect

Fig.13 Reconstructed NURBS surface

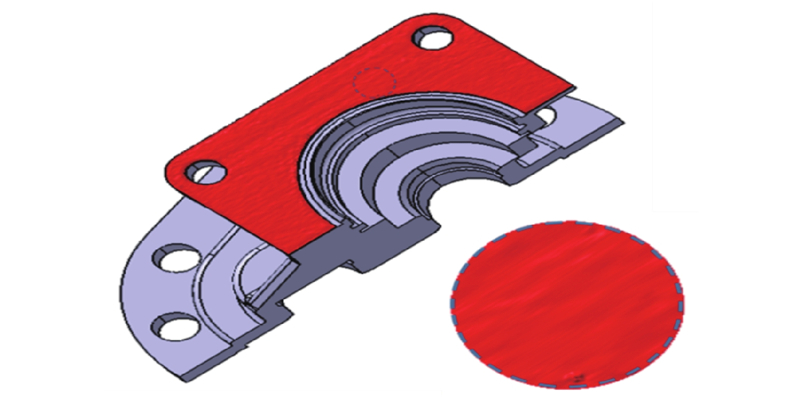

Fig.14 Substitution of NURBS surface

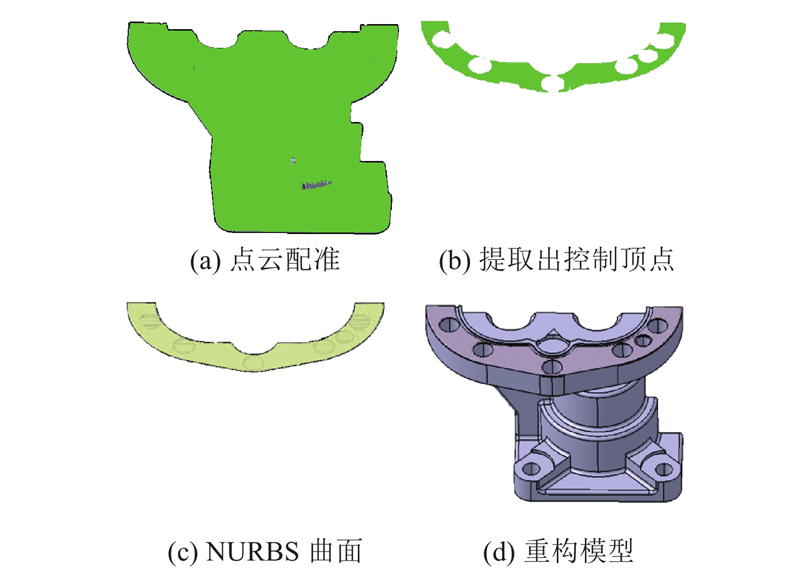

Fig.15 Traditional flow of model reconstruction

Fig.16 Improved flow of model reconstruction

Tab.5 Time table for different refactoring methods

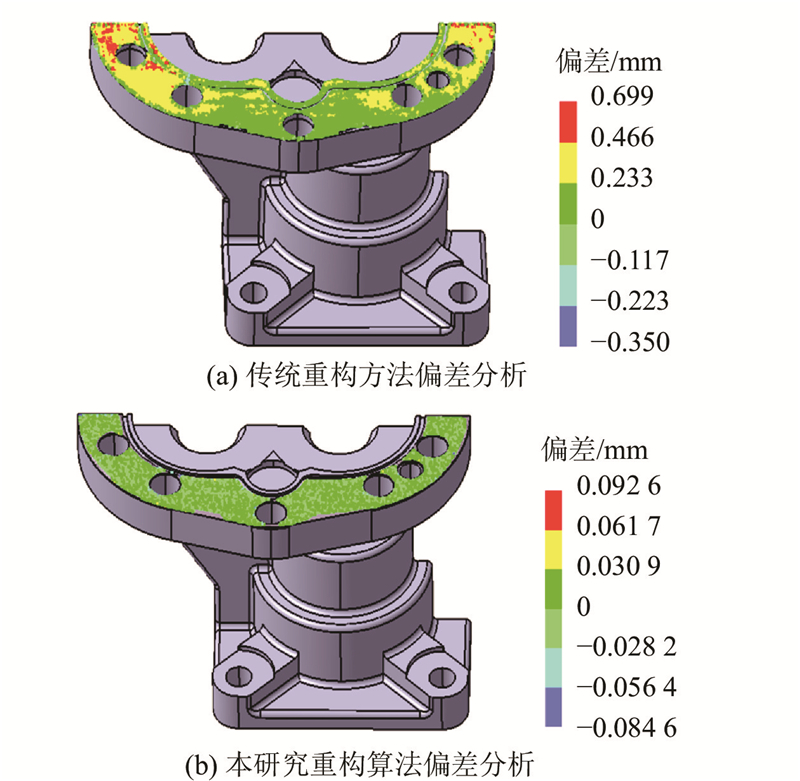

Fig.17 Deviation analysis of different reconstruction methods

Tab.6 Key parts accuracy requirements for aircraft door assembly

Fig.18 Model of aircraft door assembly

Fig.19 XML document lightweighted

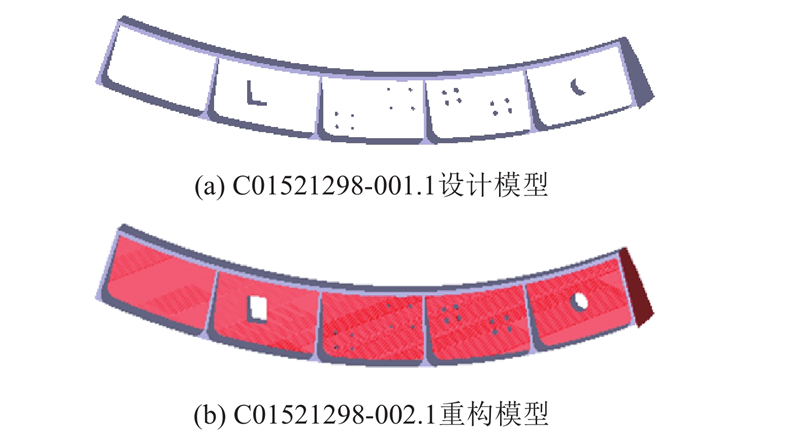

Fig.20 Model comparison diagram before and after reconstruction

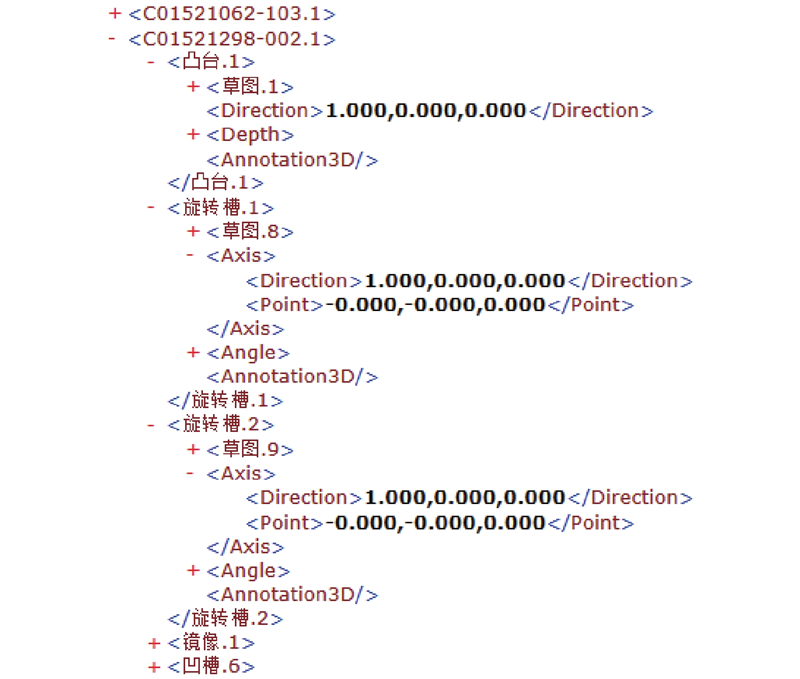

Fig.21 XML document after replacement of part

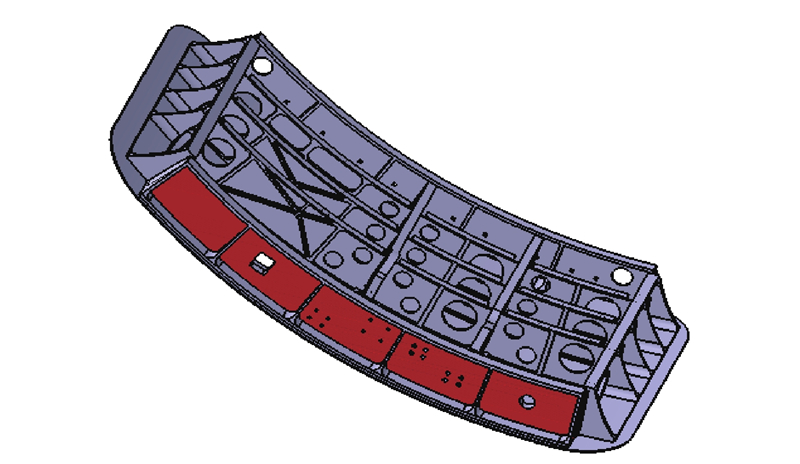

Fig.22 Aircraft door assembly with side wall reconstruction

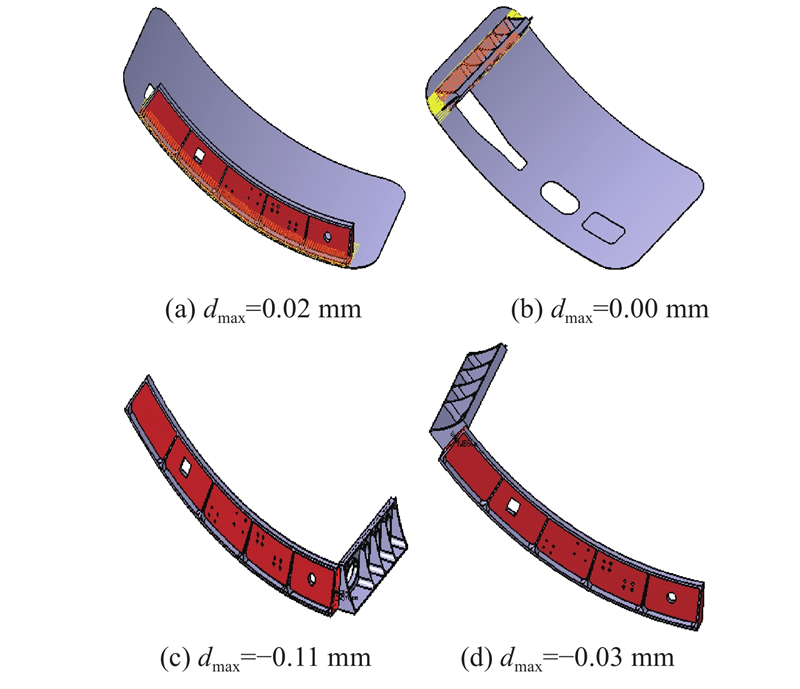

Fig.23 Interference analysis of aircraft door assembly

Tab.7 Data of aircraft door pre-installation


[1]	张哲, 许宏丽, 尹辉一种基于关键点选择的快速点云配准算法[J]. 激光与光电子学进展, 2017, 54 (12): 155- 163 ZHANG Zhe, XU Hong-li, YIN Hui A fast point cloud registration algorithm based on key point selection[J]. Laser and Optoelectronics Progress, 2017, 54 (12): 155- 163

[2]	杨明, 张冰, 王子才建模与仿真技术发展趋势分析[J]. 系统仿真学报, 2004, (9): 1901- 1913 YANG Ming, ZHANG Bing, WANG Zi-cai The analysis of modeling and simulation development direction[J]. Journal of System Simulation, 2004, (9): 1901- 1913 doi: 10.3969/j.issn.1004-731X.2004.09.014

[3]	侯志霞. 民用飞机零部件制造过程数字孪生模型构建及应用[M]. 北京: 中国航空制造技术研究院, 2018.

[4]	OWEN S J, STATEN M L, CANANN S A, et al Q-Morph: an indirect approach to advancing front quad meshing[J]. International Journal for Numerical Methods in Engineering, 1999, 44: 1317- 1340 doi: 10.1002/(SICI)1097-0207(19990330)44:9<1317::AID-NME532>3.0.CO;2-N

[5]	王伟杰. 网格转化算法及复杂曲面重构研究[D]. 江西: 南昌大学, 2015. WANG Wei-jie. The research of mesh conversion algorithm and complex surface reconstruction[D]. Jiangxi: Nanchang University, 2015.

[6]	MA W, KRUTH J P NURBS curve and surface fitting for reverse engineering[J]. The International Journal of Advanced Manufacturing Technology, 1998, 14 (12): 918- 927 doi: 10.1007/BF01179082

[7]	黄建梅. 基于深度图像的快速反求系统数据处理技术的研究[D]. 黑龙江: 哈尔滨理工大学, 2005. HUANG Jian-mei. Research on technology of data processing of the rapid reverse system based on depth image[D]. Heilongjiang: Harbin University of Science and Technology, 2005.

[8]	张甜田. 基于分割点云的NURBS曲面三维重构方法研究[D]. 北京: 北京工业大学, 2013. ZHANG Tian-tian. Research on the three-dimensional reconstruction of NURBS surface based on the segmentation of point cloud[D]. Beijing: Beijing University of Technology, 2013.

[9]	DONG Y D, SU F, SUN G J, et al A feature-based method for tire pattern reverse modeling[J]. Advances in Engineering Software, 2018, 124: 73- 89 doi: 10.1016/j.advengsoft.2018.08.008

[10]	王海舟, 张丽艳, 周良明, 等批量复杂结构毛坯的快速逆向建模技术研究[J]. 中国机械工程, 2014, 25 (14): 1935- 1940 WANG Hai-zhou, ZHANG Li-yan, ZHOU Liang-ming, et al Rapid reverse modeling of batched complex blanks[J]. China Mechanical Engineering, 2014, 25 (14): 1935- 1940 doi: 10.3969/j.issn.1004-132X.2014.14.018

[11]	江旭, 耿楠, 张志毅, 等基于假设检验匹配约束的点云配准算法研究[J]. 计算机应用研究, 2020, (3): 1- 8 JIANG Xu, GENG Nan, ZHANG Zhi-yi, et al Research of point cloud registration algorithm based on hypothesis test matching constraints[J]. Application Research of Computers, 2020, (3): 1- 8

[12]	BESL P J A method for registration of 3D shapes[J]. IEEE Transactions on Pattern Analysis and Machine Intelligence, 1992, 14 (3): 239- 256

[13]	杨长强, 叶泽田一种基于点对应的激光扫描仪外方位参数检校方法[J]. 测绘科学, 2011, 36 (5): 190- 192 YANG Chang-qiang, YE Ze-tian A calibration method for laser scanner's external orientation by corresponding points[J]. Science of Surveying and Mapping, 2011, 36 (5): 190- 192

[14]	陈广锋, 刘文剑, 金天国工件定位特征识别与定位方案自动推理算法[J]. 哈尔滨工业大学学报, 2005, (2): 238- 241 CHEN Guang-feng, LIU Wen-jian, JIN Tian-guo Focating feature recognition and locating design automation[J]. Journal of Harbin Institute of Technology, 2005, (2): 238- 241 doi: 10.3321/j.issn:0367-6234.2005.02.027

[15]	高瑞, 李泷杲, 黄翔, 等复杂曲面零件散乱点云特征点提取[J]. 航空制造技术, 2017, (13): 60- 65 GAO Rui, LI Long-gao, HUANG Xiang, et al Extracting feature points in scattered point cloud of complex surface parts[J]. Aeronautical Manufacturing Technology, 2017, (13): 60- 65

[16]	周培德. 计算几何: 算法设计与分析[M]. 北京: 清华大学出版社, 2008.

[17]	陈瑞卿, 周健, 虞烈一种判断点与多边形关系的快速算法[J]. 西安交通大学学报, 2007, 41 (1): 59- 63 CHEN Rui-qing, ZHOU Jian, YU Lie Fast method to determine spatial relationship between point and polygon[J]. Journal of Xi'an Jiaotong University, 2007, 41 (1): 59- 63 doi: 10.3321/j.issn:0253-987X.2007.01.014

[18]	MARTIN R R, STROUD I A, MARSHAL A D. Data reduction for reverse engineering[M]. Budapest: Computer and Automation Institute of Hungarian Academy of Science, 1996.

[19]	施法中. 计算机辅助几何设计与非均匀有理B样条[M]. 北京: 高等教育出版社, 2001.

[20]	李圆, 张献州, 陈霄, 等基于NURBS的轨道板点云外形尺寸检测研究[J]. 铁道标准设计, 2020, 64 (3): 48- 53 LI Yuan, ZHANG Xiang-zhou, CHEN Xiao, et al Research on track slab point cloud dimensional deviation inspection based on NURBS[J]. Railway Standard Design, 2020, 64 (3): 48- 53

[21]	VERGEEST S M CAD surface data exchang using STEP[J]. Computer Aided Design, 1991, 23 (4): 269- 281 doi: 10.1016/0010-4485(91)90067-7

[22]	PIEGL L Modifying the shape of rational B-splines, part 2: surface[J]. Computer-Aided Design, 1989, 21 (9): 538- 546 doi: 10.1016/0010-4485(89)90014-6

[23]	DAUM S, BORRMANN A Processing of topological BIM queries using boundary representation based methods[J]. Elsevier Journal of Advanced Engineering Informatics, 2014, 6 (1): 273- 287

[24]	罗振伟, 梅中义基于测量数据的飞机数字化预装配技术[J]. 航空制造技术, 2013, (20): 99- 102 LUO Zhen-wei, MEI Zhong-yi Aircraft digital preassembly technology based on measured data[J]. Aeronautical Manufacturing Technology, 2013, (20): 99- 102 doi: 10.3969/j.issn.1671-833X.2013.20.019

[25]	张敏, 田锡天, 耿俊浩, 等基于预装配精度分析的飞机关键装配工序质量控制技术[J]. 航空制造技术, 2019, 62 (5): 51- 56 ZHANG Min, TIAN Xi-tian, GEN Jun-hao, et al Quality control technology for key assembly procedure of aircraft based on preassembly precision analysis[J]. Aeronautical Manufacturing Technology, 2019, 62 (5): 51- 56

[26]	产品几何技术规范(GPS) 几何公差检测与验证: GB/T 1958—2017 [S]. 北京: 中国国家标准化管理委员会, 2017.

[27]	李剑. 基于激光测量的自由曲面数字化制造基础技术研究[D]. 杭州: 浙江大学, 2008. LI Jian. Research on the digital manufacturing technology of free from surface based on laser measurement[D]. Hangzhou: Zhejiang University, 2008.
