Adaptive monocular 3D object detection algorithm based on spatial constraint
Jun-ning ZHANFG1(),Qun-xing SU1,2,*(),Peng-yuan LIU1,Zheng-jun WANG3,Hong-qiang GU1
1. Missile Engineering Department, Army Engineering University, Shijiazhuang 050003, China
2. Army Command Academy, Nanjing 210000, China
3. 32181 Troops, Shijiazhuang 050003, China
Download: HTML     PDF(1050KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

The 3D-Cube algorithm without prior template matching was introduced, and an algorithm for adaptive detection of 3D objects was proposed. Firstly, the relationship among the camera, the object and the VP vanishing point was established, according to the transformation relationship between the world coordinate system, the camera and the moving target. By combining the spatial constraint relationship, a space constrained M-estimator sample and consensus (MSAC) algorithm was proposed to improve the robustness in complex scenes. To improve the accuracy of 3D frame estimation, an adaptive method of 3D frame corner estimation was proposed based on the VP perspective relationship. The 3D bounding box of the target object could be detected quickly by building the spatial constraint relation between 3D contour and 2D frame of the target. The experimental results show that the proposed method has the advantages of high accuracy and real-time performance, compared with other algorithms in indoor scenes, which also has better accuracy and robustness in outdoor scene experiment.

Key words： 3D target detection      perspective principle      vanishing point (VP)      space constraint      M-estimator sample and consensus (MSAC) algorithm
Received: 08 May 2019      Published: 06 July 2020
CLC:  TP 242.6
Corresponding Authors: Qun-xing SU     E-mail: zjn20101796@sina.cn;374027210@qq.com
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Jun-ning ZHANFG
Qun-xing SU
Peng-yuan LIU
Zheng-jun WANG
Hong-qiang GU
Cite this article:

Jun-ning ZHANFG,Qun-xing SU,Peng-yuan LIU,Zheng-jun WANG,Hong-qiang GU. Adaptive monocular 3D object detection algorithm based on spatial constraint. Journal of ZheJiang University (Engineering Science), 2020, 54(6): 1138-1146.

URL:

http://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2020.06.010     OR     http://www.zjujournals.com/eng/Y2020/V54/I6/1138


基于空间约束的自适应单目3D物体检测算法

引入无须先验模版匹配的3D目标检测算法，通过简化消失点（VP）计算和改进角点提取等步骤，提出一种自适应的单目3D物体检测算法. 针对复杂场景下VP 计算易受干扰的问题，根据室内场景中世界坐标系、相机以及目标物体之间的空间关系，建立目标、相机偏航角与VP之间的约束模型，提出一种基于空间约束的 M 估计子抽样一致性（MSAC）消失点计算方法；为了提高3D框的估计精度，在VP透视关系的基础上，提出一种自适应估计3D框角点的方法，通过建立目标3D轮廓线与2D框的空间约束关系，实现目标物体的3D框快速检测. 相关数据集的实验结果表明，所提方法相比于其他算法不仅在室内场景下具有估计精度高、实时性好的优势，而且在室外场景实验下也具有更好的精度和鲁棒性.


关键词： 3D目标检测,  透视原理,  消失点（VP）,  空间约束,  M 估计子抽样一致性（MSAC）算法
Fig.1 Transformation relationship between world coordinate system, camera coordinate system, and target coordinate system

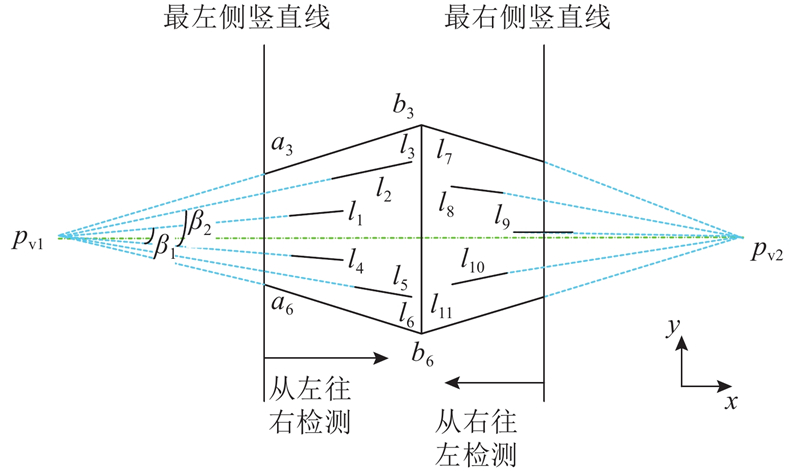

Fig.2 Schematic diagram of opening and closing degree and tolerance capability of straight lines

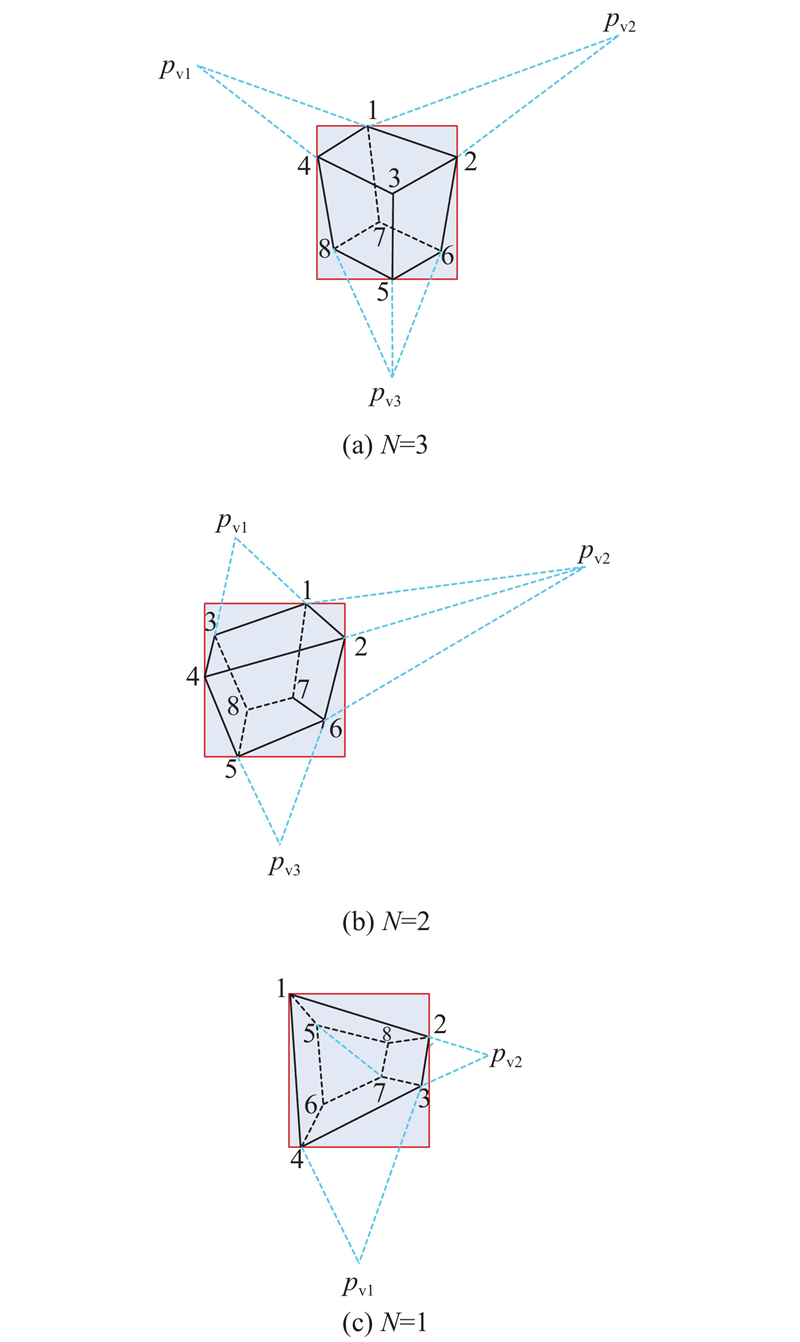

Fig.3 Target 3D bounding box estimation based on vanishing point (VP)

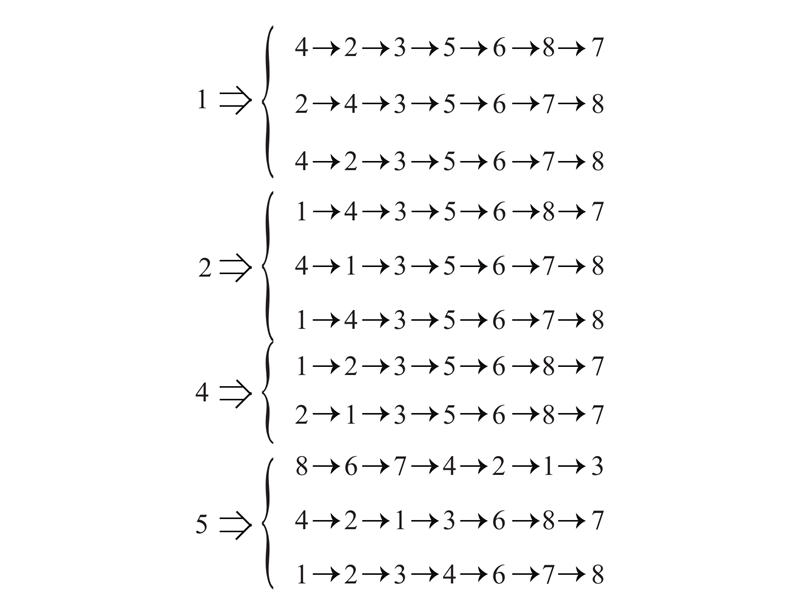

Fig.4 Corner solution order in different cases
%
算法 $600 \times 450$ $500 \times 375$ $400 \times 300$ $300 \times 224$
MSAC 0.074 0.085 0.091 0.098
3D-Cube[21] 0.053 0.062 0.070 0.074
本文算法 0.051 0.059 0.067 0.072
Tab.1 Error rate of VP calculated by different algorithms
ms
算法 $600 \times 450$ $500 \times 375$ $400 \times 300$ $300 \times 224$
MSAC 72 57 45 39
3D-Cube[22] 163 128 96 77
本文算法 102 82 67 58
Tab.2 Calculation time of VP by different algorithms
算法 IOU Nt
注：1）表示仅对前10个目标提案进行结果分析
Primitive[26] 0.36 125
3dgp[27] 0.42 221
3D-Cube[22] 0.40 1904
3D-Cube1) 0.48 270
本文算法 0.42 1958
本文算法1) 0.51 320
Tab.3 Comparison of detection accuracy and quantity of different algorithms in Sun RGB-D data set

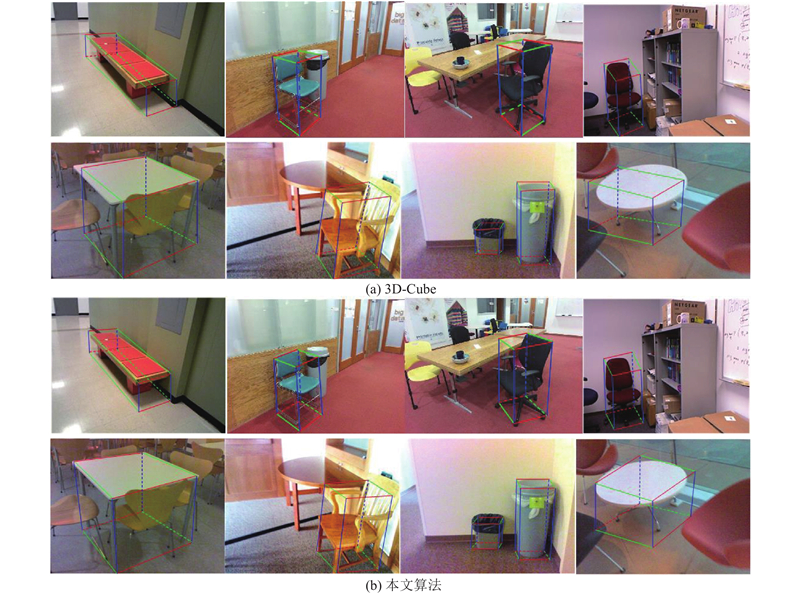

Fig.5 Visualization of 3D detection effect via different algorithms
算法 IoU Nt
注：1）表示仅对前10个目标提案进行结果分析
Deep[28] 0.33 10 957
SUBCNN[29] 0.21 8 730
3D-Cube[22] 0.20 10 571
3D-Cube1） 0.36 10 571
本文算法 0.21 10 593
本文算法1） 0.38 10 593
Tab.4 Comparison of detection accuracy and quantity of different algorithms on KITTI dataset
Fig.6 Visualization of 3D detection effect via different algorithms on KITTI dataset
