浙江大学学报(工学版)  2019, Vol. 53 Issue (8): 1467-1477    DOI: 10.3785/j.issn.1008-973X.2019.08.005
土木与建筑工程
灌溉对西北干旱荒漠区排土场边坡稳定的影响—以乌海市新星煤矿为例
邱驰1,2(),黄建坤1,2,胡雨村1,2,*(),郭小平1,3,胡云卿4
1. 北京林业大学 水土保持学院 水土保持国家林业局重点实验室,北京 100083
2. 北京林业大学 水土保持学院 土木工程系,北京 100083
3. 北京林业大学 信息学院,北京 100083
4. 中国市政工程华北设计研究总院有限公司,天津 300074
Influence of irrigation on slope stability of dump in arid desert area of Northwest China: a case study of Xinxing coal mine, Wuhai
Chi QIU1,2(),Jian-kun HUANG1,2,Yu-cun HU1,2,*(),Xiao-ping GUO1,3,Yun-qing HU4
1. Key Laboratory of State Forestry Administration on Soil and Water Conservation, School of Soil and Water Conservation, Beijing Forestry University, Beijing 100083, China
2. Department of Civil Engineering, School of Soil and Water Conservation, Beijing Forestry University, Beijing 100083, China
3. School of Information Science and Technology, Beijing Forestry University, Beijing 100083, China
4. North China Municipal Engineering Design and Research Institute Co. Ltd, Tianjin 300074, China
 全文: PDF(1306 KB)   HTML
摘要:

为了揭示我国西北干旱荒漠化地区的煤矿排土场边坡在灌溉作用下的流固耦合力学机制,采用渗流力学理论与岩土力学理论相结合的方法,引入Darcy定律和质量守恒定律进行公式推导以建立流固耦合分析方法. 以乌海市新星煤矿为例,采用ABAQUS有限元软件构建边坡非饱和土的流固耦合稳定性分析模型,根据植被需水量以及降雨强度选定5、20、45、70 mm/h这4种等效灌溉强度并交叉搭配2、9、15 h这3种持续灌溉时间,形成12套灌溉方案进行数值模拟. 将数值结果与已有试验结果进行对比,结果表明,当入渗水量增加,边坡竖向变形位移、孔隙水压力分布、等效塑性应变以及安全系数均往不利于边坡稳定的方向发展. 当等效灌溉强度为70 mm/h、灌溉持续时间为15 h时,边坡竖向位移出现大幅度增长,安全系数急剧降至1.03. 在满足植被生长需水量的条件下,应控制灌溉强度,采用短持续时间、间隔灌溉,减少坡面径流出现的可能性,同时应做好截排水和坡面防护措施.

关键词: 干旱荒漠区煤矿排土场灌溉有限元法边坡稳定
Abstract:

The seepage mechanics theory was combined with the geomechanics theory to reveal the fluid-solid coupling mechanical mechanism of slopes on the coal mine dump under irrigation in an arid desert region of Northwest China. The Darcy law and the mass conservation law both were introduced to derive the fluid-solid coupling analysis method. Taking Xinxing coal mine of Wuhai city as a sample, the finite element software ABAQUS was used to establish the slope stability model of unsaturated soil under the fluid-solid coupling theory. Twelve types of irrigation schemes were used in the numerical simulation by choosing four types of equivalent irrigation intensity (i.e. 5 mm/h, 20 mm/h, 45 mm/h and 70 mm/h) and three sorts of continuous irrigation time (i.e. 2 h, 9 h and 15 h) according to the water requirement of vegetation and the rainfall intensity, respectively. The numerical results were compared with the existing experimental results. Results showed that the four indicators, including vertical deformation of slope, pore water pressure distribution, equivalent plastic strain, and safety factor, developed in the direction which was not conducive to the slope stability when the infiltration water increased. When the equivalent irrigation intensity was 70 mm/h and the irrigation time was 15 h, the vertical deformation of the slope increased significantly and the safety factor decreased rapidly to 1.03. Under the condition of meeting the water requirement of vegetation growth, the irrigation intensity should be controlled, and short duration and interval irrigation should be adopted to reduce the possibility of slope runoff. Simultaneously, the measures of interception and drainage as well as slope protection should be taken.

Key words: arid desert area    coal mine dump    irrigation    finite element method    slope stability
收稿日期: 2018-08-15 出版日期: 2019-08-13
CLC:  TU 457
通讯作者: 胡雨村     E-mail: 18211001780@163.com;huyucun@bjfu.edu.cn
作者简介: 邱驰(1992—),男,硕士生,从事岩土工程研究. orcid.org/0000-0002-5444-6265. E-mail: 18211001780@163.com
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章
邱驰
黄建坤
胡雨村
郭小平
胡云卿

引用本文:

邱驰,黄建坤,胡雨村,郭小平,胡云卿. 灌溉对西北干旱荒漠区排土场边坡稳定的影响—以乌海市新星煤矿为例[J]. 浙江大学学报(工学版), 2019, 53(8): 1467-1477.

Chi QIU,Jian-kun HUANG,Yu-cun HU,Xiao-ping GUO,Yun-qing HU. Influence of irrigation on slope stability of dump in arid desert area of Northwest China: a case study of Xinxing coal mine, Wuhai. Journal of ZheJiang University (Engineering Science), 2019, 53(8): 1467-1477.

链接本文:

http://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2019.08.005        http://www.zjujournals.com/eng/CN/Y2019/V53/I8/1467

图 1  内蒙古乌海市海勃湾区境内新星煤矿第4排土场
参数 数值 参数 数值
ρd/(g?cm?3 1.3 c/kPa 8.5
μ 0.3 φ/(°) 30
E/MPa 17.5 K/(mm·h?1 18
表 1  黄土的物理力学参数

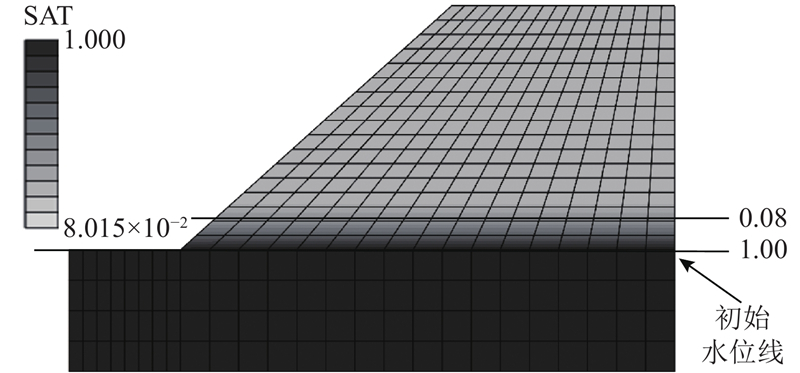

图 2  降雨之前土壤的饱和度分布

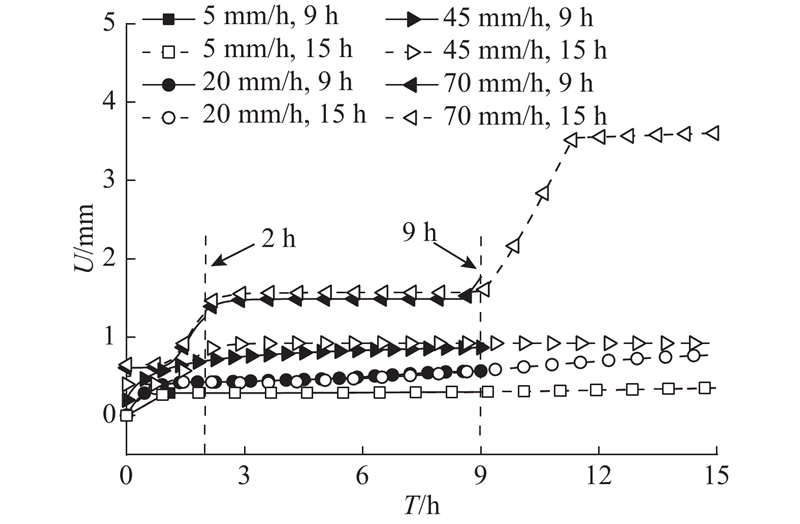

图 3  坡脚节点处的竖向位移随灌溉时间的变化曲线

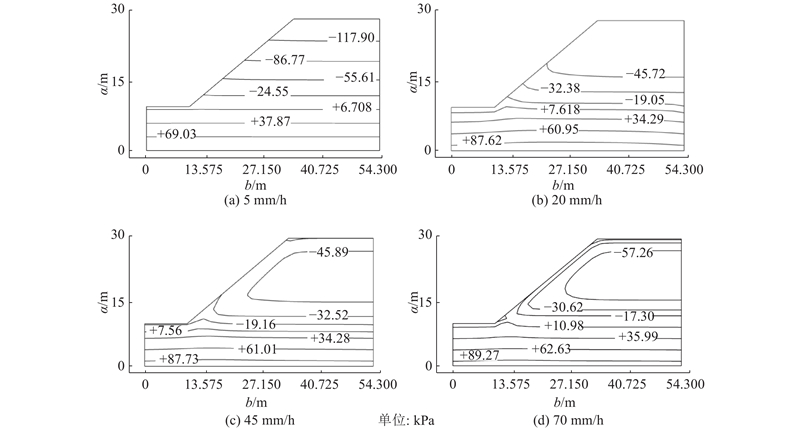

图 4  不同灌溉强度下边坡不同位置处的孔隙水压力

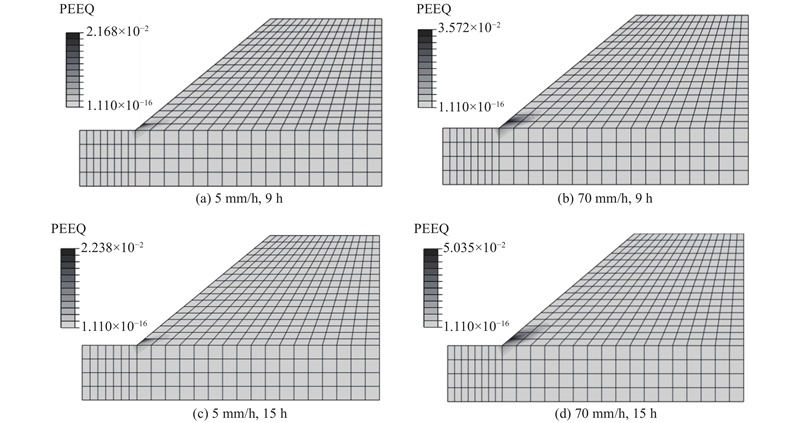

图 5  不同灌溉强度和时间下的等效塑性应变区

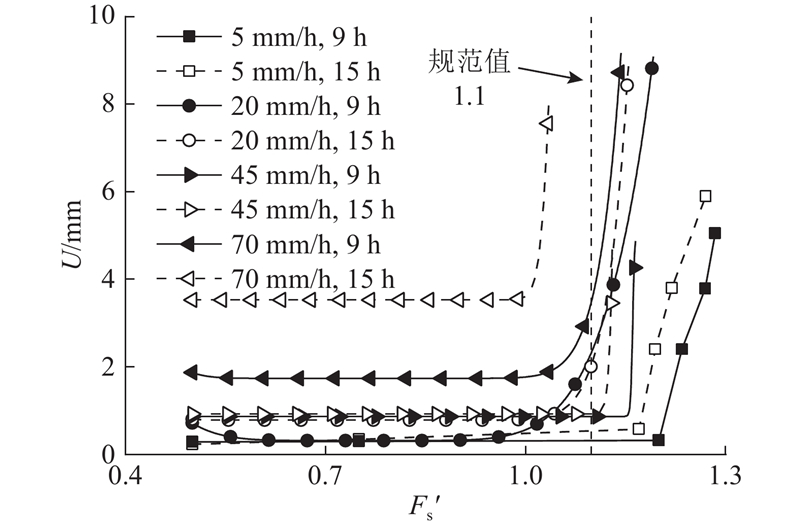

图 6  折减系数随位移的变化关系
工况 Fs
BISHOP SSR
5 mm/h,9 h 1.27 1.28
5 mm/h,15 h 1.25 1.27
20 mm/h,9 h 1.17 1.19
20 mm/h,15 h 1.13 1.16
45 mm/h,9 h 1.12 1.15
45 mm/h,15 h 1.10 1.13
70 mm/h,9 h 1.12 1.14
70 mm/h,15 h 1.01 1.03
表 2  简化BISHOP法和SSR法计算结果的对比
图 7  本研究数值结果与文献[36]试验所得边坡浸润面位置的对比
图 8  本研究数值结果与文献[36]试验所得边坡失稳破坏情况的对比
1 郭小平, 朱金兆, 周心澄, 等 植被护坡技术及其应用[J]. 中国水土保持科学, 2004, 2 (4): 112- 116
GUO Xiao-ping, ZHU Jin-zhao, ZHOU Xin-cheng, et al Technology and application of vegetation slope protection[J]. Science of Soil and Water Conservation, 2004, 2 (4): 112- 116
doi: 10.3969/j.issn.1672-3007.2004.04.022
2 汪海滨, 李小春, 米子军, 等 排土场空间效应及其稳定性评价方法研究[J]. 岩石力学与工程学报, 2011, 30 (10): 2103- 2111
WANG Hai-bin, LI Xiao-chun, MI Zi-jun, et al Researches on space effect of waste dumps and its stability evaluation method[J]. Chinese Journal of Rock Mechanics and Engineering, 2011, 30 (10): 2103- 2111
3 关军洪, 郝培尧, 董丽, 等 矿山废弃地生态修复研究进展[J]. 生态科学, 2017, 36 (2): 193- 200
GUAN Jun-hong, HAO Pei-yao, DONG Li, et al Review on ecological restoration of mine wasteland[J]. Ecological Science, 2017, 36 (2): 193- 200
4 杨天鸿, 张锋春, 于庆磊, 等 露天矿高陡边坡稳定性研究现状及发展趋势[J]. 岩土力学, 2011, 32 (5): 1437- 1451
YANG Tian-hong, ZHANG Feng-chun, YU Qing-lei, et al Research situation of open-pit mining high and steep slope stability and its developing trend[J]. Rock and Soil Mechanics, 2011, 32 (5): 1437- 1451
doi: 10.3969/j.issn.1000-7598.2011.05.025
5 姚环, 郑振, 简文彬, 等 公路岩质高边坡稳定性的综合评价研究[J]. 岩土工程学报, 2006, 28 (5): 558- 563
YAO Huan, ZHENG Zhen, JIAN Wen-bin, et al Comprehensive evaluation and research on stability of high lithological slope of expressway[J]. Chinese Journal of Geotechnical Engineering, 2006, 28 (5): 558- 563
doi: 10.3321/j.issn:1000-4548.2006.05.003
6 高华喜, 殷坤龙 降雨与滑坡灾害相关性分析及预警预报阀值之探讨[J]. 岩土力学, 2007, 28 (5): 1055- 1060
GAO Hua-xi, YIN Kun-long Discuss on the correlations between landslides and rainfall and threshold for landslide early-warning and prediction[J]. Rock and Soil Mechanics, 2007, 28 (5): 1055- 1060
doi: 10.3969/j.issn.1000-7598.2007.05.039
7 CHEN H, LEE C F, LAW K T Causative mechanisms of rainfall-induced fill slope failures[J]. Journal of Geotechnical and Geoenvironmental Engineering, 2004, 130 (6): 593- 602
doi: 10.1061/(ASCE)1090-0241(2004)130:6(593)
8 倪九派, 高明, 魏朝富, 等 土壤含水率对浅层滑坡体不同层次土壤抗剪强度的影响[J]. 水土保持学报, 2009, 23 (6): 48- 50
NI Jiu-pai, GAO Ming, WEI Chao-fu, et al Effects of soil water content on soil shearing strength to different soil layer of shallow landslide[J]. Journal of Soil and Water Conservation, 2009, 23 (6): 48- 50
doi: 10.3321/j.issn:1009-2242.2009.06.012
9 江浩浩, 董希斌, 王海飙 边坡土壤含水率对不同植被土壤抗剪强度的影响[J]. 森林工程, 2009, 25 (3): 77- 80
JIANG Hao-hao, DONG Xi-bin, WANG Hai-biao Effects of slope soil water content on soil shear strength of different vegetation[J]. Forest Engineering, 2009, 25 (3): 77- 80
doi: 10.3969/j.issn.1001-005X.2009.03.019
10 李汝成, 王复明 降雨入渗对泥岩-土混填路堤稳定性的影响[J]. 岩石力学与工程学报, 2008, 27 (11): 2260- 2266
LI Ru-cheng, WANG Fu-ming Effect of rainfall infiltration on stability of mudstone-soil mixture embankment[J]. Chinese Journal of Rock Mechanics and Engineering, 2008, 27 (11): 2260- 2266
doi: 10.3321/j.issn:1000-6915.2008.11.012
11 GHASEMZADEH H, AMIRI S A G A hydro-mechanical elastoplastic model for unsaturated soils under isotropic loading conditions[J]. Computers and Geotechnics, 2013, 51 (3): 91- 100
12 DAVIES O, ROUAINIA M, GLENDINNING S, et al Investigation of a pore pressure driven slope failure using a coupled hydro-mechanical model[J]. Engineering Geology, 2014, 178 (8): 70- 81
13 WANG B, VARDON P J, HICKS M A Rainfall-induced slope collapse with coupled material point method[J]. Engineering Geology, 2018, 239 (1): 1- 12
14 张晓咏, 戴自航 应用ABAQUS程序进行渗流作用下边坡稳定分析[J]. 岩石力学与工程学报, 2010, 29 (增1): 2927- 2934
ZHANG Xiao-yong, DAI Zi-hang Analysis of slope stability under seepage by using ABAQUS program[J]. Chinese Journal of Rock Mechanics and Engineering, 2010, 29 (增1): 2927- 2934
15 SALCIARINI D, GODT J W, SAVAGE W Z, et al Modeling regional initiation of rainfall-induced shallow landslides in the eastern Umbria region of central Italy[J]. Landslides, 2006, 3 (3): 181- 194
doi: 10.1007/s10346-006-0037-0
16 戚国庆, 黄润秋, 速宝玉, 等 岩质边坡降雨入渗过程的数值模拟[J]. 岩石力学与工程学报, 2003, 22 (4): 625- 629
QI Guo-qing, HUANG Run-qiu, SU Bao-yu, et al Numeric simulation on rainfall infiltration on rock slope[J]. Chinese Journal of Rock Mechanics and Engineering, 2003, 22 (4): 625- 629
doi: 10.3321/j.issn:1000-6915.2003.04.023
17 许建聪, 尚岳全, 郑束宁, 等 强降雨作用下浅层滑坡尖点突变模型研究[J]. 浙江大学学报: 工学版, 2005, 39 (11): 1675- 1679
XU Jian-cong, SHANG Yue-quan, ZHENG Shu-ning, et al Cusp-catastrophic model of shallow landslide under intensive rainfall[J]. Journal of Zhejiang University: Engineering Science, 2005, 39 (11): 1675- 1679
18 张卓, 连继建, 杨晓慧, 等 岩质边坡在降雨条件下的稳定性分析[J]. 哈尔滨工大学学报, 2009, 41 (10): 202- 205
ZHANG Zhuo, LIAN Ji-jian, YANG Xiao-hui, et al Stability of rock slope under rainfall[J]. Journal of Harbin Institute of Technology, 2009, 41 (10): 202- 205
19 吕庆, 孙红月, 尚岳全 强度折减有限元法中边坡失稳判据的研究[J]. 浙江大学学报: 工学版, 2008, 42 (1): 83- 87
LV Qing, SUN Hong-yue, SHANG Yue-quan Slope failure criteria of shear strength reduction finite element method[J]. Journal of Zhejiang University: Engineering Science, 2008, 42 (1): 83- 87
20 GENUCHTENM T V A closed-form equation for predicting the hydraulic conductivity of unsaturated soils[J]. Soil Science Society of America Journal, 1980, 44 (5): 892- 898
21 丁康, 徐学选, 陈文媛, 等 长武塬边坡不同植被下土壤团聚体及入渗特征[J]. 北京林业大学学报, 2017, 39 (12): 44- 51
DING Kang, XU Xue-xuan, CHEN Wen-yuan, et al Soil aggregates and infiltration characteristics under different vegetations in Changwu tableland slope of northwestern China[J]. Journal of Beijing Forestry University, 2017, 39 (12): 44- 51
22 唐泽华, 盛丰, 高云鹏 入渗水量和试验尺度对土壤水非均匀流动的影响[J]. 水土保持通报, 2015, 35 (2): 173- 178
TANG Ze-hua, SHENG Feng, GAO Yun-peng Effects of infiltration amount and experimental scale on heterogeneous soil water flow[J]. Bulletion of Soil and Water Conservation, 2015, 35 (2): 173- 178
23 李珏, 金吾根, 薛馨, 等 Trefftz间接法解自由面渗流问题[J]. 计算力学学报, 2005, 22 (3): 295- 298
LI Jue, JIN Wu-gen, XUE Xin, et al Solution of tree surface seepage problems by Trefftz indirect method[J]. Chinese Journal of Computational Mechanics, 2005, 22 (3): 295- 298
doi: 10.3969/j.issn.1007-4708.2005.03.008
24 李生宇, 雷加强, 徐新文, 等 流动沙漠地区灌溉林地盐结皮层特征的初步研究[J]. 北京林业大学学报, 2007, 29 (2): 41- 49
LI Sheng-yu, LEI Jia-qiang, XU Xin-wen, et al Characteristics of salt crust layers in the forests irrigated with saline water in mobile desert[J]. Journal of Beijing Forestry University, 2007, 29 (2): 41- 49
doi: 10.3321/j.issn:1000-1522.2007.02.007
25 龙万学, 吴俊, 傅鹤林 降雨型滑坡现场模拟试验研究[J]. 贵州工业大学学报: 自然科学版, 2008, 37 (3): 20- 23
LONG Wan-xue, WU Jun, FU He-lin Research on on-site simulation test of landslide by artificial rainfall[J]. Journal of Guizhou University of Technology: Natural Science Edition, 2008, 37 (3): 20- 23
26 李久生, 王迪, 栗岩峰. 现代灌溉水肥管理原理与应用[M]. 郑州: 黄河水利出版社, 2008: 140-148.
27 WANG S H Extending the rational method for assessing and developing sustainable urban drainage systems[J]. Water Research, 2018, 144: 112- 125
doi: 10.1016/j.watres.2018.07.022
28 付宏渊, 曾铃, 王桂尧, 等 降雨入渗条件下软岩边坡稳定性分析[J]. 岩土力学, 2012, 32 (8): 2359- 2365
FU Hong-yuan, ZENG Ling, WANG Gui-yao, et al Stability analysis of soft rock slope under rainfall infiltration[J]. Rock and Soil Mechanics, 2012, 32 (8): 2359- 2365
doi: 10.3969/j.issn.1000-7598.2012.08.019
29 徐斌, 徐满清, 王建华 饱和土体固结3D比例边界有限元法分析[J]. 上海交通大学学报, 2016, 50 (1): 8- 16
XU Bin, XU Man-qing, WANG Jian-hua Modeling of saturated soil dynamic coupled consolidation problems using three-dimensional scaled boundary finite element method[J]. Journal of Shanghai Jiao Tong University, 2016, 50 (1): 8- 16
30 TOLL D G, LOUREN?O S D N, MENDES J, et al Soil suction monitoring for landslides and slopes[J]. Quarterly Journal of Engineering Geology and Hydrogeology, 2011, 44 (1): 23- 33
doi: 10.1144/1470-9236/09-010
31 杨启红, 陈丽华, 张富, 等 土壤水分变异对降雨和植被的响应[J]. 北京林业大学学报, 2008, 30 (增 2): 88- 94
YANG Qi-hong, CHEN Li-hua, ZHANG Fu, et al Responses of soil moisture variations to rainfall and vegetation[J]. Journal of Beijing Forestry University, 2008, 30 (增 2): 88- 94
32 中华人民共和国建设部. 岩土工程勘察规范: GB50021-2001 [S]. 北京: 中国建筑工业出版社, 2001: 39-40.
33 瞿文斌, 及金楠, 陈丽华, 等 黄土高原植物根系增强土体抗剪强度的模型与试验研究[J]. 北京林业大学学报, 2017, 39 (12): 79- 87
QU Wen-bin, JI Jin-nan, CHEN Li-hua, et al Research on model and test of reinforcing shear strength by vegetation roots in the Loess Plateau of northern China[J]. Journal of Beijing Forestry University, 2017, 39 (12): 79- 87
34 赵尚毅, 郑颖人, 张玉芳 有限元强度折减法中边坡失稳的判据探讨[J]. 岩土力学, 2005, 26 (2): 332- 336
ZHAO Shang-yi, ZHENG Ying-ren, ZHANG Yu-fang Study on slope failure criterion in strength reduction finite element method[J]. Rock and Soil Mechanics, 2005, 26 (2): 332- 336
doi: 10.3969/j.issn.1000-7598.2005.02.035
35 卢玉林, 陈晓冉 地下水渗流作用下土坡稳定性的简化Bishop法解[J]. 应用力学学报, 2018, 35 (3): 524- 529
LU Yu-lin, CHEN Xiao-ran Solution for stability of soil slopes subjected to seepage of groundwater via simplified Bishop method[J]. Chinese Journal of Applied Mechanics, 2018, 35 (3): 524- 529
36 王永. 黄土边坡降雨条件下破坏机理室内模型试验研究[D]. 兰州: 兰州交通大学, 2017.
WANG Yong. The indoor model test study on damage mechanism of loess slope under the condition of rainfall [D]. Lanzhou: Lanzhou Jiao Tong University, 2017.
