浙江大学学报(工学版)  2019, Vol. 53 Issue (3): 503-511    DOI: 10.3785/j.issn.1008-973X.2019.03.011
土木工程
基于Zig-zag理论的波形钢腹板梁自由振动分析
胡霖远1(),陈伟球1,张治成2,徐荣桥2,*()
1. 浙江大学 航空航天学院,浙江 杭州 310027
2. 浙江大学 建筑工程学院,浙江 杭州 310058
Free vibration analysis of concrete beams with corrugated steel webs based on Zig-zag theory
Lin-yuan HU1(),Wei-qiu CHEN1,Zhi-cheng ZHANG2,Rong-qiao XU2,*()
1. School of Aeronautics and Astronautics, Zhejiang University, Hangzhou 310027, China
2. College of Civil Engineering and Architecture, Zhejiang University, Hangzhou 310058, China
 全文: PDF(751 KB)   HTML
摘要:

根据波形钢腹板梁的特点,将波形钢腹板梁模拟为具有正交各向异性层的夹芯梁,并引入层间连续的Zig-zag位移假设和分层抛物线分布的横向切应力假设,基于混合能变分原理,建立波形钢腹板梁自由振动的Zig-zag理论. 该理论的横向切应力满足上、下表面为0以及层间连续条件,因此无需引入剪切修正系数. 导出波形钢腹板梁的频率方程,得到不同边界条件下的频率和振型. 与其他方法的对比表明该理论能够精确地预测波形钢腹板梁的动力学特性.

关键词: 波形钢腹板Zig-zag理论混合能变分原理自由振动频率振型
Abstract:

Concrete beams with CSWs were idealized as sandwich beams with an orthotropic core, according to the characteristics of the corrugated steel web (CSW). The assumptions of a zig-zag displacement and a layer-wise parabolic distribution of the transverse shear stress were introduced to derive the governing equations for the free vibration of concrete beams with CSWs based on the variational principle of mixed energy. The transverse shear stress in the developed theory satisfied the traction-free condition at both top and bottom surfaces of the beam, as well as the continuity condition at the interfaces between adjacent layers. The shear correction factor is therefore not necessary. The frequency equation of the beam with CSWs was derived and solved analytically for the frequencies and corresponding mode shapes under various boundary conditions. Comparisons with other methods indicate that the present theory can accurately predict the dynamic behavior of such beams.

Key words: corrugated steel web    Zig-zag theory    variational principle of mixed energy    free vibration    frequency    mode shape
收稿日期: 2018-01-07 出版日期: 2019-03-04
CLC:  O 342
通讯作者: 徐荣桥     E-mail: hulinyuan@zju.edu.cn;xurongqiao@zju.edu.cn
作者简介: 胡霖远(1993—),男,硕士生,从事组合梁理论研究. orcid.org/0000-0002-9453-2694. E-mail: hulinyuan@zju.edu.cn
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章
胡霖远
陈伟球
张治成
徐荣桥

引用本文:

胡霖远,陈伟球,张治成,徐荣桥. 基于Zig-zag理论的波形钢腹板梁自由振动分析[J]. 浙江大学学报(工学版), 2019, 53(3): 503-511.

Lin-yuan HU,Wei-qiu CHEN,Zhi-cheng ZHANG,Rong-qiao XU. Free vibration analysis of concrete beams with corrugated steel webs based on Zig-zag theory. Journal of ZheJiang University (Engineering Science), 2019, 53(3): 503-511.

链接本文:

http://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2019.03.011        http://www.zjujournals.com/eng/CN/Y2019/V53/I3/503

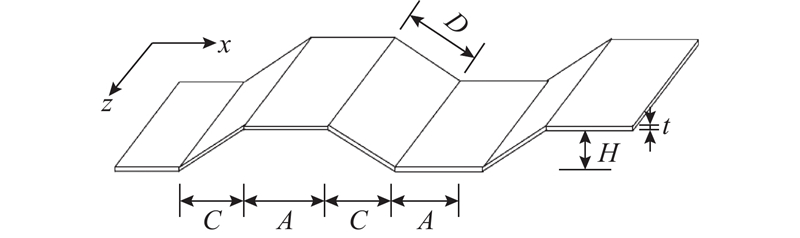

图 1  波形钢腹板(CSW)的几何形状

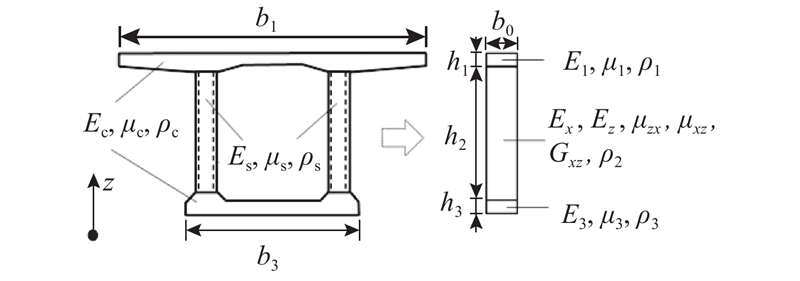

图 2  CSW梁的原始截面和等效截面
n f/Hz δ/% f/Hz δ/%
有限元 本文方法 经典梁理论
1 17.191 17.218 0.16 19.950 16.05
2 51.768 51.904 0.26 79.800 54.15
3 88.945 89.264 0.36 179.550 101.90
4 126.248 126.572 0.26 319.200 152.80
5 162.577 163.840 0.78 498.749 206.80
6 199.196 201.377 1.10 718.199 260.50
7 235.990 239.461 1.47 977.549 314.20
8 273.130 278.316 1.90 1 276.800 367.50
表 1  简支(SS)波形钢腹板(CSW)梁自振频率
n f/Hz δ/% f/Hz δ/%
有限元 本文方法 经典梁理论
1 27.665 27.708 0.16 45.224 63.47
2 58.502 58.737 0.40 124.663 113.10
3 93.965 94.475 0.54 244.388 160.10
4 130.414 131.375 0.74 403.989 209.80
5 167.346 168.981 0.98 603.490 260.60
6 204.474 207.107 1.29 842.891 312.20
7 241.953 245.946 1.65 1 122.180 363.80
8 279.834 286.625 2.07 1 441.400 415.10
表 2  两端固支(CC)波形钢腹板梁自振频率
n f/Hz δ/% f/Hz δ/%
有限元 本文方法 经典梁理论
1 22.435 22.473 0.17 31.166 38.91
2 55.357 55.537 0.33 100.997 82.45
3 91.464 91.880 0.46 210.723 130.40
4 128.171 128.980 0.63 360.348 181.10
5 164.940 166.390 0.88 549.874 233.40
6 201.835 204.220 1.18 779.299 286.10
7 238.937 242.671 1.56 1 048.61 338.90
8 276.454 281.931 1.98 1 357.84 391.20
表 3  固支-简支(CS)波形钢腹板梁自振频率
n f/Hz δ/% f/Hz δ/%
有限元 本文方法 经典梁理论
1 6.593 6.599 0.10 7.107 7.80
2 30.762 30.913 0.49 44.539 44.79
3 67.243 67.647 0.60 124.713 85.47
4 104.546 105.350 0.77 244.384 133.70
5 142.189 143.544 0.95 403.989 184.10
6 179.391 181.642 1.26 603.490 236.40
7 216.701 220.171 1.60 842.890 289.00
8 254.029 259.211 2.04 1 122.180 341.80
表 4  固支-自由(CF)波形钢腹板梁自振频率
图 3  波形钢腹板梁的前3阶振型模态
1 陈宝春, 黄卿维 波形钢腹板PC箱梁桥应用综述[J]. 公路, 2005, 7 (7): 45- 53
CHEN Bao-chun, HUANG Qing-wei Summary of application of prestressed concrete box-girder bridges with corrugated steel webs[J]. Highway, 2005, 7 (7): 45- 53
doi: 10.3969/j.issn.1002-0268.2005.07.011
2 JIANG R J, KWONG AU F T, XIAO Y F Prestressed concrete girder bridges with corrugated steel webs: review[J]. Journal of Structural Engineering, 2014, 141 (2): 04014108
3 DAYYANI I, SHAW A D, FLORES E I S, et al The mechanics of composite corrugated structures: a review with applications in morphing aircraft[J]. Composite Structures, 2015, 133: 358- 380
doi: 10.1016/j.compstruct.2015.07.099
4 OH J Y, LEE D H, KIM K S Accordion effect of prestressed steel beams with corrugated webs[J]. Thin-walled structures, 2012, 57: 49- 61
doi: 10.1016/j.tws.2012.04.005
5 ZHOU W B, YAN W J Refined nonlinear finite element modelling towards ultimate bending moment calculation for concrete composite beams under negative moment[J]. Thin-Walled Structures, 2017, 116: 201- 211
doi: 10.1016/j.tws.2017.02.011
6 CHEN X C, LI Z H, AU F T K, et al Flexural vibration of prestressed concrete bridges with corrugated steel webs[J]. International Journal of Structural Stability and Dynamics, 2017, 17 (02): 1750023
doi: 10.1142/S0219455417500237
7 MO Y L, JENG C H, KRAWINKLER H Experimental and analytical studies of innovative prestressed concrete box-girder bridges[J]. Materials and Structures, 2003, 36 (2): 99- 107
doi: 10.1007/BF02479523
8 韦忠瑄, 孙鹰, 沈庆, 等 波形钢腹PC组合箱梁的动力特性研究[J]. 固体力学学报, 2011, (s1): 394- 398
WEI Zhong-xuan, SUN Ying, SHEN Qing, et al Study on dynamic properties of the prestressed concrete box-girder with corrugated steel webs[J]. Chinese Journal of Solid Mechanics, 2011, (s1): 394- 398
9 CARRERA E Historical review of Zig-zag theories for multilayered plates and shells[J]. Applied Mechanics Reviews, 2003, 56 (3): 287- 308
doi: 10.1115/1.1557614
10 AMBARTSUMIAN S A On a general theory of anisotropic shells[J]. Journal of Applied Mathematics and Mechanics, 1958, 22 (2): 305- 319
doi: 10.1016/0021-8928(58)90108-4
11 REISSNER E On a certain mixed variational theorem and a proposed application[J]. International Journal for Numerical Methods in Engineering, 1984, 20 (7): 1366- 1368
doi: 10.1002/(ISSN)1097-0207
12 REISSNER E On a mixed variational theorem and on shear deformable plate theory[J]. International Journal for Numerical Methods in Engineering, 1986, 23 (2): 193- 198
13 MURAKAMI H Laminated composite plate theory with improved in-plane responses[J]. Journal of Applied Mechanics, 1986, 53 (3): 661- 666
doi: 10.1115/1.3171828
14 XU R Q, WU Y F Two-dimensional analytical solutions of simply supported composite beams with interlayer slips[J]. International Journal of Solids and Structures, 2007, 44 (1): 165- 75
doi: 10.1016/j.ijsolstr.2006.04.027
15 JOHNSON R P, CAFOLLA J, BERNARD C Corrugated webs in plate girders for bridges[J]. Proceedings of the Institution of Civil Engineers-Structures and Buildings, 1997, 122 (2): 157- 164
doi: 10.1680/istbu.1997.29305
16 胡海昌. 弹性力学的变分原理及其应用[M]. 北京: 科学出版社, 1981: 423−424.
