Chinese Journal of Engineering Design  2024, Vol. 31 Issue (5): 623-633    DOI: 10.3785/j.issn.1006-754X.2024.04.113
Optimization Design
Design and performance analysis of full fluid channel magnetorheological damper with built-in valve
Bing FANG(),Guoliang HU(),Xin MEI,Lifan YU
School of Mechatronics and Vehicle Engineering, East China Jiaotong University, Nanchang 330013, China
Download: HTML     PDF(5966KB)
Export: BibTeX | EndNote (RIS)

Abstract

Aiming at the problems of large volume and small output damping force of magnetorheological damper (MRD) in MR prosthesis, a full fluid channel MRD with built-in valve was designed. Firstly, the magnetic flux lines were guided through all fluid flow channels by arranging arranged with magnetically conductive wedge rings and a magnetically separating ring, and the magnetic circuit analysis and derivation of mathematical model of output damping force were carried out. Secondly, the electromagnetic field of the damper was simulated by ANSYS software. Thirdly, the structural parameters of the MRD were optimized by using the multi-objective genetic algorithm, and the average magnetic flux density and the output damping force of the damper before and after optimization were simulated and compared. Finally, the damper prototypes were machined before and after the optimization of structural parameters, and the dynamic performances were tested and analyzed. The results showed that the volume of the piston head was reduced by 24.4% and the maximum output damping force was increased by 24 N after optimization. When the current was 2 A, the simulated value of maximum output damping force before optimization was 295.38 N, and the experimental value was 309.76 N, with an error of 4.6%; the simulated value of maximum output damping force after optimization was 307.77 N, and the experimental value was 333.76 N, with an error of 7.6%. The designed full fluid channel MRD with built-in valve had smaller volume, larger output damping force and higher utilization rate of fluid flow channel space. The research results can provide reference for the design of MRD in MR prosthesis.



Key wordsmagnetorheological damper      full fluid channel      built-in valve      multi-objective optimization
Received: 19 February 2024      Published: 30 October 2024
CLC:  TH 137.5
Corresponding Authors: Guoliang HU     E-mail: 2022038080200011@ecjtu.edu.cn;glhu@ecjtu.edu.cn
Cite this article:

Bing FANG,Guoliang HU,Xin MEI,Lifan YU. Design and performance analysis of full fluid channel magnetorheological damper with built-in valve. Chinese Journal of Engineering Design, 2024, 31(5): 623-633.

URL:

https://www.zjujournals.com/gcsjxb/10.3785/j.issn.1006-754X.2024.04.113     OR     https://www.zjujournals.com/gcsjxb/Y2024/V31/I5/623


全通道内置阀式磁流变阻尼器的设计及性能分析

针对磁流变假肢中磁流变阻尼器体积大、输出阻尼力较小的问题,设计了一种全通道内置阀式磁流变阻尼器。首先,通过布置导磁楔形环和隔磁环,引导磁力线穿过全部液流通道,并进行了阻尼器磁路分析和输出阻尼力数学模型的推导;其次,利用ANSYS软件进行了阻尼器电磁场仿真;再次,采用多目标遗传算法优化阻尼器的结构参数,并仿真对比了优化前后阻尼器的平均磁感应强度和输出阻尼力;最后,加工了结构参数优化前后的阻尼器样机,并对其进行了动力学性能测试与分析。结果表明:优化后阻尼器活塞头的体积减小了24.4%,最大输出阻尼力提高了24 N;当电流为2 A时,优化前最大输出阻尼力仿真值为295.38 N,测试值为309.76 N,误差为4.6%;优化后最大输出阻尼力仿真值为307.77 N,测试值为333.76 N,误差为7.6%。所设计的全通道内置阀式磁流变阻尼器体积较小,输出阻尼力较大,液流通道的空间利用率较高。研究结果可为磁流变假肢中磁流变阻尼器的设计提供参考。


关键词: 磁流变阻尼器,  全通道,  内置阀式,  多目标优化

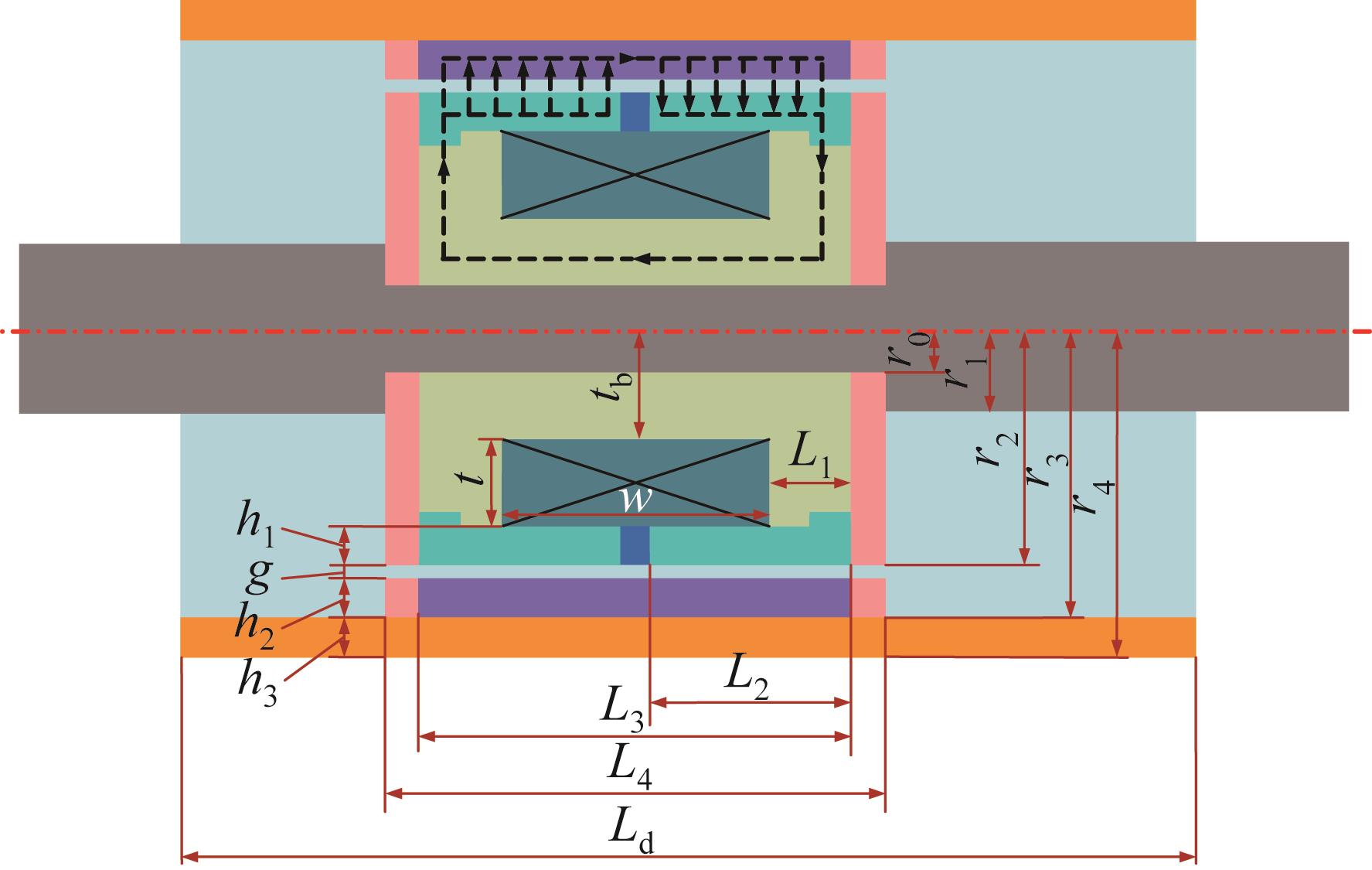

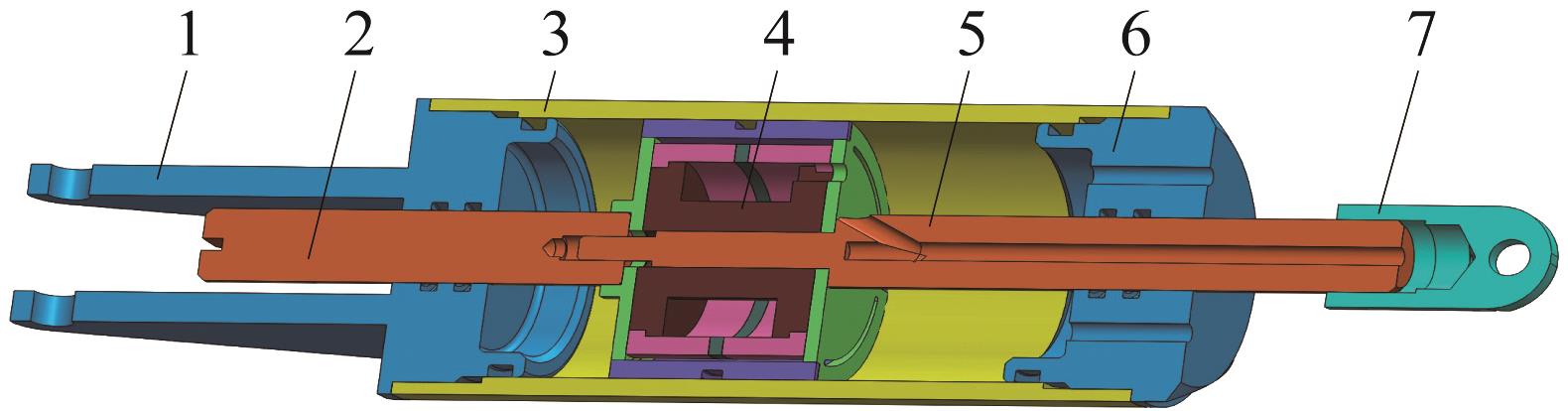

Fig.1 Structure of full fluid channel MRD with bulit-in valve
Fig.2 Structure of piston head of MRD

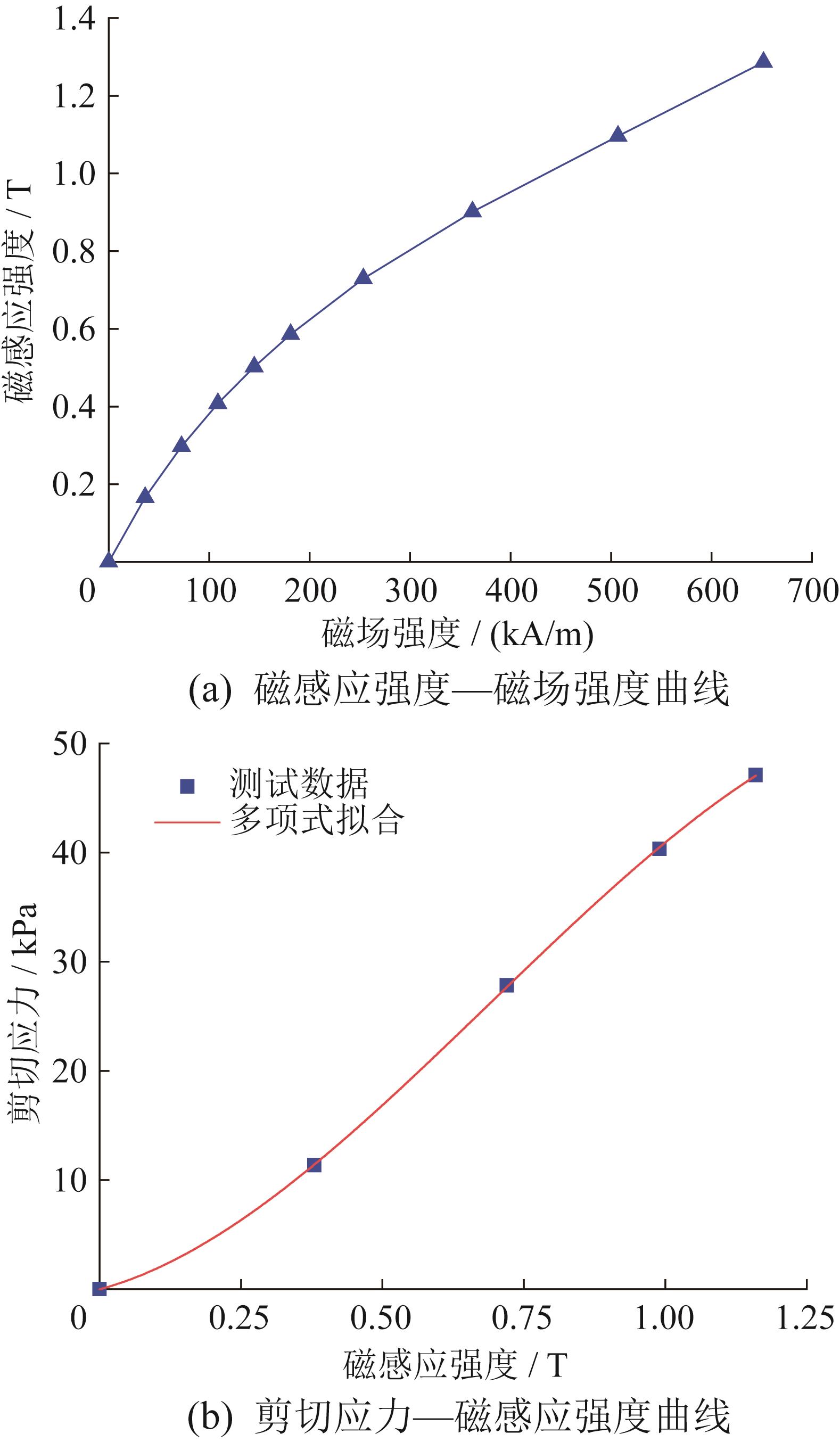

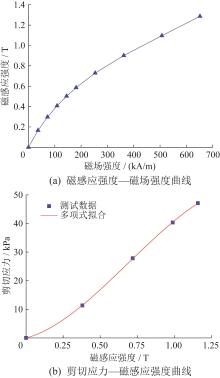

Fig.3 Rheological property curve of MR fluid

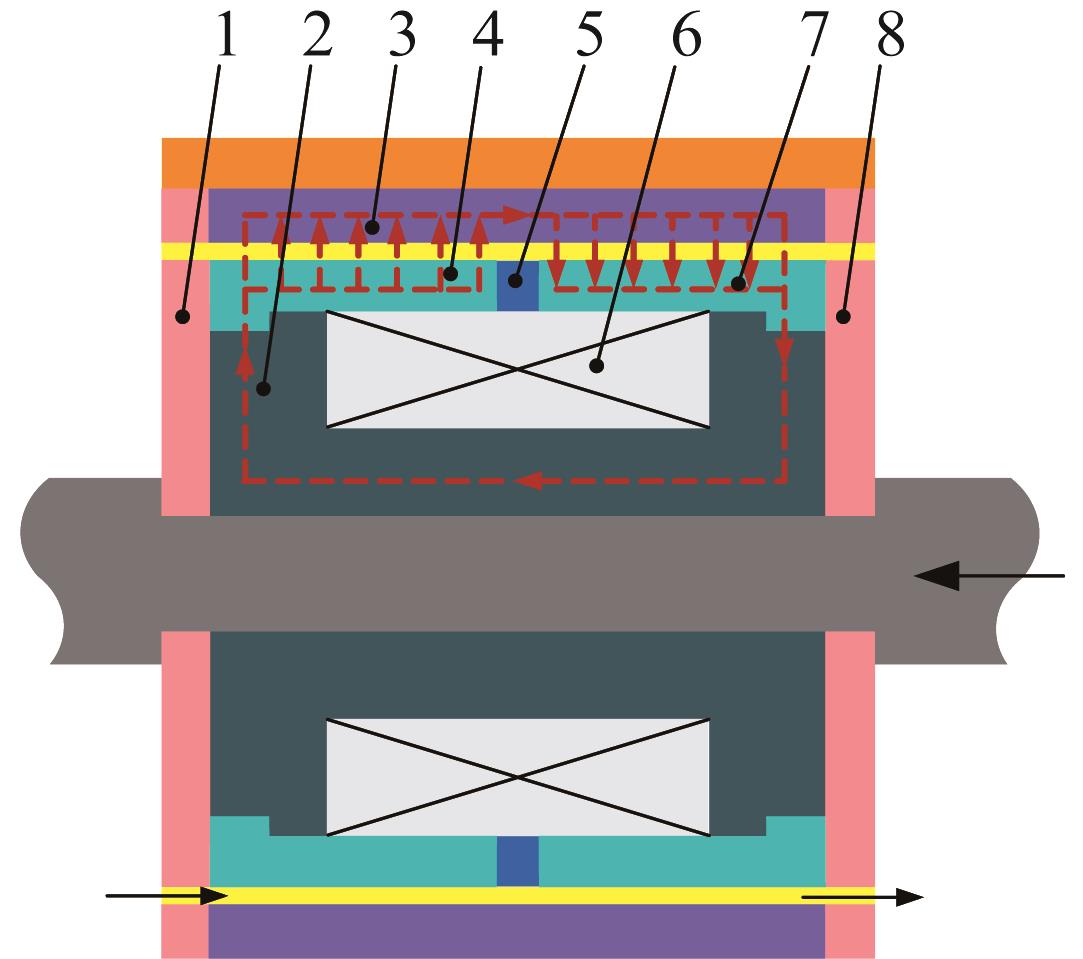

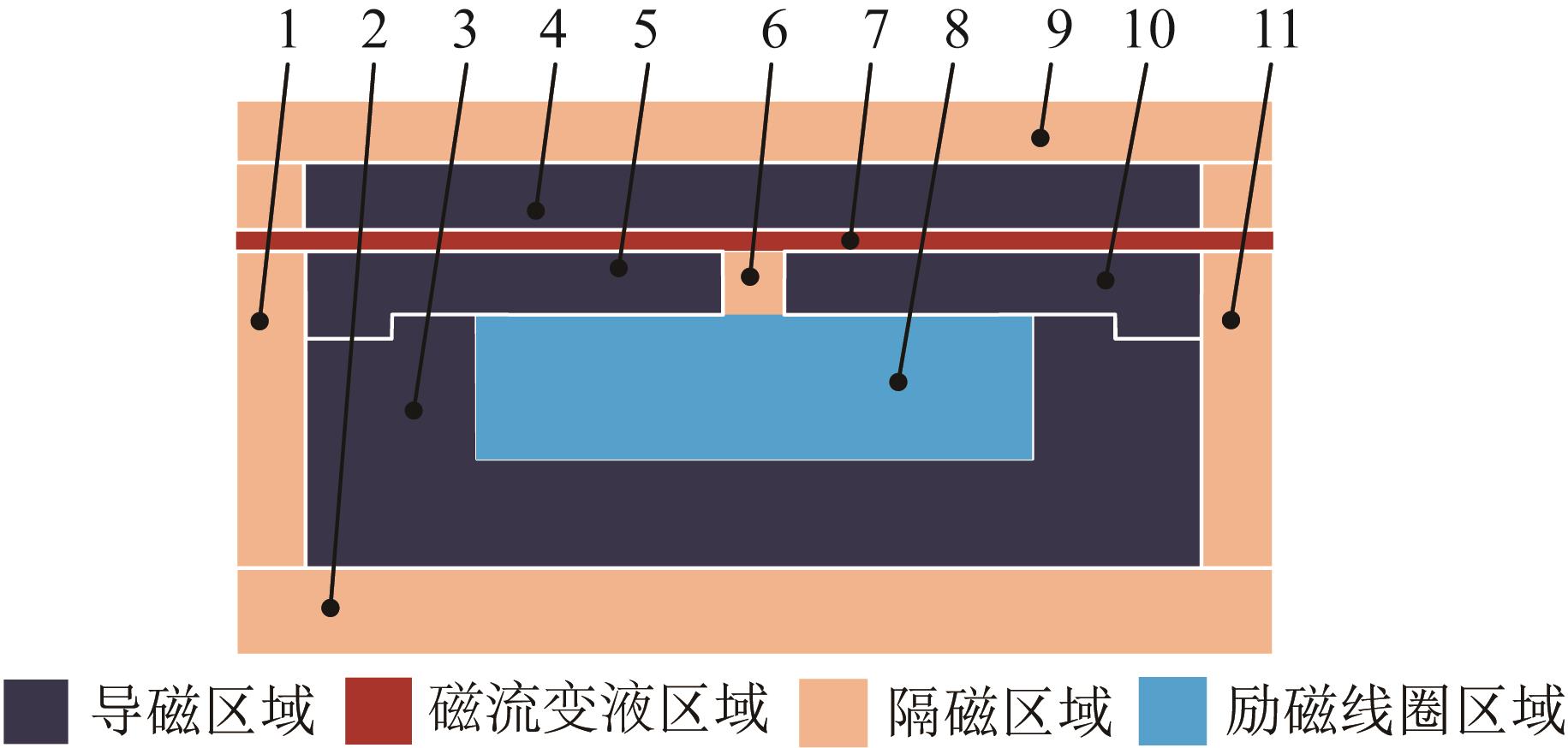

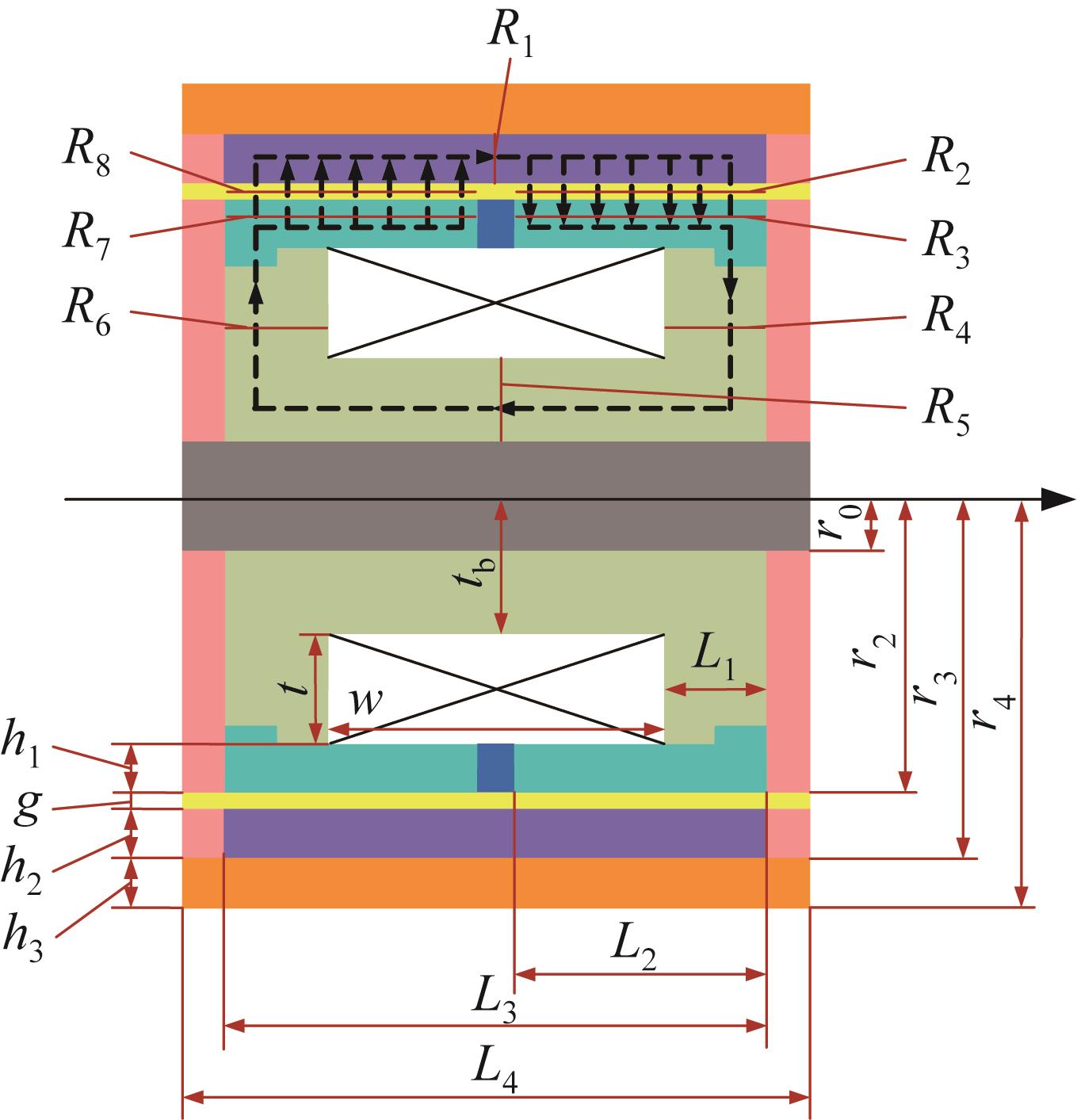

Fig.4 Schematic diagram of magnetic circuit of full fluid channel MRD with bulit-in valve
尺寸参数数值
绕线槽深度t6.5
绕线槽小径tb8.0
绕线槽轴向长度w16.0
楔形环厚度h13.0
内置导磁缸体厚度h23.0
缸体厚度h33.0
阻尼间隙g1.0
活塞杆小半径r03.0
活塞杆大半径r16.0
液流通道处小半径r217.5
活塞头半径r321.5
缸体外径r424.5
活塞头侧翼磁轭轴向长度L15.0
楔形环轴向长度L212.0
内置导磁缸体轴向长度L326.0
活塞头长度L430.0
缸体长度Ld108.0
Table1 Dimension parameters of MRD
Fig.5 Schematic diagram of fluid channel distribution of piston head of MRD
Fig.6 Finite element model of MRD

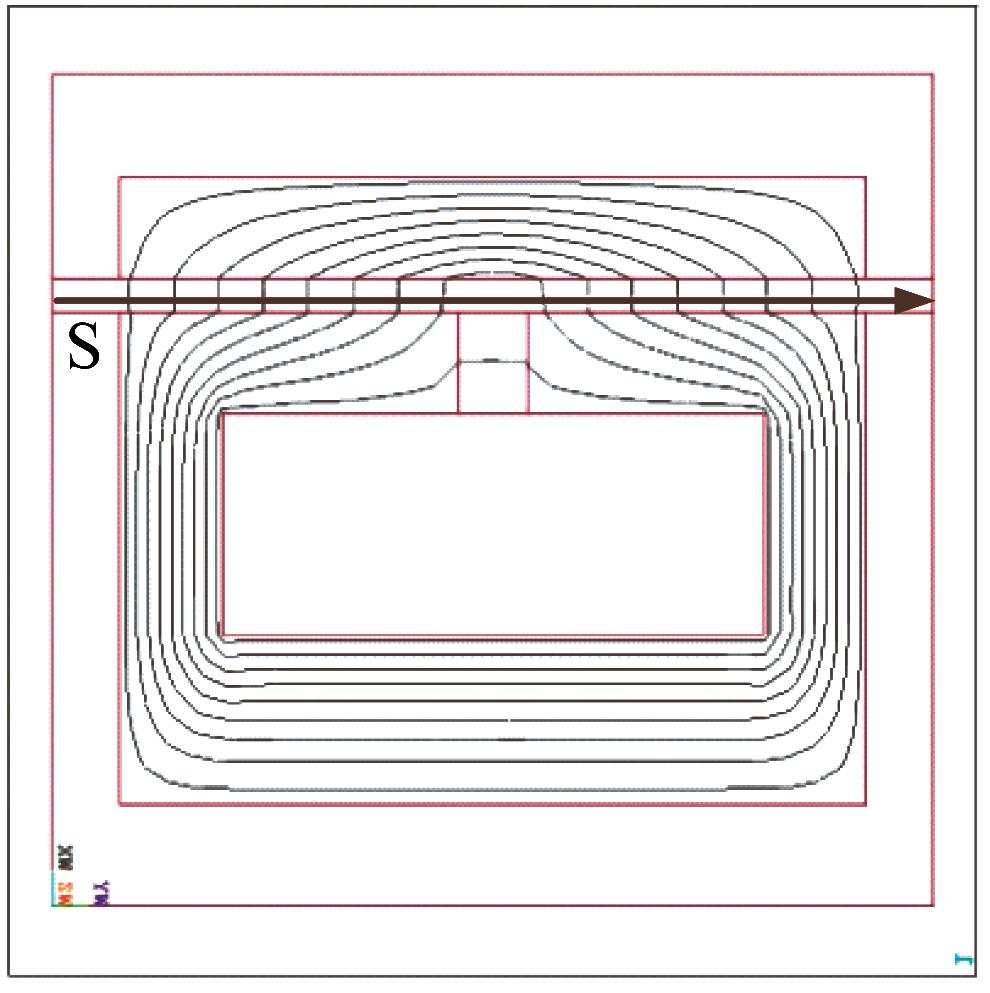

Fig.7 Distribution of magnetic flux lines of MRD

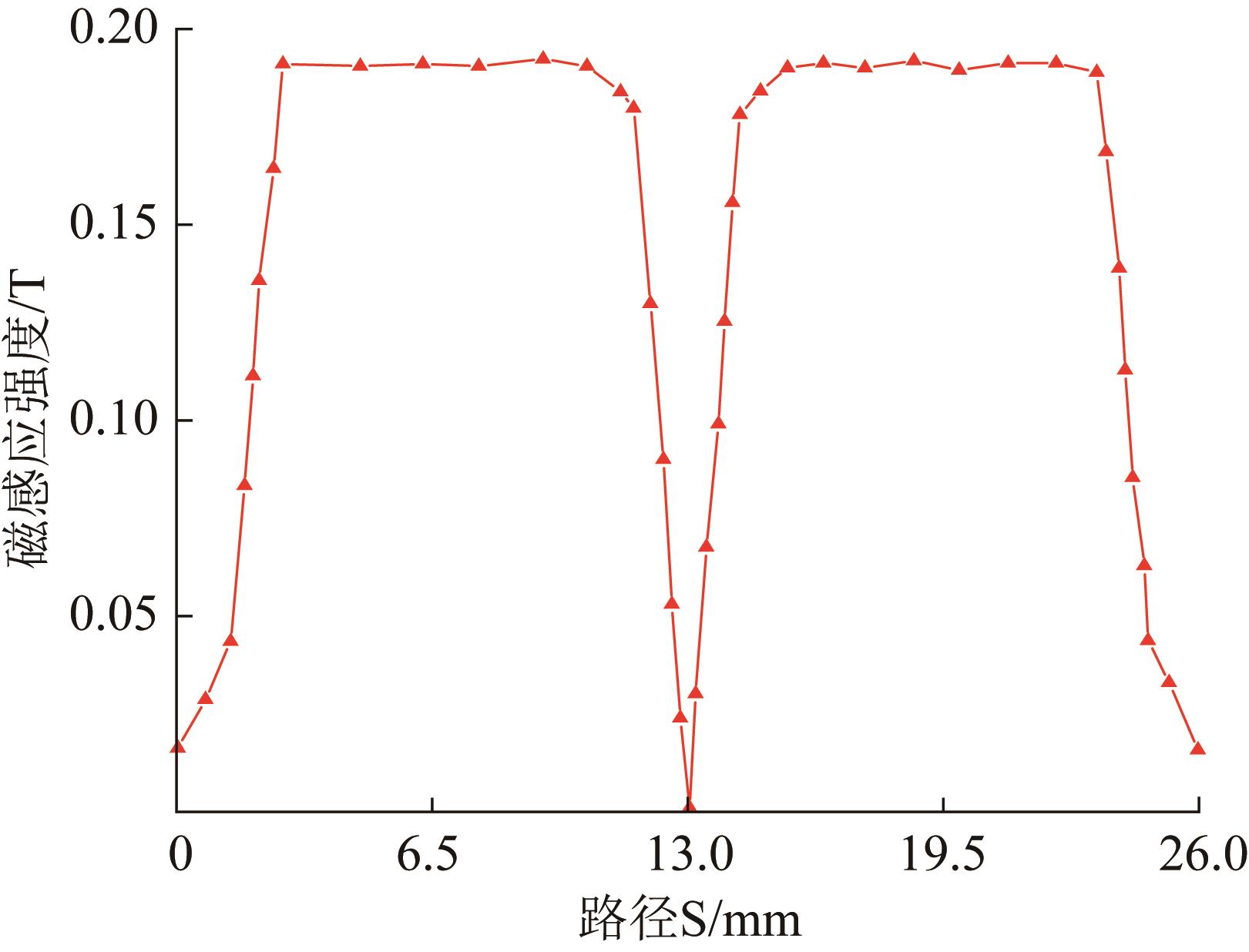

Fig.8 Magnetic induction flux distribution on path S with current of 2 A
Fig.9 Change curve of average magnetic flux density with current

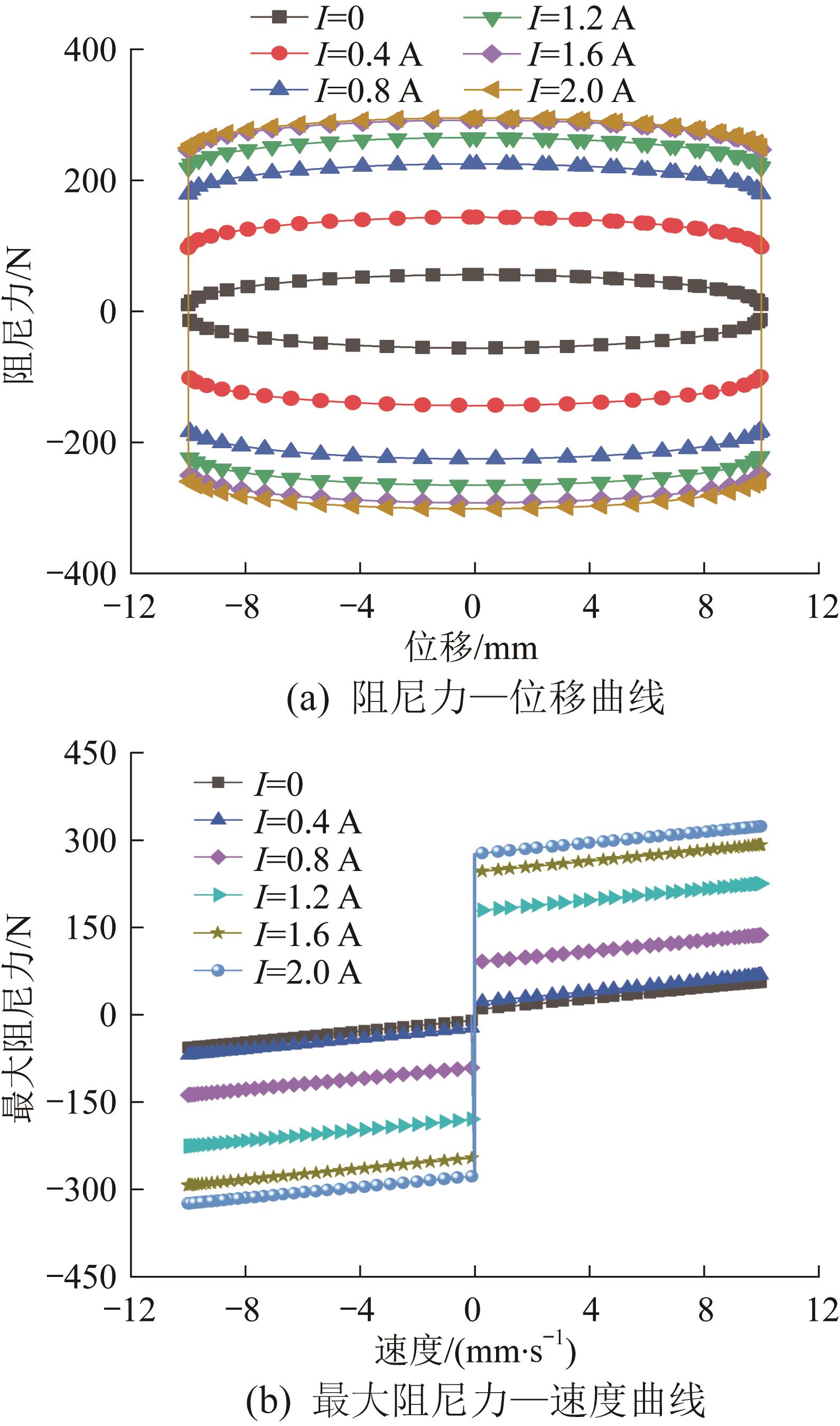

Fig.10 Damping characteristc curves of MRD under different currents

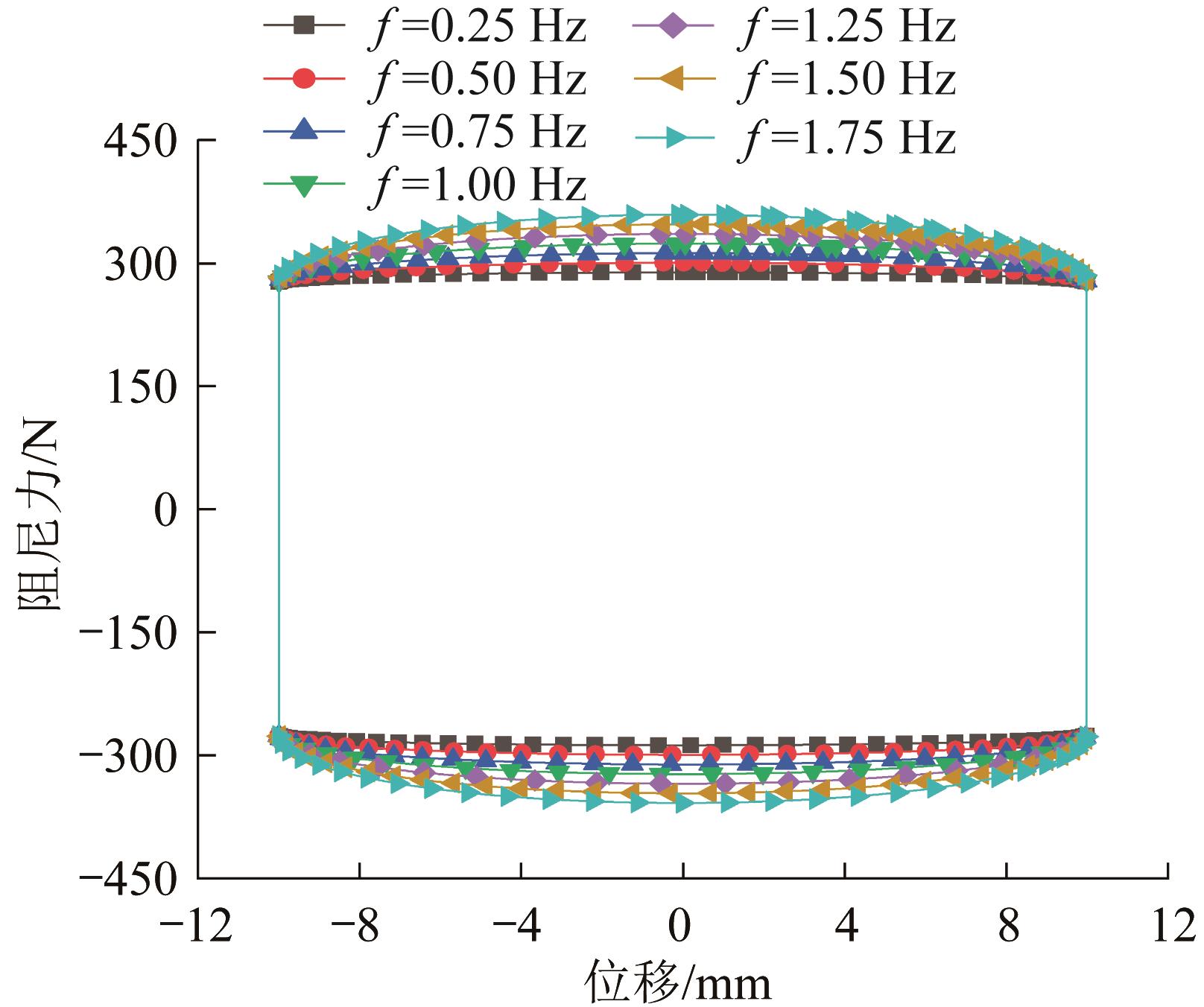

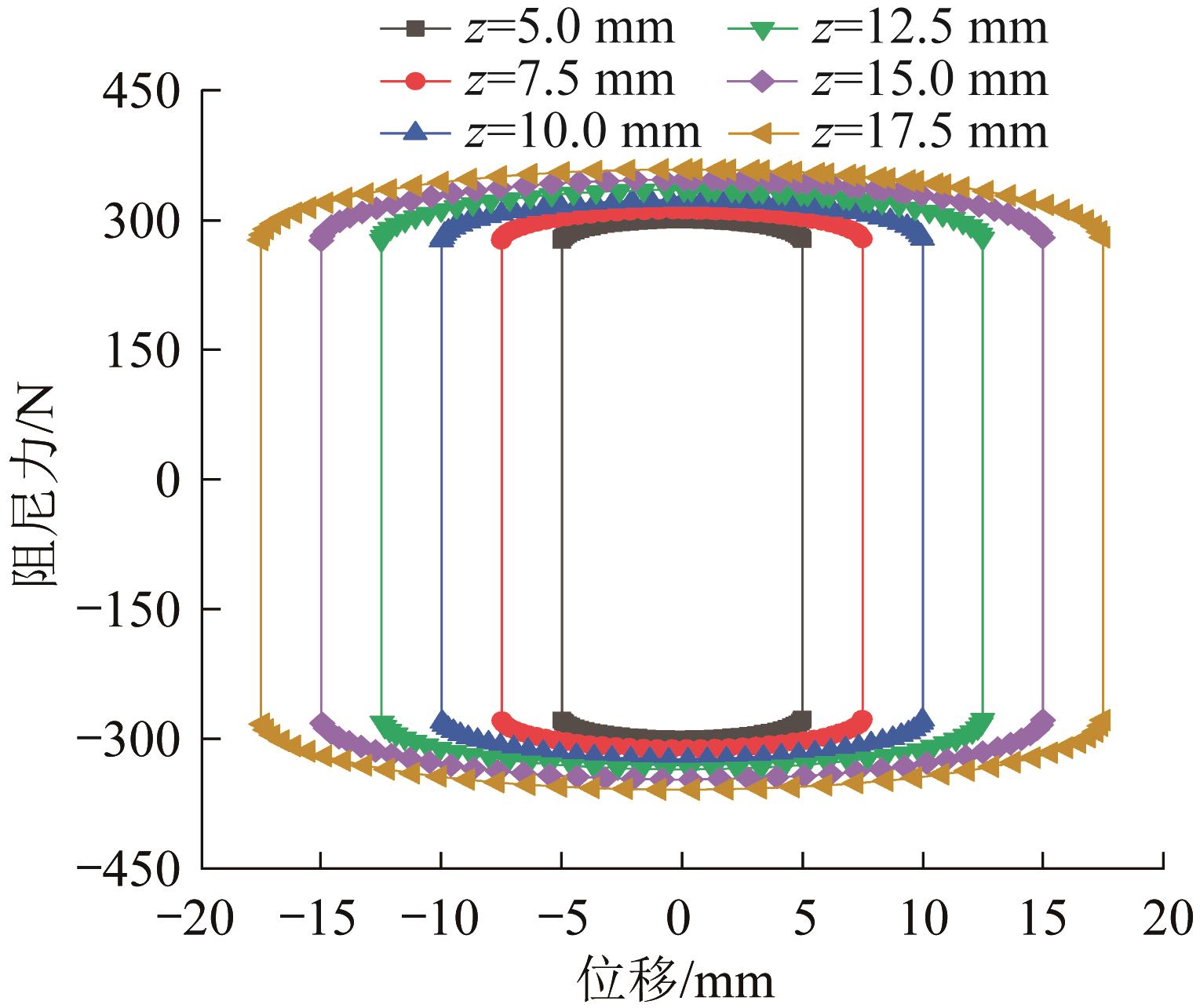

Fig.11 Damping force-displacement curves under different frequencies under different frequencies
Fig.12 Damping force-displacement curves under different amplitudes
优化参数取值范围
活塞头侧翼磁轭轴向长度L13~7
绕线槽深度t5~8
绕线槽小径tb6~10
绕线槽轴向长度w8~24
楔形环厚度h12~4
内置导磁缸体厚度h22~4
Table 2 Value range of optimization parameters of MRD

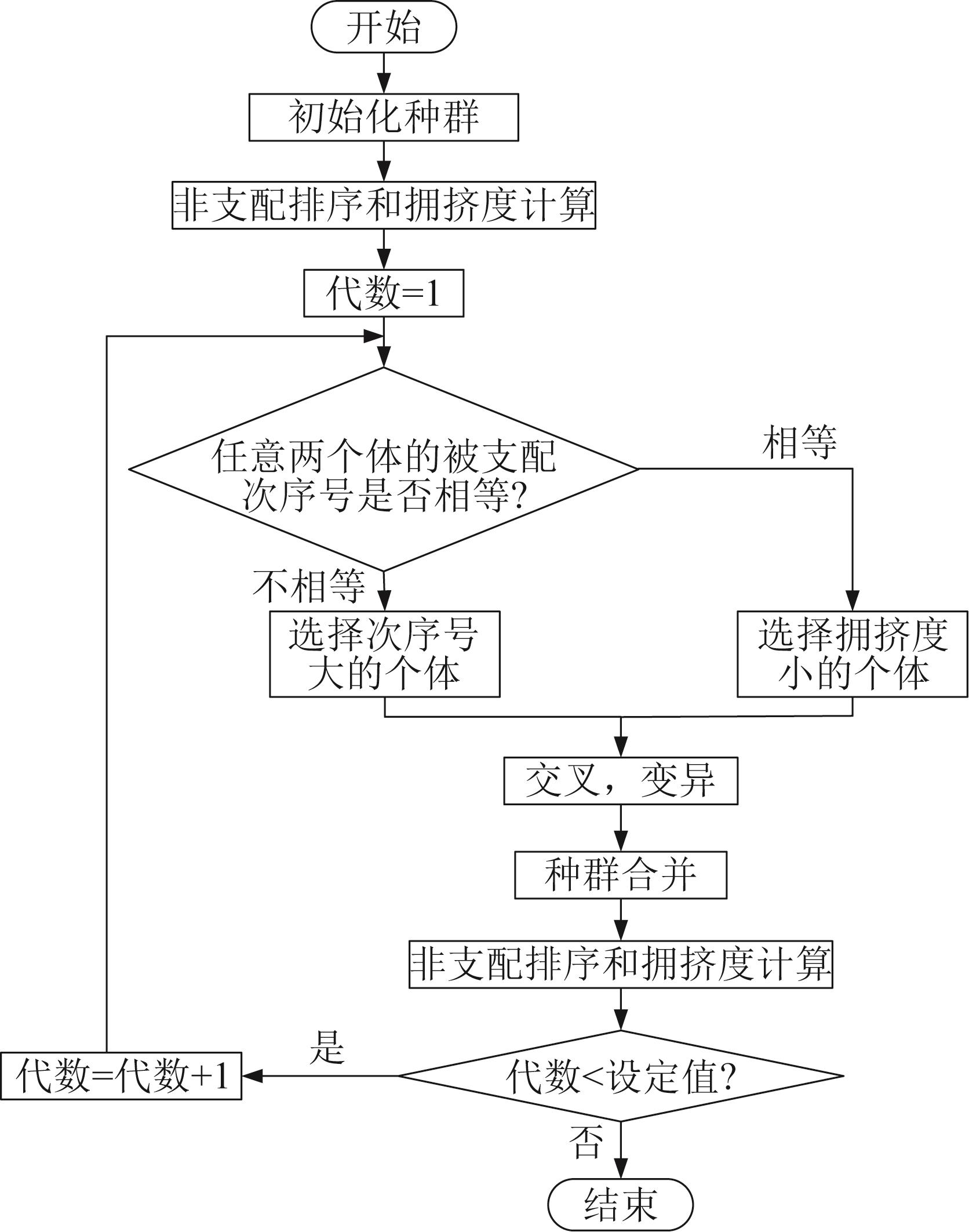

Fig.13 NSGA-Ⅱ multi-objective genetic algorithm flow
优化参数优化前优化后
V/mm326 71720 190
L1/mm53
t/mm6.58
tb/mm88
w/mm1620
h1/mm32
h2/mm32
Table 3 Structural parameter values of MRD before and after optimization

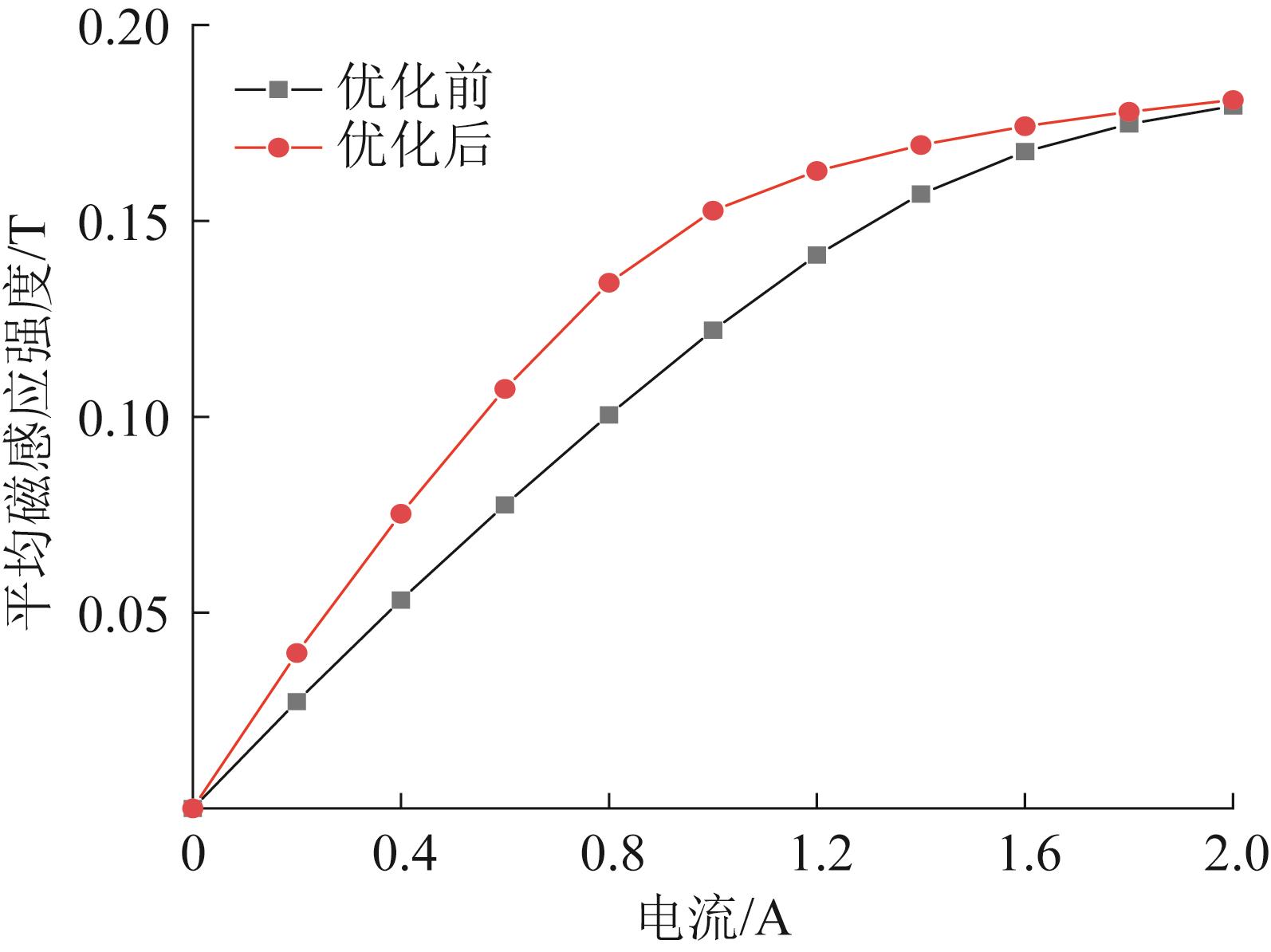

Fig.14 Change curves of average magnetic flux density with current before and after optimization

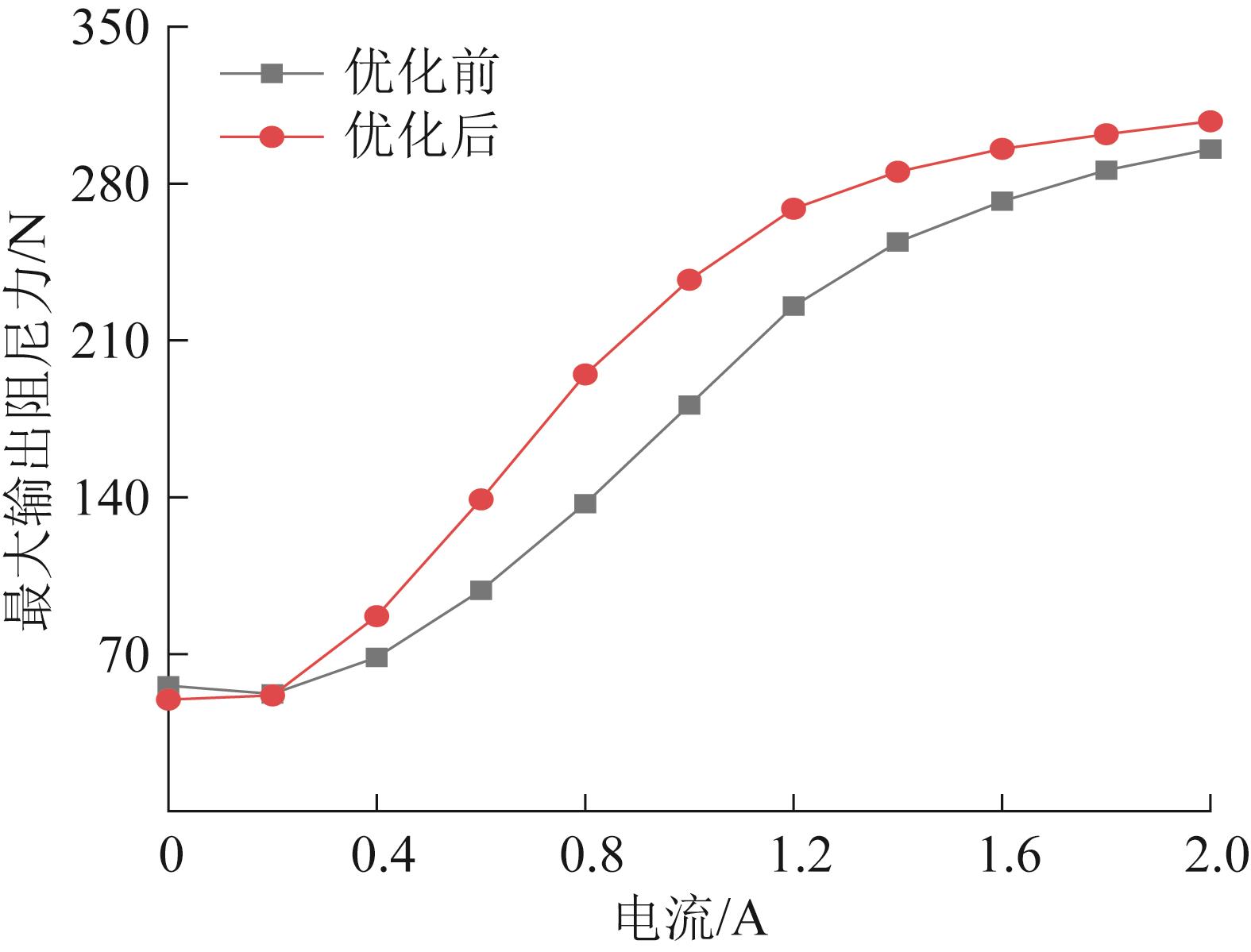

Fig.15 Change curves of maximum output damping force with current before and after optimization

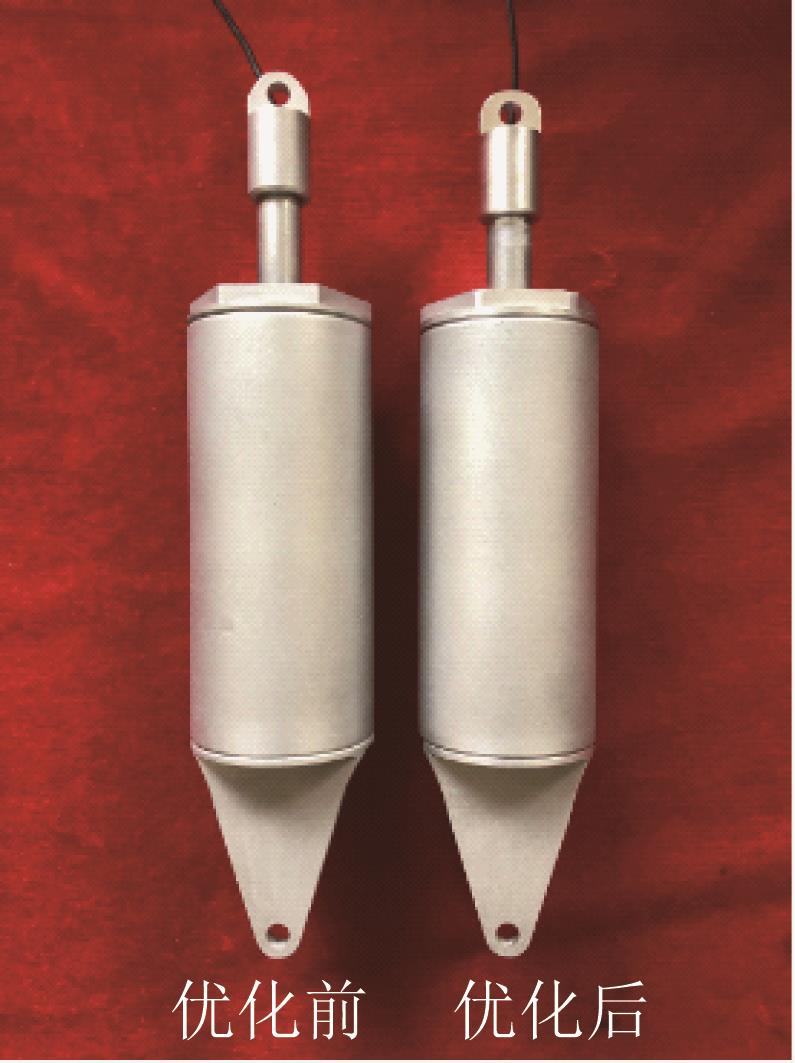

Fig.16 Prototypes of MRD before and after optimization

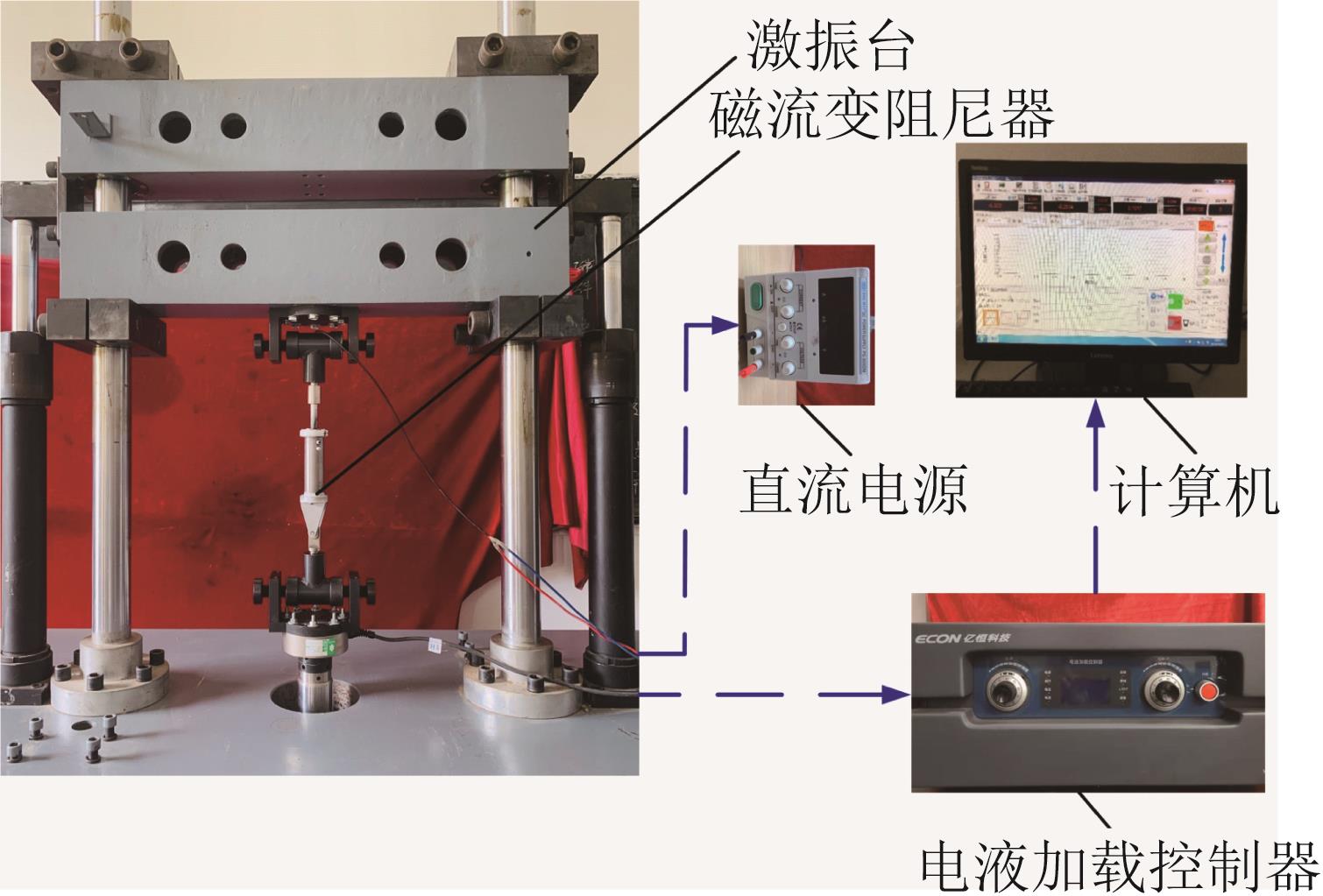

Fig.17 Mechanical property test system of MRD

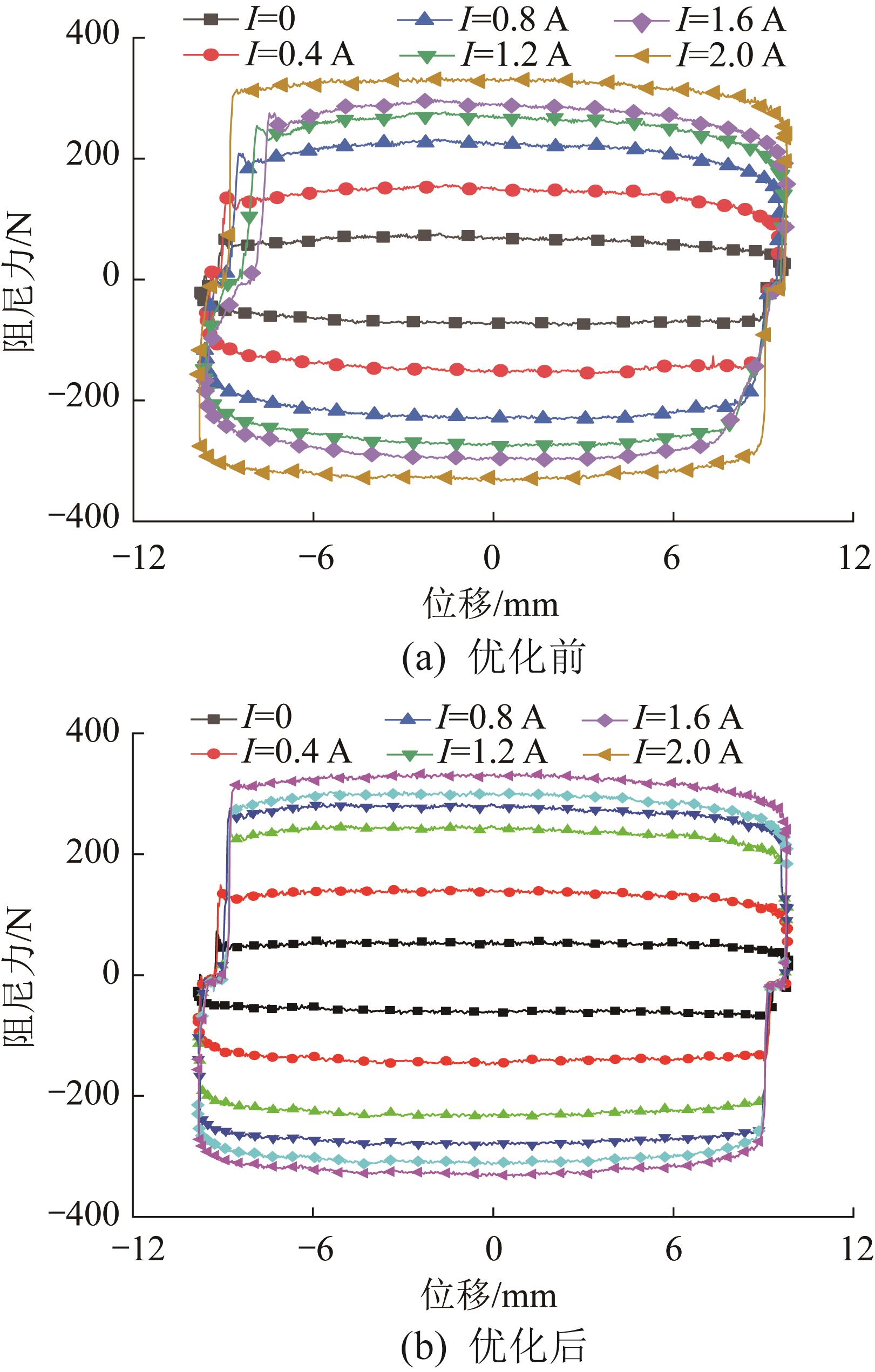

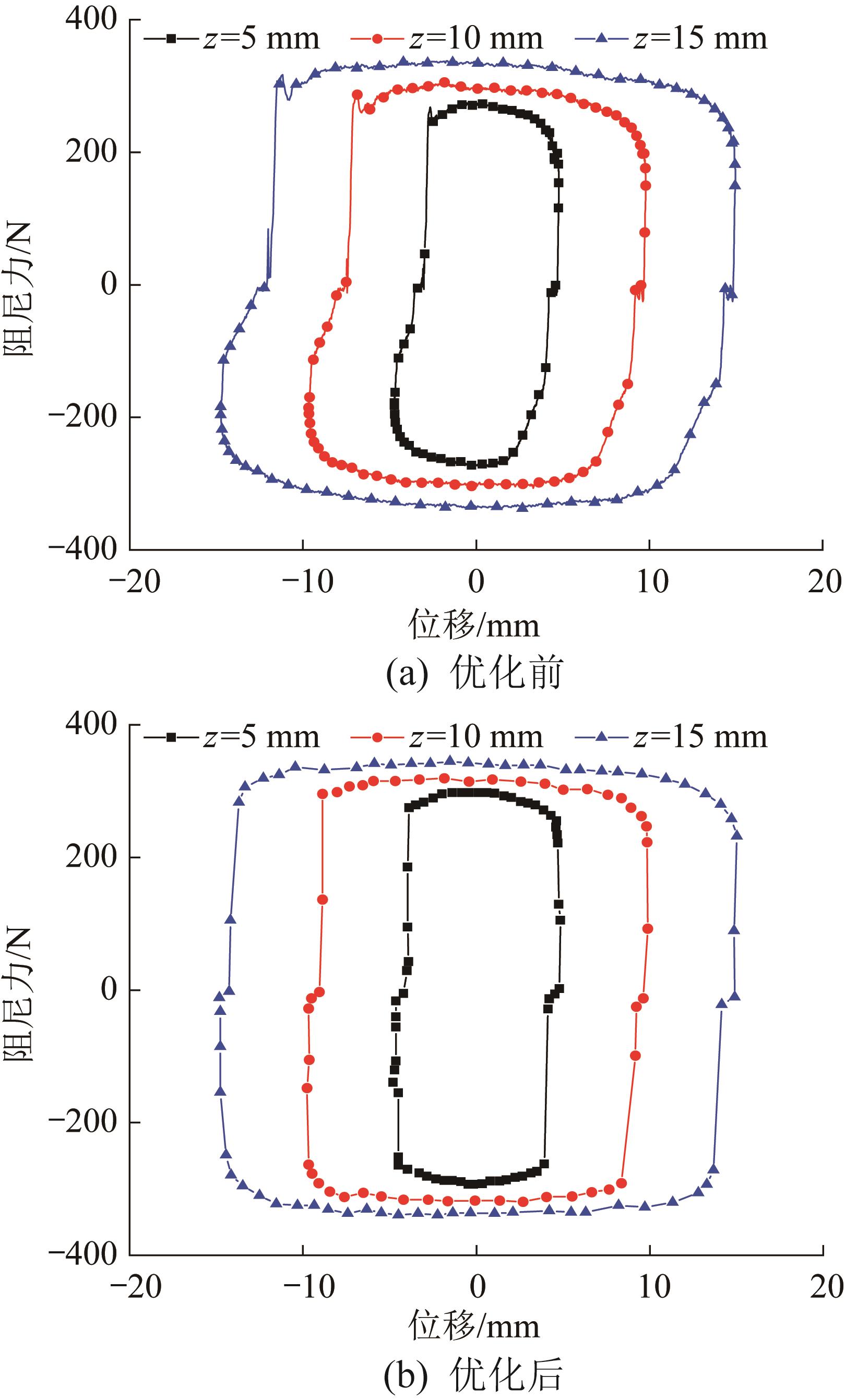

Fig.18 Damping force-displacement curves under different currents before and after optimization

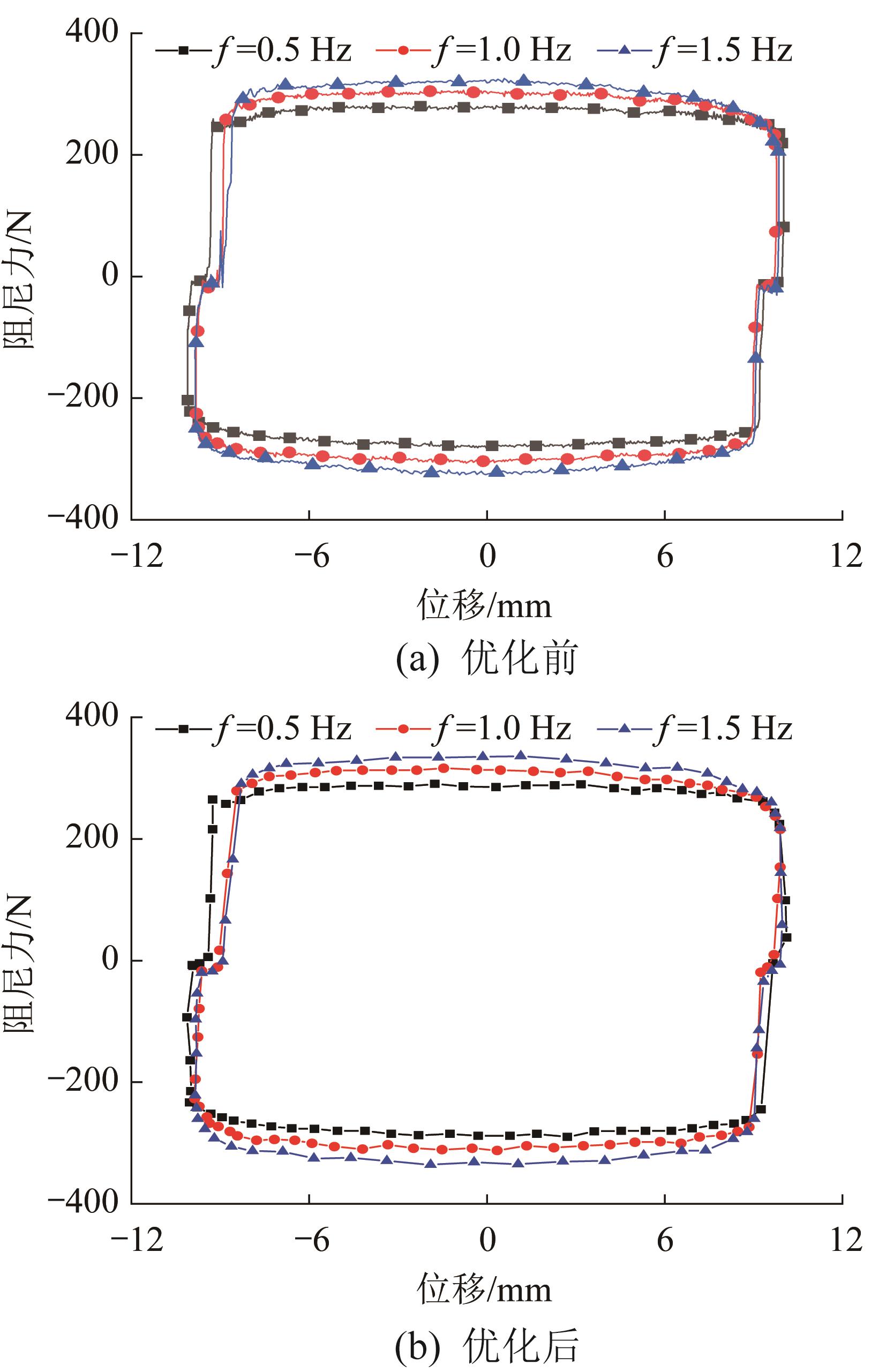

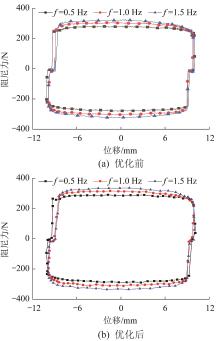

Fig.19 Damping force-displacement curves under different frequencies before and after optimization

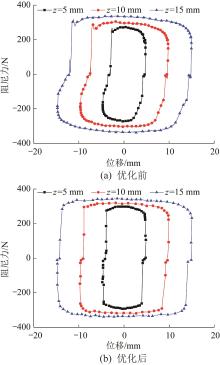

Fig.20 Damping force-displacement curves under different amplitudes before and after optimization

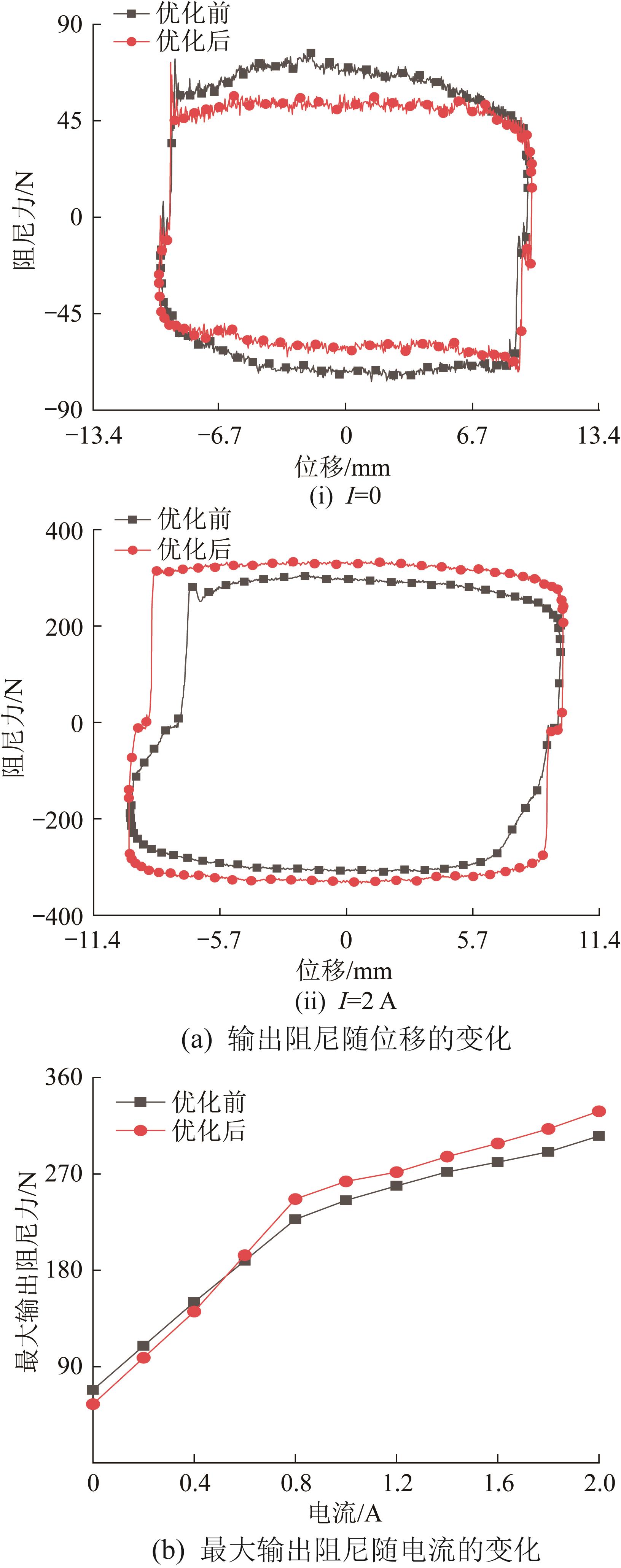

Fig.21 Comparison of maximum output damping force before and after optimization
