Low pulsation structural optimization design of swashplate axial piston pump based on multi-objective genetic algorithm
Haibo XIE1,2(),Haocen HONG1(),Baicun WANG1,2,WEI JIANG3,Huayong YANG1,2
1.Institute of Advanced Machines, Zhejiang University, Hangzhou 310014, China
2.State Key Laboratory of Fundamental Components of Fluid Power and Mechatronic Systems, Zhejiang University, Hangzhou 310058, China
3.State Key Laboratory of Intelligent Manufacturing Equipment and Technology, Huazhong University of Science and Technology, Wuhan 430074, China
Download: HTML     PDF(3565KB)
Export: BibTeX | EndNote (RIS)

Abstract

Because of the asymmetric structure of axial piston pump, its output pressure and output flow have pulsating characteristics, which affects the output stability and reliability of hydraulic system. Therefore, an optimization design method of low pulsation structure of swashplate axial piston pump based on multi-objective genetic algorithm is proposed. Firstly, the CFD (computational fluid dynamics) simulation analysis method was used to analyze the generation mechanism of pressure-flow pulsation at the upper/lower dead points of the axial piston pump; secondly, the influence of damping groove structural parameters on the output pressure-flow pulsation of axial piston pump was analyzed, and a multi-objective optimization model of damping groove structure was constructed; finally, the structure of the low pulsation damping groove was solved. The optimized structural parameters were as follows: the damping groove radius was 2.21 mm, the damping groove length was 10.32 mm, and the damping groove deflection angle was 16.54°. After optimization, the pressure pulsation rate was 0.59%, which was reduced by 0.16% compared to the pre-optimization value of 0.75%, and the pulsation amplitude was 0.25 MPa. The flow pulsation rate was 12.02%, which was reduced by 43.59% compared to the pre-optimization rate of 55.61%. The research results provide effective theoretical support and practical guidance for the optimal design of low pulsation structure of axial piston pump.

Key words： axial piston pump      valve plate      damping groove      multi-objective optimization      low pulsation
Received: 17 February 2024      Published: 26 April 2024
CLC:  TQ 021.1
Corresponding Authors: Haocen HONG     E-mail: krdp_pump20@foxmail.com;honghaocen@zju.edu.cn
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Haibo XIE
Haocen HONG
Baicun WANG
WEI JIANG
Huayong YANG
Cite this article:

Haibo XIE,Haocen HONG,Baicun WANG,WEI JIANG,Huayong YANG. Low pulsation structural optimization design of swashplate axial piston pump based on multi-objective genetic algorithm. Chinese Journal of Engineering Design, 2024, 31(2): 160-167.

URL:

https://www.zjujournals.com/gcsjxb/10.3785/j.issn.1006-754X.2024.04.114     OR     https://www.zjujournals.com/gcsjxb/Y2024/V31/I2/160


基于多目标遗传算法的斜盘式轴向柱塞泵低脉动结构优化设计

由于轴向柱塞泵的非对称结构特性，其输出压力和输出流量存在脉动特性，对液压系统的输出稳定性和可靠性造成影响，因此提出了一种基于多目标遗传算法的斜盘式轴向柱塞泵低脉动结构优化设计方法。首先，通过CFD（computational fluid dynamics，计算流体动力学）仿真分析方法，对轴向柱塞泵上/下死点位的压力-流量脉动的产生机理进行了分析；其次，对阻尼槽结构参数对轴向柱塞泵输出压力-流量脉动的影响规律进行了分析，构建了阻尼槽结构的多目标优化模型；最后，求解了低脉动阻尼槽结构。优化后的结构参数：阻尼槽半径为2.21 mm，阻尼槽长度为10.32 mm，阻尼槽错配角为16.54°。优化后压力脉动率为0.59%，相比于优化前的0.75%降低了0.16%，脉动幅值为0.25 MPa；优化后流量脉动率为12.02%，相比于优化前的5.61%降低了43.59%。研究结果为轴向柱塞泵低脉动结构的优化设计提供了有效的理论支持和实践指导。


关键词： 轴向柱塞泵,  配流盘,  阻尼槽,  多目标优化,  低脉动

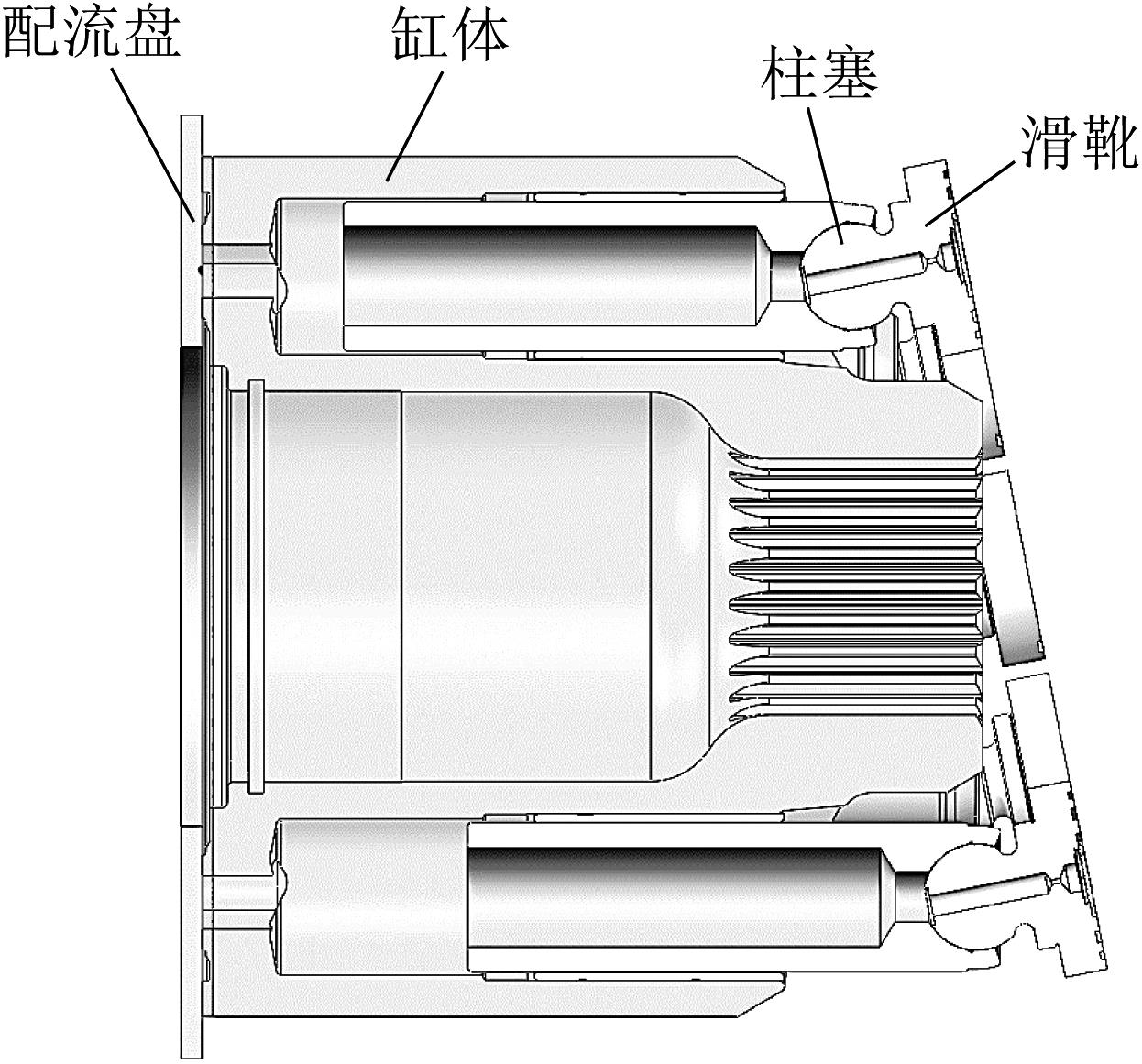

Fig.1 Structural profile of rotor of axial piston pump

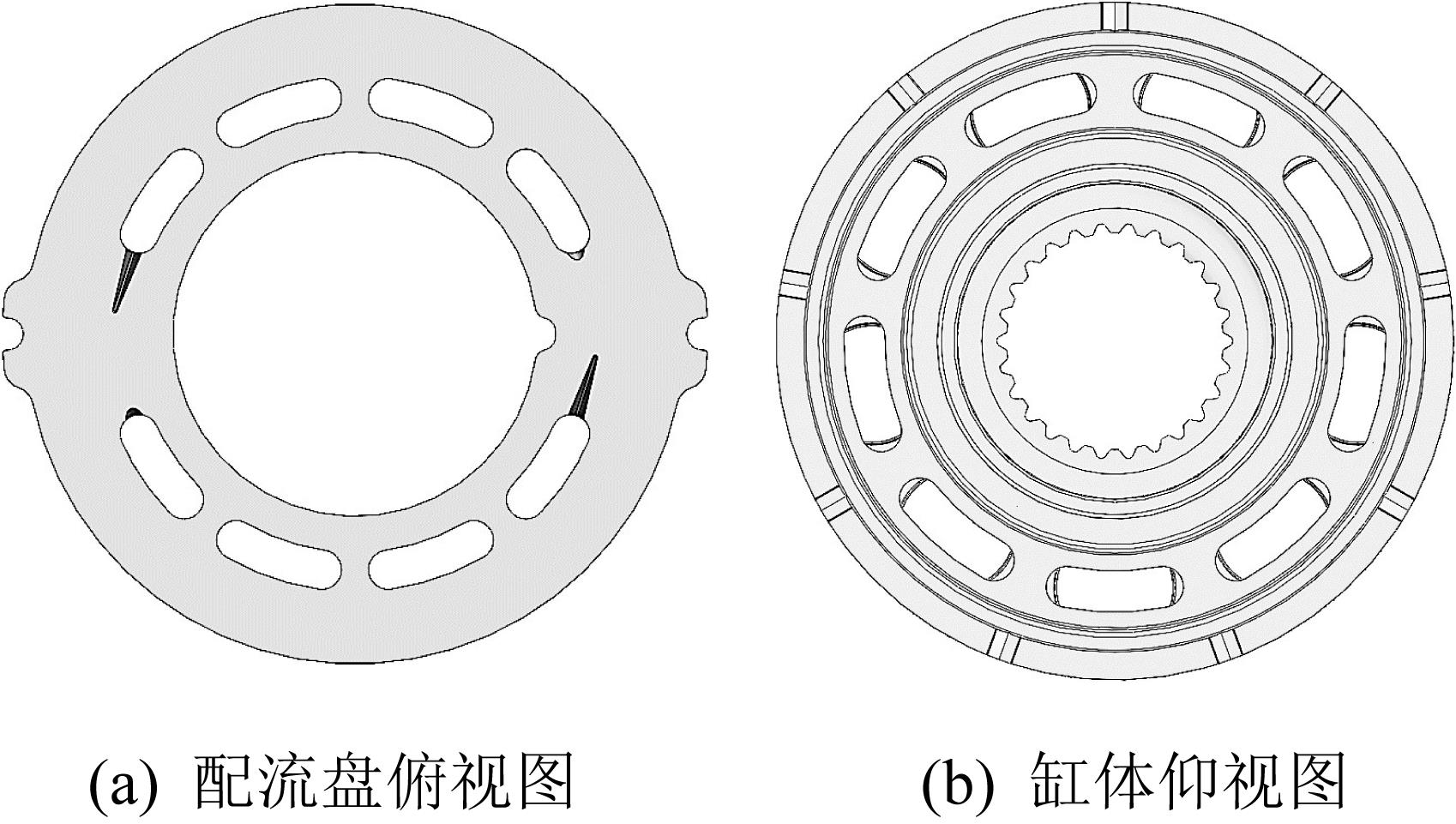

Fig.2 Structure of mating surface of valve plate and cylinder body of axial piston pump

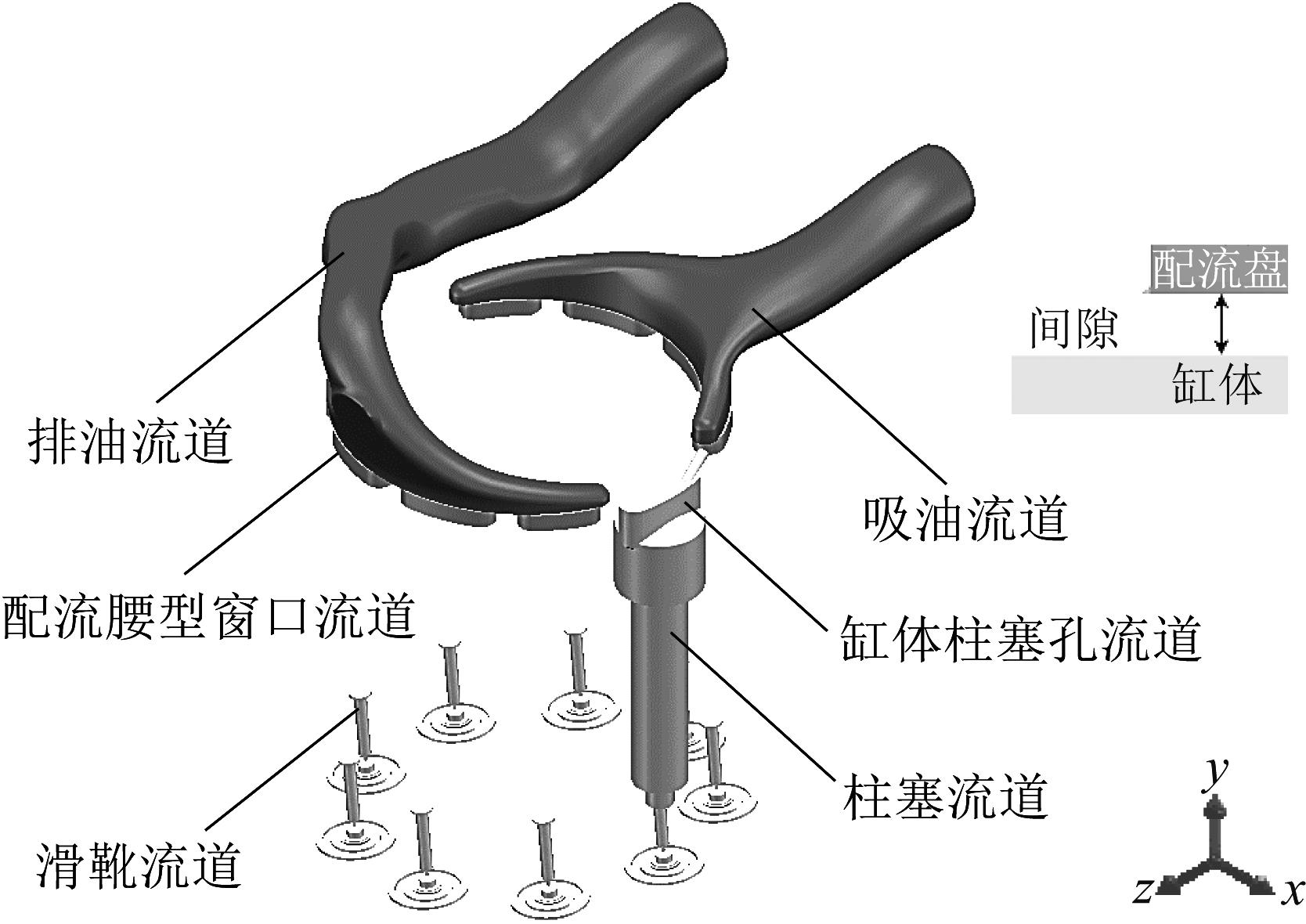

Fig.3 Flow field division of axial piston pump
交界面边界类型
吸/排油流域与配流腰型窗口流域交界面inlet_mgi_vp
配流腰型窗口流域与配流副间隙油膜交界面vp_mgi_film
配流副间隙油膜与缸体柱塞孔顶部窗口交界面film_mgi_piston
柱塞流域底部窗口与滑靴流域顶部窗口交界面piston_mgi_shoe
Table 1 Setting of interaction boundary of flow field model of axial piston pump

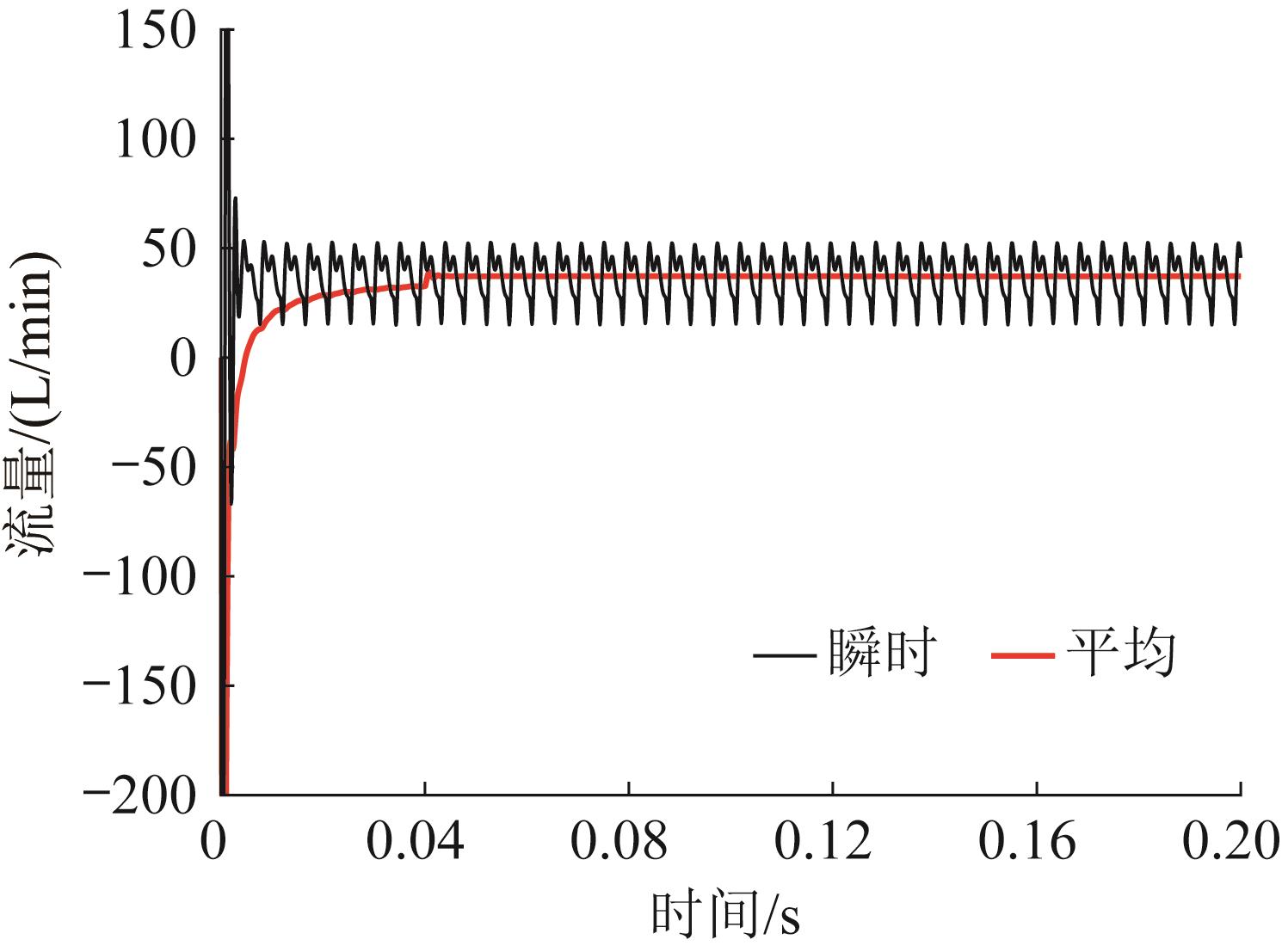

Fig.4 Outlet flow curve of axial piston pump

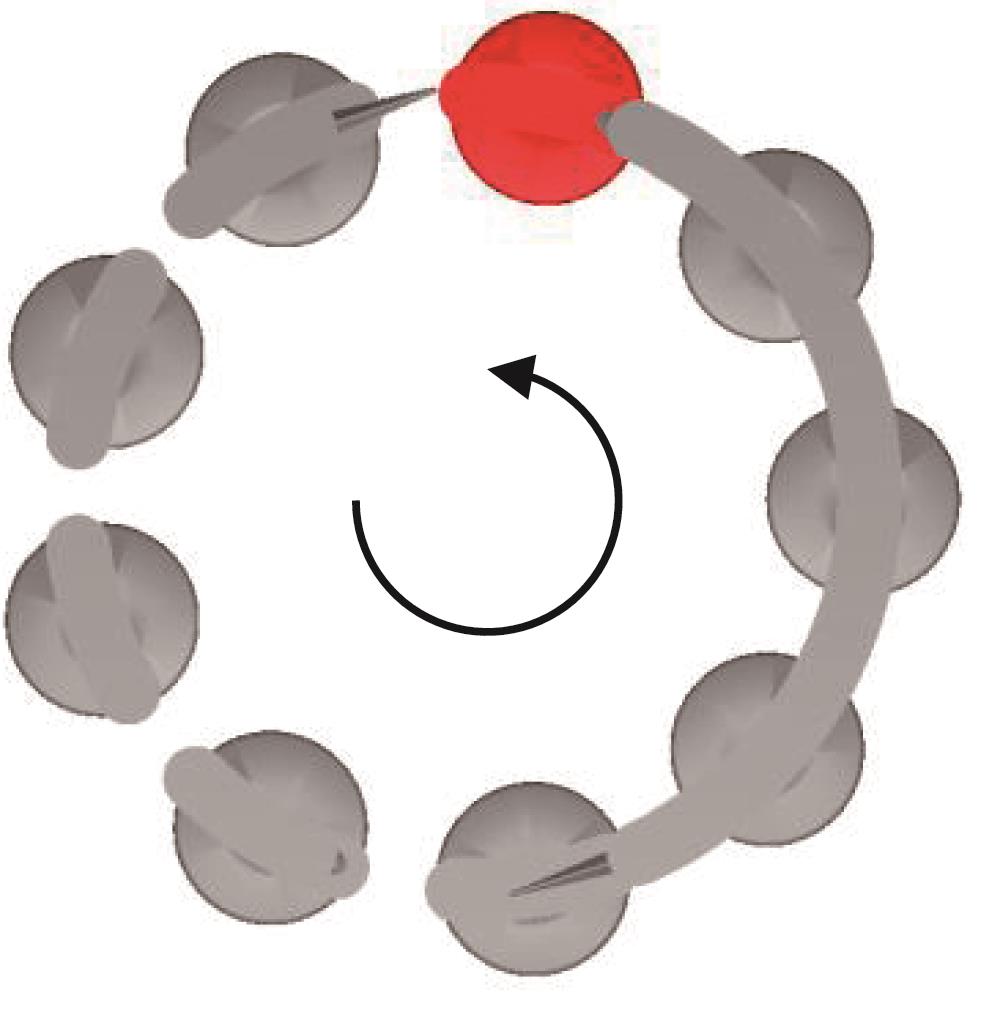

Fig.5 Schematic of movement starting position of piston cavity

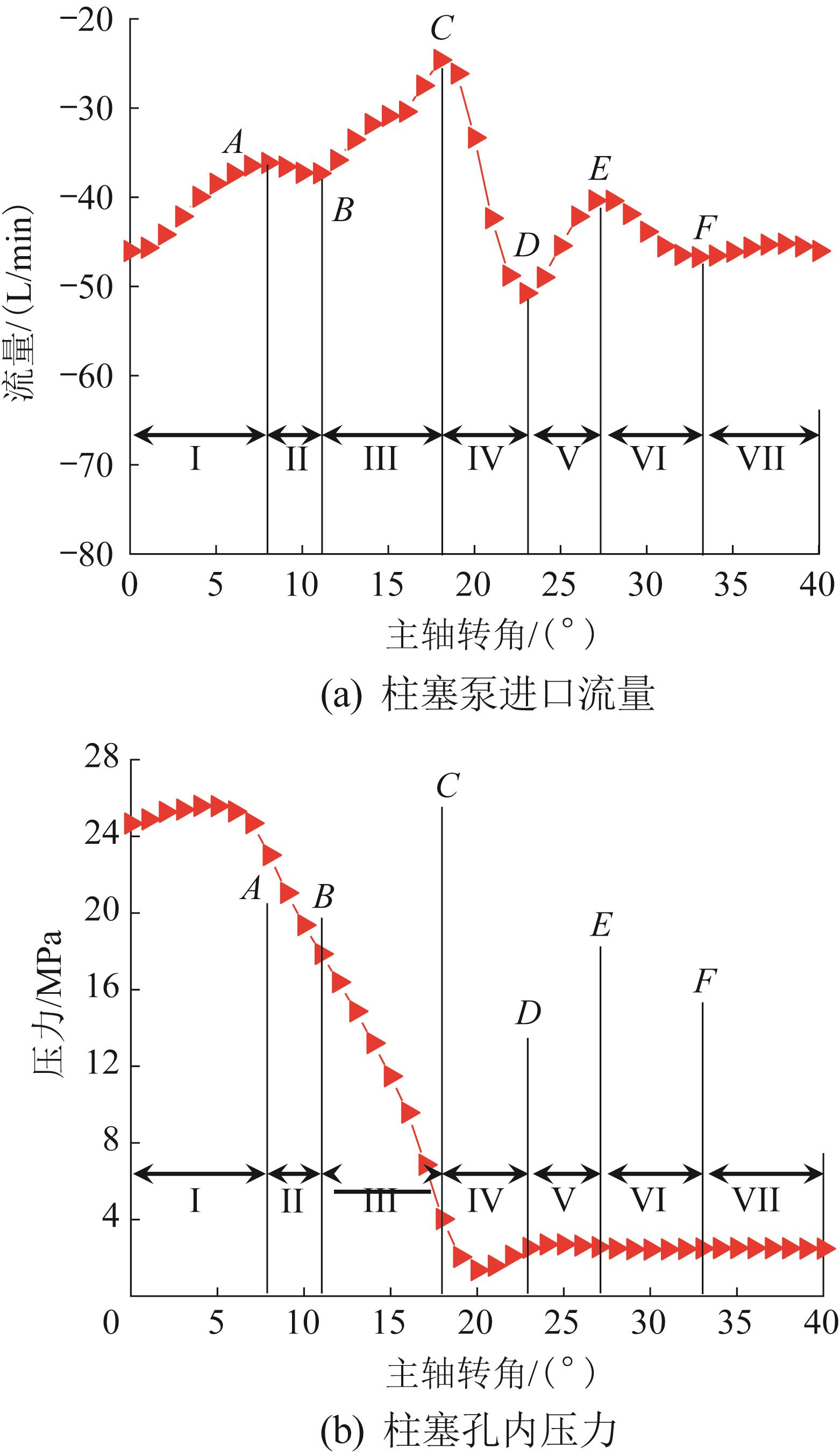

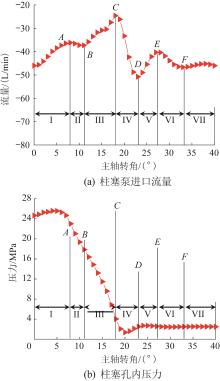

Fig.6 Inlet flow curve of piston pump and pressure curve of piston cavity in one pulsating period

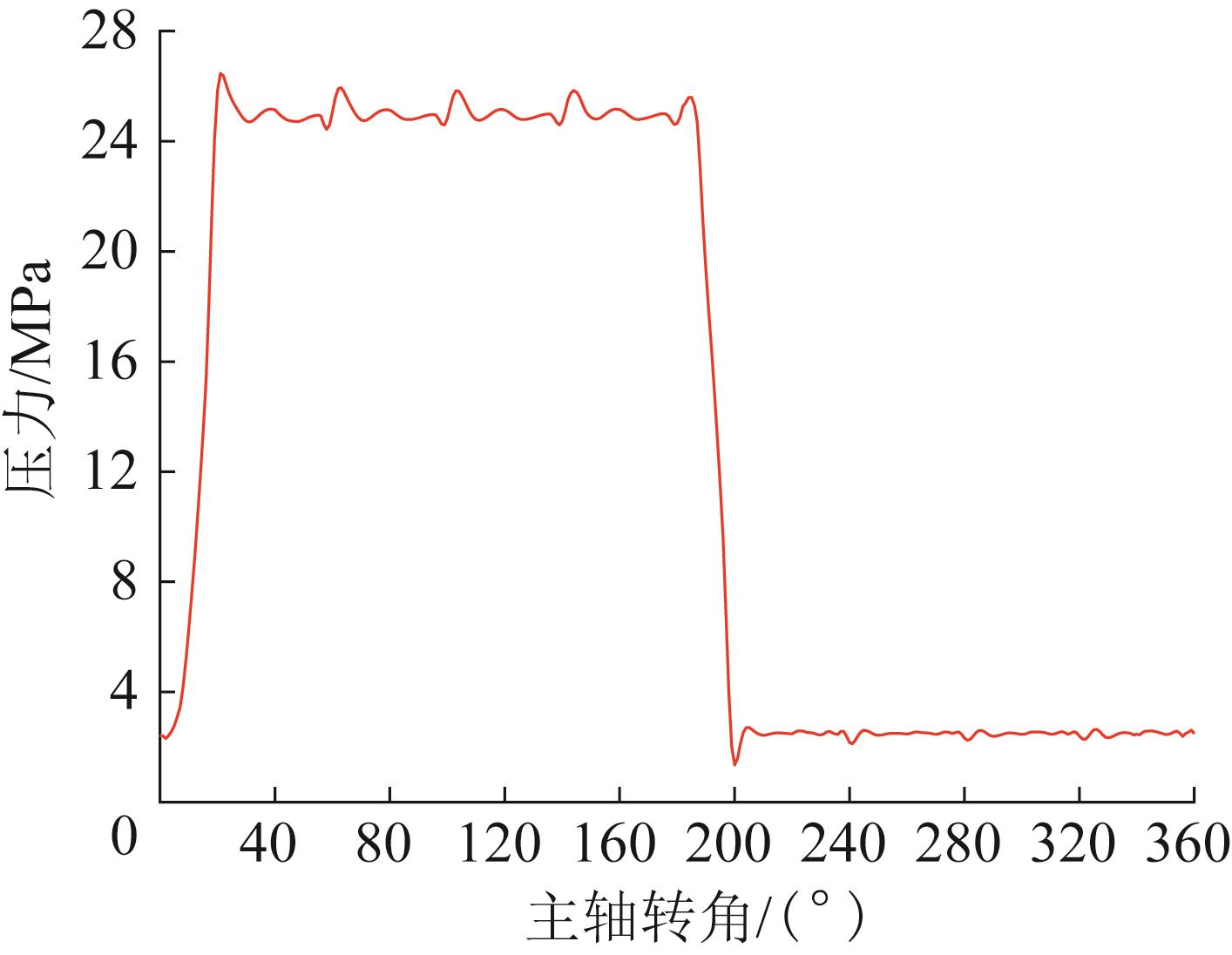

Fig.7 Pressure curve of single piston cavity of axial piston pump

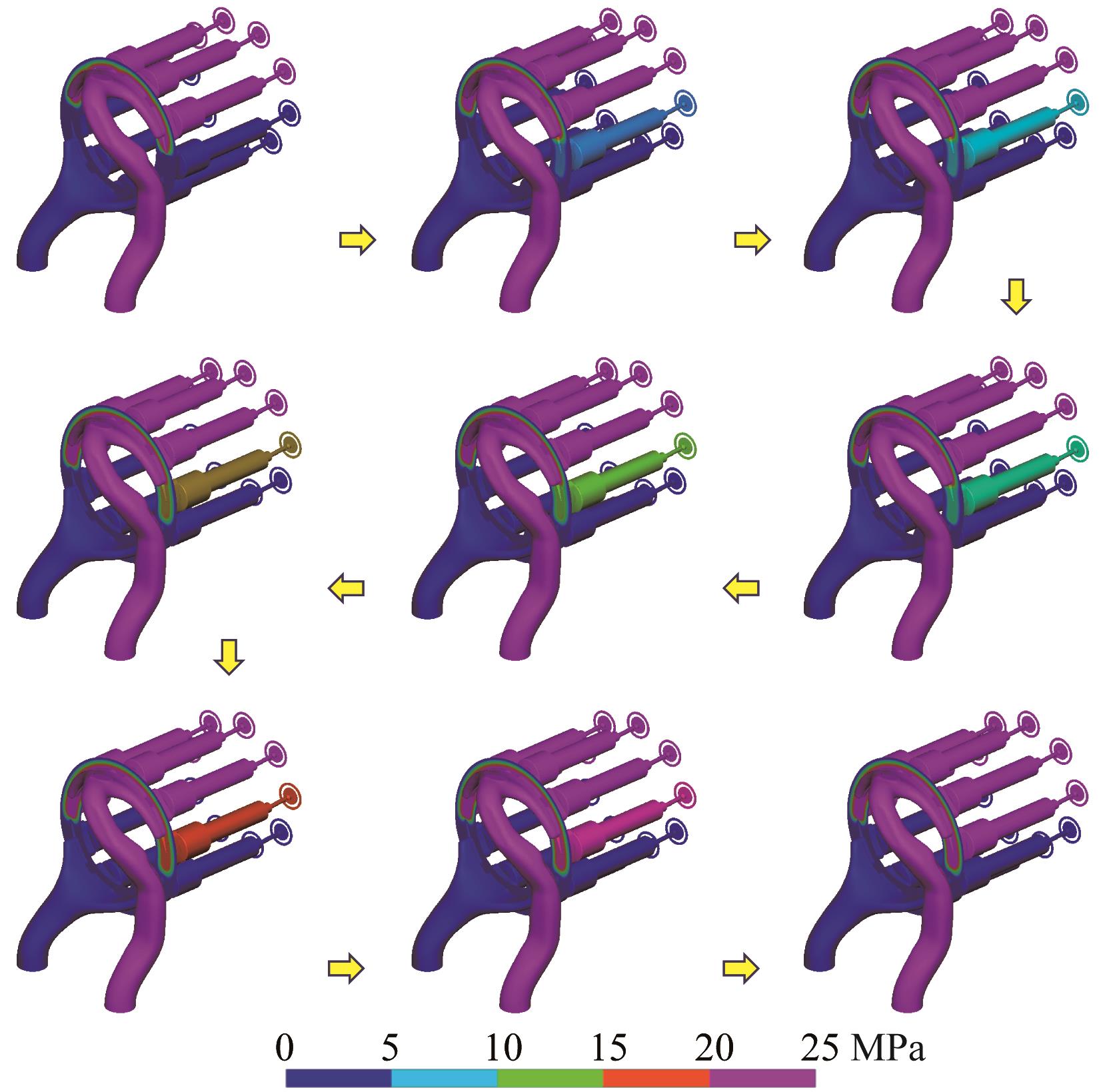

Fig.8 Cloud map of pressure variation in pre-boost area of axial piston pump

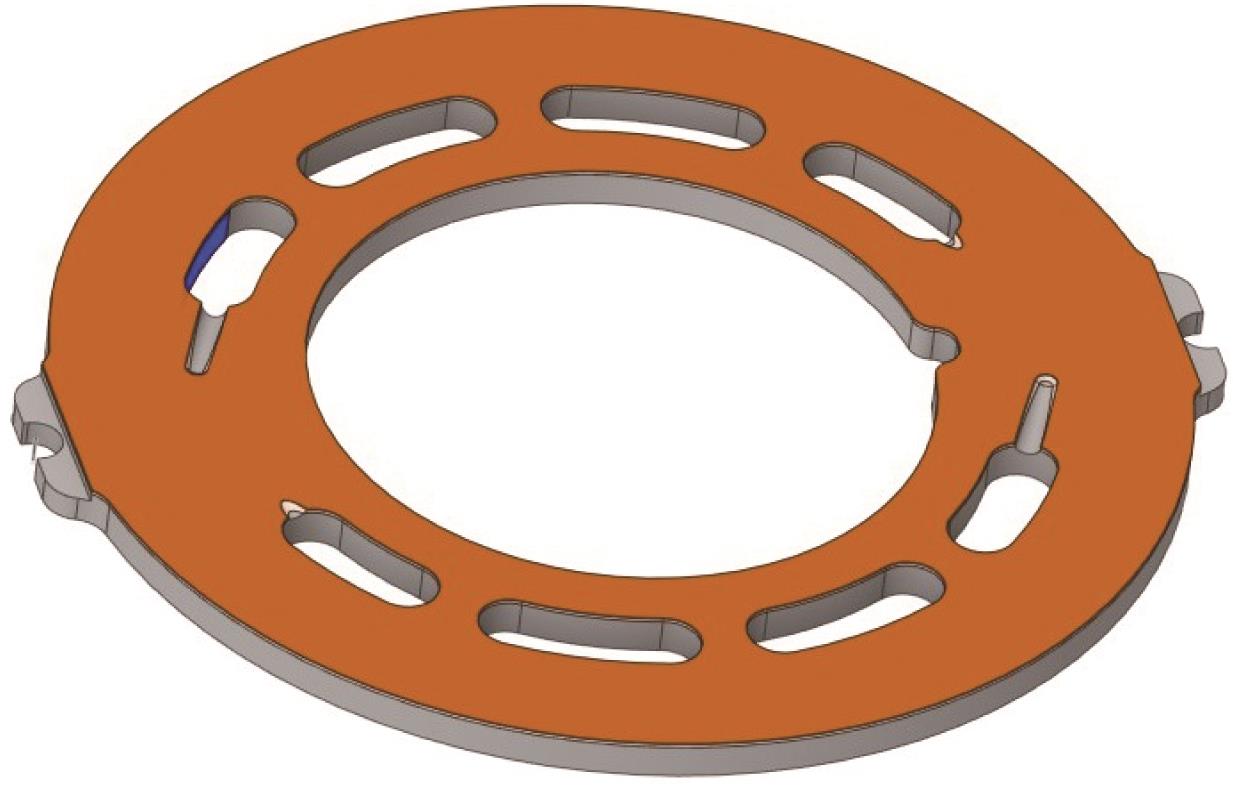

Fig.9 Structure of valve plate

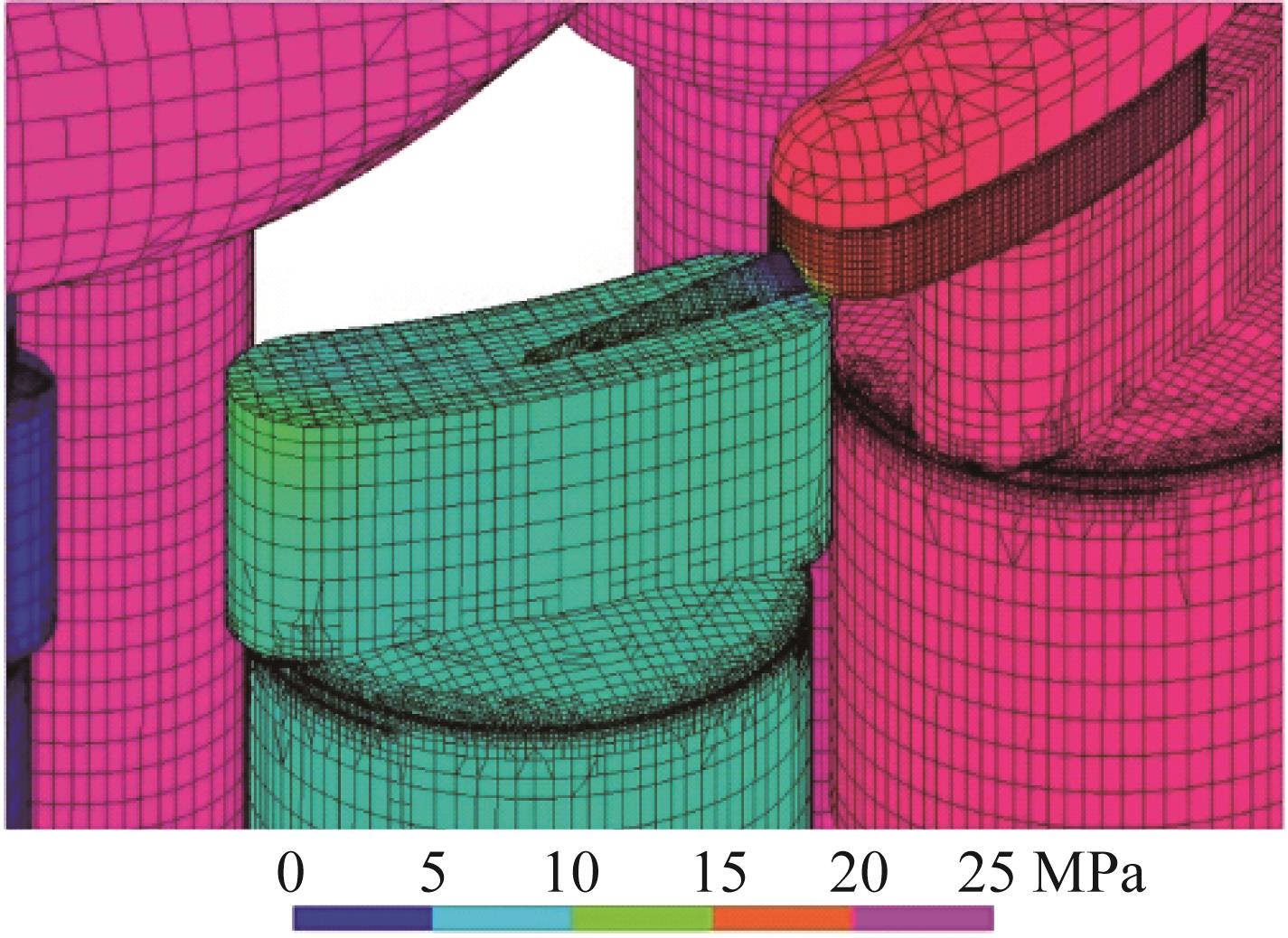

Fig.10 Cloud map of pressure distribution in full contact between damping groove and piston cavity (spindle rotating 21°)

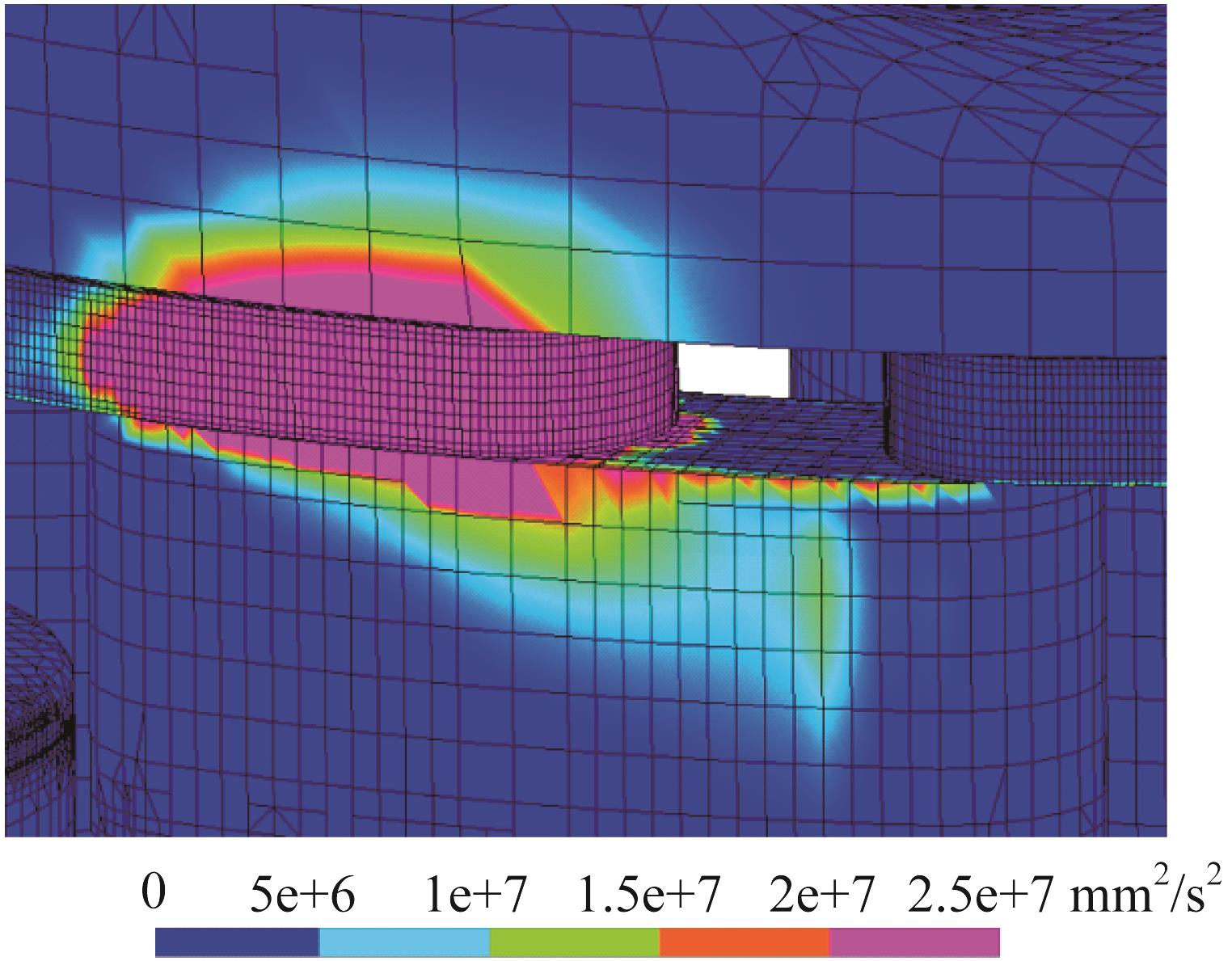

Fig.11 Cloud map of turbulent kinetic energy at reinforcement of valve plate (spindle rotating 21°)

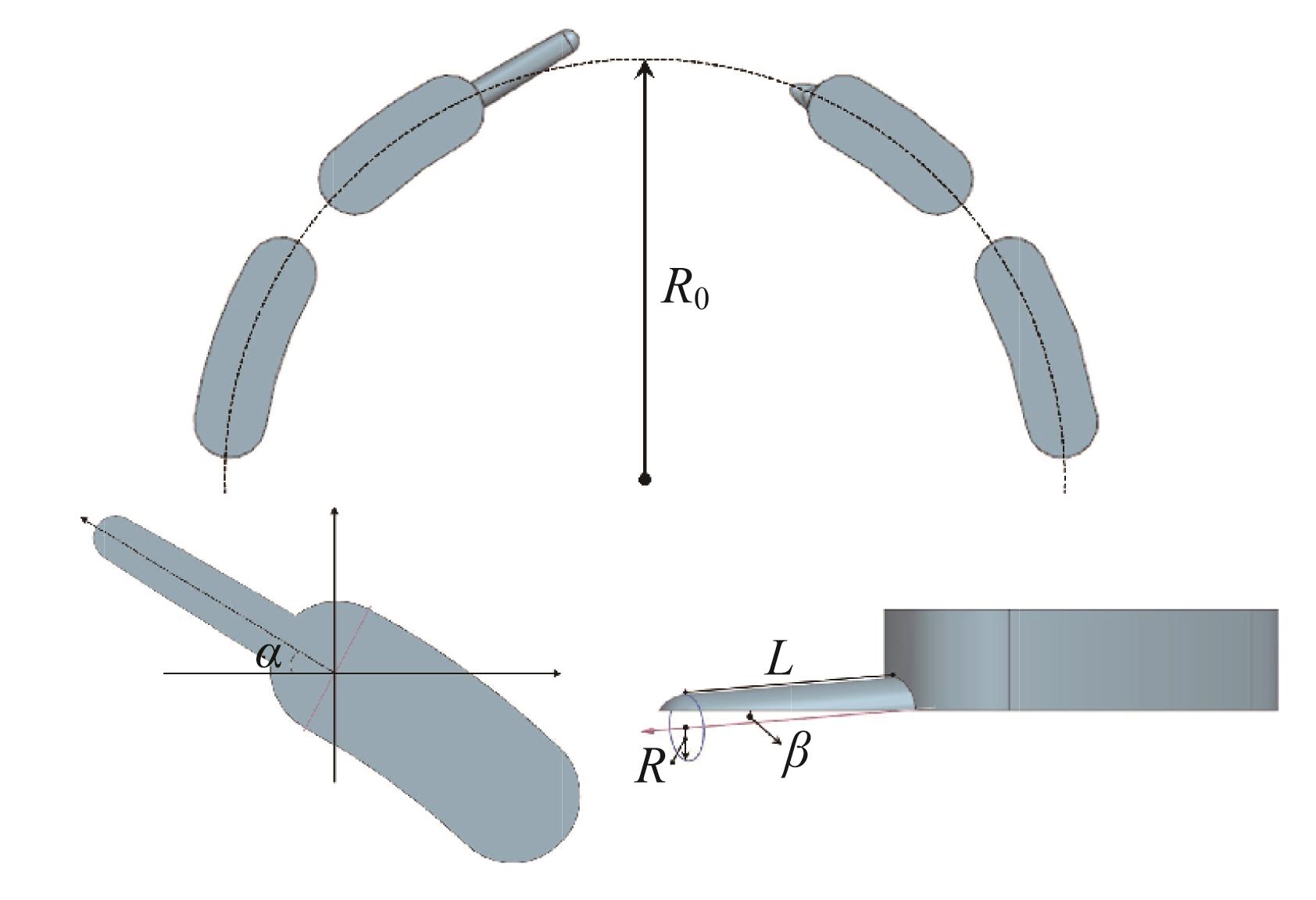

Fig.12 Schematic of key structural parameters of cylindrical damping groove

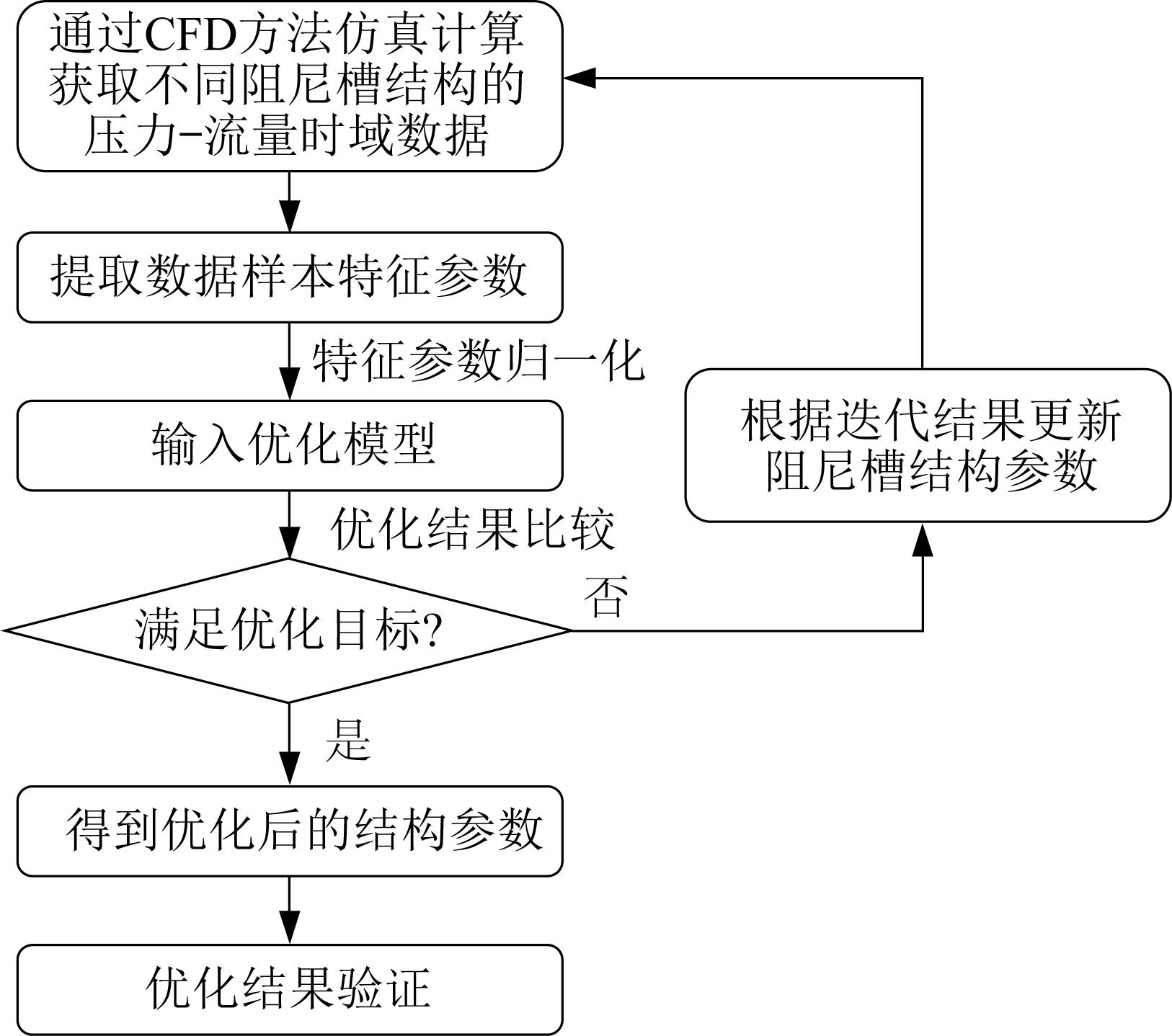

Fig.13 Optimization process of structural parameter of damping groove

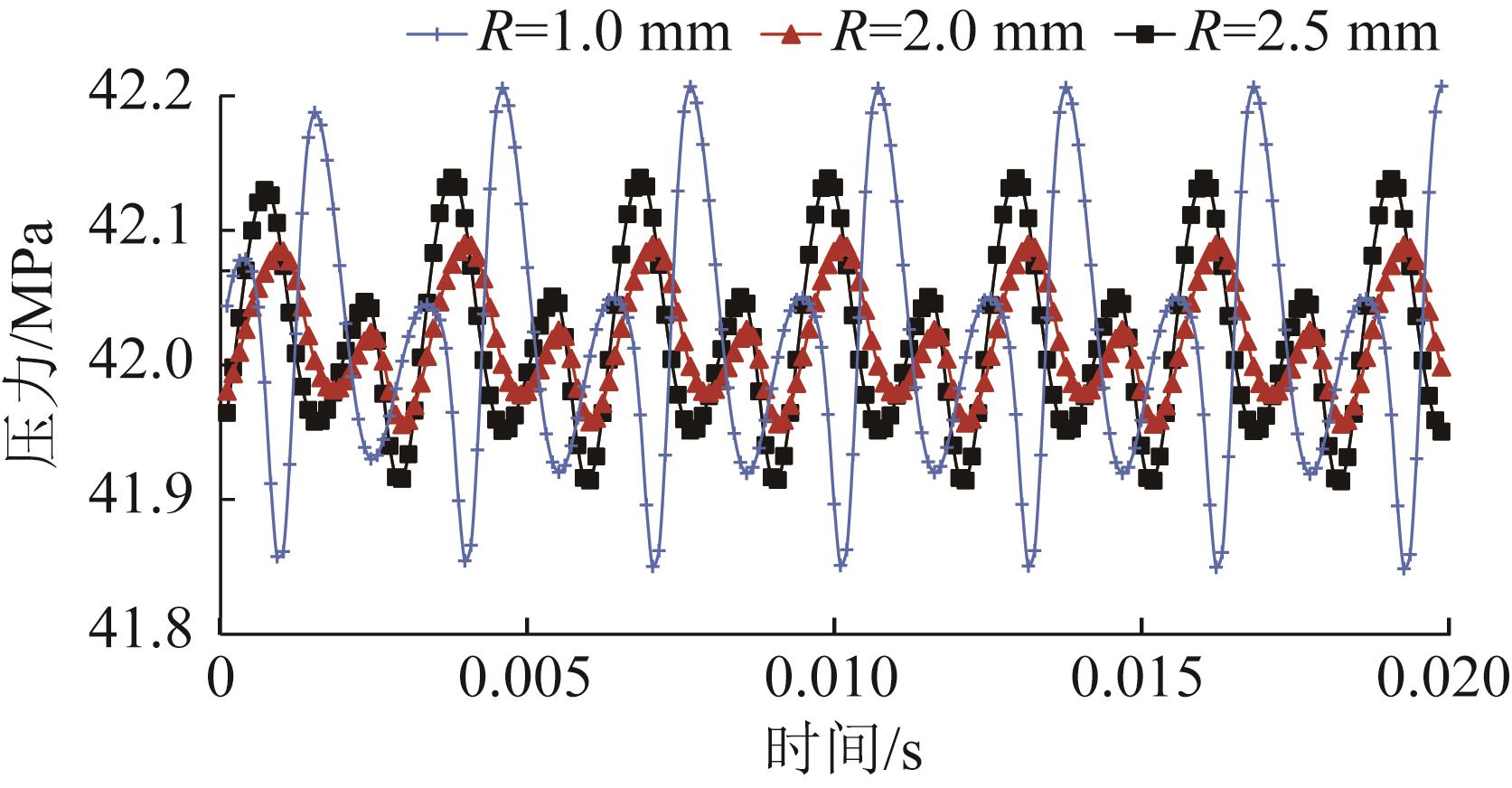

Fig.14 Outlet pressure curves of axial piston pump under different damping groove radius

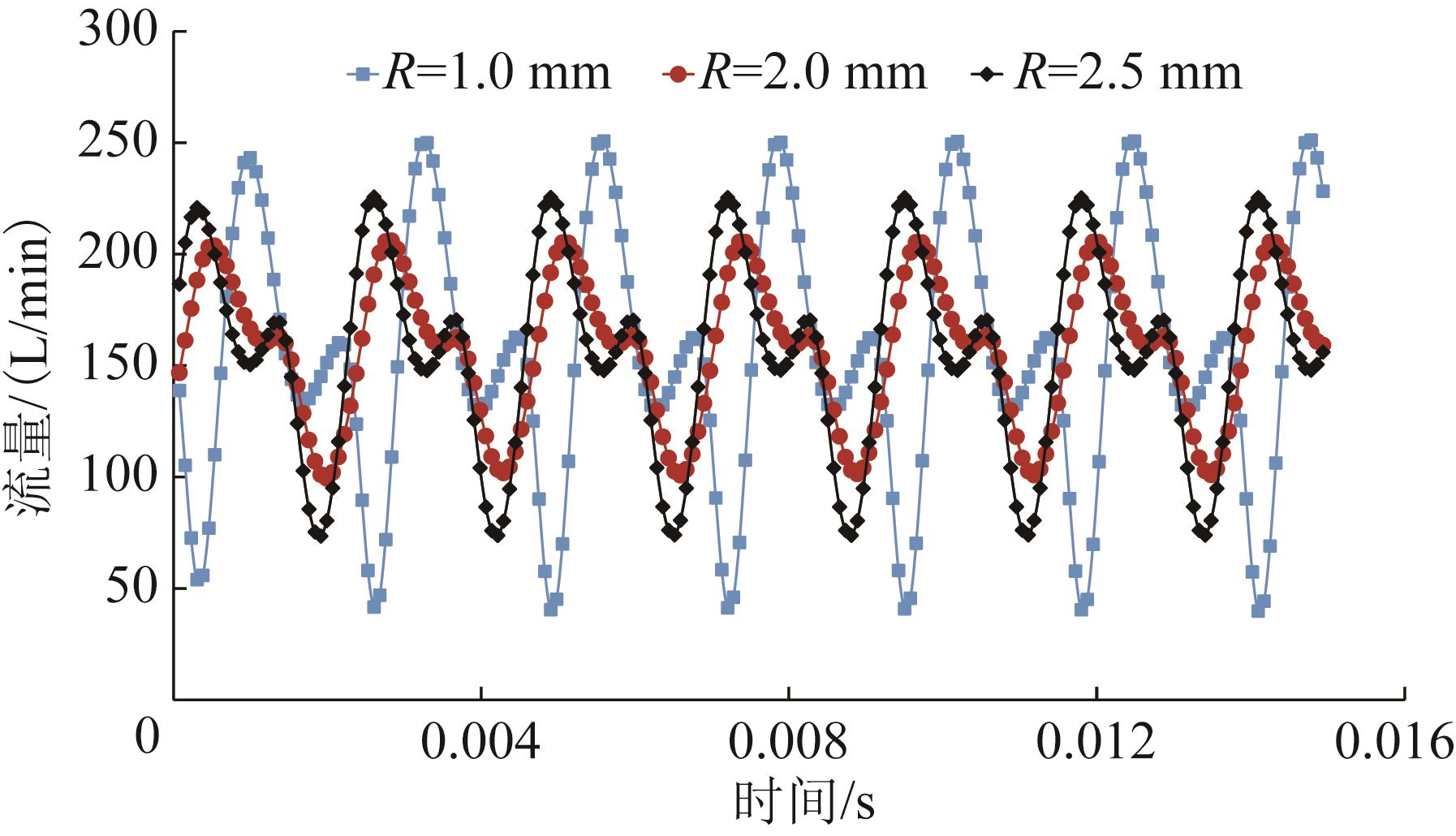

Fig.15 Outlet flow curves of axial piston pump under different damping groove radius

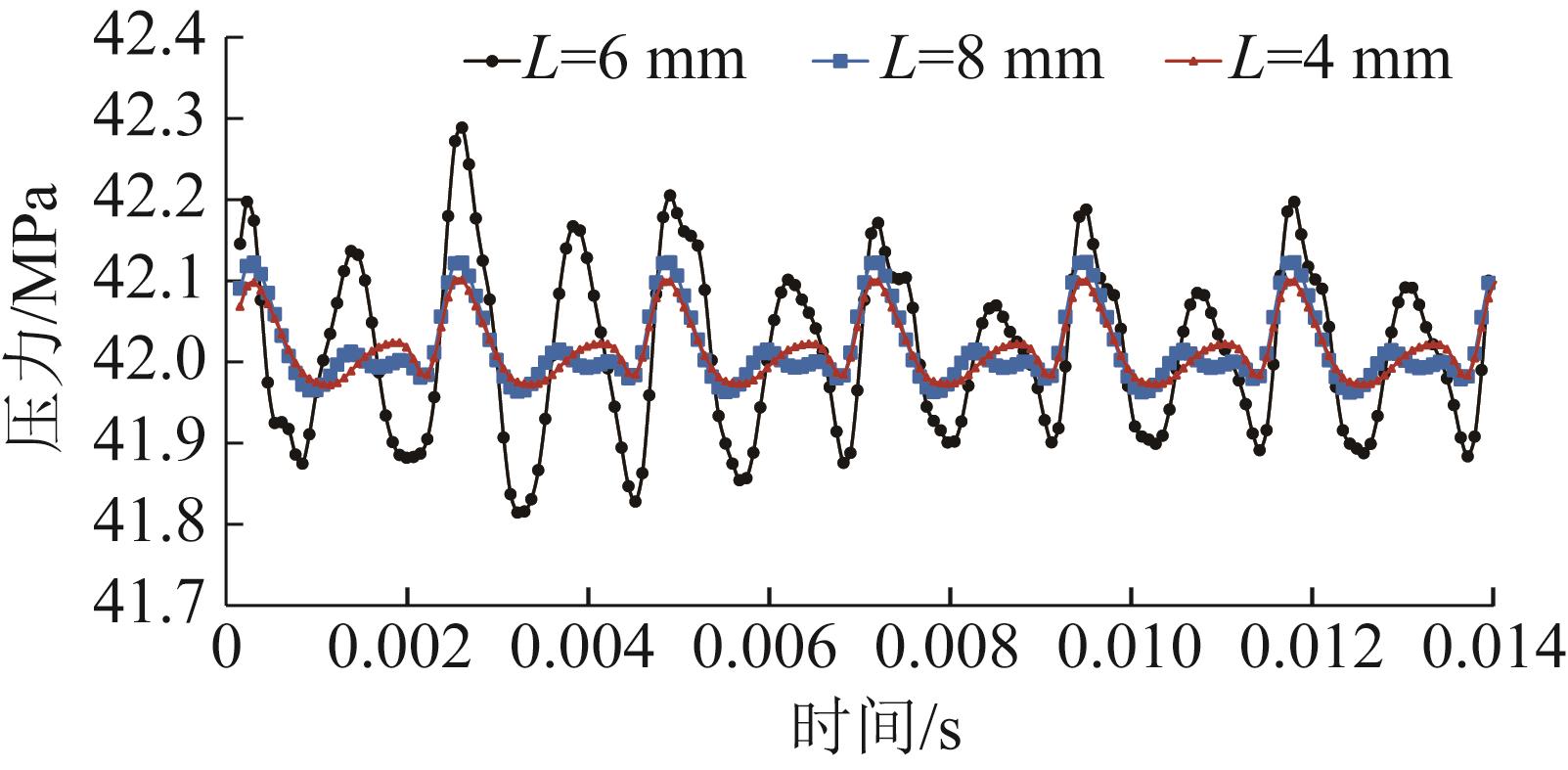

Fig.16 Outlet pressure curves of axial piston pump under different damping groove lengths

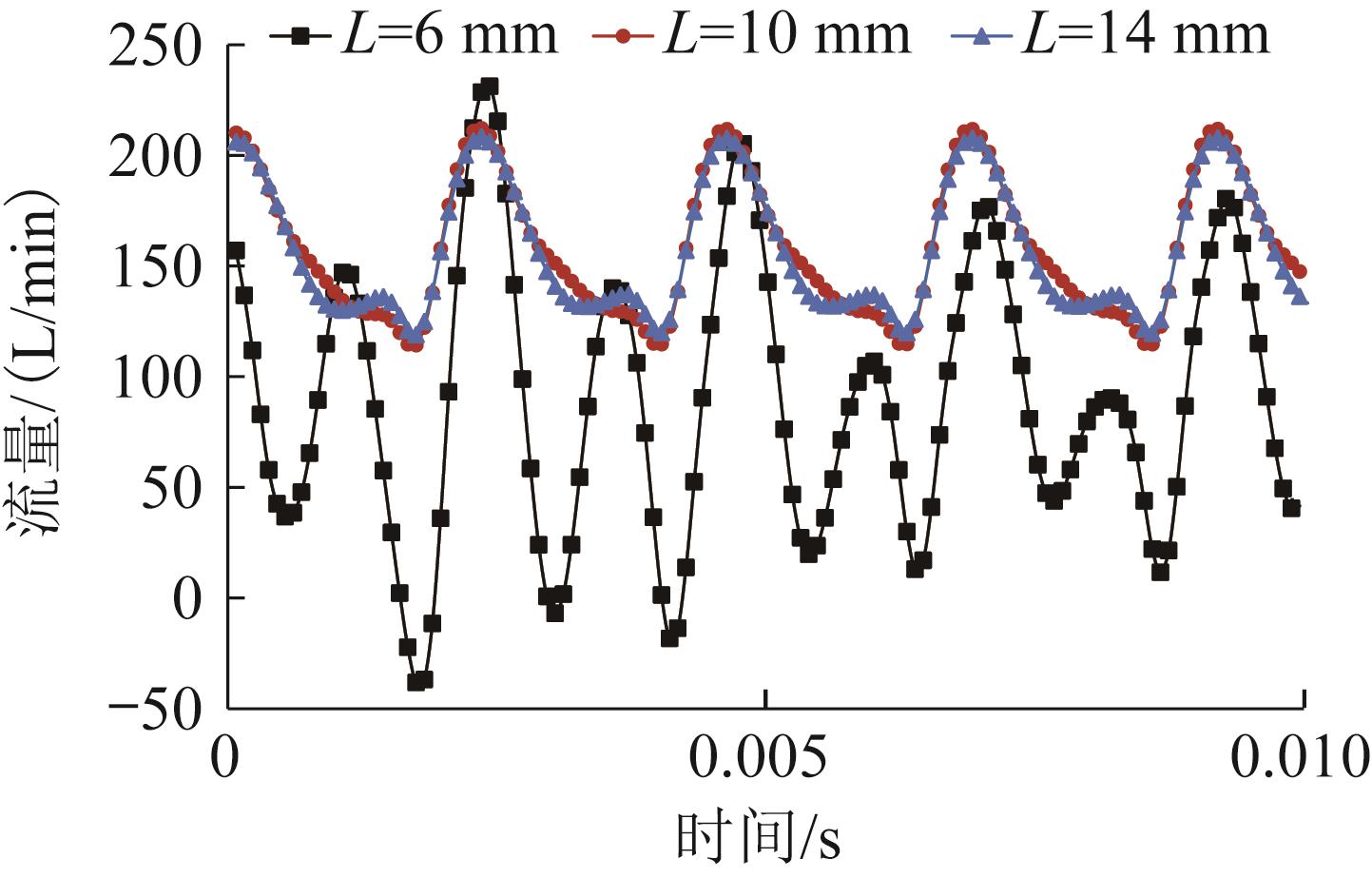

Fig.17 Outlet flow curves of axial piston pump under different damping groove lengths

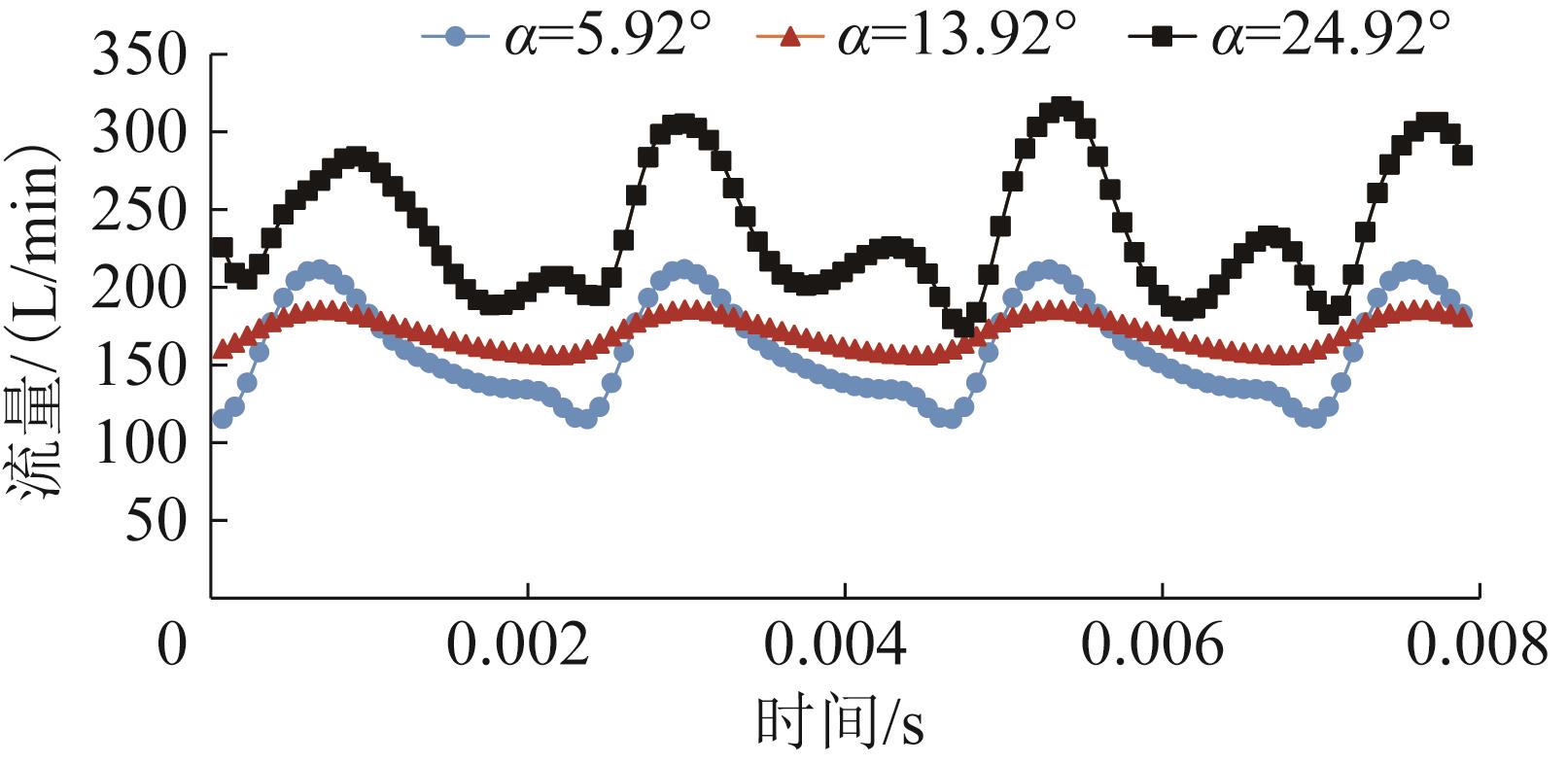

Fig.18 Outlet flow curves of axial piston pump under different damping groove deflection angles

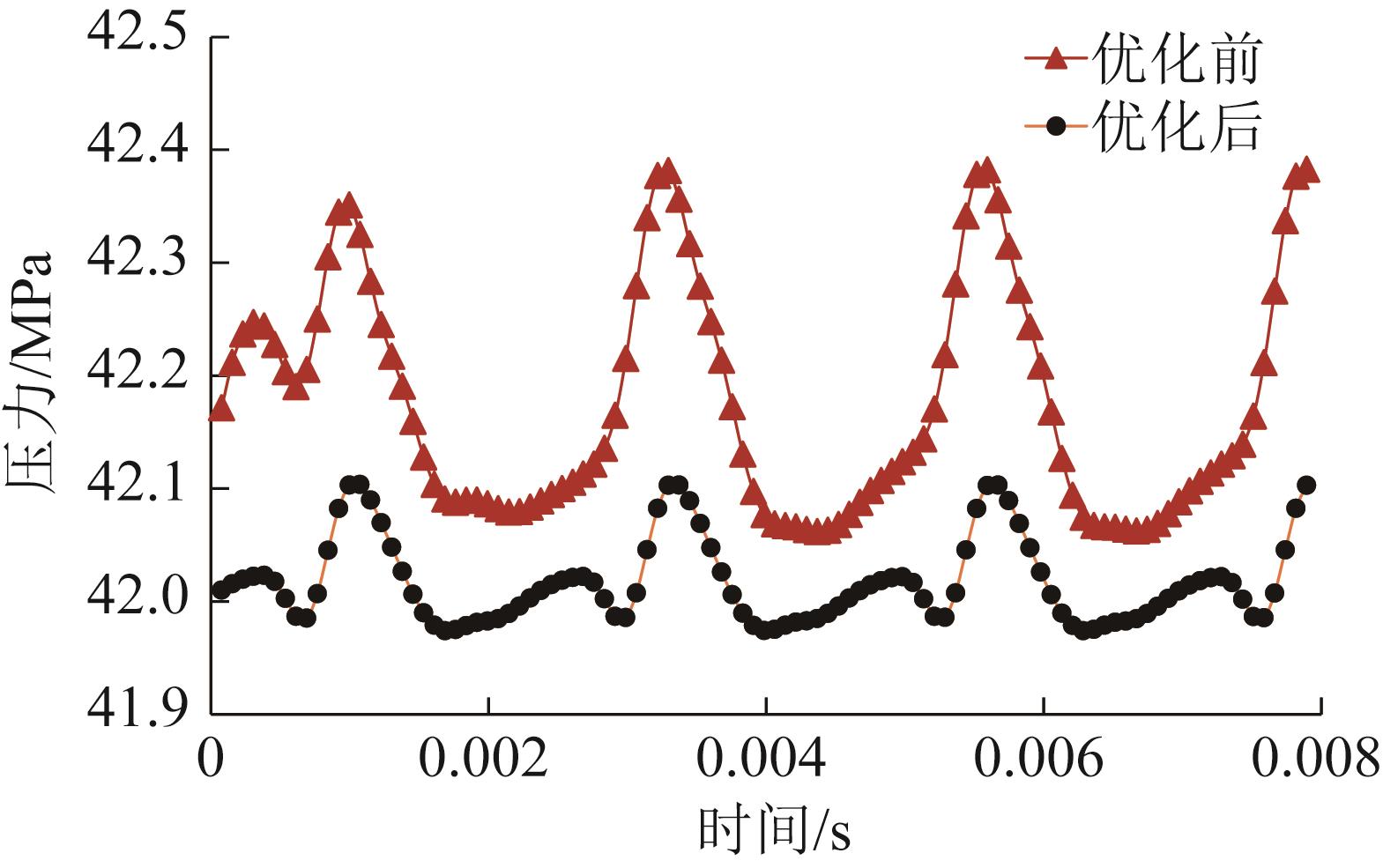

Fig.19 Outlet pressure curves of axial piston pump before and after optimization

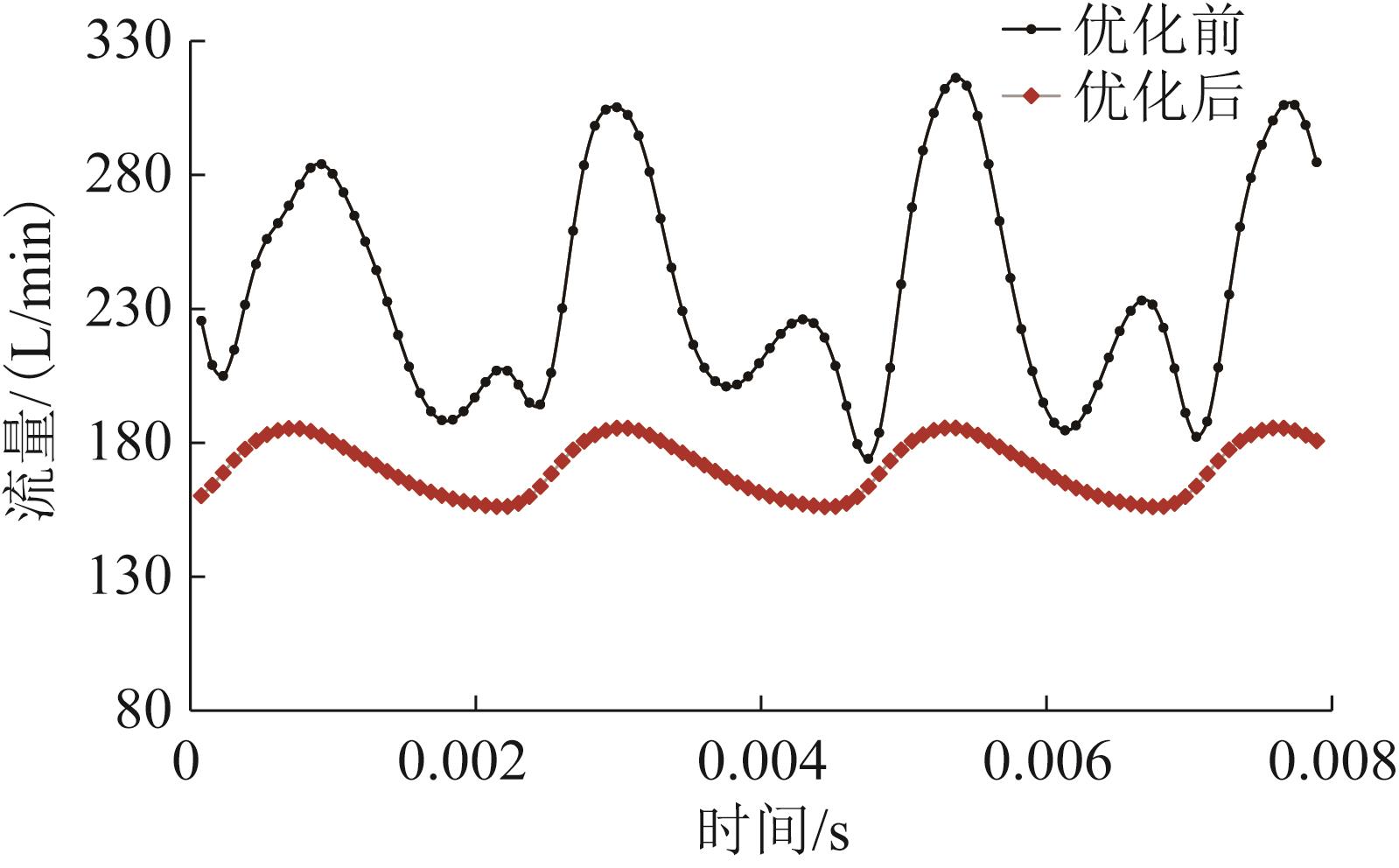

Fig.20 Outlet flow curves of axial piston pump before and after optimization
