Research on oil film stiffness coefficient of slot throttling hydrostatic bearing
Zhuxin TIAN1,3(),Sitian QI1,Chunyan CHENG2,Huaiqing LU2,3()
1.College of Mechanical and Power Engineering, China Three Gorges University, Yichang 443002, China
2.School of Mechanical Engineering, Yellow River Conservancy Technical Institute, Kaifeng 475004, China
3.State Key Laboratory of Digital Manufacturing Equipment and Technology, Huazhong University of Science and Technology, Wuhan 430074, China
Download: HTML     PDF(1707KB)
Export: BibTeX | EndNote (RIS)

Abstract

Oil film stiffness coefficient is one of the key performance parameters of hydrostatic bearing. In the context of slot throttling hydrostatic bearing, the analytical expression for the oil film load capacity was deduced, and the analytical expression for the oil film stiffness coefficient was further derived on this basis. Compared with conventional empirical formula, the calculated results from this expression were in better agreement with the experimental results. Through the analysis of application cases, it could be seen that the oil film load capacity was positively correlated with throttling parameters and spindle eccentricity. The positive oil film stiffness coefficient decreased with the increase of eccentricity, whereas the cross oil film stiffness coefficient increased with the increase of eccentricity, and the positive stiffness coefficient was obviously greater than the cross stiffness coefficient. By using the expression for oil film stiffness coefficient of bearing, the oil film stiffness coefficient can be obtained in real time by measuring the bearing shaft center position in the running process of the bearing, and the operation of the slot throttling hydrostatic bearing can be effectively monitored.

Key words： hydrostatic bearing      slot throttling      oil film stiffness coefficient      oil film load capacity      journal center position
Received: 04 March 2024      Published: 30 October 2024
CLC:  TH 117
Corresponding Authors: Huaiqing LU     E-mail: zhuxintian1987@sina.com;huaiqinglu@163.com
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Zhuxin TIAN
Sitian QI
Chunyan CHENG
Huaiqing LU
Cite this article:

Zhuxin TIAN,Sitian QI,Chunyan CHENG,Huaiqing LU. Research on oil film stiffness coefficient of slot throttling hydrostatic bearing. Chinese Journal of Engineering Design, 2024, 31(5): 634-640.

URL:

https://www.zjujournals.com/gcsjxb/10.3785/j.issn.1006-754X.2024.04.120     OR     https://www.zjujournals.com/gcsjxb/Y2024/V31/I5/634


缝隙节流液体静压轴承油膜刚度系数的研究

油膜刚度系数是液体静压轴承的关键性能参数之一。针对缝隙节流液体静压轴承，推导了其油膜承载力的解析表达式，并在此基础上进一步推导了油膜刚度系数的解析表达式。相比于传统经验公式，采用该表达式的计算结果与实验结果更吻合。通过分析应用案例可知：油膜承载力与节流参数、主轴离心率均呈正相关关系；油膜正向刚度系数随着离心率的增大而减小，油膜交叉刚度系数随着离心率的增大而增大，并且正向刚度系数明显大于交叉刚度系数。利用该轴承油膜刚度系数的表达式，可以通过测量轴承运行过程中的轴心位置，实时得到轴承油膜刚度系数，从而对缝隙节流液体静压轴承的运行进行有效监控。


关键词： 液体静压轴承,  缝隙节流,  油膜刚度系数,  油膜承载力,  轴心位置

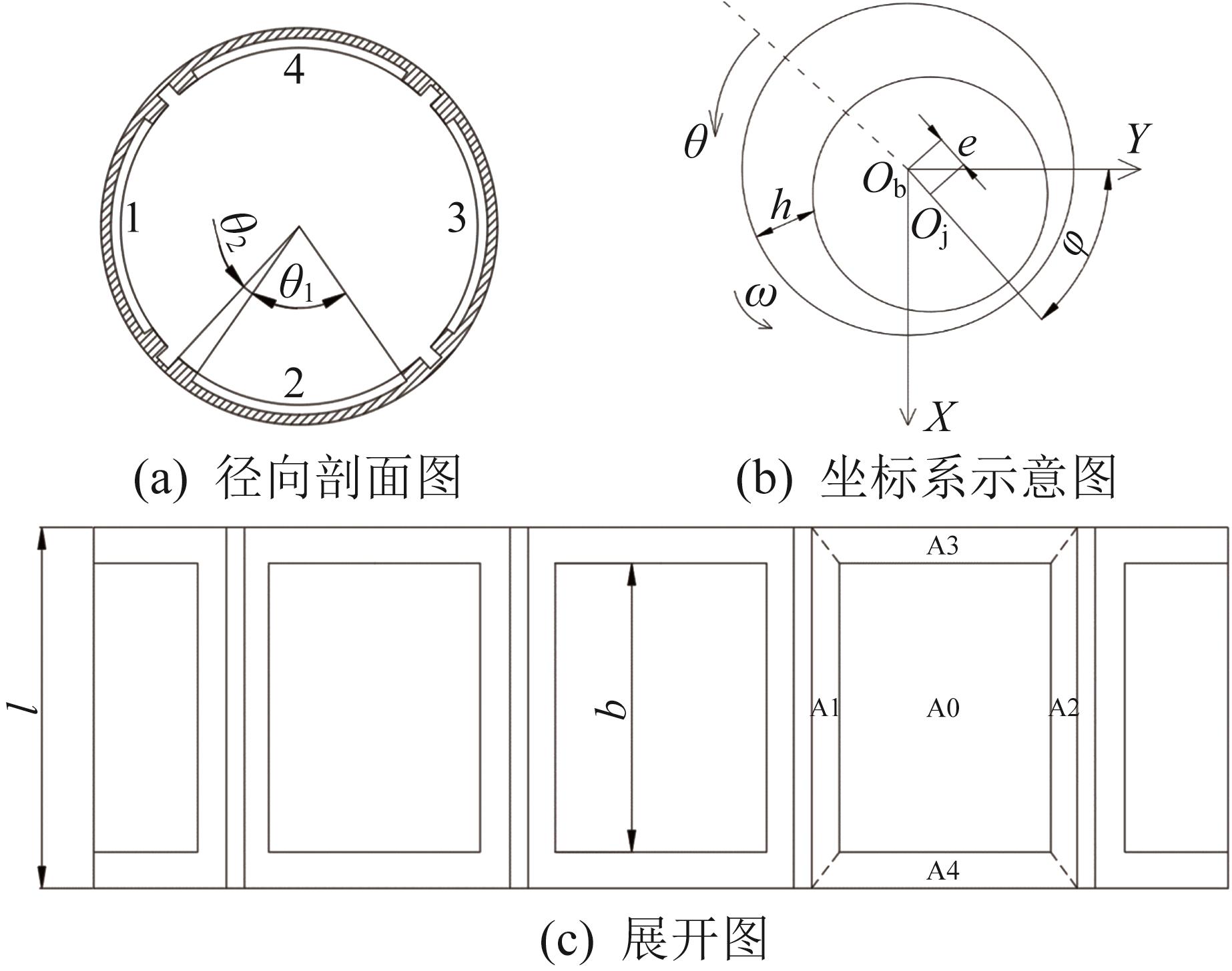

Fig.1 Schematic diagram of structure of hydrostatic bearing

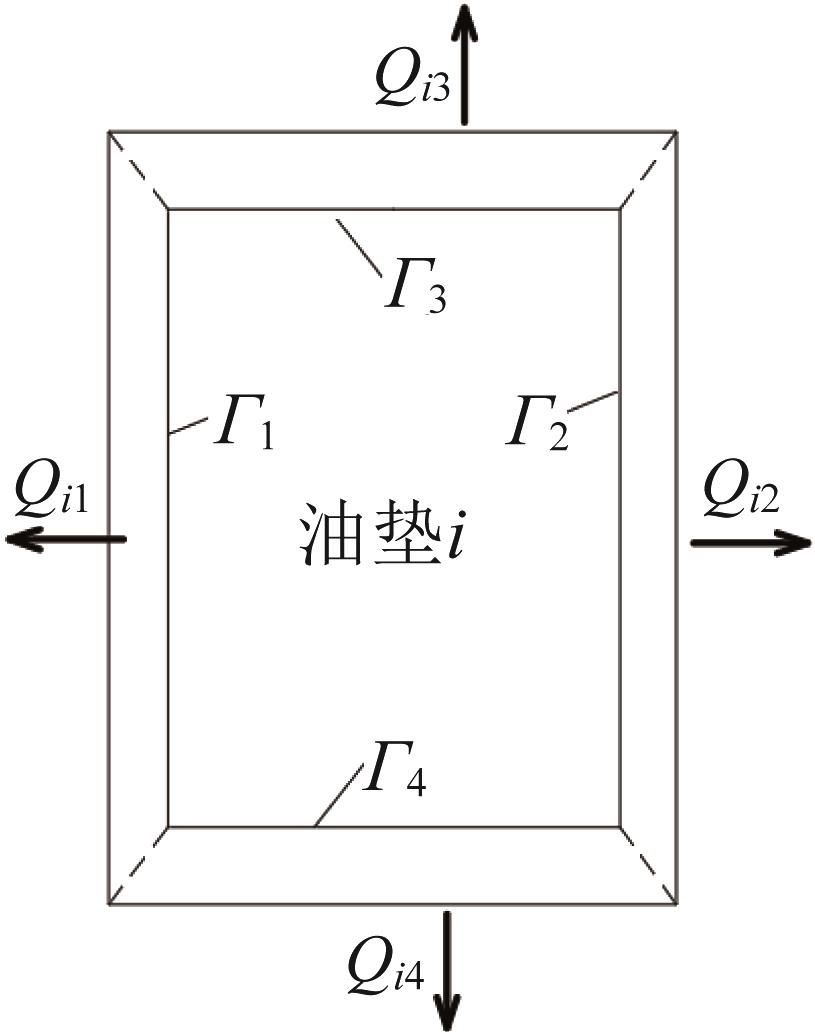

Fig.2 Schematic diagram of lubricant flowing from oil cushion

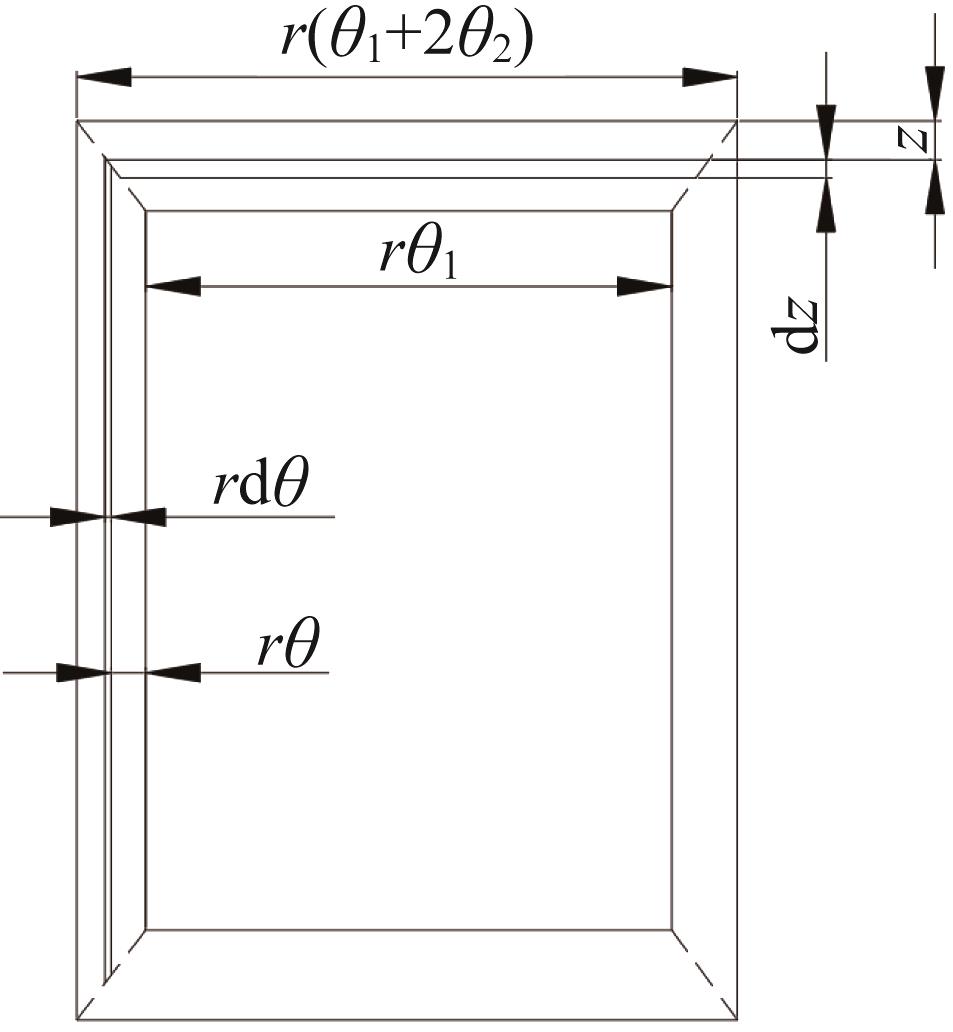

Fig.3 Schematic diagram of structure size of oil cushion

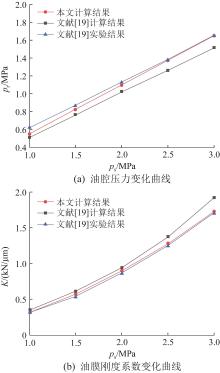

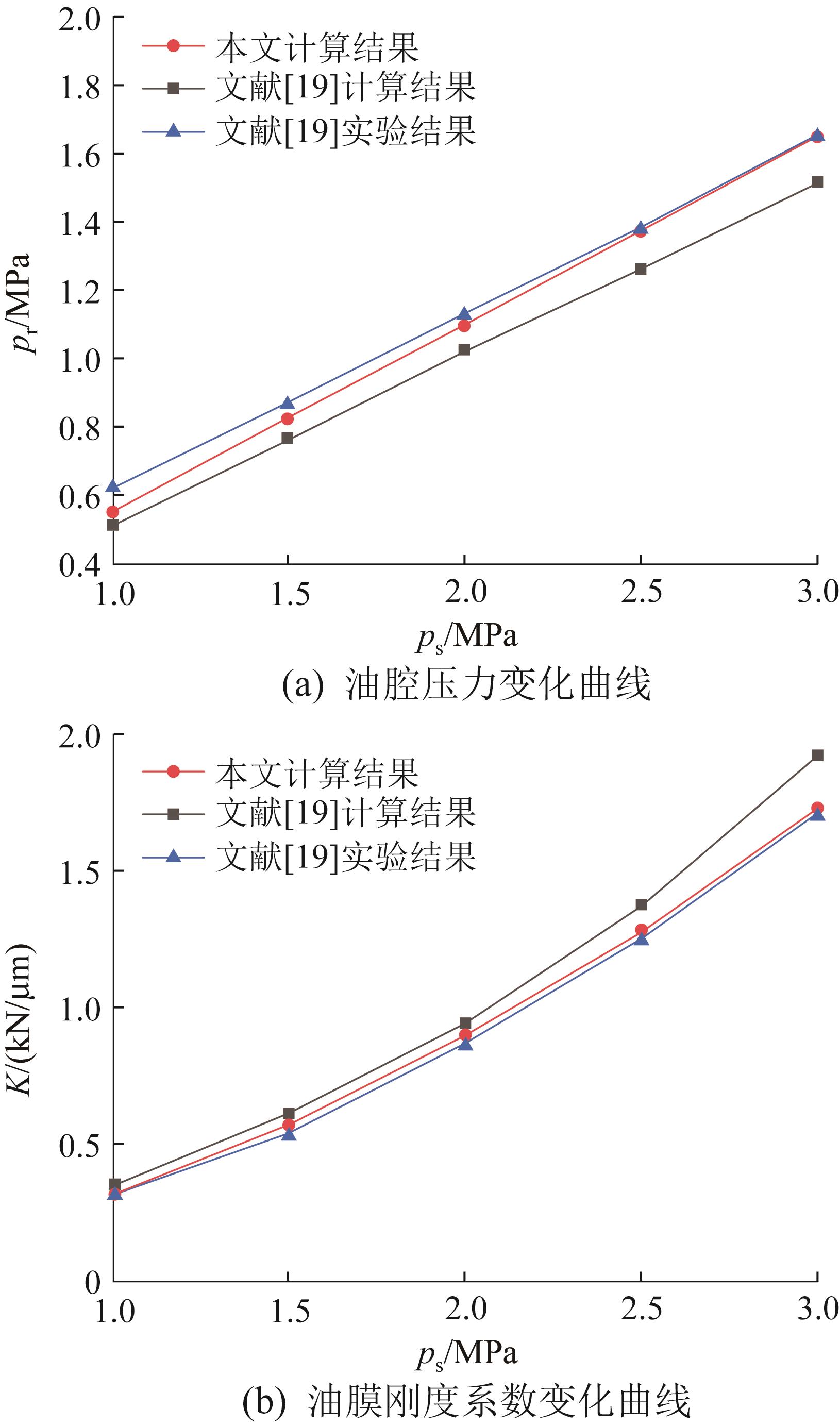

Fig.4 Variation curves of oil chamber pressure and oil film stiffness coefficient with oil supply pressure
参数数值
轴承半径r/mm50
轴承长度l/mm100
半径间隙c/mm0.5
供油压力ps/MPa2
轴向封油边长度a/mm10
周向封油面的包角θ2/(o)12
油腔区域的包角θ1/(o)60
油腔数量/个4
油腔形状矩形
节流器类型缝隙节流
节流参数δs10, 20, 30, 40
轴承转速n/(r/min)1 500
轴承偏位角φ/(o)30
润滑剂黏度η/(Pa·s)0.008 7
润滑剂密度ρ/(kg/m3)870
Table 1 Relevant parameters of hydrostatic bearing

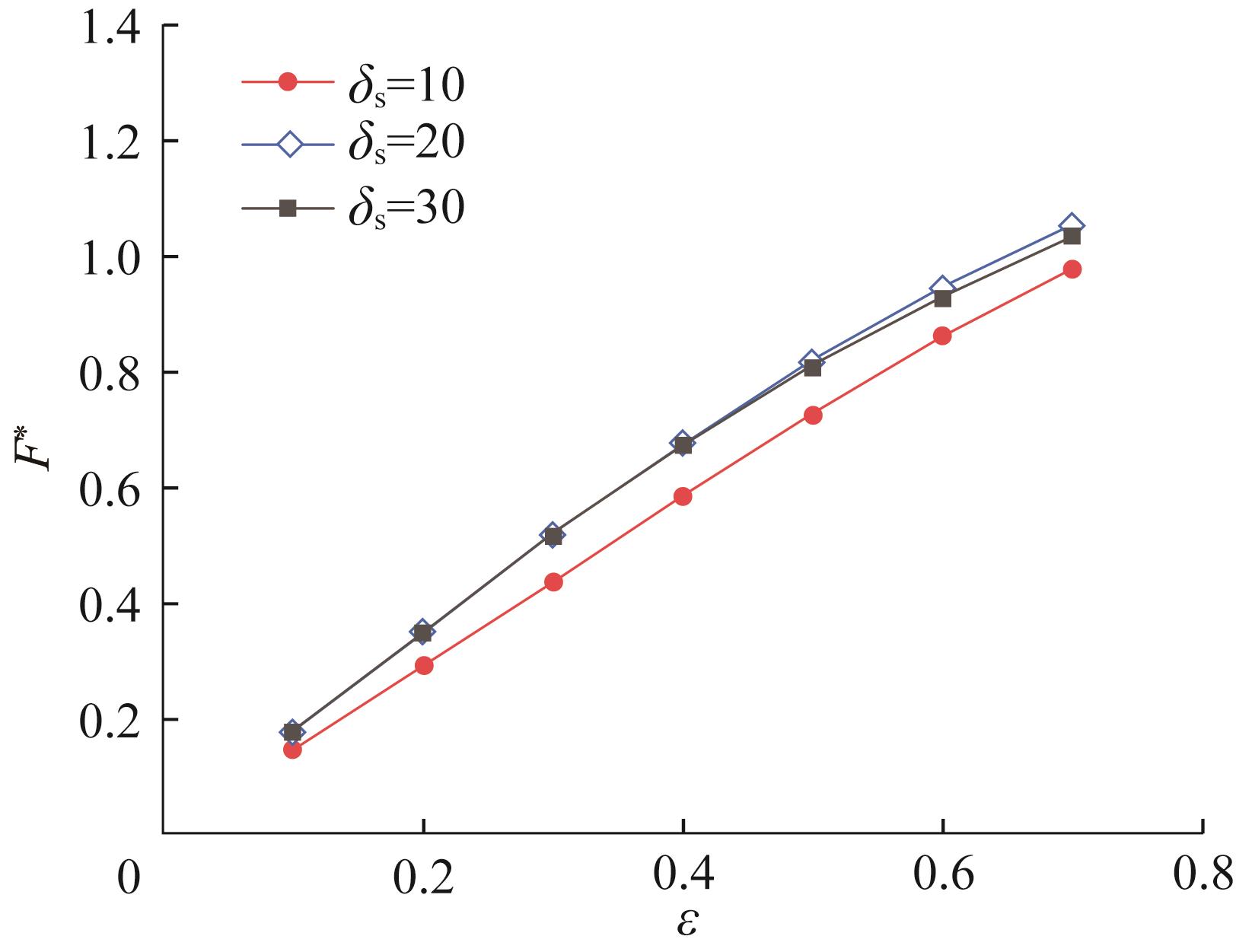

Fig.5 Variation curves of oil film load capacity with spindle eccentricity under different throttling parameters

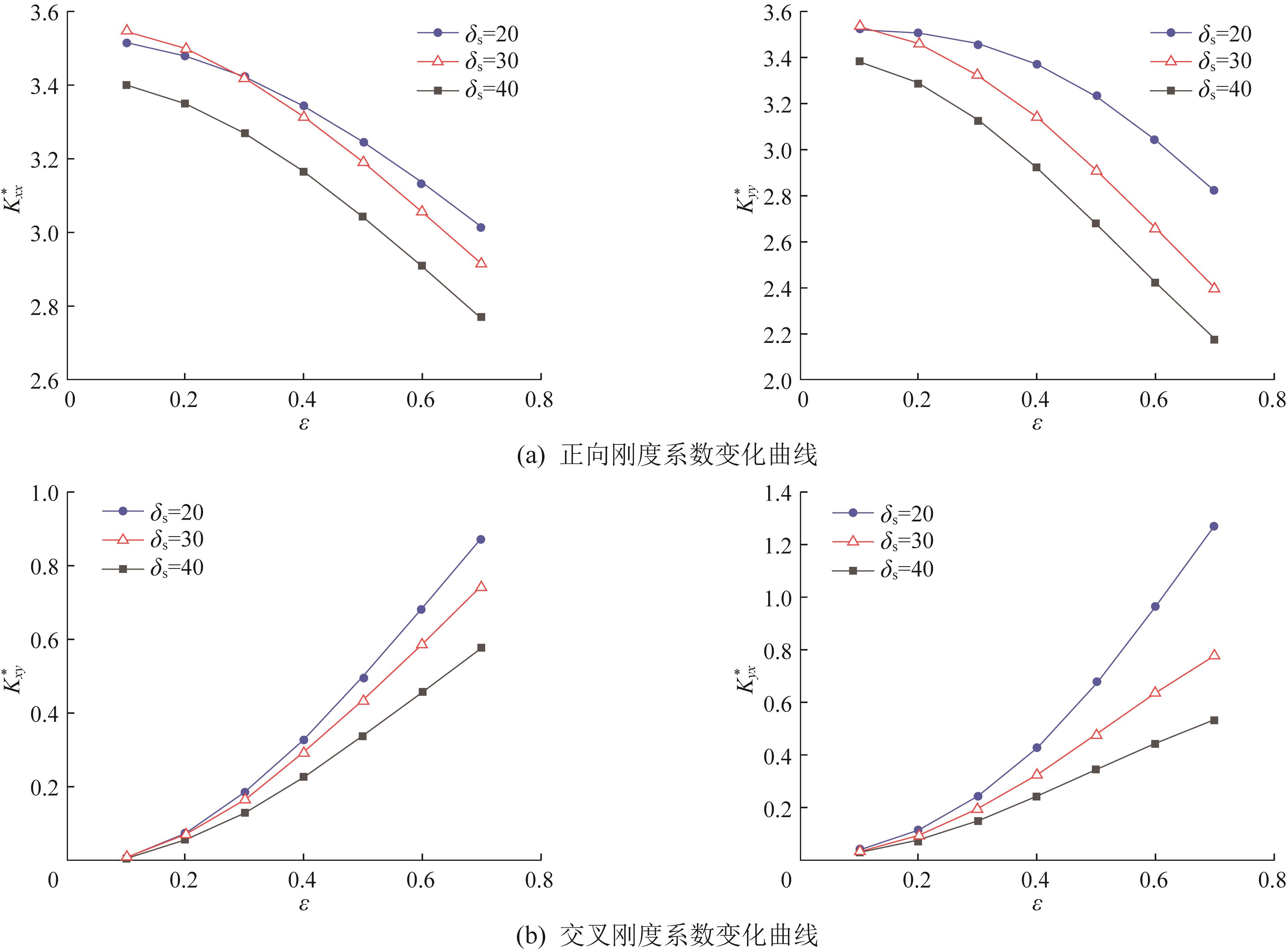

Fig.6 Variation curves of oil film stiffness coefficient with spindle eccentricity under different throttling parameters

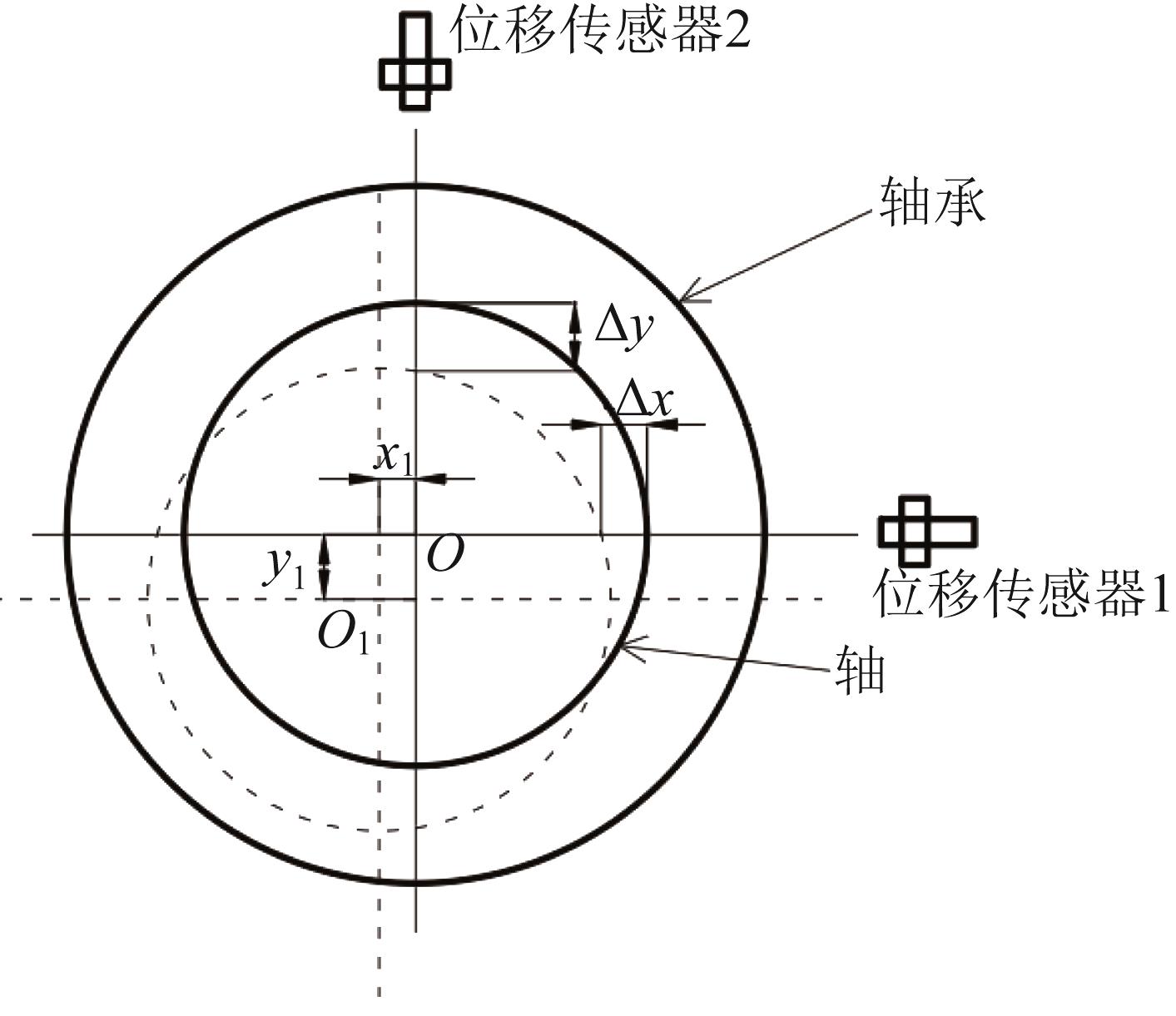

Fig.7 Schematic diagram of bearing shaft center position measurement
