工程设计学报
Chinese Journal of Engineering Design  2024, Vol. 31 Issue (3): 332-339    DOI: 10.3785/j.issn.1006-754X.2024.03.209
Mechanical Optimization Design
Analysis of radar detection distance and ranging accuracy based on subinterval
Heng OUYANG1,2(),Shuo GAO1,2,Shitao WANG3,Zhengyan MA1,2,Dequan ZHANG1,2()
1.School of Mechanical Engineering, Hebei University of Technology, Tianjin 300401, China
2.State Key Lab of Reliability and Intelligence of Electrical Equipment, Hebei University of Technology, Tianjin 300401, China
3.No. 31002 Troops, Beijing 100094, China
Download: HTML     PDF(1527KB)
Export: BibTeX | EndNote (RIS)

Abstract

Detection range and ranging accuracy are the key performance indicators of radar. Under actual service conditions, they are greatly affected by uncertain factors such as internal signal transmission loss and external signal interference of radar system. Improving its accuracy has become an important topic in the field of radar research. In order to evaluate the influence of the above uncertain factors on the radar performance, the uncertainty analysis of radar detection range and ranging accuracy was carried out. Firstly, the radar detection range and ranging accuracy models considering signal transmission loss and signal interference were established; secondly, the interval model was used to quantify the uncertainty parameters to realize the uncertainty measurement under the unified framework of internal and external parameters; then, the accurate response surface models of detection range and ranging accuracy were constructed, and the influence of multi-dimensional parameters on detection range and ranging accuracy was sorted by using Sobol' global sensitivity analysis method; finally, the subinterval decomposition analysis method was used to obtain the radar detection range and ranging accuracy range, and the results were compared with those calculated by Monte Carlo simulation method to verify the effectiveness of the proposed method. Reasonable tolerance and threshold values are set for radar detection range and ranging accuracy, which can improve the efficiency of radar performance analysis and reduce the cost of performance analysis.

Key words： detection distance      ranging accuracy      uncertainty      response surface      subinterval
Received: 20 October 2023      Published: 27 June 2024
CLC:  TN 956
Corresponding Authors: Dequan ZHANG     E-mail: ouyangheng@hebut.edu.cn;dequan.zhang@hebut.edu.cn
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Heng OUYANG
Shuo GAO
Shitao WANG
Zhengyan MA
Dequan ZHANG
Cite this article:

Heng OUYANG,Shuo GAO,Shitao WANG,Zhengyan MA,Dequan ZHANG. Analysis of radar detection distance and ranging accuracy based on subinterval. Chinese Journal of Engineering Design, 2024, 31(3): 332-339.

URL:

https://www.zjujournals.com/gcsjxb/10.3785/j.issn.1006-754X.2024.03.209     OR     https://www.zjujournals.com/gcsjxb/Y2024/V31/I3/332


基于子区间的雷达探测距离和测距精度分析

探测距离和测距精度是雷达的关键性能指标，在实际服役工况下受雷达系统内部信号传输损耗、外部信号干扰等不确定性因素的影响较大，提高其准确性已成为雷达研究领域的重要课题。为了评估上述不确定性因素对雷达性能的影响程度，开展了雷达探测距离和测距精度的不确定性分析。首先，建立了考虑信号传输损耗和信号干扰的雷达探测距离和测距精度模型；其次，采用区间模型量化不确定性参数，实现内外部参数统一框架下的不确定性度量；然后，构建准确的探测距离和测距精度响应面模型，并采用Sobol'全局敏感性分析方法实现多维参数对探测距离和测距精度影响的排序；最后，采用子区间分解分析方法获取了雷达探测距离和测距精度区间，并与通过蒙特卡洛模拟得到的结果进行对比，验证所提方法的有效性。将雷达探测距离和测距精度设定合理的容限与阈值，可提高雷达性能分析效率，降低性能分析成本。


关键词： 探测距离,  测距精度,  不确定性,  响应面,  子区间
参数单位数值区间
信号频率108Hz[3.0, 10.0]
信号带宽105Hz[5.0, 10.0]
脉冲宽度10-3s[1.0, 2.0]
脉冲积累数个[1, 10]
雷达发射功率105W[1.0, 5.0]
发射增益dB[35.0, 40.0]
接收增益dB[35.0, 40.0]
综合损耗dB[40.0, 45.0]
方位波束宽度(°)[2.0, 3.0]
俯仰波束宽度(°)[2.0, 3.0]
测角误差斜率[40.0, 70.0]
压制系数[40.0, 70.0]
干扰频率108Hz[3.0, 10.0]
干扰带宽Hz[3.0, 7.0]
干扰功率103W[3.0, 7.0]
干扰发射增益dB[10.0, 20.0]
Table 1 Radar parameters and interference parameters

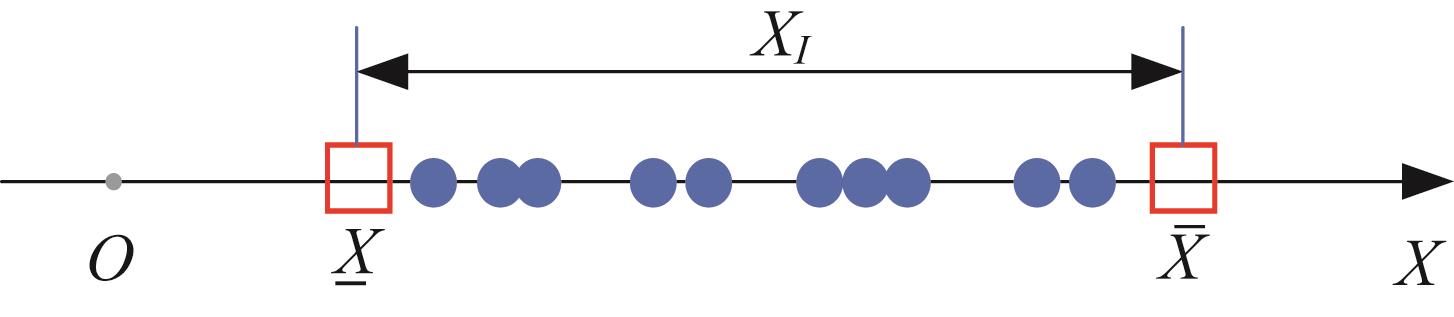

Fig.1 Schematic of uncertain parameters affecting radar system performance

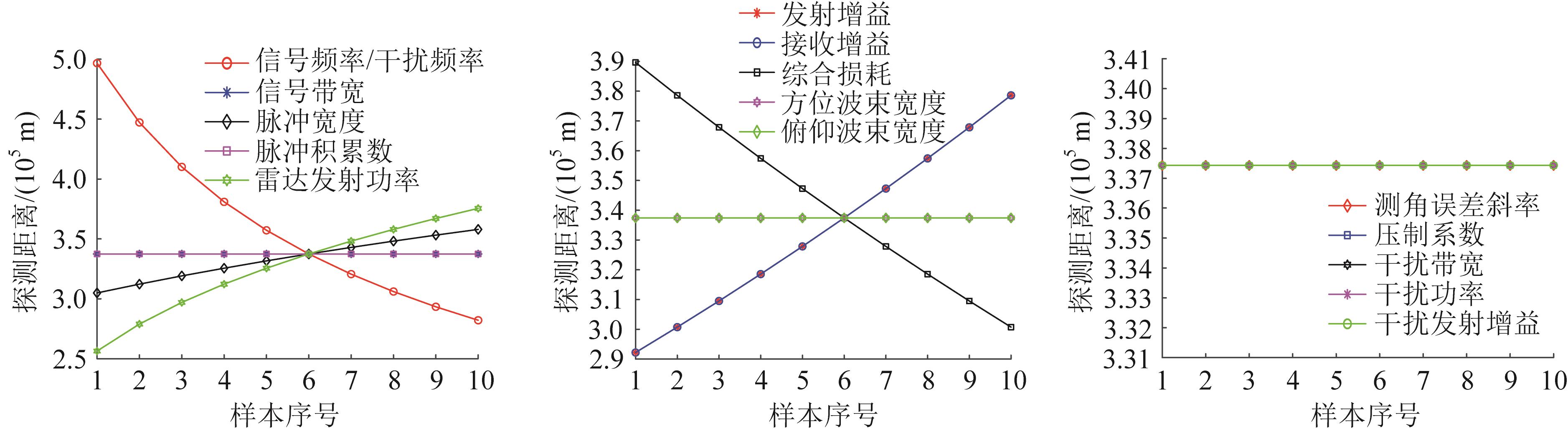

Fig.2 Local sensitivity analysis results of detection distance

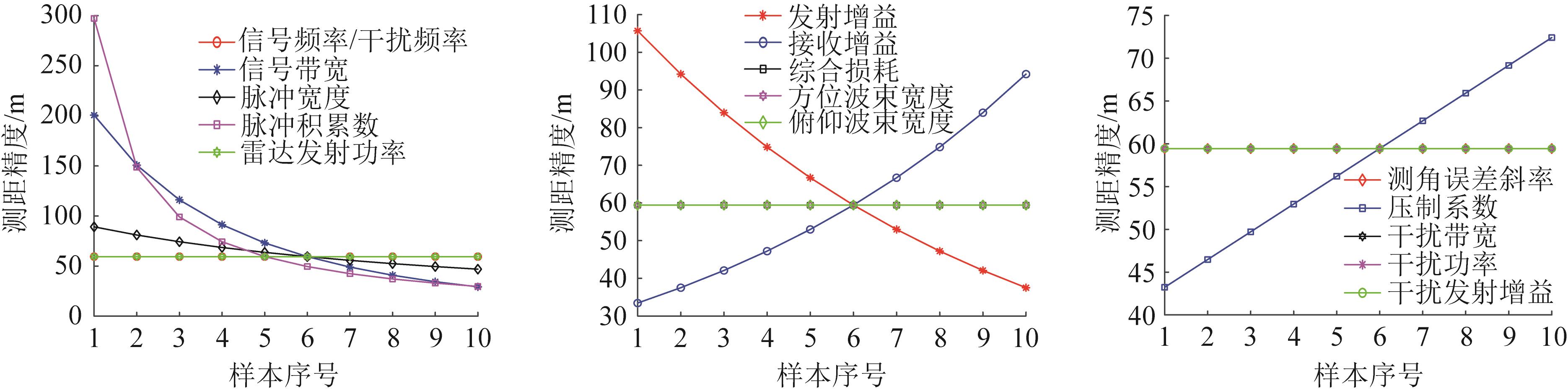

Fig.3 Local sensitivity analysis results of ranging accuracy
模型R2ERMS
探测距离响应面模型0.997 00.000 3
测距精度响应面模型0.994 30.012 7
Table 2 Accuracy verification of response surface model of detection distance and ranging accuracy
影响参数单位数值区间敏感度
信号频率/干扰频率108 Hz[3.0, 10.0]0.449 7
脉冲宽度10-3 s[1.0, 2.0]0.035 8
雷达发射功率105 W[1.0, 5.0]0.174 1
发射增益dB[35.0, 40.0]0.104 3
接收增益dB[35.0, 40.0]0.111 1
综合损耗dB[40.0, 45.0]0.104 8
Table 3 Global sensitivity analysis results of detection range
影响参数单位数值区间敏感度
信号带宽105 Hz[5.0, 10.0]0.242 3
脉冲宽度10-3 s[1.0, 2.0]0.020 6
脉冲积累数个[1, 10]0.404 1
发射增益dB[35.0, 40.0]0.070 4
接收增益dB[35.0, 40.0]0.071 0
压制系数dB[40.0, 70.0]0.013 0
Table 4 Global sensitivity analysis results of ranging accuracy
Fig.4 Analysis flowchart of radar detection distance and ranging accuracy
N探测距离区间测距精度区间
3[71 200, 167 124][3.60, 1 660.35]
4[167 385, 713 175][4.90,1 683.24]
5[167 385, 713 175][4.90, 1 683.24 ]
Table 5 Radar detection distance and ranging accuracy range under different subintervals
Table 6 Uncertainty analysis results of radar performance under different methods
