Dynamic evolution of soot particle growth in diesel engine cylinder

doi:10.3785/j.issn.1008-973X.2025.02.017

Journal of ZheJiang University (Engineering Science)

2025, Vol. 59

Issue (2): 394-401 DOI: 10.3785/j.issn.1008-973X.2025.02.017

Dynamic evolution of soot particle growth in diesel engine cylinder

Yuanxin YU1,2(

),Mingrui WEI1,2,Hongling JU1,2,*(

)

1. Hubei Provincial Key Laboratory of Modern Auto Parts Technology, Wuhan University of Technology, Wuhan 430070, China
2. Auto Parts Technology Hubei Provincial Collaborative Innovation Center, Wuhan University of Technology, Wuhan 430070, China

Download:

HTML

PDF(2653KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

A three-dimensional simulation model was established by taking an in-cylinder direct-injection diesel engine as the prototype. A detailed soot model was coupled to analyze the mass distribution and number density variation of soot particles in the cylinder of the diesel engine under different load. The calculated results and airflow parameters were taken as the initial conditions for dynamic simulation, and the particle dynamics model was established by using the Lagrange method to track the motion of each particle in order to calculate the complete growth process of soot particles. Results showed that the nucleation rate of soot gradually approaches zero, the surface growth and condensation rate were lower than the oxidation rate, and the total mass of soot gradually decreased after combustion. The soot mass fraction at the top of the cylinder, cylinder wall, and piston was relatively low. The constructed particle dynamics model can simulate the growth process from basic particles of soot to aggregates. The particle dynamics model can be used to simulate the growth process from soot elementary particles to aggregates, and the morphology of the aggregates obtained under different loads was mainly branched and clustered structure, which was similar to the main morphologies obtained by experimental sampling. The fractal dimensions under different loads were similar to those measured by the experiments, with a maximum error of about 1.5%.

Key words： diesel engine soot particle detailed soot model dynamic evolution morphology fractal dimension

Received: 22 December 2023 Published: 11 February 2025

CLC:

TK 42

Fund: 国家自然科学基金资助项目（51706163）.

Corresponding Authors: Hongling JU E-mail: 1786198559@qq.com;juhongling@whut.edu.cn

	Service
	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Yuanxin YU
	Mingrui WEI
	Hongling JU

Cite this article:

Yuanxin YU,Mingrui WEI,Hongling JU. Dynamic evolution of soot particle growth in diesel engine cylinder. Journal of ZheJiang University (Engineering Science), 2025, 59(2): 394-401.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2025.02.017 OR https://www.zjujournals.com/eng/Y2025/V59/I2/394

柴油机缸内碳烟颗粒生长的动力学演变

以一台缸内直喷柴油机为原型，建立三维仿真模型，耦合详细碳烟模型，研究柴油机在不同负荷下缸内碳烟颗粒的质量分布和数密度变化规律. 将计算得到的结果及气流参数作为动力学模拟的初始条件，利用拉格朗日方法建立颗粒动力学模型追踪每个颗粒的运动，计算碳烟颗粒的完整生长过程. 结果表明，燃烧结束后，碳烟成核速率逐渐趋近于零，表面生长和凝结速率低于氧化速率，碳烟总质量逐渐降低；气缸顶部、气缸壁及活塞处的碳烟质量分数均较小. 利用构建的颗粒动力学模型，可以模拟碳烟基本粒子到团聚体的生长过程，在不同负荷下得到的积聚体形貌主要呈枝状和簇状结构，与实验采样得到的几种主要形貌相似；不同负荷下的分形维数均与实验测量值相近，最大误差约为1.5%.

关键词： 柴油机, 碳烟颗粒, 详细碳烟模型, 动力学演变, 形貌, 分形维数

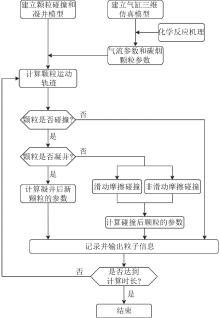

Fig.1 Flowchart of particle collision calculation

Tab.1 Main parameter of diesel engine (YC4FA 116-40)

Fig.2 Schematic of combustion chamber mesh

Tab.2 Mathematical model in three-dimensional simulation

Fig.3 Comparison of simulation and experimental value of cylinder pressure and heat release rate

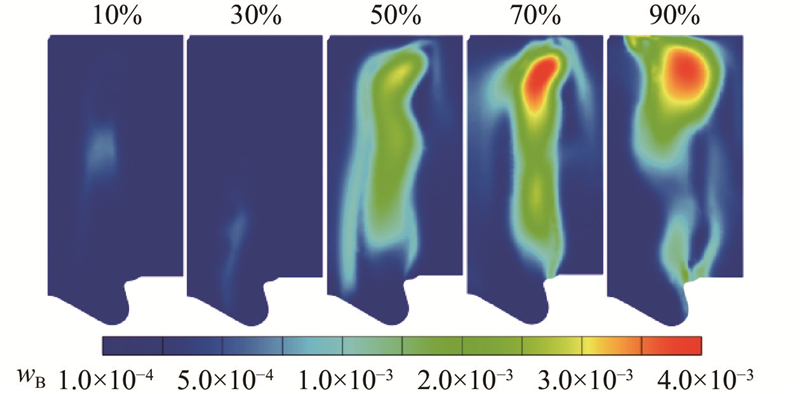

Fig.4 Soot mass fraction in cylinder under different load

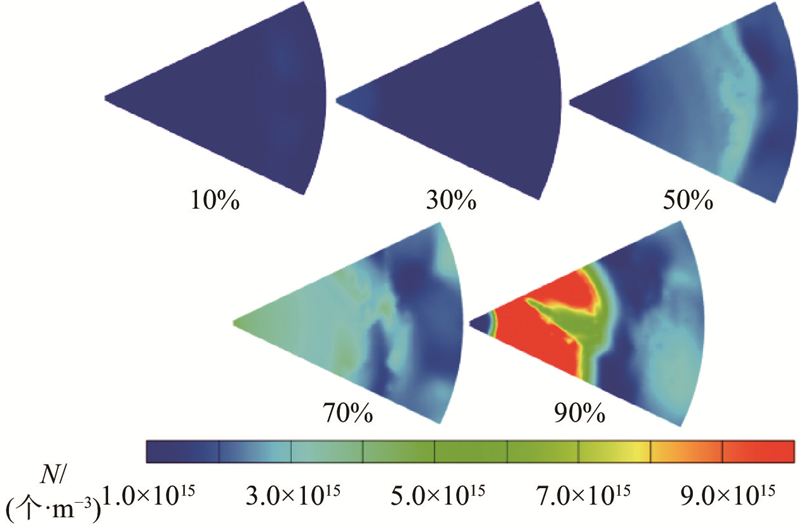

Fig.5 Soot number density at top of cylinder

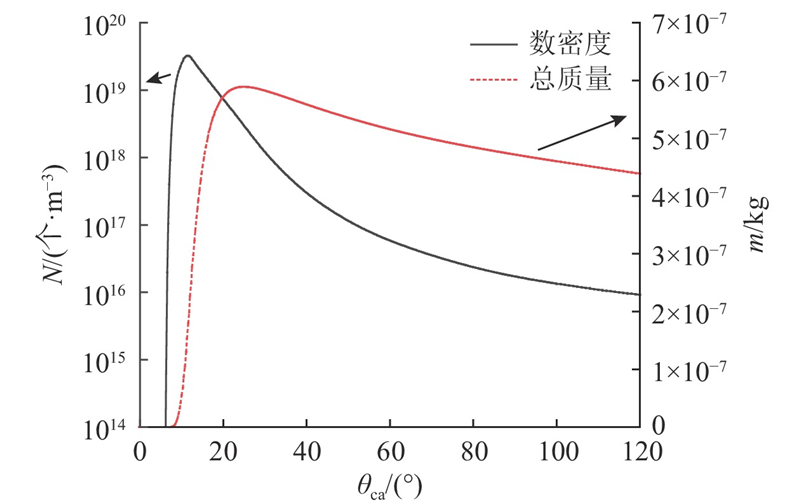

Fig.6 Average number density and total mass of soot at 50% load

Fig.7 Mass change in soot nucleation, surface growth, condensation and oxidation at 50% load

Fig.8 Total mass fraction of soot in cylinder at different time under 50% load

Tab.3 Airflow parameter at different load

Tab.4 Particle property in turbulence

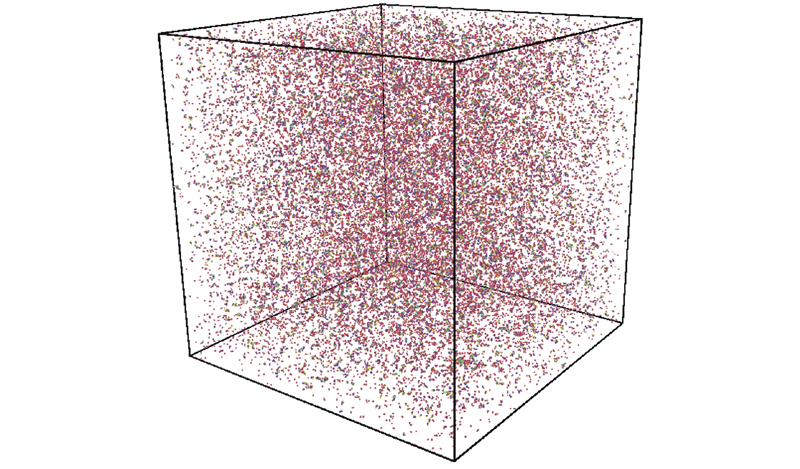

Fig.9 Initial spatial distribution map of particles in computational domain

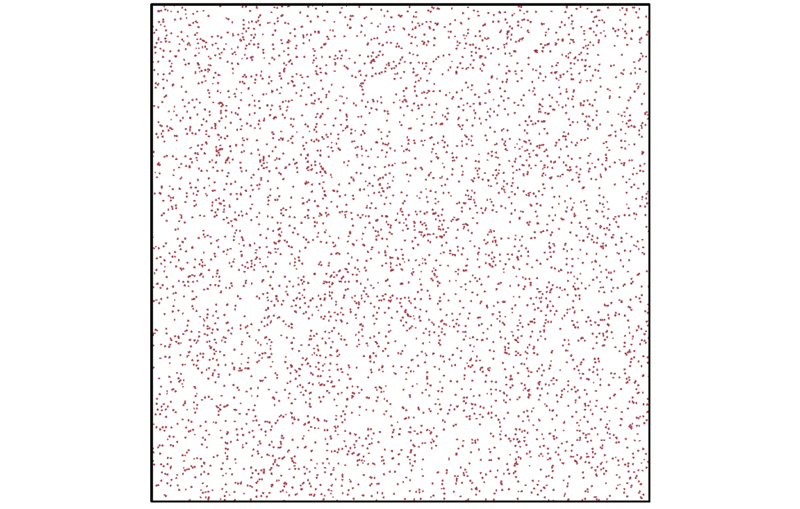

Fig.10 Cross-sectional view of calculation domain at beginning of calculation under 50% load

Fig.11 Cross-sectional view of calculation domain at end of calculation under 50% load

Fig.12 Schematic diagram of soot particle accumulation at end of calculation

Fig.13 Actual soot accumulation morphology^[21]

Fig.14 Changing trend of soot particle fractal dimension


[1]	WAN E L, SUN Z M, LIU Y Z Real-time in situ detection and source tracing of different soot[J]. Optik, 2021, 245: 167711 doi: 10.1016/j.ijleo.2021.167711

[2]	LI Z C, ZHANG L D, CHUN L In-Situ measurement of soot volume fraction and temperature in axisymmetric soot-laden flames using TR-GSVD algorithm[J]. IEEE Transactions on Instrumentation and Measurement, 2021, 70: 1- 12

[3]	LIU J, LIU Y Z, CHU C X, et al In situ online detection of lignite and soot by laser-induced breakdown spectroscopy[J]. Spectroscopy and Spectral Analysis, 2021, 41 (3): 954- 960

[4]	SI M T, CHENG Q, YUAN L, et al Physical and chemical characterization of two kinds of coal-derived soot[J]. Combustion and Flame, 2022, 238 (C): 111759

[5]	TIAN R Y, ZHANG Y L, KOOK S, et al Effect of jet fuel aromatics on in-flame soot distribution and particle morphology in a small-bore compression ignition engine[J]. Fuel, 2021, 305: 121582 doi: 10.1016/j.fuel.2021.121582

[6]	WEI J J, ZENG Y, PAN M Z, et al Morphology analysis of soot particles from a modern diesel engine fueled with different types of oxygenated fuels[J]. Fuel, 2020, 267: 117248

[7]	QIAN W J, HUI X, WANG B, et al An investigation into oxidation-induced fragmentation of soot aggregates by Langevin dynamics simulations[J]. Fuel, 2023, 334 (1): 126547

[8]	MORAN J, POUX A, YON J Impact of the competition between aggregation and surface growth on the morphology of soot particles formed in an ethylene laminar premixed flame[J]. Journal of Aerosol Science, 2021, 152: 105690

[9]	MORAN J, YON J, POUX A Monte Carlo aggregation code (MCAC) part 1: fundamentals[J]. Journal of Colloid and Interface Science, 2020, 569: 184- 194

[10]	HO C A, SOMMERFLED M Modelling of micro-particle agglomeration in turbulent flows[J]. Chemical Engineering Science, 2002, 57 (15): 3073- 3084 doi: 10.1016/S0009-2509(02)00172-0

[11]	DUVVURI P P, SUKUMARAN S, SHRIVASTAVA R K, et al Modeling the effect of parametric variations on soot particle size distribution in a diesel engine[J]. Journal of Energy Resources Technology, 2020, 142 (3): 032201 doi: 10.1115/1.4044563

[12]	KUMAR S, RAMKRISHNA D On the solution of population balance equations by discretization-II: a moving pivot-technique[J]. Chemical Engineering Science, 1996, 51 (8): 1333- 1342 doi: 10.1016/0009-2509(95)00355-X

[13]	WEN J Z, THOMSON M J, PARK S H, et al Study of soot growth in a plug flow reactor using a moving sectional model[J]. Proceedings of the Combust Institute, 2005, 30 (1): 1477- 1484 doi: 10.1016/j.proci.2004.08.178

[14]	WANG H, REITZ R D, YAO M F, et al Development of an n-heptane-n-butanol-PAH mechanism and its application for combustion and soot prediction[J]. Combustion and Flame, 2013, 160 (3): 504- 519 doi: 10.1016/j.combustflame.2012.11.017

[15]	王贵龙, 鞠洪玲 DMF/柴油RCCI燃烧碳烟生成数值模拟[J]. 燃烧科学与技术, 2023, 29 (3): 235- 242 WANG Guilong, JU Hongling Numerical simulation of soot formation in DMF/diesel RCCI combustion[J]. Journal of Combustion Science and Technology, 2023, 29 (3): 235- 242

[16]	MARCHAL C, DELFAU J L, VOVELLE C, et al Modelling of aromatics and soot formation from large fuel molecules[J]. Proceedings of the Combustion Institute, 2009, 32 (1): 753- 759 doi: 10.1016/j.proci.2008.06.115

[17]	杨芳玲. 柴油机缸内颗粒碰撞与凝并过程研究[D]. 镇江: 江苏大学, 2017: 20-21. YANG Fangling. Study on the collision and coagulation process of particles in diesel engine [D]. Zhenjiang: Jiangsu University, 2017: 20-21.

[18]	鞠洪玲, 卞钒全, 魏明锐柴油机排气管内碳烟颗粒的形貌计算[J]. 华中科技大学学报: 自然科学版, 2020, 48 (12): 61- 65 JU Hongling, BIAN Fanquan, WEI Mingrui Morphology calculation of soot particles in diesel exhaust pipe[J]. Journal of Huazhong University of Science and Technology: Natural Science Edition, 2020, 48 (12): 61- 65

[19]	WEI M R, LI S, XIAO H L, et al Combustion performance and pollutant emissions analysis using diesel/gasoline/iso-butanol blends in a diesel engine[J]. Energy Conversion and Management, 2017, 149 (17): 381- 391

[20]	SOMMERFLED M Validation of a stochastic Lagrangian modelling approach for inter-particle collisions in homogeneous isotropic turbulence[J]. International Journal of Multiphase Flow, 2001, 27 (10): 1829- 1858 doi: 10.1016/S0301-9322(01)00035-0

[21]	JU H L, BIAN F Q, WEI M R, et al Effect of temperature on morphologies and microstructures of soot particles in the diesel exhaust pipe[J]. Energies, 2023, 16 (5488): 5488
