浙江大学学报(工学版)
Journal of ZheJiang University (Engineering Science)  2022, Vol. 56 Issue (9): 1806-1814    DOI: 10.3785/j.issn.1008-973X.2022.09.014

Dynamic multi-task allocation of heterogeneous multi-robots for daily elderly care scenarios
Yong LI(),Fu-qiang LIU,Bai-qing SUN,Qiu-hao ZHANG,Jun-you YANG
School of Electrical Engineering, Shenyang University of Technology, Shenyang 110870, China
Download: HTML     PDF(1082KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

Aiming at the dynamic task assignment of heterogeneous multi-robot systems for elderly care scenarios, a dynamic multi-task allocation mechanism for the nursing home scenario was proposed with relatively fixed types of tasks, using the multi-agent organizational structure that conformed to the characteristics of the elderly care situation, based on multi-agent technology. A bid value calculation model based on the satisfaction function of the served was established, which not only completed the dynamic multi-tasks allocation, but also improved the satisfaction of the served. According to the topological sorting algorithm, a method of deadlock detection and remedy for multi-agent system was proposed, and the problems of self-locking and interlocking among agents were solved. The satisfaction of the served object under different task conditions and different allocation mechanisms was simulated. Simulation results shows the proposed dynamic task assignment mechanism for heterogeneous multi-service robot system can complete the dynamic task assignment without deadlock, and at the same time take into account the satisfaction of the served.

Key words： multi-agent      heterogeneous service robot      satisfaction      dynamic task allocation      deadlock
Received: 28 October 2021      Published: 28 September 2022
CLC:  TP 18
Fund:  辽宁省自然科学基金资助项目（2019-ZD-0205）；辽宁省教育厅资助项目（LJKZ0130）
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Yong LI
Fu-qiang LIU
Bai-qing SUN
Qiu-hao ZHANG
Jun-you YANG
Cite this article:

Yong LI,Fu-qiang LIU,Bai-qing SUN,Qiu-hao ZHANG,Jun-you YANG. Dynamic multi-task allocation of heterogeneous multi-robots for daily elderly care scenarios. Journal of ZheJiang University (Engineering Science), 2022, 56(9): 1806-1814.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2022.09.014     OR     https://www.zjujournals.com/eng/Y2022/V56/I9/1806


日常养老情境的异构多机器人动态多任务分配

针对异构多机器人系统动态任务分配问题，基于多智能体技术，利用符合养老情境特点的多智能体组织结构，提出处理养老情境下任务类型相对固定的异构多机器人多任务动态分配机制. 建立基于被服务对象满意度函数的投标值计算模型，兼顾多任务的动态分配与被服务对象的满意度. 根据拓扑排序算法，提出多智能体系统死锁的检测及处理方法，解决执行智能体自锁、各执行智能体间互锁的问题. 对不同任务情况在不同分配机制下的被服务对象满意度进行仿真. 仿真结果表明，在避免死锁的情况下，所提机制能够兼顾养老情景下的动态任务分配和被服务对象的满意度.


关键词： 多智能体,  异构服务机器人,  满意度,  动态任务分配,  死锁
Fig.1 Two types of executive agents
Fig.2 Flow chart of task allocation mechanism
Fig.3 Flow chart of negotiation algorithm between executing agents

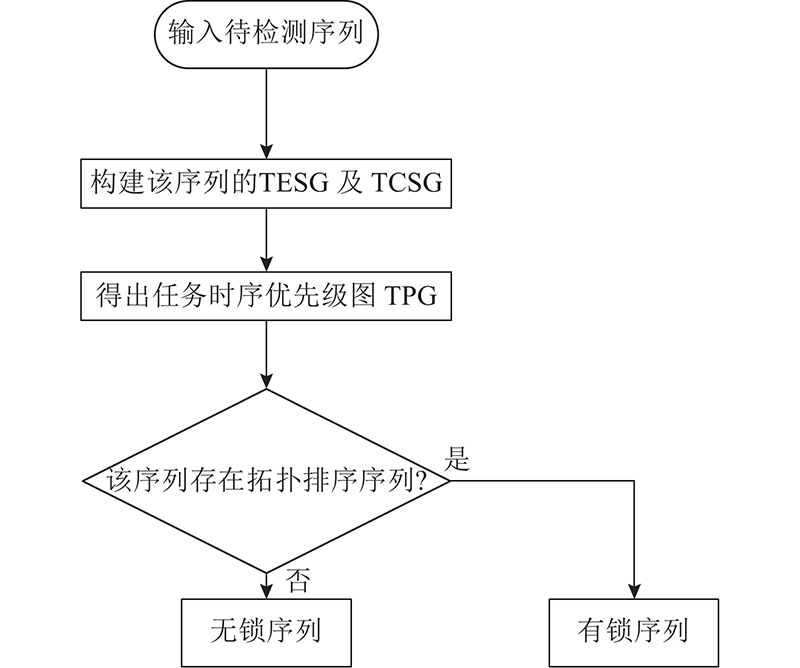

Fig.4 Self locking detection algorithm
Fig.5 Virtual elderly care institution environment
子任务标号 所需技能 ${t}_{\rm{e}}$/s ${v}$/(m·s?1)
T1_1 拉/放 18 —
T1_2 运送 — 0.6
T1_3 拉/放 15 —
T2_1 拉/放 20 —
T2_2 运送 — 0.7
T2_3 拉/放 17 —
Tab.1 Subtask information of task T1 and T2
子任务标号 $ {b}_{i,j} $
AR1 AR2 WR1 WR2
T1_1 0.087 0 (7.074×10?5) 0.112 0 (0.073) 0(0) 0(0)
T1_2 0(0) 0(0) 0.054 (3.002×10?5) 0.056 0 (0.602)
T1_3 0.0006 (6.833×10?5) 0.0005 (?1.261) 0(0) 0(0)
T2_1 0.0001 (8.187×10?5) 0.018 0 (0.012) 0(0) 0(0)
T2_2 0(0) 0(0) 0.010 (3.680×10?5) 0.0004 (3.679×10?5)
T2_3 0.0002 (7.947×10?4) 0.0006 (?1.214) 0(0) 0(0)
Tab.2 Bidding value of executing agent for each subtask

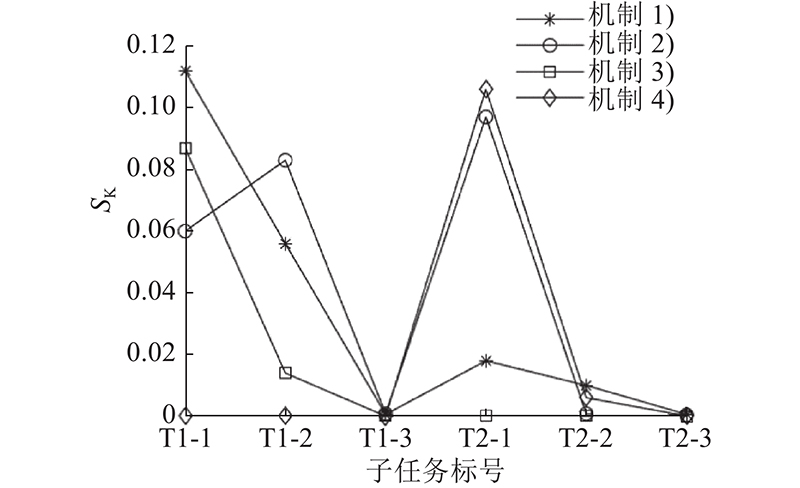

Fig.6 Comparison of subtask satisfaction with multiple allocation mechanisms

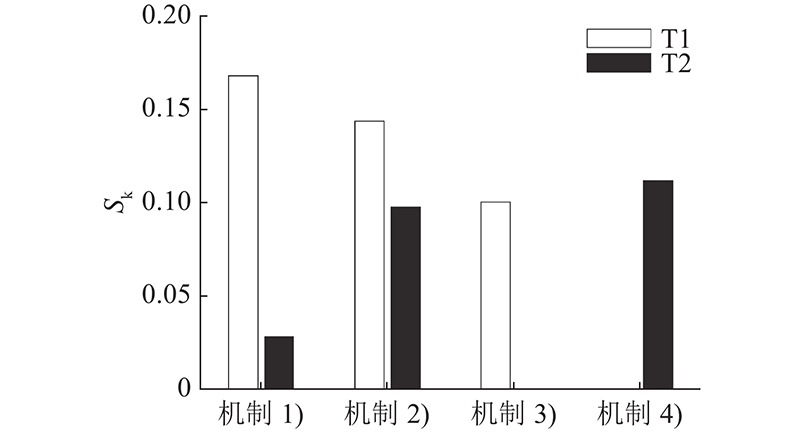

Fig.7 Comparison of satisfaction for served
子任务标号 $ {b}_{i,j} $
AR1 AR2 WR1 WR2
T3_1 0 6.523×10?3 0 0
T3_2 0 0 0 8.566×10?4
T3_3 0 6.983×10?4 0 0
Tab.3 Bidding value of executing agent for T3 sub task
子任务标号 所需技能 ${t}_{\rm{e}}$/s ${v}$/(m·s?1)
T4_1 拉/放 19 —
T4_2 运送 — 0.5
T4_3 拉/放 18 —
T5_1 拉/放 16 —
T5_2 运送 — 0.7
T5_3 拉/放 15 —
Tab.4 Subtask information of task T4 and T5
