Multi-agent autonomous electronic jamming system based on information sharing

Pan ZHANG1,2(

),Hua DING3,Ying-er ZHANG4,Bing-ning LI5,Jiang-tao HUANG-FU4,Zhong-he JIN1,2,*(

)

1. Micro-Satellite Research Center, Zhejiang University, Hangzhou 310027, China
2. Zhejiang Key Laboratory of Micro-nano Satellite Research, Hangzhou 310027, China
3. Aerospace Equipment Department, PLA Strategic Support Force, Beijing 100094, China
4. College of Information Science and Electronic Engineering, Zhejiang University, Hangzhou 310027, China
5. Xi'an Satellite Control Center, Hangzhou 310000, China

Download:

HTML

PDF(1249KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

Multi-agent electronic jammers and information sharing mechanism was used to break through the limited information perception ability of the original single sensor in order to realize the effective jamming of radiation source in complex electromagnetic environment. Then real-time dynamic situation information sharing was realized, and the intelligent decision cognition ability of electronic jammer was enhanced. The rapid convergence of the microsecond-level about the jamming parameters was achieved by the multi-agent independent electronic jamming system based on information sharing, and the information error probability in a single-jammer conditions was reduced. The experimental results show that the jamming parameter update strategy based on the method is adjusted in real time with the dynamic change of situational environment. A more autonomous and intelligent cognitive electronic jamming system is realized.

Key words： information sharing multi-agent electronic jammer Q-Learning situational awareness

Received: 15 March 2021 Published: 05 January 2022

CLC:

TN 959

Fund: 国家杰出青年科学基金资助项目(61525403)；省级重点研发计划资助项目（209C05004）；之江国际青年人才基金资助项目

Corresponding Authors: Zhong-he JIN E-mail: zhangpan_zju@zju.edu.cn;jinzh@zju.edu.cn

	Service
	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Pan ZHANG
	Hua DING
	Ying-er ZHANG
	Bing-ning LI
	Jiang-tao HUANG-FU
	Zhong-he JIN

Cite this article:

Pan ZHANG,Hua DING,Ying-er ZHANG,Bing-ning LI,Jiang-tao HUANG-FU,Zhong-he JIN. Multi-agent autonomous electronic jamming system based on information sharing. Journal of ZheJiang University (Engineering Science), 2022, 56(1): 75-83.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2022.01.008 OR https://www.zjujournals.com/eng/Y2022/V56/I1/75

基于信息共享的多智能体自主电子干扰系统

为了实现电子干扰机在复杂电磁环境中对辐射源的有效干扰，利用多智能体电子干扰机与信息共享机制，突破原有单传感器的有限信息感知能力，实现实时动态态势信息共享，增强电子干扰机的智能决策认知能力. 基于信息共享的多智能体自主电子干扰系统实现了μs级的干扰参数快速收敛，减小了单传感器的信息误差概率. 通过仿真实验表明，基于该方法的干扰参数更新策略随着态势环境的动态变化而实时自主调整，实现了更加自主与智能的认知电子干扰系统.

关键词： 信息共享, 多智能体电子干扰机, Q-Learning, 态势感知

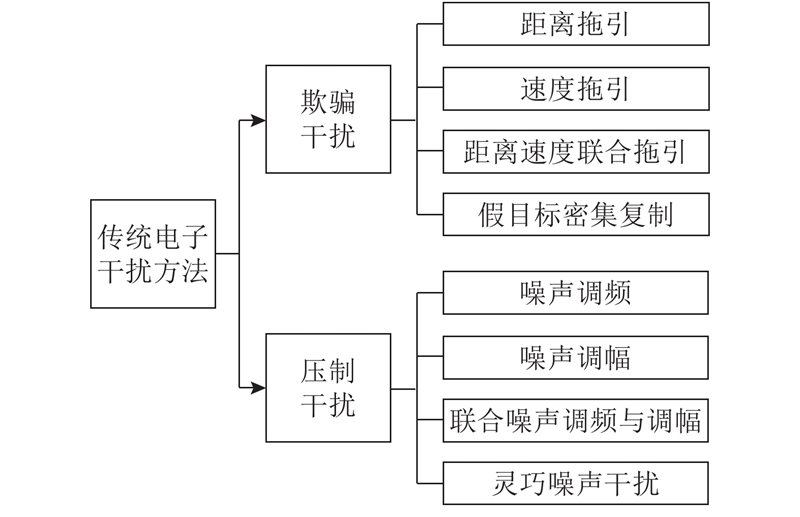

Fig.1 Traditional electronic jamming methods

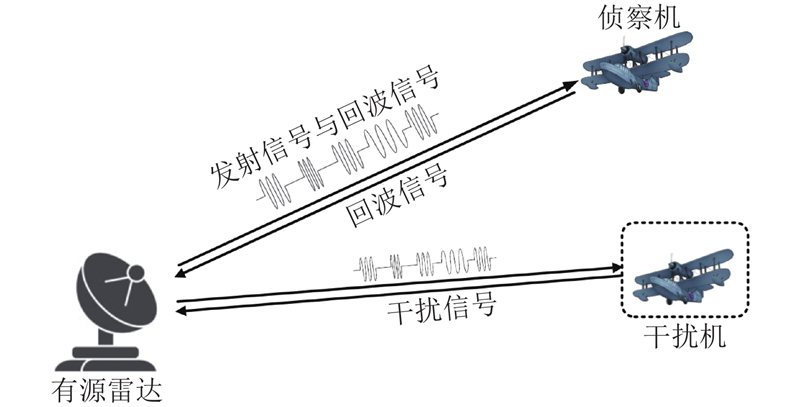

Fig.2 Electronic countermeasures jamming model

Fig.3 Processing of electromagnetic parameters about radiation source

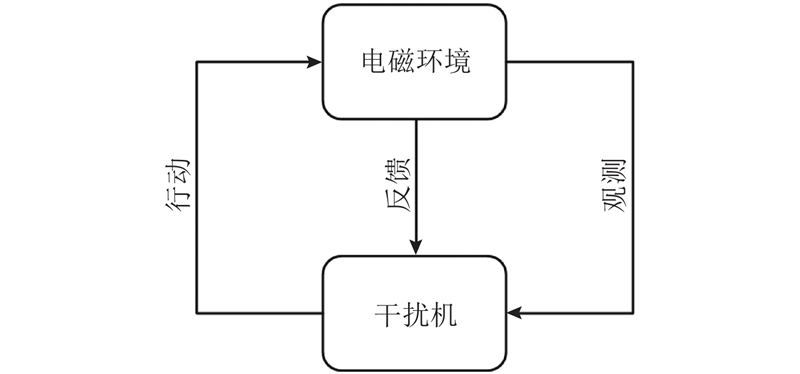

Fig.4 Dynamic electronic jamming strategy based on environmental interaction

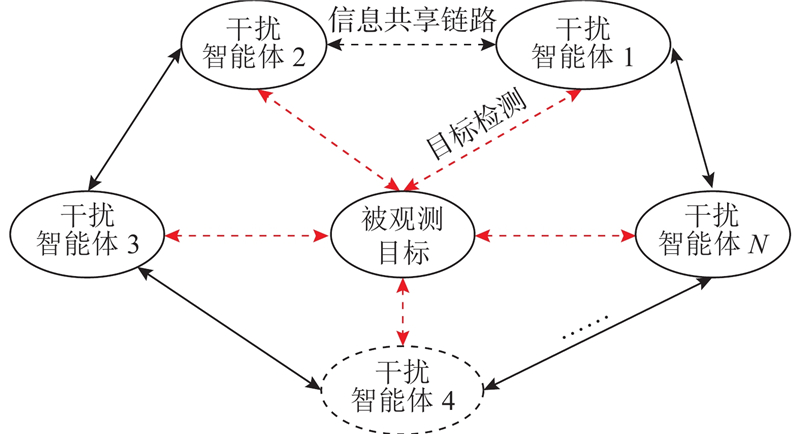

Fig.5 Multi-agent joint situational awareness based on information sharing

Tab.1 Table of electromagnetic situation information

Fig.6 Flow chart of multi-agent cooperative sensing autonomous jamming

Fig.7-1

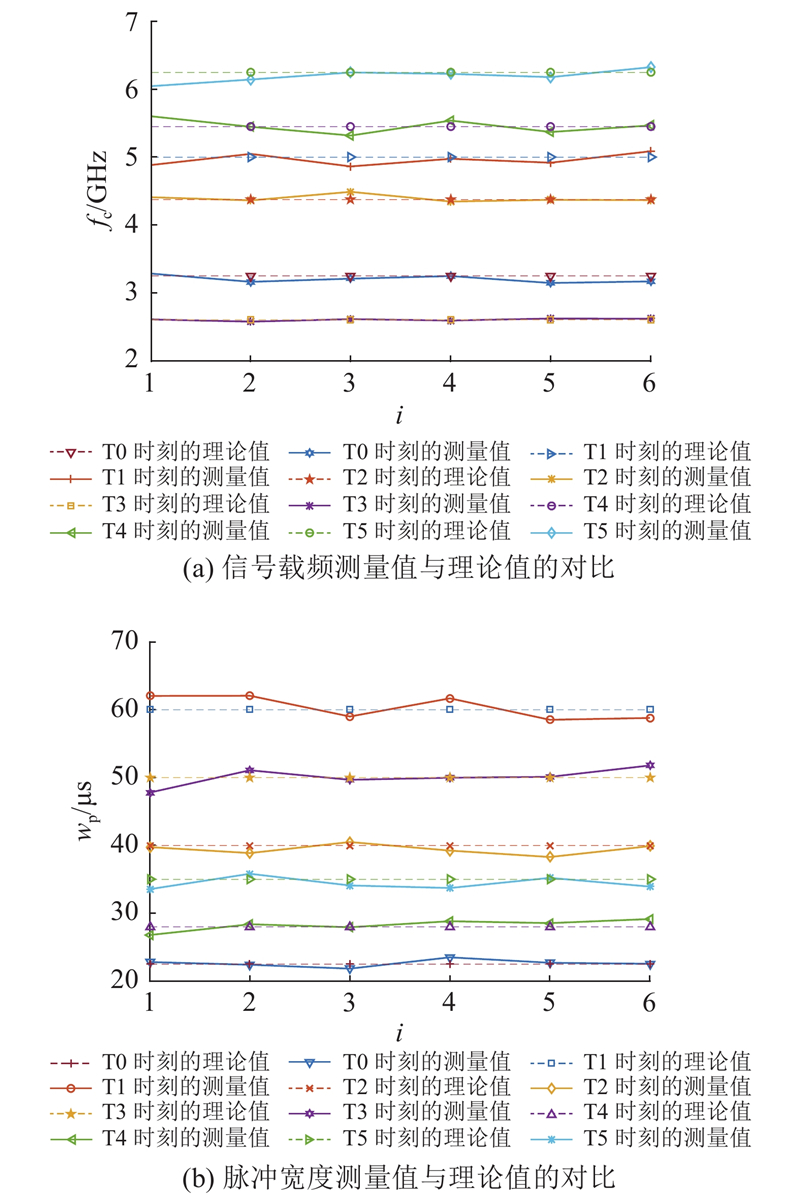

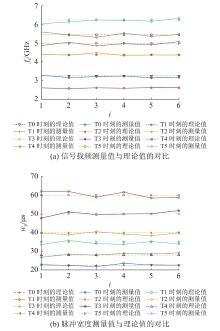

Fig.7 Multi-agent electronic jammer measures electromagnetic situation information at different time

Tab.2 Parameter estimation of radiation source signal after information sharing

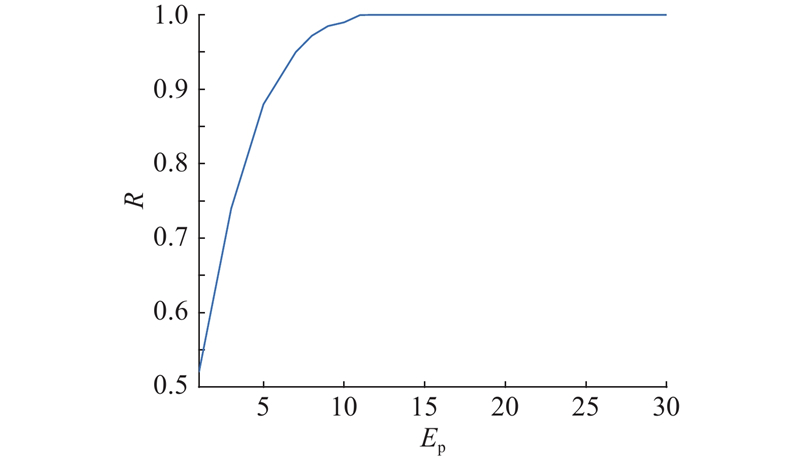

Fig.8 Reward-return curve within one period

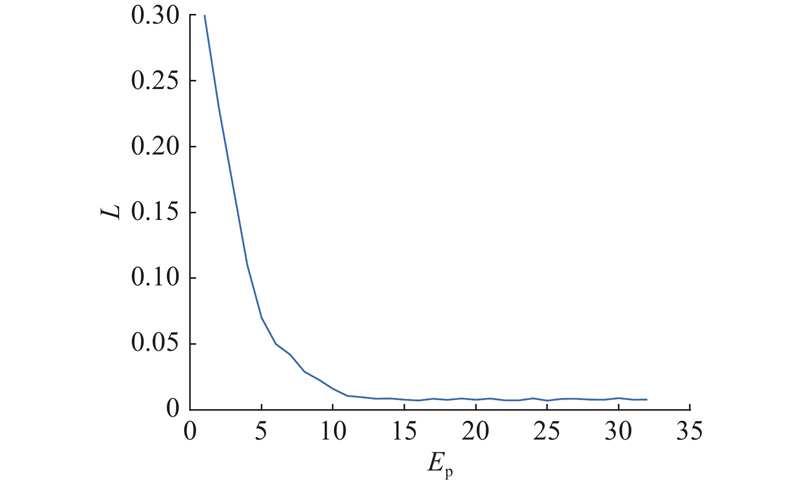

Fig.9 Loss curve in one period

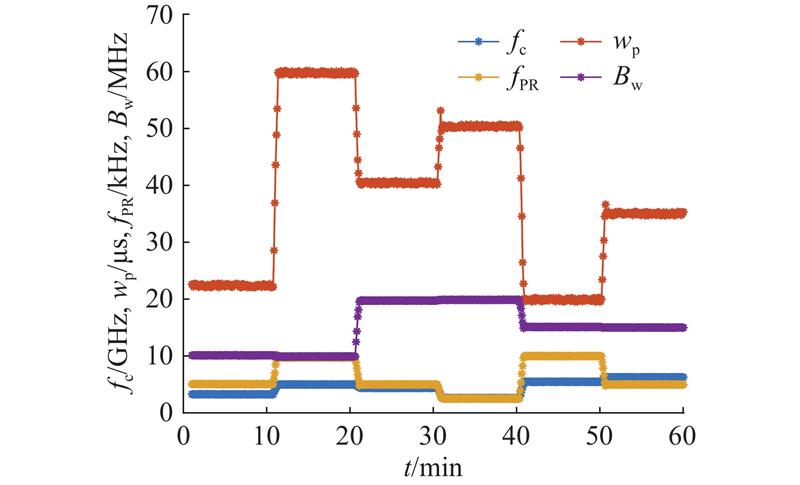

Fig.10 Dynamic response curve of jamming parameter matrix with time

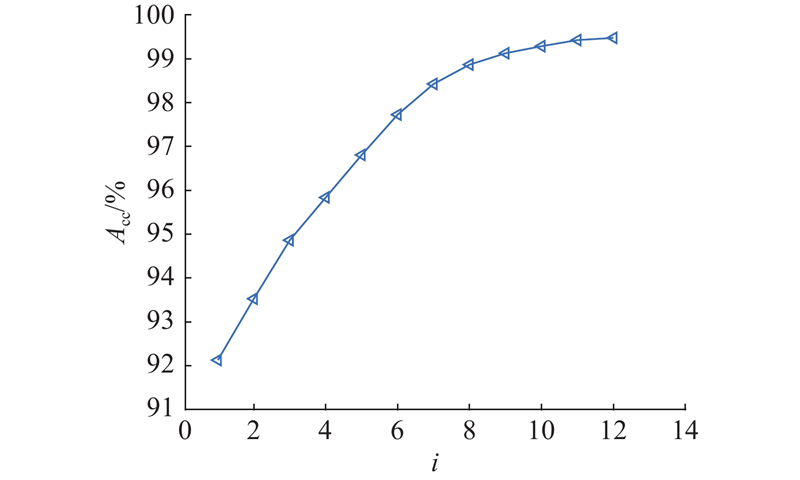

Fig.11 Curve of perception accuracy of radiation source situation information with number of agent
