浙江大学学报(工学版)
Journal of ZheJiang University (Engineering Science)  2023, Vol. 57 Issue (11): 2337-2344    DOI: 10.3785/j.issn.1008-973X.2023.11.021

Performance simulation of complex oil circuit of inlet gearbox
Chao-qi WU(),Jian LUO,Ying ZHOU,Peng LOU,Yu YU
AECC Commercial Aircraft Engine Co. Ltd, Shanghai 200241, China
Download: HTML     PDF(3454KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

A complex oil circuit structure of inlet gearbox of an aeroengine was taken as as the research object. The oil circuit models of two-channel multi nozzle and one-channel multi nozzle were simulated and analyzed respectively and the pressure-oil volume flow rate model was established. The calculation results showed that the Realizable k-ε turbulence model can effectively capture the three-dimensional flow characteristics of the complex oil circuit structure of two-channel multi nozzle. The external streamline injection position of the oil nozzle orifice was in good agreement with the experimental phenomenon. The calculation accuracy was high. The extension method was used to predict the oil volume flow rate under the oil supply pressure of 0.30 MPa for the pressure-oil volume flow rate curve with the oil supply pressure of 0.05 MPa to 0.25 MPa. This value was in good agreement with the simulation calculation results and design requirements. As the oil supply pressure at the inlet of the oil circuit increased, oil volume flow coefficient of of oil nozzles also increased. Oil volume flow coefficient of the oil nozzles was positively correlated with the Reynolds number. When the oil supply pressure was 0.05 MPa to 0.30 MPa, the oil supply pressure and oil volume flow rate of the one-channel multi nozzle complex oil circuit model were quadratic functions.

Key words： aero-engine      gearbox      complex oil circuit      extension method      oil volume flow coefficient
Received: 20 January 2023      Published: 11 December 2023
CLC:  V 233.4
Fund:  国家自然科学基金资助项目（MJ-2017-D-24）
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Chao-qi WU
Jian LUO
Ying ZHOU
Peng LOU
Yu YU
Cite this article:

Chao-qi WU,Jian LUO,Ying ZHOU,Peng LOU,Yu YU. Performance simulation of complex oil circuit of inlet gearbox. Journal of ZheJiang University (Engineering Science), 2023, 57(11): 2337-2344.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2023.11.021     OR     https://www.zjujournals.com/eng/Y2023/V57/I11/2337


中央传动齿轮箱复杂油路性能仿真

以某航空发动机中央传动齿轮箱复杂油路结构为研究对象，分别对“双通道多喷嘴”和“单通道多喷嘴”油路模型进行三维流动仿真分析并建立压力-体积流量数学模型. 计算结果表明：Realizable k-ε湍流模型能够有效捕捉“双通道多喷嘴”复杂油路结构的三维流动特性，滑油喷嘴喷孔的外部流线喷射位置和试验现象较吻合，计算精度较高；对供油压力为0.05~0.25 MPa的压力-体积流量曲线采用“外延法”方式，能够较好地预测供油压力为0.30 MPa时的体积流量，该值与仿真计算结果和设计要求均较吻合；随着油路入口供油压力增加，所有滑油喷嘴体积流量系数也增加，滑油喷嘴体积流量系数和油路内滑油雷诺数呈正相关关系；当供油压力为0.05~0.30 MPa时，“单通道多喷嘴”复杂油路模型的供油压力和体积流量呈二次函数关系.


关键词： 航空发动机,  齿轮箱,  复杂油路,  外延法,  体积流量系数
Fig.1 Oil supply model of inlet gearbox
Fig.2 Fluid domain and volume grid of oil circuit model
管流段序号 dp/mm Lp/mm
管流段1 14.5 179.28
管流段2 11.3 363.46
管流段3 11.3 749.54
管流段4 11.3 246.74
Tab.1 pipe information of two channel multi-nozzle oil circuit model
喷嘴序号 喷孔序号 dn/mm Ln/dn
喷嘴1 — 1.6 2.49
喷嘴2 — 0.8 2.47
喷嘴3 — 1.8 2.28
喷嘴4 — 1.8 2.28
喷嘴5 喷孔1 2.3 4.57
喷孔2 2.3 4.57
喷孔3 2.0 4.25
喷嘴6 喷孔4 2.3 4.57
喷孔5 2.3 4.57
喷孔6 2.0 4.25
Tab.2 Nozzle information of two channel multi-nozzle oil circuit model
p/MPa qV/(L·min?1) e/%
计算结果 试验结果
0.05 12.57 12.1 3.88
0.10 18.31 18.0 1.72
0.15 22.77 22.1 3.03
0.20 26.55 26.0 2.12
0.25 29.84 29.4 1.50
Tab.3 Comparison of calculation and test results of oil volume flow rate under different oil supply pressures

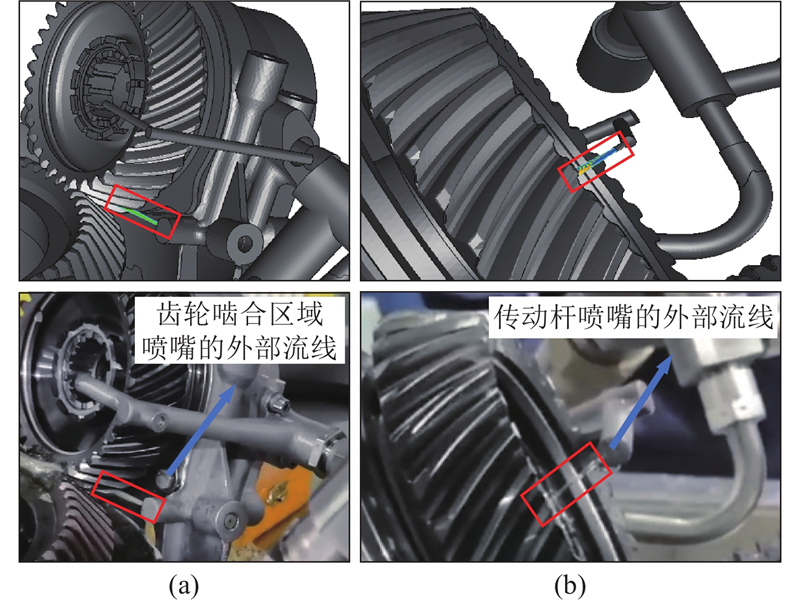

Fig.3 External streamline of gear engagement and drive rod spline

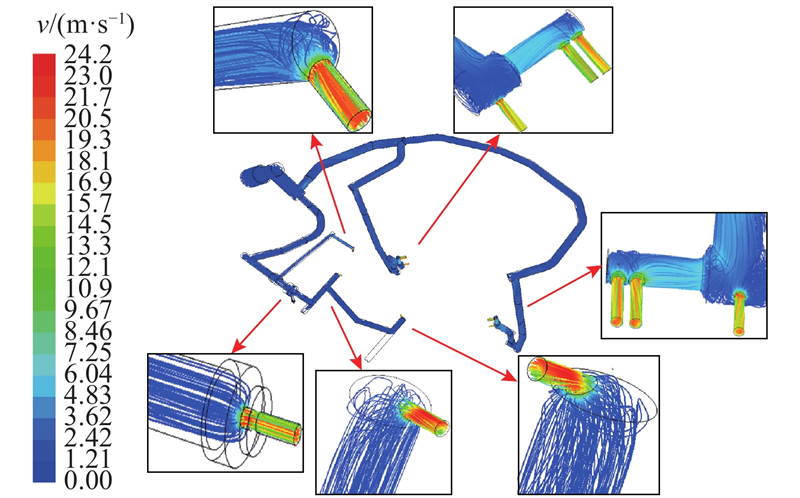

Fig.4 Internal streamline of two channel multi-nozzle model

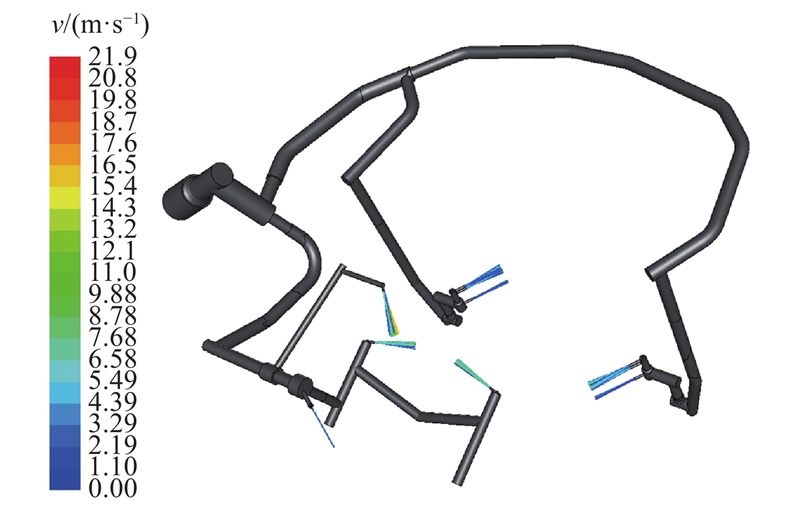

Fig.5 External streamline of two channel multi-nozzle model
Fig.6 External streamline injection position of nozzle orifices in oil circuit model

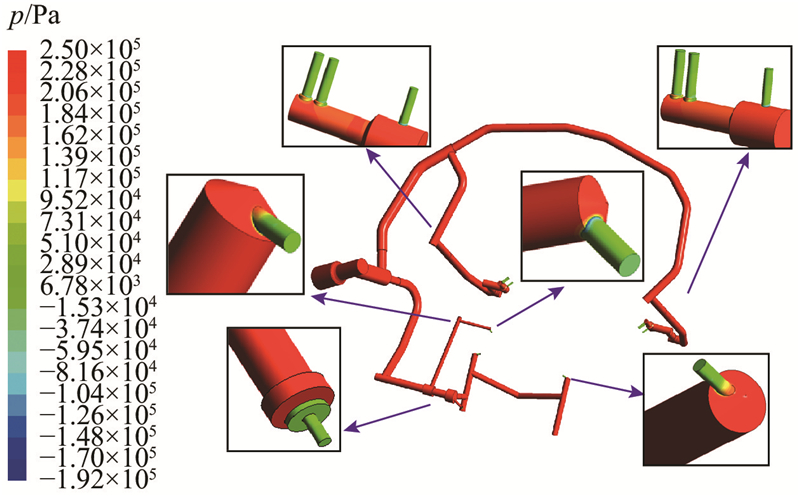

Fig.7 Pressure distribution of two channel multi-nozzle model
部位 Δp/kPa pro/%
管流段1 1.65 0.14
管流段2 16.33 1.41
管流段3 23.81 2.05
管流段4 1.21 0.11
喷嘴1 291.16 25.09
喷嘴5 267.25 23.03
喷嘴6 265.67 22.90
机匣喷嘴 293.16 25.27
Tab.4 Pressure loss proportion of two channel multi-nozzle model

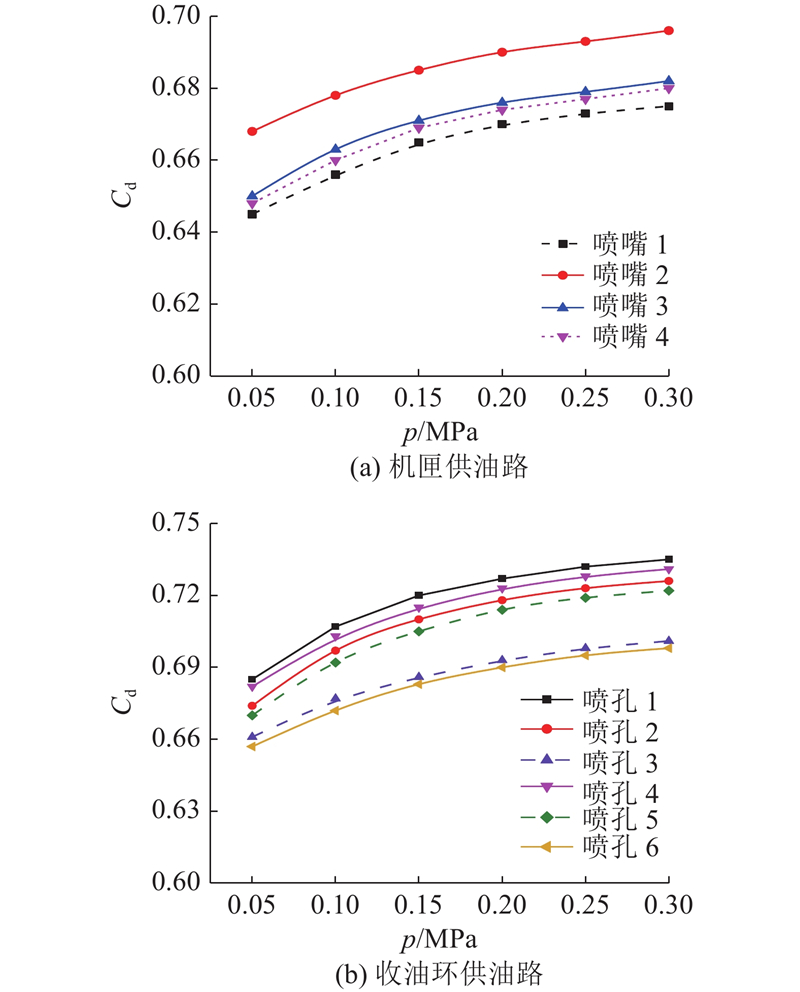

Fig.8 Oil volume flow coefficient at different oil supply pressures

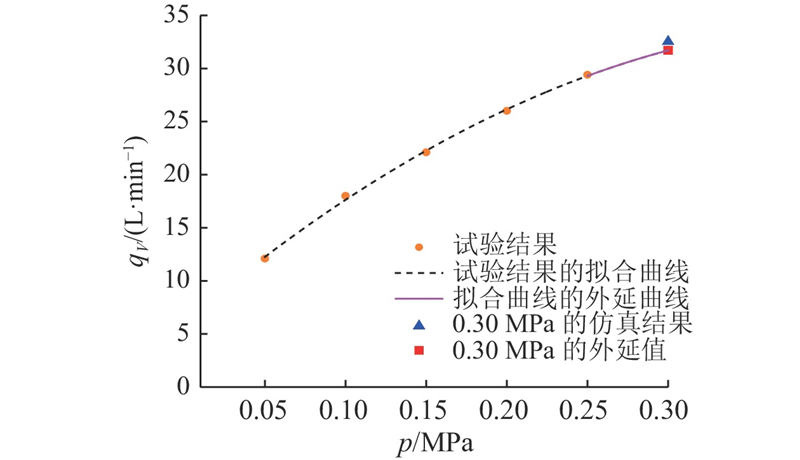

Fig.9 Extension curve of oil volume flow rate with oil supply pressure
Fig.10 Pressure distribution and internal streamline of one channel multi-nozzle model

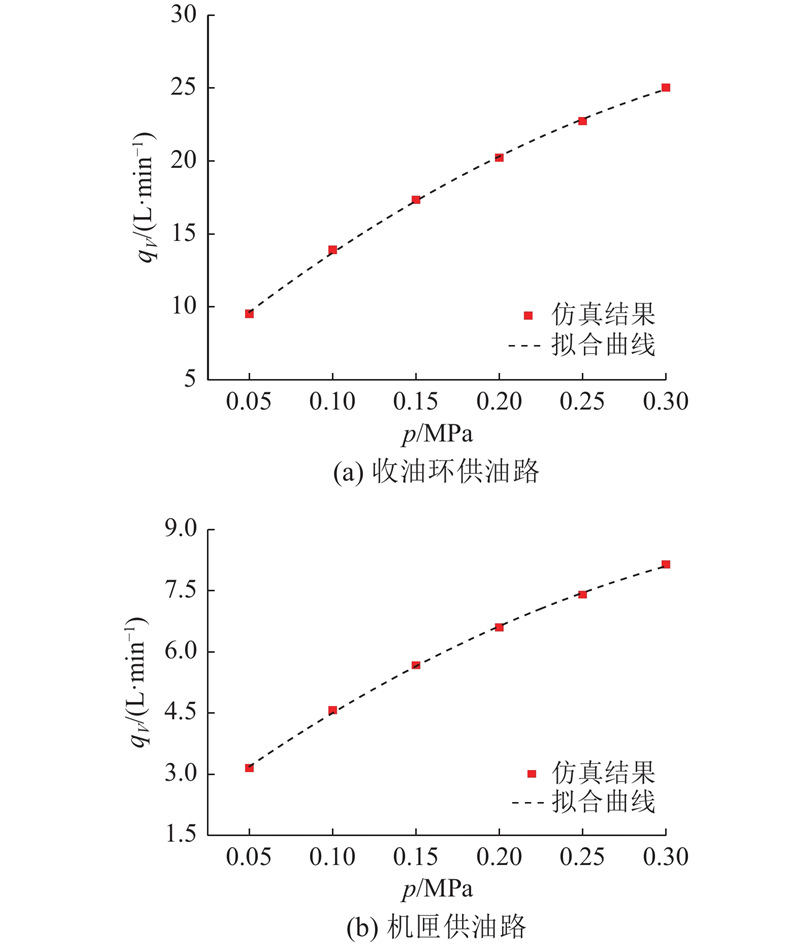

Fig.11 Fitting curve of oil volume flow rate with oil supply pressure
