| X-ray computed tomography analysis of graphene nanoplatelets agglomeration in cement paste |
Hua-xian ZHANG1,2( ),Jian-ke GAO1,2,Jian-guo HE1,2,Cheng-ji XU2,3,Nan-xi DANG2,3,Qiang ZENG3,*() |
1. Zhejiang Tongtu Traffic Engineering Co. Ltd, Hangzhou 310051, China
2. ZJU-ZCCC Institute of Collaborative Innovation, Hangzhou 310058, China
3. College of Civil Engineering and Architecture, Zhejiang University, Hangzhou 310058, China |
|
|
|

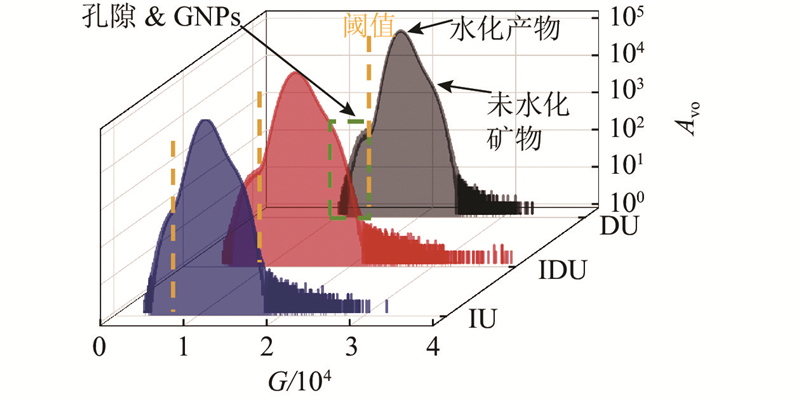

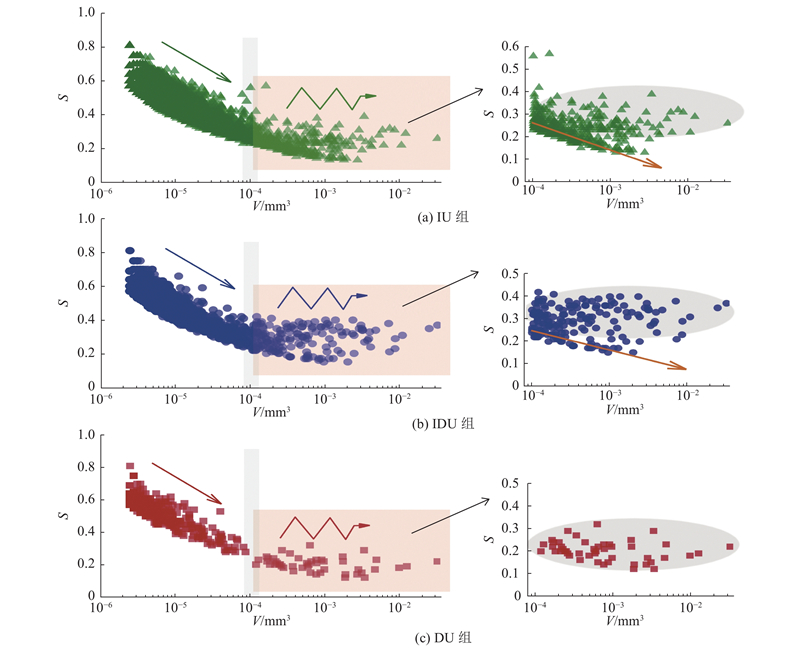

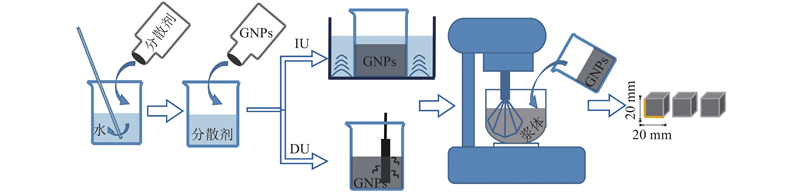

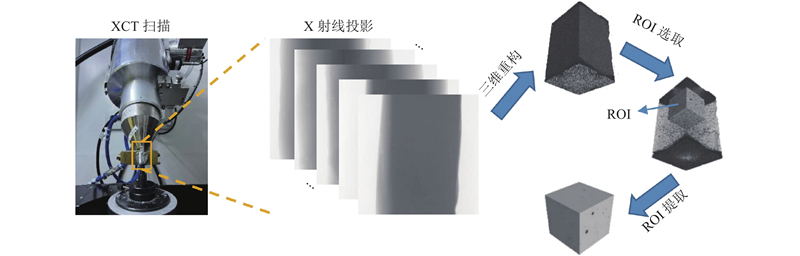

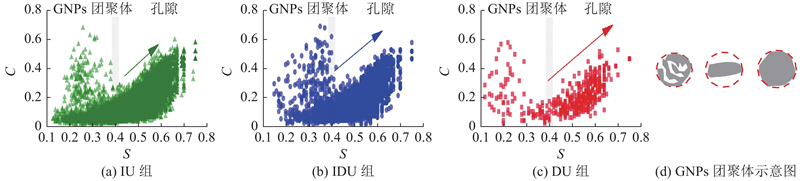

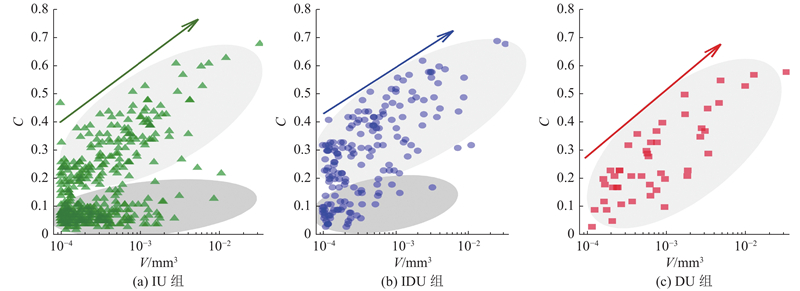

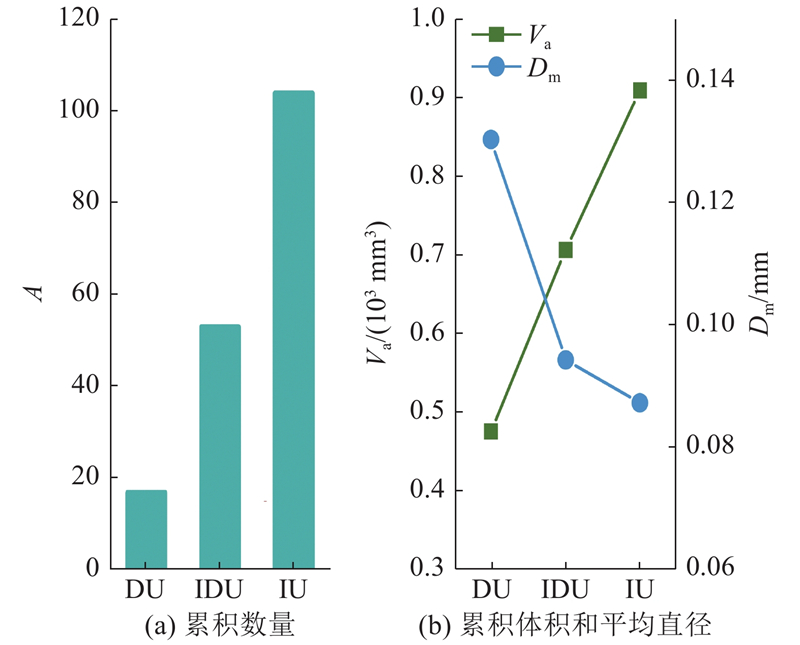

Abstract Graphene nanoplatelets (GNPs) were used as a representative carbon nano-additive, to achieve uniform dispersion of nanoparticles in cement-based materials and investigate non-destructive methods for assessing the degree of dispersion. And three different ultrasonic dispersion (USD) methods were set up: direct, indirect and direct-indirect combined USD. These methods were utilized to produce cement pastes with varying degrees of GNPs dispersion. X-ray computed tomography (XCT) was employed to characterize pores and GNPs agglomerates non-destructively. Based on differences in morphology features (sphericity and compactness), GNPs agglomerates were identified and their distribution, quantity and size were analyzed. Scanning electron microscopy (SEM) was used to observe the morphology of GNPs agglomerates. Compressive strength testing was conducted to demonstrate the influence of GNPs dispersion on macroscopic properties. The XCT results show that GNPs agglomerates can be distinguished non-destructively based on shape features. The results also indicate that the number and cumulative volume of GNPs agglomerates are the smallest under direct USD. SEM observation results show that GNPs agglomerates have complex and diverse morphologies. Mechanical results indicate the positive correlation between compressive strength and dispersion quality.
|
|
Received: 14 December 2022
Published: 11 December 2023
|
|
|
| Fund: 浙江大学-浙江交工协同创新中心资助项目(ZDJG2021008)；国家自然科学基金重点资助项目(52038004) |
|
Corresponding Authors:
Qiang ZENG
E-mail: zhuaxian@zjjtgc.com;cengq14@zju.edu.cn
|
水泥浆体中石墨烯纳米片团聚的 X射线计算机断层扫描解析
为了实现纳米颗粒在水泥基材料中的均匀分散以及探究如何无损地检验纳米颗粒的分散程度，利用石墨烯纳米片（GNPs）作为代表性的碳纳米添加剂，设置3种不同的超声分散方式 (VSD)?直接、间接和直接-间接结合分散，得到具有不同GNPs分散状态的水泥浆体. 利用X射线计算机断层扫描技术（XCT）对孔隙和石墨烯团聚体进行无损表征；基于两者的形状特征差异（球形度和紧密度）筛分出GNPs团聚体，解析其分布、数量和粒径等；利用扫描电子显微镜（SEM）对GNPs团聚体形貌进行观察；进行抗压强度测试以验证GNPs分散情况对宏观性能的影响. XCT结果表明基于形状特征能够无损地区分出GNPs团聚体，直接分散作用下GNPs团聚体数量和累计体积均最小；SEM观测结果表明GNPs团聚体具有复杂多样的形貌；力学测试结果表明抗压强度与分散质量呈正相关关系.
关键词：
水泥基材料,
石墨烯,
团聚体,
X射线断层扫描（XCT）,
形状特征
|
|
| [1] |
NEWTSON C M, ALLENA S Materials specification needs for future development of ultra high performance concrete[J]. Advances in Civil Engineering Materials, 2014, 4 (2): 17- 37
|
|
|
| [2] |
DONG S F, LI L W, ASHOUR A, et al Self-assembled 0D/2D nano carbon materials engineered smart and multifunctional cement-based composites[J]. Construction and Building Materials, 2021, 272: 121632
|
|
|
| [3] |
赵昕, 黄存旺, 傅佳丽, 等 石墨烯水泥基复合材料的电学性能[J]. 建筑材料学报, 2022, 25 (1): 8- 15
ZHAO Xin, HUANG Cun-wang, FU Jia-li, et al Electrical properties of graphene cement based composites[J]. Journal of Building Materials, 2022, 25 (1): 8- 15
doi: 10.3969/j.issn.1007-9629.2022.01.002
|
|
|
| [4] |
HAN M Z, MUHAMMAD Y, WEI Y H, et al A review on the development and application of graphene based materials for the fabrication of modified asphalt and cement[J]. Construction and Building Materials, 2021, 285: 122885
doi: 10.1016/j.conbuildmat.2021.122885
|
|
|
| [5] |
MASSION C, LU Y X, CRANDALL D, et al Graphene nanoplatelets reinforced cement as a solution to leaky wellbores reinforcing weak points in hydrated Portland cement with graphene nanoparticles improves mechanical and chemical durability of wellbore cements[J]. Cement and Concrete Research, 2022, 133: 104726
doi: 10.1016/j.cemconcomp.2022.104726
|
|
|
| [6] |
MENG W N, KHAYAT K H Mechanical properties of ultra-high-performance concrete enhanced with graphite nanoplatelets and carbon nanofibers[J]. Composites Part B: Engineering, 2016, 107: 113- 122
doi: 10.1016/j.compositesb.2016.09.069
|
|
|
| [7] |
DU H J, JACEY GAO H C, PANG S D Improvement in concrete resistance against water and chloride ingress by adding graphene nanoplatelet[J]. Cement and Concrete Research, 2016, 83: 114- 123
doi: 10.1016/j.cemconres.2016.02.005
|
|
|
| [8] |
HUANG H H, TENG L, GAO X J, et al Effect of carbon nanotube and graphite nanoplatelet on composition, structure, and nano-mechanical properties of C-S-H in UHPC[J]. Cement and Concrete Research, 2022, 154: 106713
doi: 10.1016/j.cemconres.2022.106713
|
|
|
| [9] |
DONG W K, LI W R, ZHU X Q, et al Multifunctional cementitious composites with integrated self-sensing and hydrophobic capacities toward smart structural health monitoring[J]. Cement and Concrete Composites, 2021, 118: 103962
doi: 10.1016/j.cemconcomp.2021.103962
|
|
|
| [10] |
HAN B G, SUN S W, DING S Q, et al Review of nanocarbon-engineered multifunctional cementitious composites[J]. Composites Part A: Applied Science and Manufacturing, 2015, 70: 69- 81
doi: 10.1016/j.compositesa.2014.12.002
|
|
|
| [11] |
LEE S J, AHN D, YOU I, et al Wireless cement-based sensor for self-monitoring of railway concrete infrastructures[J]. Automation in Construction, 2020, 119: 103323
doi: 10.1016/j.autcon.2020.103323
|
|
|
| [12] |
MONTEIRO A O, COSTA P M, CACHIM P B Dynamic sensing properties of a multifunctional cement composite with carbon black for traffic monitoring[J]. Smart Materials and Structures, 2020, 29: 025023
doi: 10.1088/1361-665X/ab62e2
|
|
|
| [13] |
LIU J T, FU J L, YANG Y, et al Study on dispersion, mechanical and microstructure properties of cement paste incorporating graphene sheets[J]. Construction and Building Materials, 2019, 199: 1- 11
doi: 10.1016/j.conbuildmat.2018.12.006
|
|
|
| [14] |
ANTONELLA D A, TIECCO M, MEONI A, et al Improved strain sensing properties of cement-based sensors through enhanced carbon nanotube dispersion[J]. Cement and Concrete Composites, 2021, 115: 103842
doi: 10.1016/j.cemconcomp.2020.103842
|
|
|
| [15] |
WANG B M, JIANG R S, SONG W Z, et al Controlling dispersion of graphene nanoplatelets in aqueous solution by ultrasonic technique[J]. Russian Journal of Physical Chemistry A, 2017, 91 (8): 1517- 1526
doi: 10.1134/S0036024417080040
|
|
|
| [16] |
ZHU X H, ZHANG Z L, YANG K, et al Characterisation of pore structure development of alkali-activated slag cement during early hydration using electrical responses[J]. Cement and Concrete Composites, 2018, 89: 139- 149
doi: 10.1016/j.cemconcomp.2018.02.016
|
|
|
| [17] |
PENG Y, ZHAO G R, QI Y X, et al In-situ assessment of the water-penetration resistance of polymer modified cement mortars by μ-XCT, SEM and EDS[J]. Cement and Concrete Composites, 2020, 114: 103821
doi: 10.1016/j.cemconcomp.2020.103821
|
|
|
| [18] |
杨林, 张云升, 张春晓 基于X-CT的非饱和水泥基材料水分传输与渗透系数计算[J]. 硅酸盐通报, 2020, 39 (12): 3775- 3782
YANG Lin, ZHANG Yun-sheng, ZHANG Chun-xiao Water transport and permeability coefficient calculation for unsaturated cement-based materials based on X-CT[J]. Bulletin of the Chinese Ceramic Society, 2020, 39 (12): 3775- 3782
doi: 10.16552/j.cnki.issn1001-1625.2020.12.005
|
|
|
| [19] |
王彦琪. 岩石单轴压缩破坏过程的CT试验研究 [D]. 太原: 太原理工大学, 2013.
WANG Yan-qi. The CT experimental research on the rock failure process under uniaxial compression loading [D]. Taiyuan: Taiyuan university of technology, 2013.
|
|
|
| [20] |
张静, 邹道勤, 王海龙, 等 3D 打印混凝土层条间界面抗拉性能与本构模型[J]. 浙江大学学报: 工学版, 2021, 55 (11): 2178- 2185
ZHANG Jing, ZOU Dao-qin, WANG Hai-long, et al Bond tensile performance and constitutive models of interfaces between vertical and horizontal filaments of 3D printed concrete[J]. Journal of Zhejiang University: Engineering Science, 2021, 55 (11): 2178- 2185
|
|
|
| [21] |
王小虎, 吉克尼都, 陈珊, 等 X 射线透射成像技术原位追踪混凝土吸水过程[J]. 浙江大学学报: 工学版, 2021, 55 (4): 727- 732
WANG Xiao-hu, JIKE Ni-du, CHEN Shan, et al Water imbibition in concrete in-situ traced by transmission X-ray radiography[J]. Journal of Zhejiang University: Engineering Science, 2021, 55 (4): 727- 732
|
|
|
| [22] |
SHEN Y N, MA X B, HUANG J T, et al Near-zero restrained shrinkage polymer concrete incorporating ceramsite and waste rubber powder[J]. Cement and Concrete Composites, 2020, 110: 103584
doi: 10.1016/j.cemconcomp.2020.103584
|
|
|
| [23] |
林剑. 活性粉末混凝土的力学性能及孔结构研究 [D]. 海口: 海南大学, 2019.
LIN Jian. Research on mechanical properties and pore structure of reactive powder concrete [D]. Haikou: Hainan University, 2019.
|
|
|
| [24] |
WONG H S, HEAD M K, BUENFELDN R Pore segmentation of cement-based materials from backscattered electron images[J]. Cement Concrete Research, 2006, 36: 1083- 1090
doi: 10.1016/j.cemconres.2005.10.006
|
|
|
| [25] |
ZENG Q, CHEN S, YANG P, et al Reassessment of mercury intrusion porosimetry for characterizing the pore structure of cement-based porous materials by monitoring the mercury entrapments with X-ray computed tomography[J]. Cement Concrete Composites, 2020, 113: 103726
doi: 10.1016/j.cemconcomp.2020.103726
|
|
|
| [26] |
TAO J, WANG X H, WANG Z D, et al Graphene nanoplatelets as an effective additive to tune the microstructure and piezoresistive properties of cement-based composites[J]. Construction and Building Materials, 2019, 209: 665- 678
doi: 10.1016/j.conbuildmat.2019.03.173
|
|
|
| [27] |
吴经纬. 石墨烯纳米片/碳纳米管水泥基复合材料阻尼性能研究[D]. 杭州: 浙江大学, 2022.
WU Jing-wei. Damping properties of cement-based composites containing graphene-nanoplatelets/carbon nanotubes [D]. Hangzhou: Zhejiang University, 2022.
|
|
|
|
