Preparation and force sensitivity of flexible layered graphene sensor

doi:10.3785/j.issn.1008-973X.2024.01.016

Journal of ZheJiang University (Engineering Science)

2024, Vol. 58

Issue (1): 150-160 DOI: 10.3785/j.issn.1008-973X.2024.01.016

Preparation and force sensitivity of flexible layered graphene sensor

Zhiqiang WU1(

),Jun WEI2,Rongzhen DONG2

1. College of Architecture and Civil Engineering, Xinyang Normal University, Xinyang 464000, China
2. School of Civil Engineering, Central South University, Changsha 410075, China

Download:

HTML

PDF(2378KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

A PDMS/RGO-CNF/PDMS layered sensor was designed and prepared with reduced graphene oxide-cellulose nanofiber (RGO-CNF) as the sensing layer and polydimethylsiloxane (PDMS) as the substrate by using a special configuration method in order to make up for the shortcomings of existing sensors in monitoring discontinuous deformation of concrete. The mechanical, electrical properties and force sensitivity of the sensor were tested and analyzed. Results show that CNF can effectively assist RGO to uniformly disperse in isopropanol. The sensing layer constructed through chemical swelling and pore filling was tightly bonded to the substrate layer, and could withstand over 100% tensile strain. The strain resistance response of the sensor reaches a stable state after about 10 cycles of stretching, exhibiting good recoverability and repeatability. The resistance change rate of the sensor shows an approximate linear variation within the range of 0-10% strain, with a sensitivity coefficient of up to 15. The resistance change rate increases exponentially as the strain continues to increase. The strain resistance response strength increases with the increase of strain rate, and the established response model considering strain rate effect can better predict the force sensitive behavior of the sensor.

Key words： graphene layered sensor force sensitivity strain resistance response model cellulose nanofiber

Received: 09 January 2023 Published: 07 November 2023

CLC:

TU 599

Fund: 国家自然科学基金资助项目（51778628）；河南省科技攻关计划资助项目（222102210241）

	Service
	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Zhiqiang WU
	Jun WEI
	Rongzhen DONG

Cite this article:

Zhiqiang WU,Jun WEI,Rongzhen DONG. Preparation and force sensitivity of flexible layered graphene sensor. Journal of ZheJiang University (Engineering Science), 2024, 58(1): 150-160.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2024.01.016 OR https://www.zjujournals.com/eng/Y2024/V58/I1/150

柔性层状石墨烯感应元件制备及其力敏特性

为了弥补现有传感器在混凝土非连续变形监测上的不足，采用特殊构型法，以还原氧化石墨烯-纳米纤维素(RGO-CNF)为传感层、聚二甲基硅氧烷(PDMS)为基层，设计和制备了PDMS/RGO-CNF/PDMS层状感应元件，对其力学、电学和力敏性能进行测试和分析. 结果表明，CNF能够有效地协助RGO在异丙醇中均匀分散，经化学溶胀和孔隙填充构建的传感层与基底层紧密结合，能够承受超过100%的拉伸应变. 感应元件经过约10次循环拉伸后，应变电阻响应达到稳定状态，表现出良好的可回复性和可重复性. 在0~10%应变下，感应元件的电阻变化率近似呈线性变化，灵敏系数可达15，随应变继续增大，电阻变化率呈指数型增长. 应变电阻响应强度随应变速率的增大而提高，利用建立的考虑应变率效应的应变电阻响应模型，能够较好地预测感应元件的力敏行为.

关键词： 石墨烯, 层状感应元件, 力敏性, 应变电阻响应模型, 纳米纤维素

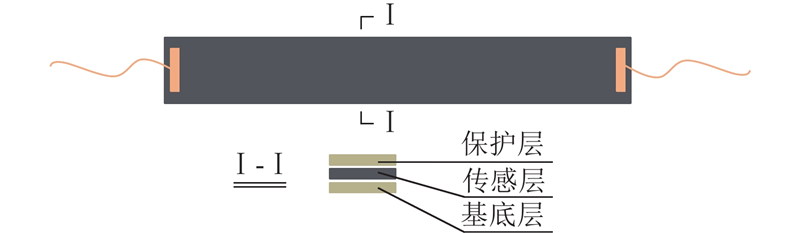

Fig.1 Structural composition of graphene sensor

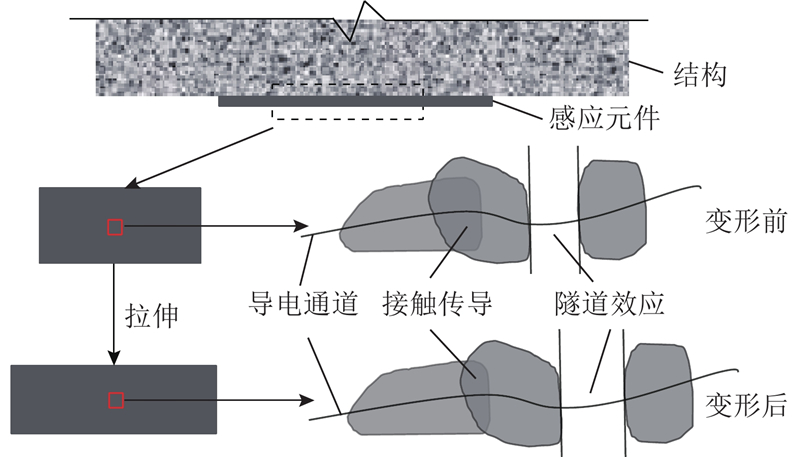

Fig.2 Diagrammatic sketch of strain resistance response of graphene sensor

Tab.1 Grouping of RGO dispersion test

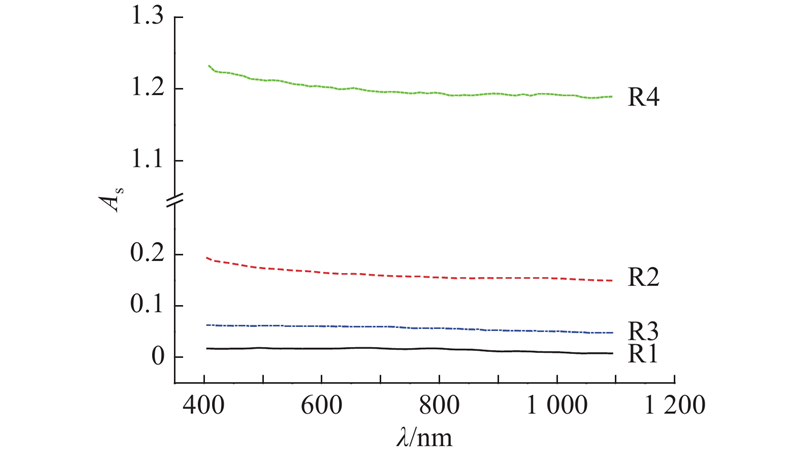

Fig.3 Absorbance of RGO dispersion solution

Fig.4 Absorbance variation of R2 and R4 dispersion solution with ultrasonic time

Tab.2 Average grain diameter of R2 and R4 dispersion solution

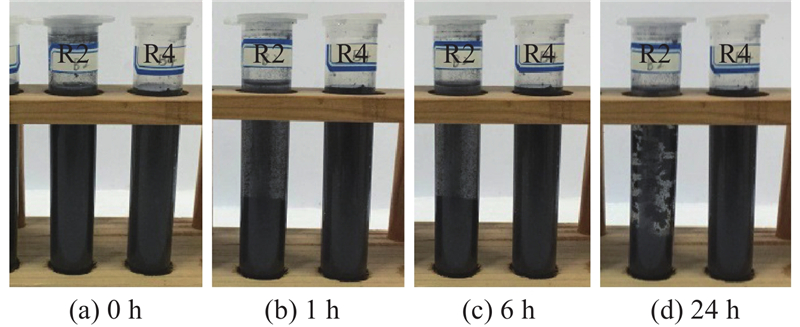

Fig.5 Apparent state variation of R2 and R4 dispersion solution with standing time

Fig.6 Preparation process of PDMS/RGO-CNF/PDMS sensor

Fig.7 SEM images of various parts of PRCP sensor during preparation process

Fig.8 Stress-strain and resistance test of PRCP sensor

Fig.9 Stress-strain curves of PRCP sensors with different graphene distribution density

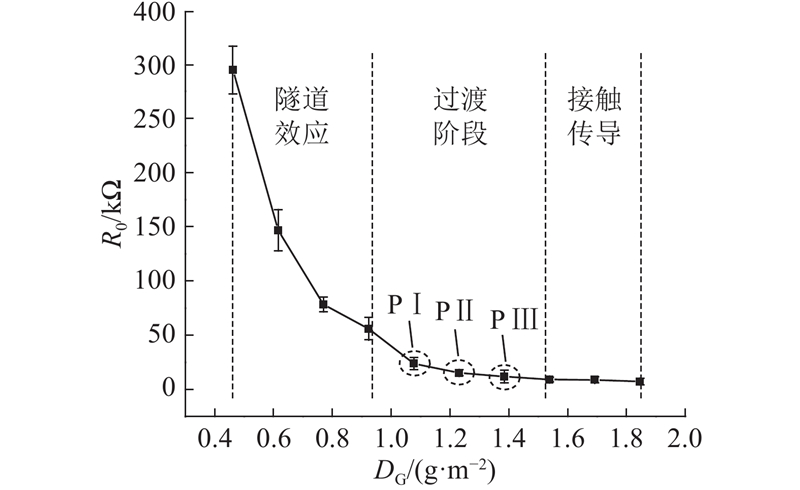

Fig.10 Initial resistance versus graphene distribution density curve of PRCP sensors

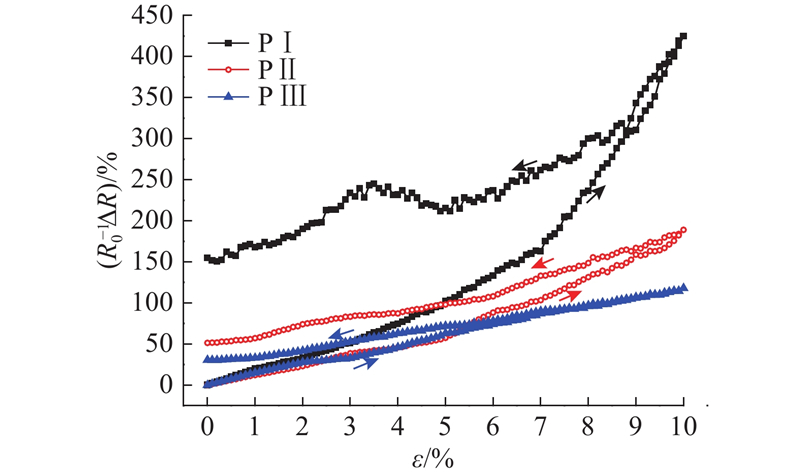

Fig.11 Resistance change rate versus strain curves of PⅠ, PⅡ and PⅢ under first tension

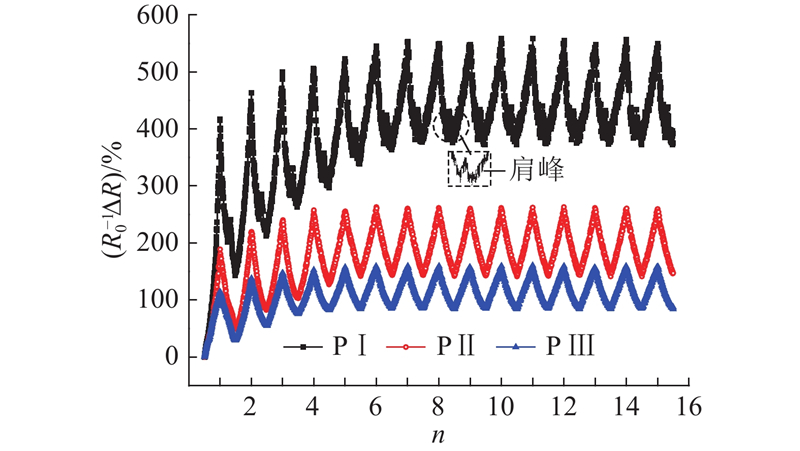

Fig.12 Resistance change rate versus strain curves of PⅠ, PⅡ and PⅢ under cyclic tension

Fig.13 Slope of fitting straight line versus cycle number curves

Fig.14 Strain resistance response curves of PⅠ, PⅡ and PⅢ within 100% strain range

Fig.15 Resistance change rate versus standing time curves of PⅡ after first tension at different speeds

Fig.16 Resistance change rate versus strain curves of PⅡ tensioned at different speeds

Tab.3 Parameter values of fitting curves of PⅡ test results tensioned at different speeds
