Dynamic adjustment method of diaphragm wall supporting system in deep foundation pit and its application

Teng-fei YAN1(

),Bao-guo CHEN1,*(

),Lei ZHANG1,Jie-xing HE1,Ye-qin ZHANG2

1. Faculty of Engineering, China University of Geosciences, Wuhan 430074, China
2. Sinohydro Bureau 7 Limited Company, Chengdu 610081, China

Download:

HTML

PDF(2141KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

There is a great difference between the engineering deformation value and the theoretical design value of the diaphragm wall supporting system in deep foundation pit, and it is difficult to adjust dynamically. Thus, the dynamic adjustment method of supporting structure was adopted to solve the above problem. Using the numerical model verified by the measured data, the coordinated deformation law of the diaphragm wall support system in deep foundation pit was studied, and the stress deformation law and the coordinated deformation curve of the support system with different adjustment schemes were obtained. At the same time, based on elastic foundation beam theory, an analytical model of support system mechanics that reflects the dynamic adjustment of supporting structure and is suitable for multi-layer supporting structure was put forward. It is found that it is not that more strict displacement control can get safer results in engineering, but that reasonable stress balance point should be found and the stress parameters of support system should be controlled in the optimal range. The optimal range of mechanical parameters of the supporting system was obtained. The ratio of maximum axial force to yield strength of steel support was 0.32 to 0.38, and the ratio of wall displacement to excavation depth was 0.80‰ to 0.92‰.

Key words： deep foundation pit diaphragm wall internal support dynamic adjustment coordinated deformation earth pressure

Received: 14 March 2021 Published: 03 March 2022

CLC:

TU 476

Corresponding Authors: Bao-guo CHEN E-mail: tengfei_yan@cug.edu.cn;baoguo_chen@126.com

	Service
	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Teng-fei YAN
	Bao-guo CHEN
	Lei ZHANG
	Jie-xing HE
	Ye-qin ZHANG

Cite this article:

Teng-fei YAN,Bao-guo CHEN,Lei ZHANG,Jie-xing HE,Ye-qin ZHANG. Dynamic adjustment method of diaphragm wall supporting system in deep foundation pit and its application. Journal of ZheJiang University (Engineering Science), 2022, 56(2): 356-367.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2022.02.017 OR https://www.zjujournals.com/eng/Y2022/V56/I2/356

深基坑地连墙支护体系动态调整方法及应用

深基坑地连墙支护体系工程变形与理论设计值之间存在较大差异且难于动态调整. 采用支护结构动态调整方法解决此问题，提出动态调整方法，并运用经实测数据验证后的数值模型研究深基坑地连墙支护体系协调变形规律，得出不同调整方案下支护体系受力、变形规律及协调变形曲线（即轴力-位移关系曲线）. 基于弹性地基梁理论，给出反映支护结构动态调节思想的适用于多层支撑结构的支护体系力学解析模型. 研究发现，在工程中，更严格的位移控制不一定能够带来更安全的结果，应该寻找合理受力平衡点并将支护体系受力参数控制在最优区间内. 研究得到本工程支护体系受力参数最优区间，最大轴力与钢支撑屈服强度比值为0.32~0.38，墙体位移与开挖深度比值为0.80‰~0.92‰.

关键词： 深基坑, 地连墙, 内支撑, 动态调整, 协调变形, 土压力

Fig.1 Axial force servo system of steel support

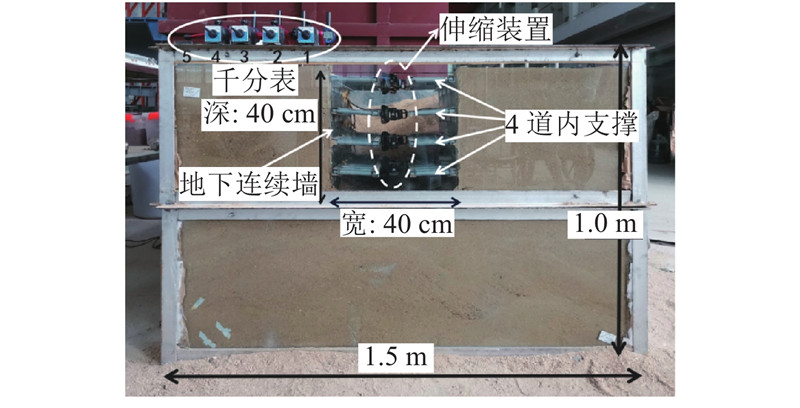

Fig.2 Foundation pit model test device and model diagram

Fig.3 Influence of support expansion on mechanical deformation characteristics of support system

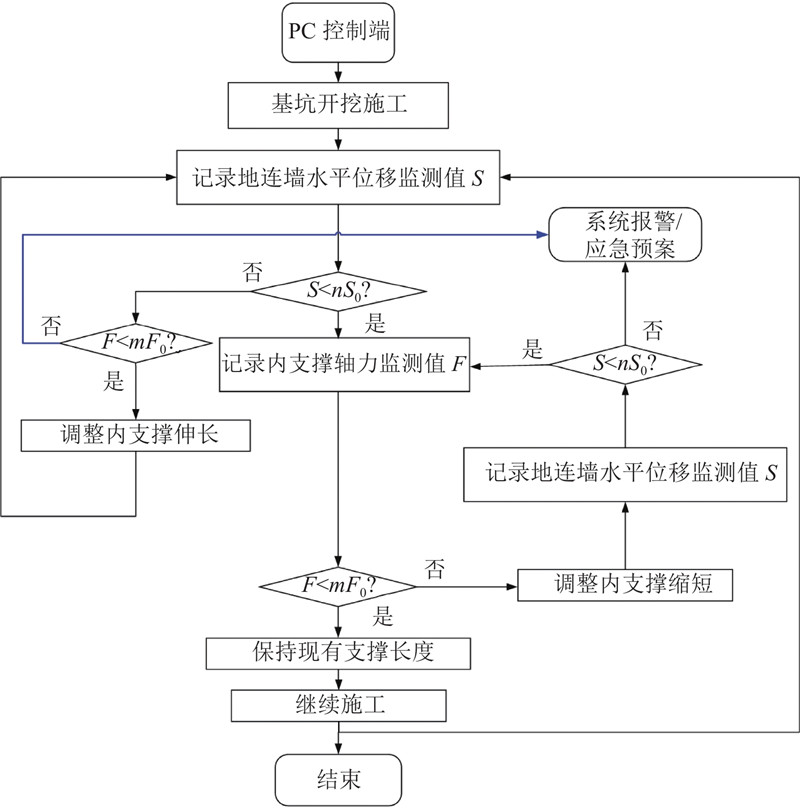

Fig.4 Flow chart of dynamic adjustment method of support system

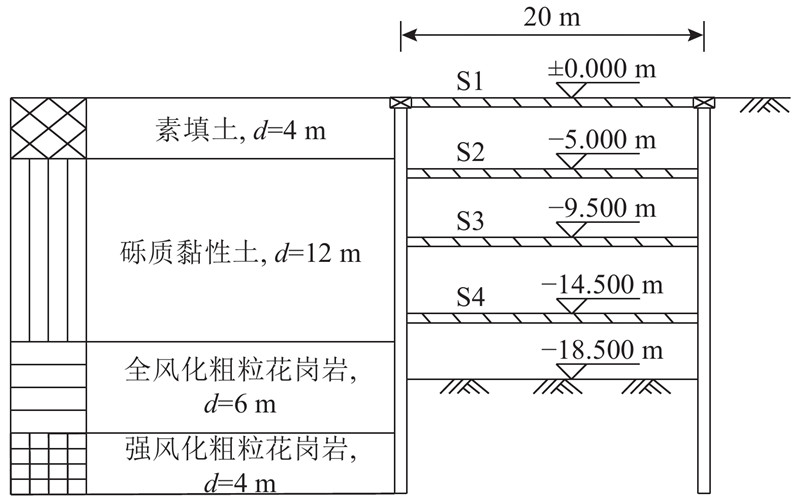

Fig.5 Standard section of foundation pit

Tab.1 Material parameters of stratum and support system

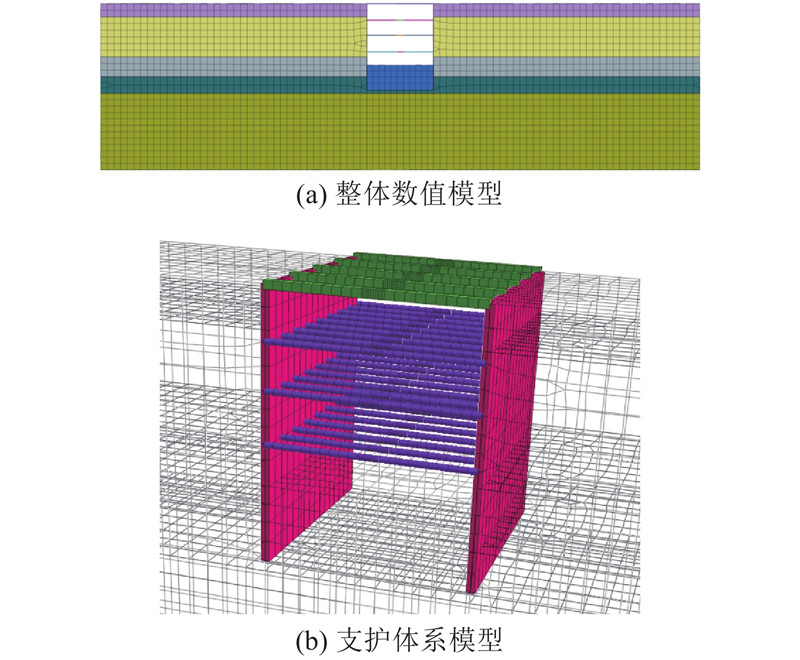

Fig.6 Schematic diagram of foundation pit numerical model

Tab.2 Contact surface parameters between diaphragm wall and soil

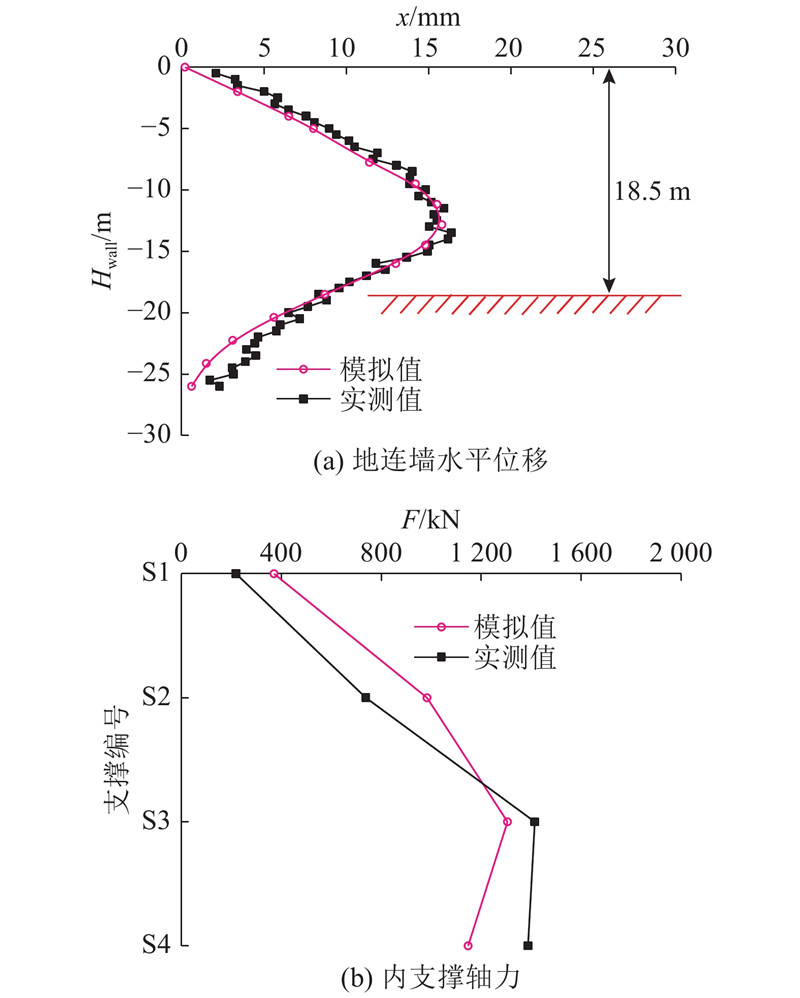

Fig.7 Comparison curve of axial force and displacement of support system after excavation

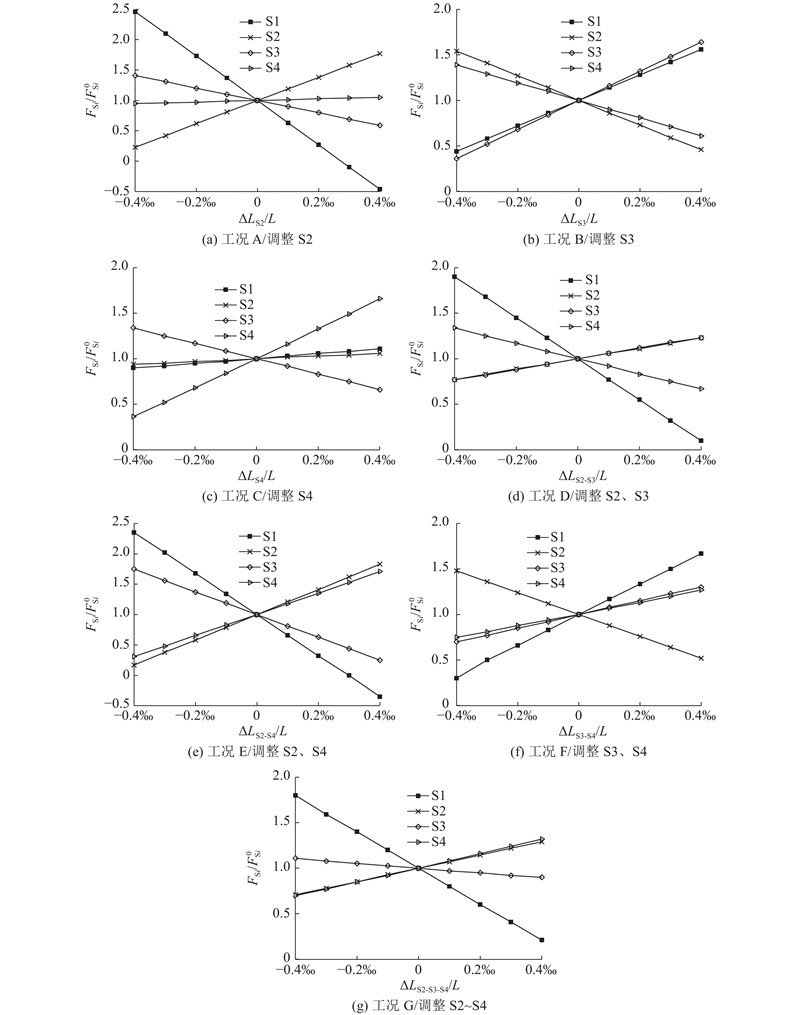

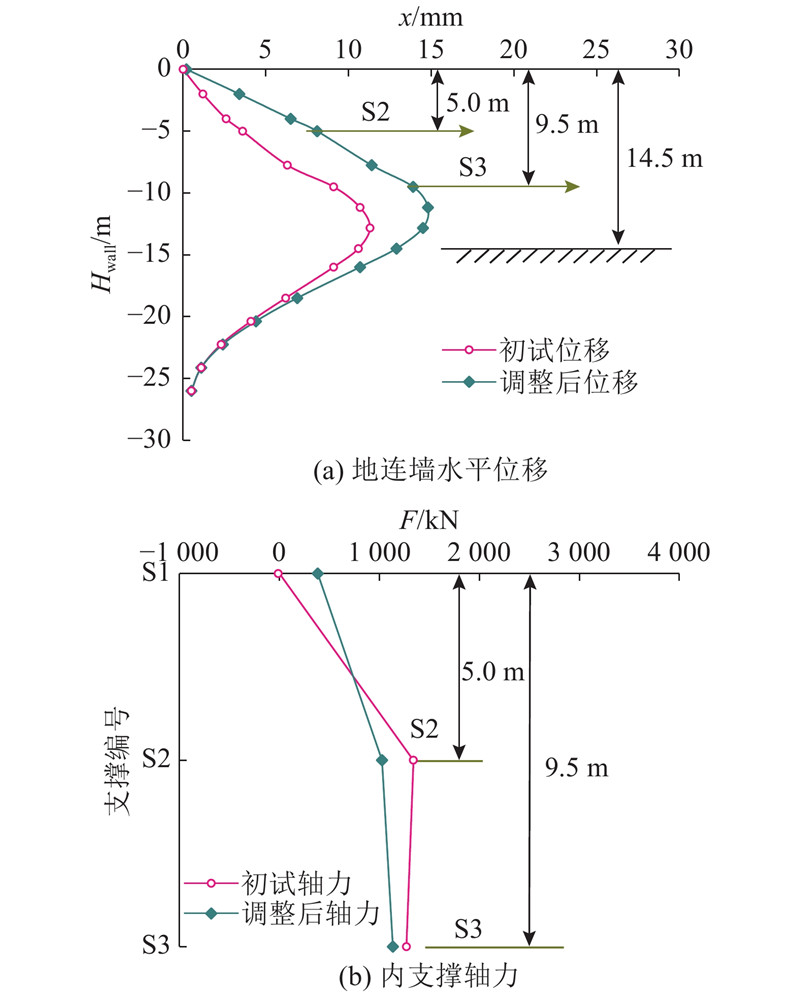

Fig.8 Law of axial force and deformation of support system under scheme of shortening 10 mm for S2 and S3

Fig.9 Law of axial force and deformation of support system under scheme of elongating 10 mm for S2, S3 and S4

Tab.3 Working condition table for dynamic adjustment of support system

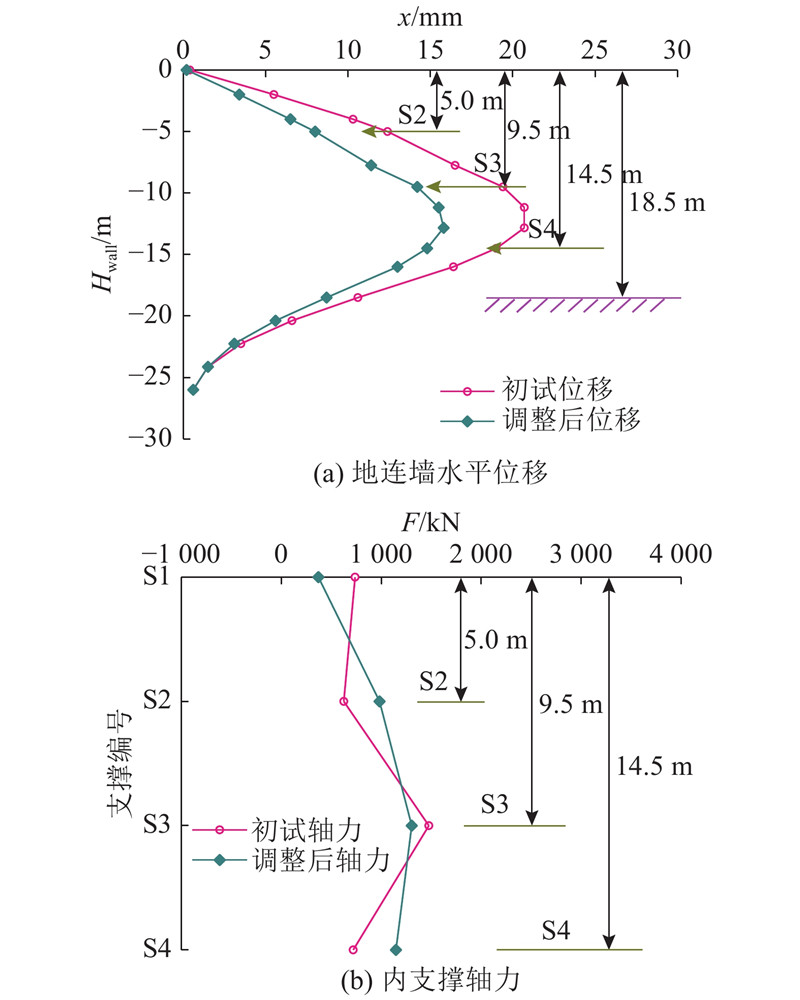

Fig.10 Horizontal displacement of diaphragm wall under different adjustment schemes

Tab.4 Deformation sensitivity value of each soil layer

Fig.11 Axial force of internal support under different adjustment schemes

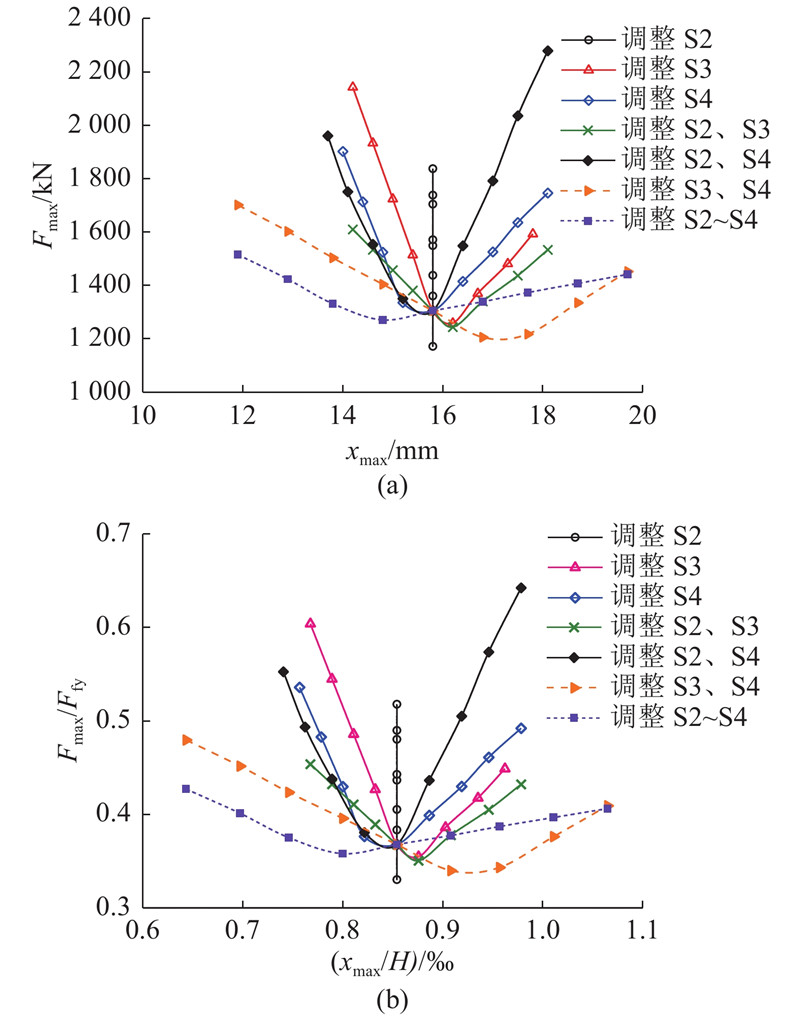

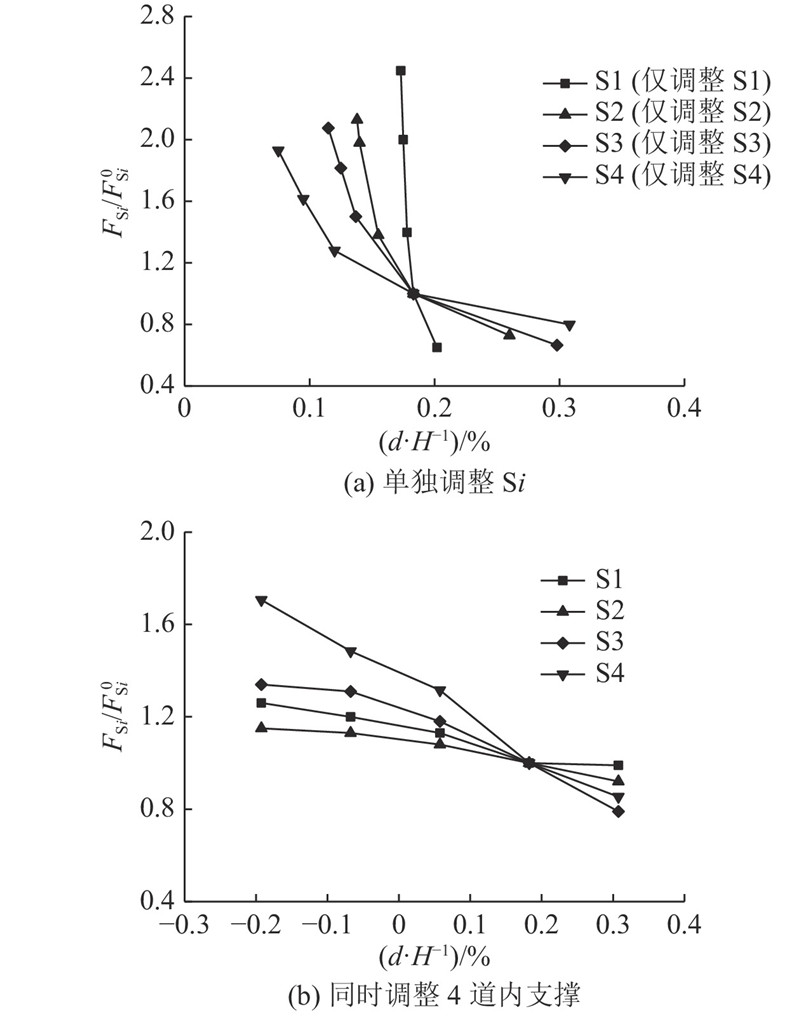

Fig.12 Coordinated deformation relationship curve of support system

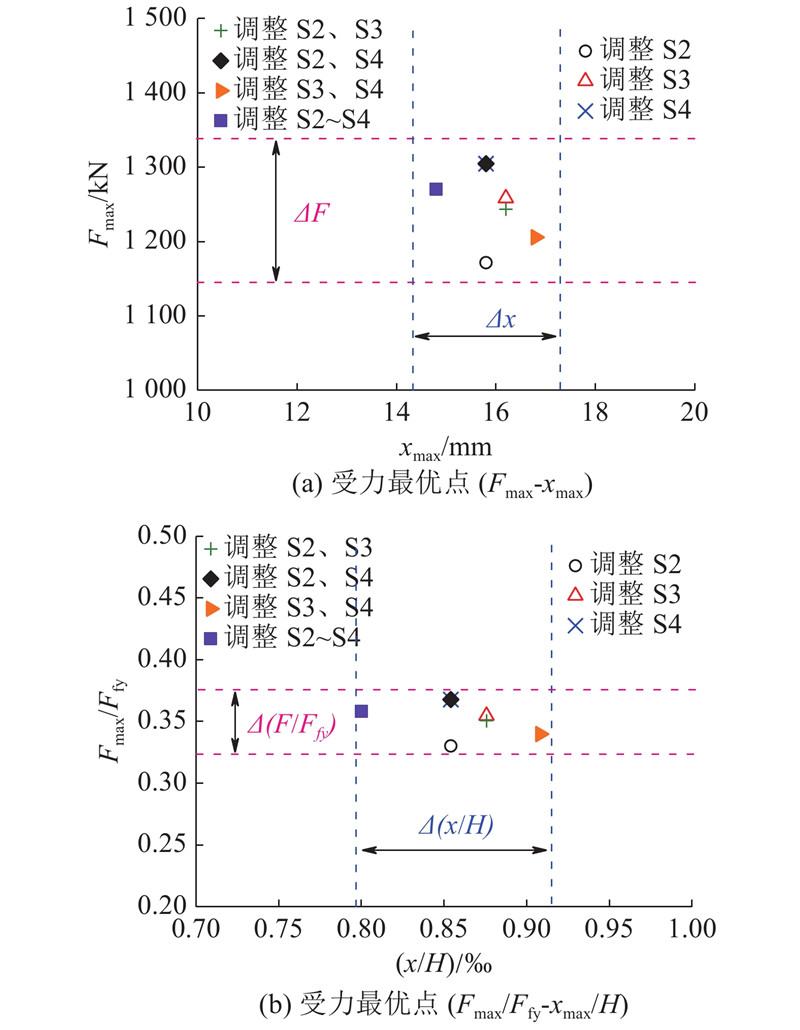

Fig.13 Scatter diagram of optimum stress points of support system

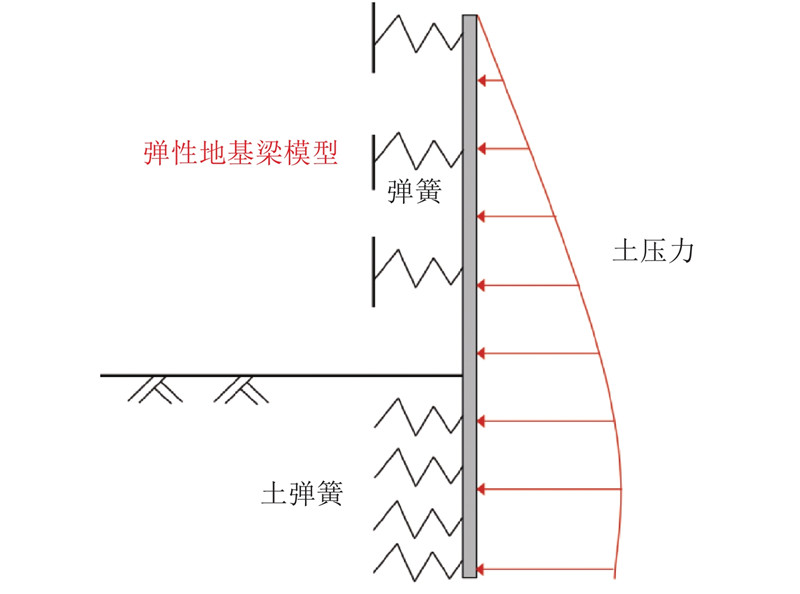

Fig.14 Schematic diagram of calculation model based on elastic foundation beam method
