| Digitally controlled active clamp flyback converter with adaptive dead time control |
Ke-feng LIU( ),Jia-bao HE,Jian-xiong XI,Le-nian HE*() |
| Institute of VLSI Design, Zhejiang University, Hangzhou 310027, China |
|
|
|

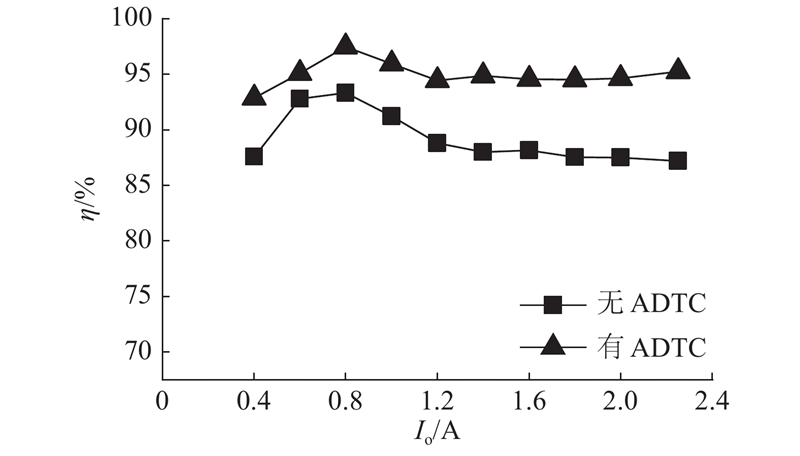

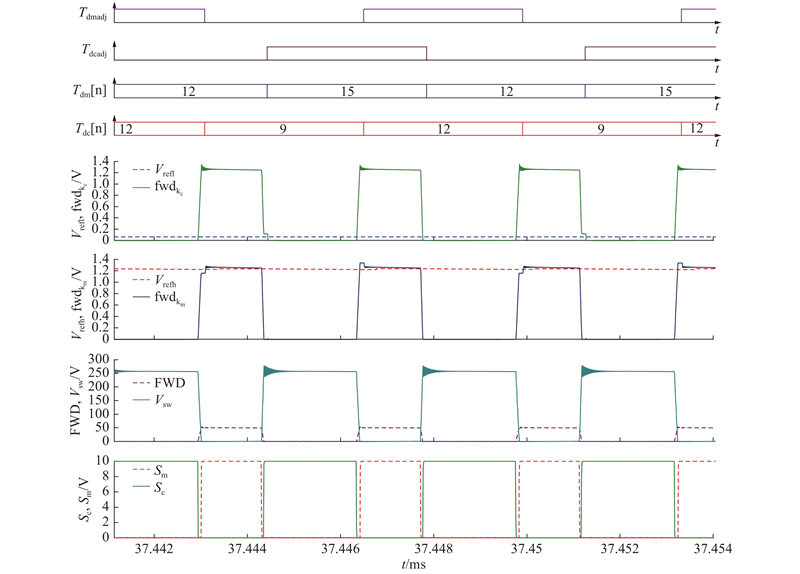

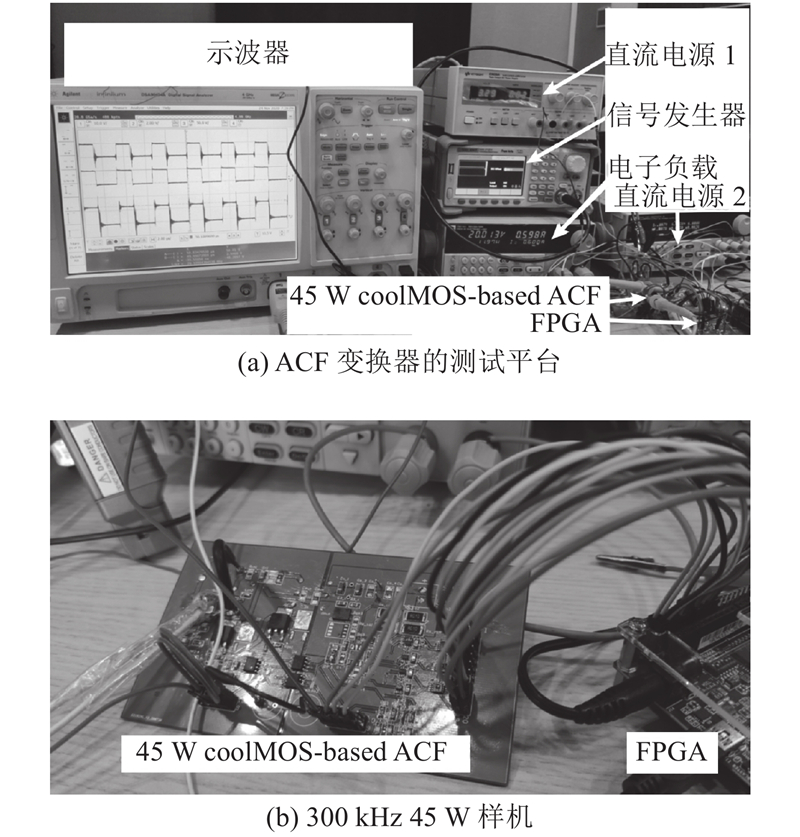

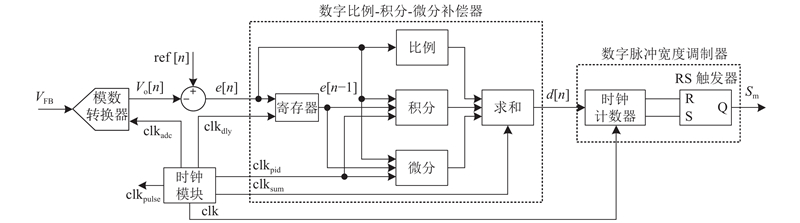

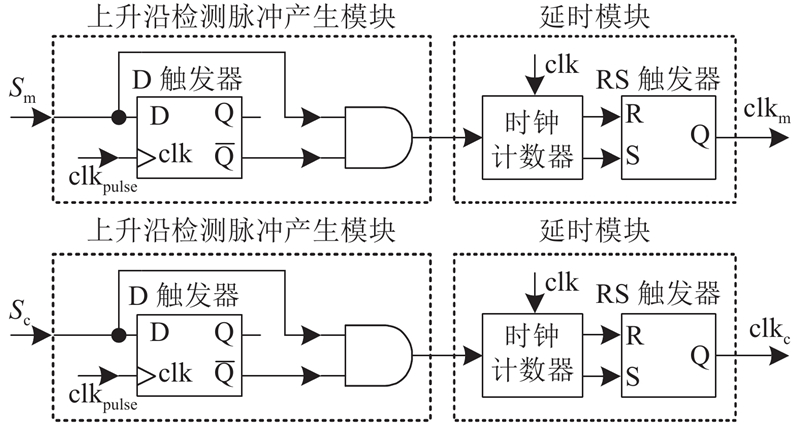

Abstract The design technique of the digitally controlled active clamp flyback (ACF) converter based on adaptive dead time control (ADTC) was proposed in order to improve conversion efficiency of the converter. The zero voltage switching (ZVS) information for two primary switches was detected by the secondary-side sampling, then the dead time was controlled adaptively, and the ZVS for switches was achieved. The withstand voltage requirements of sampling device were reduced by the secondary-side sampling. The system design was verified on a 45 W (20 V/2.25 A) prototype of a CoolMOS-based ACF converter, and a field-programmable gate array (FPGA) was used to achieve digital control. Measured results showed that the converter could operate normally at 300 kHz, the dead time was controlled adaptively under 155 V DC voltage input and different loads conditions, and the ZVS for primary switches was achieved. The highest and the lowest efficiency of the system were 97.48% and 92.86 % respectively.
|
|
Received: 04 March 2021
Published: 31 December 2021
|
|
|
|
Corresponding Authors:
Le-nian HE
E-mail: liukf@zju.edu.cn;helenian@vlsi.zju.edu.cn
|
自适应死区时间控制的数字控制ACF变换器
为了提高有源箝位反激(ACF)变换器的转换效率，提出基于自适应死区时间控制(ADTC)的数字控制ACF变换器设计技术. 通过副边采样检测2个原边功率管的零电压开关(ZVS)信息，实现对死区时间的自适应控制和功率管的ZVS，副边采样使采样器件的耐压要求降低. 基于CoolMOS功率管，开发ACF变换器的45 W (20 V/2.25 A)样机验证系统设计，用现场可编程门阵列(FPGA)实现数字控制. 测试结果表明，变换器在300 kHz开关频率下正常工作，在155 V直流电压输入和不同负载条件下自适应控制死区时间，实现原边功率管的ZVS，系统最高和最低效率分别为97.48%和92.86%.
关键词：
有源箝位反激(ACF),
数字控制,
死区时间控制,
转换效率,
零电压开关(ZVS),
副边采样
|
|
| [1] |
HUANG X C. High frequency GaN characterization and design considerations [D]. Blacksburg: Virginia Polytechnic Institute and State University, 2016: 87-132.
|
|
|
| [2] |
黄秀成. 非互补有源箝位反激变流器的研究 [D]. 杭州: 浙江大学, 2011: 3-22.
HUANG Xiu-cheng. Research on assymmetrical active-clamp flyback converter [D]. Hangzhou: Zhejiang University, 2011: 3-22.
|
|
|
| [3] |
XUE L X, ZHANG J. Active clamp flyback using GaN power IC for power adapter applications [C]// 2017 IEEE Applied Power Electronics Conference and Exposition. Tampa: IEEE, 2017: 2441-2448.
|
|
|
| [4] |
XUE L X, ZHANG J. Design considerations of highly-efficient active clamp flyback converter using GaN power ICs [C]// 2018 IEEE Applied Power Electronics Conference and Exposition. San Antonio: IEEE, 2018: 777-782.
|
|
|
| [5] |
TANG S P, XI J X, HE L N. A GaN-based MHz active clamp flyback converter with adaptive dual edge dead time modulation for AC-DC adapters [C]// IECON 2017−43rd Annual Conference of the IEEE Industrial Electronics Society. Beijing: IEEE, 2017: 546-553.
|
|
|
| [6] |
GU D L, XI J X, HE L N Digitally controlled GaN-based MHz active clamp flyback converter with dynamic dead time optimisation for AC –DC adapter[J]. IET Power Electronics, 2020, 13 (16): 3777- 3786
doi: 10.1049/iet-pel.2020.0464
|
|
|
| [7] |
ONSEMI. NCP1568: AC-DC active clamp flyback PWM IC [EB/OL]. [2021-03-20]. https://www.onsemi.cn/pdf/datasheet/ncp1568-d.pdf.
|
|
|
| [8] |
邱建平. 基于模拟与数字控制技术的电源管理芯片关键技术研究 [D]. 杭州: 浙江大学, 2013: 23-24.
QIU Jian-ping. Research on the key techniques of power management IC with analog and digital control [D]. Hangzhou: Zhejiang University, 2013: 23-24.
|
|
|
| [9] |
刘侃. 高性能AC-DC转换器芯片的关键技术研究 [D]. 杭州: 浙江大学, 2017: 29-30.
LIU Kan. Research on the key techniques of high performance AC-DC converter IC [D]. Hangzhou: Zhejiang University, 2017: 29-30.
|
|
|
| [10] |
冷亚辉. 高集成度高效率交流−直流(AC-DC)变换器输出控制的关键技术研究 [D]. 杭州: 浙江大学, 2018: 4-12.
LENG Ya-hui. Research on the output controlling key techniques of high integration and efficiency AC-DC converter [D]. Hangzhou: Zhejiang University, 2018: 4-12.
|
|
|
| [11] |
马梦娇. 基于原副边集成控制及软开关技术的AC-DC转换器设计 [D]. 杭州: 浙江大学, 2020: 19-25.
MA Meng-jiao. A design of AC-DC converter based on the primary and secondary side integrated control and soft switching technology [D]. Hangzhou: Zhejiang University, 2020: 19-25.
|
|
|
| [12] |
虞楠楠. 高精度原边控制恒流/恒压AC-DC控制芯片设计 [D]. 杭州: 浙江大学, 2020: 6-17.
YU Nan-nan. A primary side controlled AC-DC controller with constant current or constant voltage output and high precision [D]. Hangzhou: Zhejiang University, 2020: 6-17.
|
|
|
| [13] |
曹建宇. 基于原副边集成的反激式AC-DC转换器数字电源管理芯片设计 [D]. 杭州: 浙江大学, 2020: 2-13.
CAO Jian-yu. A design of flyback AC-DC converter digital power management chip based on primary and secondary side integration [D]. Hangzhou: Zhejiang University, 2020: 2-13.
|
|
|
| [14] |
GU D L, XI J X, HE L N. A digital PWM controller of MHz active clamp flyback with GaN devices for AC-DC adapter [C]// IECON 2019 - 45th Annual Conference of the IEEE Industrial Electronics Society. Lisbon: IEEE, 2019: 1496-1501.
|
|
|
| [15] |
XU S, ZHANG X M, WANG C, et al High precision constant voltage digital control scheme for primary-side controlled flyback converter[J]. IET Power Electronics, 2016, 9 (13): 2522- 2533
doi: 10.1049/iet-pel.2015.0771
|
|
|
| [16] |
LABELLA T, YORK B, HUTCHENS C, et al. Dead time optimization through loss analysis of an active-clamp flyback converter utilizing GaN devices [C]// 2012 IEEE Energy Conversion Congress and Exposition. Raleigh: IEEE, 2012: 3882-3889.
|
|
|
| [17] |
XU S, CHENG S L, WANG C, et al Digital regulation scheme for multimode primary-side controlled flyback converter[J]. IET Power Electronics, 2016, 9 (4): 782- 788
doi: 10.1049/iet-pel.2015.0025
|
|
|
| [18] |
XU S, KOU X P, WANG C, et al. New digital control method for improving dynamic response of synchronous rectified flyback converter with CCM and DCM mode [C]// 2018 IEEE Applied Power Electronics Conference and Exposition. San Antonio: IEEE, 2018: 338-343.
|
|
|
| [19] |
PATELLA B J, PRODIC A, ZIRGER A, et al High-frequency digital PWM controller IC for DC-DC converters[J]. IEEE Transactions on Power Electronics, 2003, 18 (1): 438- 446
doi: 10.1109/TPEL.2002.807121
|
|
|
|
