Remanufacturing parallel disassembly sequence planning method driven by multiple failures

doi:10.3785/j.issn.1008-973X.2020.11.019

Journal of ZheJiang University (Engineering Science)

2020, Vol. 54

Issue (11): 2233-2246 DOI: 10.3785/j.issn.1008-973X.2020.11.019

Remanufacturing parallel disassembly sequence planning method driven by multiple failures

Lei GUO1(

),Xiu-fen ZHANG1,2,3,*(

)

1. College of Mechanical Engineering, Inner Mongolia University of Technology, Hohhot 010051, China
2. State Key Laboratory of Fluid Power Transmission and Control, Zhejiang University, Hangzhou 310027, China
3. Canny Elevator Co. Ltd, Suzhou 215213, China

Download:

HTML

PDF(1743KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

A remanufacturing parallel disassembly sequence planning (RPDSP) method driven by multiple failures was proposed in order to overcome the influence of connection failure and component non-disassembly caused by failures on the disassembly sequence. A hierarchical multiple failures transfer chain model was constructed through analyzing the non-detachability and failure characteristics of the parts to describe the relationship among the failure type, failure degree, scrap level, recycling decision, and disassembly mode of parts. Furthermore, the model was formally described in mathematically language and mapped into a polychromatic graph model of multiple failures information transfer chain based on the polychromatic sets theory, which is convenient for computer programming and manipulating. On this basis, the disassembly mode of parts can be identified by polychromatic reasoning. The information of part failure was integrated into the disassembly information model, and then a destructible disassembly information model was established, and the disassemblability formula was derived. A multi-layer chromosome coding method including disassembled node layer and destruction constraint layer was proposed to represent the partial destructive information of the product. An initial population acquisition method considering the part recycling decision was designed to eliminate unreasonable sequences. The RPDSP was realized by chromosome evolution rules such as selection, crossover and mutation operator. Finally, a case study of washing machine was used to demonstrate the feasibility and effectiveness of the proposed method.

Key words： polychromatic sets remanufacturing parallel disassembly sequence planning disassembly mode multiple failures

Received: 09 November 2019 Published: 15 December 2020

CLC:

TH 122

Corresponding Authors: Xiu-fen ZHANG E-mail: 1499326118@qq.com;xxff6188@163.com

	Service
	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Lei GUO
	Xiu-fen ZHANG

Cite this article:

Lei GUO,Xiu-fen ZHANG. Remanufacturing parallel disassembly sequence planning method driven by multiple failures. Journal of ZheJiang University (Engineering Science), 2020, 54(11): 2233-2246.

URL:

http://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2020.11.019 OR http://www.zjujournals.com/eng/Y2020/V54/I11/2233

多重故障驱动的再制造并行拆卸序列规划方法

为了克服由故障导致的连接失效、不可拆卸对拆卸序列的影响，提出多重故障驱动的再制造并行拆卸序列规划（RPDSP）方法. 通过分析零件的不可拆卸性以及故障特征，构建层次式多重故障传递链模型，描述产品零部间的故障类型、故障程度、报废程度、回收决策、拆卸模式等信息. 为了方便计算机编程，应用多色集合理论对模型进行数学描述，映射为多重故障信息传递多色模型，通过多色推理识别出零部件的拆卸模式. 将零件故障信息融入拆卸模型，建立可破坏性拆卸信息模型，并推导出可拆卸性条件. 为了表示零件可破坏信息，提出包含拆卸节点层和破坏约束层的多层染色体编码方法. 设计考虑零部件回收决策的初始种群获取方法以剔除不合理序列，通过选择、交叉、变异等进化机制实现多重故障驱动的可破坏再制造并行拆卸序列寻优. 以波轮式洗衣机为案例验证所提方法的可行性和有效性.

关键词： 多色集合, 再制造, 并行拆卸序列规划, 拆卸模式, 多重故障

Fig.1 Schematic diagram of friction drive device

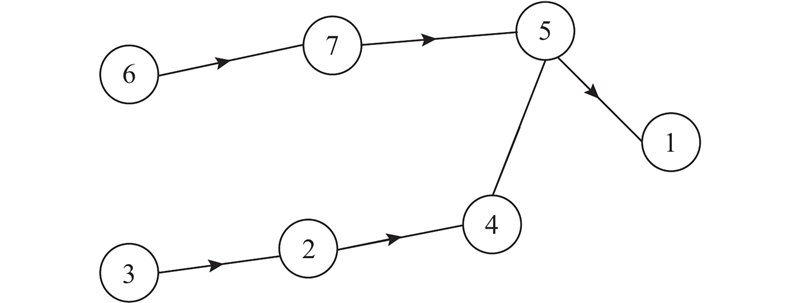

Fig.2 Disassembly hybrid graph model of friction drive device

Tab.1 Part failure and recycling decision information

Fig.3 Transfer chain of hierarchical multiple failures

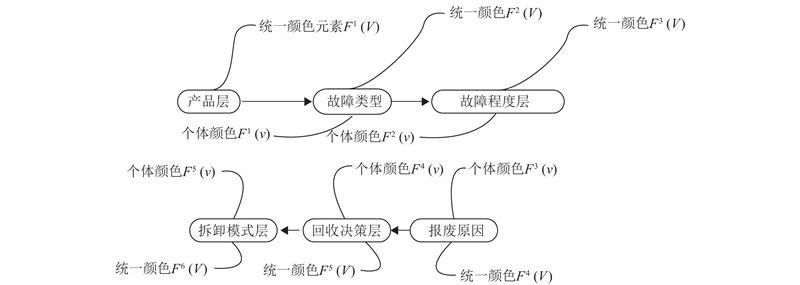

Fig.4 Hierarchical multiple failover chain mapping mechanism

Tab.2 Friction device recycling decision and disassembly mode

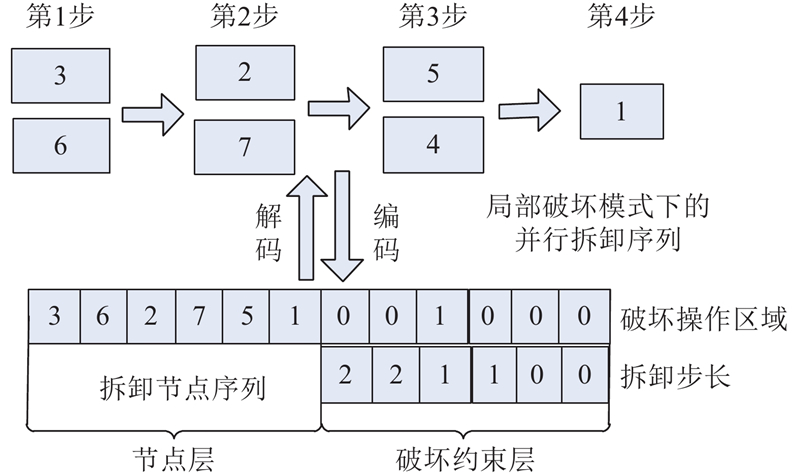

Fig.5 Mapping process of process of partial destructive disassembly steps and chromosome code

Fig.6 Initial population acquisition incorporating component recycling decision

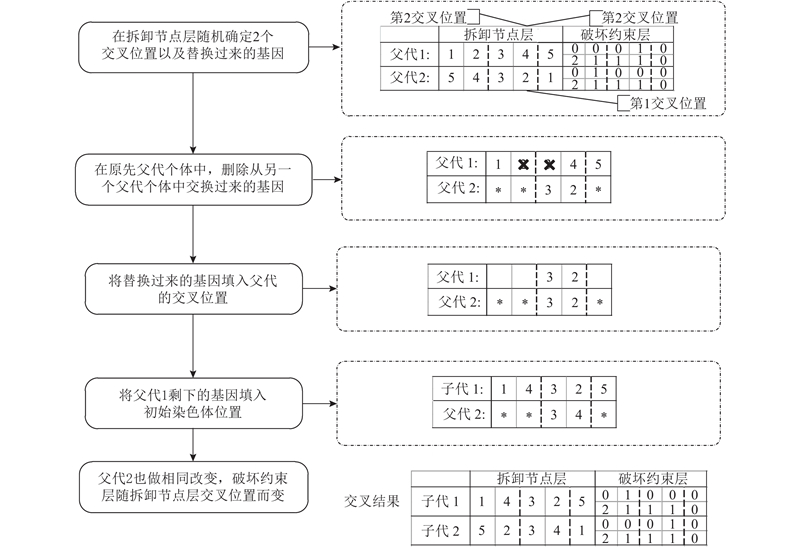

Fig.7 Examples of chromosome crossing process

Tab.3 Original parts disassembly information sheet

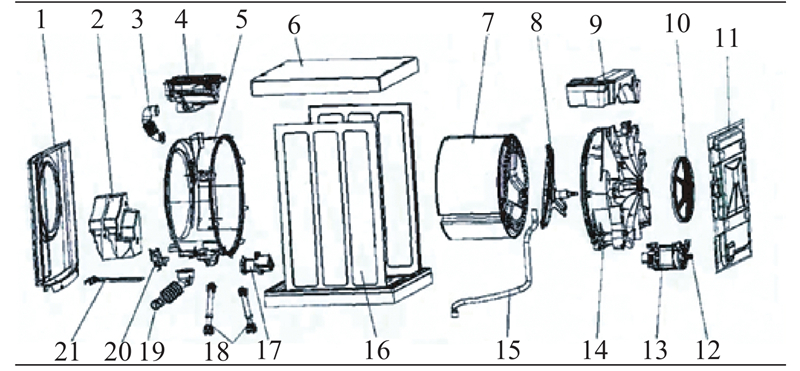

Fig.8 Explosion diagram of wave wheel washing machine

Tab.4 Recycling decision data of washing machine

Tab.5 Disassembly sequence planning results of different types of wave washing machines

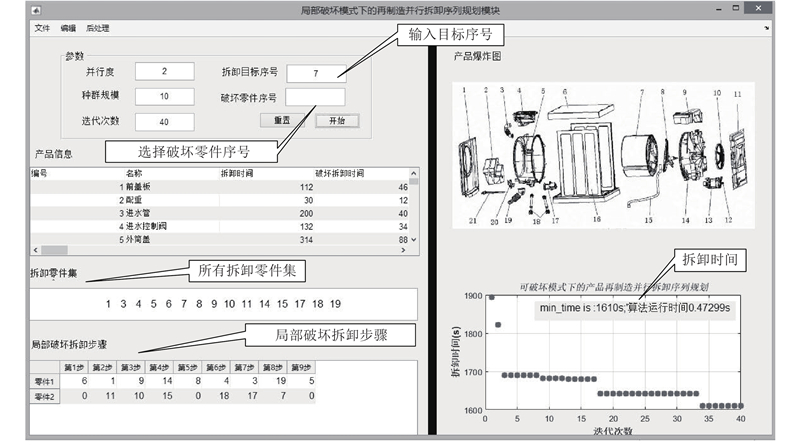

Fig.9 RPDSP for product under partial destructive mode

Fig.10 Partial destruction disassembly sequence planning time

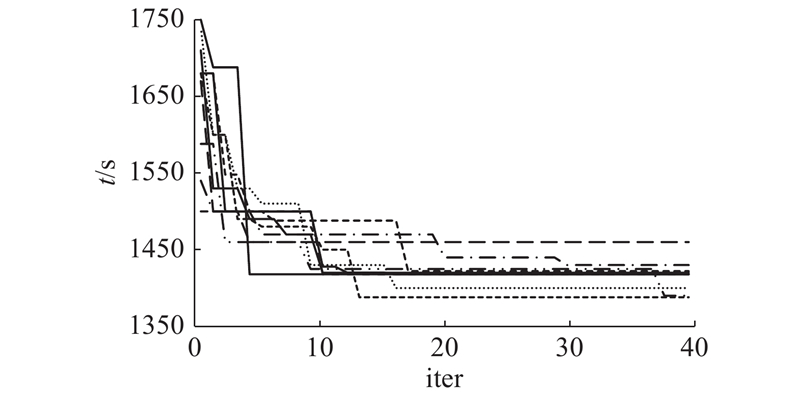

Fig.11 Change rule of total disassembly time with iteration number under RPDSP

Fig.12 Relationship between partial destruction disassembly parallelism and disassembly time

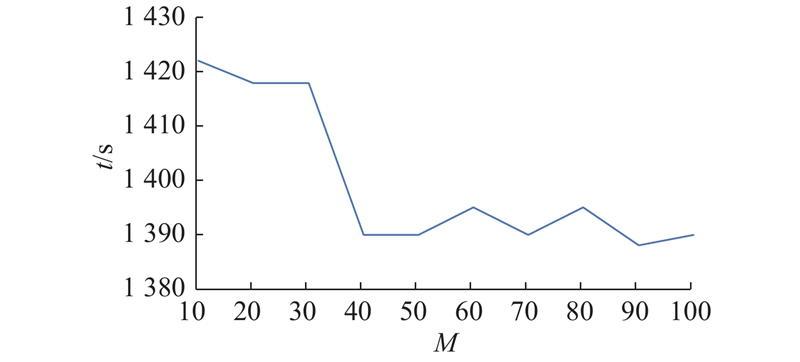

Fig.13 Relationship between population size and results of disassembly sequence planning

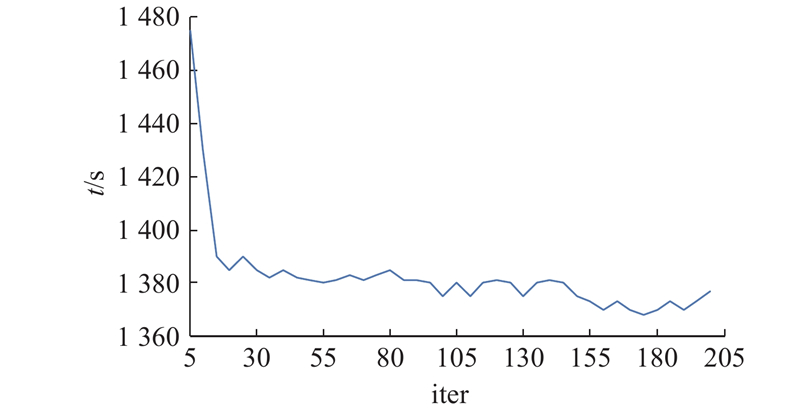

Fig.14 Relationship between number of iterations and results of disassembly sequence planning
