Journal of ZheJiang University (Engineering Science)  2020, Vol. 54 Issue (8): 1516-1524    DOI: 10.3785/j.issn.1008-973X.2020.08.009

Lightweight image semantic segmentation based on multi-level feature cascaded network
Deng-wen ZHOU(),Jin-yue TIAN,Lu-yao MA,Xiu-xiu SUN
School of Control and Computer Engineering, North China Electric Power University, Beijing 102206, China
Download: HTML     PDF(1013KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

Semantic segmentation algorithms usually have complex network structure and huge computation. A lightweight image semantic segmentation algorithm based on multi-level feature cascaded network was proposed to improve the infer speed and accuracy of semantic segmentation. The number of parameters, running speed and performance of the proposed network were considered comprehensively, which can be better applied to embedded devices and mobile devices. The fine-turned deep convolutional neural classification network was used for feature extraction, which can extract both the semantic and location characteristics of different depth layers in the network. An atrous residual feature refine module and a deep atrous spatial pyramid pooling module were used to fuse the deep and shallow features, respectively. And then, the features from deep and shallow layers were fused in parallel with a specific proportion. The mean intersection over union of the proposed approach on the PASCAL VOC 2012 dataset was 77.13%. The proposed method has a better balance between the real-time performance and segmentation accuracy, and has good performance and practical value compared with the current state of the art semantic segmentation and real-time semantic segmentation algorithms.

Key words： deep learning      full convolutional neural network      semantic segmentation      feature fusion      atrous convolution
Received: 08 July 2019      Published: 28 August 2020
CLC:  TP 391
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Deng-wen ZHOU
Jin-yue TIAN
Lu-yao MA
Xiu-xiu SUN
Cite this article:

Deng-wen ZHOU,Jin-yue TIAN,Lu-yao MA,Xiu-xiu SUN. Lightweight image semantic segmentation based on multi-level feature cascaded network. Journal of ZheJiang University (Engineering Science), 2020, 54(8): 1516-1524.

URL:

http://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2020.08.009     OR     http://www.zjujournals.com/eng/Y2020/V54/I8/1516


基于多级特征并联的轻量级图像语义分割

针对当前语义分割算法普遍具有网络结构复杂和计算开销巨大的问题，为了综合提高语义分割算法实时性和精确度，提出计算高效的基于多级特征并联网络（LSSN）的轻量级图像语义分割网络. 该算法综合考虑网络的参数量、运行速度和性能，能更好地应用到嵌入式设备和可移动设备上. 应用微调的深度卷积神经分类网络作为特征提取网络结构，提取网络不同深浅层语义和位置特征. 提出空洞残差增强模块和深度空洞空间金字塔模块分别处理来自特征提取基准网络的深层特征和浅层特征，并将深浅层特征按特定维度比例以并联的方式进行融合. 所提方法在PASCAL VOC 2012数据集上准确度（平均交并比）为77.13%，与当前具有高性能的语义分割算法和实时语义分割算法相比，能更好地平衡网络的实时性和精确度，具有更优的实用价值和性能效果.


关键词： 深度学习,  全卷积神经网络,  语义分割,  特征融合,  空洞卷积
Fig.1 Vision comparison of valid receptive field of standard and atrous convolution

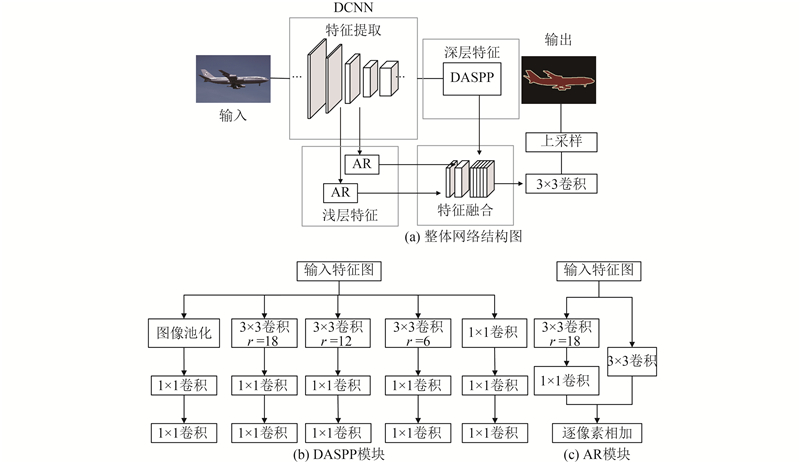

Fig.2 Network structure of proposed method
输入 操作 T C N S
$ {513}^{2}\times 3 $ Conv2d ? 32 1 2
$ {257}^{2}\times 32 $ bottleneck 1 16 1 2
$ {129}^{2}\times 16 $ bottleneck 6 24 2 2
$ {65}^{2}\times 24 $ bottleneck 6 32 3 2
$ {33}^{2}\times 32 $ bottleneck 6 64 4 1
$ {33}^{2}\times 64 $ bottleneck 6 96 3 1
$ {33}^{2}\times 96 $ bottleneck 6 160 3 1
$ {33}^{2}\times 160 $ bottleneck 6 320 1 1
Tab.1 Baseli nenetwork structure
方法 基准网络 T0 / ms mIoU / %
ENet[19] ENet 261 58.3
SQ[20] SqueezeNet[21] 781 59.8
ShuffleNetV2[22] ShuffleNetv2 45 67.7
ICNet[23] PSPNet50[5] 176 70.2
本研究算法 mobileNetv2 18 70.6
Tab.2 Performance and speed comparison with different baseline networks on Cityscapes validation set

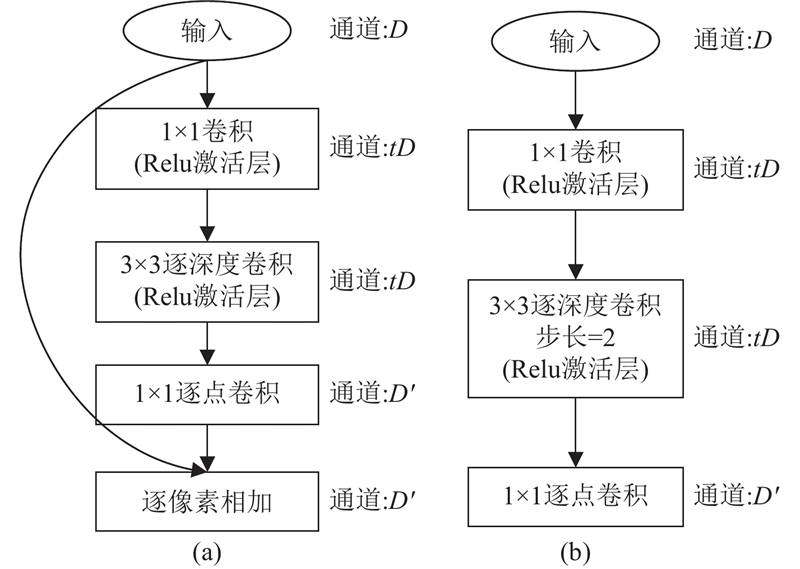

Fig.3 Bottleneck structure in network
模型 mIoU / % Nf / (帧·s?1)
A 75.45 12.20
A+AR 76.06 11.76
A+DASPP 76.20 11.90
A+AR+DASPP 77.13 11.49
Tab.3 Performance comparison of proposed model and model A on PASCAL VOC 2012 validation set
AR r mIoU / %
√ 24 76.26
√ 18 77.13
√ 12 76.79
√ 6 76.45
× ? 76.20
Tab.4 Performance comparison of different AR settings on PASCAL VOC 2012 validation set
模型 P / 106 mIoU / %
DASPP（conv $ \times $3） 6.72 77.03
DASPP（conv $ \times $2） 6.52 77.13
DASPP（conv $ \times $1） 6.32 76.69
ASPP 6.13 76.49
Tab.5 Performance comparison of different DASPP settings on PASCAL VOC 2012 validation set
特征融合 mIoU / %
$ {{D}} $ 75.80
$ {{L}}8\cup {{D}} $ 75.85
$ {{L}}12\cup {{D}} $ 75.93
$ {{L}}15\cup {{D}} $ 76.34
Tab.6 Performance comparison of adding different shallow layers on PASCAL VOC 2012 validation set
特征融合 mIoU / %
D 75.80
$ \left({{L}}12\cup \;{{L}}15\right)+{{D}} $ 76.55
$ {{L}}12\cup \;{{L}}15\cup {{D}} $(1∶1∶1) 76.70
$ {{L}}12\cup \;{{L}}15\cup {{D}} $ 77.13
Tab.7 Performance comparison of different layers cascade ways on PASCAL VOC 2012 validation set
方法 P / 106 mIoU / %
FCN-8s[1] 134.50 67.20
DeepLab[3] 44.04 71.60
DeepLabv3+[2] 44.61 87.80
本研究算法 6.52 77.13
Tab.8 Comparison of proposed model and other high-performance semantic segmentation methods on PASCAL VOC 2012 test set
方法 T0 / ms Nf / (帧·s?1) mIoU / %
SegNet[24] 60 16.70 57.0
CRF-RCNN[25] 700 1.43 62.5
DeepLab[3] 400 2.50 63.1
FCN-8s[1] 500 2.00 65.3
Dilation[12] 4000 0.25 67.1
DeepLabv3+[2] 350 2.86 82.1
本研究算法 18 55.60 70.6
Tab.9 Comparison of network performance of proposed model and other high-performance semantic segmentation methods on Cityscapes test set
方法 T0 / ms Nf / (帧·s?1) mIoU / %
ENet[19] 13 76.9 58.3
ERFNet[26] 89 11.2 69.7
本研究算法 18 55.6 70.6
Tab.10 Comparison of proposed model and other real-time semantic segmentation methods on Cityscapes test set
Fig.4 Visual result comparison of proposed methods with others on Cityscapes test set

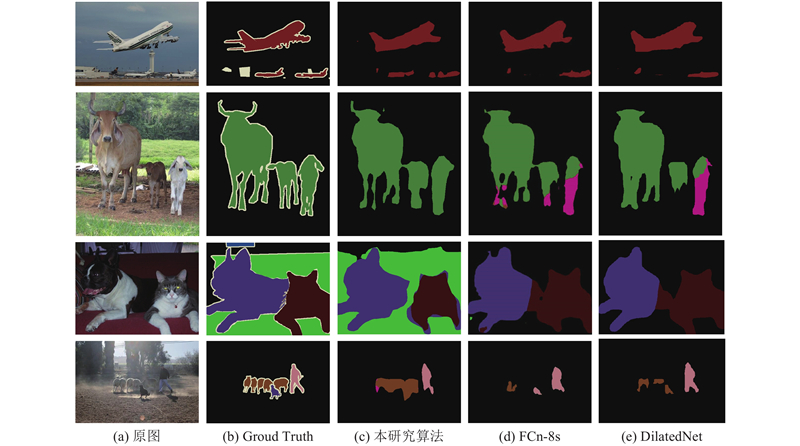

Fig.5 Visual result comparison of proposed methods with others on PASCAL VOC 2012 test set
