Journal of ZheJiang University (Engineering Science)  2020, Vol. 54 Issue (4): 759-766    DOI: 10.3785/j.issn.1008-973X.2020.04.015
Civil Engineering, Traffic Engineering
Experimental study of dynamic elastic modulus and damping ratio of expansive soil in Hefei
Xin-shan ZHUANG(),Han-wen ZHAO,Jun-xiang WANG,Yong-jie HUANG
School of Civil Engineering, Architecture and Environment, Hubei University of Technology, Wuhan 430068, China
Download: HTML     PDF(1414KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

A series of dynamic triaxial tests were conducted by GDS to analyze the influence of different confining pressures, consolidation ratios on the dynamic modulus and damping ratio of the soil by taking expansive soil in Hefei as the research object. The test results show that the stress-strain backbone curve can be described by hyperbolic function. The dynamic modulus of elasticity increases with the increase of confining pressure and consolidation stress ratio, and decreases sharply at first then tends to be flat with the increase of dynamic strain under the same conditions. The reciprocal of elastic modulus has a linear relationship with dynamic strain. The maximum modulus increases linearly with the increase of confining pressure. A regression model of maximum dynamic modulus and elasticity regression considering confining pressure was developed. Damping ratio decreases with the increase of confining pressure and consolidation stress ratio. An attenuation model of dynamic modulus ratio and a damping ratio model were established based on the Darendeli’s model and empirical relation between damping ratio and strain. The relationship between damping ratio and dynamic modulus ratio under different confining pressure and consolidation stress ratio after normalization processing can be described by the modified formula of Hardin-Drnevich.

Key words： expansive soil      dynamic triaxial test      consolidation stress ratio      dynamic elastic modulus      damping ratio
Received: 22 March 2019      Published: 05 April 2020
CLC:  TU 441
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Xin-shan ZHUANG
Han-wen ZHAO
Jun-xiang WANG
Yong-jie HUANG
Cite this article:

Xin-shan ZHUANG,Han-wen ZHAO,Jun-xiang WANG,Yong-jie HUANG. Experimental study of dynamic elastic modulus and damping ratio of expansive soil in Hefei. Journal of ZheJiang University (Engineering Science), 2020, 54(4): 759-766.

URL:

http://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2020.04.015     OR     http://www.zjujournals.com/eng/Y2020/V54/I4/759


合肥膨胀土动弹性模量与阻尼比试验研究

以合肥膨胀土为研究对象，利用GDS真动三轴仪对土体进行循环动荷载试验，研究不同围压、固结应力比对土体动弹性模量及阻尼比的影响规律.试验结果表明，合肥膨胀土的骨干曲线可以由双曲线描述；在相同条件下，动弹性模量随着围压、固结应力比的增大而增大，随着动应变的增大先急剧减小后趋于平缓；动弹性模量的倒数与动应变呈良好的线性关系，最大动弹性模量随着围压的增大呈线性增大，给出考虑围压影响的最大动弹性模量回归方程；阻尼比随着围压、固结应力比的增大而减小，采用 Darendeli 模型及依据阻尼比与应变的经验关系，得到动模量比衰减模型及阻尼比模型；不同围压、固结应力比下阻尼比与动模量比的关系归一化后可以由修正Hardin-Drnevich公式描述.


关键词： 膨胀土,  动三轴试验,  固结应力比,  动弹性模量,  阻尼比

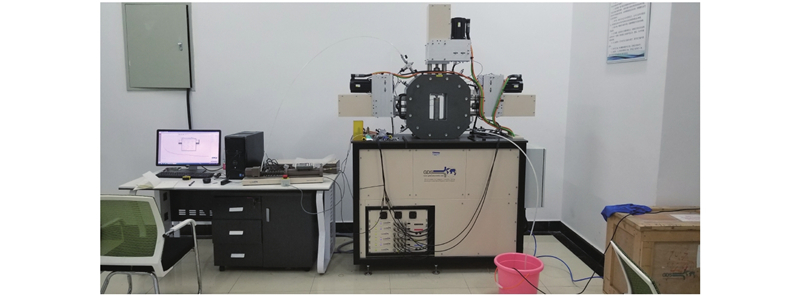

Fig.1 GDS dynamic triaxial test device and electronic console
ρ/
(g·cm?3) 		W/% Wl /% Wp /% Gs Fs/%
1.9 21.64 72 30 2.68 44
Tab.1 Basic physico-mechanical parameters of Hefei expansive soil
组类 σ3/kPa kc σd/kPa
1 100 1.0，1.25，1.50 10～120
2 150 1.0，1.25，1.50 15～180
3 200 1.0，1.25，1.50 20～240
Tab.2 Dynamic test scheme of expansive soil

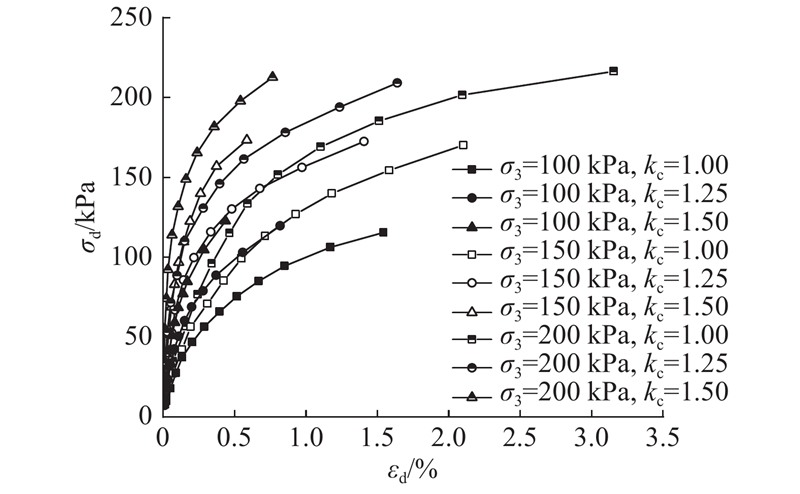

Fig.2 Relation curves of dynamic stress-strain of expansive soil

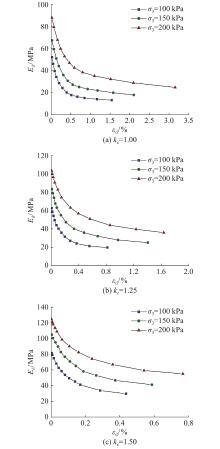

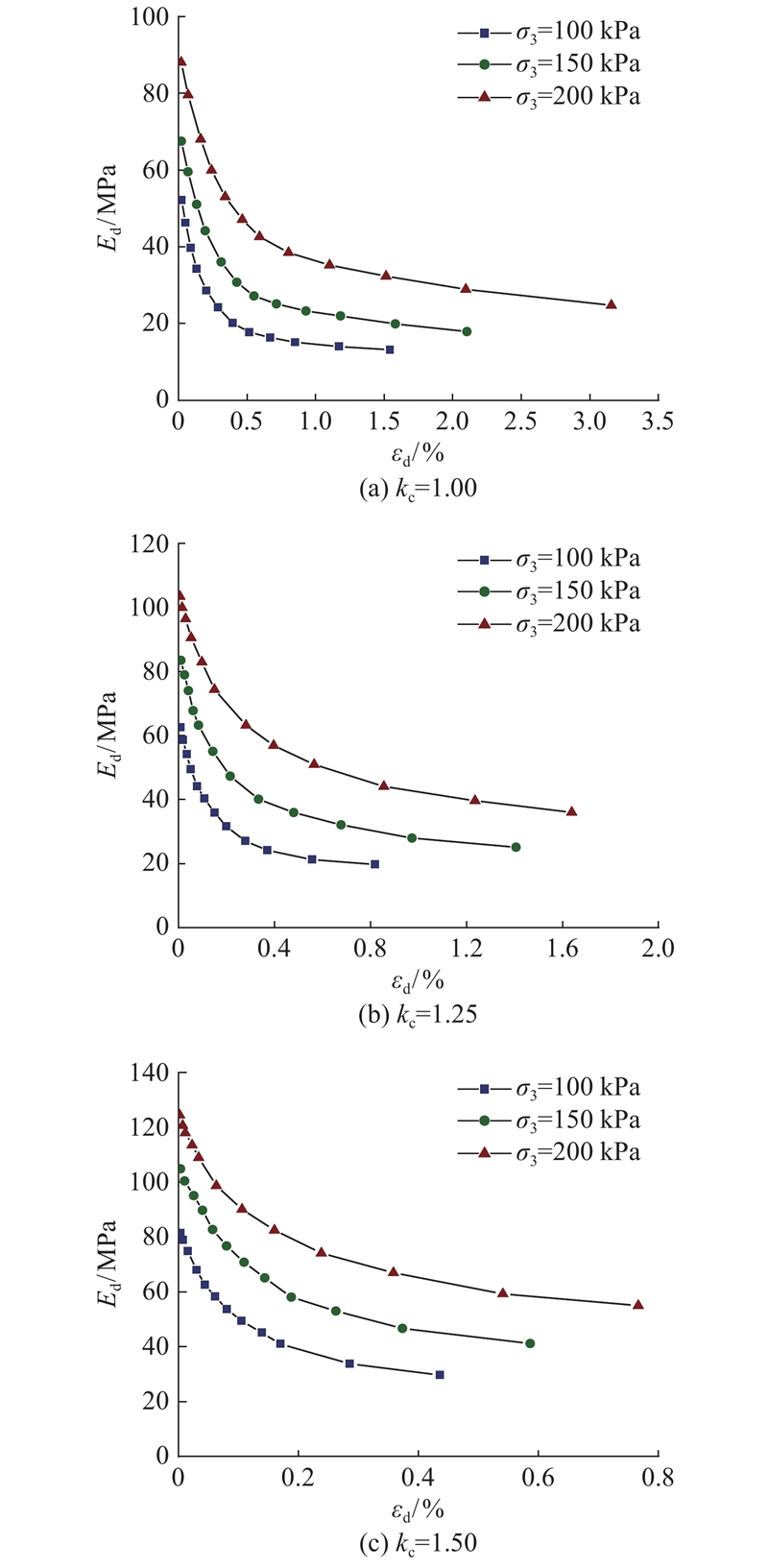

Fig.3 Dynamic elastic modulus-strain curves of expansive soil under different confining pressures

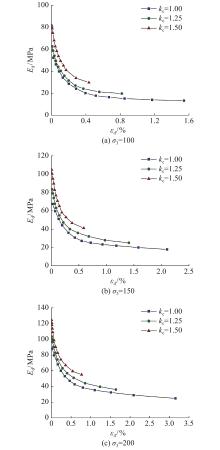

Fig.4 Dynamic elastic modulus-strain curves of expansive soil under different consolidation stress ratios

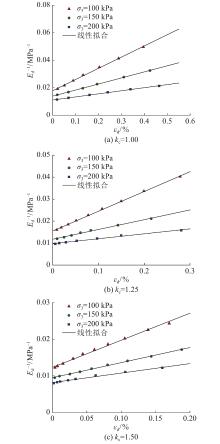

Fig.5 Relationships between reciprocal of dynamic elastic modulus with dynamic strains for expansive soil
Fig.6 Relationships of Ed0 - σ3 for expansive soil under different consolidation stress ratios
Fig.7 Relationships of Ed0 - kc for expansive soil under different confining pressures

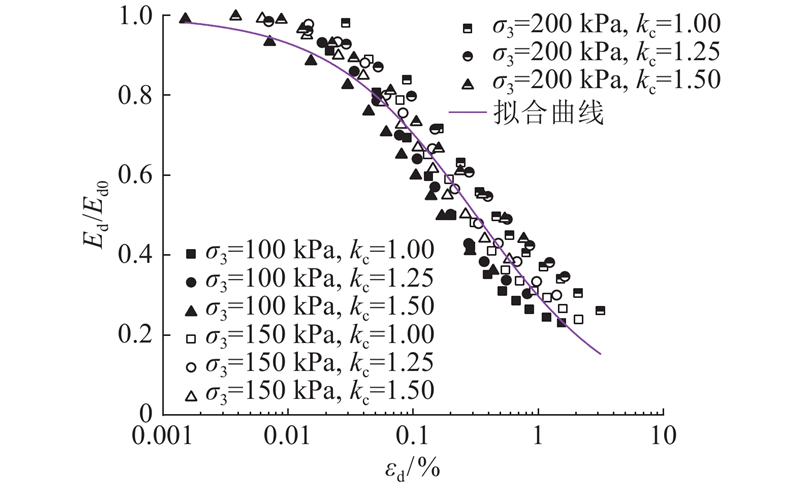

Fig.8 Relationships of elastic modulus ratio with dynamic strains for expansive soil

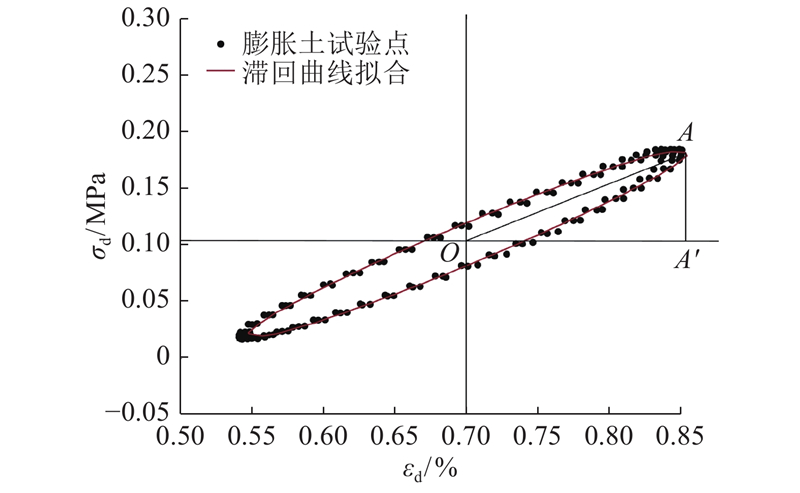

Fig.9 Stress-strain hysteresis curve of expansive soil
kc σ3/kPa n m R2
1.00 100 0.242 1 1.667 9 0.994 9
1.00 150 0.318 8 1.636 1 0.996 0
1.00 200 0.407 0 1.475 8 0.996 7
1.25 100 0.208 0 1.954 1 0.992 1
1.25 150 0.263 6 1.763 4 0.995 6
1.25 200 0.294 9 1.832 2 0.997 9
1.50 100 0.160 9 2.766 5 0.990 1
1.50 150 0.192 9 2.472 5 0.989 8
1.50 200 0.232 9 2.461 0 0.992 9
Tab.3 Fitting parameters of damping ratio for expansive soil

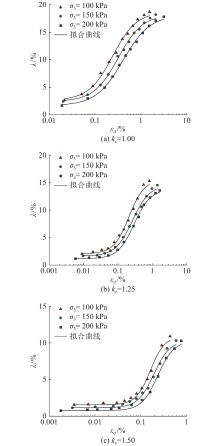

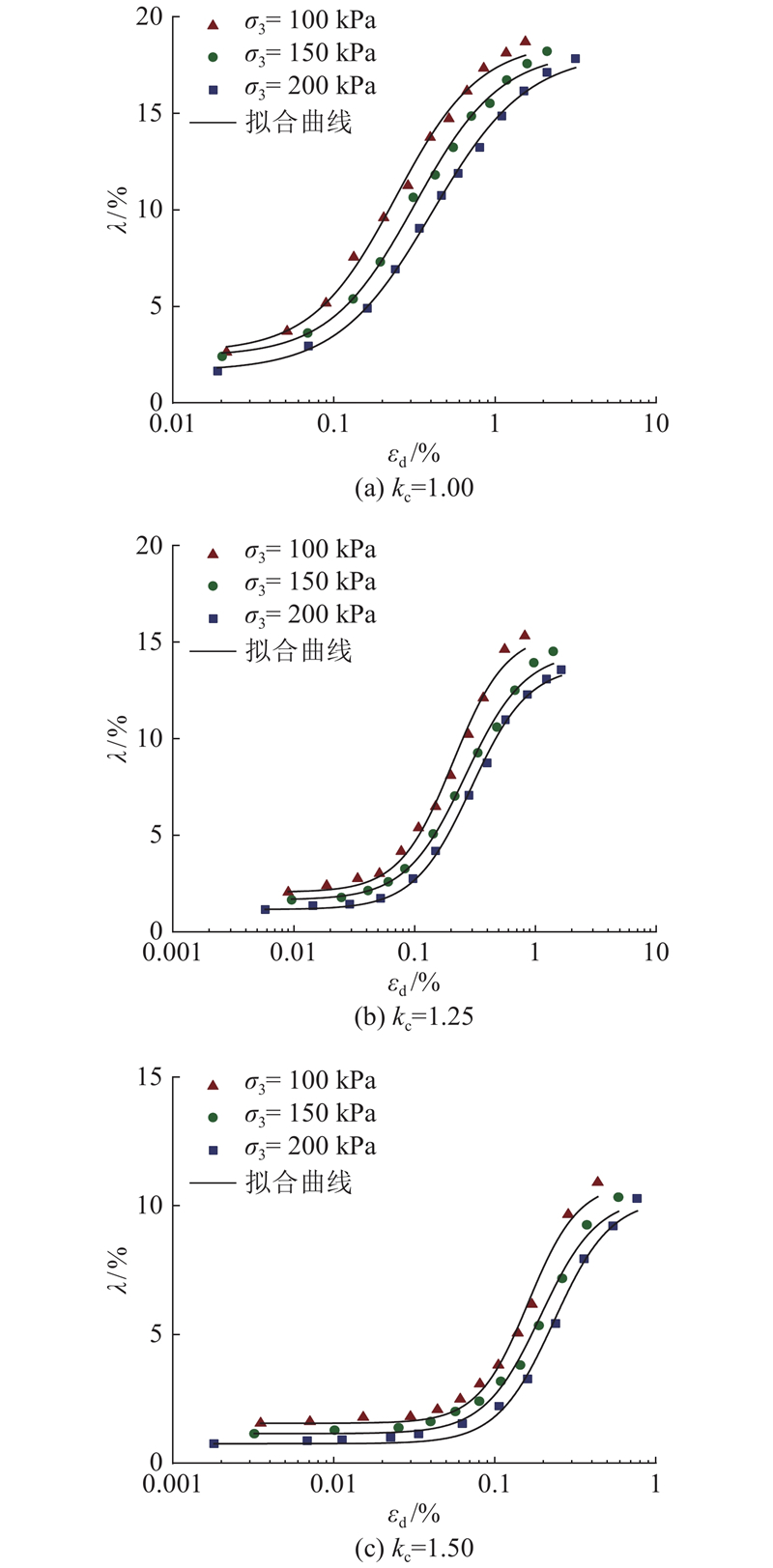

Fig.10 Relationships of damping ratio with dynamic strain for expansive soil under different confining pressures

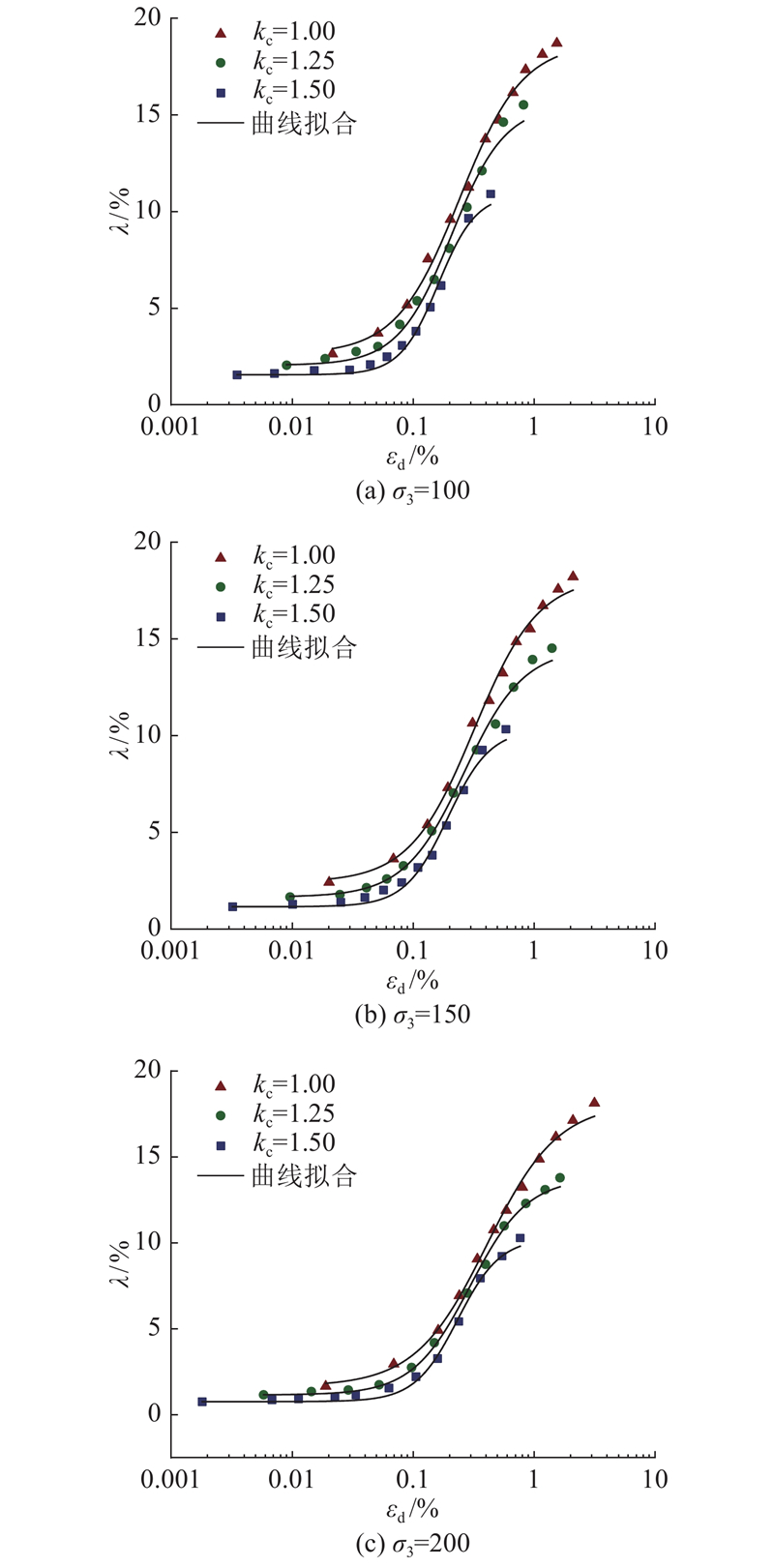

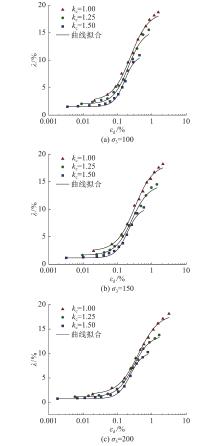

Fig.11 Relationships of damping ratio with dynamic strain under different consolidation stress ratios

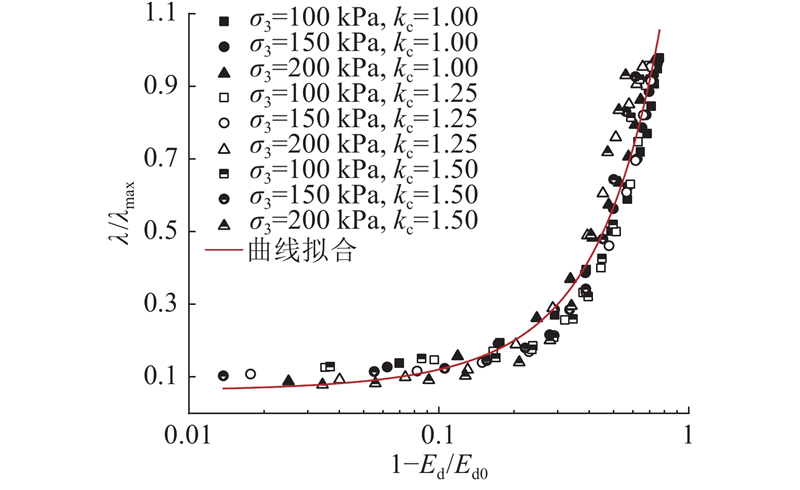

Fig.12 Relationships between $\lambda $ / $\lambda _{\rm{max}}$ and 1−Ed/Ed0 of expansive soil
