Model of compressive strength of cured organic soil solidified by magnesium cement complex curing agent
Jian-feng ZHU1,2(),Qiu-shui TUO1,3,Wen-ni DENG4,Chun-yi RAO1,Hao-xu LIU1
1. Faculty of Architectural, Civil Engineering and Environment, Ningbo University, Ningbo 315211, China
2. School of Civil Engineering and Architecture, Zhejiang University of Science and Technology, Hangzhou 310023,China
3. Bridge Branch Zhejiang Provincial Transportation Engineering Construction Group Co. Ltd, Hangzhou 310051, China
4. School of Civil Engineering, Southeast University, Nanjing 211189, China
Download: HTML     PDF(1143KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

In order to provide evaluation basis for the solidification effect of cured organic soil solidified by the magnesium cement complex curing agent in practical engineering, the unconfined compressive strength of the magnesium-cement cured soil (TZ18 cured soil) was taken as the evaluation index, and the influences of the mass fraction of organic matter, water and curing agent and the age on the unconfined compressive strength were investigated. Results showed that the unconfined compressive strength of the TZ18 cured soil decreased in quadratic function with the increase of organic matter mass fraction and reduced in power function with the increase of water mass fraction, whereas increased in power function with the increase of cured agent mass fraction and enhanced in natural logarithm function with the growth of age. Based on the above tested results, a forecast model of the comprehensive compressive strength of TZ18 cured organic soil was developed. Example analysis indicated that the proposed model can predict the unconfined compressive strength of TZ18 cured soil at any mass fraction of organic matter, water and curing agent as well as age.

Key words： magnesium cement curing agent      organic matter      mass fraction of water      age      unconfined compressive strength      forecast model
Received: 16 September 2018      Published: 21 November 2019
CLC:  TU 411
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Jian-feng ZHU
Qiu-shui TUO
Wen-ni DENG
Chun-yi RAO
Hao-xu LIU
Cite this article:

Jian-feng ZHU,Qiu-shui TUO,Wen-ni DENG,Chun-yi RAO,Hao-xu LIU. Model of compressive strength of cured organic soil solidified by magnesium cement complex curing agent. Journal of ZheJiang University (Engineering Science), 2019, 53(11): 2168-2174.

URL:

http://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2019.11.015     OR     http://www.zjujournals.com/eng/Y2019/V53/I11/2168


镁质水泥复合固化剂固化有机质土的抗压强度模型

为了给实际工程中镁质水泥复合固化剂对有机质土的加固效果提供评价依据，以镁质水泥固化土（TZ18固化土）的无侧限抗压强度作为评价指标，分别研究有机质、水、固化剂的质量分数以及龄期对无侧限抗压强度的影响规律. 结果表明：TZ18固化土的无侧限抗压强度随有机质质量分数的增加呈二次函数形式降低，随水和固化剂质量分数的增加分别呈幂函数形式降低和提高，随龄期的增加呈自然对数形式增长. 基于此规律，建立TZ18固化土的抗压强度预测模型. 算例分析表明，该模型能较好地预测任意有机质、水、固化剂的质量分数以及龄期下的TZ18固化土的无侧限抗压强度.


关键词： 镁质水泥固化剂,  有机质,  水的质量分数,  龄期,  无侧限抗压强度,  预测模型

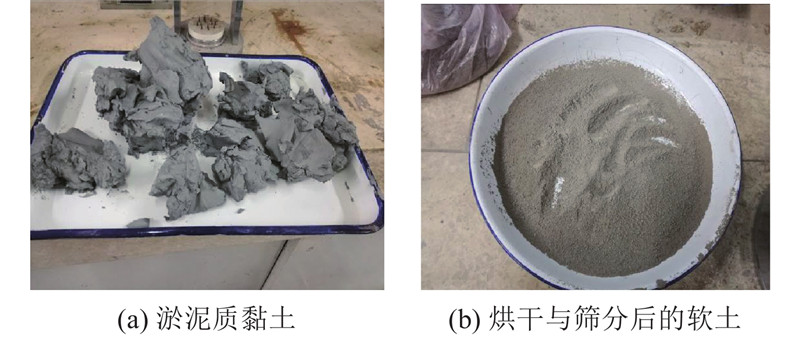

Fig.1 Physical map of soil for laboratory test
土样名称 wW/% γ/（kN·m–3） e wp/% wL/% Es1-2/MPa φ/（°） c/kPa
淤泥质黏土 43.6 17.6 1.16 21.4 35.8 1.84 3.84 4.37
Tab.1 Physical and mechanical properties of soil sample
材料名称 分子/结构式 规格 生产厂家
1）注：AR为分析纯试剂（analytical reagent）
腐殖酸 ? 农业级 江西萍乡红土地
七水硫酸镁 MgSO4·7H2O 农业级 广州林国化肥
轻烧氧化镁 MgO 工业级 辽宁海城菱镁矿
柠檬酸 C6H8O7 AR1） 上海国药集团
水玻璃 NaSiO3 AR 天津鼎盛鑫化工
熟料 ? 工业级 发电厂
硅灰 ? 工业级 发电厂
Tab.2 Test raw materials for unconfined compressive strength

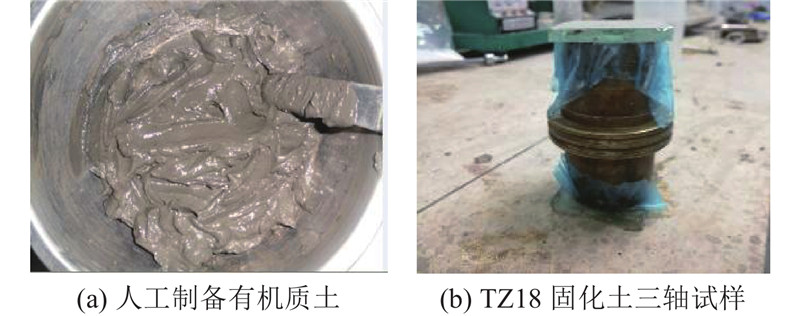

Fig.2 Preparation of artificial organic soil and TZ18 cured soil
组别 影响因素 各因素配比方案 T
M-0 基准配比 wC=15%；wO=6%；wW=60% 7 d
M-1 wC 12%、15%、18%、20% 7 d
M-2 wO 0%、3%、6%、9% 7 d
M-3 wW 50%、60%、70%、80% 7 d
M-4 T 7 d、14 d、28 d、60 d ?
Tab.3 Test program of unconfined compressive strength of TZ18 cured soil
Fig.3 Variation of unconfined compressive strength of TZ18 cured soil (7 d) along with mass fraction of humic acid

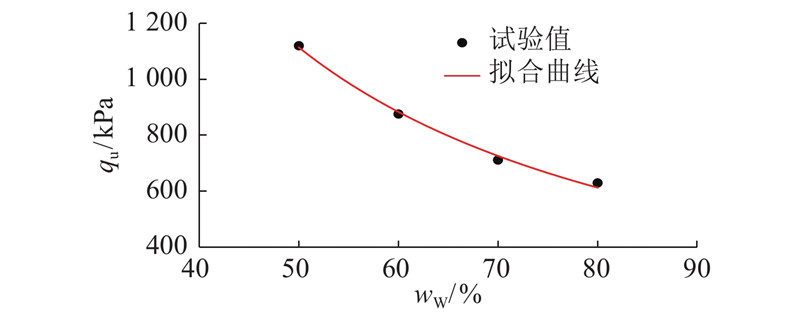

Fig.4 Variation of unconfined compressive strength of TZ18 cured soil (7 d) along with mass fraction of water

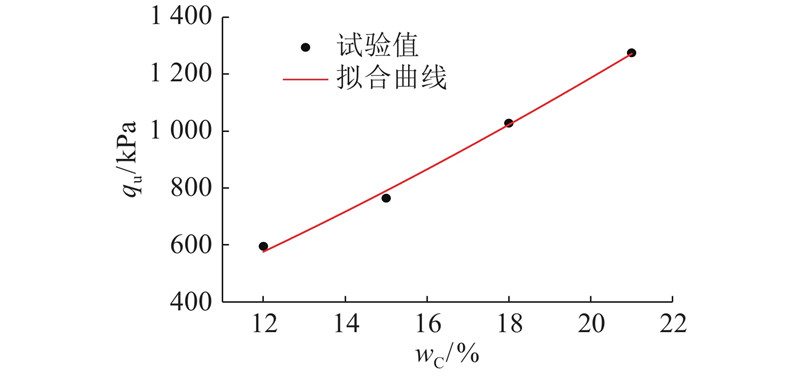

Fig.5 Variation of unconfined compressive strength of TZ18 cured soil (7 d) along with mass fraction of curing agent

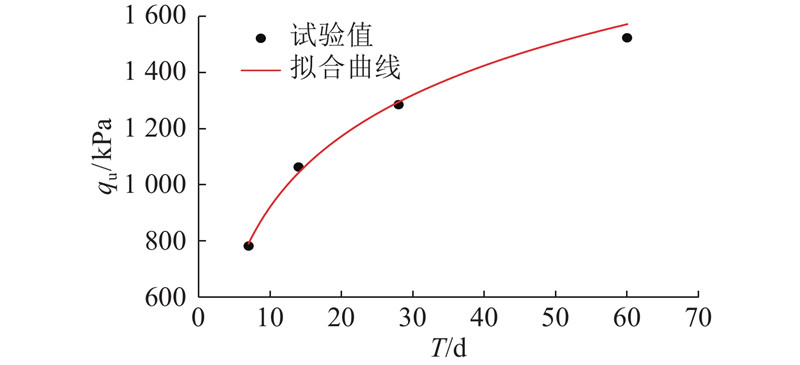

Fig.6 Variation of unconfined compressive strength of TZ18 cured soil along with age

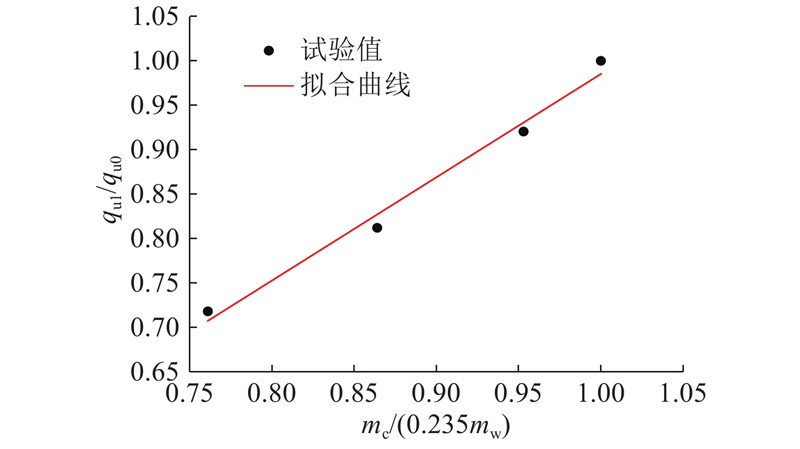

Fig.7 Relationship between normalized unconfined compressive strength of TZ18 cured soil (7 d) and total cement-water ratio

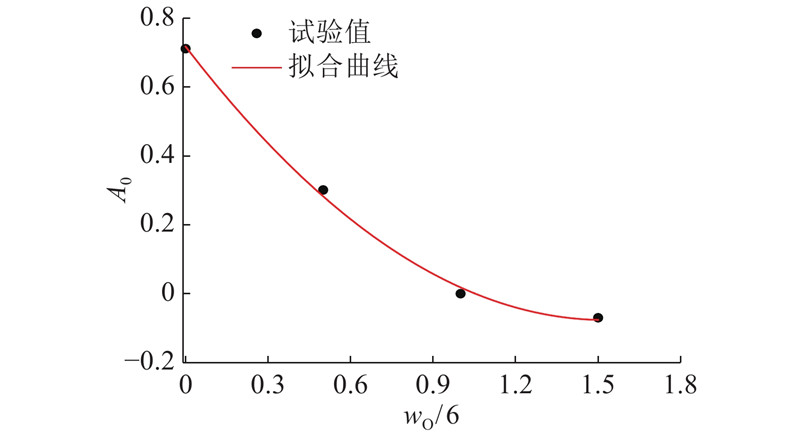

Fig.8 Relationship between normalized mass fraction of humic acid and parameter A0

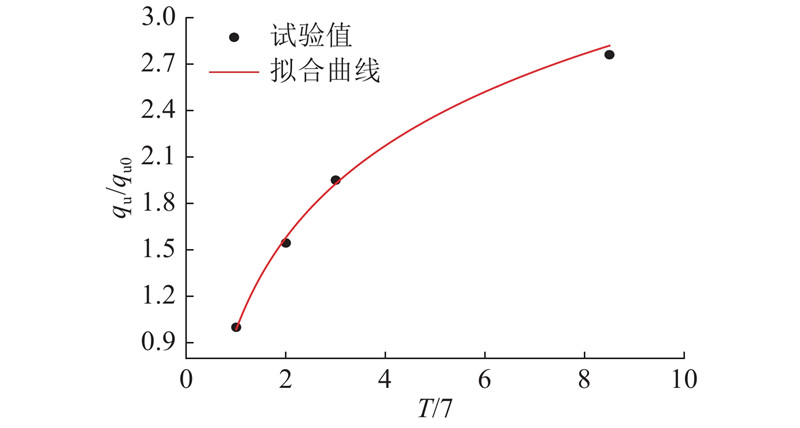

Fig.9 Relationship between normalized unconfined compressive strength of TZ18 cured soil and age
层号 土层名称 wW/% γ/（kN·m–3） e wp/% wL/% Es1-2/MPa φ/（°） c/kPa wO/%
①3 淤泥质土 68.4 17.2 1.332 27.0 45.1 2.2 10.0 14.0 6.90
③1a 淤泥质土 56.9 17.5 1.143 21.8 36.3 2.7 10.5 14.0 5.47
④1 淤泥质土 41.1 17.9 1.003 20.5 32.7 2.8 11.5 17.0 3.97
Tab.4 Engineering indicators of test soil samples
组别 试验用土所在层号 实测值/kPa 理论值/kPa 相对误差/%
E-1 ①3 706.2 736.87 4.34
E-2 ③1a 950.9 971.75 2.19
E-3 ④1 1 563.2 1 522.37 –2.60
Tab.5 Comparison between measured and theoretical unconfined compressive strength (7 d) of TZ18 cured soil
