Damage evolution of soil-rock mixture based on Fourier series approximations method

doi:10.3785/j.issn.1008-973X.2019.10.013

Journal of ZheJiang University (Engineering Science)

2019, Vol. 53

Issue (10): 1955-1965 DOI: 10.3785/j.issn.1008-973X.2019.10.013

Civil Engineering

Damage evolution of soil-rock mixture based on Fourier series approximations method

Han ZHANG(

),Xin-li HU*(

),Shuang-shuang WU

Faculty of Engineering, China University of Geosciences (Wuhan), Wuhan 430074, China

Download:

HTML

PDF(1790KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

The numerical tests of soil-rock mixture (S-RM) were performed based on the in-suit horizontal push-shear test (HPST) in order to clarify the meso-damage evolution of S-RM. The mechanical properties and the meso-damage evolution characteristics of S-RM were analyzed by using discrete element method. A quantitative evaluation method for evaluating the anisotropy of S-RM meso-cracks was proposed based on the Fourier series approximation method. The meso-damage stages of HPST of S-RM were divided based on the anisotropy evolution of meso-cracks in the process of deformation and destruction of S-RM. The formation mechanism of S-RM shear surface was analyzed by analyzing the growth and evolution of cracks in different meso-damage stages. Results showed that the anisotropy degree of meso-cracks increased with the increment of shear displacement, but it has no obvious change any more after the formation of principal crack. The dips of meso-cracks were mainly distributed in 0°-45° and 135°-180°. The generation of meso-cracks was mainly caused by the tensile stress between particles. The anisotropy degree of tensile meso-cracks was larger than that of shear meso-cracks. The connections of meso-cracks in the soil gave rise to the formation of multiple macro-cracks. The macro-cracks developed and formed a round-blocks principal crack because of the rotation of rock blocks. The S-RM slide along the principal cracked to form a round-blocks shear slide surface. The dip of slide surface was 34°, same as the dip of principal crack and the average dip of meso-cracks in the range of 0°-90°.

Key words： soil-rock mixture (S-RM) Fourier series approximations method horizontal push-shear test discrete element method meso-crack meso-damage evolution

Received: 04 July 2018 Published: 30 September 2019

CLC:

TU 413

Corresponding Authors: Xin-li HU E-mail: zhanghan@cug.edu.cn;huxinli@cug.edu.cn

	Service
	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Han ZHANG
	Xin-li HU
	Shuang-shuang WU

Cite this article:

Han ZHANG,Xin-li HU,Shuang-shuang WU. Damage evolution of soil-rock mixture based on Fourier series approximations method. Journal of ZheJiang University (Engineering Science), 2019, 53(10): 1955-1965.

URL:

http://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2019.10.013 OR http://www.zjujournals.com/eng/Y2019/V53/I10/1955

基于傅里叶近似法的S-RM细观损伤过程研究

为了明确土石混合体（S-RM）的细观损伤演化过程，基于现场水平推剪试验，采用离散元数值模拟方法，开展S-RM水平推剪数值实验研究，分析S-RM的力学特性和细观损伤演化特征. 基于傅里叶近似法，提出微裂纹各向异性定量评价方法. 根据S-RM变形破坏过程中微裂纹各向异性演化特征，划分了S-RM水平推剪细观损伤阶段，通过分析各细观损伤阶段的裂纹扩展特征及发展规律，揭示了S-RM剪切滑动面形成机理. 试验结果表明，微裂纹各向异性程度随着剪切位移的增加而增强，当主裂纹形成后不再有明显变化，微裂纹主要分布在0°~45°与135°~180°；微裂纹的产生主要由于颗粒间的拉应力导致，拉裂纹的各向异性程度明显大于剪切裂纹；土体中微裂纹的贯通导致多条宏观裂纹的形成，由于块石的翻转宏观裂纹逐渐扩展形成一条绕石宏观主裂纹，S-RM沿着主裂纹滑移形成绕石剪切滑动面；滑动面的倾角为34°，与主裂纹倾角和微裂纹在0°~90°的平均角度一致.

关键词： 土石混合体（S-RM）, 傅里叶近似法, 水平推剪试验, 离散元方法, 微裂纹, 细观损伤演化过程

Fig.1 Soil-rock mixture in field

Fig.2 In-suit horizontal push-shear test equipment

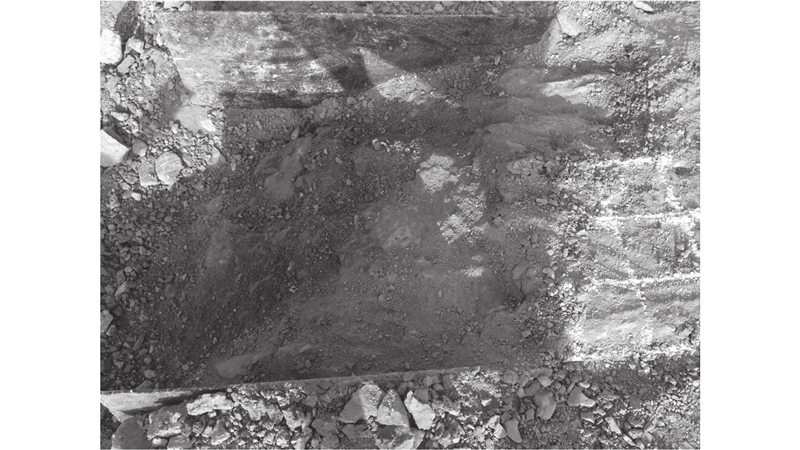

Fig.3 Shear suface of horizontal push-shear test

Tab.1 Results of horizontal push-shear test of S-RM

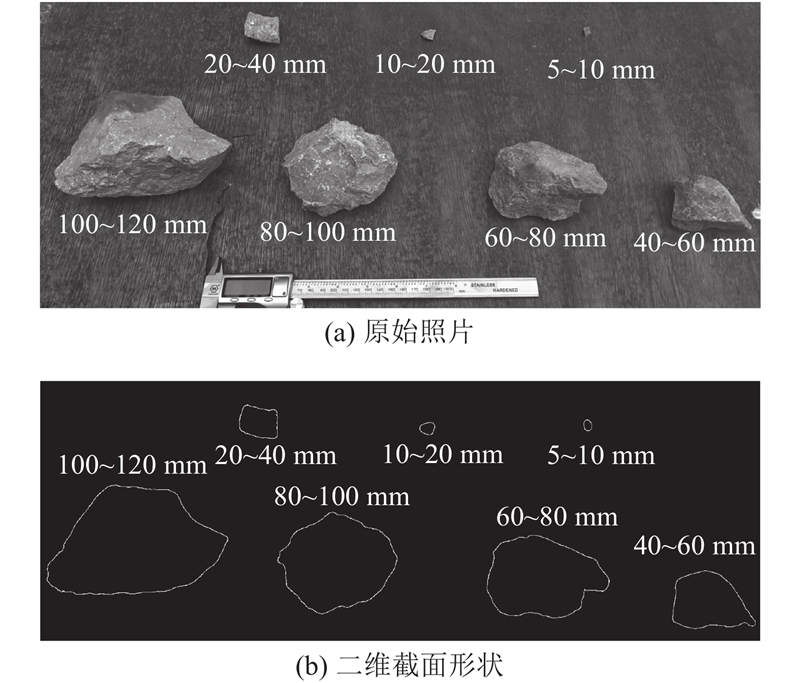

Fig.4 Typical limestone blocks with different grain sizes

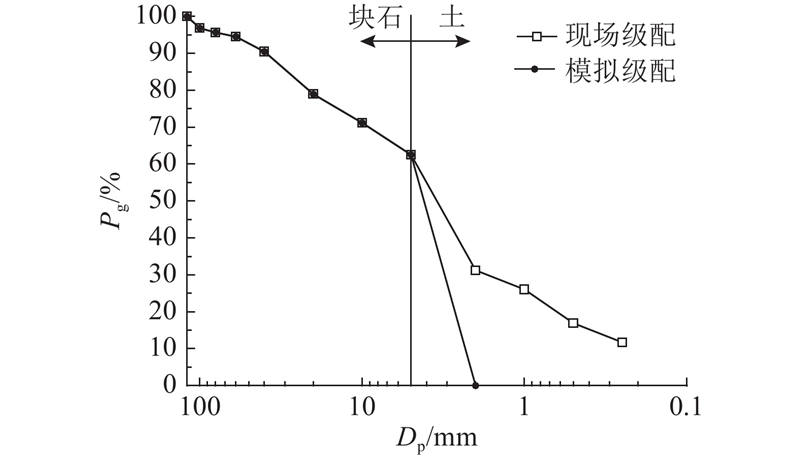

Fig.5 Cumulative grading curves of S-RM

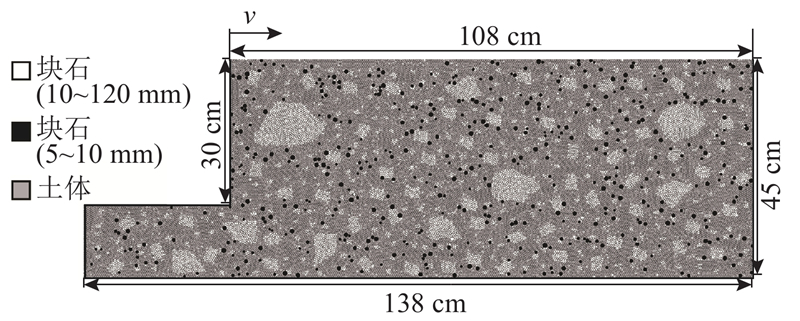

Fig.6 Simulation model of S-RM horizontal push-shear test

Tab.2 Meso-parameters of soil and rock blocks

Fig.7 Position and dip angle of meso-cracks

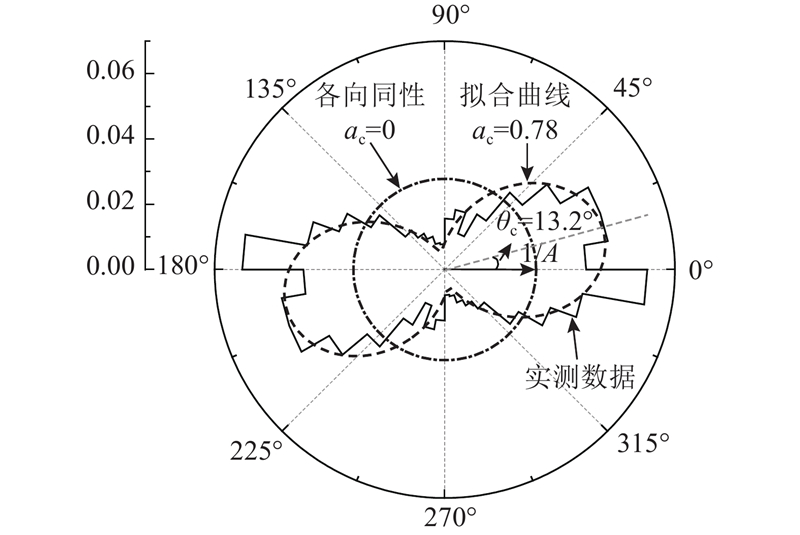

Fig.8 Distribution of meso-crack dip angle and fitted curve

Fig.9 Evolution of horizontal force

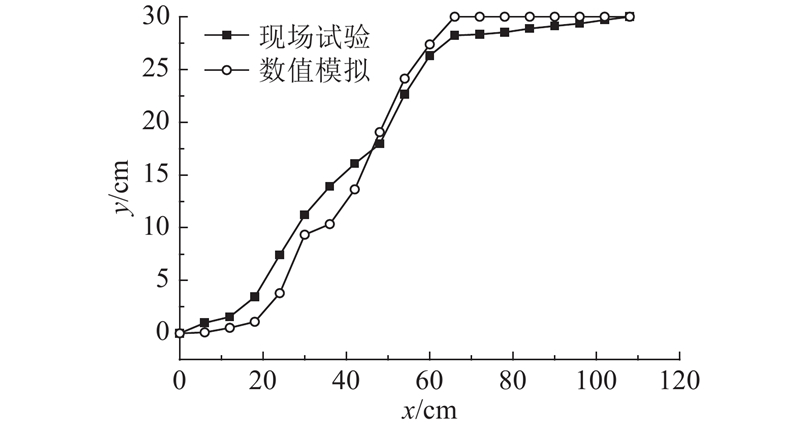

Fig.10 Slide surface of horizontal-push shear test

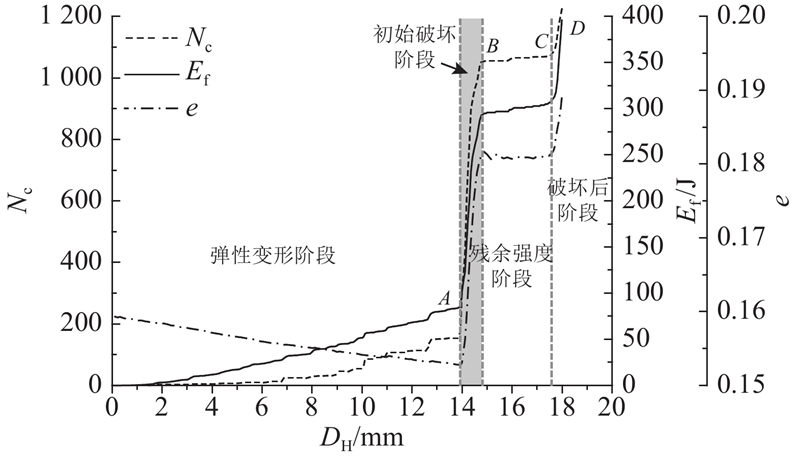

Fig.11 Evolution of meso-cracks/energy disspation/porosity

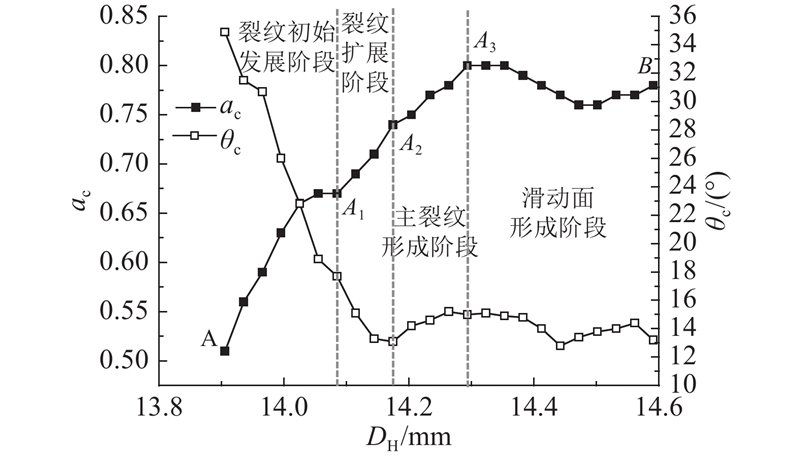

Fig.12 Evolution of meso-cracks anisotropy

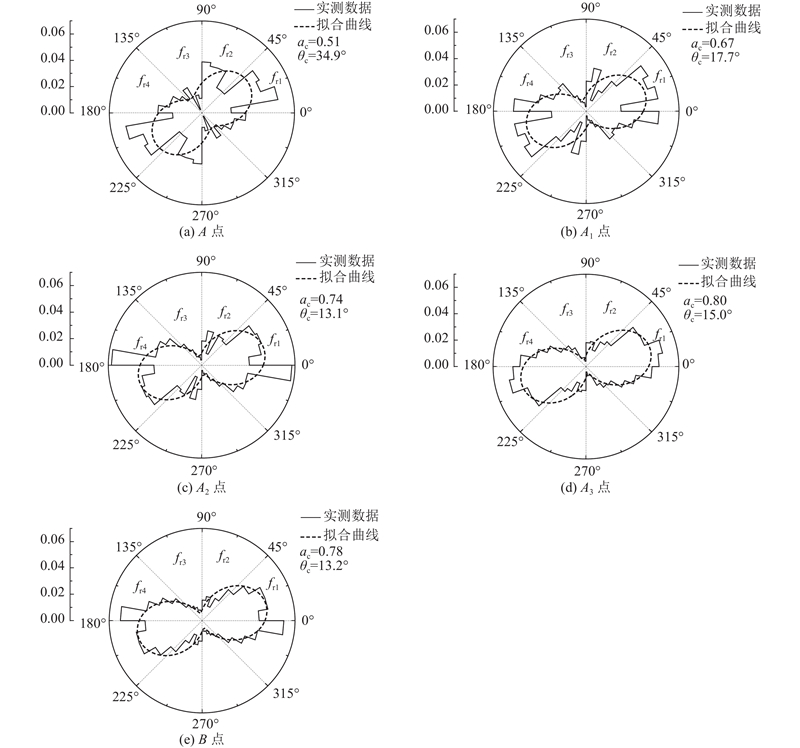

Fig.13 Anisotropy characteristics of meso-cracks in different stages

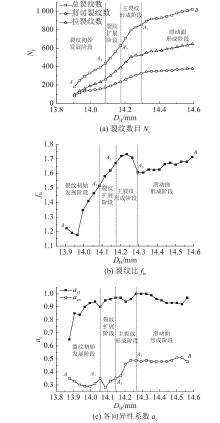

Fig.14 Evolution of tensile meso-cracks and shear meso-cracks

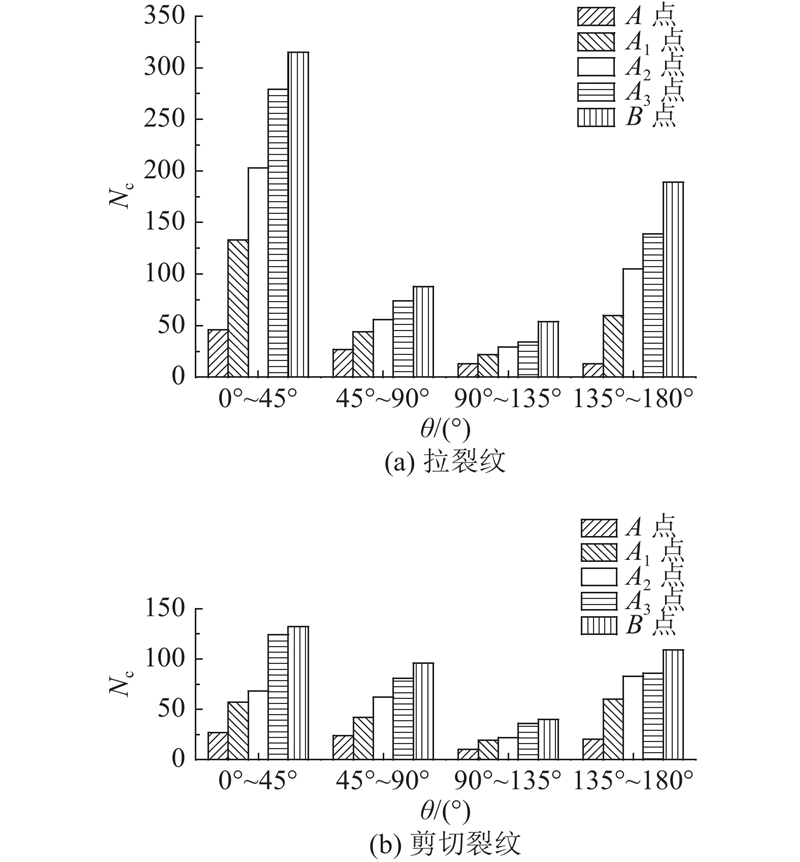

Fig.15 Evolution of meso-cracks in different dip angle ranges

Fig.16 Evolution of meso-cracks average dip angle

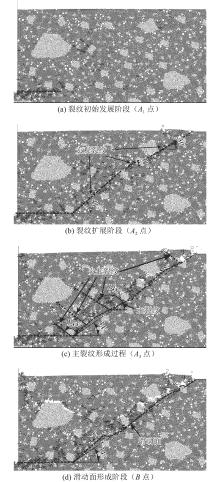

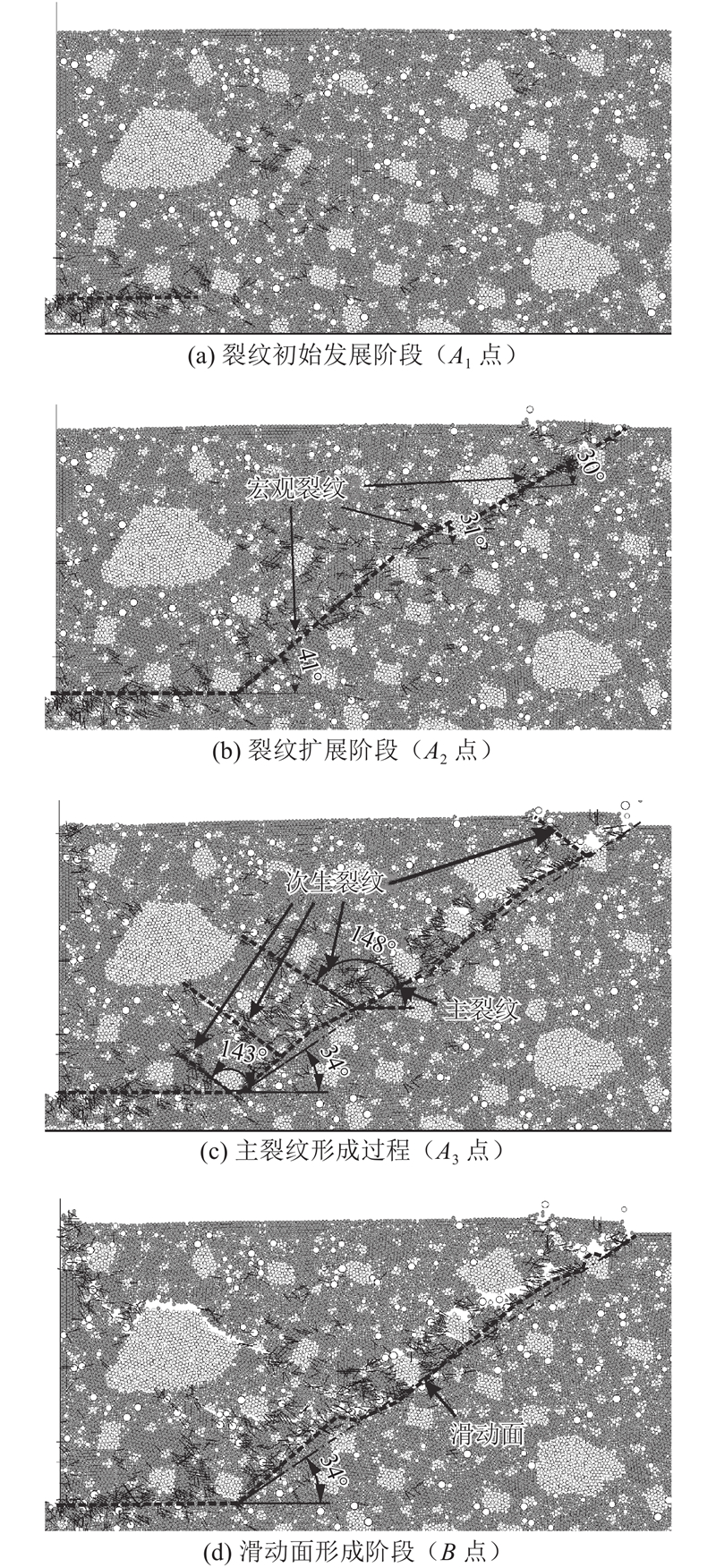

Fig.17 Development of macro-cracks


[1]	LINDQUIST E S. The strength and deformation properties of mélange [D]. Berkeley: University of California, 1994.

[2]	SONMEZ H, GOKCEOGLU C, MEDLEY E W, et al Estimating the uniaxial compressive strength of a volcanic bimrock[J]. International Journal of Rock Mechanics and Mining Sciences, 2006, (43): 554- 561

[3]	董云土石混合料强度特性的试验研究[J]. 岩土力学, 2007, 28 (6): 1269- 1274 DONG Yun Experimental study on intensity character of rock-soil aggregate mixture[J]. Rock and Soil Mechanics, 2007, 28 (6): 1269- 1274 doi: 10.3969/j.issn.1000-7598.2007.06.040

[4]	王光进, 杨春和, 张超, 等粗粒含量对散体岩土颗粒破碎及强度特性试验研究[J]. 岩土力学, 2009, 30 (12): 3649- 3654 WANG Guang-jin, YANG Chun-he, ZHANG Chao, et al Experimental research on particle breakage and strength characteristics of rock and soil materials with different coarse-grain contents[J]. Rock and Soil Mechanics, 2009, 30 (12): 3649- 3654 doi: 10.3969/j.issn.1000-7598.2009.12.015

[5]	邓华锋, 原先凡, 李建林, 等 S-RM直剪试验的破坏特征及抗剪强度取值方法研究[J]. 岩石力学与工程学报, 2013, 32 (增2): 4065- 4072 DENG Hua-feng, YUAN Xian-fan, LI Jian-lin, et al Research on failure characteristics and determination method for shear strength of earth-rock aggregate in direct shear tests[J]. Chinese Journal of Rock Mechanics and Engineering, 2013, 32 (增2): 4065- 4072

[6]	刘新荣, 涂义亮, 王林枫, 等 S-RM的剪切面分形特征及强度产生机制[J]. 岩石力学与工程学报, 2017, 36 (09): 2260- 2274 LIU Xin-rong, TU Yi-liang, WANG Lin-feng, et al Fractal characteristics of shear failure surface and mechanism of strength generation of soil-rock aggregate[J]. Chinese Journal of Rock Mechanics and Engineering, 2017, 36 (09): 2260- 2274

[7]	油新华, 汤劲松 S-RM野外水平推剪试验研究[J]. 岩石力学与工程学报, 2002, 21 (10): 1537- 1540 YOU Xin-hua, TANG Jin-song Research on horizontal push-shear in-situ test of soil and rock-mixture[J]. Chinese Journal of Rock Mechanics and Engineering, 2002, 21 (10): 1537- 1540 doi: 10.3321/j.issn:1000-6915.2002.10.021

[8]	LI X, LIAO Q L, HE J M In-situ tests and a stochastic structural model of rock andsoil aggregate in the three Gorges Reservoir area, China[J]. International Journal of Rock Mechanics and Mining Sciences, 2004, 41 (3): 702- 707

[9]	徐文杰, 胡瑞林, 谭儒蛟, 等虎跳峡龙蟠右岸S-RM野外试验研究[J]. 岩石力学与工程学报, 2006, 25 (6): 1270- 1277 XU Wen-jie, HU Rui-lin, TAN Ru-jiao, et al Study on field test of rock-soil aggregate on right bank of longpan in tiger-leaping gorge area[J]. Chinese Journal of Rock Mechanics and Engineering, 2006, 25 (6): 1270- 1277 doi: 10.3321/j.issn:1000-6915.2006.06.028

[10]	张年学, 李晓, 赫建明, 等无法向荷载推剪试验的解析与应用[J]. 岩土力学, 2010, 31 (03): 863- 869 ZHANG Nian-xue, LI Xiao, HE Jian-ming, et al Analysis of push shear test without normal loading and its application[J]. Rock and Soil Mechanics, 2010, 31 (03): 863- 869 doi: 10.3969/j.issn.1000-7598.2010.03.035

[11]	COLI N, BERRY P, BOLDINI D In situ non-conventional shear tests for the mechanical characterisation of a bimrock (BimTest)[J]. International Journal of Rock Mechanics and Mining Sciences, 2011, (48): 95- 102

[12]	张晓健, 龚辉, 艾传井, 等泥质页岩-粉质黏土土石混合填料原位水平推剪试验研究[J]. 水文地质工程地质, 2017, 44 (03): 79- 85 ZHANG Xiao-jian, GONG Hui, AI Chuan-jing, et al Research on horizontal push-shear in-situ test of pelitic shale-silty clay mixture[J]. Hydrogeology and Engineering Geology, 2017, 44 (03): 79- 85

[13]	ALESSANDRO G, CLAUDIO R, TATIANA R Characterization and DEM modeling of shear zones at a large dam foundation[J]. International Journal of Geomechanics, 2012, 12 (6): 648- 664 doi: 10.1061/(ASCE)GM.1943-5622.0000220

[14]	金磊, 曾亚武, 李欢, 等基于不规则颗粒离散元的S-RM大三轴数值模拟[J]. 岩土工程学报, 2015, 37 (05): 829- 838 JIN Lei, ZENG Ya-wu, LI Huan, et al Numerical simulation of large-scale triaxial tests on soil-rock mixture based on DEM of irregularly shaped particles[J]. Chinese Journal of Geotechnical Engineering, 2015, 37 (05): 829- 838

[15]	XU W J, HU L M, GAO W Random generation of the meso-structure of a soil-rock mixture and its application in the study of the mechanical behavior in a landslide dam[J]. International Journal of Rock Mechanics and Mining Sciences, 2016, 86: 166- 178 doi: 10.1016/j.ijrmms.2016.04.007

[16]	XU W J, WANG S, ZHANG H Y, et al Discrete element modelling of a soil-rock mixture used in an embankment dam[J]. International Journal of Rock Mechanics and Mining Sciences, 2016, 4 (86): 141- 156

[17]	徐文杰, 王识基于真实块石形态的S-RM细观力学三维数值直剪试验研究[J]. 岩石力学与工程学报, 2016, 35 (10): 2152- 2160 XU Wen-jie, WANG Shi Meso-mechanics of soil-rock mixture with real shape of rock blocks based on 3D numerical direct shear test[J]. Chinese Journal of Rock Mechanics and Engineering, 2016, 35 (10): 2152- 2160

[18]	ZHANG H Y, XU W J, YU Y Z Numerical analysis of soil-rock mixture’s meso-mechanics based on biaxial test[J]. Journal of Central South University, 2016, (23): 685- 700

[19]	何春灿, 胡新丽, 龚辉, 等基于软硬石模板库的S-RM细观损伤与力学特性分析[J]. 岩土力学, 2016, 37 (10): 2993- 3002 HE Chun-can, HU Xin-li, GONG Hui, et al Analysis of mesoscopic damage and mechanical behaviors of soil-rock mixture based on template database of soft and hard rocks[J]. Rock and Soil Mechanics, 2016, 37 (10): 2993- 3002

[20]	金磊, 曾亚武 S-RM宏细观力学特性和变形破坏机制的三维离散元精细模拟[J]. 岩石力学与工程学报, 2018, 37 (06): 1- 10 JIN Lei, ZENG Ya-wu Refined simulation for macro-and meso-mechanical properties and failure mechanism of soil-rock mixture by 3-D DEM[J]. Chinese Journal of Rock Mechanics and Engineering, 2018, 37 (06): 1- 10

[21]	林宗元. 岩土工程试验监测手册[M]. 北京: 中国建筑工业出版社, 2005.

[22]	BATHURST R J. A study of stress and anisotropy in idealized granular assemblies [D]. Canada: Queen's University at Kingston, 1985.

[23]	ROTHENBURG L, BATHURST R J Analytical study of induced anisotropy in idealized granular materials[J]. Geotechnique, 1989, 39 (4): 601- 614 doi: 10.1680/geot.1989.39.4.601
