Heat transfer coefficient of passive house exterior wall in cold area
Song-tao JIN1(),Chang LIU1,Li-ying WANG1,Yang YANG2
1. School of Architecture and Design, Changchun Institute of Technology, Changchun 130021, China
2. College of Exploration and Mapping Engineering, Changchun Institute of Technology, Changchun 130021, China
Download: HTML     PDF(3300KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

Starting from the differences of climatic conditions between China and Germany, the theories of thermal resistance, thermal bridge and mildewing temperature of exterior walls in four different environments were comprehensively introduced and analyzed by ISO and DIN International standards in order to analyze the heat transfer coefficients of passive exterior walls suitable for the climatic conditions in cold regions of China. Heat2 thermal bridge software was used to calculate the indoor corner temperature of the exterior wall of passive house when the German design standard for exterior wall of passive house was used in the climatic conditions of severe cold regions in China. The calculated wall corner temperature was compared with five mildew temperature points in different indoor relative humidity environments. Results showed that when the thermal resistance of the inner wall surface was 0.5 and 1.00 (m2·K)/W, the corner temperature was below the mildew temperature point. The heat transfer coefficients of the external walls under five different indoor relative humidity environments were deduced by using the mildew temperature point as the benchmark based on the climatic conditions in China. The heat transfer coefficients at 50% indoor relative humidity are the heat transfer coefficients of the external walls suitable for passive buildings in cold regions of China.



Key wordspassive house      internal wall surface thermal resistance      external wall heat transfer coefficient      corner surface temperature      indoor relative humidity      moldy temperature point
Received: 24 October 2018      Published: 30 September 2019
CLC:  TU 201
Cite this article:

Song-tao JIN,Chang LIU,Li-ying WANG,Yang YANG. Heat transfer coefficient of passive house exterior wall in cold area. Journal of ZheJiang University (Engineering Science), 2019, 53(10): 1966-1976.

URL:

http://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2019.10.014     OR     http://www.zjujournals.com/eng/Y2019/V53/I10/1966


严寒地区被动房外墙传热系数

为了研究适用于我国严寒地区气候条件的被动房外墙传热系数,从我国严寒地区与德国气候条件的差异性入手,通过ISO和DIN等国际标准对4种不同环境下的外墙内表面热阻、热桥和发霉温度点等方面的理论进行全面介绍并分析. 运用Heat2热桥软件,计算德国被动房外墙设计标准使用在我国严寒地区气候条件时的外墙室内墙角温度. 将计算出的墙角温度与5种不同室内相对湿度环境下的发霉温度点进行对比分析. 计算结果表明,当内墙表面热阻为0.5和1.00(m2·K)/W时,墙角温度都低于发霉温度点以下. 基于我国气候条件,以发霉温度点为基准反向推导出5种不同室内相对湿度环境下的外墙传热系数,提出室内相对湿度为50%时的传热系数为适用于我国严寒地区被动房建筑的外墙传热系数.


关键词: 被动房,  内墙表面热阻,  外墙传热系数,  墙角表面温度,  室内相对湿度,  发霉温度点

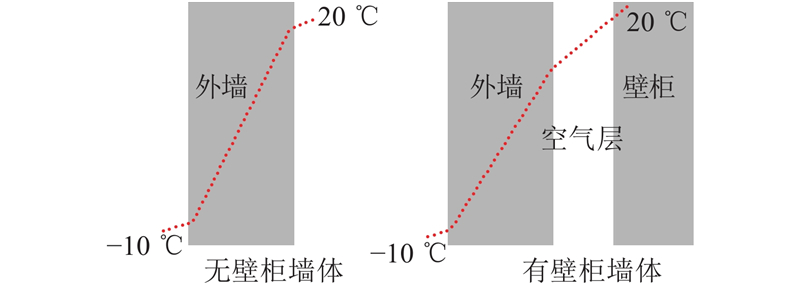

Fig.1 Schematic diagram of different thermal resistance of internal wall
Fig.2 Schematic diagram of influence of different indoor environment on surface temperature of internal wall

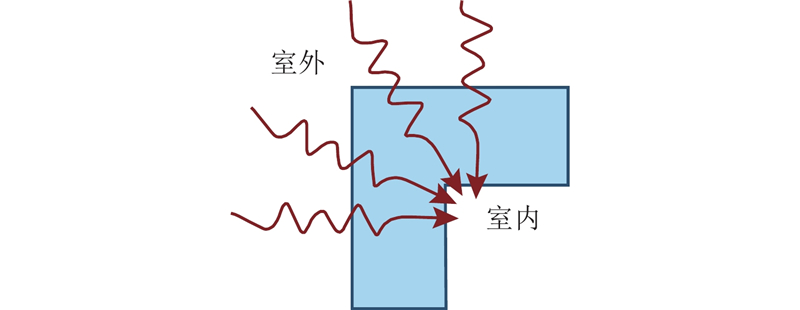

Fig.3 Schematic diagram of heat transfer at geometric thermal bridge
Fig.4 Distribution map of climatic zones in China
Fig.5 Heat2 software temperature and thermal bridge calculation and analysis physical model
参数 数值
室内温度 20 °C
室外最低温度 ?36.3 °C
内墙表面热阻 0.11、0.25、0.5、1 m2·K/W
钢筋混凝土导热系数 1.74 W/(m·K)
EPS保温板导热系数 0.033 W/(m·K)
Tab.1 Environmental conditions and thermal parameters of enclosure structure
rh/% θsimold/°C
40 9.3
45 11.0
50 12.6
55 14.1
60 15.4
Tab.2 Mouldy temperature points for different indoor relative humidity
θ/°C θiw/°C
R1=
0.11 m2·K/W
R2=
0.25 m2·K/W
R3=
0.5 m2·K/W
R4=
1.00 m2·K/W
?36.3 17.90 16.18 13.46 8.44
?36 17.91 16.20 13.50 8.50
?35 17.95 16.27 13.61 8.70
?34 17.99 16.34 13.73 8.91
?33 18.03 16.41 13.85 9.11
?32 18.06 16.48 13.96 9.32
?31 18.10 16.54 14.08 9.52
?30 18.14 16.61 14.19 9.73
?29 18.18 16.68 14.31 9.94
?28 18.21 16.75 14.43 10.14
?27 18.25 16.81 14.54 10.35
?26 18.29 16.88 14.66 10.55
?25 18.32 16.95 14.77 10.76
?24 18.36 17.02 14.89 10.96
?23 18.40 17.09 15.01 11.17
?22 18.44 17.15 15.12 11.37
?21 18.47 17.22 15.24 11.58
?20 18.51 17.29 15.36 11.78
?19 18.55 17.36 15.47 11.99
?18 18.59 17.42 15.59 12.19
?17 18.62 17.49 15.70 12.40
?16 18.66 17.56 15.82 12.61
?15 18.70 17.63 15.94 12.81
?14 18.73 17.70 16.05 13.02
?13 18.77 17.76 16.17 13.22
?12 18.81 17.83 16.28 13.43
?11 18.85 17.90 16.40 13.63
?10 18.88 17.97 16.52 13.84
?9 18.92 18.03 16.63 14.04
?8 18.96 18.10 16.75 14.25
?7 18.99 18.17 16.87 14.45
?6 19.03 18.24 16.98 14.66
?5 19.07 18.31 17.10 14.87
?4 19.11 18.37 17.21 15.07
?3 19.14 18.44 17.33 15.28
?2 19.18 18.51 17.45 15.48
?1 19.22 18.58 17.56 15.69
Tab.3 Wall temperature of different thermal resistance environment and outdoor temperature when external wall heat transfer coefficient is 0.15 W/(m2·K)

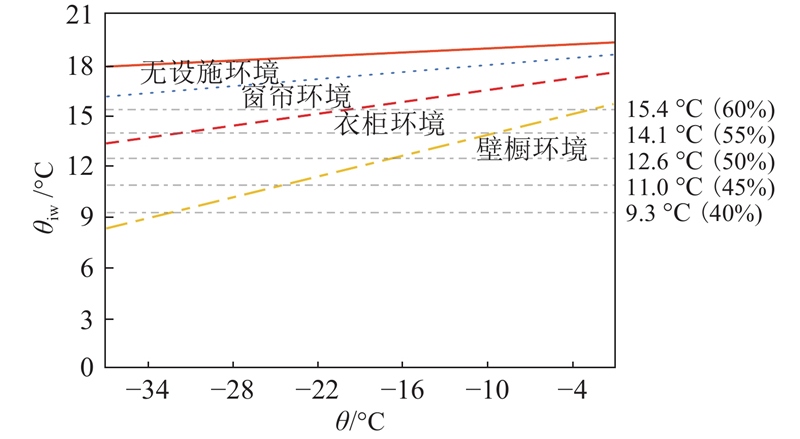

Fig.6 Wall temperature changes at different outdoor temperatures under four thermal resistance environments
Fig.7 Variation of heat transfer coefficient of exterior wall under different relative humidity and outdoor temperature with thermal resistance of 0.5 m2·K/W
θ/°C U/(W·m?2·K?1)
rh=40% rh=45% rh=50% rh=55% rh=60%
?36.3 0.15 0.15 0.15 0.13 0.09
?36 0.15 0.15 0.15 0.13 0.09
?35 0.15 0.15 0.15 0.13 0.10
?34 0.15 0.15 0.15 0.13 0.10
?33 0.15 0.15 0.15 0.14 0.10
?32 0.15 0.15 0.15 0.14 0.10
?31 0.15 0.15 0.15 0.14 0.11
?30 0.15 0.15 0.15 0.15 0.11
?29 0.15 0.15 0.15 0.15 0.11
?28 0.15 0.15 0.15 0.15 0.11
?27 0.15 0.15 0.15 0.15 0.12
?26 0.15 0.15 0.15 0.15 0.12
?25 0.15 0.15 0.15 0.15 0.12
?24 0.15 0.15 0.15 0.15 0.13
?23 0.15 0.15 0.15 0.15 0.13
?22 0.15 0.15 0.15 0.15 0.13
?21 0.15 0.15 0.15 0.15 0.14
?20 0.15 0.15 0.15 0.15 0.14
?19 0.15 0.15 0.15 0.15 0.15
?18 0.15 0.15 0.15 0.15 0.15
?17 0.15 0.15 0.15 0.15 0.15
?16 0.15 0.15 0.15 0.15 0.15
?15 0.15 0.15 0.15 0.15 0.15
?14 0.15 0.15 0.15 0.15 0.15
?13 0.15 0.15 0.15 0.15 0.15
?12 0.15 0.15 0.15 0.15 0.15
?11 0.15 0.15 0.15 0.15 0.15
?10 0.15 0.15 0.15 0.15 0.15
?9 0.15 0.15 0.15 0.15 0.15
?8 0.15 0.15 0.15 0.15 0.15
?7 0.15 0.15 0.15 0.15 0.15
?6 0.15 0.15 0.15 0.15 0.15
?5 0.15 0.15 0.15 0.15 0.15
?4 0.15 0.15 0.15 0.15 0.15
?3 0.15 0.15 0.15 0.15 0.15
?2 0.15 0.15 0.15 0.15 0.15
?1 0.15 0.15 0.15 0.15 0.15
Tab.4 Heat transfer coefficient of external wall under different relative humidity and outdoor temperature at 0.5 m2·K/W of internal wall thermal resistance
Fig.8 Variation of heat transfer coefficient of exterior wall under different relative humidity and outdoor temperature with thermal resistance of 1.00 m2·K/W
θ/°C U/(W·m?2·K?1)
rh=40% rh=45% rh=50% rh=55% rh=60%
?36.3 0.13 0.11 0.09 0.06 0.05
?36 0.13 0.11 0.09 0.06 0.05
?35 0.14 0.11 0.09 0.07 0.05
?34 0.14 0.11 0.09 0.07 0.05
?33 0.14 0.11 0.09 0.07 0.05
?32 0.14 0.12 0.09 0.07 0.05
?31 0.15 0.12 0.10 0.07 0.05
?30 0.15 0.12 0.10 0.07 0.05
?29 0.15 0.12 0.10 0.08 0.05
?28 0.15 0.13 0.10 0.08 0.06
?27 0.15 0.13 0.11 0.08 0.06
?26 0.15 0.13 0.11 0.08 0.06
?25 0.15 0.14 0.11 0.08 0.06
?24 0.15 0.14 0.11 0.09 0.06
?23 0.15 0.15 0.12 0.09 0.07
?22 0.15 0.15 0.12 0.09 0.07
?21 0.15 0.15 0.12 0.09 0.07
?20 0.15 0.15 0.13 0.10 0.07
?19 0.15 0.15 0.13 0.10 0.07
?18 0.15 0.15 0.14 0.10 0.08
?17 0.15 0.15 0.14 0.11 0.08
?16 0.15 0.15 0.14 0.11 0.08
?15 0.15 0.15 0.15 0.11 0.08
?14 0.15 0.15 0.15 0.12 0.09
?13 0.15 0.15 0.15 0.12 0.09
?12 0.15 0.15 0.15 0.13 0.09
?11 0.15 0.15 0.15 0.13 0.10
?10 0.15 0.15 0.15 0.14 0.10
?9 0.15 0.15 0.15 0.14 0.11
?8 0.15 0.15 0.15 0.15 0.11
?7 0.15 0.15 0.15 0.15 0.12
?6 0.15 0.15 0.15 0.15 0.12
?5 0.15 0.15 0.15 0.15 0.13
?4 0.15 0.15 0.15 0.15 0.13
?3 0.15 0.15 0.15 0.15 0.14
?2 0.15 0.15 0.15 0.15 0.15
?1 0.15 0.15 0.15 0.15 0.15
Tab.5 Heat transfer coefficient of external wall under different relative humidity and outdoor temperature at 1.00 m2·K /W of internal wall thermal resistance
U/(W·m?2·K?1 Δx/mm
0.13 245
0.11 290
0.09 360
0.06 540
0.05 650
Tab.6 Thickness of EPS insulation board under different external wall heat transfer coefficient
θ/°C U/(W·m?2·K?1
?36.3~?32 0.09
?31~?28 0.10
?27~?24 0.11
?23~?21 0.12
?20~?19 0.13
?18~?16 0.14
?15~?1 0.15
Tab.7 Lowest standard of heat transfer coefficient for passive houses in cold regions
