浙江大学学报(工学版)
浙江大学学报(工学版)  2024, Vol. 58 Issue (8): 1647-1658    DOI: 10.3785/j.issn.1008-973X.2024.08.012
交通工程、土木工程
平行流交叉口车道控制与信号配时组合优化
宋浪1,2(),王健1,3,*(),杨璐1,安实1
1. 哈尔滨工业大学 交通科学与工程学院，黑龙江 哈尔滨 150090
2. 国家山区公路工程技术研究中心，重庆 400067
3. 哈尔滨工业大学 经济与管理学院，黑龙江 哈尔滨 150001
Combined optimization of lane-based control and signal timing at parallel flow intersection
Lang SONG1,2(),Jian WANG1,3,*(),Lu YANG1,Shi AN1
1. School of Transportation Science and Engineering, Harbin Institute of Technology, Harbin 150090, China
2. National Engineering and Research Center for Mountainous Highways, Chongqing 400067, China
3. School of Management, Harbin Institute of Technology, Harbin 150001, China
 全文: PDF(1824 KB)   HTML
摘要：

为了提升平行流交叉口实际应用的灵活性，提出车道控制与信号配时组合优化方法，将单向、非对称双向、对称双向、三向、四向设置与布设方向组合共16种方案整合到优化模型中，通过修正交通冲突矩阵自动生成相位相序方案. 构建混合整数线性规划模型，实现交叉口设置方案选择、车道分配和信号配时的组合优化. 结果表明，在各种流量场景下，对称双向、三向、四向设置方案相较于常规交叉口分别能够提升约20%、20%、50%的通行能力，单向、非对称双向设置方案通行能力与常规交叉口接近，说明平行流交叉口不宜采用单向、非对称双向设置. 四向设置方案通行能力的提升幅度最大，最大值能达到70.51%. 对称双向和三向设置方案的通行能力提升相差不大，但三向设置在不对称流量场景中的表现优于对称双向设置.
关键词： 交通工程;  控制方法;  混合整数线性规划;  平行流交叉口;  移位左转
Abstract:

A combined optimization method for lane control and signal timing was proposed in order to enhance the flexibility of parallel flow intersections in practical application. Sixteen configurations including one-way, asymmetric two-way, symmetric two-way, three-way, and four-way settings with directional arrangements were integrated into an optimization model, and phase sequences were automatically generated by modifying the traffic conflict matrix. A mixed integer linear programming model was developed to optimize the intersection setting selection, lane allocation, and signal timing in combination. Results show that the symmetric two-way, three-way, and four-way settings increase traffic capacity by approximately 20%, 20%, and 50% respectively compared to conventional intersections under various traffic scenarios. The capacities of the one-way and asymmetric two-way settings are close to those of conventional intersections, indicating that one-way and asymmetric two-way settings are not suitable for parallel flow intersections. The four-way setting exhibits the largest increase in capacity, with a maximum improvement of 70.51%. The traffic capacities of symmetric two-way and three-way settings are similar, while the three-way setting performs better in asymmetric traffic scenarios than the symmetric two-way setting.
Key words: traffic engineering    control method    mixed integer linear programming    parallel flow intersection    displaced left-turn
收稿日期: 2023-07-18 出版日期: 2024-07-23
CLC:  U 491
基金资助: 重庆市自然科学基金资助项目(CSTB2023NSCQ-MSX0387)；重庆市技术创新与应用发展专项重点资助项目（CSTB2022TIAD-KPX0104）；国家自然科学基金重大研究计划资助项目（91846301）.
通讯作者: 王健     E-mail: lang_song@qq.com;wang_jian@hit.edu.cn
作者简介: 宋浪（1996—），男，博士生，从事交通控制和智能交通的研究. orcid.org/0000-0003-3038-129X. E-mail：lang_song@qq.com
服务　　
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章　　
宋浪
王健
杨璐
安实

引用本文:

宋浪,王健,杨璐,安实. 平行流交叉口车道控制与信号配时组合优化[J]. 浙江大学学报(工学版), 2024, 58(8): 1647-1658.

Lang SONG,Jian WANG,Lu YANG,Shi AN. Combined optimization of lane-based control and signal timing at parallel flow intersection. Journal of ZheJiang University (Engineering Science), 2024, 58(8): 1647-1658.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2024.08.012    或    https://www.zjujournals.com/eng/CN/Y2024/V58/I8/1647

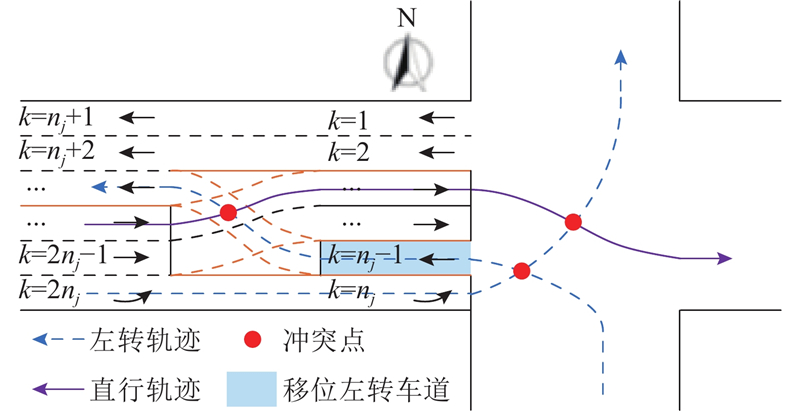

图 1  平行流交叉口几何设计及车流组织的示意图

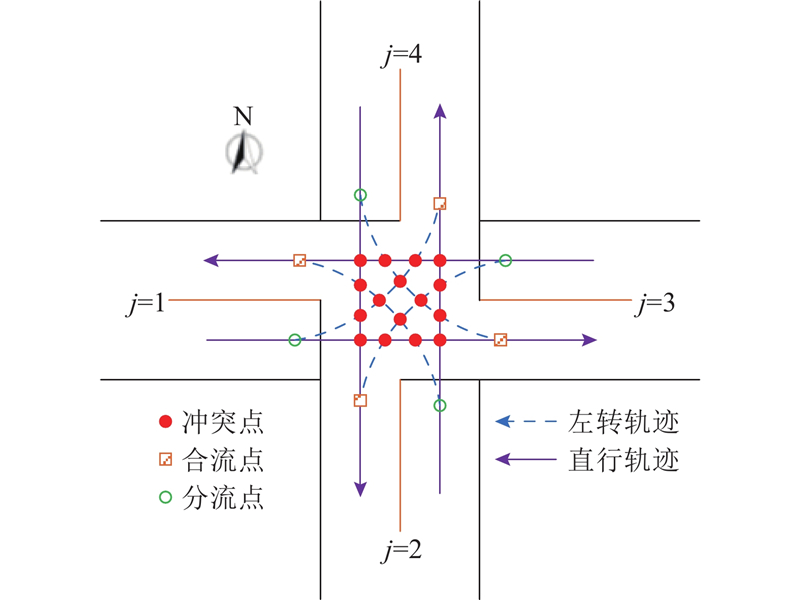

图 2  常规交叉口各流向的交通冲突示意图

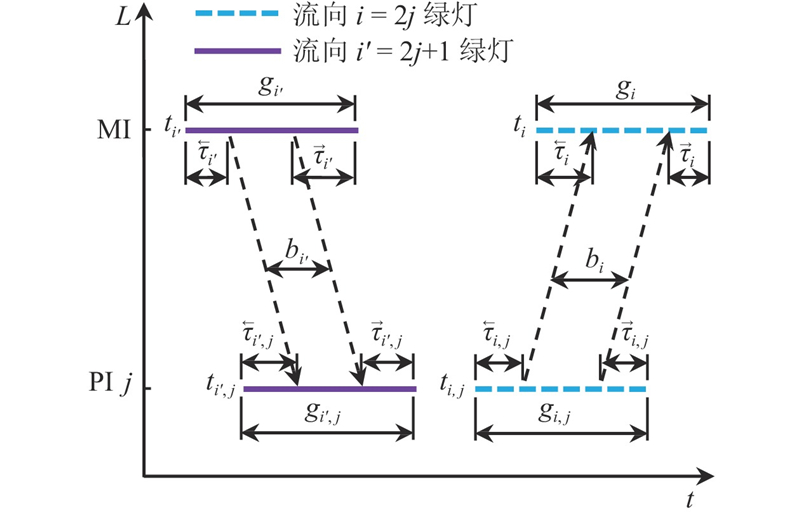

图 3  移位左转设计主预信号绿波带示意图
参数数值参数数值参数数值
$ {P_1} $106$ {P_2} $103$ {P_3} $1
$ {g_{\min }} $/s10$ \gamma $/s4$ M $106
$ {C_{\min }} $/s60$ {C_{\max }} $/s120$ {d_{i,j}} $/(m·pcu?1)7
$ {b_{\min }} $/s10$ {L_{j,{\text{DLT}}}} $/m100$ {s_{i,j}} $/(pcu·h?1)1 500
$ {N_j} $10$ {\upsilon _i} $/(km·h?1)30——
表 1  算例中优化模型输入参数及取值

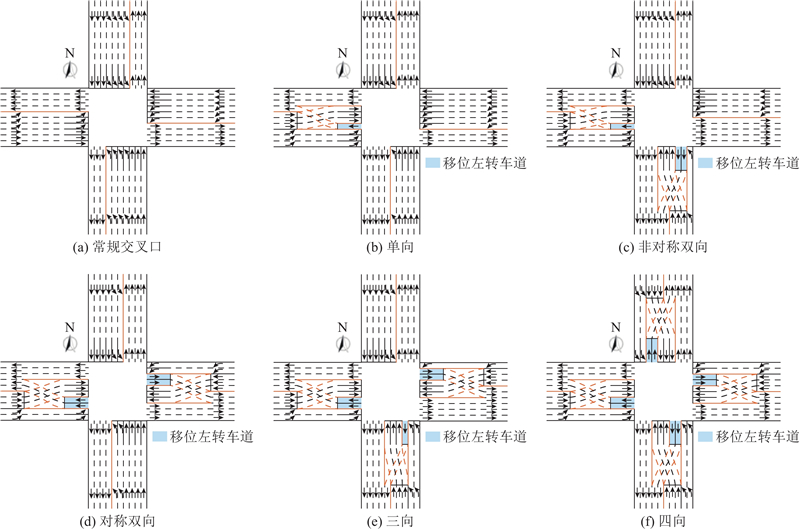

图 4  各方案的交叉口几何设计优化结果
设置方案$ t $主信号西预信号南预信号东预信号北预信号C
1234567823456781
常规交叉口启亮时刻58800185880018————————120
绿灯时长1836143618361436————————
结束时刻80018588001858————————
单向启亮时刻0222289022678010850——————120
绿灯时长18415427184118365854——————
结束时刻2267800226789050108——————
非对称双向启亮时刻0222280802262801044629103————120
绿灯时长183654365836143658547042————
结束时刻226280022628004610410329————
对称双向启亮时刻5390901753909017390——390——120
绿灯时长33434332334343327735——7735——
结束时刻9017175390171753039——039——
三向启亮时刻034347777343477102604610310260——120
绿灯时长3039393973393939743853597438——
结束时刻34777703477770601021034660102——
四向启亮时刻600060600060894329103894329103120
绿灯时长56565656565656567042704270427042
结束时刻060600060600438910329438910329
表 2  各方案的交叉口信号配时优化结果
设置方案常规设计可展宽常规设计不可展宽常规设计可展宽
$ \mu $$ {\varphi _1} $/%$ B $/s$ \mu $$ {\varphi _1} $/%$ B $/s$ V $/(pcu·h?1)$ \phi $/s$ {\varphi _2} $/%
常规交叉口1.130—29.390.929—27.247 19243.24—
单向1.125?0.4832.321.0007.6931.237 19443.991.73
非对称双向1.125?0.4834.291.08316.6732.127 19841.07?5.02
对称双向1.35019.4235.731.28638.4638.567 19137.13?14.13
三向1.2278.5738.681.22732.1736.977 20035.95?16.86
四向1.75054.8147.601.75088.4647.607 19728.33?34.48
表 3  各方案的交叉口评价指标的对比结果
序号X轴参数及
取值范围		Y轴参数及取值范围Z轴参数备注
1左转比例10%~50%单向流量倍数增加(西向与南向、东向、
北向的流量比值)1.0~2.0		通行能力提升比例，
以常规交叉口为基准		南向、东向、北向流量相同
2非对称双向流量倍数增加(西向、南向与东向、
北向的流量比值)1.0~2.0		西向、南向流量相同，东向、北向流量相同
3对称双向流量倍数增加(西向、东向与南向、
北向的流量比值)1.0~2.0		西向、东向流量相同，南向、北向流量相同
4三向流量倍数增加(西向、南向、东向与
北向的流量比值)1.0~2.0		西向、南向、东向流量相同
表 4  各种实验案例X、Y、Z轴的参数设计

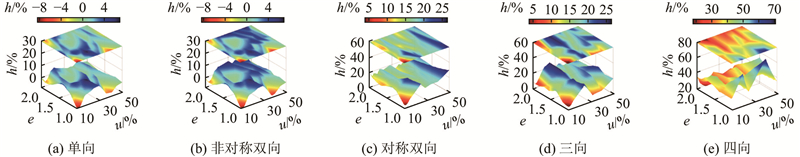

图 5  各方案通行能力提升比例与单向流量倍数、左转比例的分布
图 6  各方案通行能力提升比例与非对称双向流量倍数、左转比例的分布

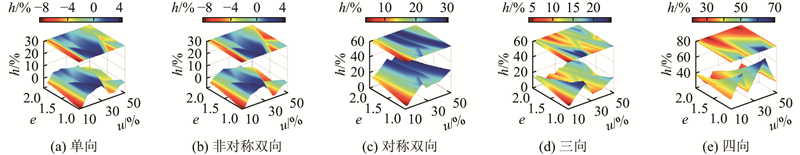

图 7  各方案通行能力提升比例与对称双向流量倍数、左转比例的分布

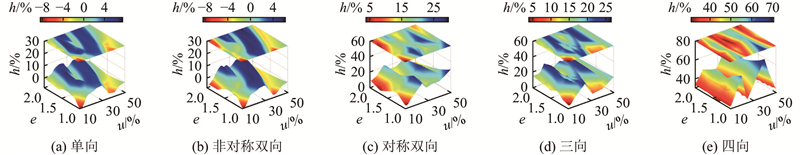

图 8  各方案通行能力提升比例与三向流量倍数、左转比例的分布
