浙江大学学报(工学版)  2023, Vol. 57 Issue (12): 2381-2390    DOI: 10.3785/j.issn.1008-973X.2023.12.005
机械工程、能源工程
极限工况下的车辆转向避撞风险指数
黄子文1(),李莉1,周兵1,*(),吴晓建2,柴天1,许艳1
1. 湖南大学 汽车车身先进设计制造国家重点实验室,湖南 长沙 410082
2. 南昌大学 先进制造学院,江西 南昌 330031
Threat number design for steering collision avoidance at extreme conditions
Zi-wen HUANG1(),Li LI1,Bing ZHOU1,*(),Xiao-jian WU2,Tian CHAI1,Yan XU1
1. State Key Laboratory of Advanced Design and Manufacturing for Vehicle Body, Hunan University, Changsha 410082, China
2. School of Advanced Manufacturing, Nanchang University, Nanchang 330031, China
 全文: PDF(4817 KB)   HTML
摘要:

转向避撞风险指数通常根据路面附着限制以稳态侧向加速度进行车辆转向避撞能力评估,忽略了车辆特性对车辆转向能力的影响以及高速转向过程的非线性和瞬态特性,对此,提出通过前轮转角阶跃实验模拟转向避撞过程直接获得车辆最大可达侧向位移作为转向风险指数. 分析轮胎侧偏特性曲线和车辆特性,确定车辆的临界稳定侧向加速度;根据前馈控制算法建立“侧向加速度?纵向速度?前轮转角”MAP;提出考虑横向载荷转移的转向前馈控制方法,以提高车辆进行阶跃转向实验时的前馈前轮转角精度;根据MAP建立车辆临界稳定的角阶跃转向工况,采用非线性二自由度车辆模型进行阶跃转向仿真,得到车辆的最大可达侧向位移图. 通过蒙特卡洛法对提出的风险指数和转向风险指数(STN)进行对比、验证. 仿真结果表明,相比STN,所提转向风险指数在车辆极限工况可以更准确地判断车辆能否通过转向完成避撞.

关键词: 极限工况转向避撞转向风险指数转向前馈控制蒙特卡洛法
Abstract:

The steady lateral acceleration based on road adhesion is usually denoted as the steer threat number, neglecting the limitation of vehicle characteristics on vehicle steering capability as well as the nonlinear and transient characteristics of high-speed steering maneuvers. To solve the issue, it is proposed to simulate the steering collision avoidance process by the steering wheel step test to obtain the maximum steady achievable lateral displacement as the steering threat number. Firstly, the critical stable lateral acceleration of the vehicle was determined by analyzing the tire lateral deflection and the vehicle characteristics. Secondly, the MAP of “lateral acceleration-longitudinal velocity-front wheel angle” was established according to the feedforward control algorithm. Thirdly, a steering feedforward control method considering lateral load transfer was proposed to improve the accuracy of the feed-forward front wheel angle in the steering wheel step input test. Finally, the stepping steering conditions under critical stability of the vehicle were established according to the MAP, and the nonlinear two-degree-of-freedom vehicle model was used for stepping steering simulation to obtain the maximum steady achievable lateral displacement plots. The proposed threat number and the steer threat number (STN) were compared and validated by the Monte Carlo method. The simulation results show that the proposed threat number can be more accurate in determining whether the vehicle can avoid collision by steering under extreme conditions compared to STN.

Key words: extreme conditions    steering collision avoidance    steer threat number    steering feedforward control    Monte Carlo method
收稿日期: 2023-02-24 出版日期: 2023-12-27
CLC:  U 463.1
基金资助: 国家自然科学基金资助项目(52002163, 51875184, 52062036)
通讯作者: 周兵     E-mail: 2441520765@qq.com;zhou_bingo@163.com
作者简介: 黄子文(1999—),男,硕士生,从事车辆动力学研究. orcid.org/0009-0002-3313-1587. E-mail: 2441520765@qq.com
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章
黄子文
李莉
周兵
吴晓建
柴天
许艳

引用本文:

黄子文,李莉,周兵,吴晓建,柴天,许艳. 极限工况下的车辆转向避撞风险指数[J]. 浙江大学学报(工学版), 2023, 57(12): 2381-2390.

Zi-wen HUANG,Li LI,Bing ZHOU,Xiao-jian WU,Tian CHAI,Yan XU. Threat number design for steering collision avoidance at extreme conditions. Journal of ZheJiang University (Engineering Science), 2023, 57(12): 2381-2390.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2023.12.005        https://www.zjujournals.com/eng/CN/Y2023/V57/I12/2381

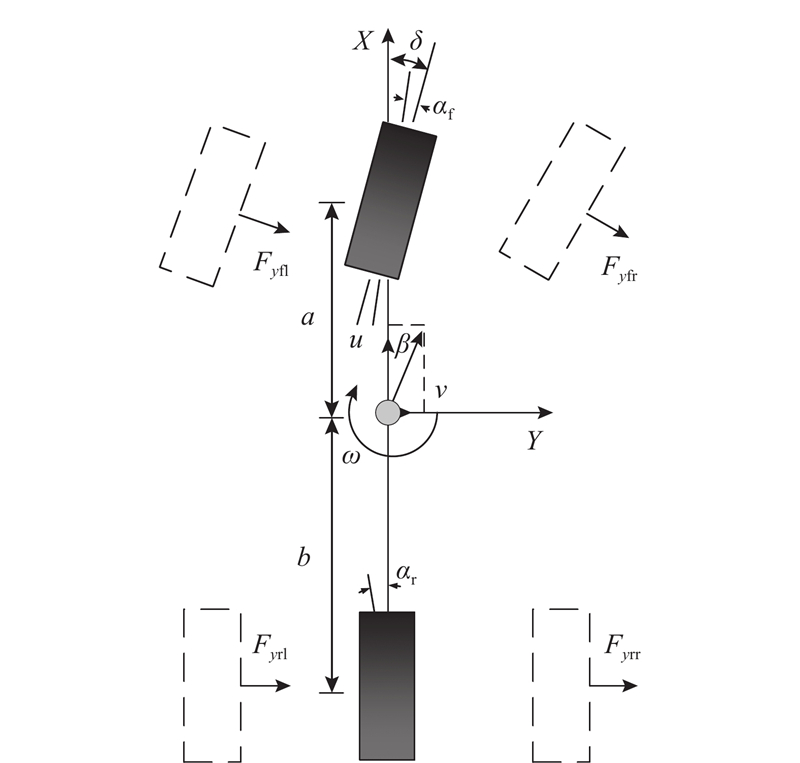

图 1  非线性二自由度车辆模型
参数 数值 参数 数值
整车质量 $ m $/kg 1 501 质心高度 $ {h}_{\mathrm{s}} $/m 0.54
质心至前轴距离 $ a $/m 1.05 轮距 $ {b}_{\mathrm{s}} $/m 1.65
质心至后轴距离 $ b $/m 1.86 车辆横摆转动惯量 $ {I}_{z} $/(kg·m2 2 500
表 1  车辆模型参数

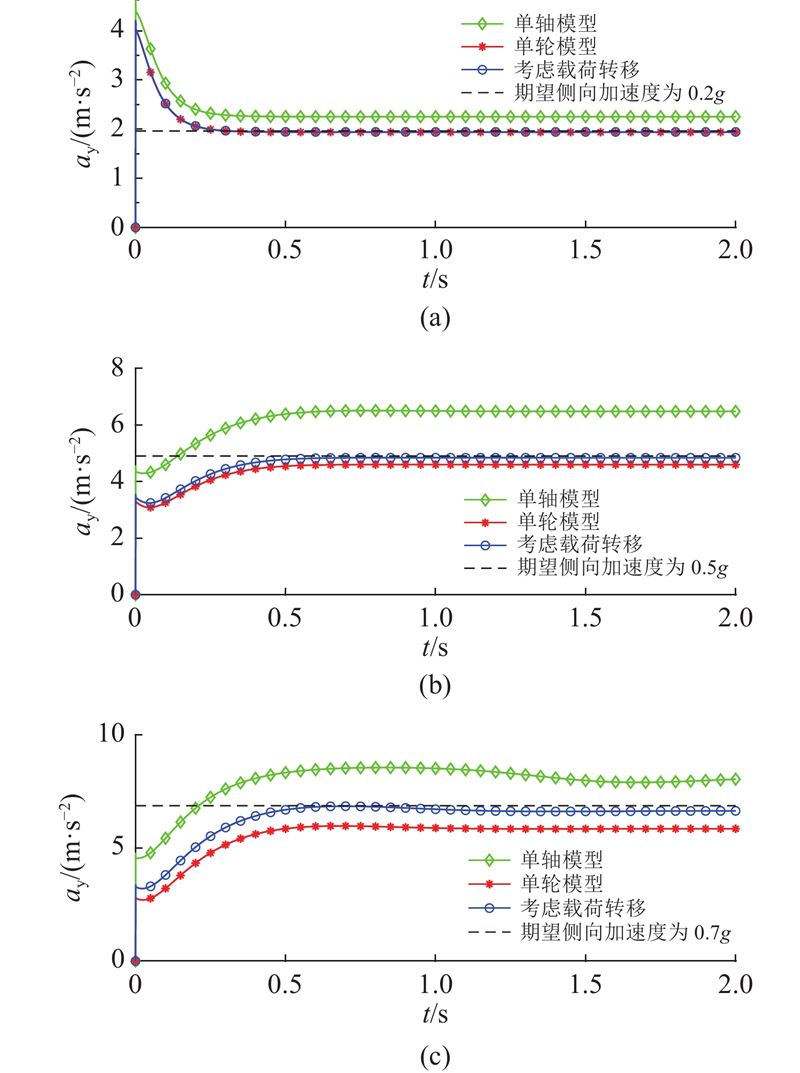

图 2  不同期望侧向加速度下3种前馈控制方式对比图

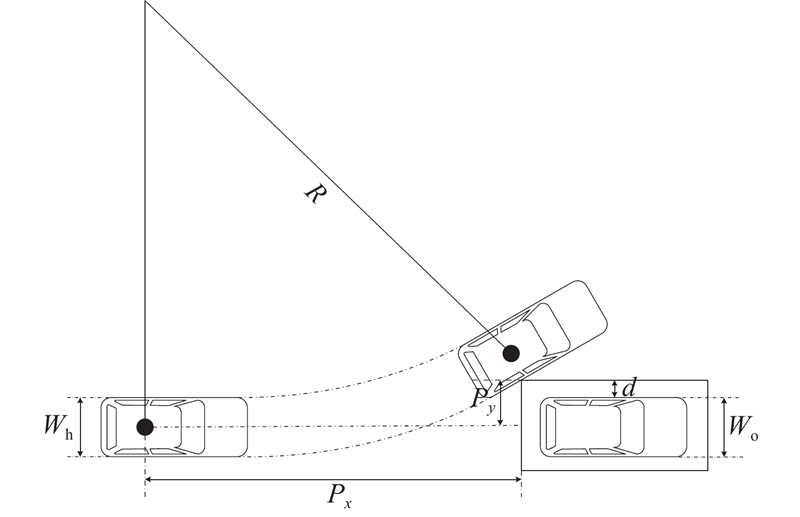

图 3  转向避撞示意图

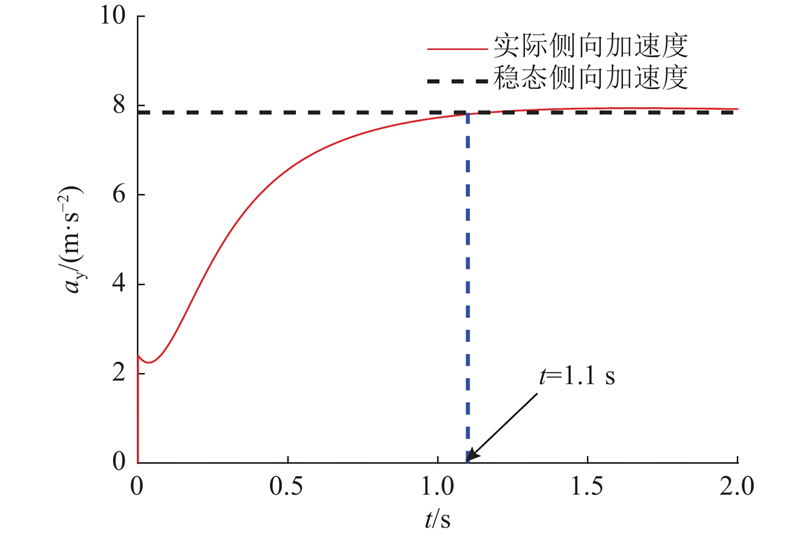

图 4  车辆转向过程侧向加速度曲线

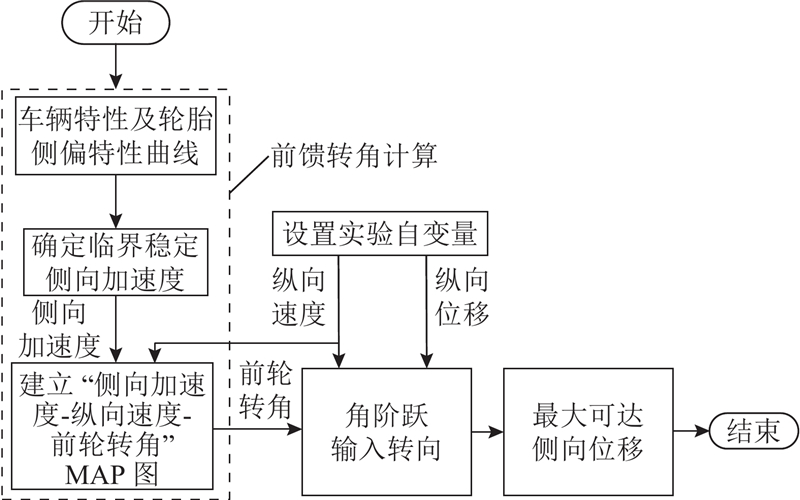

图 5  最大可达侧向位移求取流程图

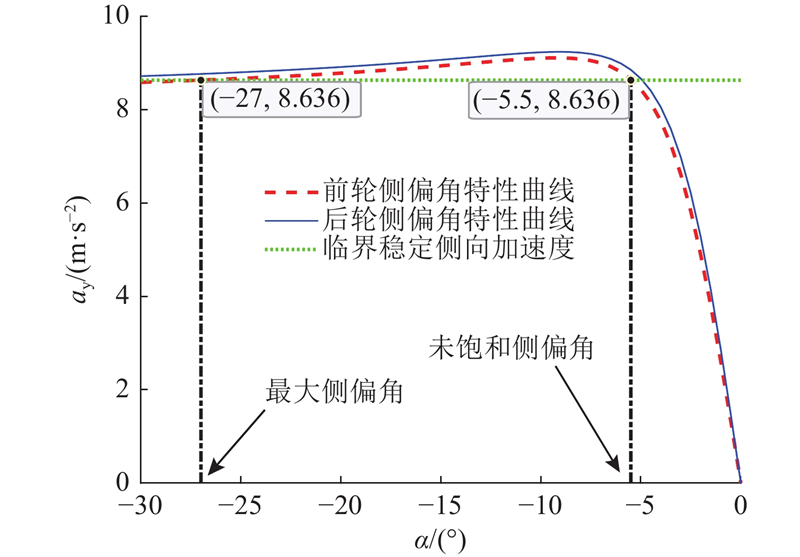

图 6  轮胎侧偏特性曲线

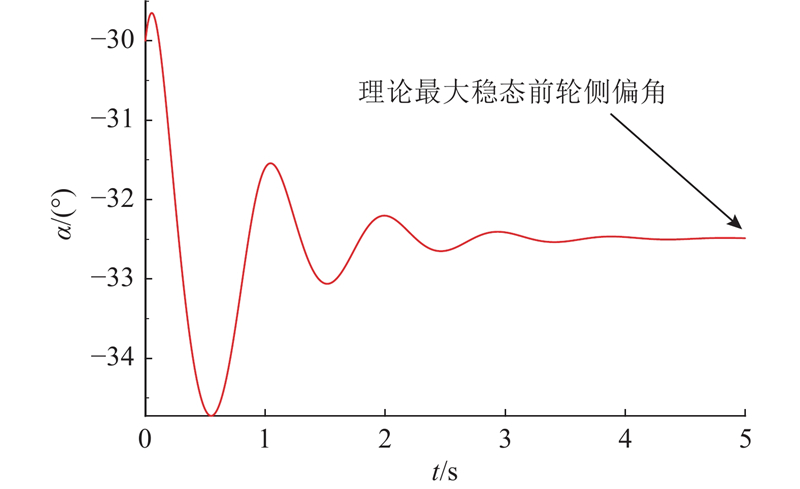

图 7  极限输入下前轮侧偏角变化曲线

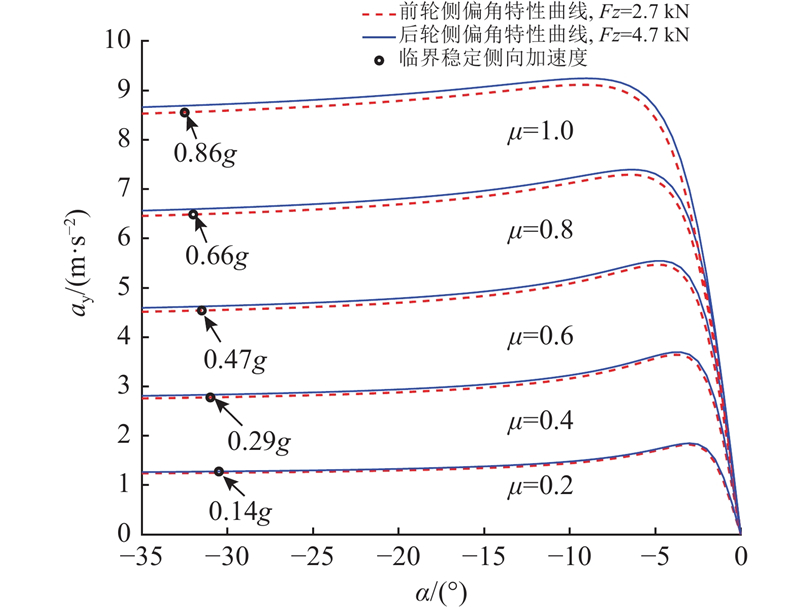

图 8  不同附着系数路面轮胎侧偏特性曲线

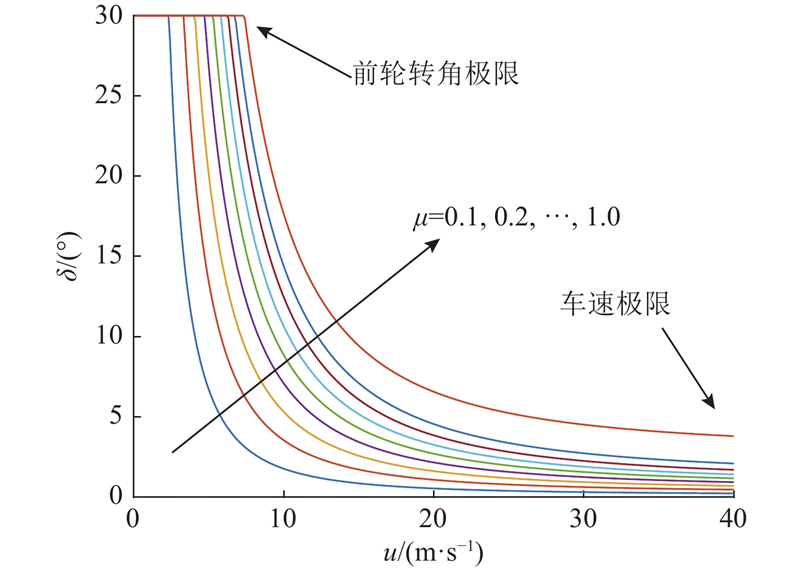

图 9  “侧向加速度−纵向速度−前轮转角”MAP

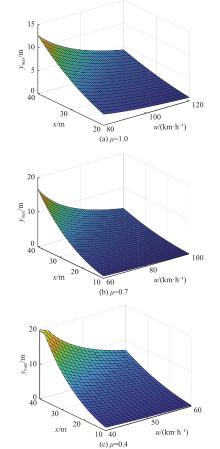

图 10  不同附着系数路面的车辆最大侧向位移图

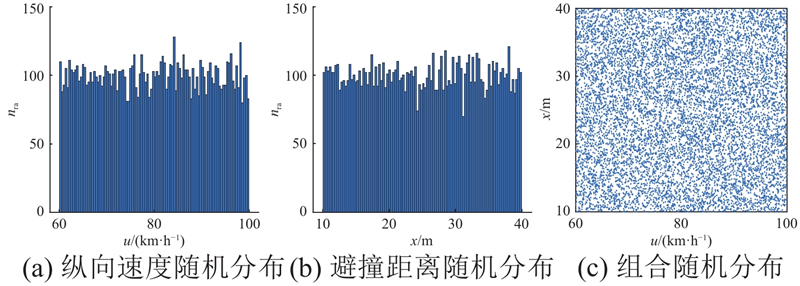

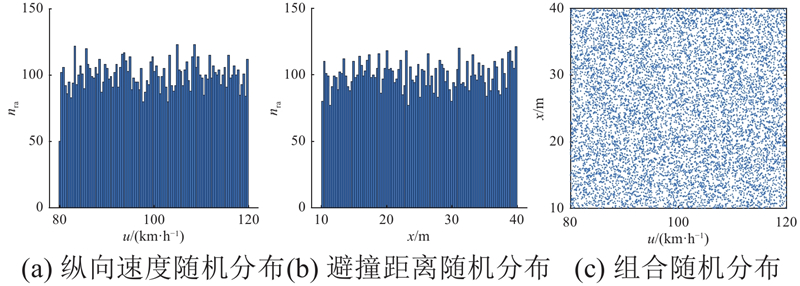

图 11  高附着系数路面测试场景的参数随机分布

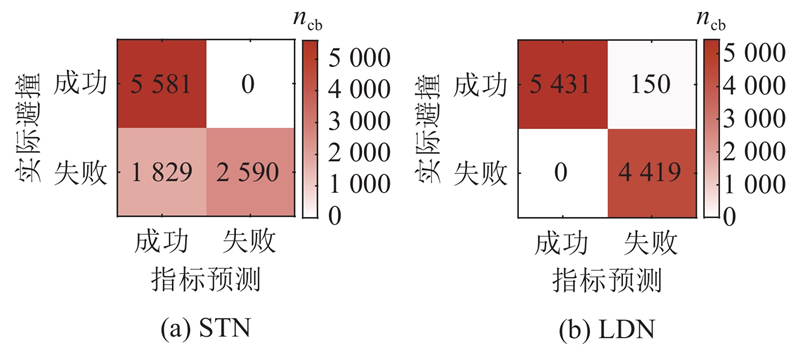

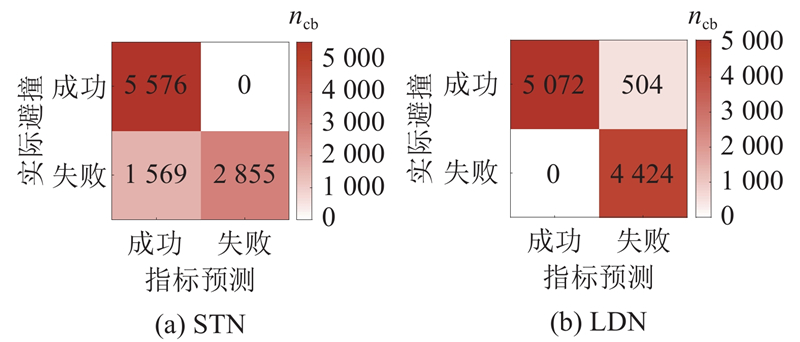

图 12  高附着系数路面不同风险指数的混淆矩阵
图 13  中等附着系数路面测试场景的参数随机分布
图 14  中等附着系数路面不同风险指数的混淆矩阵

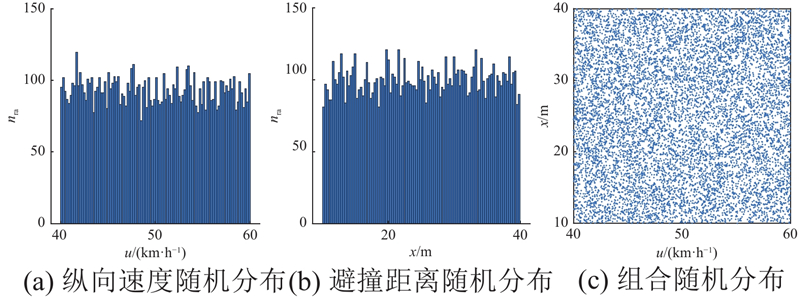

图 15  低附着系数路面的测试场景参数随机分布

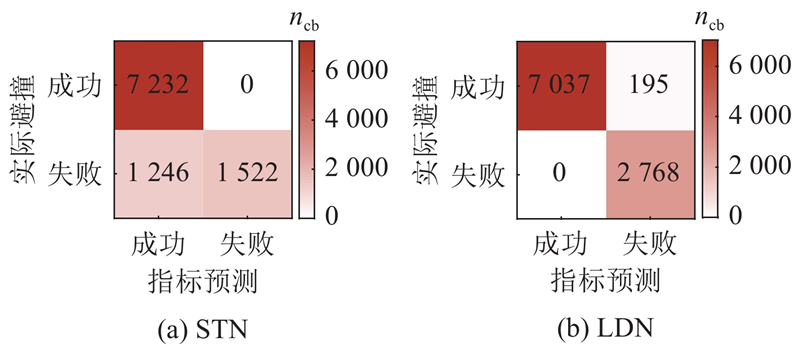

图 16  低附着系数路面不同风险指数的混淆矩阵

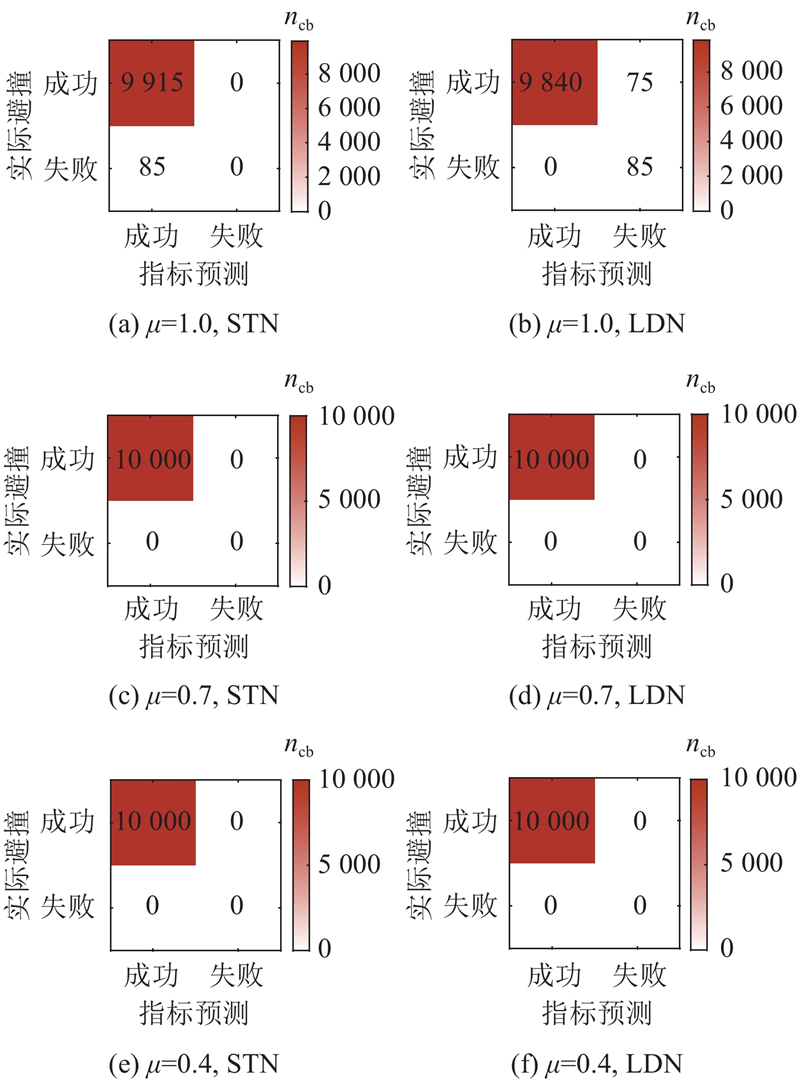

图 17  不同附着系数路面的一般工况实验结果混淆矩阵

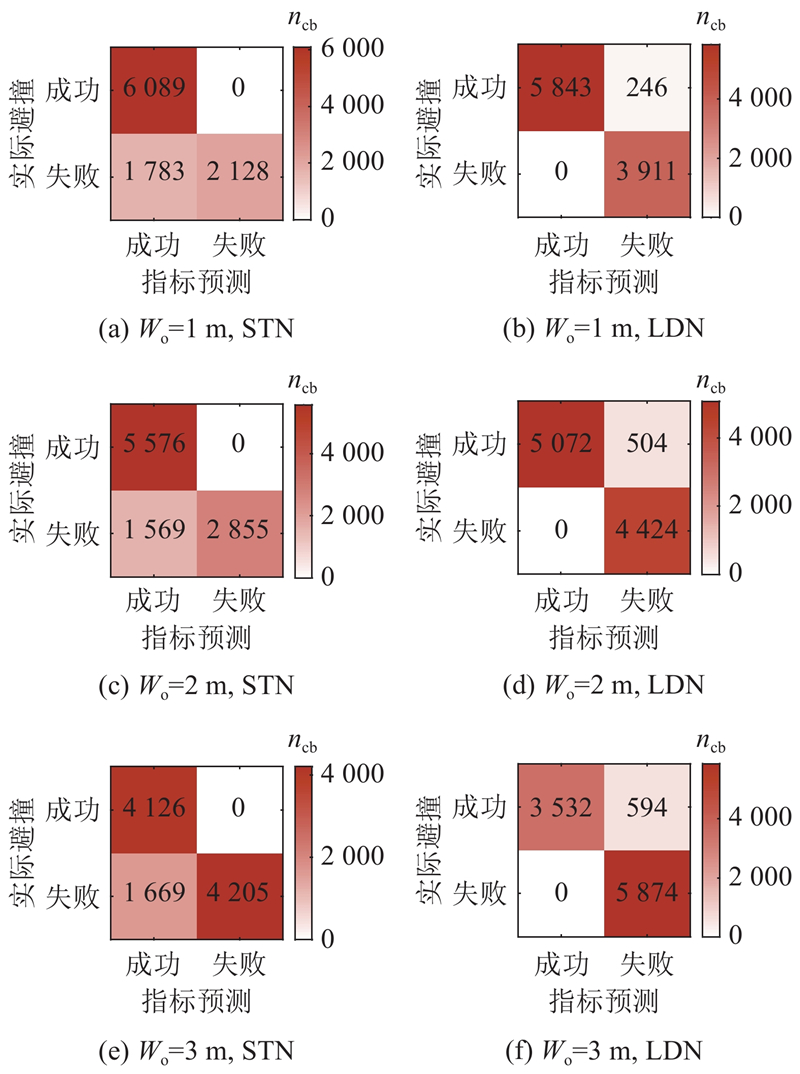

图 18  不同侧向位移实验结果混淆矩阵
