浙江大学学报(工学版)
浙江大学学报(工学版)  2021, Vol. 55 Issue (7): 1327-1338    DOI: 10.3785/j.issn.1008-973X.2021.07.012
土木工程、水利工程
可液化土层对地下结构地震影响的振动台试验
刘春晓1,2(),陶连金1,*(),边金3,张宇1,冯锦华4,代希彤5,王兆卿6
1. 北京工业大学 城市与工程安全减灾教育部重点实验室，北京 100124
2. 中铁第五勘察设计院集团有限公司，北京 102600
3. 广东海洋大学 海洋工程学院，广东 湛江 524088
4. 国核电力规划设计研究院有限公司，北京 1000954
5. 青岛国信建设投资有限公司，山东 青岛 266100
6. 北京城建兴顺房地产开发有限公司，北京 101300
Shaking table test of seismic effect of liquefiable soil layer on underground structure
Chun-xiao LIU1,2(),Lian-jin TAO1,*(),Jin BIAN3,Yu ZHANG1,Jin-hua FENG4,Xi-tong DAI5,Zhao-qing WANG6
1. Key Laboratory of Urban Security and Disaster Engineering of Ministry of Education, Beijing University of Technology, Beijing 100124, China
2. China Railway Fifth Survey And Design Institute Group CO., LTD., Beijing 102600, China
3. College of Ocean Engineering, Guangdong Ocean University, Zhanjiang 524088, China
4. State Nuclear Electric Power Planning Design & Research Institute CO., LTD., Beijing 100095, China
5. Qingdao Conson Construction & Investment Co., Ltd., Qingdao 266100, China
6. Beijing Urban Construction Investment and Development Co., Ltd., Beijing 101300, China
 全文: PDF(4391 KB)   HTML
摘要：

针对目前地铁区间隧道建设中常见的单层双跨断面形式结构，开展结构整体位于可液化土层、结构底部存在可液化土层、结构位于非液化土层3组振动台试验，分析地基土加速度、孔隙水压力和结构位移之间的关系. 结果表明，地基土加速度放大系数沿埋深受地震动、地震动峰值、场地的影响展现出不同的变化规律；紧邻结构两侧位置处土体不易液化；结构底部0~45度范围内土体容易液化；液化程度最严重区域分布在结构水平两侧一定距离处和结构底部两侧位置；超孔压比数值分布大小同地震波自身Arias强度有很好的对应关系.
关键词： 液化;  矩形隧道;  振动台试验;  加速度;  孔隙水压力
Abstract:

Aiming at the common single-layer double-span cross-section structure in subway tunnel construction at present, three groups of shaking table tests were carried out, in which the liquefiable soil layer was all around the structure, at the bottom of the structure, and the structure was located in non-liquefied soil layer. Relationship among foundation soil acceleration, pore water pressure and structural displacement was analyzed. Results show that the acceleration amplification coefficient of foundation soil changes along the buried depth, which is affected by ground motions, peak values of ground motion and sites showing different variation rules. The soil adjacent to both sides of the structure is not easy to liquefaction. The soil is easy to liquefaction in the range of 45 degrees at the bottom of the structure. The most serious liquefaction area is distributed at a certain distance between the horizontal sides of the structure and on both sides of the bottom of the structure. The numerical distribution of excess pore pressure ratio corresponds well to the Arias intensity of seismic waves.
Key words: liquefaction    rectangular tunnel    shaking table test    acceleration    pore water pressure
收稿日期: 2020-05-04 出版日期: 2021-07-05
CLC:  O 319.56
基金资助: 国家重点研发计划资助项目（2017YFC0805403）；国家自然科学基金资助项目（41877218）
通讯作者: 陶连金     E-mail: liuchunxiao17@163.com;ljtao@bjut.edu.cn
作者简介: 刘春晓（1992—），女，博士，工程师，从事岩土与地下工程和地质路基勘察设计方面的工作. orcid.org/0000-0003-4349-5878.E-mail： liuchunxiao17@163.com
服务　　
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章　　
刘春晓
陶连金
边金
张宇
冯锦华
代希彤
王兆卿

引用本文:

刘春晓,陶连金,边金,张宇,冯锦华,代希彤,王兆卿. 可液化土层对地下结构地震影响的振动台试验[J]. 浙江大学学报(工学版), 2021, 55(7): 1327-1338.

Chun-xiao LIU,Lian-jin TAO,Jin BIAN,Yu ZHANG,Jin-hua FENG,Xi-tong DAI,Zhao-qing WANG. Shaking table test of seismic effect of liquefiable soil layer on underground structure. Journal of ZheJiang University (Engineering Science), 2021, 55(7): 1327-1338.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2021.07.012    或    https://www.zjujournals.com/eng/CN/Y2021/V55/I7/1327

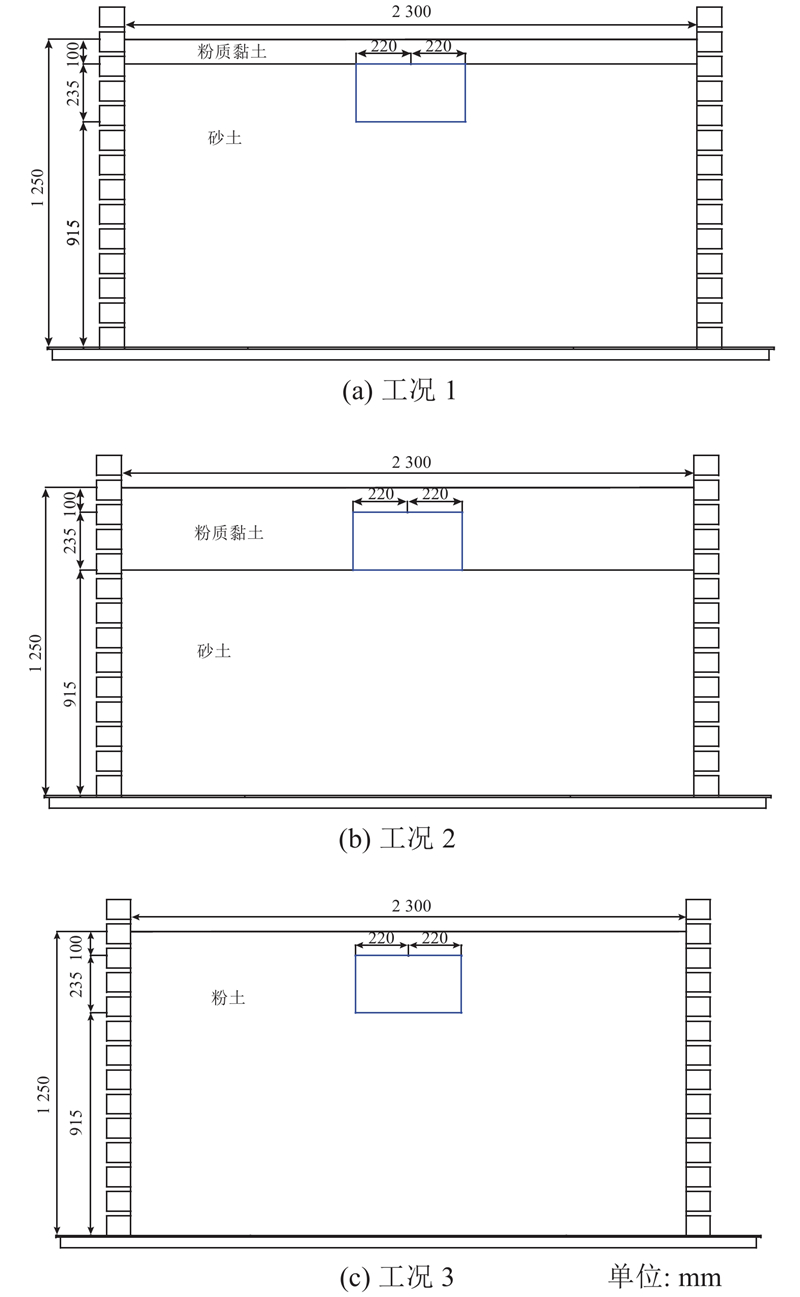

图 1  不同工况土层分布及结构位置

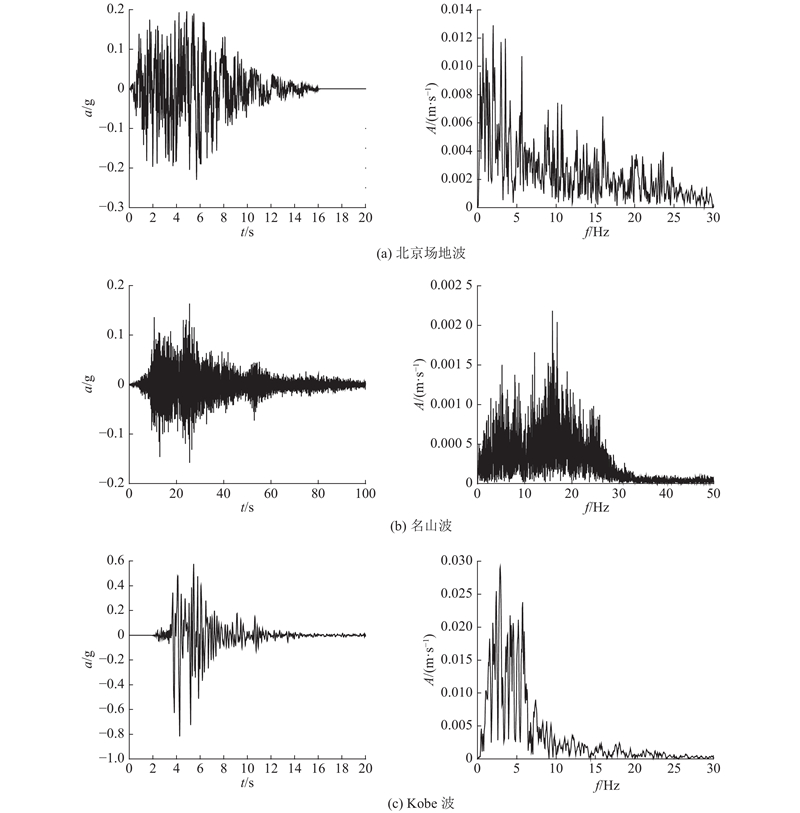

图 2  振动台试验的地震动加速度时程及傅立叶谱
图 3  地震波Arias强度
输入波类型 编号 ap Td/s
北京场地波 BJ-1 0.1 20
北京场地波 BJ-2 0.2 20
北京场地波 BJ-3 0.3 20
名山波 MS-1 0.1 150
名山波 MS-3 0.3 150
名山波 MS-5 0.5 150
Kobe波 KO-1 0.1 27
Kobe波 KO-2 0.3 27
Kobe波 KO-3 0.5 27
表 1  振动台试验加载条件
图 4  不同工况的传感器布置
图 5  不同工况加速度放大系数沿地基高度的变化
图 6  MS-5结构位移及超孔压比时程曲线
图 7  结构右侧土体超孔压比最大值水平向变化
图 8  结构右侧土体超孔压比最大值竖向变化

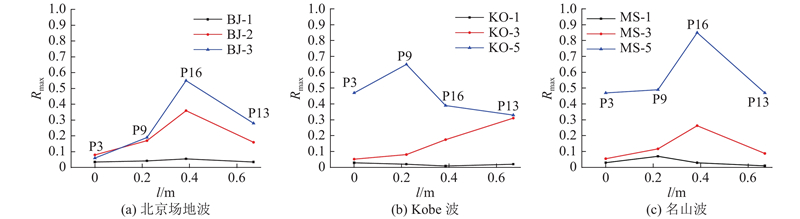

图 9  紧邻结构底部超孔压比最大值水平向变化
图 10  结构底部0.265 m深度位置超孔压比最大值水平向变化

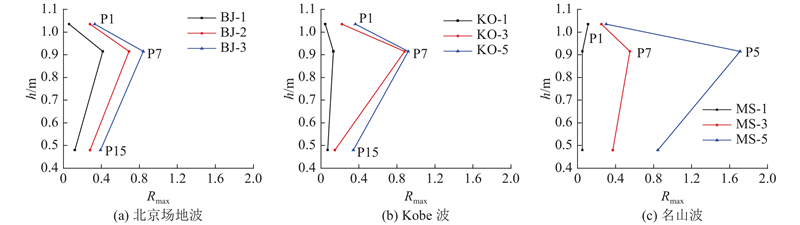

图 11  结构正下方土体超孔压比最大值随深度的变化
图 12  结构底部紧邻结构位置土体超孔压比最大值水平向变化
图 13  结构底部0.265 m埋深位置土体超孔压比最大值水平向变化
图 14  结构底部0.425 m埋深位置土体超孔压比最大值水平向变化
图 15  模型中线右半区域场地超孔压比峰值场
图 16  结构底部右半区域场地超孔压比峰值场

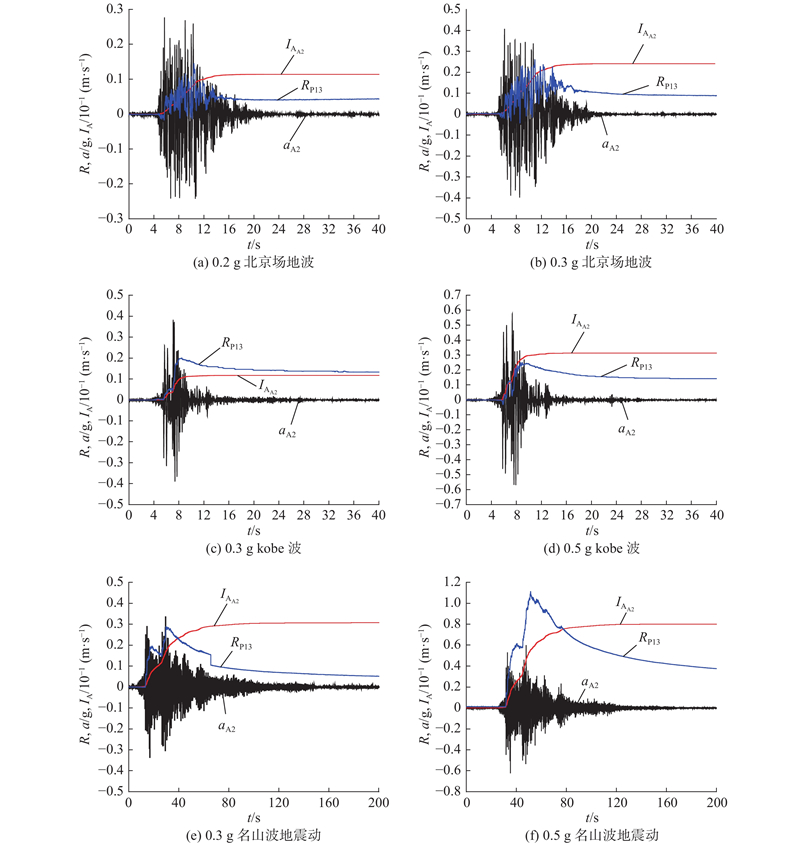

图 17  不同地震动作用下监测点超孔压比时程、地震加速度时程和Arias强度的关系
