支护压力控制下隧道周围砂土变形破坏物质点法模拟
张春新(),朱鸿鹄*(),李豪杰,张巍,刘春
南京大学 地球科学与工程学院，江苏 南京 210023
Material point method simulations of sand deformation and failure around tunnel controlled by support pressure
Chun-xin ZHANG(),Hong-hu ZHU*(),Hao-jie LI,Wei ZHANG,Chun LIU
School of Earth Sciences and Engineering, Nanjing University, Nanjing 210023, China
 全文: PDF(2009 KB)   HTML
摘要：

为了探究隧道周围砂土地层在支护压力减小过程中的变形破坏机理，利用能够进行岩土大变形分析的物质点法（MPM）对该过程进行数值模拟. 研究隧道周围土体的剪切带特征、土拱效应、MPM地面沉降槽形态以及支护压力与地层位移间的关系；验证该数值方法研究隧道诱发变形的可靠性. 对比预测结果与已有试验和理论表明，MPM能够准确预测出隧道支护压力降低引起的地层变形和极限支护压力，并且可以得到地层整体失稳及坍塌后的变形行为. 在此基础上，分析隧道埋深比和砂土内摩擦角对变形过程中土拱效应强弱、极限支护压力和地层变形的影响.
关键词： 隧道施工;  物质点法（MPM）;  土拱效应;  极限支护压力;  沉降槽
Abstract:

To explore the deformation and failure mechanism of sand foundation induced by the decrease of tunnel support pressure, the material point method (MPM), a large deformation analyzing method in geotechnical engineering was used to simulate the whole process. The characteristics of localized shear bands, the arching effect, the settlement trough shape, and the relationship between support pressure and ground movement were investigated. The reliability of MPM in analyzing tunnel-induced soil deformation was verified. By comparing the simulated results with experimental and theoretical data, it is shown that MPM can accurately predict the ground deformation caused by the reduction of tunnel support pressure and the ultimate support pressure, and obtain the overall deformation behavior before and after tunnel collapse. On this basis, the influence of cover depth-to-diameter ratios and friction angles on the arching effect, the limiting support pressure and the strata deformation were investigated.
Key words: tunnel construction    material point method (MPM)    soil arching effect    ultimate support pressure    settlement trough
收稿日期: 2020-07-25 出版日期: 2021-07-05
CLC:  TU 43
基金资助: 国家自然科学基金资助项目（42077235，41722209，41672277）
通讯作者: 朱鸿鹄     E-mail: cxzhang@smail.nju.edu.cn;zhh@nju.edu.cn
作者简介: 张春新（1997—），男，硕士生，从事岩土大变形数值模拟研究. orcid.org/0000-0003-4285-5050.E-mail： cxzhang@smail.nju.edu.cn
服务　　
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章　　
张春新
朱鸿鹄
李豪杰
张巍
刘春

引用本文:

张春新,朱鸿鹄,李豪杰,张巍,刘春. 支护压力控制下隧道周围砂土变形破坏物质点法模拟[J]. 浙江大学学报(工学版), 2021, 55(7): 1317-1326.

Chun-xin ZHANG,Hong-hu ZHU,Hao-jie LI,Wei ZHANG,Chun LIU. Material point method simulations of sand deformation and failure around tunnel controlled by support pressure. Journal of ZheJiang University (Engineering Science), 2021, 55(7): 1317-1326.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2021.07.011    或    https://www.zjujournals.com/eng/CN/Y2021/V55/I7/1317

图 1  模型尺寸及物质点离散

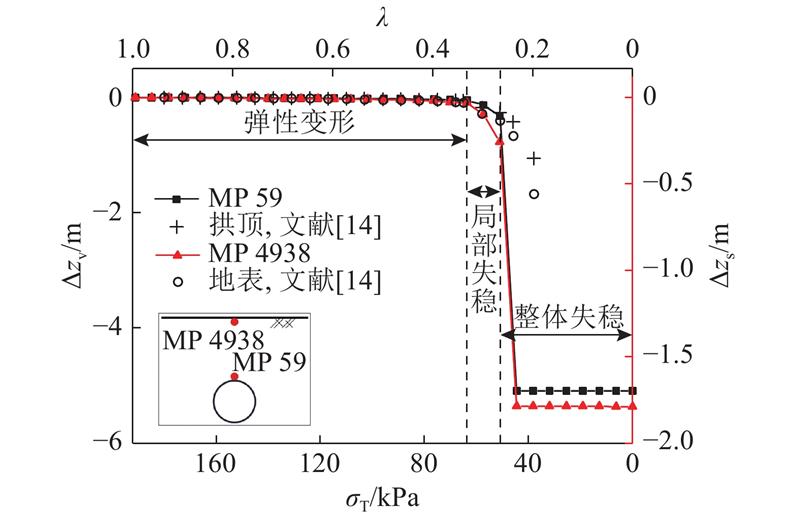

图 2  支护压力−地面沉降曲线

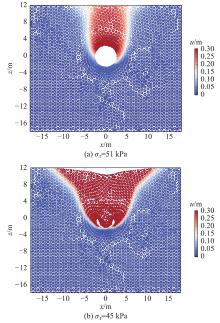

图 3  不同支护压力下的土体位移云图（C/D=1.5，φ=25°）
图 4  不同支护压力下的土体偏应变云图（C/D=1.5，φ=25°）
图 5  σT=51 kPa时土体体应变云图（C/D=1.5，φ=25°）

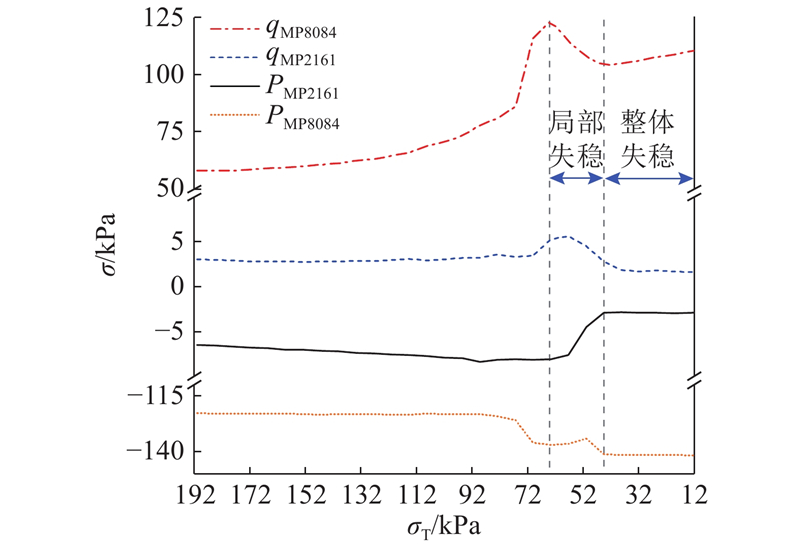

图 6  剪切带内两物质点的应力变化

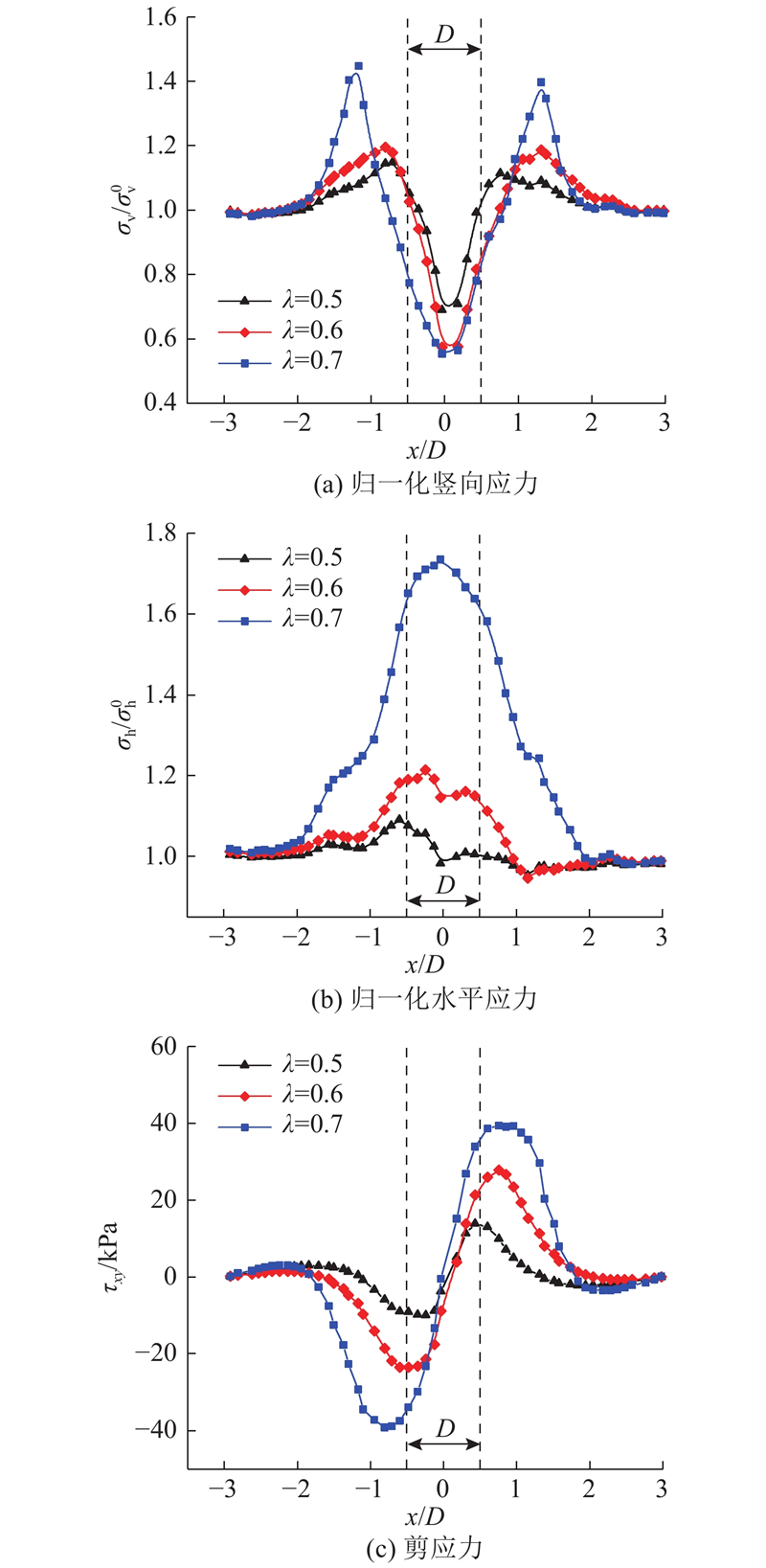

图 7  上覆土层的应力分布

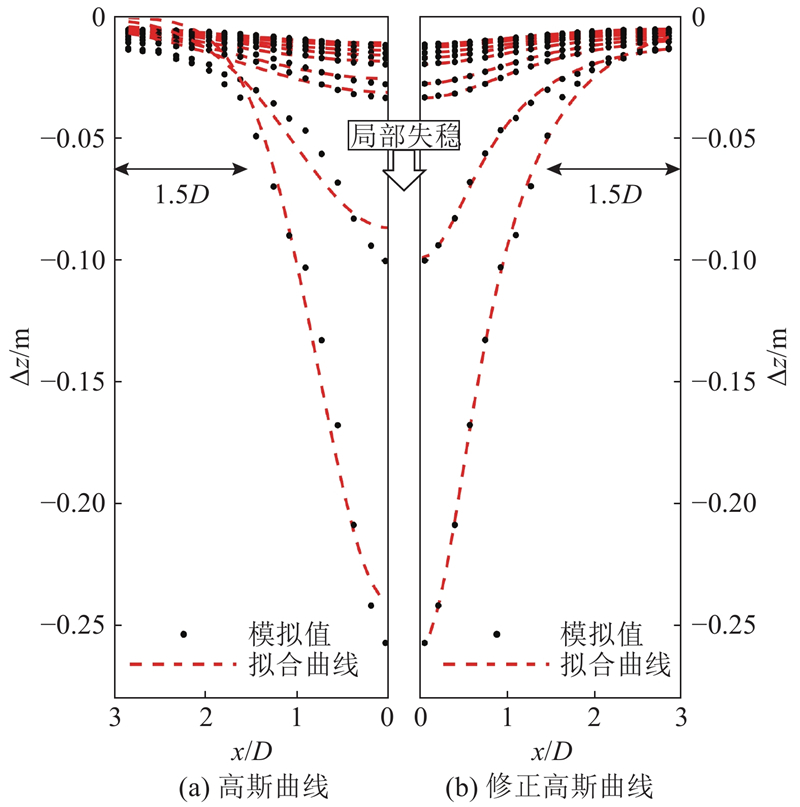

图 8  地面沉降拟合曲线（C/D=1.5，φ=25°）

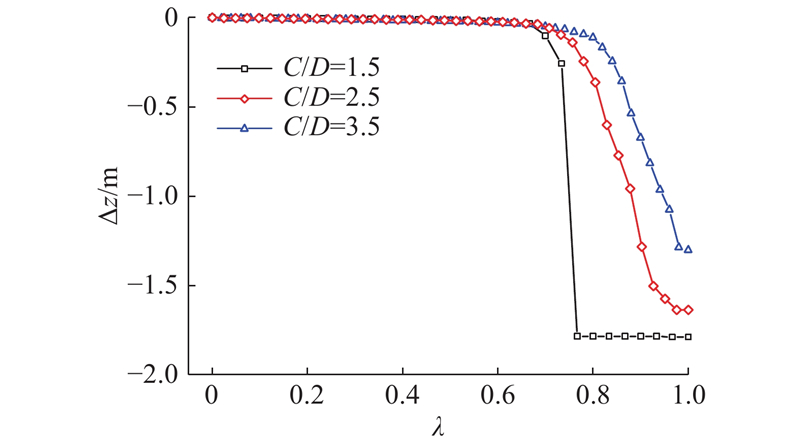

图 9  不同埋深条件下压力折减系数与地面沉降关系曲线
C/D σTL/kPa λ
1.5 51 0.73
2.5 63 0.78
3.5 64 0.84
表 1  不同埋深条件下的极限支护压力
图 10  不同压力折减系数下土体偏应变云图

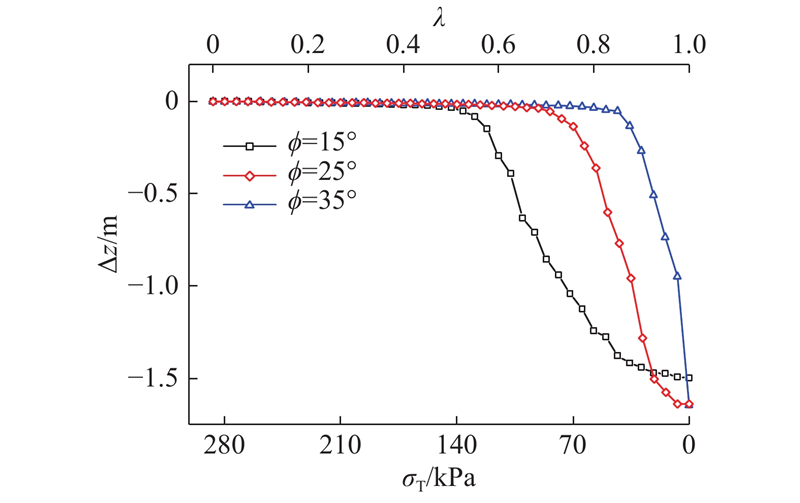

图 11  不同砂土内摩擦角下压力折减系数与地面沉降关系
φ/（°） σTL/kPa λ
15 129 0.55
25 66 0.77
35 43 0.85
表 2  不同内摩擦角的极限支护压力

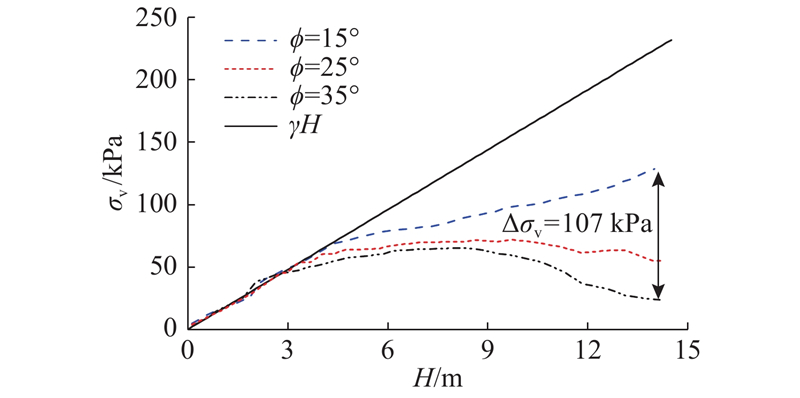

图 12  土体中竖向应力沿深度的分布

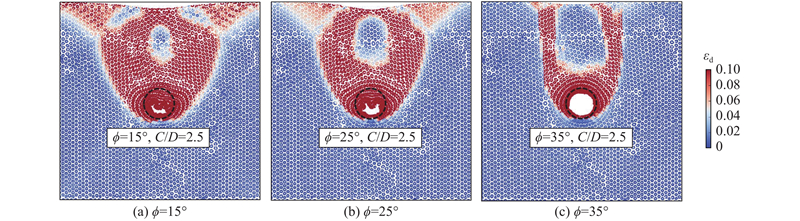

图 13  λ=0.95时不同内摩擦角条件下的土体偏应变云图
