Back analysis of shear strength parameters of sliding surface by using combination method of random field and Bayes theory
Yang XUE(),Yi-ping WU*(),Fa-sheng MIAO,Lin-wei LI
Engineering Faculty, China University of Geosciences, Wuhan 430074, China
 全文: PDF(1882 KB)   HTML
摘要：

为了合理地表征滑面的抗剪强度参数，针对参数的空间变异性与不确定性问题，以三峡库区白水河滑坡为例，基于随机场、自适应条件抽样与可靠度贝叶斯更新方法，建立滑面抗剪强度参数的反演框架. 采用新的全局敏感性方法PAWN，研究不同位置条块滑面抗剪强度参数对稳定性的贡献度. 基于滑面抗剪强度参数随机场模型的反演结果，开展库水位下降工况下非侵入式随机有限元滑坡渗流变形的模拟，分析更新前、后滑面抗剪强度参数的变化特征及空间变异性对滑坡变形的影响. 结果表明：敏感度大的区域分布在滑坡前缘和后缘道路附近；反演后平稳随机场变为非平稳状态，滑坡前、后缘的位移变异性分别增大和减小.
关键词： 抗剪强度参数;  滑带;  随机场模型;  贝叶斯反演;  全局敏感性
Abstract:

The process of back analysis was constructed based on the random field method, adaptive conditional sampling algorithm and Bayesian updating with structural reliability method by taking Baishuihe landslide as a case in order to characterize the spatial variability and uncertainty of shear strength parameters in sliding zone. A new global sensitivity analysis method named PAWN was adopted to analyze the relative influence of shear strength parameters of slices on the factor of safety. The seepage-deformation simulation with non-intrusive stochastic finite element method was conducted based on the inversion results of the random field model for sliding surface. The variation characteristic and spatial variability before and after update was explored, and its effect on the displacement was analyzed. Results show that the area of large sensitivity index is located on the front and trailing edge of landslide. The non-stationary random field is formed after the inversion. The displacement variability on the trailing edge decreases, while that on the front of landslide increases.
Key words: shear strength parameter    sliding zone    random field model    Bayesian updating    global sensitivity
收稿日期: 2020-05-22 出版日期: 2021-07-30
CLC:  P 66
基金资助: 国家重点研发计划资助项目（2017YFC1501301）；国家自然科学基金资助项目（41977244，42007267）
通讯作者: 吴益平     E-mail: EGXYang@163.com;ypwu@cug.edu.cn
作者简介: 薛阳（1994—），男，博士生，从事斜坡工程稳定性评价的研究. orcid.org/0000-0002-6814-4428. E-mail： EGXYang@163.com
服务　　
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章　　
薛阳
吴益平
苗发盛
李麟玮

引用本文:

薛阳,吴益平,苗发盛,李麟玮. 基于随机场-贝叶斯的滑面抗剪强度参数反演[J]. 浙江大学学报(工学版), 2021, 55(6): 1118-1127.

Yang XUE,Yi-ping WU,Fa-sheng MIAO,Lin-wei LI. Back analysis of shear strength parameters of sliding surface by using combination method of random field and Bayes theory. Journal of ZheJiang University (Engineering Science), 2021, 55(6): 1118-1127.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2021.06.012    或    https://www.zjujournals.com/eng/CN/Y2021/V55/I6/1118

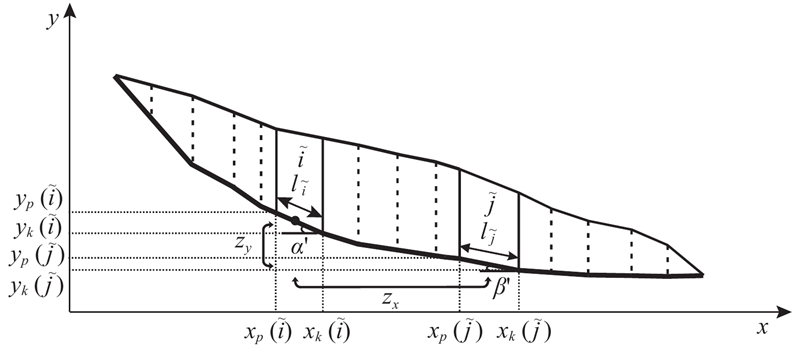

图 1  滑坡任意2个条块 $\tilde i$和 $\tilde j$的信息示意图

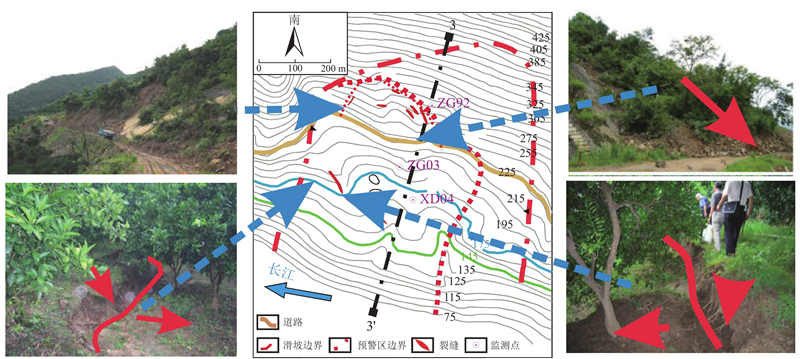

图 2  白水河滑坡平面图与变形破坏现场图片
材料 $\gamma $ /（kN·m?3） E /MPa c /kPa $\varphi $ /（°） $\mu$ ${K_{\rm{s}}}$ /（m·d?1）
滑体 20.7 36.5 32.4 18 0.32 0.35
滑带 22.0 1.88 — — 0.33 0.22
表 1  岩土体的物理力学参数

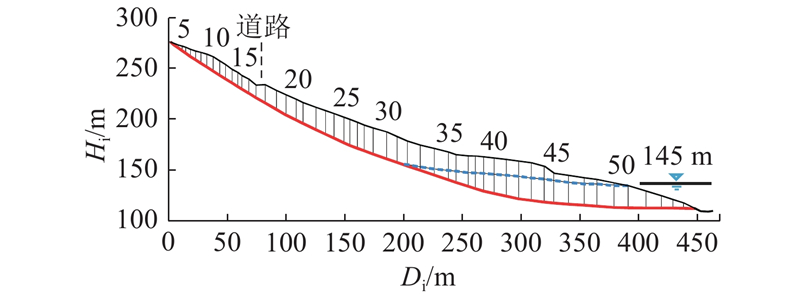

图 3  白水河滑坡3-3′剖面条块划分

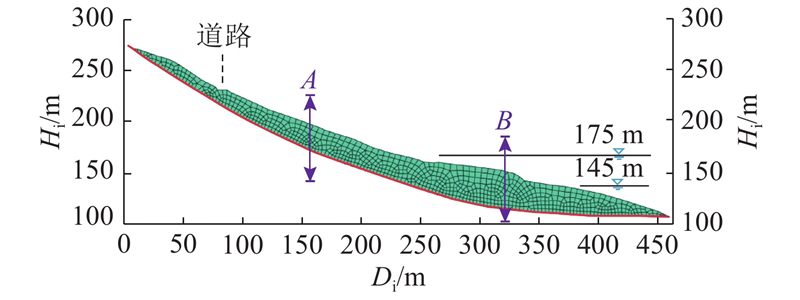

图 4  白水河滑坡3-3′剖面有限元模型

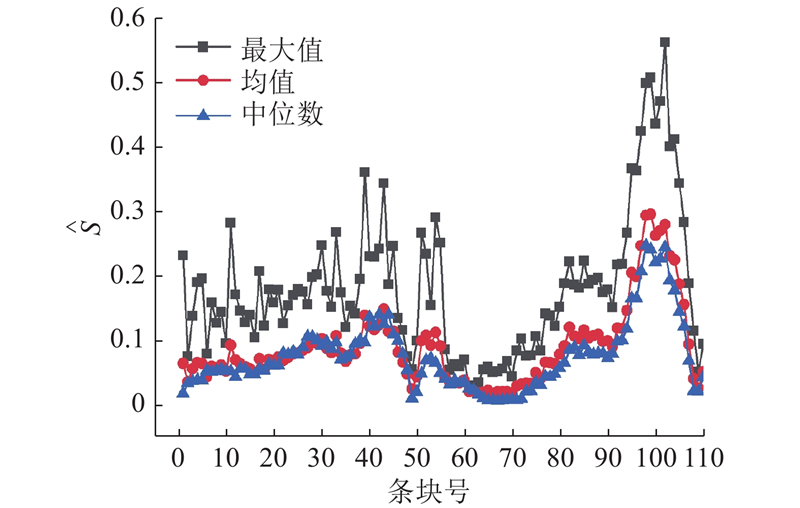

图 5  stat取不同状态时的敏感性结果
图 6  条块滑面抗剪强度参数对稳定系数的敏感度

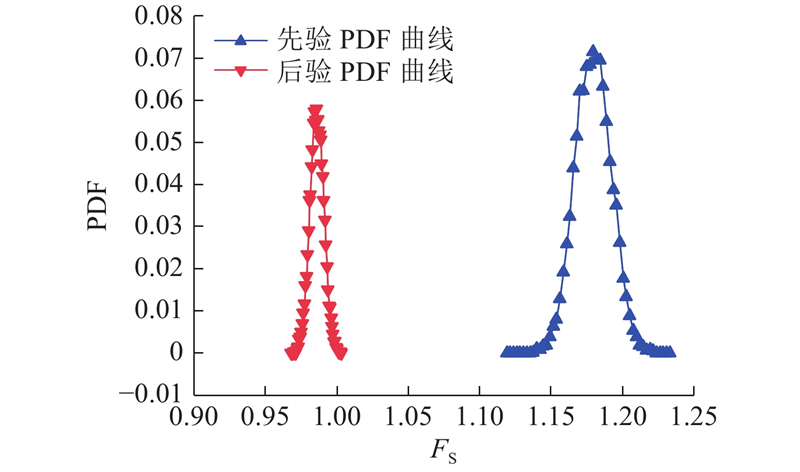

图 7  稳定系数的先、后验PDF曲线

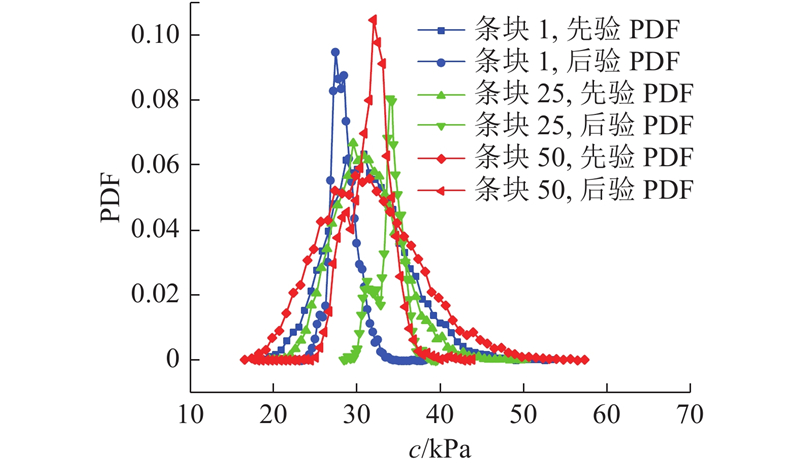

图 8  不同位置条块的黏聚力先、后验PDF曲线

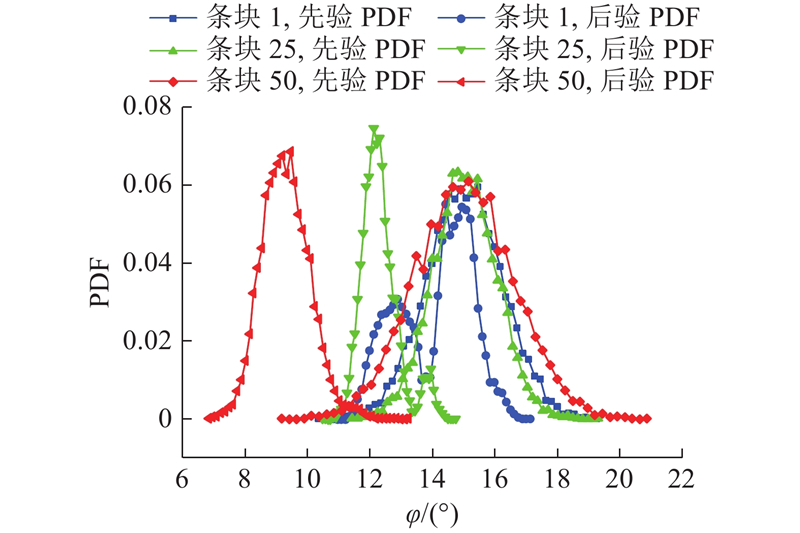

图 9  不同位置条块的摩擦角先、后验PDF曲线

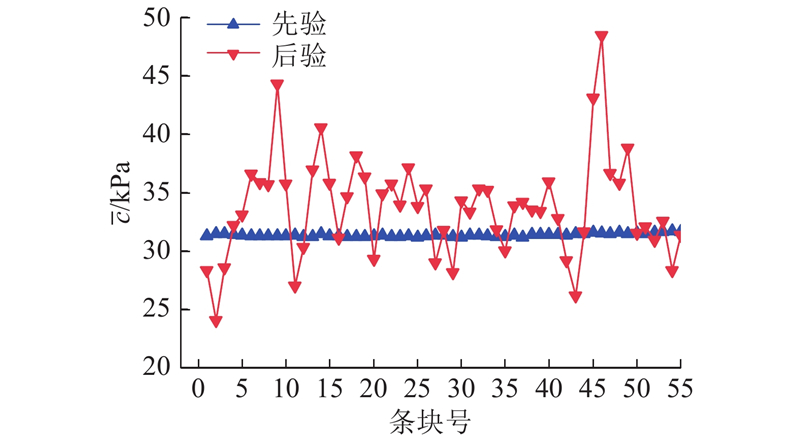

图 10  反演前、后的各条块黏聚力均值

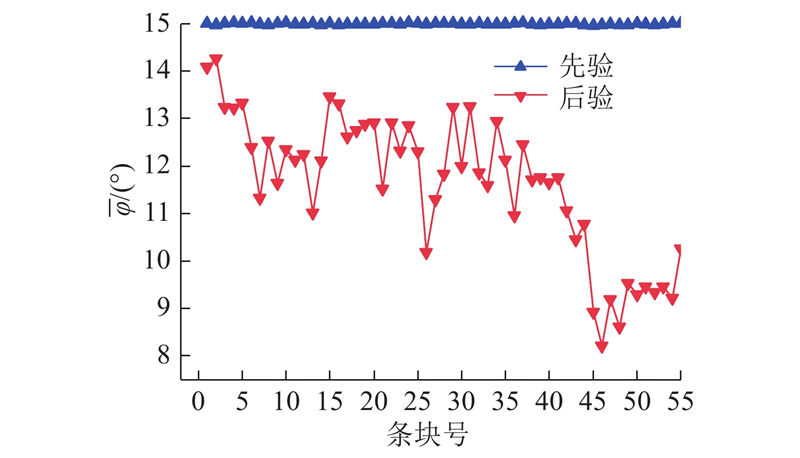

图 11  反演前、后的各条块摩擦角均值

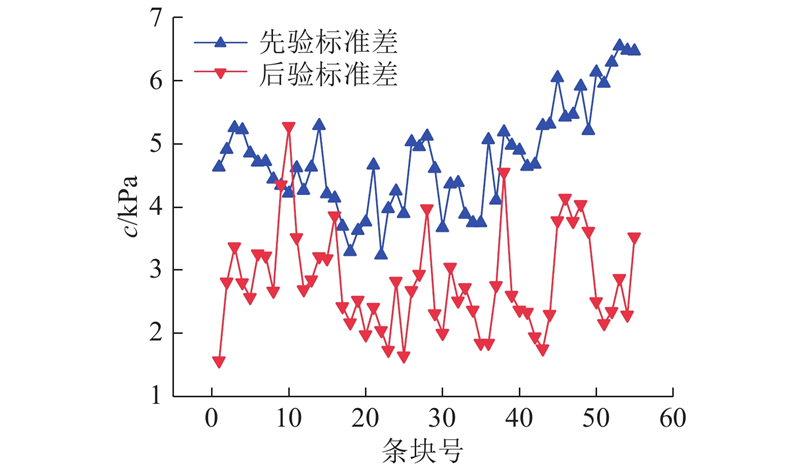

图 12  反演前、后的各条块黏聚力标准差

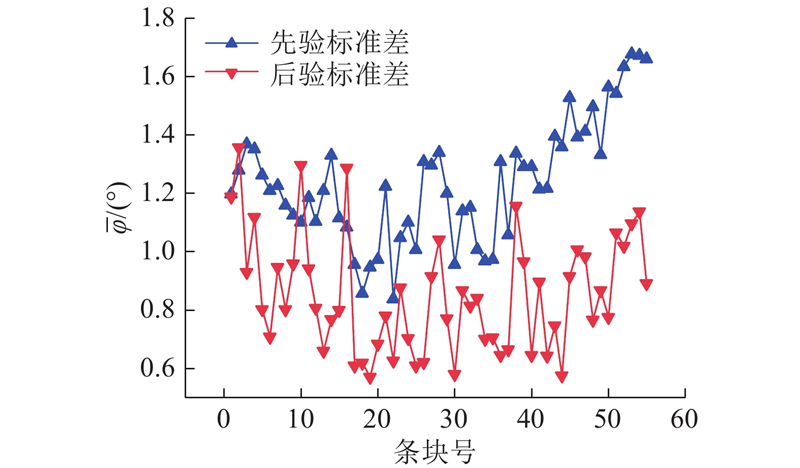

图 13  反演前、后的各条块摩擦角标准差

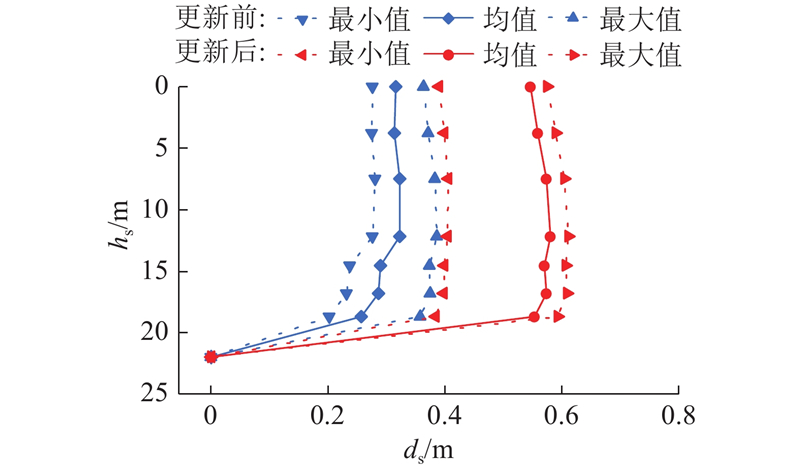

图 14  反演前、后A剖面处的位移

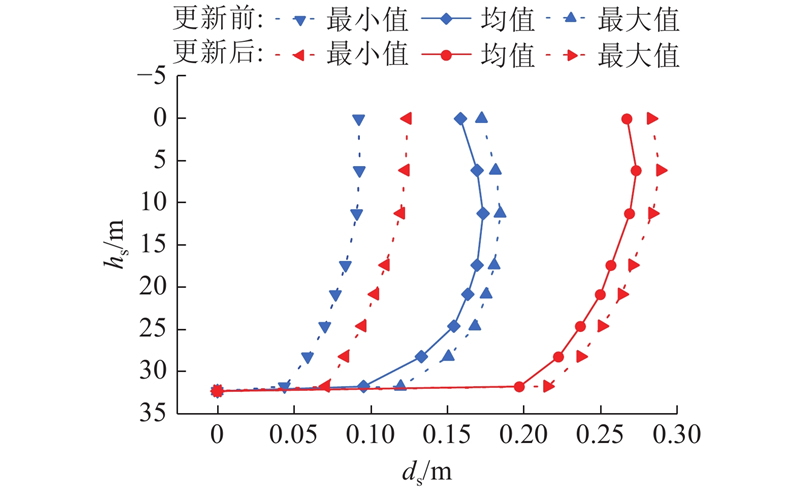

图 15  反演前、后B剖面处的位移
图 16  反演前、后A、B剖面处位移的变异系数
