浙江大学学报(工学版)  2026, Vol. 60 Issue (12): 2735-2744    DOI: 10.3785/j.issn.1008-973X.2026.12.019
土木工程、交通工程
考虑断层破裂过程影响的地震动似点源模拟方法
谢旭(),谢翼遥,郝旭
浙江大学 建筑工程学院,浙江 杭州 310058
Quasi-point-source ground motion simulation method considering fault rupture process
Xu XIE(),Yiyao XIE,Xu HAO
College of Civil Engineering and Architecture, Zhejiang University, Hangzhou 310058, China
 全文: PDF(2198 KB)   HTML
摘要:

为了改善格林函数法在地震动时程模拟中非平稳性的模拟效果,提出改进方法——似点源法. 以考虑与不考虑断层破裂过程时振幅谱的比值作为修正系数,对点源模型进行修正,并采用修正后的点源模型计算地震动振幅谱. 基于因果性函数的分解理论,将地震动相位谱表示为全域通过函数与最小相位推移函数的合成,两者分别依据历史记录的相位特性及因果性约束条件确定. 由上述振幅谱与相位谱的傅里叶逆变换得到地震动时程. 以假设地震和2024年台湾省花莲地震为例进行验证. 结果表明,模拟结果能够反映地震动的方向性效应,模拟所得地震动时程的非平稳性与历史记录相符;30个台站在0~10 s内全周期段的反应谱模拟误差(Misfit)均小于0.3,且标准差小于0.15.

关键词: 地震动模拟;  似点源法;  方向性效应;  时程因果性
Abstract:

An improved method, termed the quasi-point-source method, was proposed to improve the performance of the Green’s function method in simulating the non-stationarity of ground motion time histories. The ratio of the amplitude spectrum with consideration of the fault rupture process to that without consideration was used as a correction coefficient to modify the point-source model. Then the modified point-source model was used to calculate the ground motion amplitude spectrum. The ground motion phase spectrum was expressed as the product of all-pass function and minimum-phase shift function based on the decomposition theory of causal functions. All-pass function and minimum-phase shift function were determined by the phase characteristics of historical records and the causality constraint, respectively. Then the ground motion time histories were obtained from the above amplitude spectrum and phase spectrum through inverse Fourier transform. The method was verified by a hypothetical earthquake and the 2024 Hualien earthquake in Taiwan Province. Results showed that the simulation results could reflect the directivity effect of ground motion, and the non-stationarity of the simulated ground motion time histories accorded with that of historical records. The response spectrum simulation error (Misfit) over the entire period range within 0–10 s was less than 0.3 for 30 stations, and the standard deviation was less than 0.15.

Key words: ground motion simulation    quasi-point-source method    directivity effect    time history causality
收稿日期: 2025-12-11 出版日期: 2026-10-21
CLC:  P 315
基金资助: 国家自然科学基金资助项目(52178174).
作者简介: 谢旭(1963—),男,教授,博士,从事桥梁结构抗震设计研究. orcid.org/0000-0002-4247-0487. E-mail:xiexu@zju.edu.cn
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章
谢旭
谢翼遥
郝旭

引用本文:

谢旭,谢翼遥,郝旭. 考虑断层破裂过程影响的地震动似点源模拟方法[J]. 浙江大学学报(工学版), 2026, 60(12): 2735-2744.

Xu XIE,Yiyao XIE,Xu HAO. Quasi-point-source ground motion simulation method considering fault rupture process. Journal of ZheJiang University (Engineering Science), 2026, 60(12): 2735-2744.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2026.12.019    或    https://www.zjujournals.com/eng/CN/Y2026/V60/I12/2735

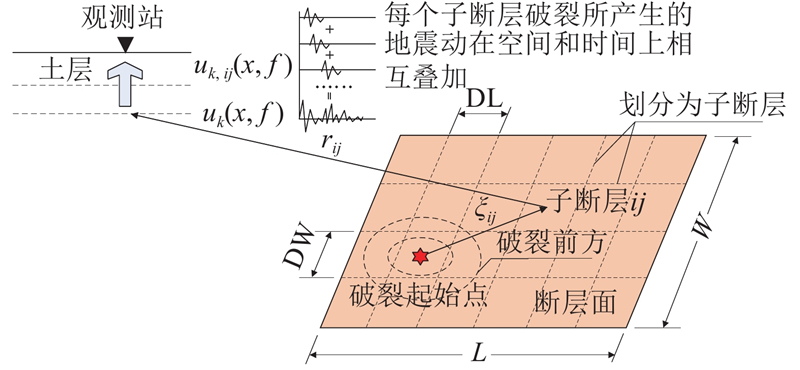

图 1  随机格林函数法原理示意图

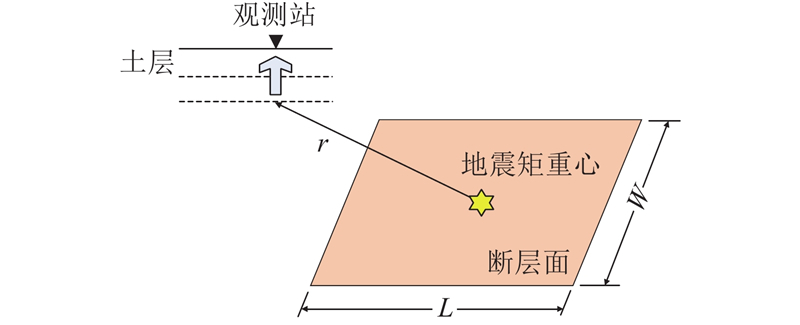

图 2  似点源模型的示意图

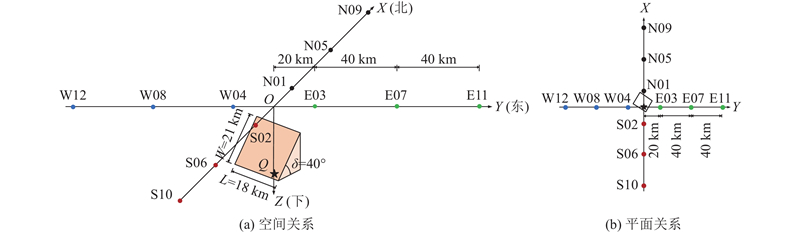

图 3  断层方位以及观测点位置
断层参数数值断层参数数值
走向/(°)122应力降/MPa5.0
倾角/(°)40地震矩/(N·m)1.3×1019
滑动角/(°)101平均滑动量/m1.0185
断层长度/km18震源介质密度/(g·cm?3)2.8
断层宽度/km21震源介质剪切波速/(km·s?1)3.7
断层顶部深度/km5.00破裂传播速度/(km·s?1)3.0
断层底部深度/km20.4——
表 1  假想断层参数

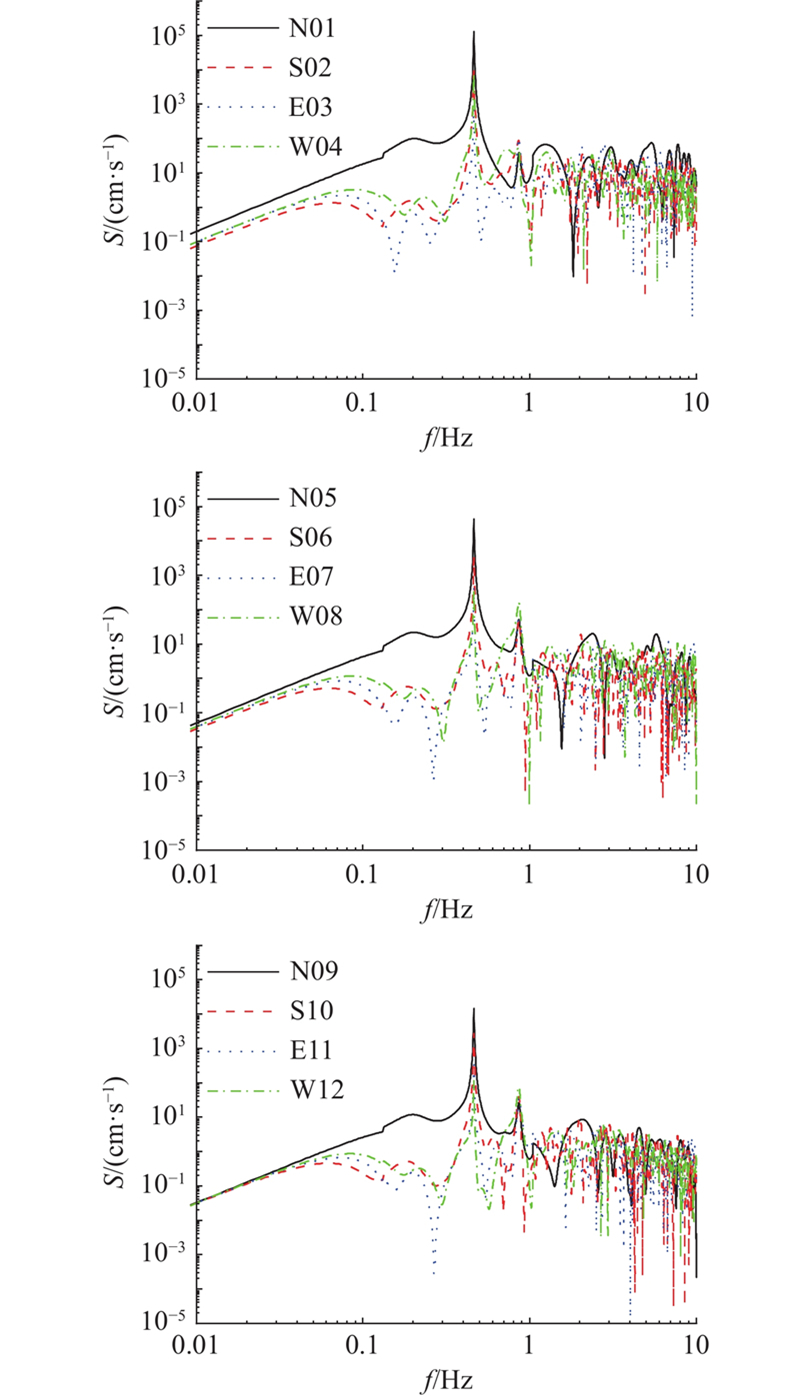

图 4  各观测点的振幅谱
断层参数数值断层参数数值
走向/(°)26地震矩/(N·m)1.411×1020
倾角/(°)58平均滑动量/m0.5501
断层长度/km80.0震源介质密度/(g·cm?3)2.8
断层宽度/km53.3震源介质剪切波速/(km·s?1)3.60
断层顶部深度/km2.70破裂传播速度/(km·s?1)2.63
断层底部深度/km49.5——
表 2  台湾省花莲地震断层参数

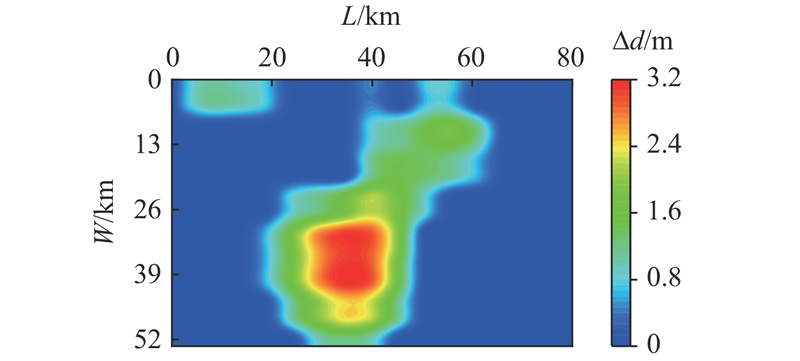

图 5  断层滑动量分布图

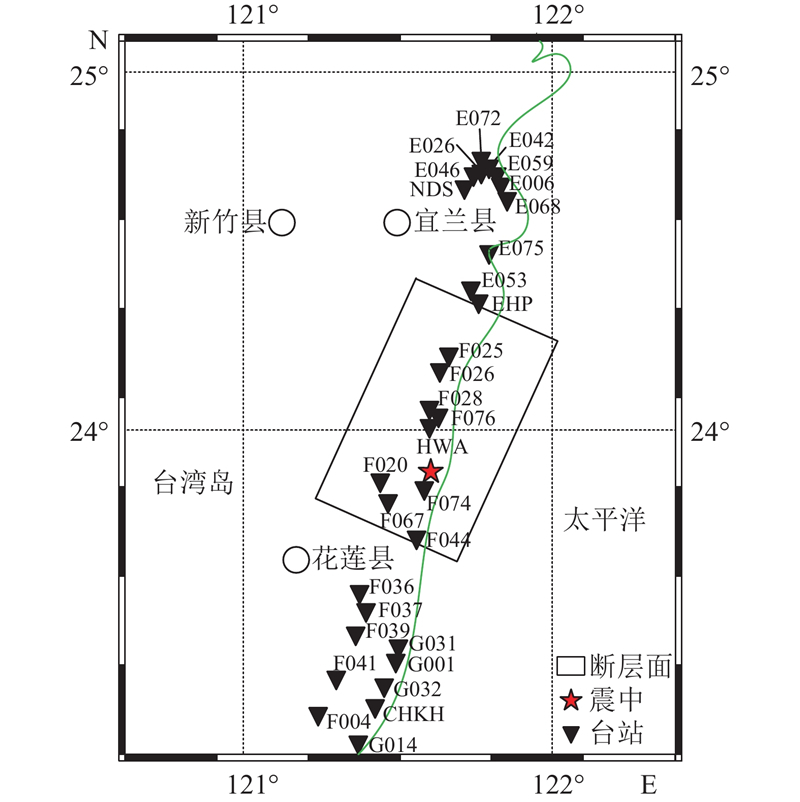

图 6  台湾省花莲地震台站分布图
台站名纬度经度Rrup/kmNEHRP场地分类
E00624.6396121.832799.3160D
F00423.1727121.248389.1720D
F02524.1624121.652451.3380C
F02824.0144121.609440.9060C
F03623.4977121.374556.4780C
F07423.7875121.562736.1080C
F07623.9888121.628539.6460C
HWA23.9800121.610039.1510C
表 3  台湾省花莲地震台站信息

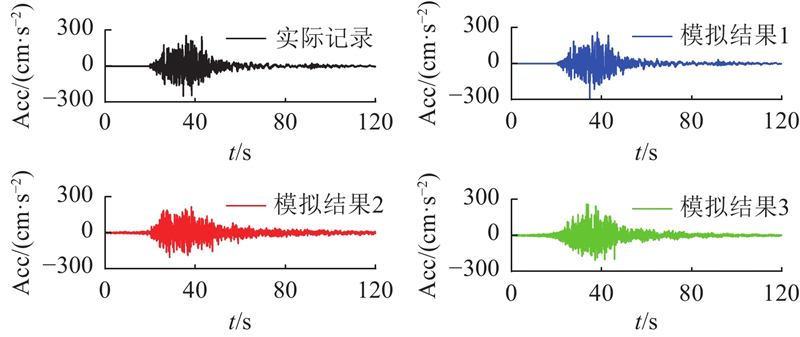

图 7  相位谱模拟方法验证(HWA台站)

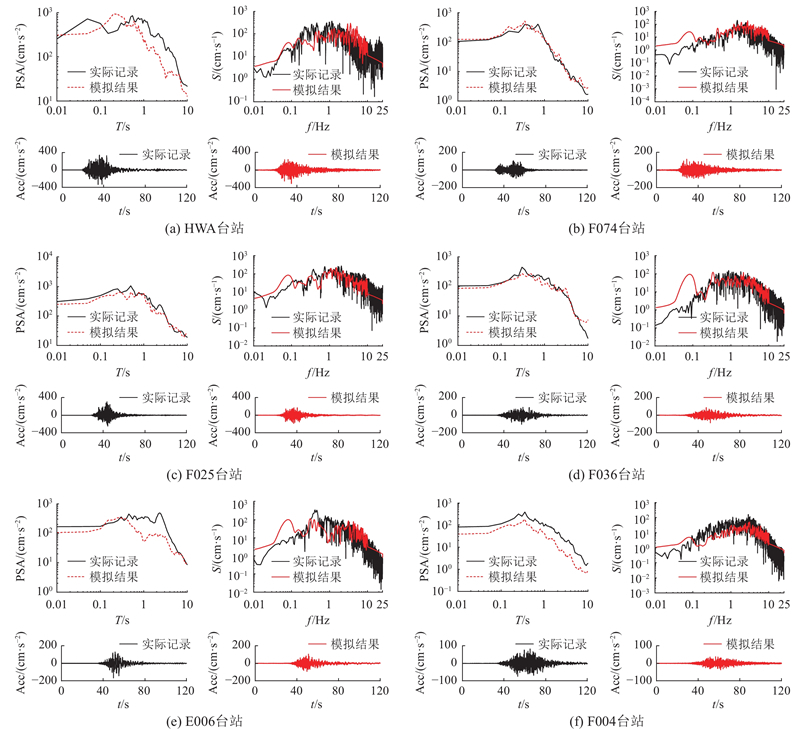

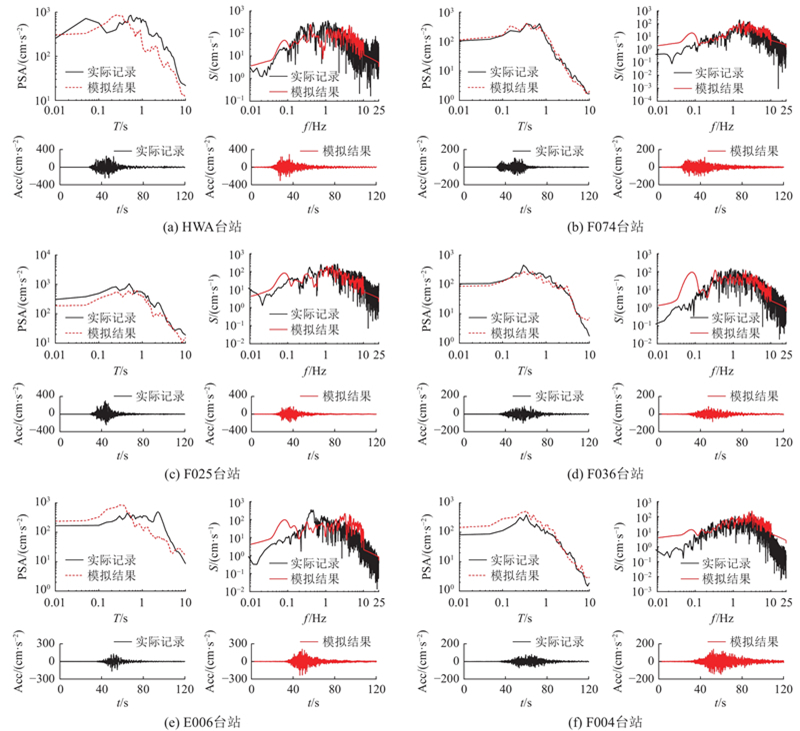

图 8  反应谱、振幅谱及时程模拟结果对比
图 9  几何衰减函数调整后的模拟结果对比

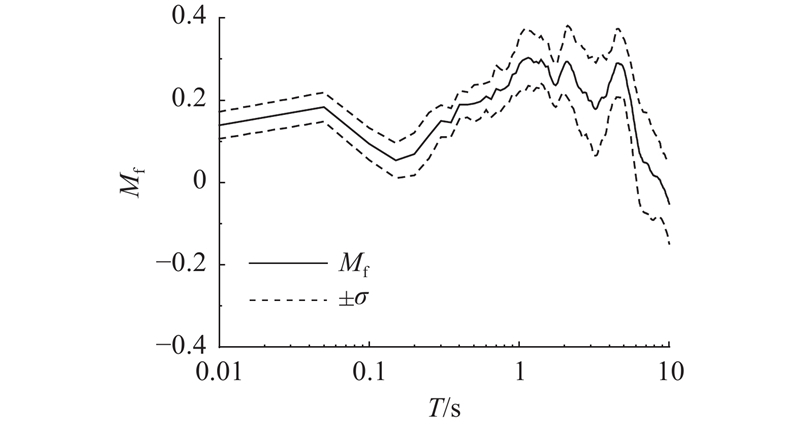

图 10  加速度反应谱的模拟误差分析

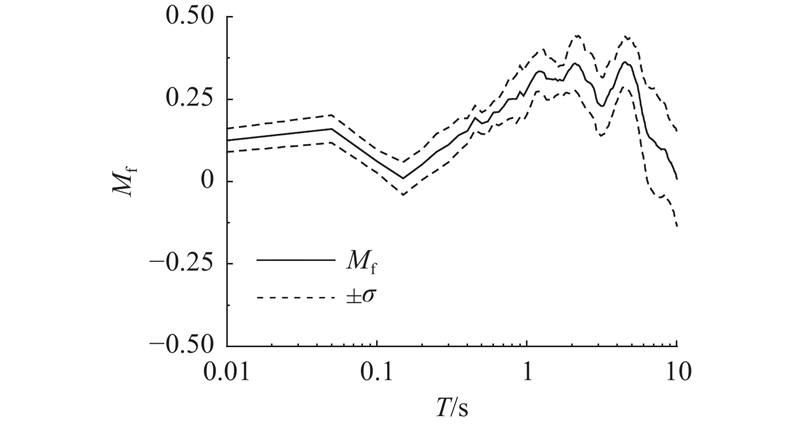

图 11  调整黏滞衰减系数后的反应谱模拟误差分析
6 Sun Xiaodan, Tao Xiaxin Stochastic modelling of ground motions for the Wenchuan earthquake using dynamic corner frequency[J]. China Civil Engineering Journal, 2013, 46 (S2): 124- 129
doi: 10.15951/j.tmgcxb.2013.s2.001
7 李启成, 何书耕, 闵也, 等 用随机有限断层方法模拟2016-11-13新西兰Mw7.8地震[J]. 大地测量与地球动力学, 2019, 39 (12): 1237- 1242
Li Qicheng, He Shugeng, Min Ye, et al Simulation of Amberley New Zealand November 13, 2016 Mw7.8 earthquake using stochastic finite fault method[J]. Journal of Geodesy and Geodynamics, 2019, 39 (12): 1237- 1242
doi: 10.14075/j.jgg.2019.12.005
8 Wang T J, Shen Y G, Xie X, et al Ground motion simulation for the 21 May 2021 Ms 6.4 Yangbi, China, earthquake using stochastic finite-fault method[J]. Earthquake Spectra, 2023, 39 (1): 528- 550
doi: 10.1177/87552930221129636
9 Wang T J, Xie X, Shen Y G, et al Stochastic finite-fault modelling of Ms 6.8 Luding earthquake in 2022 and seismic hazard scenario of Moxi Fault, Southwest China[J]. Bulletin of Earthquake Engineering, 2023, 21: 4731- 4753
10 Ji L F, Xie X, Pan X Y Stochastic Green’s function method considering non-uniform rise time distribution to simulate 3D broadband ground motion[J]. Applied Sciences, 2024, 14 (21): 9796
doi: 10.3390/app14219796
11 谢旭, 庞博, 余刚群, 等 台湾省强地震引起的浙江地震动预测模型[J]. 浙江大学学报(工学版), 2025, 59 (8): 1738- 1745
Xie Xu, Pang Bo, Yu Gangqun, et al Prediction model for ground motion in Zhejiang Province induced by Taiwan strong earthquake[J]. Journal of Zhejiang University (Engineering Science), 2025, 59 (8): 1738- 1745
12 加藤研一, 久田嘉章, 石田寛, など 東京臨海部を対象とした想定地震に基づく設計用地震動評価例[J]. 日本建築学会技術報告集, 2017, 23 (53): 53- 58
Kato K, Hisada Y, Ishida H, et al Design earthquake ground motions for the scenario earthquakes at Tokyo bay area[J]. AIJ Journal of Technology and Design, 2017, 23 (53): 53- 58
doi: 10.3130/aijt.23.53
13 Dang P F, Cui J, Liu Q F, et al Slip-correlated high-frequency scaling factor for stochastic finite-fault modeling of ground motion[J]. Bulletin of the Seismological Society of America, 2022, 112 (3): 1472- 1482
doi: 10.1785/0120210293
14 久田嘉章 統計的グリーン関数法を用いた広帯域強震動計算における中間周波数帯の振幅の落ち込みの原因と改善法[J]. 日本地震工学会論文集, 2020, 20 (7): 46- 68
Hisada Y Causes and remedies of Fourier amplitude sags at intermediate frequencies for simulating broad band strong ground motions using stochastic Green's function methods[J]. Journal of Japan Association for Earthquake Engineering, 2020, 20 (7): 46- 68
15 Xie X, Hao X, Ji L F Improvement of source spectrum fall-off for simulating ground motion using stochastic Green’s function method[J]. Earth and Space Science, 2024, 14 (21): e2024EA003597
doi: 10.1029/2024ea003597
1 韩建平, 柴文阳, 石岩, 等 近断层脉冲型地震动作用下简支梁桥地震响应与损伤分析[J]. 地震工程学报, 2025, 47 (2): 251- 262
Han Jianping, Chai Wenyang, Shi Yan, et al Seismic response and damage analysis of simply supported beam bridges under near-fault pulse-type ground motions[J]. China Earthquake Engineering Journal, 2025, 47 (2): 251- 262
doi: 10.20000/j.1000-0844.20231021001
16 香川敬生 ハイブリッド合成法に用いる統計的グリーン関数法の長周期帯域への拡張[J]. 日本地震工学会論文集, 2004, 4 (2): 21- 32
Kagawa T Developing a stochastic Green’s function method having more accuracy in long period range to be used in the hybrid method[J]. Journal of Japan Association for Earthquake Engineering, 2004, 4 (2): 21- 32
doi: 10.5610/jaee.4.2_21
17 谢旭, 黄文彤, 冀龙飞等 断层破裂过程对减隔震桥梁地震反应的影响[J]. 浙江大学学报(工学版), 2021, 55 (12): 2225- 2233
Xie Xu, Huang Wentong, Ji Longfei, et al Influence of fault rupture process on seismic responses of seismic isolation bridges[J]. Journal of Zhejiang University (Engineering Science), 2021, 55 (12): 2225- 2233
18 Ji L F, Xie X, Pan X Y Improvement of stochastic Green’s function method for 3D broadband ground-motion simulation[J]. Seismological Research Letters, 2022, 94 (1): 331- 349
doi: 10.1785/0220220010
19 Katukura H , Ohno S , Izumi M Symmetrical FFT technique and its applications to earthquake engineering[J]. Earthquake Engineering and Structural Dynamics, 1989, 18 (5): 717- 725
20 和泉正哲, 勝倉裕, 大野晋 地震動の因数分解に関する基礎的研究[J]. 日本建築学会構造系論文報告集, 1988, 390: 27- 33
Izumi M, Katukura H, Ohno S A study of deconvolution on seismic waves[J]. Journal of Structural and Construction Engineering, 1988, 390: 27- 33
21 平斯基. 傅里叶分析与小波分析导论(英文版)[M]. 1版. 北京: 机械工业出版社, 2003: 184-185.
22 白井克弘, 大町達夫. 全域通過関数による波形制御に関する基礎的研究 [J]. 構造工学論文集, 2007, 53A: 306-312.
Shirai K, Ohmachi T. Fundamental study on controlling waveforms by means of all pass function [J]. Journal of Structural Engineering, A, 2007, 53A: 306-312
23 Dang P F, Liu Q F Stochastic finite-fault ground motion simulation for the Mw 6.7 earthquake in Lushan, China[J]. Natural Hazards, 2020, 100 (3): 1215- 1241
doi: 10.1007/s11069-020-03859-3
24 野津厚. 経験的グリーン関数法のための滑り速度時間関数のより一般化された補正関数とその必要性について [J]. 地震 第2輯, 2002, 55: 233–238.
Nozu A. Necessity for a generalized expression of slip velocity correction function for use in empirical Green’s function method [J], Journal of the Seismological Society of Japan. 2nd Ser, 2002, 55: 233–238.
25 野津厚 地震動位相の微分可能性に関する補足と群遅延時間の平均·標準偏差の計算方法の改良[J]. 土木学会論文集A1(構造·地震工学), 2022, 78 (4): 737- 742
Nozu A Differentiability of phase spectrum of earthquake ground motion and improvement of numerical calculation of group delay time: a supplementary work[J]. JSCE Journal of Earthquake Engineering, 2022, 78 (4): 737- 742
26 United States Geological Survey. M 7.4: 15 km S of Hualien City, Taiwan [EB/OL]. [2025-10-20]. https://earthquake.usgs.gov/earthquakes/eventpage/us7000m9g4/finite-fault.
27 Hualien City Earthquake of 02 Apr 2024 [EB/OL]. [2025-10-20]. https://www.strongmotioncenter.org/cgi-bin/CESMD/iqr_dist_DM2.pl?ID=us7000m9g4.
28 Yamazaki F, Ansary M A Horizontal-to-vertical spectrum ratio of earthquake ground motion for site characterization[J]. Earthquake Engineering and Structural Dynamics, 1997, 26 (7): 671- 689
doi: 10.1002/(SICI)1096-9845(199707)26:7<671::AID-EQE669>3.0.CO;2-S
29 Chung J K, Chen Y L, Shin T C. Spatial distribution of coda Q estimated from local earthquakes in Taiwan area [J]. Earth Planet, 2009, Sp 61: 1077–1088.
30 Hsu H J, Wen S, Chen C H 3D topography of the Moho discontinuity in the Taiwan area as extracted from travel time inversion of PmP phases[J]. Journal of Asian Earth Sciences, 2011, 41 (3): 335- 343
doi: 10.1016/j.jseaes.2011.02.003
31 Otarola C, Ruiz S Stochastic generation of accelerograms for subduction earthquakes[J]. Bulletin of the Seismological Society of America, 2016, 106 (6): 2511- 2520
doi: 10.1785/0120150262
2 陈笑宇, 王东升, 付建宇, 等 近断层地震动脉冲特性研究综述[J]. 工程力学, 2021, 38 (8): 1- 14
Chen Xiaoyu, Wang Dongsheng, Fu Jianyu, et al State-of-the-art review on pulse characteristics of near-fault ground motions[J]. Engineering Mechanics, 2021, 38 (8): 1- 14
doi: 10.6052/j.issn.1000-4750.2020.08.0582
3 Motazedian D, Atkinson G M Stochastic finite-fault modeling based on a dynamic corner frequency[J]. Bulletin of the Seismological Society of America, 2005, 95 (3): 995- 1010
doi: 10.1785/0120120228
4 Kurahashi S, Irikura K Source model for generating strong ground motions during the 2011 off the Pacific coast of Tohoku Earthquake[J]. Earth Planets and Space, 2011, 63 (7): 571- 576
doi: 10.5047/eps.2011.06.044
5 Irikura K, Miyake H Recipe for predicting strong ground motion from crustal earthquake scenarios[J]. Pure and Applied Geophysics, 2011, 168 (1): 85- 104
doi: 10.1007/s00024-010-0150-9
