Real-time optimization method for desktop level 3D printing parameters based on deep learning
Ming CAO1(),Daokuan CHEN1,Pengfei YUAN2,Jinpeng ZHOU1,Kui ZHOU1,*()
1. School of Advanced Manufacturing, Nanchang University, Nanchang 330031, China
2. Process Equipment Research and Development Center, Jiangxi Hongdu Aviation Industry Group Co., Ltd., Nanchang 330001, China
 全文: PDF(4882 KB)   HTML
摘要:

3D打印机的参数调节依赖人工经验,且打印质量不稳定,为此提出基于改进YOLOv11模型的智能在线参数调节方法. 基于传统3D打印平台,增加指向喷嘴的图像采集系统,建立打印参数(如速度和温度)与打印质量(如拉伸强度和表面粗糙度)之间的定量映射模型. 通过改进YOLOv11模型,识别打印过程中出现的多种缺陷(如拉丝和欠挤出)的早期视觉特征,实时调整关键打印补偿参数. 实验结果表明,在预设缺陷参数下,启用在线调节方法后,打印件的拉伸强度相较于未调节状态提升了4倍,表面粗糙度从Ra100显著优化至Ra50. 所提方法能够在使用过程中自动化调整参数以提升打印质量.

关键词: 增材制造技术;  深度学习;  图像识别;  缺陷检测;  打印参数动态优化
Abstract:

An intelligent online parameter adjustment method based on an improved YOLOv11 model was proposed to address poor print quality and the heavy reliance on manual expertise for parameter tuning in 3D printers. On the basis of a conventional 3D printing platform, a nozzle-targeted image acquisition system was incorporated, and a quantitative mapping model between printing parameters (such as speed and temperature) and print quality metrics (such as tensile strength and surface roughness) was established. The improved YOLOv11 model was employed to identify early visual signatures of various defects (such as stringing and under-extrusion) during the printing process, enabling real-time adjustment of key compensatory parameters. Experimental results demonstrate that, under preset defect parameters, activating the online adjustment method increases the tensile strength of printed parts by four times compared to the unadjusted state, while significantly reducing surface roughness from Ra100 to Ra50. The proposed method can automatically adjust parameters during use to improve print quality.

Key words: additive manufacturing technology    deep learning    image recognition    defect detection    dynamic optimization of printing parameter
收稿日期: 2025-09-20 出版日期: 2026-10-16
CLC:  TP 393
基金资助: 江西省重点研发计划资助项目(20232BBE50017);江西省自然科学基金资助项目(20232BAB215016,20242BAB25358);赣鄱俊才支持计划·青年科技人才托举项目(2024QT13);江西省大学生创新创业训练计划项目(202510403037).
通讯作者: 周奎     E-mail: caoming@ncu.edu.cn;zhoukui@ncu.edu.cn
作者简介: 曹铭(1986一),男,副教授,博土,从事智能装备、生物3D打印研究. orcid.org/0000-0002-3885-0516. E-mail:caoming@ncu.edu.cn
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章
曹铭
谌道宽
原鹏飞
周锦鹏
周奎

引用本文:

曹铭,谌道宽,原鹏飞,周锦鹏,周奎. 基于深度学习的桌面级3D打印参数实时优化方法[J]. 浙江大学学报(工学版), 2026, 60(11): 2355-2363.

Ming CAO,Daokuan CHEN,Pengfei YUAN,Jinpeng ZHOU,Kui ZHOU. Real-time optimization method for desktop level 3D printing parameters based on deep learning. Journal of ZheJiang University (Engineering Science), 2026, 60(11): 2355-2363.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2026.11.005    或    https://www.zjujournals.com/eng/CN/Y2026/V60/I11/2355

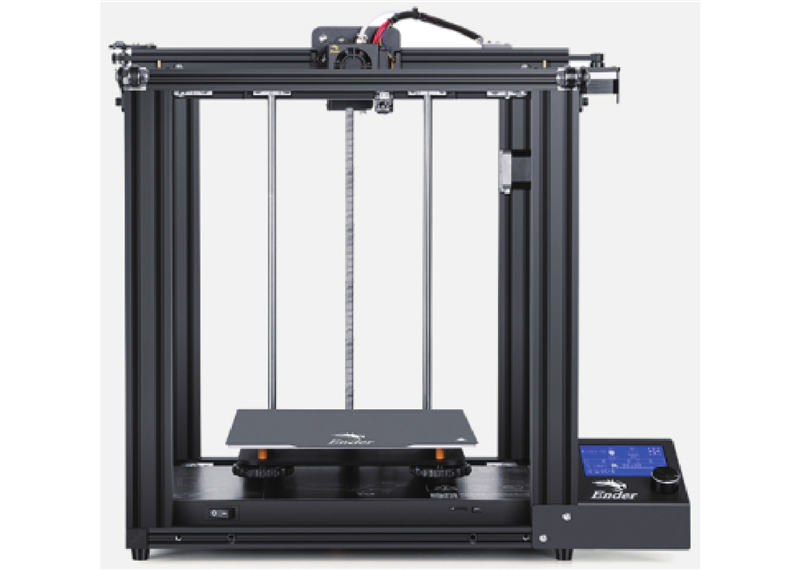

图 1  Ender-5S 3D打印机

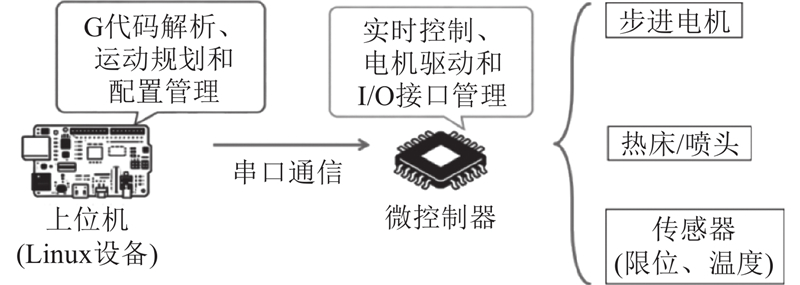

图 2  Klipper架构图

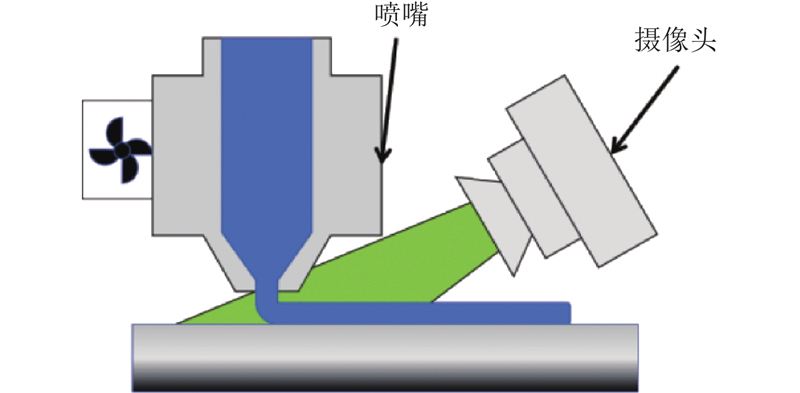

图 3  视觉系统硬件部分结构图

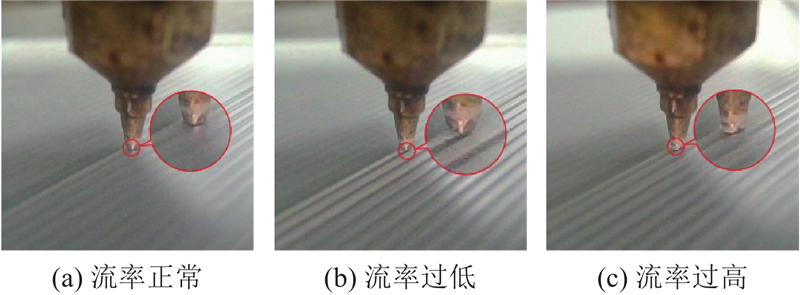

图 4  不同挤出流率下的丝材状态图

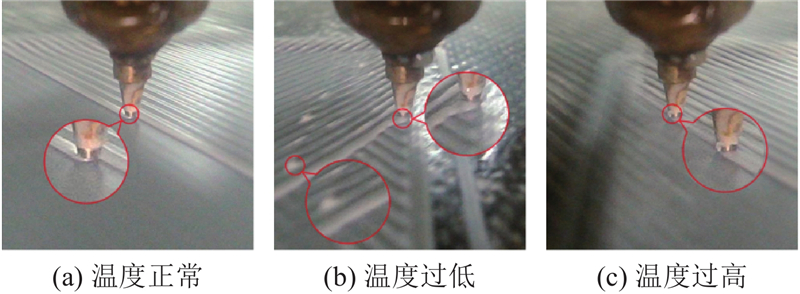

图 5  不同喷头温度下的挤丝状态图

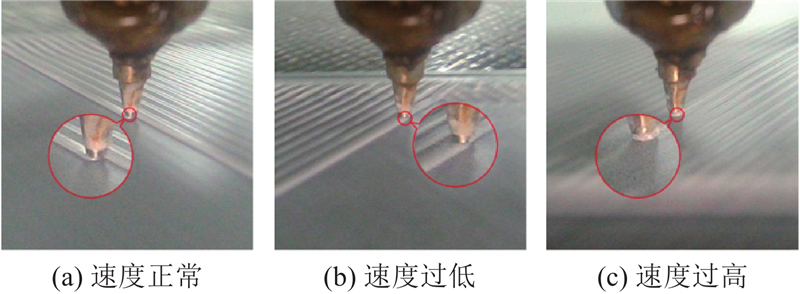

图 6  不同喷头移动速度下的挤丝状态图

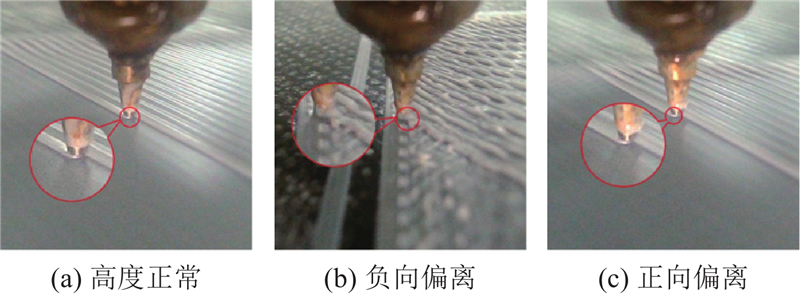

图 7  不同Z轴偏离量下的挤丝状态图
参数状态数值范围基准值
挤出流率/%正常(0)100
过高(1)120~150
过低(2)50~80
喷头温度/℃正常(0)205
过高(1)215~230
过低(2)170~185
喷头移动速度/(mm·s?1)正常(0)100
过快(1)150~200
过慢(2)20~50
Z轴偏离量/mm无偏离(0)0
正向偏离(1)0.05~0.15
负向偏离(2)?0.05~?0.15
表 1  3D打印机参数状态定义

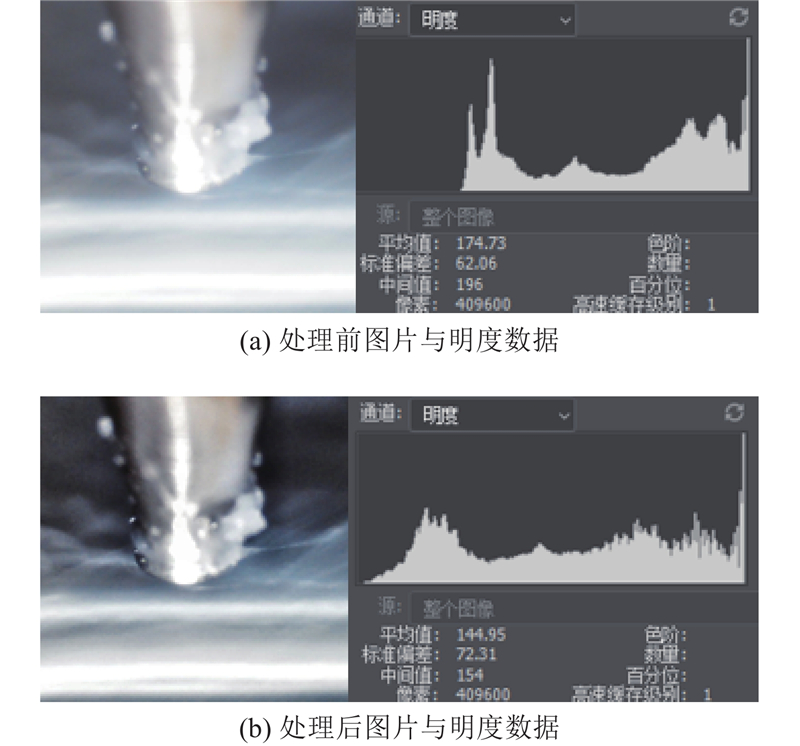

图 8  图像增强处理前后对比图

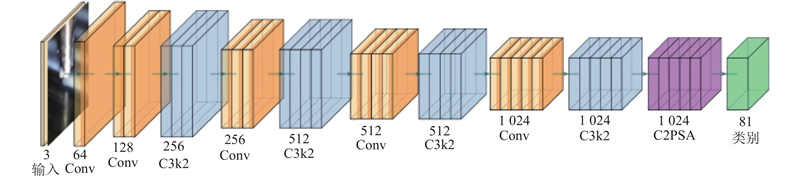

图 9  YOLOv11图像分类结构

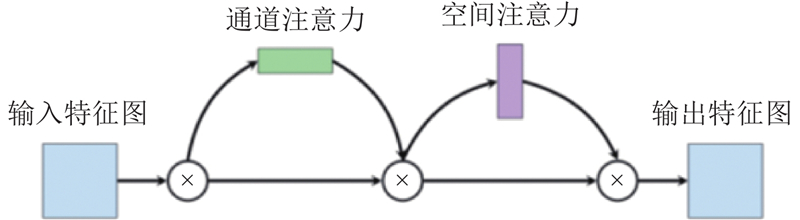

图 10  卷积块注意力模块结构示意图

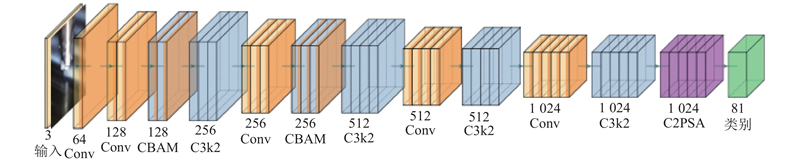

图 11  YOLOv11-卷积块注意力模块图像分类结构

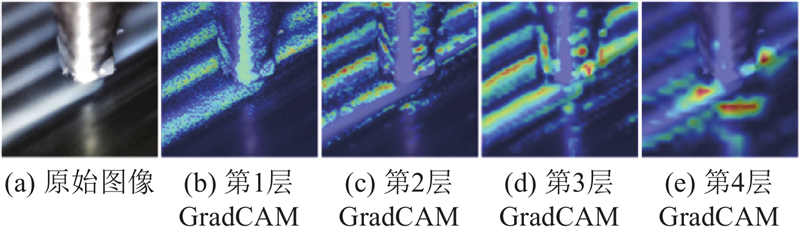

图 12  梯度加权类激活映射特征热点图

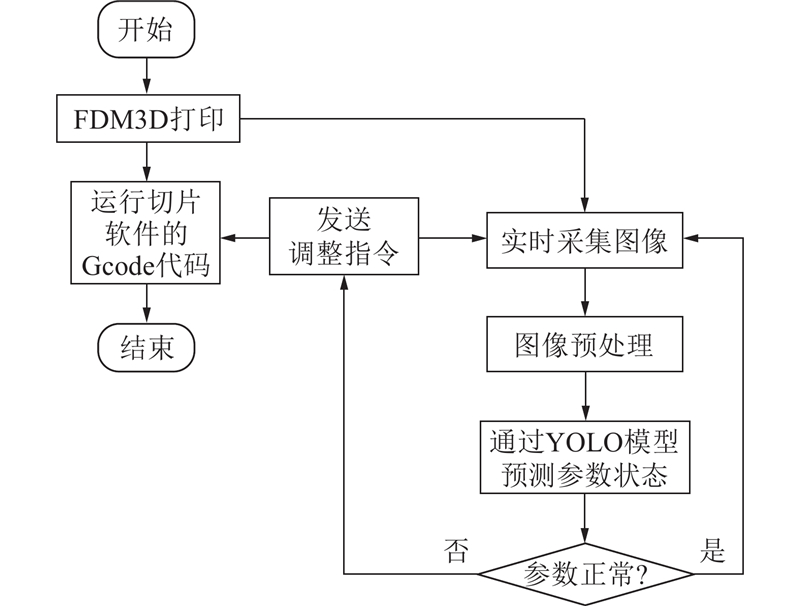

图 13  实时调节的打印过程流程图

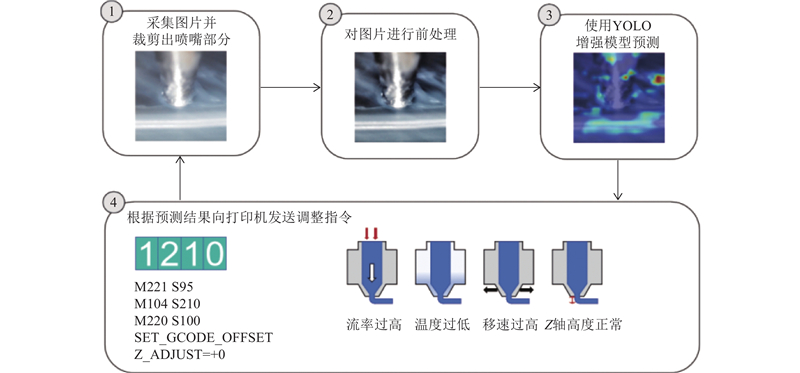

图 14  图像识别与调节过程

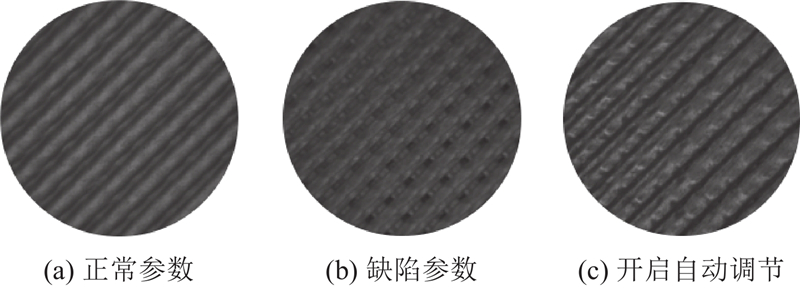

图 15  不同参数组合条件下标准件表面质量对比
参数分类$ \sigma_{\mathrm{M}}$/MPa$ F $/N
缺陷参数2.23502.13
开启自动调节9.532214.63
正常参数11.232246.45
表 2  不同参数组合条件下标准件的拉伸性能测试结果

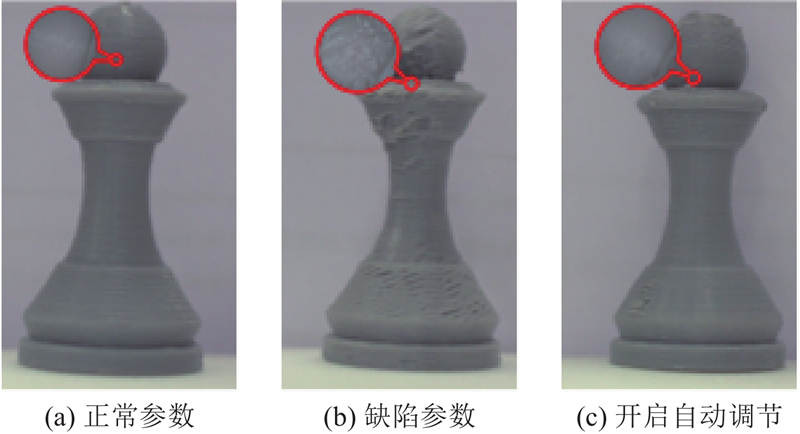

图 16  不同参数组合条件下复杂模型的表面质量对比
