双有源桥无回流功率控制的死区影响与补偿
张国澎1,2(),蒋闯闯1,2,陶海军1,陈卓3
1. 河南理工大学 电气工程与自动化学院，河南 焦作 454003
2. 河南理工大学 河南省煤矿装备智能检测与控制重点实验室，河南 焦作 454003
3. 可再生能源发电系统研究部，中国科学院电工研究所，北京 100190
Dead band effect and compensation for return-free power control of dual active bridge
Guopeng ZHANG1,2(),Chuangchuang JIANG1,2,Haijun TAO1,Zhuo CHEN3
1. College of Electrical Engineering and Automation, Henan Polytechnic University, Jiaozuo 454003, China
2. Henan Key Laboratory of Intelligent Detection and Control of Coal Mine Equipment, Henan Polytechnic University, Jiaozuo 454003, China
3. Research Department of Renewable Generation System, Institute of Electrical Engineering of the Chinese Academy of Sciences, Beijing 100190, China
 全文: PDF(3254 KB)   HTML
摘要：

针对三重移相协同控制（CTPS）加入桥臂死区后，会导致双有源桥（DAB）变换器回流功率发生及软开关失效的问题，提出针对CTPS控制的死区补偿策略. 通过分析CTPS控制不同模式下桥臂死区引起的变压器原副边电压及漏感电流的变化，基于回流功率产生的原理，更正了不同模式移相比之间的耦合关系，对功率传输模型及CTPS控制模式的切换条件进行修正，实现了死区对CTPS控制影响的有效控制. 利用所提的补偿方案，抑制了由死区引起的回流功率，恢复了CTPS控制的软开关性能，具有较补偿前更优的电流应力. 分别开展死区补偿前、后的实验，对死区影响的分析和所提出的补偿策略进行验证.
关键词： 双有源桥变换器;  CTPS控制;  回流功率;  软开关;  死区补偿
Abstract:

A dead band compensation strategy for CTPS control was proposed aiming at the problem that the occurrence of return power as well as the failure of soft switching was caused after the addition of bridge arm dead band to the triple phase-shift cooperative control (CTPS) of dual active bridge (DAB) converter. The coupling relationships between different mode shift ratios and the power transfer model and the switching conditions of CTPS control modes were corrected based on the principle of return power generation by analyzing the changes of transformer primary and secondary side voltages and leakage currents caused by the dead band of the bridge arm in different modes of CTPS control. Then the effective control of the impact of dead band on CTPS control was realized. The proposed compensation scheme suppressed the return power caused by the dead band, restored the soft-switching performance of the CTPS control, and had better current stress than before compensation. Experiments before and after dead band compensation were conducted separately to verify the analysis of the dead band effects and the proposed compensation strategy.
Key words: dual active bridge converter    CTPS control    return power    soft-switching    dead band compensation
收稿日期: 2023-07-03 出版日期: 2024-10-23
CLC:  TM 46
基金资助: 国家自然科学基金资助项目(52267018)；河南省高校基本科研业务费专项资金资助项目(NSFRF210423).
作者简介: 张国澎（1981—），男，副教授，从事大功率电力电子变换器的研究. orcid.org/0000-0003-2575-9438. E-mail：hpoyz@163.com
服务　　
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章　　
张国澎
蒋闯闯
陶海军
陈卓

引用本文:

张国澎,蒋闯闯,陶海军,陈卓. 双有源桥无回流功率控制的死区影响与补偿[J]. 浙江大学学报(工学版), 2024, 58(11): 2406-2416.

Guopeng ZHANG,Chuangchuang JIANG,Haijun TAO,Zhuo CHEN. Dead band effect and compensation for return-free power control of dual active bridge. Journal of ZheJiang University (Engineering Science), 2024, 58(11): 2406-2416.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2024.11.022    或    https://www.zjujournals.com/eng/CN/Y2024/V58/I11/2406

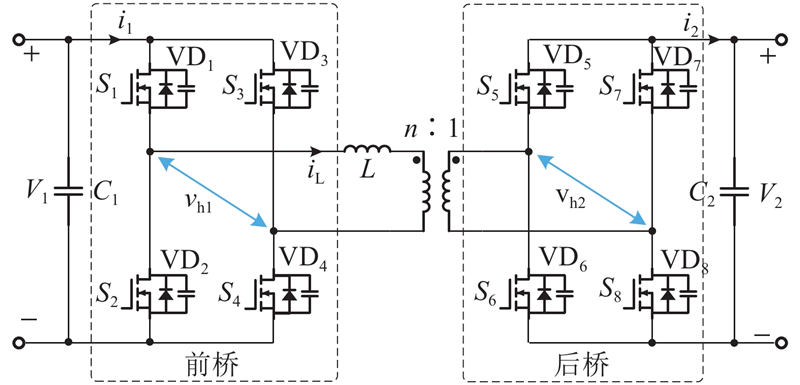

图 1  双有源桥变换器的拓扑
图 2  CTPS控制策略的工作波形
模式控制策略
Dφ = D2模式$ {D_1} = \dfrac{{{k^2}}}{{{k^2}+k+1}} - \dfrac{k}{{{k^2}+k+1}}\sqrt {1 - \dfrac{{{p_{{\text{av}}}}({k^2}+k+1)}}{{2k}}} $
$ D_{0}=D_{2}=1+k\left(D_{1}-1\right) $
$ D_{1} \in\left[\dfrac{k-1}{k}, \dfrac{k^{2}}{k^{2}+k+1}\right] $
$ p_{{\mathrm{av}}}=\dfrac{2 k}{k^{2}+k+1}-2\left(k^{2}+k+1\right)\left(D_{1}-\dfrac{k^{2}}{k^{2}+k+1}\right)^{2} $
Dφ = 0模式$ {D_1} = 1 - \sqrt {{p_{{\text{av}}}}/(2k - 2)} $
$ D_{2}=1+k\left(D_{1}-1\right), D_{\varphi}=0 $
$ D_{1} \in\left[\dfrac{k-1}{k}, 1\right] $
$ p_{{\mathrm{av}}}=2(k-1)\left(1-D_{1}\right)^{2} $
表 1  CTPS控制策略及功率传输模型
图 3  不同电压传输比下标幺后的平均传输功率与移相比的关系曲线

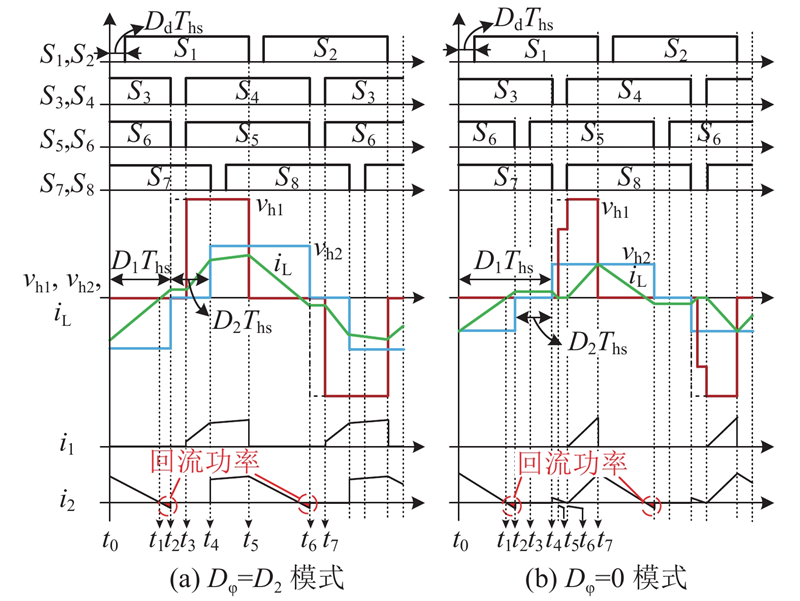

图 4  死区加入后CTPS控制的理论波形

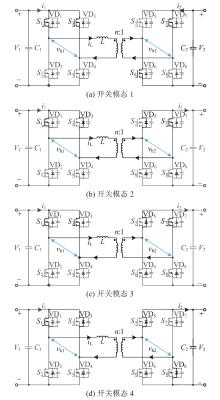

图 5  死区加入后CTPS控制的部分时段的开关模态
开关管Dφ = D2模式Dφ = 0模式
无死区死区加入后无死区死区加入后
S1、S2ZVS开通
硬关断		ZVS开通
硬关断		ZVS开通
硬关断		ZVS开通
硬关断
S3、S4ZCS开通
ZCS关断		硬开通
硬关断		ZCS开通
ZCS关断		ZCS开通
硬关断
S5、S6ZCS开通
ZCS关断		ZVS开通
硬关断		ZCS开通
ZCS关断		ZVS开通
硬关断
S7、S8ZVS开通
硬关断		ZVS开通
硬关断		ZCS开通
ZCS关断		ZCS开通
硬关断
表 2  死区加入前、后CTPS控制的软开关状态

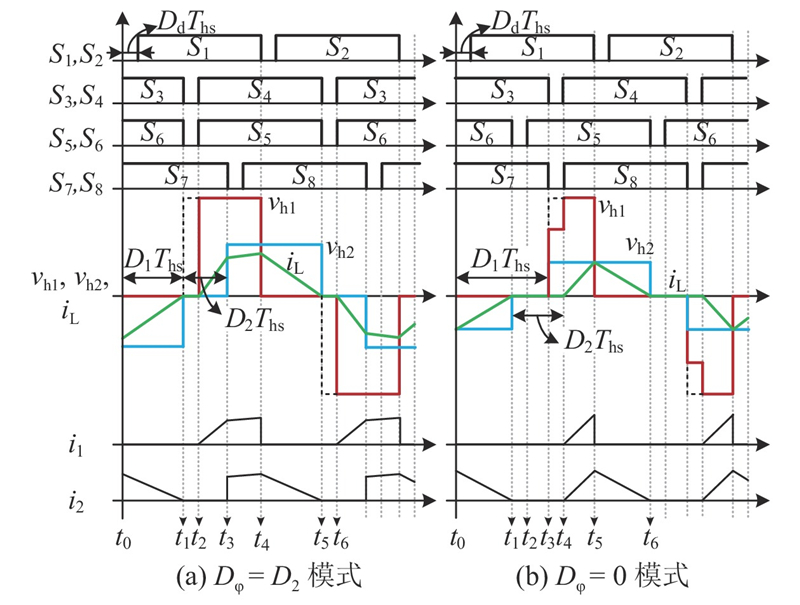

图 6  死区补偿后CTPS控制的理论波形
图 7  死区补偿后的CTPS控制策略
开关管Dφ = D2模式Dφ = 0模式
补偿前补偿后补偿前补偿后
S1、S2ZVS开通
硬关断		ZVS开通
硬关断		ZVS开通
硬关断		ZVS开通
硬关断
S3、S4硬开通
硬关断		ZCS开通
ZCS关断		ZCS开通
硬关断		ZCS开通
ZCS关断
S5、S6ZVS开通
硬关断		ZCS开通
ZCS关断		ZVS开通
硬关断		ZCS开通
ZCS关断
S7、S8ZVS开通
硬关断		ZVS开通
硬关断		ZCS开通
硬关断		ZCS开通
ZCS关断
表 3  死区补偿前、后CTPS控制的软开关状态

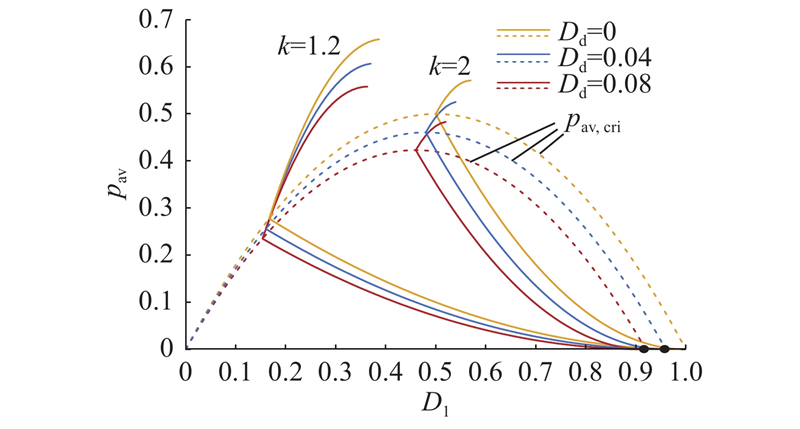

图 8  不同死区时间下平均传输功率与移相比的关系曲线

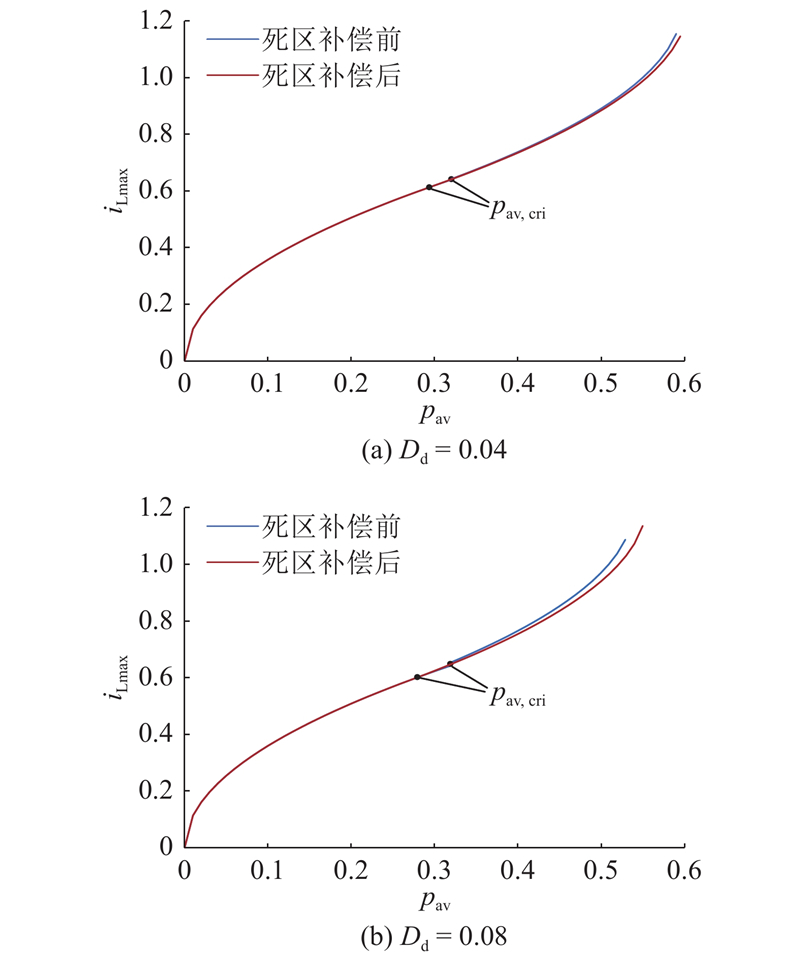

图 9  死区补偿前、后电流应力与平均传输功率的关系曲线
图 10  DAB变换器的实验平台
参数数值参数数值
V1/V150V2/V60
n2∶1fs/ kHz40
L/μH50死区时间/μs1
表 4  DAB实验平台的主要参数

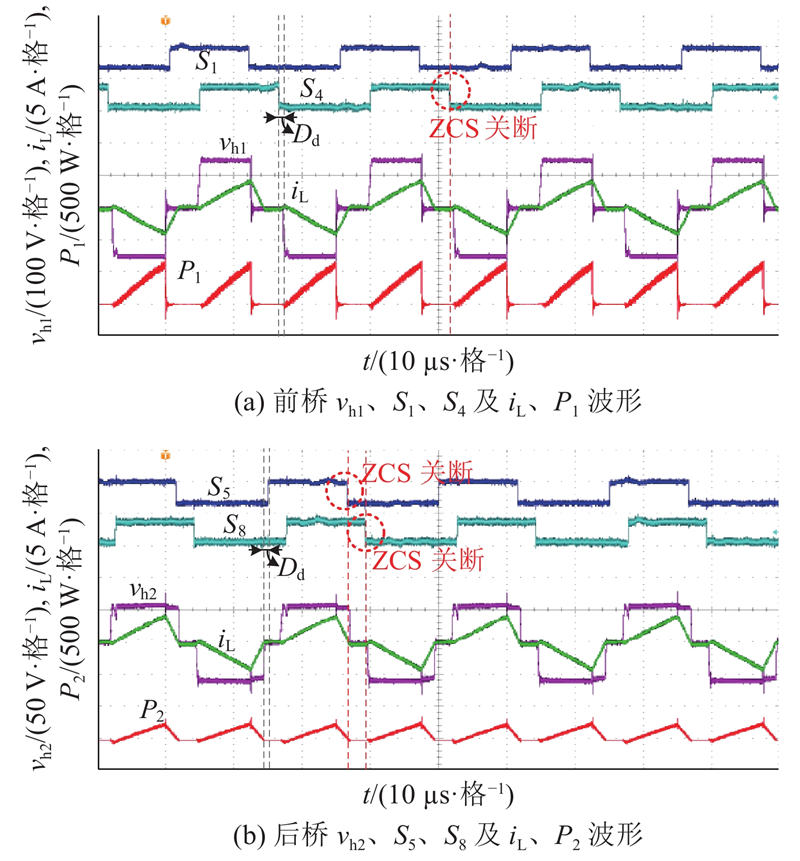

图 11  1 µs死区，原控制策略Dφ = D2模式下的实验波形

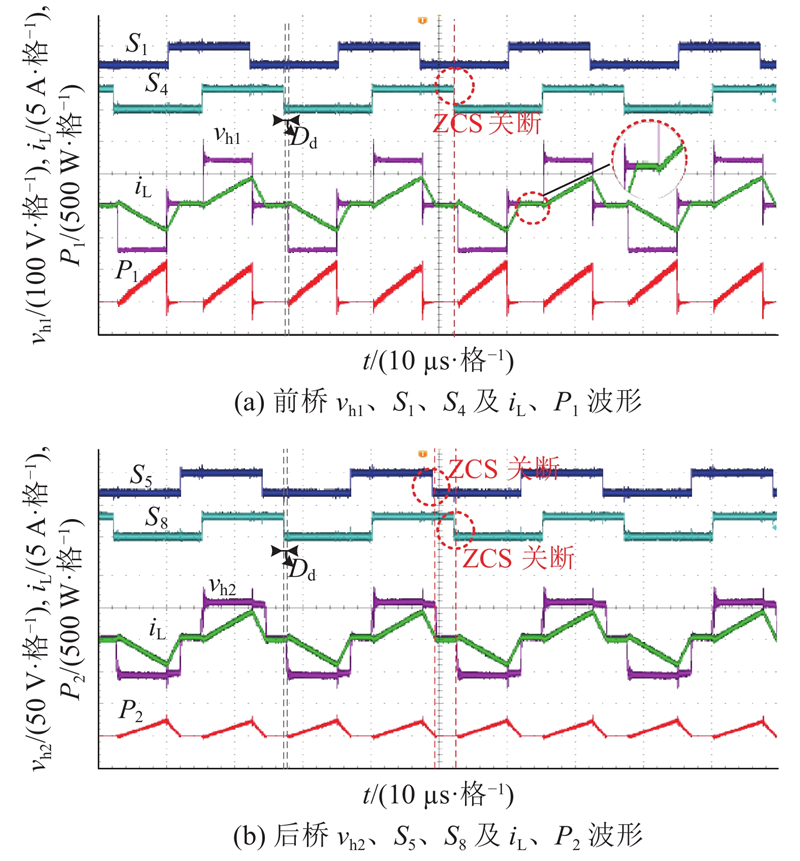

图 12  1 µs死区，死区补偿后Dφ = D2模式下的实验波形
图 13  1 µs死区，原控制策略Dφ = 0模式下的实验波形
图 14  1 µs死区，死区补偿后Dφ = 0模式下的实验波形
图 15  0.5 µs死区，原控制策略Dφ = D2模式下的实验波形
图 16  0.5 µs死区，死区补偿后Dφ = D2模式下的实验波形
图 17  0.5 µs死区，原控制策略Dφ = 0模式下的实验波形
图 18  0.5 µs死区，死区补偿后Dφ = 0模式下的实验波形

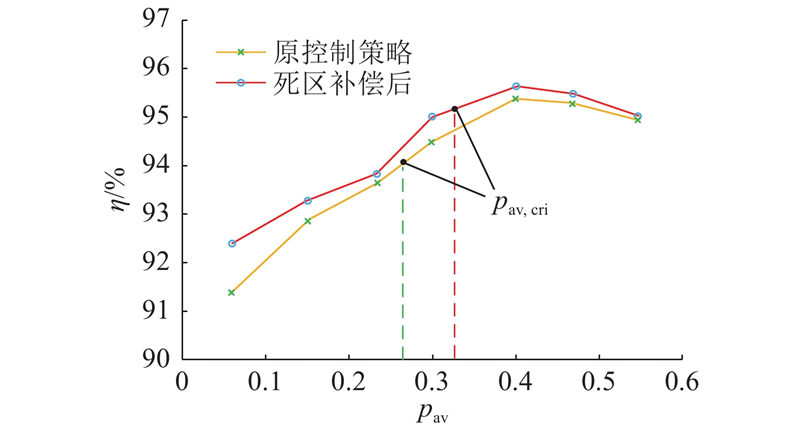

图 19  死区补偿前、后的功率传输效率对比
