修正-联合正则化的冲击载荷识别与响应重构

doi:10.3785/j.issn.1008-973X.2024.05.016

浙江大学学报(工学版)

2024, Vol. 58

Issue (5): 1029-1039 DOI: 10.3785/j.issn.1008-973X.2024.05.016

机械工程

修正-联合正则化的冲击载荷识别与响应重构

殷红1(

),石咏荷1,彭珍瑞1,*(

),王增辉2

1. 兰州交通大学机电工程学院，甘肃兰州 730070
2. 西安交通大学机械工程学院，陕西西安 710049

Impact load identification and response reconstruction based on updating-combination regularization

Hong YIN1(

),Yonghe SHI1,Zhenrui PENG1,*(

),Zenghui WANG2

1. School of Mechanical Engineering, Lanzhou Jiaotong University, Lanzhou 730070, China
2. School of Mechanical Engineering, Xi’an Jiaotong University, Xi’an 710049, China

全文: PDF(2579 KB) HTML

摘要：

针对传统结构响应重构中正则化方法对冲击载荷峰值识别精度低、非加载区识别结果振荡且识别精度易受噪声干扰等问题，提出基于修正-联合正则化的冲击载荷识别与结构响应重构方法. 基于状态空间模型，推导冲击载荷及结构响应的重构方程. 对测量响应降噪，利用降噪后响应与识别响应的差值修正L2正则化解. 联合L1正则化解的稀疏性优势，在保证冲击载荷非加载区域识别稳定的同时，获得更高精度的峰值识别结果，实现结构动态响应的重构. 通过数值和实验案例验证了所提方法的有效性，对比了传递矩阵法和粒子滤波法的响应重构效果. 结果表明，所提方法具有良好的抗噪性，能够较准确地识别冲击载荷，有效地重构结构动态响应.

关键词： 响应重构; 冲击载荷; 正则化; 传递矩阵; 粒子滤波

Abstract:

An impact load identification and structural response reconstruction method based on the updating-combination regularization was proposed aiming at the problems of low accuracy in identifying peak impact loads, oscillation in identifying non loading areas, and susceptibility to noise interference in traditional regularization methods for structural response reconstruction. The reconstruction equations for the impact load and structure response were derived based on the state space model. The difference between the denoised response and the identification response was used to update the L2 regularization solution. Then higher accuracy peak identification results were obtained combining with the L1 regularization solution that had sparsity advantage while ensuring the stability of the identification of impact load in unloaded region, which realized the reconstruction of structural dynamic responses. The proposed method was verified through numerical and experimental cases, and the effect of response reconstruction based on the transfer matrix method and the particle filter method was compared. Results show that the proposed method has good anti-noise performance. The method can accurately recognize the impact load, and effectively reconstruct the dynamic response of the structure.

Key words: response reconstruction impact load regularization transfer matrix particle filter

收稿日期: 2022-11-30 出版日期: 2024-04-26

CLC:

O 327

基金资助: 国家自然科学基金资助项目(62161018)；甘肃省“创新之星”资助项目(2022CXZX-569).

通讯作者: 彭珍瑞 E-mail: yinhong@mail.lzjtu.cn;pzrui@163.com

作者简介: 殷红（1978—），女，教授，博士，从事结构动力学、模态分析的研究. orcid.org/0000-0003-4934-0228. E-mail：yinhong@mail.lzjtu.cn

	服务
	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	作者相关文章
	殷红
	石咏荷
	彭珍瑞
	王增辉

引用本文:

殷红,石咏荷,彭珍瑞,王增辉. 修正-联合正则化的冲击载荷识别与响应重构[J]. 浙江大学学报(工学版), 2024, 58(5): 1029-1039.

Hong YIN,Yonghe SHI,Zhenrui PENG,Zenghui WANG. Impact load identification and response reconstruction based on updating-combination regularization. Journal of ZheJiang University (Engineering Science), 2024, 58(5): 1029-1039.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2024.05.016 或 https://www.zjujournals.com/eng/CN/Y2024/V58/I5/1029

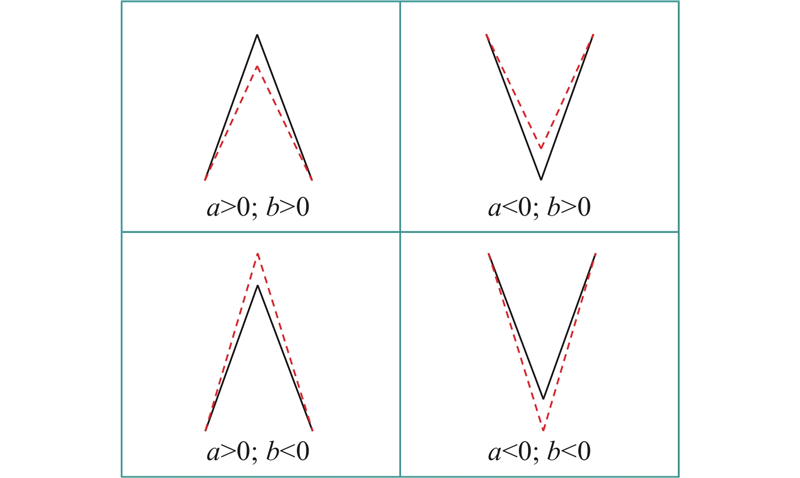

图 1 载荷识别情况

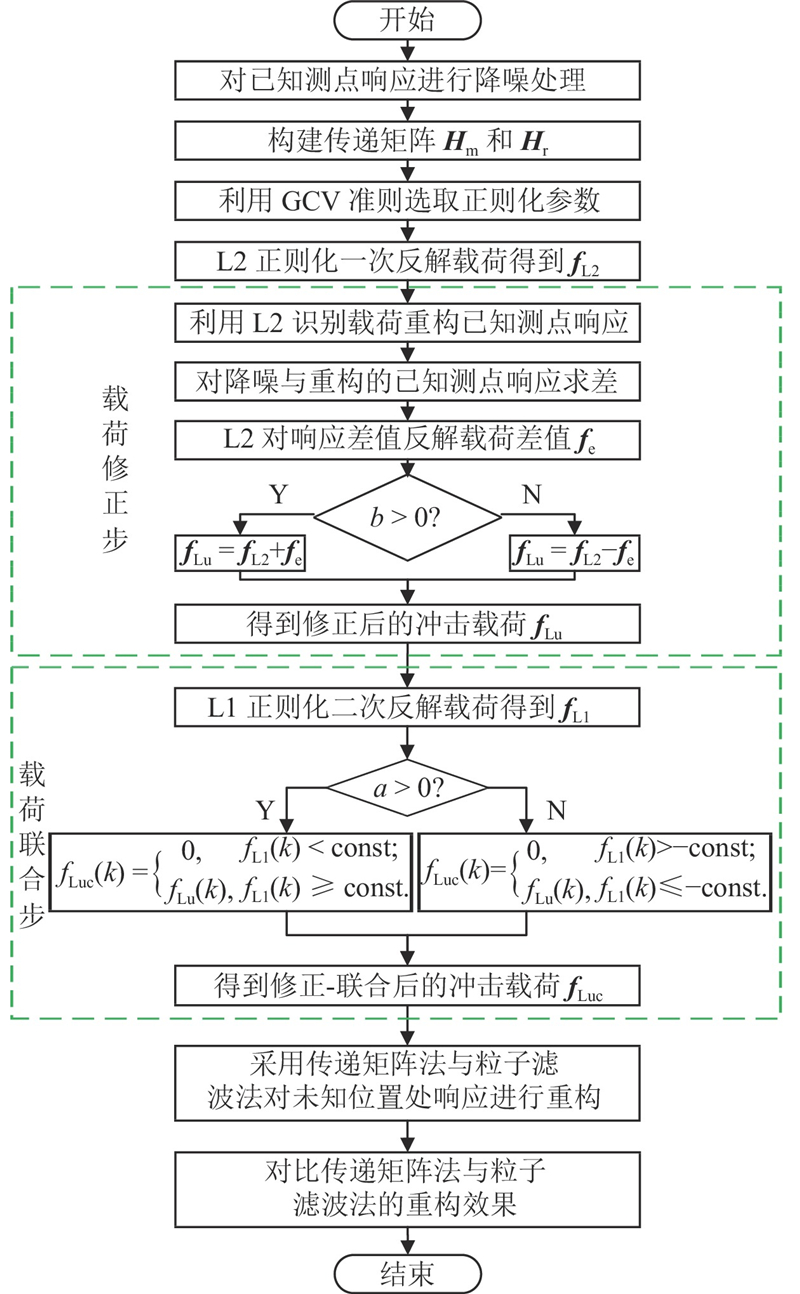

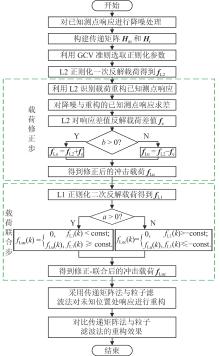

图 2 载荷识别与响应重构的流程图

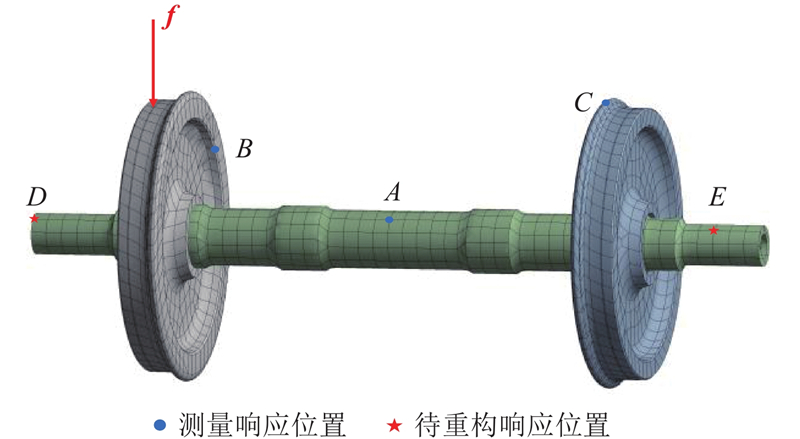

图 3 轮对的有限元模型

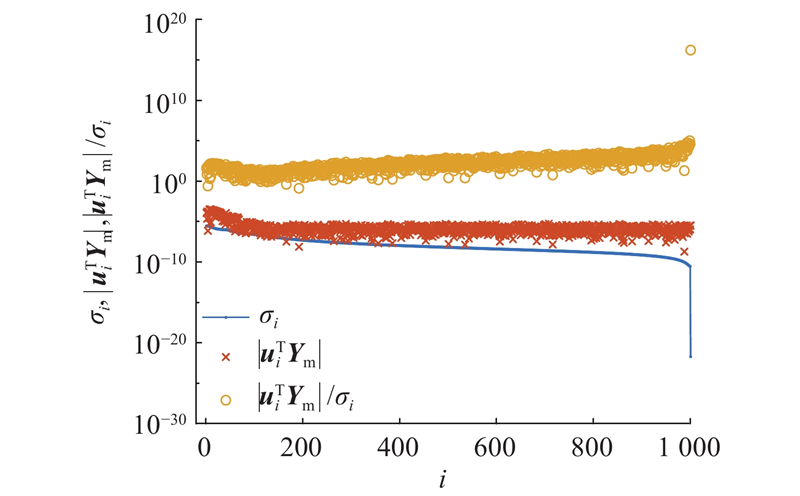

图 4 Picard图

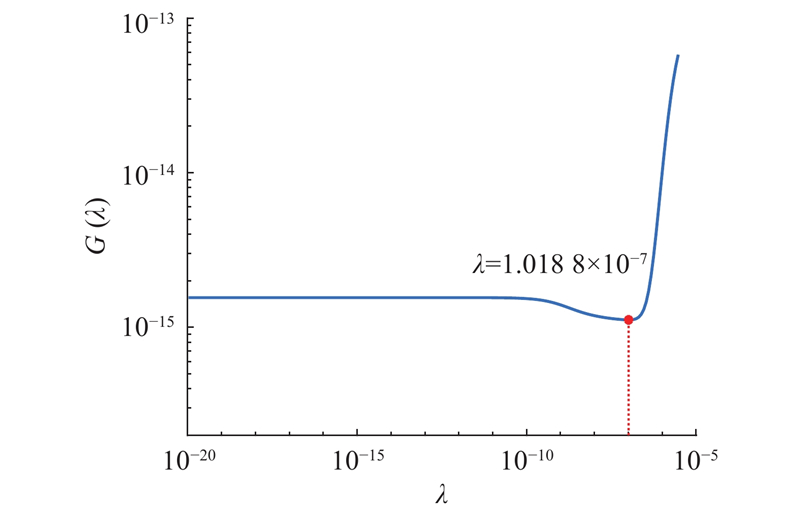

图 5 GCV函数图

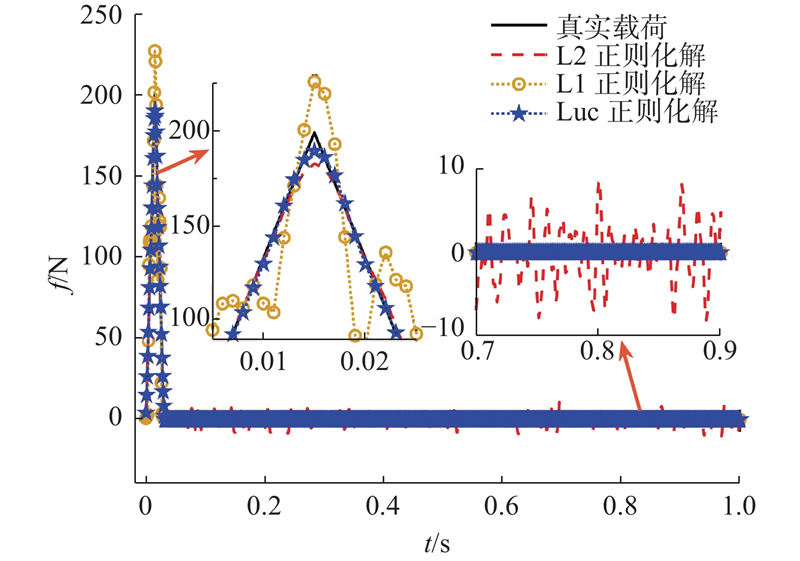

图 6 不同正则化方法下的冲击载荷识别结果

表 1 不同噪声下的载荷识别误差

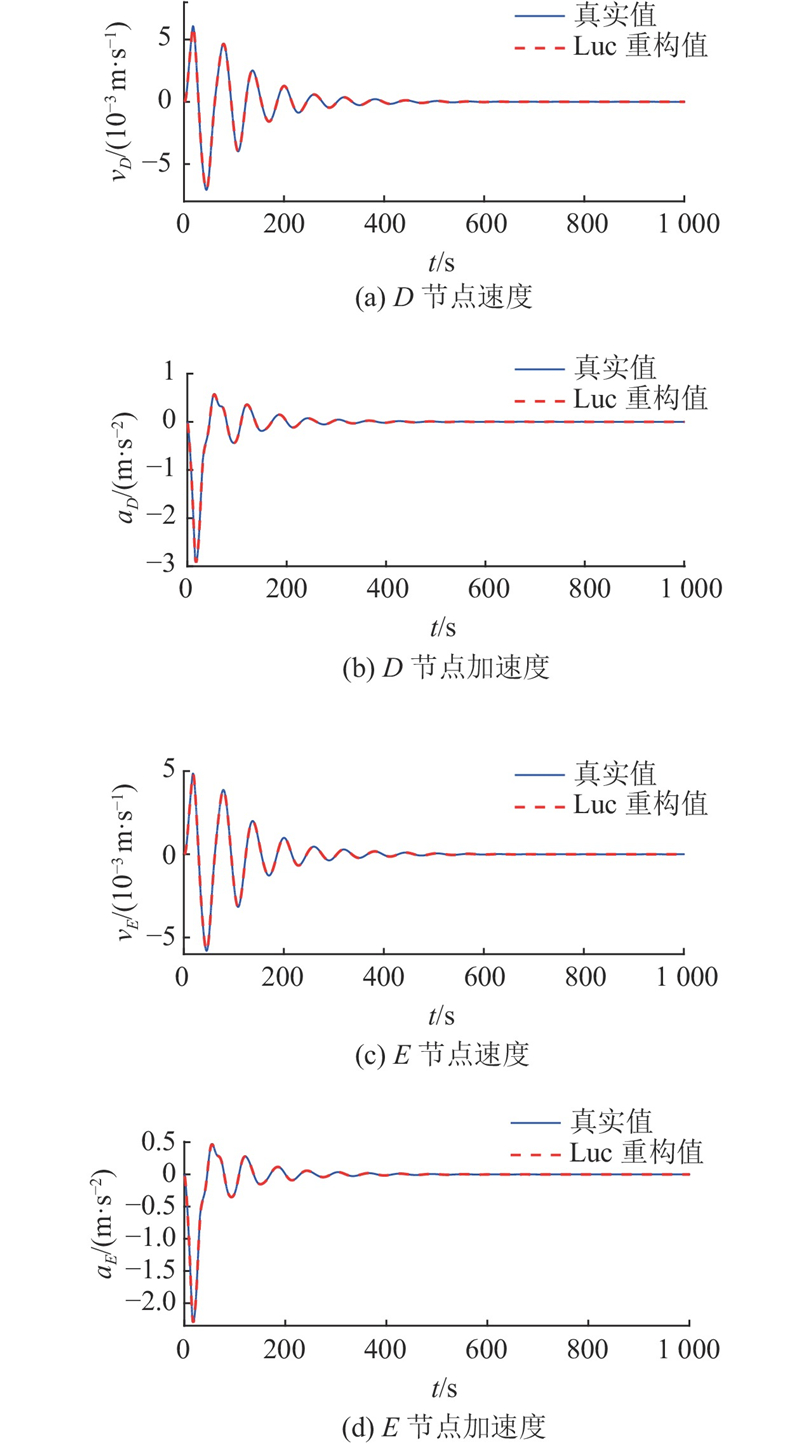

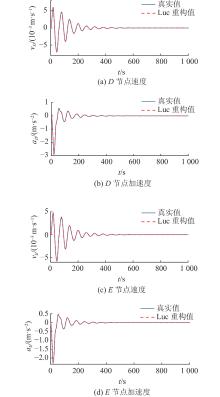

图 7 D、E节点的响应重构结果

图 8 不同正则化方法的响应重构误差

表 2 不同重构方法下的重构误差

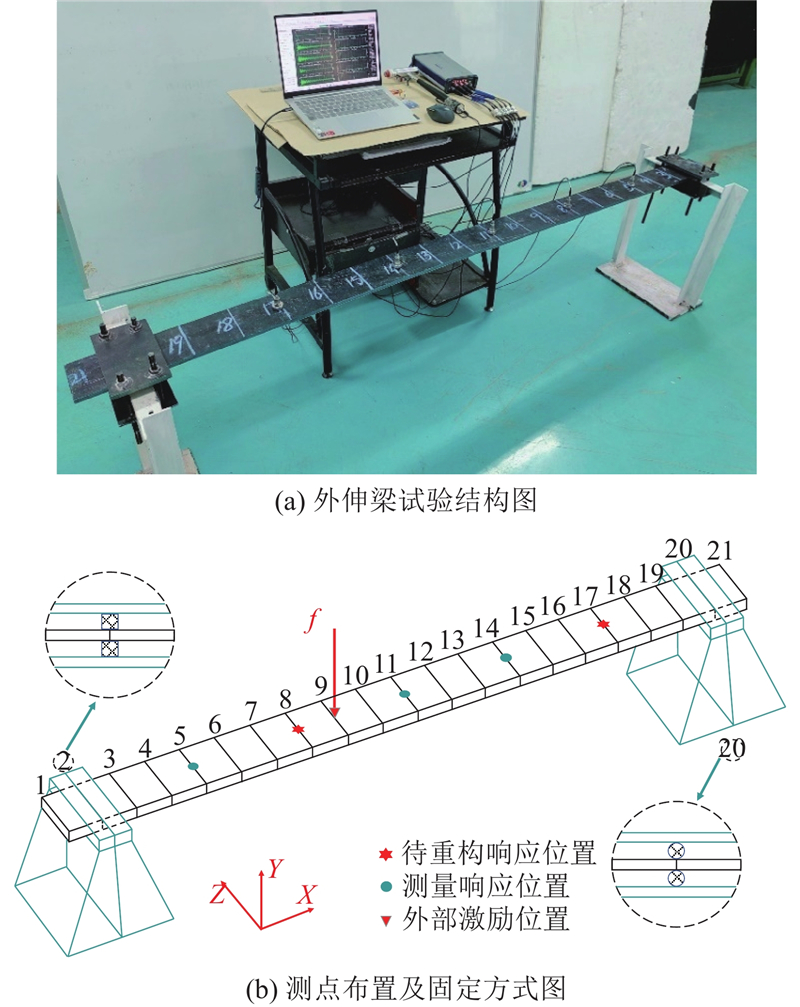

图 9 外伸梁

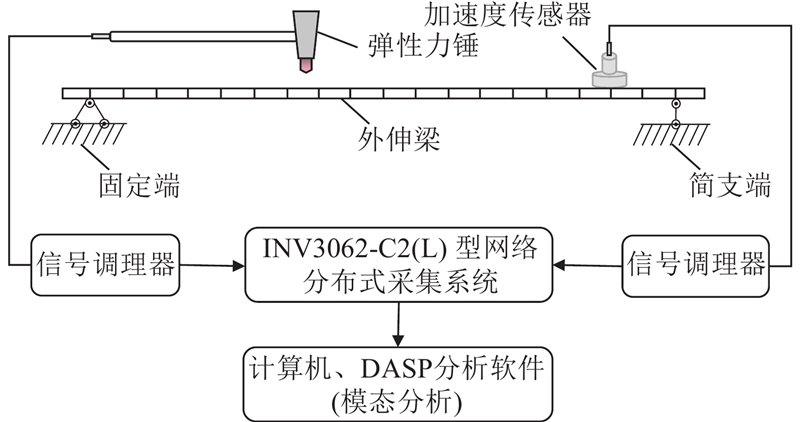

图 10 外伸梁模态试验的框架图

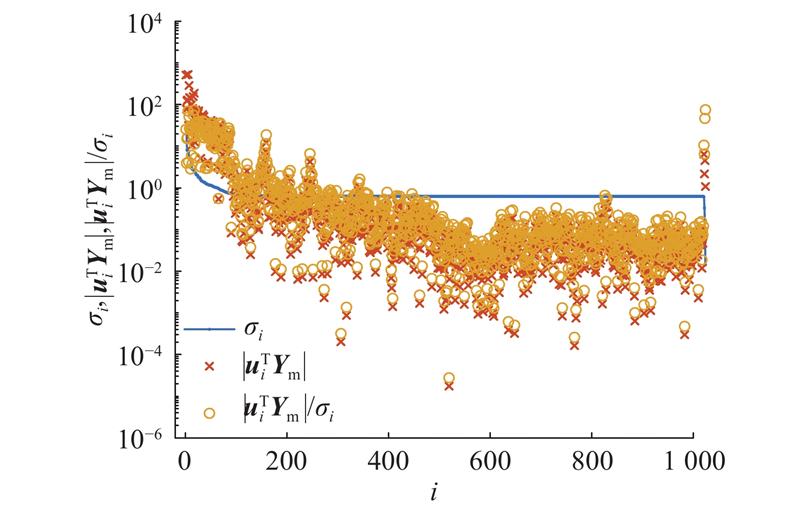

图 11 Picard图

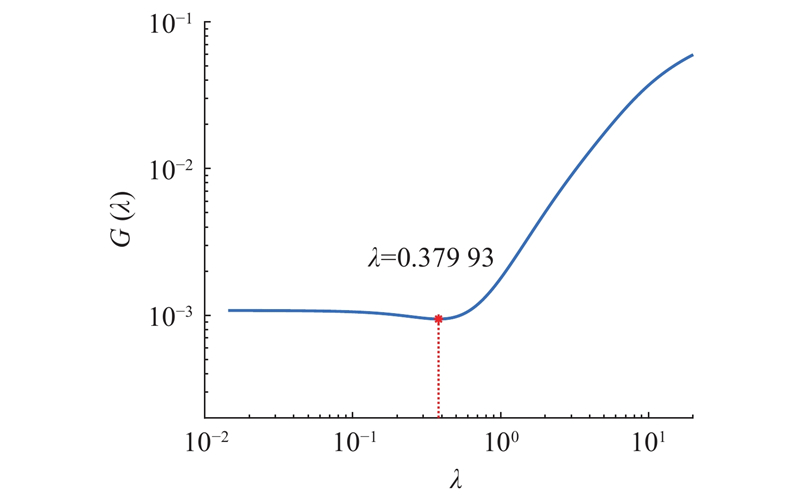

图 12 GCV函数图

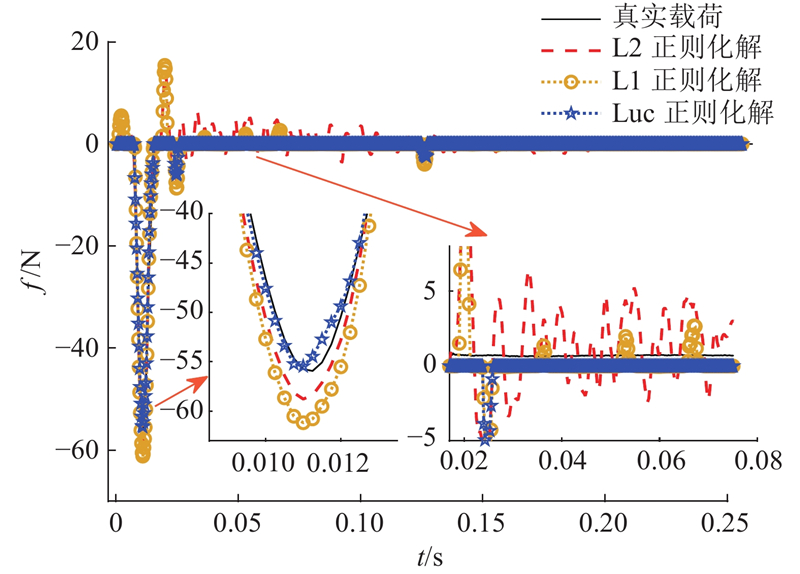

图 13 不同正则化方法下的冲击载荷识别结果

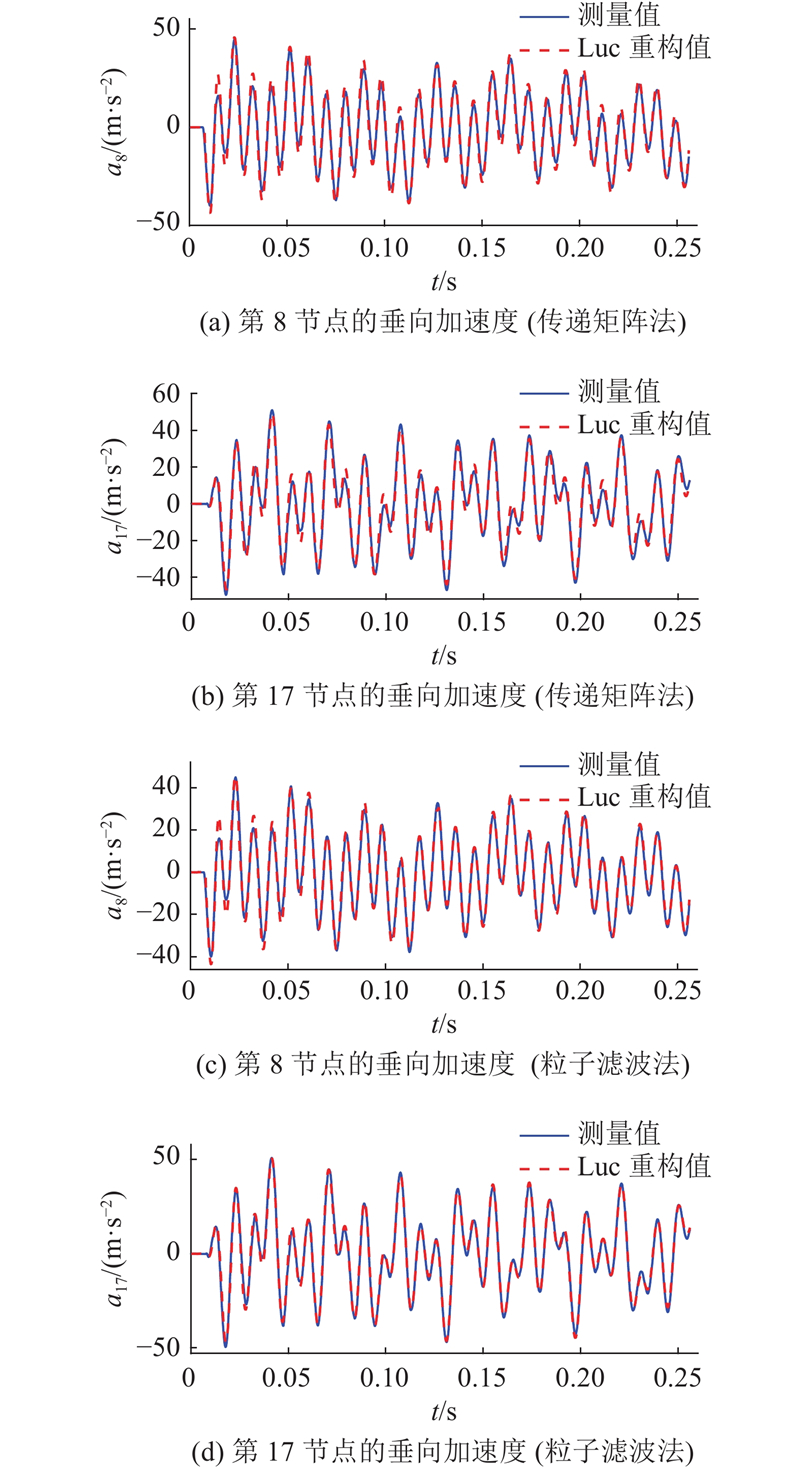

图 14 响应重构结果

表 3 不同正则化方法下的重构误差对比

表 4 不考虑模型误差下不同正则化方法的重构误差对比

1	苏永振. 航空材料结构低速冲击健康监测研究[D]. 南京: 南京航空航天大学, 2010. SU Yongzhen. Research on low velocity impact health monitoring methods for aeronautical materials structures [D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2010.
2	GUO J, HE J X Dynamic response analysis of ship-bridge collisions experiment[J]. Journal of Zhejiang University: Science A, 2020, 21 (7): 525- 534 doi: 10.1631/jzus.A1900382
3	豆硕, 刘志明, 王文静, 等基于冲击响应谱高速列车设备冲击环境特性分析[J]. 中南大学学报:自然科学版, 2022, 53 (5): 1843- 1854 DOU Shuo, LIU Zhiming, WANG Wenjing, et al Analysis of shock environment characteristics of high-speed train equipment based on shock response spectrum[J]. Journal of Central South University: Science and Technology, 2022, 53 (5): 1843- 1854
4	LIN M X, GUO S J, HE Shun, et al Structure health monitoring of a composite wing based on flight load and strain data using deep learning method[J]. Composite Structures, 2022, 286: 115305 doi: 10.1016/j.compstruct.2022.115305
5	ZHANG C W, MOUSAVI A A, MASRI S F, et al Vibration feature extraction using signal processing techniques for structural health monitoring: a review[J]. Mechanical Systems and Signal Processing, 2022, 177: 109175 doi: 10.1016/j.ymssp.2022.109175
6	房芳, 郑辉, 汪玉, 等机械结构健康监测综述[J]. 机械工程学报, 2021, 57 (16): 269- 292 FANG Fang, ZHENG Hui, WANG Yu, et al Mechanical structural health monitoring: a review[J]. Journal of Mechanical Engineering, 2021, 57 (16): 269- 292 doi: 10.3901/JME.2021.16.269
7	邱雨晴, 王磊, 王晓宇, 等基于改进函数拟合法的冲击载荷识别研究[J]. 机械工程学报, 2022, 58 (3): 157- 166 QIU Yuqing, WANG Lei, WANG Xiaoyu, et al Research on impact force reconstruction based on improved function fitting method[J]. Journal of Mechanical Engineering, 2022, 58 (3): 157- 166 doi: 10.3901/JME.2022.03.157
8	LIU R X, DOBRIBAN E, HOU Z C, et al Dynamic load identification for mechanical systems: a review[J]. Archives of Computational Methods in Engineering, 2022, 29 (2): 831- 863 doi: 10.1007/s11831-021-09594-7
9	SUN L M, LI Y X, ZHU W, et al Structural response reconstruction in physical coordinate from deficient measurements[J]. Engineering Structures, 2020, 212: 110484 doi: 10.1016/j.engstruct.2020.110484
10	ZHU Z M, ZHU S Y, WANG Y W, et al Structural dynamic response reconstruction with multi-type sensors, unknown input, and rank deficient feedthrough matrix[J]. Mechanical Systems and Signal Processing, 2023, 187: 109935 doi: 10.1016/j.ymssp.2022.109935
11	YANG J S, FU Z Y, ZOU Y F, et al A response reconstruction method based on empirical mode decomposition and modal synthesis method[J]. Mechanical Systems and Signal Processing, 2023, 184: 109716 doi: 10.1016/j.ymssp.2022.109716
12	邹云峰, 付正亿, 何旭辉, 等基于经验模态分解和模型缩聚的动力响应重构方法研究[J]. 工程力学, 2022, 39 (2): 67- 75 ZOU Yunfeng, FU Zhengyi, HE Xuhui, et al Dynamic response reconstruction method based on empirical mode decomposition and model condensation[J]. Engineering Mechanics, 2022, 39 (2): 67- 75
13	HE J J, GUAN X F, LIU Y M Structural response reconstruction based on empirical mode decomposition in time domain[J]. Mechanical Systems and Signal Processing, 2012, 28: 348- 366 doi: 10.1016/j.ymssp.2011.12.010
14	RIBEIRO A M R, SILVA J M M, MAIA N M M On the generalisation of the transmissibility concept[J]. Mechanical Systems and Signal Processing, 2000, 14 (1): 29- 35 doi: 10.1006/mssp.1999.1268
15	LAW S S, LI J, DING Y Structural response reconstruction with transmissibility concept in frequency domain[J]. Mechanical Systems and Signal Processing, 2011, 25 (3): 952- 968 doi: 10.1016/j.ymssp.2010.10.001
16	毛羚, 李书进, 张洲未知输入下基于响应重构的结构损伤识别[J]. 土木工程与管理学报, 2018, 35 (3): 87- 95 MAO Ling, LI Shujin, ZHANG Zhou Structural damage identification based on response reconstruction under unknown input[J]. Journal of Civil Engineering and Management, 2018, 35 (3): 87- 95
17	张笑华, 任伟新, 方圣恩两种传感器的位置优化及结构多种响应重构[J]. 振动与冲击, 2014, 33 (18): 26- 30 ZHANG Xiaohua, REN Weixin, FANG Shengen Location optimization of dual-type sensors for multi-kind structural response reconstruction[J]. Journal of Sound and Vibration, 2014, 33 (18): 26- 30
18	ZHANG X H, ZHU Z M, YUAN G K, et al Adaptive mode selection integrating Kalman filter for dynamic response reconstruction[J]. Journal of Sound and Vibration, 2021, 515: 116497 doi: 10.1016/j.jsv.2021.116497
19	史鹏程, 彭珍瑞, 董康立基于有限测量信息的两步响应重构方法[J]. 振动与冲击, 2022, 41 (11): 291- 297 SHI Pengcheng, PENG Zhenrui, DONG Kangli Two-step response reconstruction method based on limited measured information[J]. Journal of Vibration and Shock, 2022, 41 (11): 291- 297
20	崔洪宇, 胡大士, 孔帅, 等基于正则化方法的雪龙号破冰船冰载荷反演的研究[J]. 中国造船, 2020, 61 (1): 109- 119 CUI Hongyu, HU Dashi, KONG Shuai, et al Study on inversion of ice load for Xue Long icebreaker based on regularization method[J]. Shipbuilding of China, 2020, 61 (1): 109- 119
21	乔百杰, 陈雪峰, 刘金鑫, 等机械结构冲击载荷稀疏识别方法研究[J]. 机械工程学报, 2019, 55 (3): 81- 89 QIAO Baijie, CHEN Xuefeng, LIU Jinxin, et al Sparse identification of impact force acting on mechanical structures[J]. Journal of Mechanical Engineering, 2019, 55 (3): 81- 89 doi: 10.3901/JME.2019.03.081
22	SHI Y H, YIN H, PENG Z R, et al Structural response reconstruction based on the information fusion of multi-source particle filters[J]. Journal of Mechanical Science and Technology, 2023, 37 (2): 631- 641 doi: 10.1007/s12206-023-0108-3
23	马超, 华宏星一种基于新的正则化技术的冲击载荷识别法[J]. 振动与冲击, 2015, 34 (12): 164- 168 MA Chao, HUA Hongxing Impact force identification based on improved regularization technique[J]. Journal of Vibration and Shock, 2015, 34 (12): 164- 168
24	常晓通, 闫云聚, 刘鎏, 等基于Green函数和正则化的动态载荷识别方法[J]. 振动, 测试与诊断, 2014, 34 (1): 124- 129 CHANG Xiaotong, YAN Yunju, LIU Liu, et al Applications of regulation method in dynamic load identification[J]. Journal of Vibration, Measurement and Diagnosis, 2014, 34 (1): 124- 129
25	HANSEN P C. The L-curve and its use in the numerical treatment of inverse problems [M]//JOHNSTON P. Computational Inverse Problems in Electrocardiology . Southampton: WIT Press, 2001: 119-142.
26	MAO Y M, GUO X L, ZHAO Y A state space force identification method based on Markov parameters precise computation and regularization technique[J]. Journal of Sound and Vibration, 2010, 329 (15): 3008- 3019 doi: 10.1016/j.jsv.2010.02.012
27	LIU J, LI B A novel strategy for response and force reconstruction under impact excitation[J]. Journal of Mechanical Science and Technology, 2018, 32 (8): 3581- 3596 doi: 10.1007/s12206-018-0709-4
28	FIGUEIREDO M A T, NOWAK R D, WRIGHT S Gradient projection for sparse reconstruction: application to compressed sensing and other inverse problems[J]. IEEE Journal of Selected Topics in Signal Processing, 2007, 1 (4): 586- 597 doi: 10.1109/JSTSP.2007.910281
29	DONOHO D L, TSAIG Y, DRORI I, et al Sparse solution of underdetermined systems of linear equations by stagewise orthogonal matching pursuit[J]. IEEE Transactions on Information Theory, 2012, 58 (2): 1094- 1121 doi: 10.1109/TIT.2011.2173241
30	DAUBECHIES I, DEFRISE M, MOL C An iterative thresholding algorithm for linear inverse problems with a sparsity constrains[J]. Communications on Pure and Applied Mathematics, 2004, 57 (11): 1413- 1541 doi: 10.1002/cpa.20042
31	熊春宝, 于丽娜, 常翔宇基于EEMD-小波阈值去噪的桥梁结构模态参数识别[J]. 天津大学学报:自然科学与工程技术版, 2020, 53 (4): 378- 385 XIONG Chunbao, YU Lina, CHANG Xiangyu Modal parameter identification of bridge structures based on EEMD-wavelet threshold denoising[J]. Journal of Tianjin University: Science and Technology, 2020, 53 (4): 378- 385
32	赵永翔, 高庆, 张斌, 等轨道车辆轮对的关键力学问题及研究进展[J]. 固体力学学报, 2010, 31 (6): 716- 730 ZHAO Yongxiang, GAO Qing, ZHANG Bin, et al Key solid mechanics issues and research progresses for railway vehicle wheelset[J]. Chinese Journal of Solid Mechanics, 2010, 31 (6): 716- 730
33	谭祥军. 从这里学NVH: 噪声、振动、模态分析的入门与进阶[M]. 北京: 机械工业出版社, 2018.
