基于个体预测的动态多目标优化算法

doi:10.3785/j.issn.1008-973X.2023.11.001

浙江大学学报(工学版)

2023, Vol. 57

Issue (11): 2133-2146 DOI: 10.3785/j.issn.1008-973X.2023.11.001

计算机技术

基于个体预测的动态多目标优化算法

王万良(

),陈忠馗,吴菲,王铮,俞梦娇

浙江工业大学计算机科学与技术学院，浙江杭州 310023

Dynamic multi-objective optimization algorithm based on individual prediction

Wan-liang WANG(

),Zhong-kui CHEN,Fei WU,Zheng WANG,Meng-jiao YU

College of Computer Science and Technology, Zhejiang University of Technology, Hangzhou 310023, China

全文: PDF(1723 KB) HTML

摘要：

为了快速追踪随环境变化的动态多目标优化问题的Pareto前沿，提出基于个体预测的动态多目标优化算法(IPS). 利用参考点联系算法筛选出特殊点，该特殊点具有良好的收敛性和多样性，通过对特殊点集的预测快速响应环境变化. 提出针对种群中心点预测的反馈校正机制，在预测非支配解集的过程中，对预测步长进行反馈校正，从而使预测更加准确；为了避免算法陷入局部最优，提出混合多样性维持机制，引入由拉丁超立方抽样和精度可控的突变策略分别产生的随机个体，以提高种群的多样性. 将所提算法与其他4种动态多目标优化算法进行对比分析，实验结果表明，IPS能够平衡种群的多样性和收敛性，在FDA、DMOP、F5~F10系列问题上，实验结果优于其他4种算法.

关键词： 动态多目标优化; 参考点联系算法; 特殊点; 反馈校正; 多样性

Abstract:

A dynamic multi-objective optimization algorithm based on individual prediction (IPS) was proposed to quickly track the Pareto optimal front of the dynamic multi-objective optimization problem that changed with the environment. Firstly, the special points with good convergence and diversity were selected by the reference point relation algorithm, and the environment changes can be quickly responded to by predicting the special points set. Secondly, a feedback correction mechanism for population center point predication was proposed, and in the process of predicting the non-dominant solution set, the prediction step size was corrected to make the prediction more accurate. Finally, to avoid the algorithm falling into local optimal, a hybrid diversity maintenance mechanism was proposed, which introduced random individuals generated by Latin hypercube sampling and a precision controllable mutation strategy to improve the diversity of the population. The proposed algorithm was compared with the other four dynamic multi-objective optimization algorithms. Experimental results show that IPS can balance the diversity and convergence of the population, and the experimental results are better than that of the other four algorithms on the FDA, DMOP, and F5~F10 test suite.

Key words: dynamic multi-objective optimization reference point relation algorithm special point correction by feedback diversity

收稿日期: 2022-11-30 出版日期: 2023-12-11

CLC:

TP 301

基金资助: 国家自然科学基金资助项目(51875524, 61873240)；浙江大学CAD&CG国家重点实验室开放课题资助项目(A2210)

作者简介: 王万良（1957—），男，教授，从事人工智能及其自动化、网络控制研究. orcid.org/0000-0002-1552-5075.E-mail： zjutwwl@zjut.edu.cn

	服务
	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	作者相关文章
	王万良
	陈忠馗
	吴菲
	王铮
	俞梦娇

引用本文:

王万良,陈忠馗,吴菲,王铮,俞梦娇. 基于个体预测的动态多目标优化算法[J]. 浙江大学学报(工学版), 2023, 57(11): 2133-2146.

Wan-liang WANG,Zhong-kui CHEN,Fei WU,Zheng WANG,Meng-jiao YU. Dynamic multi-objective optimization algorithm based on individual prediction. Journal of ZheJiang University (Engineering Science), 2023, 57(11): 2133-2146.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2023.11.001 或 https://www.zjujournals.com/eng/CN/Y2023/V57/I11/2133

表 1 4种不同类型的DMOPs

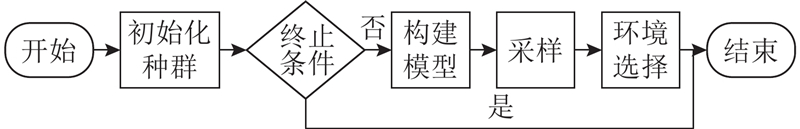

图 1 RM-MEDA流程图

图 2 非支配个体与参考点关联示意图

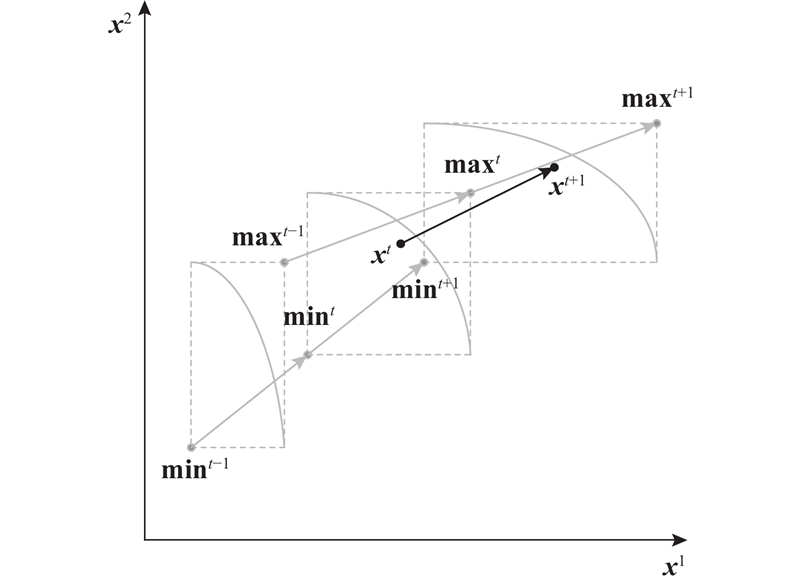

图 3 特殊点预测策略示意图

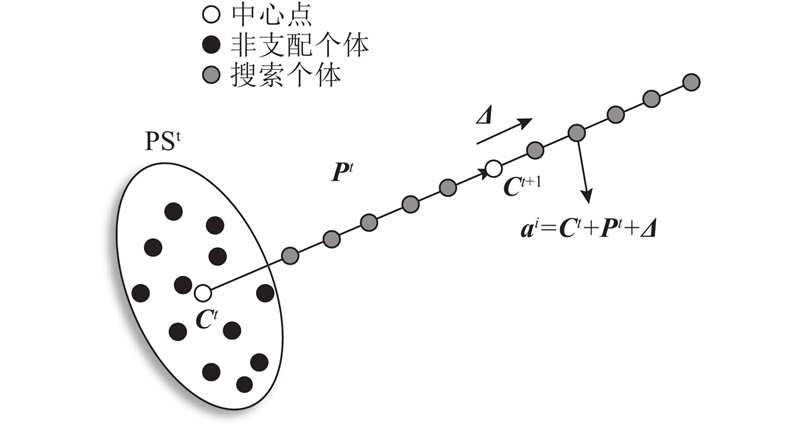

图 4 决策空间变量的步长探索

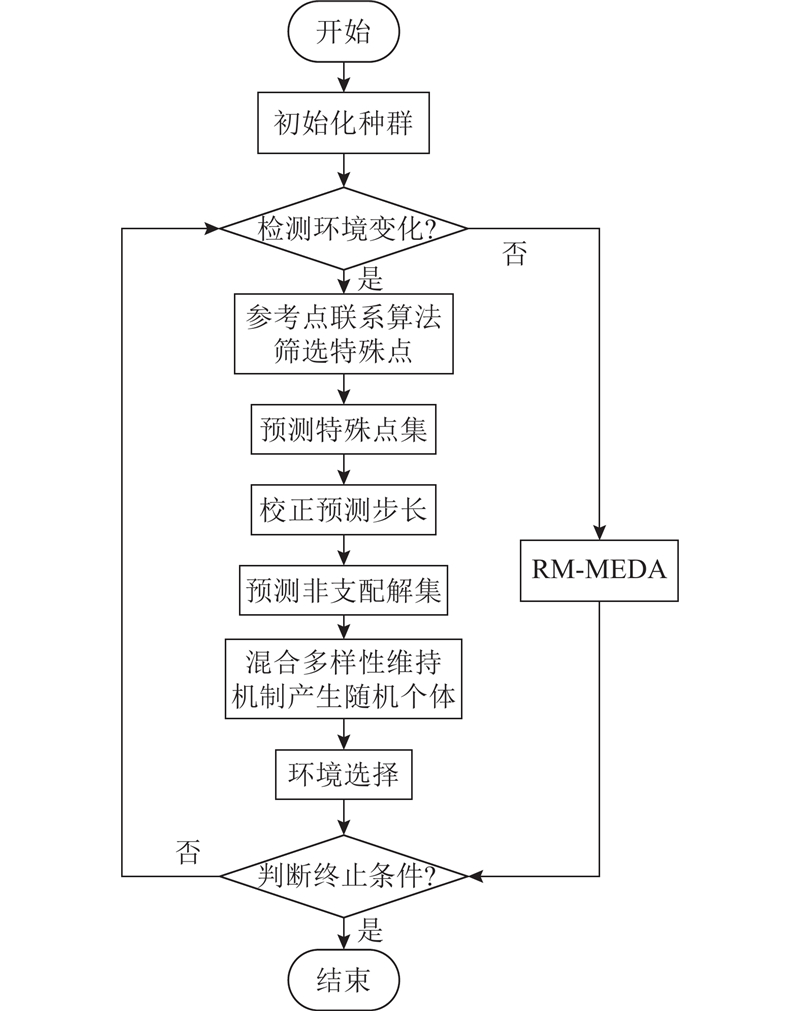

图 5 IPS流程图

问题	阶段	MIGD
问题	阶段	PPS	CKPS	SPPS	HPPCM	IPS
1）注：?和?分别表示IPS算法的性能显著优于和等同于相应的算法.
FDA1	总阶段	0.0592(0.01680)?^1）	0.0297(0.00636)?	0.0264(0.00630)?	0.0211(0.00518)?	0.0188(0.00423)
	第1阶段	0.2743(0.08625)?	0.1168(0.03308)?	0.1032(0.03278)?	0.0813(0.02744)?	0.0692(0.02245)
	第2阶段	0.0100(0.00117)?	0.0090(0.00013)?	0.0082(0.00021)?	0.0068(0.00076)?	0.0067(0.00029)
	第3阶段	0.0063(0.00011)	0.0089(0.00020)?	0.0081(0.00022)?	0.0067(0.00069)	0.0070(0.00046)
FDA2	总阶段	0.0093(0.00120)?	0.0085(0.00056)?	0.0087(0.00044)?	0.0079(0.00087)?	0.0076(0.00075)
	第1阶段	0.0219(0.00539)?	0.0183(0.00276)?	0.0170(0.00248)?	0.0172(0.00419)?	0.0160(0.00376)
	第2阶段	0.0067(0.00058)?	0.0065(0.00021)?	0.0067(0.00025)?	0.0058(0.00028)?	0.0057(0.00009)
	第3阶段	0.0059(0.00012)?	0.0060(0.00010)?	0.0068(0.00026)?	0.0056(0.00004)	0.0056(0.00004)
FDA3	总阶段	0.0843(0.01313)?	0.0383(0.00726)?	0.0363(0.00724)?	0.0216(0.00479)	0.0258(0.00647)
	第1阶段	0.2590(0.06128)?	0.1222(0.03371)?	0.1323(0.03870)?	0.0862(0.02561)	0.1023(0.03297)
	第2阶段	0.0436(0.01250)?	0.0189(0.00279)?	0.0137(0.00325)?	0.0064(0.00038)	0.0074(0.00060)
	第3阶段	0.0419(0.00778)?	0.0179(0.00243)?	0.0133(0.00262)?	0.0061(0.00035)	0.0077(0.00067)
FDA4	总阶段	0.1314(0.00333)?	0.1184(0.00230)?	0.1095(0.00211)?	0.1020(0.00104)?	0.1010(0.00148)
	第1阶段	0.1609(0.00920)?	0.1332(0.00845)?	0.1300(0.00688)?	0.1209(0.00692)?	0.1161(0.00498)
	第2阶段	0.1258(0.00312)?	0.1148(0.00268)?	0.1050(0.00221)?	0.0969(0.00198)	0.0976(0.00167)
	第3阶段	0.1230(0.00312)?	0.1149(0.00232)?	0.1043(0.00234)?	0.0980(0.00245)?	0.0973(0.00216)
DMOP1	总阶段	0.1296(0.24085)?	0.0076(0.00174)?	0.0099(0.00276)?	0.0068(0.00504)?	0.0064(0.00052)
	第1阶段	0.5522(1.06835)?	0.0181(0.00901)?	0.0310(0.01421)?	0.0161(0.00382)?	0.0118(0.00272)
	第2阶段	0.0528(0.09413)?	0.0050(0.00005)	0.0050(0.00070)	0.0047(0.00004)	0.0051(0.00002)
	第3阶段	0.0057(0.00002)?	0.0051(0.00006)	0.0048(0.00054)	0.0046(0.00006)	0.0051(0.00005)
DMOP2	总阶段	0.0659(0.03602)?	0.0267(0.00616)?	0.0316(0.00584)?	0.0252(0.00504)?	0.0223(0.00254)
	第1阶段	0.3008(0.16637)?	0.1006(0.03204)?	0.1263(0.03040)?	0.1021(0.02651)?	0.0848(0.01365)
	第2阶段	0.0142(0.01391)?	0.0092(0.00012)?	0.0093(0.00026)?	0.0069(0.00047)	0.0075(0.00020)
	第3阶段	0.0061(0.00003)?	0.0090(0.00020)?	0.0090(0.00030)?	0.0069(0.00042)	0.0073(0.00030)
DMOP3	总阶段	0.0482(0.04869)?	0.0277(0.00629)	0.0279(0.00828)	0.0242(0.00544)	0.0288(0.00431)
	第1阶段	0.2173(0.00125)?	0.1065(0.03292)	0.1111(0.04314)	0.0958(0.02797)	0.1204(0.02258)
	第2阶段	0.0099(0.00010)?	0.0091(0.00017)?	0.0082(0.00018)?	0.0078(0.00138)?	0.0071(0.00047)
	第3阶段	0.0062(0.00954)	0.0089(0.00011)?	0.0081(0.00017)?	0.0066(0.00043)	0.0069(0.00017)

表 2 5种策略在FDA和DMOP上的MIGD指标

问题	阶段	MHVD
问题	阶段	PPS	CKPS	SPPS	HPPCM	IPS
F5	总阶段	0.5124(0.07330)?	0.2769(0.01312)?	0.2782(0.01280)?	0.2745(0.00810)?	0.2725(0.01327)
	第1阶段	1.4519(0.28264)?	0.4064(0.07001)	0.4155(0.06438)?	0.3752(0.03314)	0.4132(0.05877)
	第2阶段	0.3309(0.05948)?	0.2466(0.00230)?	0.2455(0.00379)?	0.2508(0.00777)?	0.2379(0.00468)
	第3阶段	0.2477(0.00173)?	0.2456(0.00171)?	0.2457(0.00174)?	0.2505(0.00681)?	0.2403(0.00508)
F6	总阶段	0.3222(0.03755)?	0.2659(0.00655)?	0.2693(0.01432)?	0.2652(0.00692)	0.2655(0.00412)
	第1阶段	0.6239(0.18580)?	0.3462(0.03272)?	0.3647(0.07603)?	0.3470(0.03468)?	0.3455(0.02249)
	第2阶段	0.2545(0.00503)?	0.2467(0.00117)?	0.2467(0.00093)?	0.2455(0.00147)	0.2459(0.00118)
	第3阶段	0.2466(0.00144)	0.2470(0.00104)	0.2467(0.00095)	0.2459(0.00084)	0.2472(0.00165)
F7	总阶段	0.3596(0.03072)?	0.2690(0.01654)?	0.2664(0.00844)?	0.2672(0.01441)?	0.2614(0.00741)
	第1阶段	0.8307(0.15396)?	0.3740(0.08647)?	0.3560(0.04440)?	0.3633(0.07469)?	0.3332(0.03972)
	第2阶段	0.2492(0.00359)?	0.2443(0.00101)	0.2454(0.00071)?	0.2444(0.00074)?	0.2443(0.00105)
	第3阶段	0.2463(0.00111)?	0.2439(0.00080)	0.2447(0.00093)?	0.2443(0.00075)	0.2444(0.00094)
F8	总阶段	0.3954(0.03307)?	0.4108(0.02681)?	0.3852(0.01921)?	0.3223(0.01427)	0.3277(0.00396)
	第1阶段	0.6076(0.16045)?	0.5809(0.13203)?	0.5864(0.08519)?	0.4663(0.05926)?	0.4568(0.02104)
	第2阶段	0.3504(0.01283)?	0.3684(0.05066)?	0.3374(0.00970)?	0.2889(0.00725)	0.2959(0.00706)
	第3阶段	0.3397(0.01085)?	0.3725(0.02345)?	0.3373(0.01247)?	0.2872(0.01162)	0.2983(0.00646)
F9	总阶段	0.6408(0.07758)?	0.3705(0.03890)?	0.3411(0.01947)?	0.3353(0.04994)?	0.3113(0.02232)
	第1阶段	1.6206(0.23861)?	0.7310(0.18668)?	0.6319(0.06566)?	0.6164(0.12440)?	0.5565(0.10975)
	第2阶段	0.4945(0.09275)?	0.2950(0.01834)?	0.2697(0.01675)?	0.2695(0.05153)?	0.2593(0.00953)
	第3阶段	0.3216(0.07873)?	0.2746(0.00704)?	0.2744(0.02416)?	0.2674(0.02417)?	0.2468(0.01399)
F10	总阶段	0.7720(0.06904)?	0.3612(0.01334)	0.3361(0.02204)	0.4034(0.05090)?	0.3927(0.03353)
	第1阶段	1.5730(0.10988)?	0.7354(0.05476)?	0.6343(0.10452)?	0.6220(0.11651)?	0.5665(0.09724)
	第2阶段	0.6341(0.13136)?	0.2782(0.01809)	0.2652(0.00560)	0.3423(0.04547)	0.3631(0.01942)
	第3阶段	0.5294(0.08679)?	0.2666(0.01608)	0.2653(0.00905)	0.3606(0.06961)?	0.3398(0.03363)

表 3 5种策略在F5~F10上的MHVD指标

表 4 5种策略在部分测试问题上的MIGD指标

表 5 5种策略在部分测试问题上的MHVD指标

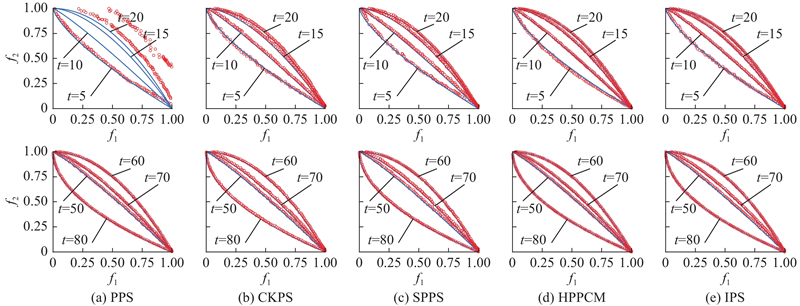

图 6 5种策略在求解DMOP2过程中所获得的解集

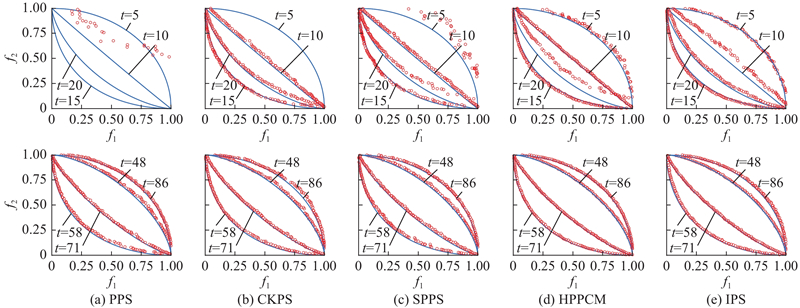

图 7 5种策略在求解F9过程中所获得的解集

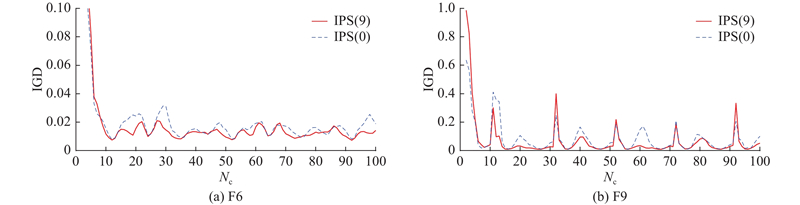

图 8 IPS(0)和IPS(9)在F6和F9问题上运行20次时环境变化的IGD趋势

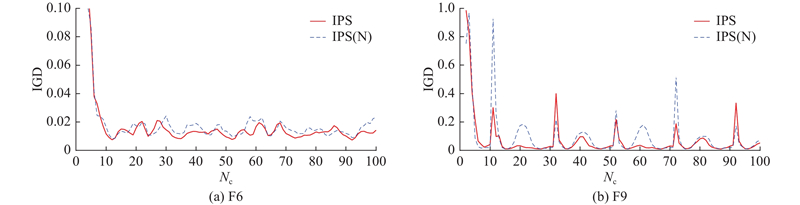

图 9 IPS和IPS(N)在F6和F9问题上运行20次时环境变化的IGD趋势
