基于特征融合的语言想象脑电信号分类
张灵维(),周正东*(),许云飞,王嘉文,吉文韬,宋泽峰
南京航空航天大学 航空学院，江苏 南京 210016
Classification of imagined speech EEG signals based on feature fusion
Ling-wei ZHANG(),Zheng-dong ZHOU*(),Yun-fei XU,Jia-wen WANG,Wen-tao JI,Ze-feng SONG
College of Aeronautics, Nanjing University of Aeronautics and Astronautics, Nanjing 210016, China
 全文: PDF(1356 KB)   HTML
摘要：

为了提高语言想象脑-机接口（BCI）控制任务的准确率, 提出融合离散小波变换（DWT）与经验模态分解（EMD）的语言想象脑电信号特征提取与分类方法. 该方法将原始语言想象脑电信号分别进行离散小波变换与经验模态分解，提取分解后各通道信号的特征并进行融合，运用径向基核函数支持向量机（SVM）对语言想象脑电信号进行分类. 实验结果表明，提出的方法使得语言想象脑电信号分类的平均准确率达到82.46%，与基于离散小波变换的脑电信号分类方法相比，分类准确率提高了20.77%，与基于经验模态分解的脑电信号分类方法相比，分类准确率提高了21.12%. 该方法能够有效提高语言想象脑电信号分类的准确率，对于语言想象脑-机接口的实际应用具有重要价值.
关键词： 脑-机接口（BCI）;  脑电图;  语言想象;  离散小波变换（DWT）;  经验模态分解（EMD）
Abstract:

A feature extraction and classification method of imagined speech electroencephalogram (EEG) signals was proposed by combining discrete wavelet transform (DWT) and empirical mode decomposition (EMD) in order to improve the accuracy of imagined speech brain-computer interface (BCI) control task. DWT and EMD were applied to the original imagined speech EEG signals respectively, and the features of the signal of each channel were extracted and fused. Then the RBF support vector machine (SVM) was used to classify the imagined speech EEG signals. The experimental results show that the classification accuracy can achieve an average by 82.46% with the proposed method, which is 20.77% higher than that with the DWT method, and 21.12% higher than that with the EMD method. The proposed method can effectively improve the classification accuracy of imagined speech EEG signals, and is of great value to the practical application of imagined speech BCI.
Key words: brain-computer interface (BCI)    electroencephalogram    imagined speech    discrete wavelet transform (DWT)    empirical mode decomposition (EMD)
收稿日期: 2022-06-22 出版日期: 2023-04-21
CLC:  TP 391
基金资助: 中国航空研究院首批揭榜挂帅项目（F2021109）；上海航天科技创新基金资助项目 (SAST2019-121）；南京航空航天大学科研与实践创新计划资助项目（xcxjh20210104）；江苏高校优势学科建设工程资助项目（PAPD）
通讯作者: 周正东     E-mail: nuaazlw@nuaa.edu.cn;zzd_msc@nuaa.edu.cn
作者简介: 张灵维（1998—），男，硕士生，从事脑-机接口的研究. orcid.org/0000-0003-4731-1570. E-mail： nuaazlw@nuaa.edu.cn
服务　　
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章　　
张灵维
周正东
许云飞
王嘉文
吉文韬
宋泽峰

引用本文:

张灵维,周正东,许云飞,王嘉文,吉文韬,宋泽峰. 基于特征融合的语言想象脑电信号分类[J]. 浙江大学学报(工学版), 2023, 57(4): 726-734.

Ling-wei ZHANG,Zheng-dong ZHOU,Yun-fei XU,Jia-wen WANG,Wen-tao JI,Ze-feng SONG. Classification of imagined speech EEG signals based on feature fusion. Journal of ZheJiang University (Engineering Science), 2023, 57(4): 726-734.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2023.04.010    或    https://www.zjujournals.com/eng/CN/Y2023/V57/I4/726

图 1  基于特征融合的语言想象脑电信号分类方法流程图

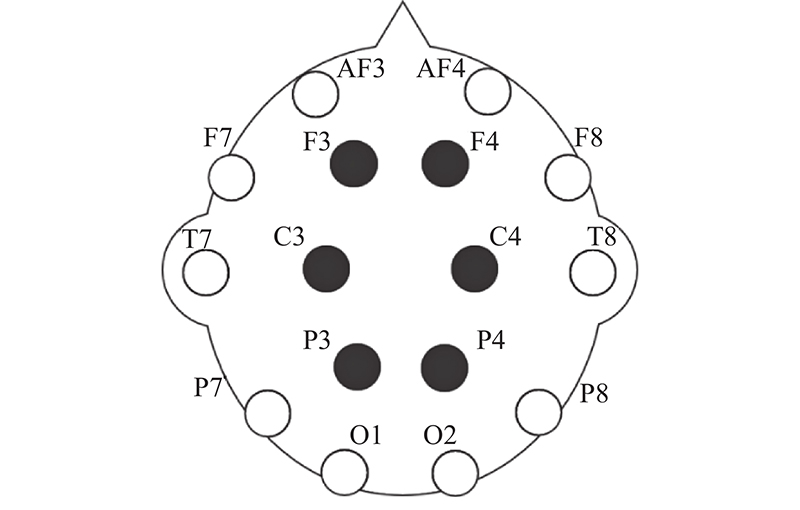

图 2  用于获取脑电信号的电极位置
图 3  离散小波变换的原理

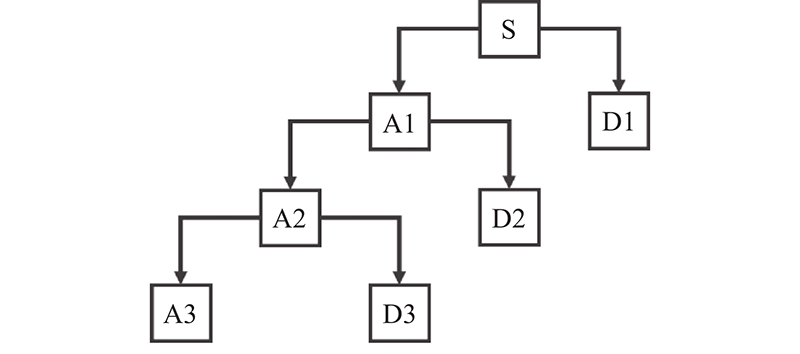

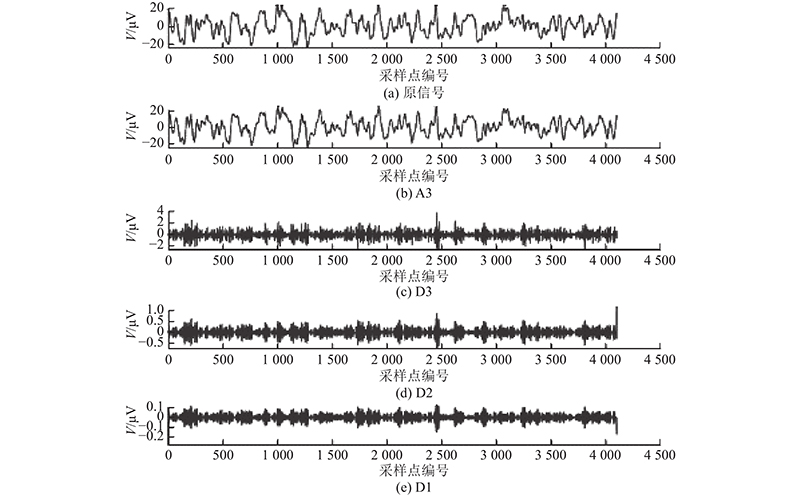

图 4  离散小波变换分解EEG信号

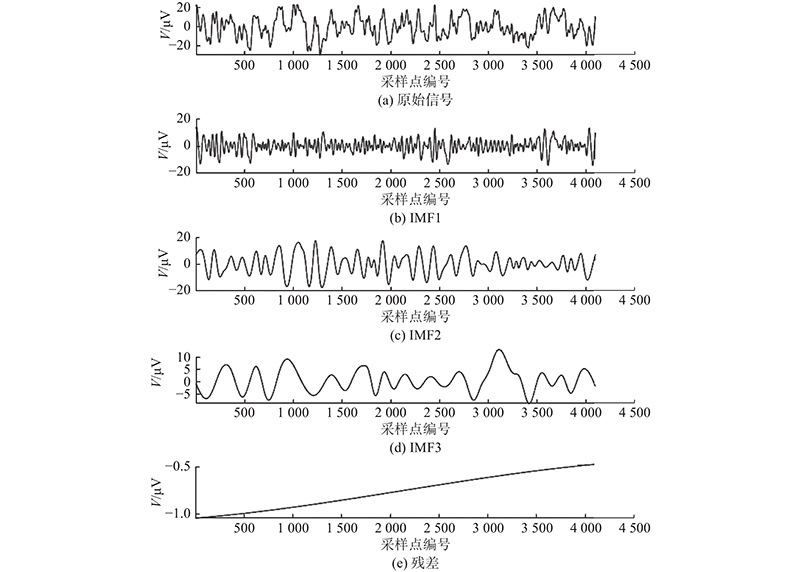

图 5  经验模态分解EEG信号
图 6  EEG信号特征提取与融合的流程图

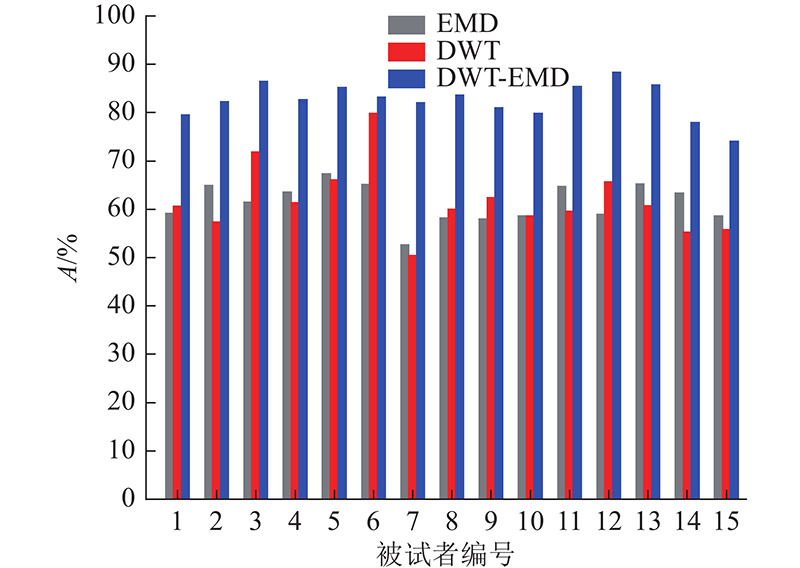

图 7  基于SVM的EEG信号分类准确率

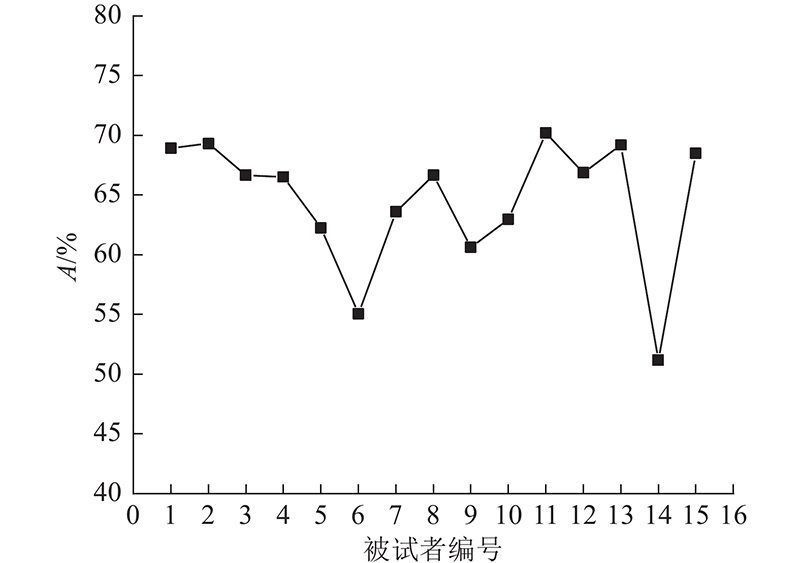

图 8  基于KNN的EEG信号分类准确率
