浙江大学学报(工学版)
浙江大学学报(工学版)  2022, Vol. 56 Issue (12): 2471-2477    DOI: 10.3785/j.issn.1008-973X.2022.12.016
土木工程、水利工程
旋转压实中颗粒运动与压实特性的关联机制
赵立财1,2(),卞雨馨3
1. 台湾科技大学 营建工程系，台湾 台北 106335
2. 中铁十九局集团第三工程有限公司，辽宁 沈阳 110136
3. 四川农业大学 建筑与城乡规划学院，四川 成都 611830
Mechanism of correlation between particle motion and compaction characteristics in gyratory compaction
Li-cai ZHAO1,2(),Yu-xin BIAN3
1. Department of Civil and Construction Engineering, Taiwan University of Science and Technology, Taipei 106335, China
2. China Railway 19th Bureau Group Third Engineering Company Limited, Shenyang 110136, China
3. College of Architecture and Urban-Rural Planning, Sichuan Agricultural University, Chengdu 611830, China
 全文: PDF(4453 KB)   HTML
摘要：

为了从颗粒运动角度揭示级配碎石的压实机理，基于离散元数值模拟方法构建考虑骨料真实形状特征的多面体骨料试样. 通过虚拟旋转压实试验，研究级配碎石试样不同位置骨料在压实过程中的运动特征，从细观角度揭示级配碎石在旋转压实过程中的颗粒运动与压实特性的关联机制. 结果表明，压实试样各部分的颗粒运动响应均呈现相似的规律，中间位置的颗粒运动和压实特性可以评估试样的压实质量. 压实阶段可分成初始压实、过渡压实、锁固和压实4个阶段，颗粒运动的锁固点出现在锁固阶段结束时，锁固点的出现可以作为试样进入压密阶段的标志. 颗粒运动特征相较于试样内部孔隙率的变化，对评价压实质量更具优越性.
关键词： 旋转压实;  颗粒运动;  压实质量;  锁固点;  智能压实
Abstract:

To reveal the compaction mechanism of graded aggregates from the perspective of particle motion, polyhedral aggregate specimens were constructed considering the real shape characteristics of aggregates based on the discrete element numerical simulation method. Through the virtual gyratory compaction test, the motion characteristics of the aggregates at different positions of the graded aggregate specimens during the compaction process were investigated. And the correlation mechanism between the particle motion and the compaction characteristics of the graded aggregates were revealed during the gyratory compaction process from a fine viewpoint. Results show that the particle motion responses of all parts of the compacted specimens show similar patterns, and the particle motion and compaction characteristics at intermediate positions can assess the compaction quality of the specimens. The compaction stage can be divided into four stages: initial compaction, transition compaction, locking and compaction. The locking point of particle motion appears at the end of the locking stage, and the appearance of the locking point can be used as a sign that the specimen enters the compacting stage. The particle motion characteristics are superior to the change in porosity inside the specimen to evaluate the compaction quality.
Key words: gyratory compaction    particle motion    compaction quality    locking point    smart compaction
收稿日期: 2022-01-09 出版日期: 2023-01-03
CLC:  U 416.1
基金资助: 辽宁省“兴辽英才计划”青年拔尖人才资助项目(XLYC2007146)
作者简介: 赵立财（1985—），男，正高级工程师，博士，从事岩土与结构相互作用、路面材料与结构行为理论研究.orcid.org/0000-0002-5438-7314. E-mail： zhaolicai1314@foxmail.com
服务　　
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章　　
赵立财
卞雨馨

引用本文:

赵立财,卞雨馨. 旋转压实中颗粒运动与压实特性的关联机制[J]. 浙江大学学报(工学版), 2022, 56(12): 2471-2477.

Li-cai ZHAO,Yu-xin BIAN. Mechanism of correlation between particle motion and compaction characteristics in gyratory compaction. Journal of ZheJiang University (Engineering Science), 2022, 56(12): 2471-2477.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2022.12.016    或    https://www.zjujournals.com/eng/CN/Y2022/V56/I12/2471

图 1  级配碎石的不同骨料形状
d/mm P/% d/mm P/% d/mm P/% d/mm P/%
22.40 100 16.00 83.0 9.50 50.0 2.36 0.5
19.00 92.0 13.20 75.0 4.75 12.0 1.60 0
表 1  虚拟多面体试样颗粒级配
图 2  多面体骨料生成与虚拟模型构建
图 3  不同粒径的多面体骨料
图 4  线性接触模型细观组件

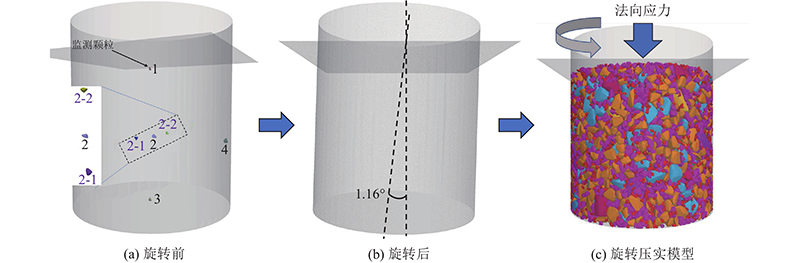

图 5  颗粒运动监测点及旋转压实流程图

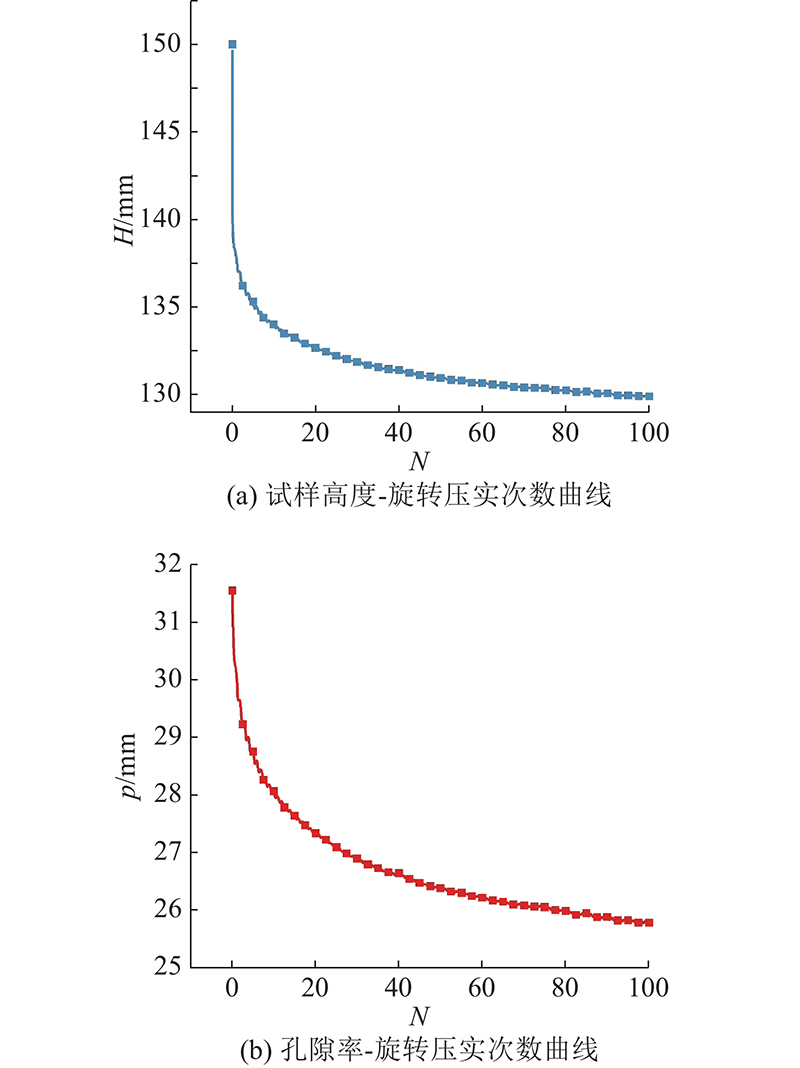

图 6  压实高度和孔隙率随旋转压实次数的变化曲线

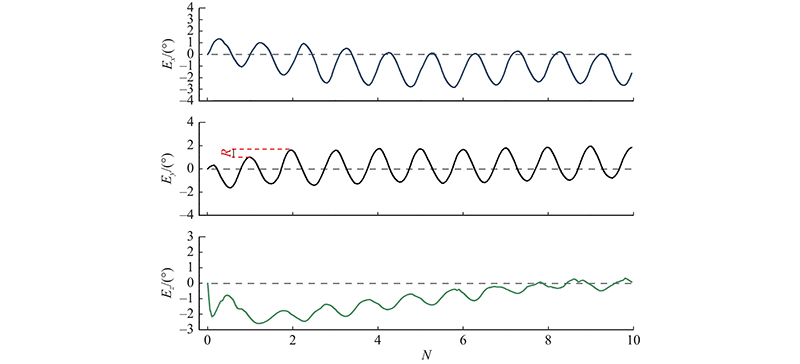

图 7  监测点2欧拉角随旋转压实次数的变化曲线

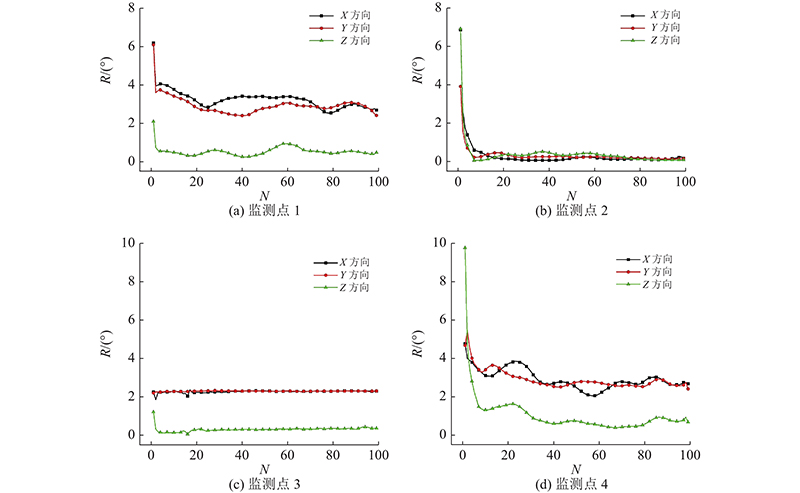

图 8  各监测点颗粒的相对转角随旋转压实次数的变化曲线

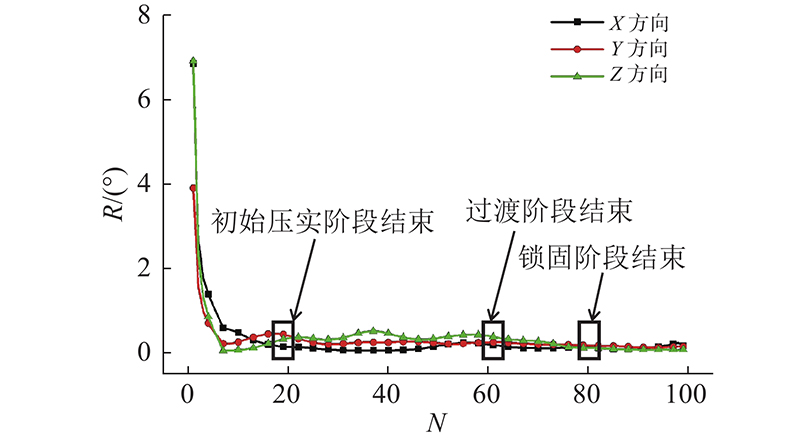

图 9  根据相对转角变化特征对压实阶段进行划分

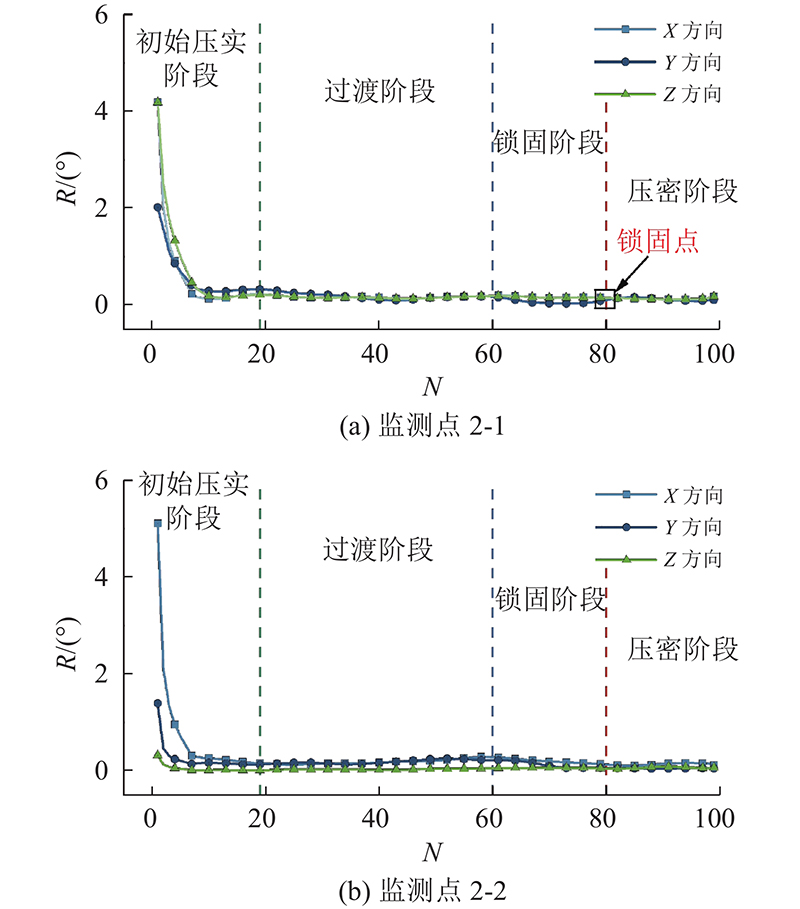

图 10  试样中部监测点颗粒的相对转角随旋转压实次数的变化曲线

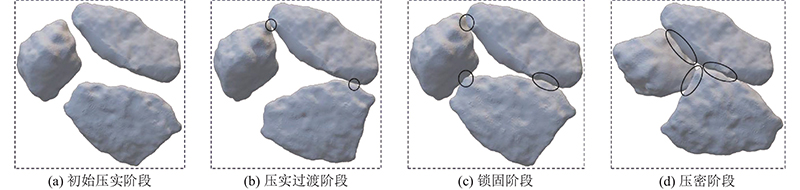

图 11  级配碎石压实过程中颗粒姿态调整示意图
