浙江大学学报(工学版)
浙江大学学报(工学版)  2021, Vol. 55 Issue (12): 2234-2242    DOI: 10.3785/j.issn.1008-973X.2021.12.002
土木工程、交通工程
泥水盾构开挖面前泥浆渗透距离预测算法
尹鑫晟1(),朱彦华2,魏纲1,2,*(),丁智1,崔允亮1
1. 浙大城市学院 工程学院，浙江 杭州 310015
2. 浙江大学 建筑工程学院，浙江 杭州 310058
Algorithm for predicting slurry penetration distance in front of slurry shield tunnel face
Xin-sheng YIN1(),Yan-hua ZHU2,Gang WEI1,2,*(),Zhi DING1,Yun-liang CUI1
1. College of Engineering, Zhejiang University City College, Hangzhou 310015, China
2. College of Civil Engineering and Architecture, Zhejiang University, Hangzhou 310058, China
 全文: PDF(1386 KB)   HTML
摘要：

为了计算泥水盾构开挖面前泥浆渗透地层的距离，基于泥浆渗透不伴生泥膜的假设，提出改进模型来分析不同泥浆的渗透距离. 结果表明：在泥浆渗透时间小于20 s的情况下，与Xu模型相比，改进模型的最大精度提高6%，且无须泥浆渗透试验. 在不考虑泥膜的情况下，纯膨润土泥浆的最大渗透距离为5.8~6.3 m；添加高分子材料的膨润土泥浆最大渗透距离为0.3~1.6 m，是纯膨润土泥浆的5%~25%；羧甲基纤维素钠对泥浆的改性效果最好. 微透水泥膜的形成时间为3.2~5.0 s. 考虑泥浆渗透伴生泥膜的情况，得到改进模型的修正系数为0.72~0.92. 预测常用的泥浆渗透距离，当盾构刀盘切削周期为10 s时，泥浆渗透距离为2.3~6.3 cm，最大的渗透距离是一般盾构直径（6 m）的1.05%.
关键词： 泥水盾构;  泥浆配方;  渗透试验;  泥膜
Abstract:

An improved model was proposed based on the existing slurry penetration calculation model, and the penetration distances of different slurry were analyzed, in order to calculate the distance of slurry penetration into the stratum before slurry shield tunnel face. Results showed that the maximum precision of the improved model was 6%, higher than that of Xu model when the infiltration time was less than 20 s, and no infiltration column tests are required. Without considering the filter cake, the maximum penetration distance of the pure bentonite slurry was 5.8-6.3 m. The maximum penetration distance of bentonite slurry with the polymer materials was 0.3-1.6 m, which was 5-25% of pure bentonite slurry. Sodium carboxymethyl cellulose has the best modification effect on slurry. The formation time of low-permeable filter cake was 3.2-5.0 s. The correction factor for the improved model was 0.72-0.92, which is obtained with consideration of the filter cake. Predicting the penetration distance of commonly used slurry, the penetration distance at 10 s of the shield cutter passing cycle was 2.3-6.3 cm, and the maximum penetration distance was 1.05% of the general shield diameter (6 m).
Key words: slurry shield    slurry formula    infiltration column test    filter cake
收稿日期: 2021-03-09 出版日期: 2021-12-31
CLC:  U 455.43
基金资助: 国家自然科学基金资助项目（51808493）；浙江省自然科学基金资助项目（LY21E080004，LHZ20E080001）；杭州市科委农业与社会发展一般项目（20201203B125）；浙江省公益技术研究计划项目（LGF20E080007）；杭州市农业与社会发展一般科研项目（2020ZDSJ0639）
通讯作者: 魏纲     E-mail: yinxs@zucc.edu.cn;weig@zucc.edu.cn
作者简介: 尹鑫晟（1989—），男，讲师，博士，从事盾构隧道研究. orcid.org/0000-0001-9888-9415. E-mail： yinxs@zucc.edu.cn
服务　　
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章　　
尹鑫晟
朱彦华
魏纲
丁智
崔允亮

引用本文:

尹鑫晟,朱彦华,魏纲,丁智,崔允亮. 泥水盾构开挖面前泥浆渗透距离预测算法[J]. 浙江大学学报(工学版), 2021, 55(12): 2234-2242.

Xin-sheng YIN,Yan-hua ZHU,Gang WEI,Zhi DING,Yun-liang CUI. Algorithm for predicting slurry penetration distance in front of slurry shield tunnel face. Journal of ZheJiang University (Engineering Science), 2021, 55(12): 2234-2242.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2021.12.002    或    https://www.zjujournals.com/eng/CN/Y2021/V55/I12/2234

图 1  泥浆在地层渗透形成泥膜
图 2  泥浆渗透距离求解流程图
泥浆型号 ${\tau _{\rm{y}}}{\rm{/Pa}}$ $ L{\rm{/m}}$ ${k_{\rm{b}}}{\rm{/(1} }{ {\rm{0} }^{ {\rm{ - 5} } } }{\rm{ m} } \cdot { {\rm{s} }^{ - 1} }{\rm{)} }$ ${k'_{\rm{b}}}{\rm{/(1} }{ {\rm{0} }^{ {\rm{ - 5} } } }{\rm{ m} } \cdot { {\rm{s} }^{ - 1} }{\rm{)} }$
Con_40 0.50 1.563 $ {\text{8}}{\text{.0}} $ $ {\text{7}}{\text{.5}} $
Con_50 0.87 1.042 $ {\text{5}}{\text{.0}} $ $ {\text{4}}{\text{.5}} $
Con_60 2.00 0.434 $ {\rm{4}}{\rm{.0}}$ $ {\rm{4}}{\rm{.0}}$
表 1  渗透柱试验参数

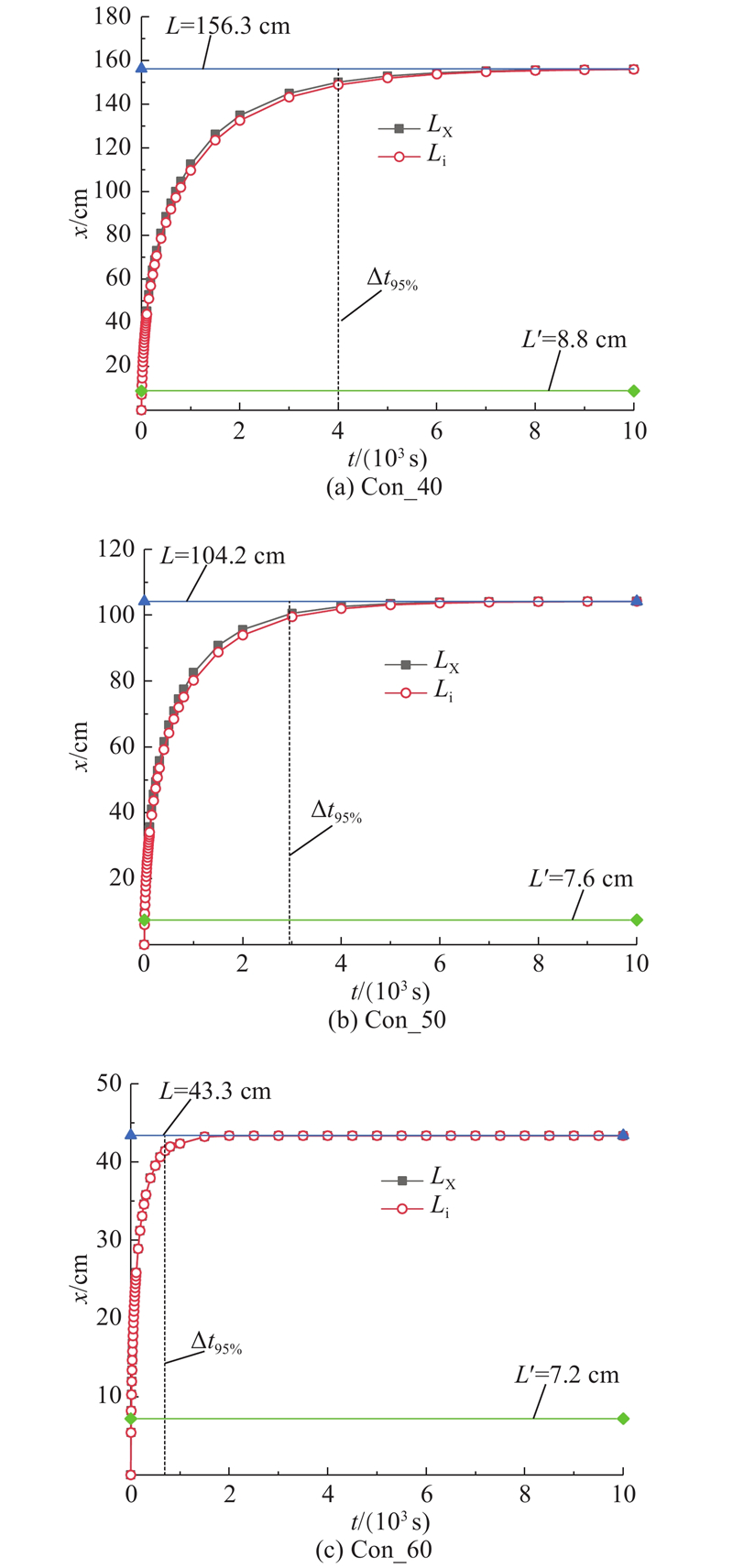

图 3  模型计算的渗透距离和理论最大渗透距离的对比

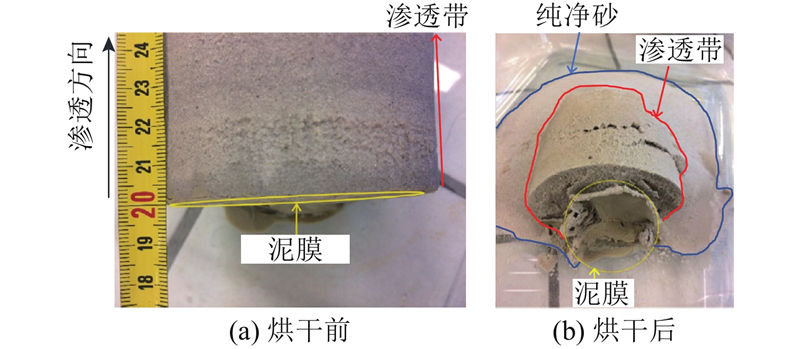

图 4  泥膜试样

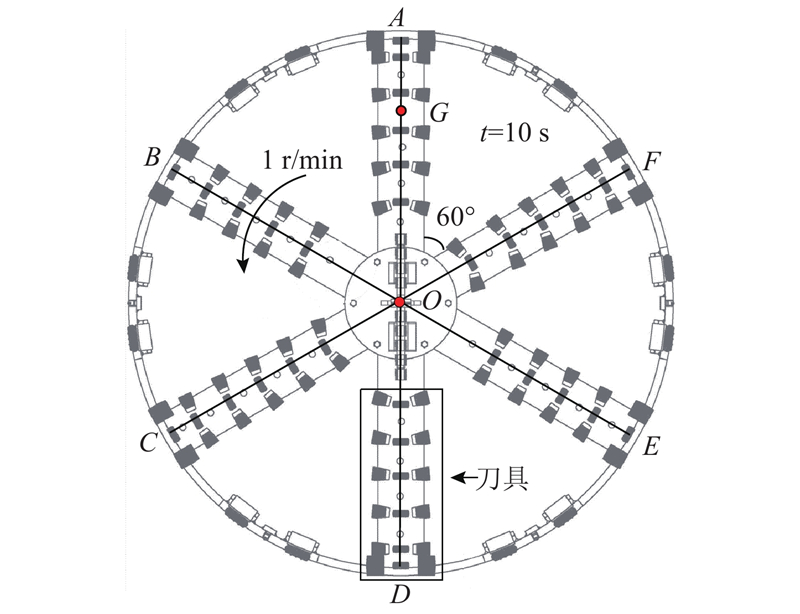

图 5  刀盘切削土体示意图

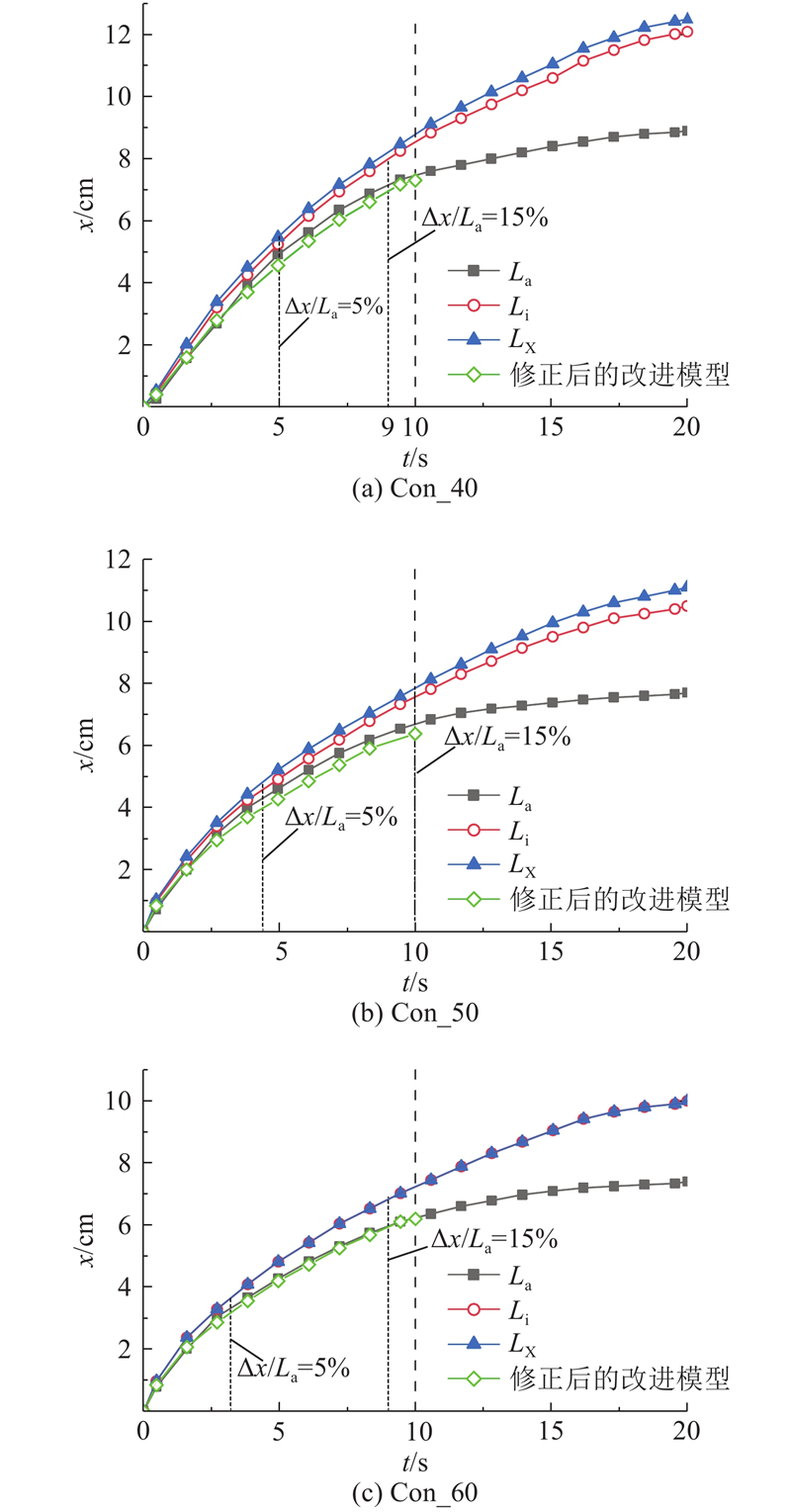

图 6  模型计算的渗透距离与实测渗透距离对比
泥浆型号 ρB/（g·L?1） 材料 Mr C/% μ / （mPa·s） μ r /s μ m /s ρ/ （g·cm?3） τy/Pa L/m $k'_{\rm{b}} $/（m·s?1）
SL_1 50 ? ? 0 1.50 16 30 1.030 0.15 6.356 $1.33 \times {10^{ - 4}}$
SL_2 70 ? ? 0 1.90 17 31 1.035 0.16 5.958 $1.05 \times {10^{ - 4}}$
SL_3 50 APAM 2.5×107 1 33.65 253 472 1.030 9.94 0.157 $1.36 \times {10^{ - 5}}$
SL_4 50 CPAM 1.6×107 1 5.80 19 38 1.030 0.10 9.533 $3.45 \times {10^{ - 5}}$
SL_5 50 PAA-Na 1.2×103 1 3.40 19 34 1.030 0.51 1.869 $5.88 \times {10^{ - 5}}$
SL_6 50 PAA-Na 1.5×104 1 6.05 22 40 1.030 1.28 0.745 $3.31 \times {10^{ - 5}}$
SL_7 50 CMC 4.1×104 1 9.15 23 41 1.030 2.20 0.433 $2.19 \times {10^{ - 5}}$
SL_8 50 CMC 5.7×104 1 63.35 264 291 1.030 32.04 0.030 $3.16 \times {10^{ - 6}}$
SL_9 50 CMC-Na 8.0×103 1 19.40 31 51 1.030 2.96 0.322 $1.03 \times {10^{ - 5}}$
表 2  泥浆基本参数

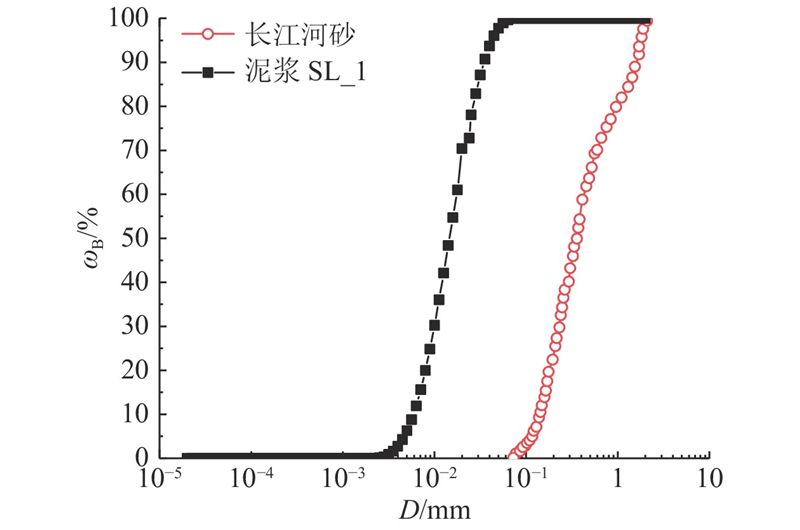

图 7  泥浆颗粒和地层颗粒级配曲线

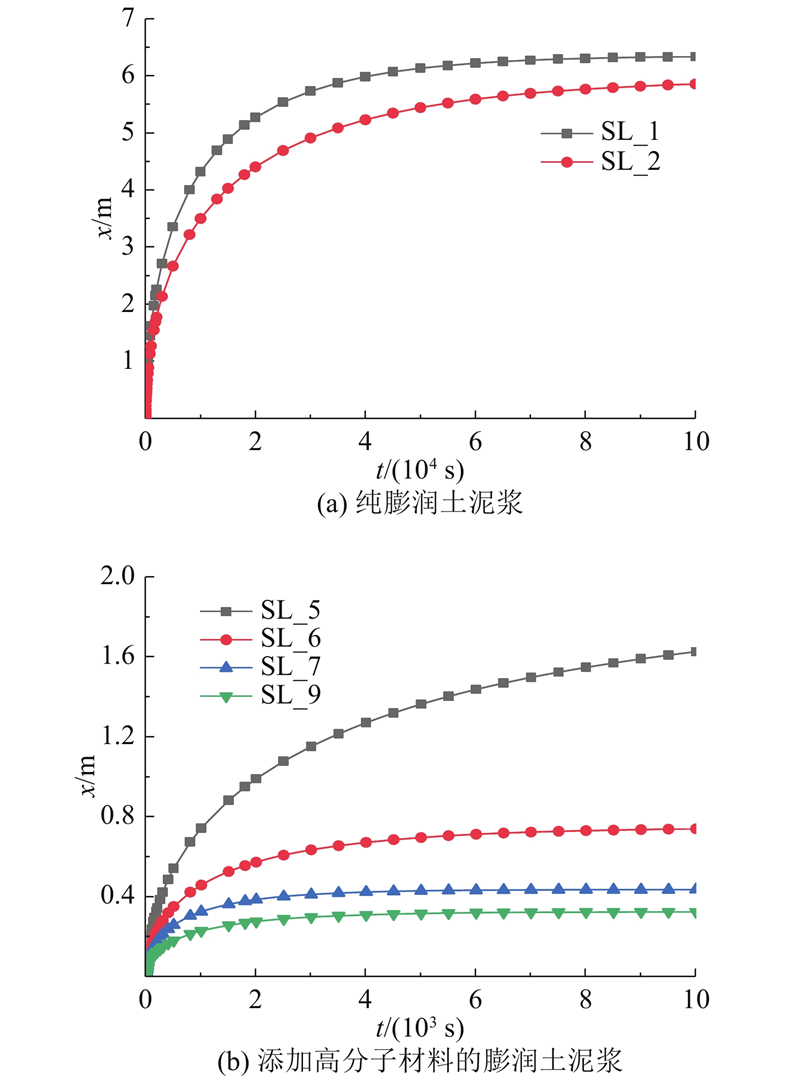

图 8  泥浆压力20 kPa时，不同泥浆的渗透距离随时间的变化曲线

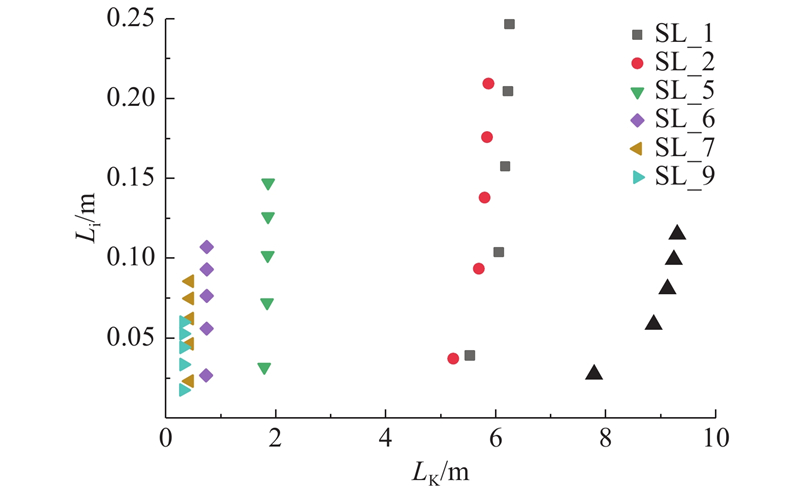

图 9  泥浆压力为20 kPa渗透时间为10 s时，改进模型与Krause-Broere模型的对比

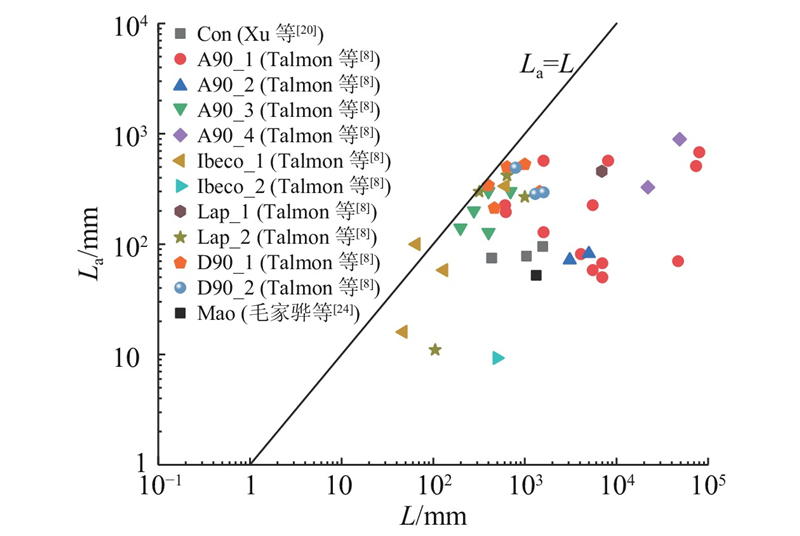

图 10  实测泥浆渗透距离与理论最大渗透距离对比

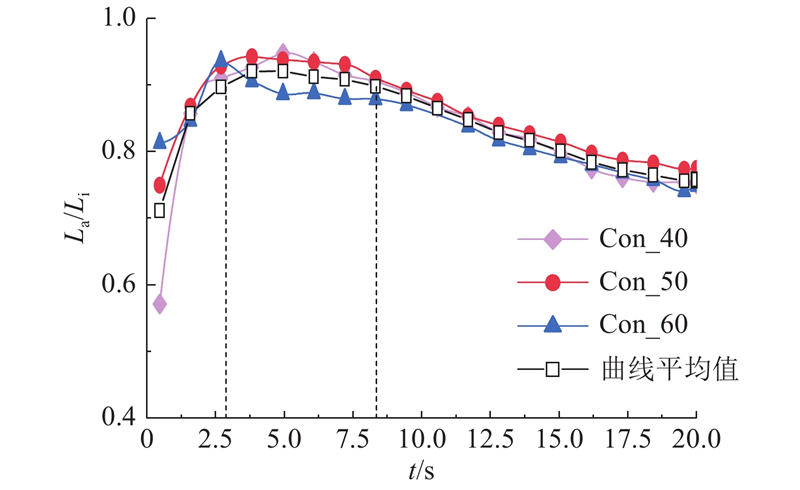

图 11  改进模型与实测渗透距离的比值随时间的变化曲线

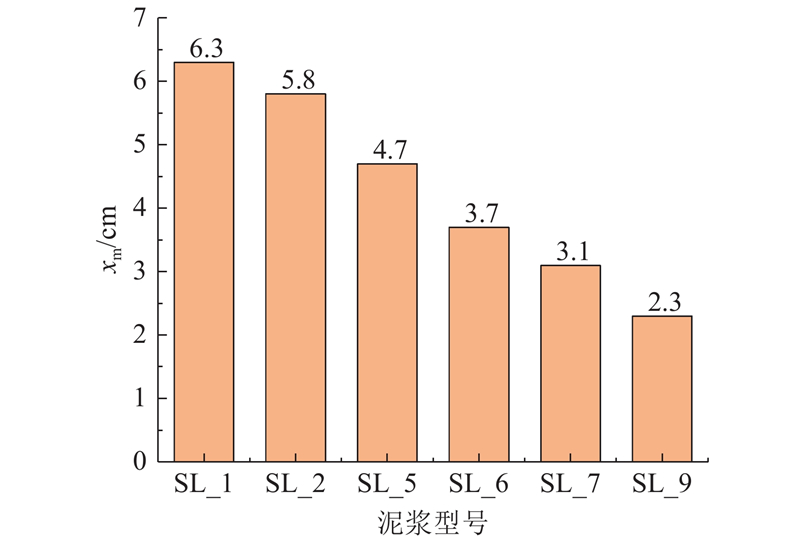

图 12  泥浆压力为20 kPa，渗透时间为10 s时，修正的泥浆渗透距离
