浙江大学学报(工学版)  2019, Vol. 53 Issue (7): 1274-1281    DOI: 10.3785/j.issn.1008-973X.2019.07.005
机械与能源工程
基于梯度提升树的飞机机身对接状态识别
蔡畅1(),黄亦翔1,*(),邢宏文2
1. 上海交通大学 机械系统与振动国家重点实验室,上海 200240
2. 上海飞机制造有限公司 航空制造技术研究所,上海 200436
State recognition for fuselage join based on gradient boosting tree
Chang CAI1(),Yi-xiang HUANG1,*(),Hong-wen XING2
1. State Key Laboratory of Mechanical System and Vibration, Shanghai Jiao Tong University, Shanghai 200240, China
2. Institute of Aeronautical Manufacturing Technology, Shanghai Aircraft Manufacturing Limited Company, Shanghai 200436, China
 全文: PDF(1317 KB)   HTML
摘要:

为了实时监控飞机机身的对接过程,针对机身对接数据没有标注和样本不平衡的特点,提出基于梯度提升树(GBDT)的机身对接状态识别方法. 通过定位器及定位器上的载荷传感器,实时获取机身对接过程中的位移和载荷数据. 结合飞机部件对接的工艺流程对历史对接数据进行状态标注,提出准确、高效的对接状态自动标注方法. 在经过标注的对接数据上训练基于GBDT的机身对接状态识别模型,通过该模型可以获得各个特征的重要性. 与长短期记忆网络(LSTM)、卷积神经网络(CNN)以及一些传统机器学习方法相比,该方法对接状态识别的宏F1(macro_F1)指标高达0.998,能够精准地识别每一种对接状态且训练速度较快.

关键词: 机身对接状态标注状态识别数据驱动梯度提升树(GBDT)不平衡多分类
Abstract:

A state recognition method for fuselage join based on gradient boosting decision tree (GBDT) was proposed by considering the practical conditions of the lack of label and sample imbalance of fuselage joining data in order to monitor the process of fuselage join in real time. The displacement and the load data were acquired in real time through the positioners and the load sensors during the process of fuselage join. The joining state of historical data was labeled based on the process of airliner component join, and an accurate and efficient automatic labeling method for fuselage joining state was proposed. The state recognition model for fuselage join based on GBDT was trained through the labeled data, from which the importance of each feature was obtained. The macro_F1 for joining state recognition of the proposed method was as high as 0.998, compared with the latest deep learning methods such as long short-term memory (LSTM), convolutional neural network (CNN) and some traditional machine learning methods. Each joining state was accurately recognized, and the model training process was more efficient.

Key words: fuselage join    state labeling    state recognition    data driven    gradient boosting decision tree (GBDT)    unbalanced multi-classification
收稿日期: 2018-07-23 出版日期: 2019-06-25
CLC:  TP 274
通讯作者: 黄亦翔     E-mail: ccuniquelife@sjtu.edu.cn;huang.yixiang@sjtu.edu.cn
作者简介: 蔡畅(1993—),男,硕士生,从事工业数据挖掘的研究. orcid.org/0000-0002-1772-051X. E-mail: ccuniquelife@sjtu.edu.cn
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章
蔡畅
黄亦翔
邢宏文

引用本文:

蔡畅,黄亦翔,邢宏文. 基于梯度提升树的飞机机身对接状态识别[J]. 浙江大学学报(工学版), 2019, 53(7): 1274-1281.

Chang CAI,Yi-xiang HUANG,Hong-wen XING. State recognition for fuselage join based on gradient boosting tree. Journal of ZheJiang University (Engineering Science), 2019, 53(7): 1274-1281.

链接本文:

http://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2019.07.005        http://www.zjujournals.com/eng/CN/Y2019/V53/I7/1274

图 1  集成学习原理示意图

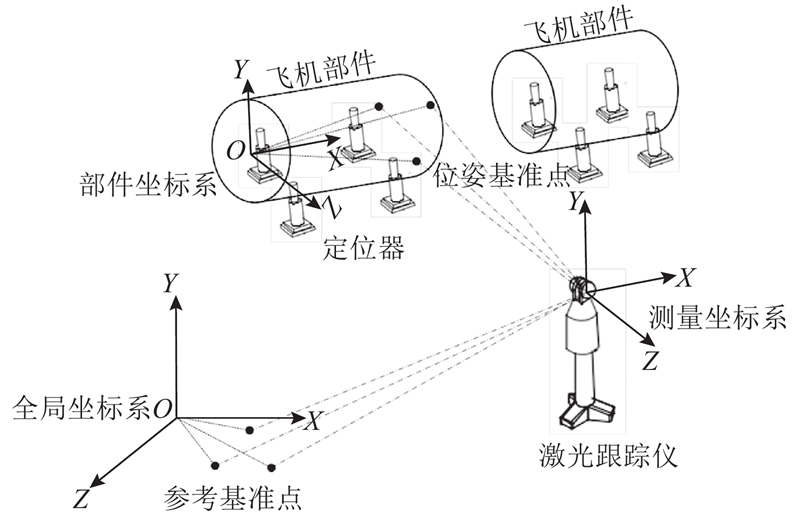

图 2  飞机部件的对接原理

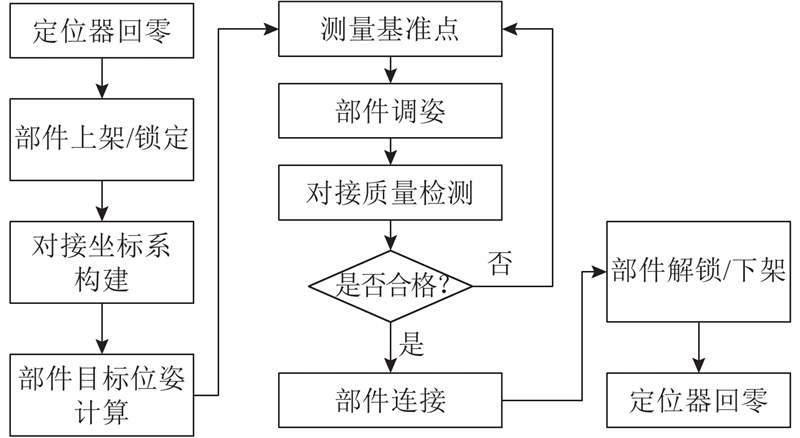

图 3  部件自动对接流程
图 4  前机身和中机身对接示意图
图 5  各特征的箱线图

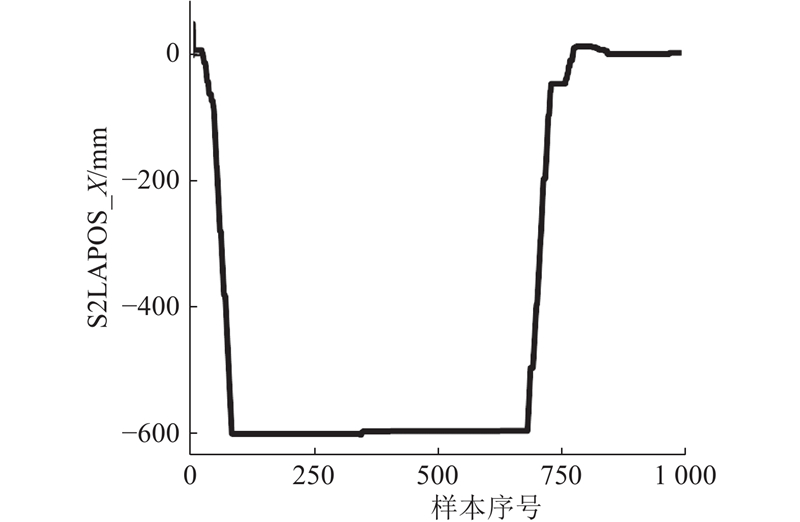

图 6  调姿过程中S2LAPOS_X的变化
图 7  机身连接过程中Y方向力的变化
对接状态 编号 人工标注 自动标注 协同标注
空工位 0 32 107 32 107 32 107
对接准备 1 19 081 19 084 19 081
调姿对接 2 987 956 987
连接1 3 ? 24 881 24 853
连接2 4 ? 80 928 80 928
表 1  不同标注方法的各对接状态样本数量

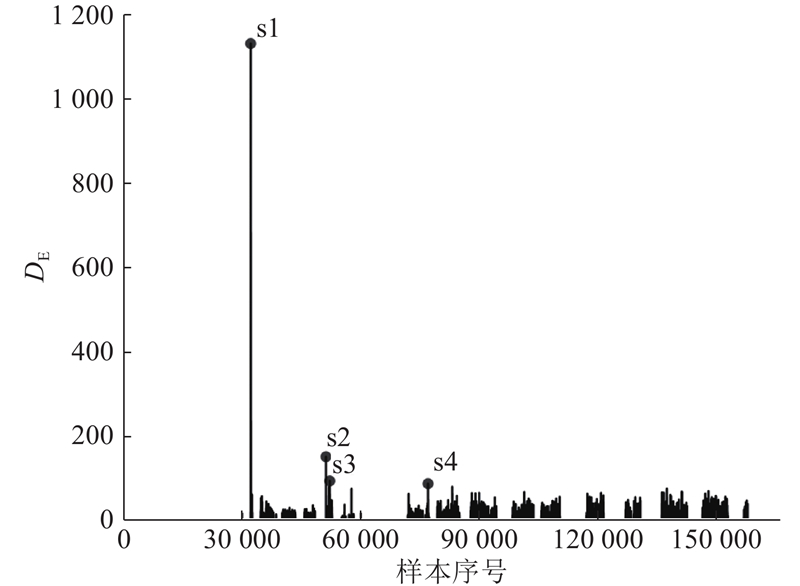

图 8  当前样本与前一样本的欧氏距离
图 9  各对接状态的样本数目
真实情况 预测结果
正例 反例
正例 TP(真正例) FN(假反例)
反例 FP(假正例) TN(真反例)
表 2  分类结果的混淆矩阵

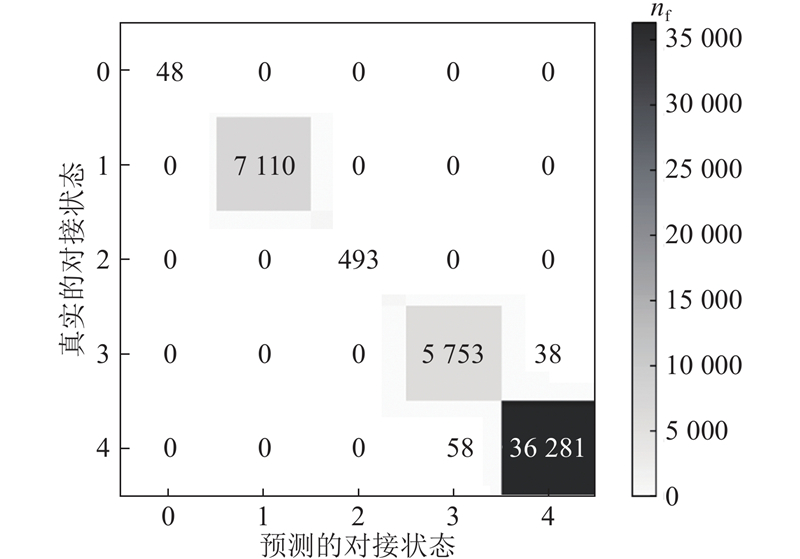

图 10  GBDT模型的混淆矩阵

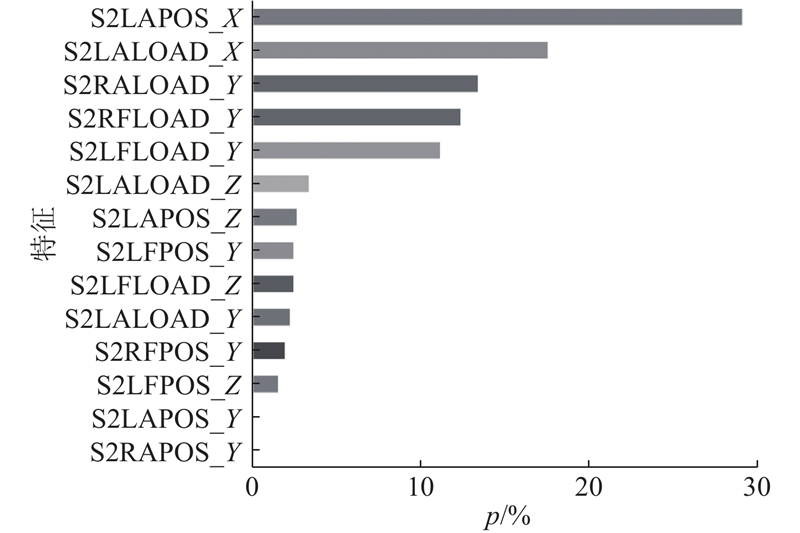

图 11  GBDT模型的特征重要性
模型 macro_P macro_R macro_F1 F1(0) F1(2) t/s
GBDT 0.998 0.998 0.998 1.000 1.000 0.2
LR 0.984 0.837 0.889 0.857 0.653 0.4
SVM 0.984 0.919 0.944 1.000 0.777 0.9
RF 0.990 0.984 0.987 1.000 0.970 0.1
LSTM 0.981 0.975 0.978 1.000 0.926 11.4
CNN 0.984 0.972 0.977 1.000 0.925 18.6
表 3  各模型评价指标的对比

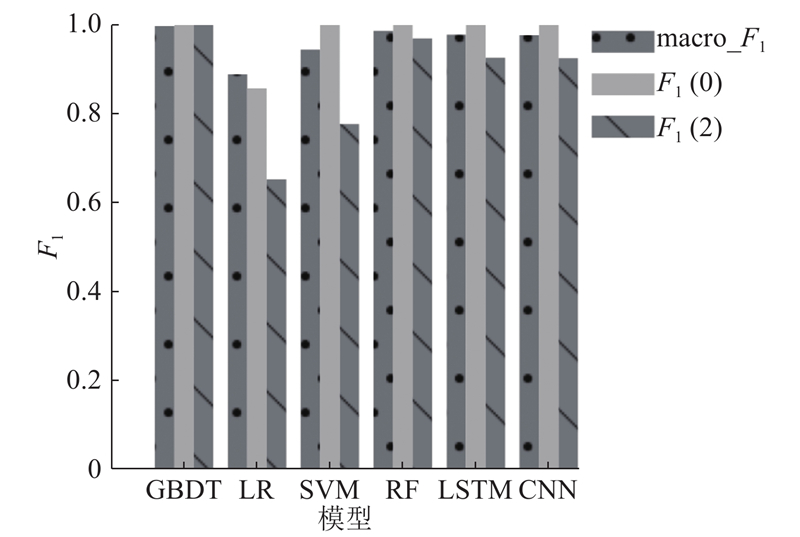

图 12  各模型的F1
