Journal of ZheJiang University (Engineering Science)  2021, Vol. 55 Issue (5): 927-934    DOI: 10.3785/j.issn.1008-973X.2021.05.013

Application of binary connection number-projection grey target decision theory in power system emergency capability evaluation
Zhen-yu LI1(),Xiao-guo CHEN1,Yong-chao SONG2,Jian-ping GONG2,Zhi-wei YU2,Yong-xing ZHU2,Zhou-xun LU2
1. Electric Power Research Institute of China Southern Power Grid, Guangzhou 510663, China
2. China Southern Power Grid Co. Ltd, Guangzhou 510663, China
Download: HTML     PDF(721KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

An evaluation method based on the binary connection number-projection gray target decision theory was introduced, and it was applied to the evaluation of power grid emergency capacity, due to the diversification of indicator data types in the evaluation of power grid emergency capacity. Firstly, a basic indicator system for power grid emergency capability evaluation with multiple data types was established through research and analysis. Secondly, the established multi-type indicator data system was processed using binary connection number theory to realize the unity of data composition form in order to facilitate subsequent analysis and calculation. Then, the weights division model of the indicators based on the network hierarchy analysis method was used to determine the weights of the power grid emergency capacity indicators, taking into account the inherent relationship between power grid emergency capacity indicators. Finally, the projected gray target decision model was used to determine the level and ranking of emergency capabilities of the object to be evaluated. Analysis results of an example show that this method can realize the processing of mixed indicator data, and effectively complete the evaluation and sequencing of the emergency capabilities of the objects to be evaluated, which is operable and feasible.

Key words： grid emergency capability assessment      binary connection number theory      weight division      projection grey target decision model      indicator system
Received: 25 March 2020      Published: 10 June 2021
CLC:  TM 711
Fund:  中国南方电网有限责任公司科技资助项目（ZBKJXM20180039）
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Zhen-yu LI
Xiao-guo CHEN
Yong-chao SONG
Jian-ping GONG
Zhi-wei YU
Yong-xing ZHU
Zhou-xun LU
Cite this article:

Zhen-yu LI,Xiao-guo CHEN,Yong-chao SONG,Jian-ping GONG,Zhi-wei YU,Yong-xing ZHU,Zhou-xun LU. Application of binary connection number-projection grey target decision theory in power system emergency capability evaluation. Journal of ZheJiang University (Engineering Science), 2021, 55(5): 927-934.

URL:

http://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2021.05.013     OR     http://www.zjujournals.com/eng/Y2021/V55/I5/927


二元联系数-投影灰靶决策理论在电网应急能力评估中的应用

在电网应急能力评估中存在指标数据类型多样化的问题，本研究介绍基于二元联系数-投影灰靶决策理论的评价方法，并将其应用在电网应急能力评估研究中. 通过研究分析建立具有多元化数据类型的电网应急能力评估基本指标体系；采用二元联系数理论对建立的多类型指标数据体系进行处理，实现数据组成形式上的统一，以便于后续的分析和计算；考虑到指标之间存在的内在联系，采用基于网络层次分析法的权重划分模型进行指标权重的确定；通过投影灰靶决策模型确定待评价对象应急能力水平与排序. 实例分析结果表明，该方法可以实现对混合指标数据的处理，并有效完成对待评价对象应急能力的评估与排序，是具有可操作性与可行性的.


关键词： 电网应急能力评估,  二元联系数理论,  权重划分,  投影灰靶决策模型,  指标体系
A级指标 第1层指标 第2层指标
电网应急能力
评价指标体系A 		法律基础B1 国家法律法规落实的完备度x11
地方法律法规落实完备度x12
应急组织体系B2 抢修队伍人员数量储备比率x21
应急部门联动情况x22
应急人员训练情况x23
应急体系研究开展情况x24
应急管理人员数量x25
辅助决策功能完善情况x26
政府与应急指挥中心信息
联通情况x27
物资及通讯保障B3 电力应急专用车数量x31
应急专项费用投入百分比x32
通讯系统使用情况x33
灾害预防与预警B4 应急预案演练完备度x41
重要单位应急电源落实情况x42
电网风险评估开展情况x43
灾害应急反应B5 应急救援准备时间x51
突发事件下人员集结时间x52
应急信息报送及时性x53
后期处置B6 灾后总结能力x61
灾后恢复与重建能力x62
Tab.1 Evaluation indicator system for power grid emergency capability

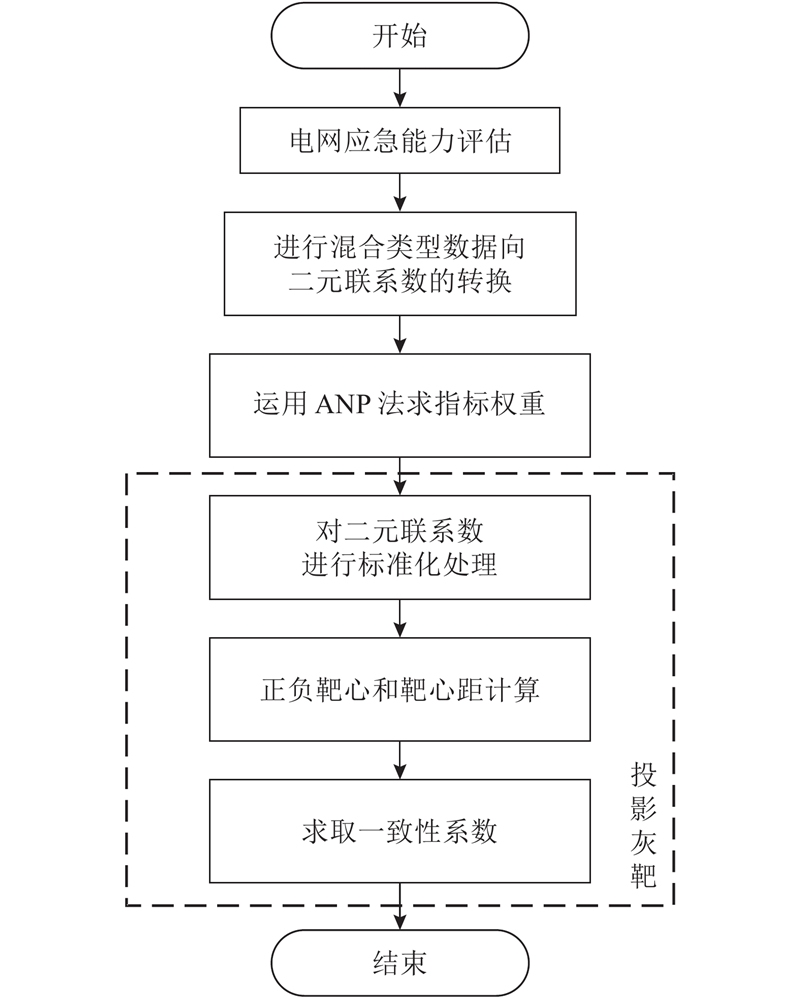

Fig.1 Steps of power grid emergency capability assessment
指标 x11 x12 x21 x22 x23 x24 x25 x26 x27 x31
甲 [0.5，0.6，0.7] [0.6，0.7，0.8] 0.40 [0.6，0.7，0.8] [0.5，0.6，0.7] [0.6，0.7，0.8] 20 [0.5，0.6，0.7] [0.5，0.6，0.7] 19
乙 [0.7，0.8，0.9] [0.7，0.8，0.9] 0.53 [0.7，0.8，0.9] [0.6，0.7，0.8] [0.7，0.8，0.9] 21 [0.7，0.8，0.9] [0.6，0.7，0.8] 36
丙 [0.7，0.8，0.9] [0.7，0.8，0.9] 0.50 [0.6，0.7，0.8] [0.6，0.7，0.8] [0.6，0.7，0.8] 16 [0.6，0.7，0.8] [0.5，0.6，0.7] 17
指标 x32 x33 x41 x42 x43 x51 x52 x53 x61 x62
甲 0.28 [0.6，0.7，0.8] [0.5，0.6，0.7] [0.6，0.7，0.8] [0.6，0.7，0.8] [30，45] [35，45] [0.5，0.6，0.7] [0.6，0.7，0.8] [0.7，0.8，0.9]
乙 0.35 [0.7，0.8，0.9] [0.5，0.6，0.7] [0.7，0.8，0.9] [0.7，0.8，0.9] [20，40] [30，35] [0.6，0.7，0.8] [0.7，0.8，0.9] [0.8，0.9，1.0]
丙 0.30 [0.7，0.8，0.9] [0.5，0.6，0.7] [0.7，0.8，0.9] [0.6，0.7，0.8] [35，45] [30，40] [0.5，0.6，0.7] [0.7，0.8，0.9] [0.7，0.8，0.9]
Tab.2 Initial data sheet of power grid emergency capability indicators
指标 x11 x12 x21 x22 x23 x24 x25 x26 x27 x31
甲 0.6+0.1i 0.7+0.1i 0.40+0i 0.7+0.1i 0.6+0.1i 0.7+0.1i 20+0i 0.6+0.1i 0.6+0.1i 19+0i
乙 0.8+0.1i 0.8+0.1i 0.53+0i 0.8+0.1i 0.7+0.1i 0.8+0.1i 21+0i 0.8+0.1i 0.7+0.1i 36+0i
丙 0.8+0.1i 0.8+0.1i 0.50+0i 0.7+0.1i 0.7+0.1i 0.7+0.1i 16+0i 0.7+0.1i 0.6+0.1i 17+0i
指标 x32 x33 x41 x42 x43 x51 x52 x53 x61 x62
甲 0.28+0i 0.7+0.1i 0.6+0.1i 0.7+0.1i 0.7+0.1i 37.5+7.5i 40.0+5.0i 0.6+0.1i 0.7+0.1i 0.8+0.1i
乙 0.35+0i 0.8+0.1i 0.6+0.1i 0.8+0.1i 0.8+0.1i 30.0+10.0i 32.5+2.5i 0.7+0.1i 0.8+0.1i 0.9+0.1i
丙 0.30+0i 0.8+0.1i 0.6+0.1i 0.8+0.1i 0.7+0.1i 40.0+5.0i 35.0+5.0i 0.6+0.1i 0.8+0.1i 0.8+0.1i
Tab.3 Binary number of power grid emergency capability indicators

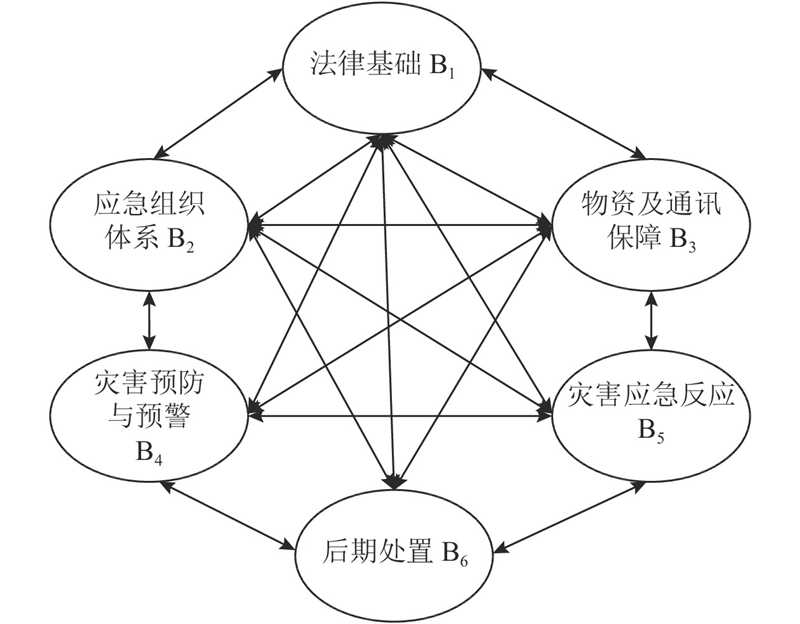

Fig.2 Indicator correlation graph
指标 权重 指标 权重
x11 0.06688 x32 0.06782
x12 0.03817 x33 0.05365
x21 0.02363 x41 0.15005
x22 0.01221 x42 0.04043
x23 0.07533 x43 0.04541
x24 0.01516 x51 0.05628
x25 0.01008 x52 0.04015
x26 0.04263 x53 0.06596
x27 0.03720 x61 0.05674
x31 0.02349 x62 0.07873
Tab.4 Indicator weight of power grid emergency capability indicators
指标 x11 x12 x21 x22 x23 x24 x25 x26 x27 x31
甲 0.27+0.33i 0.30+0.33i 0.28+0i 0.32+0.33i 0.30+0.33i 0.32+0.33i 0.35+0i 0.29+0.33i 0.32+0.33i 0.26+0i
乙 0.36+0.33i 0.35+0.33i 0.37+0i 0.36+0.33i 0.35+0.33i 0.36+0.33i 0.37+0i 0.38+0.33i 0.37+0.33i 0.50+0i
丙 0.36+0.33i 0.35+0.33i 0.35+0i 0.32+0.33i 0.35+0.33i 0.32+0.33i 0.28+0i 0.33+0.33i 0.32+0.33i 0.24+0i
指标 x32 x33 x41 x42 x43 x51 x52 x53 x61 x62
甲 0.30+0i 0.30+0.33i 0.33+0.33i 0.30+0.33i 0.32+0.33i 0.65+0.67i 0.63+0.6i 0.32+0.33i 0.30+0.33i 0.32+0.33i
乙 0.38+0i 0.35+0.33i 0.33+0.33i 0.35+0.33i 0.36+0.33i 0.72+0.56i 0.70+0.8i 0.37+0.33i 0.35+0.33i 0.36+0.33i
丙 0.32+0i 0.35+0.33i 0.33+0.33i 0.35+0.33i 0.32+0.33i 0.63+0.78i 0.67+0.6i 0.32+0.33i 0.35+0.33i 0.32+0.33i
Tab.5 Standardized data on power grid emergency capability indicators
区域 加权靶心距
正靶心距 负靶心距 正负靶心距
甲 0.0578 0.0155 0.0707
乙 0.0080 0.0650 0.0707
丙 0.0395 0.0321 0.0707
Tab.6 Weighted target distance
区域 投影一致性系数 排序
甲 0.0354 3
乙 0.6050 1
丙 0.1694 2
Tab.7 Grid emergency capability assessment results
[1]   曹一家, 王光增 电力系统复杂性及其相关问题研究[J]. 电力自动化设备, 2010, 30 (2): 5- 10
CAO Yi-jia, WANG Guang-zeng Research on power system complexity and related issues[J]. Electric Power Automation Equipment, 2010, 30 (2): 5- 10
doi: 10.3969/j.issn.1006-6047.2010.02.002
[2]   张尚, 王涛, 顾雪平 基于直觉模糊层次分析法的电网运行状态综合评估[J]. 电力系统自动化, 2016, 40 (4): 41- 49
ZHANG Shang, WANG Tao, GU Xue-ping Comprehensive evaluation of power system operation status based on intuitionistic fuzzy analytic hierarchy process[J]. Automation of Electric Power Systems, 2016, 40 (4): 41- 49
doi: 10.7500/AEPS20150518015
[3]   谢锦文 提升电力系统安全稳定性的有效措施探究[J]. 电子制作, 2019, (14): 93- 94
XIE Jin-wen Exploring effective measures to improve safety and stability of power system[J]. Electronic Production, 2019, (14): 93- 94
doi: 10.3969/j.issn.1006-5059.2019.14.035
[4]   周博文, 陈麒宇, 杨东升 巴西大停电的思考[J]. 发电技术, 2018, 39 (2): 97- 105
ZHOU Bo-wen, CHEN Qi-yu, YANG Dong-sheng Reflections on the blackout in Brazil[J]. Power Generation Technology, 2018, 39 (2): 97- 105
doi: 10.12096/j.2096-4528.pgt.2018.016
[5]   龚郗安 关于委内瑞拉大停电事故的情况分析和关键基础设施的安全防护建议[J]. 信息技术与网络安全, 2019, 38 (4): 1- 2
GONG Xi-an Analysis of the situation of the blackout in Venezuela and the safety protection of critical infrastructure[J]. Information Technology and Cyber Security, 2019, 38 (4): 1- 2
[6]   张志乾, 宋雪莹 国内外安全事故对电力企业安全文化的影响[J]. 现代商贸工业, 2013, 25 (21): 180
ZHANG Zhi-qian, SONG Xue-ying The impact of safety accidents at home and abroad on safety culture of electric power enterprises[J]. Modern Business Trade Industry, 2013, 25 (21): 180
doi: 10.3969/j.issn.1672-3198.2013.21.105
[7]   门永生, 朱朝阳, 于振, 等 电网基础设施突发事件应急能力指标体系构建及评价[J]. 安全与环境学报, 2014, 14 (3): 84- 87
MEN Yong-sheng, ZHU Chao-yang, YU Zhen, et al Construction and evaluation of emergency response capability index system for power grid infrastructure incidents[J]. Journal of Safety and Environment, 2014, 14 (3): 84- 87
[8]   鲁鹏, 陈大军, 时珉, 等 基于熵权法的电网应急能力水平评价研究[J]. 电力科学与工程, 2013, 29 (11): 44- 48
LU Peng, CHEN Da-jun, SHI Min, et al Study on the evaluation of power grid emergency capability level based on entropy weight method[J]. Power Science and Engineering, 2013, 29 (11): 44- 48
doi: 10.3969/j.issn.1672-0792.2013.11.11
[9]   王迪, 蔡东军, 房鑫炎, 等 动态综合评价方法在电网应急能力评估中的应用[J]. 电力系统保护与控制, 2019, 47 (16): 101- 107
WANG Di, CAI Dong-jun, FANG Xin-yan, et al Application of dynamic comprehensive evaluation method in power system emergency management capability assessment[J]. Power System Protection and Control, 2019, 47 (16): 101- 107
[10]   赵炜炜, 张建华, 尚敬福, 等 电网大面积停电应急评价指标体系及其应用[J]. 电力系统自动化, 2008, 32 (20): 27- 31
ZHAO Wei-wei, ZHANG Jian-hua, SHANG Jing-fu, et al Emergency evaluation index system for power system large-scale blackout and its application[J]. Automation of Electric Power Systems, 2008, 32 (20): 27- 31
doi: 10.3321/j.issn:1000-1026.2008.20.006
[11]   王海波, 陈彦萍 一种基于三角模糊数的二元联系数双重多属性决策方法[J]. 计算机与数字工程, 2019, 47 (4): 769- 772
WANG Hai-bo, CHEN Yan-ping A dual multi-attribute decision making method based on triangular fuzzy numbers for binary connection numbers[J]. Computer and Digital Engineering, 2019, 47 (4): 769- 772
doi: 10.3969/j.issn.1672-9722.2019.04.006
[12]   赵克勤 基于集对分析的不确定性多属性决策模型与算法[J]. 智能系统学报, 2010, 5 (1): 41- 50
ZHAO Ke-qin Uncertain multi-attribute decision model and algorithm based on set pair analysis[J]. Journal of Intelligent Systems, 2010, 5 (1): 41- 50
doi: 10.3969/j.issn.1673-4785.2010.01.007
[13]   马金山 指标及权重均为混合数据类型的广义灰靶决策方法[J]. 统计与决策, 2017, (7): 58- 61
MA Jin-shan Generalized grey target decision method with indicators and weights as mixed data types[J]. Journal of Statistics and Decision, 2017, (7): 58- 61
[14]   刘忠侠, 刘思峰, 蒋诗泉 基于一般灰数的灰靶决策模型拓展与应用[J]. 统计与决策, 2019, (7): 72- 75
LIU Zhong-xia, LIU Si-feng, JIANG Shi-quan Extension and application of grey target decision model based on general gray number[J]. Statistics and Decision, 2019, (7): 72- 75
[15]   张壮, 李琳琳, 魏振华, 等 基于变权-投影灰靶的指控系统动态效能评估[J]. 系统工程与电子技术, 2019, 41 (4): 801- 809
ZHANG Zhuang, LI Lin-lin, WEI Zhen-hua, et al Dynamic effectiveness evaluation of accusation system based on variable weight-projection grey target[J]. Systems Engineering and Electronics, 2019, 41 (4): 801- 809
doi: 10.3969/j.issn.1001-506X.2019.04.15
[16]   佟强. 地方电网企业应急能力评估系统研究[D]. 北京: 华北电力大学, 2014.
TONG Qiang. Research on emergency response assessment system of local power grid enterprises[D]. Beijing: North China Electric Power University, 2014.
[17]   程正刚, 房鑫炎, 俞国勤, 等 电力应急体系的脆弱性评价研究[J]. 电力系统保护与控制, 2010, 38 (19): 51- 54
CHENG Zheng-gang, FANG Xin-yan, YU Guo-qin, et al Vulnerability evaluation of electric power emergency system[J]. Power System Protection and Control, 2010, 38 (19): 51- 54
doi: 10.7667/j.issn.1674-3415.2010.19.009
[18]   王春晨. 电网企业自然灾害突发事件应急能力评估[D]. 北京: 华北电力大学, 2017.
WANG Chun-chen. Emergency response assessment of natural disaster emergencies in power grid enterprises[D]. Beijing: North China Electric Power University, 2017.
[19]   MA J S, JI C S, SUN J Fuzzy similar priority method for mixed attributes[J]. Journal of Applied Mathematics, 2014, (1): 1- 7
[20]   马金山 基于改进Gini-Simpson指数的指标及权重均为混合属性的广义灰靶决策方法[J]. 统计与信息论坛, 2019, 34 (2): 28- 34
MA Jin-shan A generalized grey target decision method based on improved Gini-Simpson index and mixed weights[J]. Journal of Statistics and Information, 2019, 34 (2): 28- 34
doi: 10.3969/j.issn.1007-3116.2019.02.004
[21]   刘忠侠, 刘思峰, 蒋诗泉 基于广义灰数的双向投影灰靶决策模型拓展研究[J]. 系统工程理论与实践, 2019, 39 (3): 776- 782
LIU Zhong-xia, LIU Si-feng, JIANG Shi-quan Research on the extension of bidirectional projection grey target decision model based on generalized gray number[J]. Systems Engineering: Theory and Practice, 2019, 39 (3): 776- 782
doi: 10.12011/1000-6788-2017-1681-07
[22]   赵国杰, 赵红梅 基于网络层次分析法的城市竞争力评价指标体系研究[J]. 科技进步与对策, 2006, (11): 126- 128
ZHAO Guo-jie, ZHAO Hong-mei Research on evaluation index system of urban competitiveness based on network analytic hierarchy process[J]. Science and Technology Progress and Policy, 2006, (11): 126- 128
doi: 10.3969/j.issn.1001-7348.2006.11.037
