End context-adaptative deep sensing model with edge-end collaboration
Hong-li WANG(),Bin GUO*(),Si-cong LIU,Jia-qi LIU,Yun-gang WU,Zhi-wen YU
College of Computer Science, Northwestern Polytechnical University, Xi’an 710072, China
Download: HTML     PDF(1756KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

The end context adaptative of deep models with edge-end collaboration was analyzed. The partition and alternating direction method of multiplier method (X-ADMM) was proposed. The model compression was employed to simplify the model structure, and the model was partitioned at layer granularity to find the best partition point. The model can collaborate with edge-end devices to improve model operation efficiency. The graph based adaptive DNN surgery algorithm (GADS) was proposed in order to realize the dynamic adaptation of model partition. The model will preferentially search for the partition point that best meets resource constraints among surrounding partition states to achieve rapid adaptation when the running context (e.g., storage, power, bandwidth) of the model changes. The experimental results showed that the model realized the adaptive tuning of model partition point in an average of 0.1 ms. The total running latency was reduced by 56.65% at the highest with no more than 2.5% accuracy loss.

Key words： deep learning      edge intelligence      model compression      model partition      adaptive perception
Received: 26 January 2021      Published: 07 May 2021
CLC:  TP 391
Fund:  国家重点研发计划资助项目（2019YFB1703901）；国家自然科学基金资助项目（61772428，61725205）
Corresponding Authors: Bin GUO     E-mail: wanghongli@mail.nwpu.edu.cn;guob@nwpu.edu.cn
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Hong-li WANG
Bin GUO
Si-cong LIU
Jia-qi LIU
Yun-gang WU
Zhi-wen YU
Cite this article:

Hong-li WANG,Bin GUO,Si-cong LIU,Jia-qi LIU,Yun-gang WU,Zhi-wen YU. End context-adaptative deep sensing model with edge-end collaboration. Journal of ZheJiang University (Engineering Science), 2021, 55(4): 626-638.

URL:

http://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2021.04.004     OR     http://www.zjujournals.com/eng/Y2021/V55/I4/626


边端融合的终端情境自适应深度感知模型

研究边端融合的深度模型终端情境自适应问题. 提出边端融合增强的模型压缩方法（X-ADMM），利用模型压缩技术简化模型结构，以层为粒度寻找模型最佳分割点，协同边端设备提高运行效率. 为了实现模型分割的动态自适应，提出基于图的自适应深度模型手术刀算法（GADS）. 当模型运行情境（如存储、电量、带宽等）发生变化时，优先在邻近分割状态中快速搜索最能满足资源约束的分割点，实现快速自适应调整. 实验结果表明，该模型平均在0.1 ms内实现了模型分割点的自适应调优，在保证模型精度下降不超过2.5%的情况下，运行总时延最高下降了56.65%.


关键词： 深度学习,  边缘智能,  模型压缩,  模型分割,  自适应感知
Fig.1 Generic flow of model compression

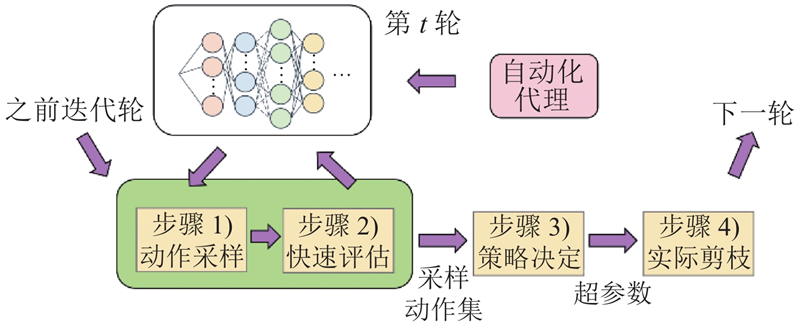

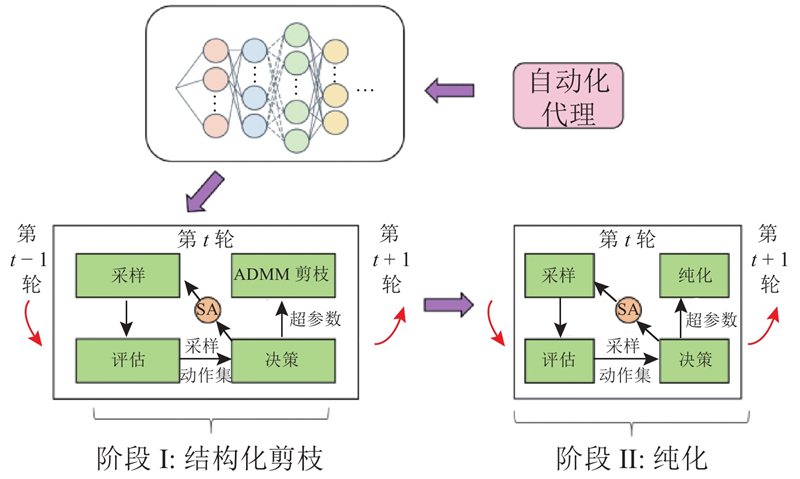

Fig.2 Illustration of model compression framework
Fig.3 Neighbor partition effect of edge-end model

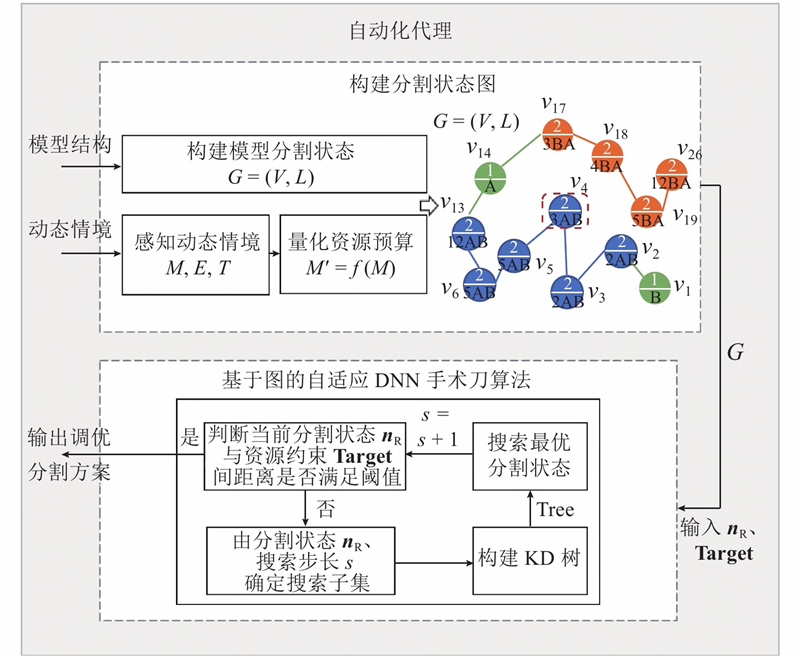

Fig.4 Algorithm of graph based adaptive DNN surgery

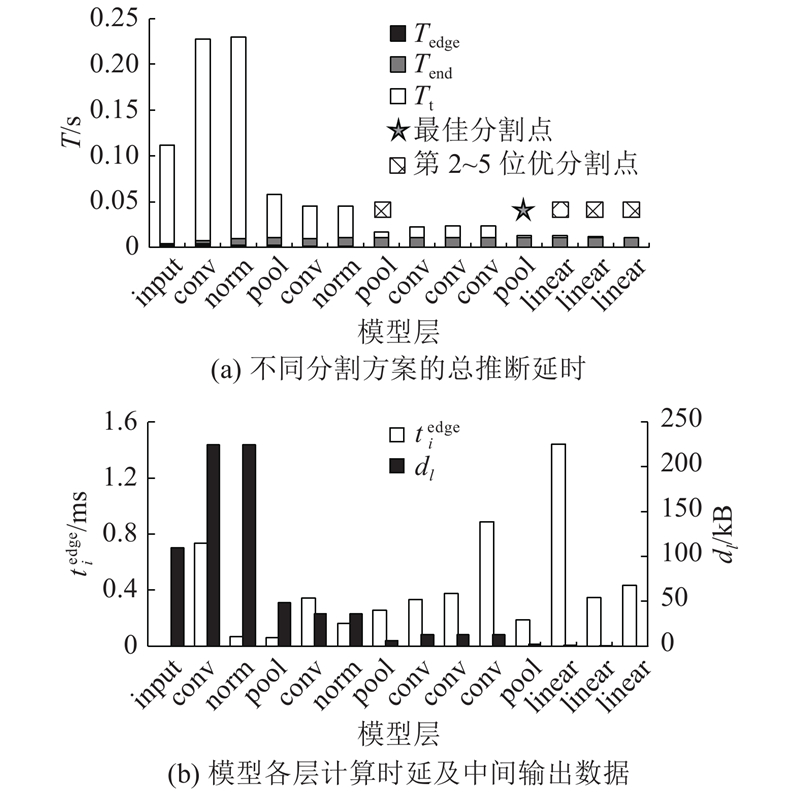

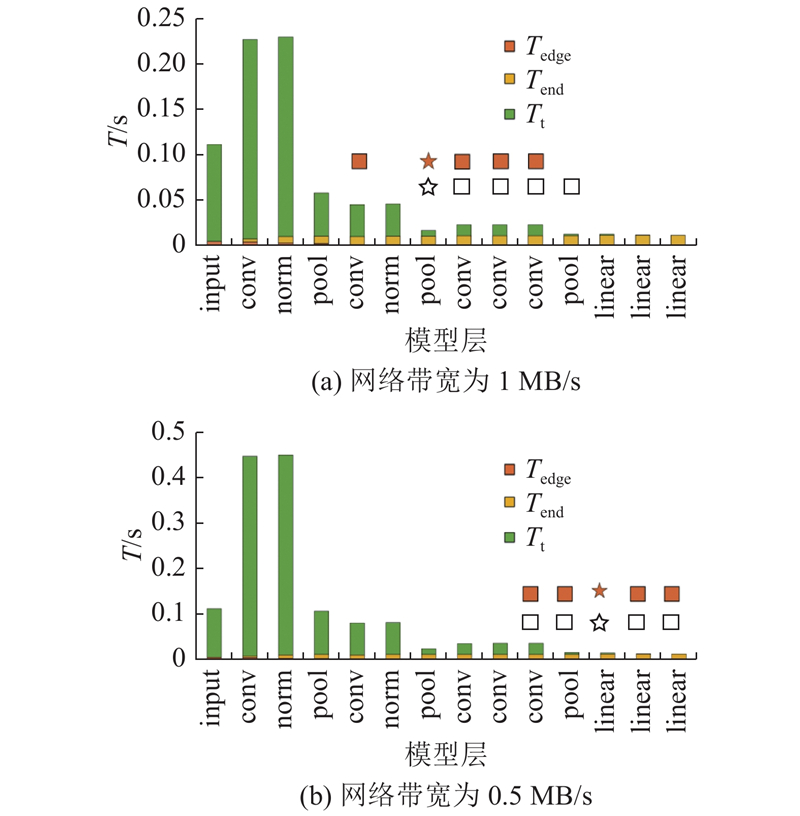

Fig.5 Inference latency for AlexNet with different bandwidths

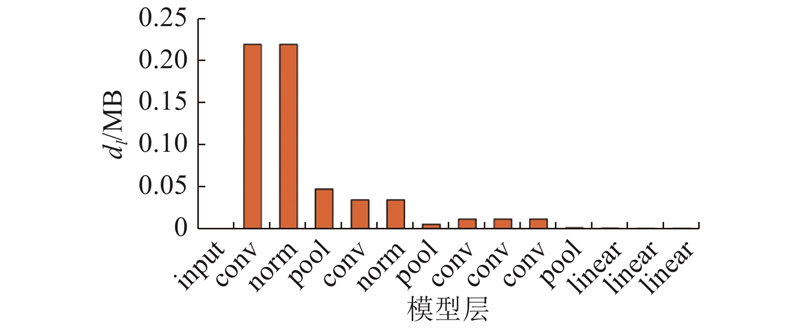

Fig.6 Output data size of each layer in AlexNet
Fig.7 Inference latency and output data size under different partitions of CNNs
Fig.8 Construction of model partition state graph on two devices

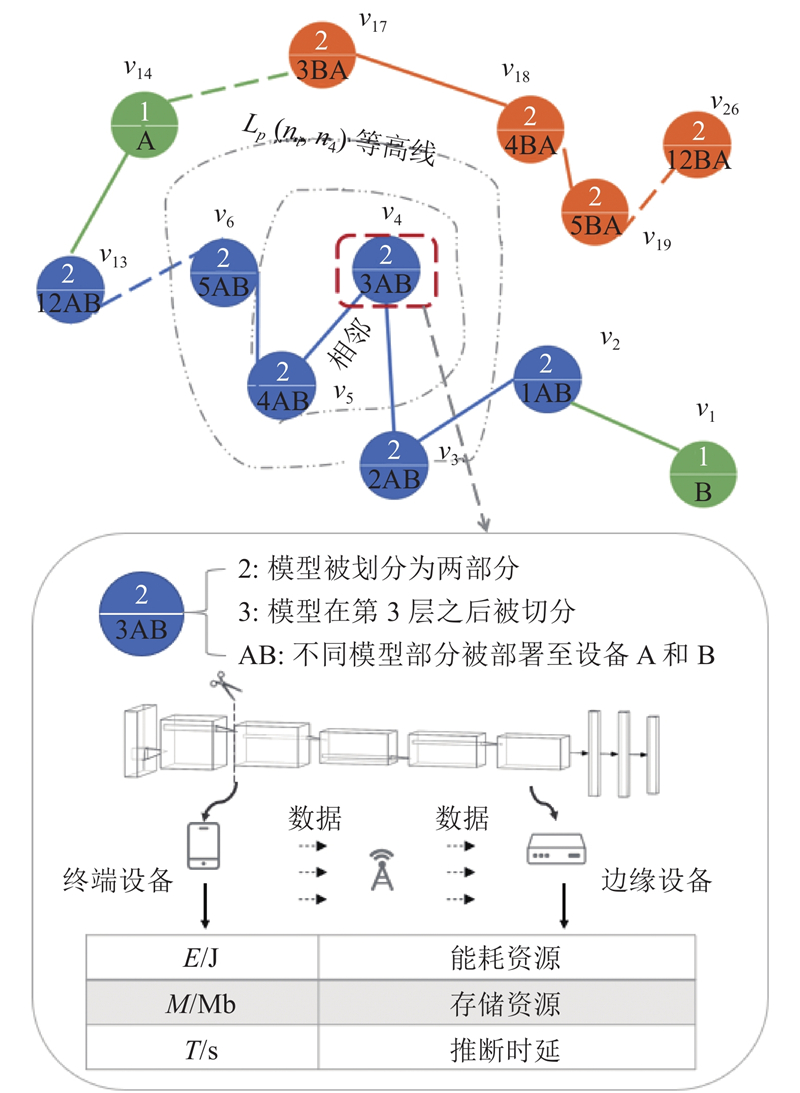

Fig.9 Part of model partition state graph on two devices

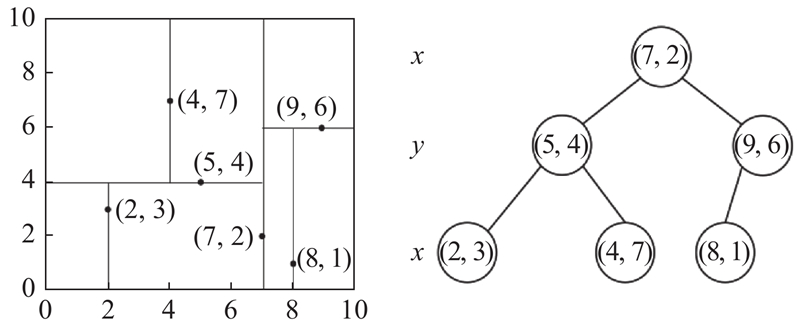

Fig.10 Example of constructing KD（K-dimensional）tree

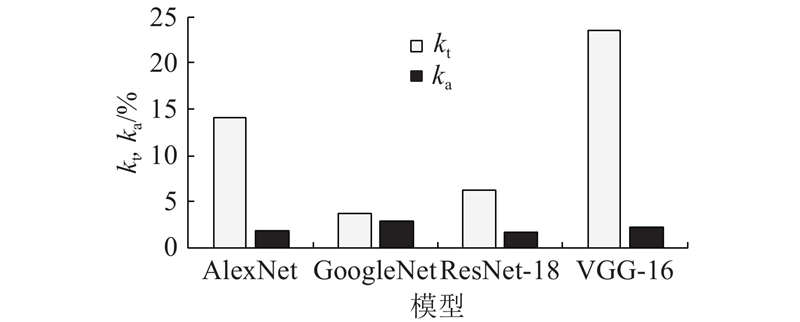

Fig.11 Drop ratio of inference latency and accuracy of models after compression
网络 A0 /% T0 /ms γ TRAP-ADMM[19] /ms ARAP-ADMM /% TX-ADMM /ms AX-ADMM /%
Alexnet 85.82 46.8 14.7 38.78 84.21 36.3 84.17
GoogleNet 87.48 943.6 15.6 883.95 84.91 532.6 84.60
Resnet-18 91.60 285.5 15.4 267.70 90.01 213.5 89.80
VGG-16 91.66 203.7 16.0 186.90 89.59 88.3 89.20
MobileNet 89.60 219.2 2.0 207.89 87.96 179.2 87.90
MobileNet 89.60 219.2 4.0 196.69 80.60 160.3 80.83
ShuffleNet 88.14 202.8 4.0 183.79 84.25 153.4 84.19
Tab.1 Inference latency and accuracy of typical deep learning models with different approaches
Fig.12 Comparison of KNN（K-nearest neighbor）and KD trees search approaches
算法 ${L_{ p{\rm{a} } } }$ ${S_{\rm{t}}}$ /ms
Neurosurgeon 0.0822 0.4412
GADS-KNN 0.0452 0.9927
GADS-KD树（无s） 0.0452 0.1331
GADS 0.0581 0.0997
Tab.2 Effectiveness of KD tree search
情境变化 M1 /MB M2 /MB E1 /J E2 /J T ′ /s B /（MB·s?1） 变化前分割状态集 变化后分割状态集
移动端存储减少 230 9 0.02 0.02 0.01 6 8，10，9 7，8，10
移动端存储减少 230 4.5 0.02 0.02 0.01 6
移动端电量降低 230 9 0.02 0.02 0.01 6 8，10，9 6，7，8
移动端电量降低 230 9 0.02 0.005 0.01 6
网络带宽降低 230 9 0.02 0.02 0.01 6 8，10，9 10，8，9
网络带宽降低 230 9 0.02 0.02 0.01 1
Tab.3 Experiments on adaptive ability of GADS

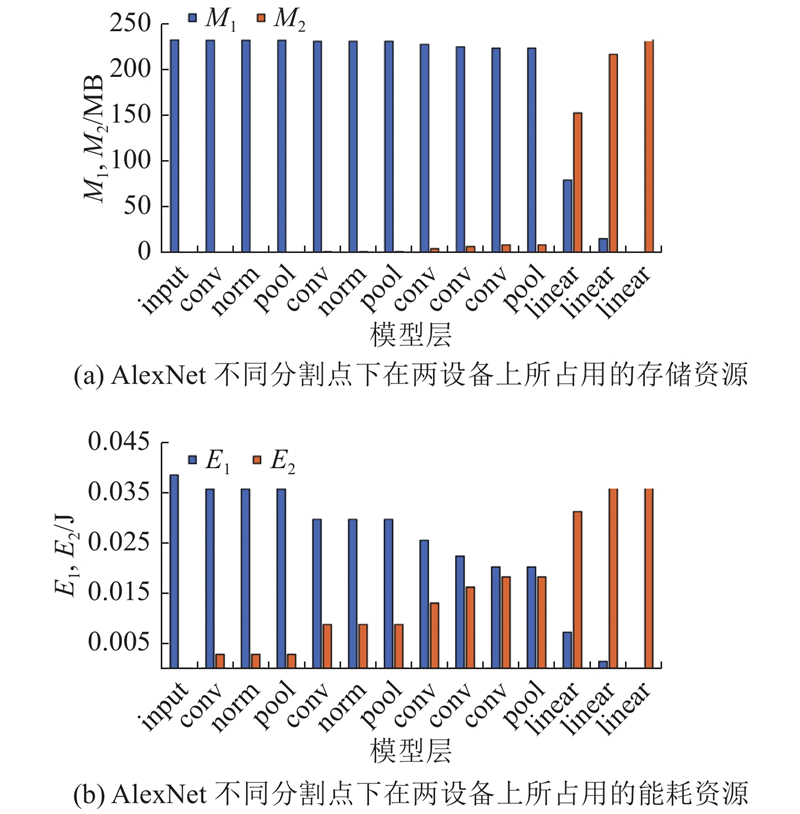

Fig.13 Memory and energy consumption required at different partition points on AlexNet

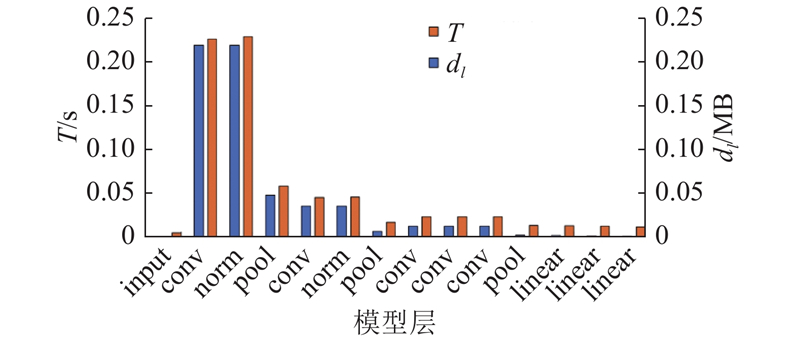

Fig.14 Inference latency of different partition points and output data size of each layer on AlexNet
