Structural design and experimental analysis of new UHPC-NC composite bent cap

doi:10.3785/j.issn.1008-973X.2024.11.017

Journal of ZheJiang University (Engineering Science)

2024, Vol. 58

Issue (11): 2355-2363 DOI: 10.3785/j.issn.1008-973X.2024.11.017

Structural design and experimental analysis of new UHPC-NC composite bent cap

Cijun LIU1(

),Lifeng LI2,*(

),Xudong SHAO2,Tao CHEN1,Guanhua ZHANG3,Jiawei WANG3,Huazhen YANG4,Yalong ZHAO4

1. Ningbo High-Grade Highway Construction Management Center, Ningbo 315192, China
2. College of Civil Engineering, Hunan University, Changsha 410082, China
3. Liaoning Provincial Communication Planning and Design Institute Limited Company, Shenyang 110111, China
4. China Highway Engineering Consulting Corporation, Beijing 100089, China

Download:

HTML

PDF(2785KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

A new composite bent cap consisting of a shell made of steel plate and ultra-high-performance concrete (UHPC) and cast-in-place core normal concrete (NC) was proposed in order to realize the assembly and rapid construction of ultra-large-scale bent cap for urban viaducts or highway reconstruction and expansion projects. Parametric analysis of different UHPC and steel plate thickness was conducted in order to analyze the influence of the thickness of UHPC and steel mold plate on its stress performance. Results showed that the stiffness of the shell was affected by the thickness of UHPC and steel plate and their ratio together under the action of self-weight. The thicker the UHPC and steel plate are, the better the stress performance of the shell is, but the economy will be reduced when tensioning prestress and casting concrete. It is recommended to use UHPC thickness of 70 mm and steel plate thickness of 6 mm. A piece of 1∶2.5 scaled-down model was designed and static loading test was conducted in order to verify the feasibility and safety of this scheme. Results show that the new UHPC-NC composite bent cap has good force performance and high safety reserve, which can provide reference for the assembly construction of bent cap.

Key words： bent cap assembly construction ultra-high-performance concrete (UHPC) scheme design

Received: 06 September 2023 Published: 23 October 2024

CLC:

TU 398

Fund: 国家自然科学基金资助项目（51978257, 52278176）.

Corresponding Authors: Lifeng LI E-mail: 1171130497@qq.com;lilifeng@hnu.edu.cn

	Service
	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Cijun LIU
	Lifeng LI
	Xudong SHAO
	Tao CHEN
	Guanhua ZHANG
	Jiawei WANG
	Huazhen YANG
	Yalong ZHAO

Cite this article:

Cijun LIU,Lifeng LI,Xudong SHAO,Tao CHEN,Guanhua ZHANG,Jiawei WANG,Huazhen YANG,Yalong ZHAO. Structural design and experimental analysis of new UHPC-NC composite bent cap. Journal of ZheJiang University (Engineering Science), 2024, 58(11): 2355-2363.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2024.11.017 OR https://www.zjujournals.com/eng/Y2024/V58/I11/2355

新型UHPC-NC组合盖梁的结构设计与试验分析

为了实现城市高架桥或高速公路改扩建工程超大规模盖梁的装配化、快速化施工，提出由钢板和超高性能混凝土（UHPC）制作的外壳及现浇核心混凝土（NC）组成的新型UHPC-NC组合盖梁.为了探究外壳UHPC和钢模板厚度对受力性能的影响，对不同UHPC和钢板厚度进行参数分析. 分析结果表明，在自重作用下，外壳的刚度受UHPC和钢板厚度及其比例的共同影响. 当张拉预应力和浇筑混凝土时，UHPC和钢板越厚，外壳的受力性能越好，但是经济性会降低，建议采用UHPC厚70 mm，钢板厚6 mm的方案. 为了验证该方案的可行性和安全性，设计1∶2.5的缩尺模型，开展静力加载试验. 结果表明，新型UHPC-NC组合盖梁的受力性能好，安全储备较高，可以为盖梁的装配化施工提供参考.

关键词： 盖梁, 装配化施工, 超高性能混凝土(UHPC), 方案设计

Fig.1 Schematic diagram of UHPC-NC combined bent cap

Fig.2 Overall layout of bent cap

Fig.3 Rod system model of UHPC-NC combined bent cap

Fig.4 Stress on upper edge of bent cap shell

Tab.1 Economic analysis table of bent cap

Fig.5 Section layout of bent cap

Fig.6 Beam end displacement of bent cap shell

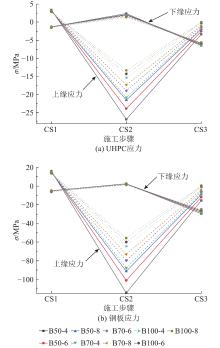

Fig.7 Stress on upper and lower edges of bent cap shell

Fig.8 Cross-sectional type center position of bent cap shell

Fig.9 Core concrete pressure on UHPC shell

Fig.10 Finite element model of B70-6

Fig.11 Spatial analysis result of B70-6

Fig.12 Spatial analysis result of bent cap shell for each scheme

Fig.13 Economic analysis result of bent cap for each scheme

Fig.14 Loading arrangement of model beam

Fig.15 Loading test site of model beam

Fig.16 Load-deflection curve of load point

Fig.17 Distribution of typical crack

Fig.18 Load- strain curve of main reinforcement

Tab.2 Comparison of carrying capacity of root section of bent cap
