| Graph neural network model for multivariate time series forecasting |
Han ZHANG( ) |
| School of Data Science and Artificial Intelligence, Dongbei University of Finance and Economics, Dalian 116025, China |
|
|
|

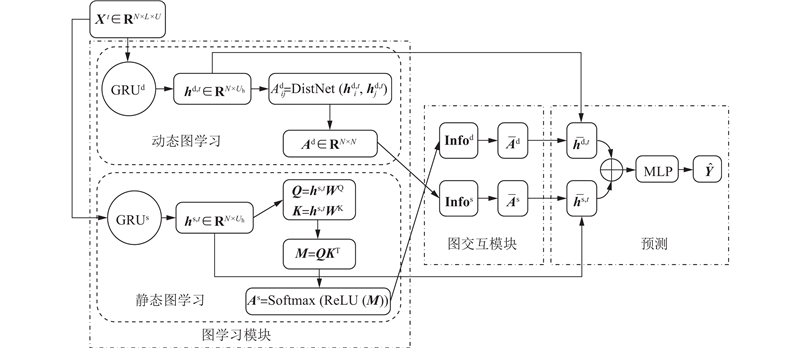

Abstract Most of the existing graph neural network models for forecasting multivariate time series capture the time series characteristics in a static way based on predefined graphs, and may be lack of capturing the dynamic adaptation of the system and some potential dynamic relationships between time series samples. A graph neural network model for multivariate time series prediction (MTSGNN) was proposed. In a graph learning module, the static and dynamic evolution graphs of time series data were learned in a data-driven way to capture the complex relationships between time series samples. The information interaction between the static and dynamic graphs was realized by the graph interaction module, and the convolution operation was used to extract the dependency in the interaction information. A multi-layer perceptron was used to forecast the multivariate time series. Experimental results on six real multivariate time series datasets showed that the forecasting effect of the proposed model was significantly better than those of the current state-of-the-art methods, and it had the advantages of small parameter quantity and fast operation speed.
|
|
Received: 30 December 2023
Published: 25 November 2024
|
|
|
| Fund: 辽宁省应用基础研究计划资助项目(2023JH2/101600040)；辽宁省教育厅基本科研资助项目(LJKMZ20221598). |
用于多元时间序列预测的图神经网络模型
现有用于多元时序预测的图神经网络模型大多基于预定义图以静态的方式捕捉时序特征，缺少对于系统动态适应和对时序样本之间潜在动态关系的捕捉. 提出用于多元时序预测的图神经网络模型 (MTSGNN). 该模型在一个图学习模块中，采用数据驱动的方式学习时间序列数据的静态图和动态演化图，以捕捉时序样本之间的复杂关系. 通过图交互模块实现静态图和动态图之间的信息交互，并使用卷积运算提取交互信息中的依赖关系. 利用多层感知机对多元时序进行预测. 实验结果表明，所提模型在6个真实的多元时间序列数据集上的预测效果显著优于当前最先进的方法，并且具有参数量较小、运算速度较快的优点.
关键词：
多元时间序列,
图神经网络,
静态图,
动态图,
图交互
|
|
| [1] |
WEI W S. Multivariate time series analysis and applications [M]. New York: John Wiley and Sons, 2018.
|
|
|
| [2] |
DU S, LI T, YANG Y, et al Multivariate time series forecasting via attention-based encoder-decoder framework[J]. Neurocomputing, 2020, 388: 269- 279
doi: 10.1016/j.neucom.2019.12.118
|
|
|
| [3] |
CIABURRO G, IANNACE G Machine learning-based algorithms to knowledge extraction from time series data: a review[J]. Data, 2021, 6 (6): 55
doi: 10.3390/data6060055
|
|
|
| [4] |
BENIDIS K, RANGAPURAM S S, FLUNKERT V, et al Deep learning for time series forecasting: tutorial and literature survey[J]. ACM Computing Surveys, 2022, 55 (6): 1- 36
|
|
|
| [5] |
FENG S, XU C, ZUO Y, et al Relation-aware dynamic attributed graph attention network for stocks recommendation[J]. Pattern Recognition, 2022, 121: 108119
doi: 10.1016/j.patcog.2021.108119
|
|
|
| [6] |
HASANI R, LECHNER M, AMINI A, et al. Liquid time-constant networks [C]// Proceedings of the AAAI Conference on Artificial Intelligence . [s.l.]: AAAI, 2021(35): 7657–7666.
|
|
|
| [7] |
SPADON G, HONG S, BRANDOLI B, et al Pay attention to evolution: time series forecasting with deep graph-evolution learning[J]. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2021, 44 (9): 5368- 5384
|
|
|
| [8] |
SHAO Z, ZHANG Z, WANG F, et al. Pre-training enhanced spatial-temporal graph neural network for multivariate time series forecasting [C]// Proceedings of the 28th ACM SIGKDD Conference on Knowledge Discovery and Data Mining . Washington DC: ACM, 2022: 1567–1577.
|
|
|
| [9] |
WU Z, PAN S, LONG G, et al. Connecting the dots: multivariate time series forecasting with graph neural networks [C]/ / Proceedings of the 26th ACM SIGKDD International Conference on Knowledge Discovery and Data Mining . New York: ACM, 2020: 753–763.
|
|
|
| [10] |
LI Z L, ZHANG G W, YU J, et al Dynamic graph structure learning for multivariate time series forecasting[J]. Pattern Recognition, 2023, 138: 109423
doi: 10.1016/j.patcog.2023.109423
|
|
|
| [11] |
ZHANG D, XIAO F Dynamic auto-structuring graph neural network: a joint learning framework for origin-destination demand prediction[J]. IEEE Transactions on Knowledge and Data Engineering, 2021, 35 (4): 3699- 3711
|
|
|
| [12] |
ZHANG G P Time series forecasting using a hybrid arima and neural network model[J]. Neurocomputing, 2003, 50: 159- 175
doi: 10.1016/S0925-2312(01)00702-0
|
|
|
| [13] |
ROBERTS S, OSBORNE M, EBDEN M, et al Gaussian processes for time-series modelling[J]. Philosophical Transactions of the Royal Society A: Mathematical, Physical and Engineering Sciences, 2013, 371 (1984): 20110550
doi: 10.1098/rsta.2011.0550
|
|
|
| [14] |
TORRES J F, HADJOUT D, SEBAA A, et al Deep learning for time series forecasting: a survey[J]. Big Data, 2021, 9 (1): 3- 21
doi: 10.1089/big.2020.0159
|
|
|
| [15] |
SEN R, YU H F, DHILLON I. Think globally, act locally: a deep neural network approach to high-dimensional time series forecasting [C]// Advances in Neural Information Processing Systems . Vancouver: MIT Press, 2019: 32.
|
|
|
| [16] |
SHIH S Y, SUN F K, LEE H Y Temporal pattern attention for multivariate time series forecasting[J]. Machine Learning, 2019, 108: 1421- 1441
doi: 10.1007/s10994-019-05815-0
|
|
|
| [17] |
JIN W, MA Y, LIU X, et al. Graph structure learning for robust graph neural networks [C]// Proceedings of the 26th ACM SIGKDD International Conference on Knowledge Discovery and Data Mining . New York: ACM, 2020: 66–74.
|
|
|
| [18] |
WANG Z, FAN J, WU H, et al Representing multi-view time-series graph structures for multivariate long-term time-series forecasting[J]. IEEE Transactions on Artificial Intelligence, 2024, 5 (6): 2651- 2662
|
|
|
| [19] |
TIAN H, ZHENG X, ZHAO K, et al Inductive representation learning on dynamic stock co-movement graphs for stock predictions[J]. INFORMS Journal on Computing, 2022, 34 (4): 1940- 1957
doi: 10.1287/ijoc.2022.1172
|
|
|
| [20] |
SRIRAMULU A, FOURRIER N, BERGMEIR C Adaptive dependency learning graph neural networks[J]. Information Sciences, 2023, 625: 700- 714
doi: 10.1016/j.ins.2022.12.086
|
|
|
| [21] |
PAREJA A, DOMENICONI G, CHEN J, et al. Evolvegcn: evolving graph convolutional networks for dynamic graphs [C]// Proceedings of the AAAI Conference on Artificial Intelligence . New York: AAAI, 2020(34): 5363–5370.
|
|
|
| [22] |
XIE Y, ZHANG Y, GONG M, et al Mgat: multi-view graph attention networks[J]. Neural Networks, 2020, 132: 180- 189
doi: 10.1016/j.neunet.2020.08.021
|
|
|
| [23] |
HSU Y L, TSAI Y C, LI C T Fingat: financial graph attention networks for recommending top-k profitable stocks[J]. IEEE Transactions on Knowledge and Data Engineering, 2021, 35 (1): 469- 481
|
|
|
| [24] |
VELIČKOVIĆ P, CUCURULL G, CASANOVA A, et al. Graph attention networks [C]// International Conference on Learning Representations . Kigali: ICLR, 2018.
|
|
|
| [25] |
CHEN Y, SEGOVIA I, GEL Y R. Z-gcnets: time zigzags at graph convolutional networks for time series forecasting [C]// International Conference on Machine Learning . [s.l.]: PMLR, 2021: 1684–1694.
|
|
|
| [26] |
SKARDING J, GABRYS B, MUSIAL K Foundations and modeling of dynamic networks using dynamic graph neural networks: a survey[J]. IEEE Access, 2021, 9: 7914- 79168
|
|
|
| [27] |
YU Y, SI X, HU C, et al A review of recurrent neural networks: LSTM cells and network architectures[J]. Neural Computation, 2019, 31 (7): 1235- 1270
doi: 10.1162/neco_a_01199
|
|
|
| [28] |
BAI L, YAO L, LI C, et al. Adaptive graph convolutional recurrent network for traffic forecasting [C]// Advances in Neural Information Processing Systems . [s.l.]: MIT Press, 2020, 33: 17804–17815.
|
|
|
| [29] |
CAO D, WANG Y, DUAN J, et al. Spectral temporal graph neural network for multivariate time-series forecasting [C]// Advances in Neural Information Processing Systems . [s.l.]: MIT Press, 2020, 33: 17766–17778.
|
|
|
| [30] |
LIU Y, YANG L, YOU K, et al Graph learning based on spatiotemporal smoothness for time-varying graph signal[J]. IEEE Access, 2019, 7: 62372- 62386
doi: 10.1109/ACCESS.2019.2916567
|
|
|
| [31] |
VASWANI A, SHAZEER N, PARMAR N, et al. Attention is all you need [C]// Advances in Neural Information Processing Systems . Long Beach: MIT Press, 2017: 30.
|
|
|
| [32] |
WU Z, PAN S, LONG G, et al. Graph wavenet for deep spatial-temporal graph modeling [C]// Proceedings of the Twenty-Eighth International Joint Conference on Artificial Intelligence . Macao: Morgan Kaufmann, 2019: 1907–1913.
|
|
|
| [33] |
LI Y, YU R, SHAHABI C, et al. Diffusion convolutional recurrent neural network: data-driven traffic forecasting [C]// International Conference on Learning Representations . Vancouver: ICLR, 2018.
|
|
|
| [34] |
LAI G, CHANG W C, YANG Y, et al. Modeling long-and short-term temporal patterns with deep neural networks [C]// The 41st International ACM SIGIR Conference on Research and Development in Information Retrieval . Ann Arbor: ACM, 2018: 95–104.
|
|
|
| [35] |
ZIVOT E, WANG J. Vector autoregressive models for multivariate time series [M]// Modeling financial time series with S-PLUS ® . Berlin: Springer, 2006: 385–429.
|
|
|
| [36] |
HUANG S, WANG D, WU X, et al. Dsanet: dual self-attention network for multivariate time series forecasting [C]// Proceedings of the 28th ACM International Conference on Information and Knowledge Management . Beijing: ACM, 2019: 2129–2132.
|
|
|
| [37] |
YU B, YIN H, ZHU Z. Spatio-temporal graph convolutional networks: a deep learning framework for traffic forecasting [C]// Proceedings of the 27th International Joint Conference on Artificial Intelligence . Stockholm: Morgan Kaufmann, 2018: 3634–3640.
|
|
|
| [38] |
GUO S, LIN Y, FENG N, et al. Attention based spatialtemporal graph convolutional networks for traffic flow forecasting [C]// Proceedings of the AAAI Conference on Artificial Intelligence . Honolulu: AAAI, 2019(33): 922–929.
|
|
|
| [39] |
SONG C, LIN Y, GUO S, et al. Spatial-temporal synchronous graph convolutional networks: a new framework for spatial-temporal network data forecasting [C]// Proceedings of the AAAI Conference on Artificial Intelligence . New York: AAAI, 2020(34): 914–921.
|
|
|
| [40] |
RASUL K, SEWARD C, SCHUSTER I, et al. Autoregressive denoising diffusion models for multivariate probabilistic time series forecasting [C]// International Conference on Machine Learning . [s.l.]: PMLR, 2021: 8857–8868.
|
|
|
|
