Journal of ZheJiang University (Engineering Science)  2023, Vol. 57 Issue (7): 1428-1438    DOI: 10.3785/j.issn.1008-973X.2023.07.018

Optimization of boiler real-time operation based on pattern-matching of agent model
Wei ZHONG1,2(),Xue-ru LIN1,2,Xiao-jie LIN1,3,*(),Yi ZHOU1
1. Key Laboratory of Clean Energy and Carbon Neutrality of Zhejiang Province, Zhejiang University, Hangzhou 310027, China
2. College of Energy Engineering, Zhejiang University, Hangzhou 310027, China
3. Jiaxing Research Institute, Zhejiang University, Jiaxing 314024, China
Download: HTML     PDF(1664KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

A novel framework for modeling coal-fired power plant boiler operations was proposed based on pattern matching with an agent model (PMAM) in order to enhance the effectiveness and real-time performance. A new method for calculating the lag of the main steam flow rate was proposed. An improved pattern-matching optimization model was introduced to calculate the optimal operational database for historical optimization. A three-level scheme optimization mechanism was incorporated in order to ensure the effectiveness of the pattern-matching approach. The mechanism includes attention parameters, state parameter interval frequency and regulation minimum. An agent model for boiler operation optimization was constructed offline by using a neural network algorithm, and pattern-matching steps were represented based on the agent model to enable online applications. The case results show that the proposed pattern-matching optimization model can effectively find the optimized boiler operation scheme, and the similarity of working conditions is more than 95%, which can improve the boiler efficiency by 1.92% in practice. The mean square error of the trained agent model is less than 0.35%. The method avoids the influence of generalization error caused by optimization solutions compared with traditional methods, and has high reliability and real-time performance while improving boiler efficiency.



Key wordsfuzzy C-means clustering      data driven      pattern matching      operation optimization      online optimization      power plant boiler
Received: 09 August 2022      Published: 17 July 2023
CLC:  TK 227
Fund:  国家重点研发计划资助项目(2019YFE0126000);国家自然科学基金资助项目(51806190)
Corresponding Authors: Xiao-jie LIN     E-mail: zhongw@zju.edu.cn;xiaojie.lin@zju.edu.cn
Cite this article:

Wei ZHONG,Xue-ru LIN,Xiao-jie LIN,Yi ZHOU. Optimization of boiler real-time operation based on pattern-matching of agent model. Journal of ZheJiang University (Engineering Science), 2023, 57(7): 1428-1438.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2023.07.018     OR     https://www.zjujournals.com/eng/Y2023/V57/I7/1428


基于代理模型模式匹配的锅炉实时操作优化

为了提高电厂燃煤锅炉操作优化的有效性与实时性,提出新的基于代理模型模式匹配(PMAM)的建模框架. 提出主蒸汽流量的滞后性计算方法. 采用改进的模式匹配优化模型,计算历史优化操作库. 引入工况注意力机制参数、状态参数区间频率法及调控最小的3层方案优化机制,确保模式匹配方案的有效性. 采用神经网络算法预建模构建锅炉操作优化的代理模型,基于代理模型表征模式匹配步骤,使得本文方法可以适用于在线应用. 案例结果表明,利用提出的模式匹配优化模型,能够有效地寻找优化的锅炉操作方案,工况相似度大于95%,可以使得锅炉效率提升1.92%;训练的代理模型均方误差小于0.35%. 与传统方法相比,本文方法避免了优化求解带来的泛化误差影响,在提升锅炉效率的同时,具有高可靠性及实时性.


关键词: 模糊C均值聚类,  数据驱动,  模式匹配,  操作优化,  在线优化,  电厂锅炉

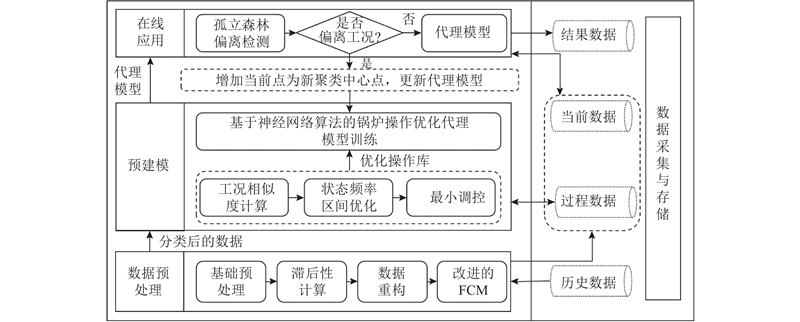

Fig.1 Boiler real-time operation optimization calculation framework based on pattern matching of agent model

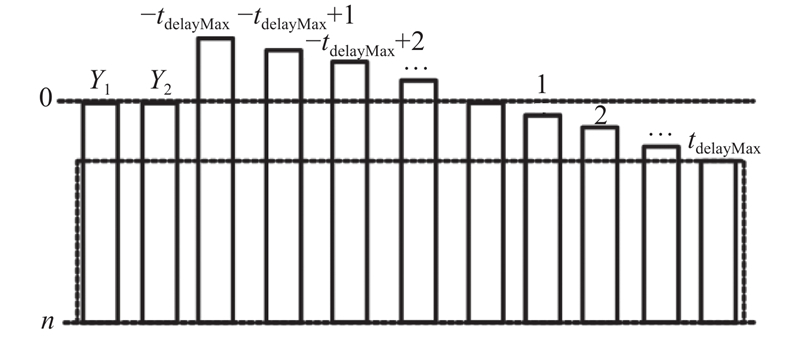

Fig.2 Schematic diagram of data reconstruction in hysteresis calculation
序号 参数类型 参数
1 工况参数 主蒸汽质量流量qmsteam/(t·h?1)
2 主蒸汽温度θsteam/℃
3 主蒸汽压力psteam/MPa
4 应用基水分Cwat/%
5 应用基灰分Cash/%
6 应用基挥发分Cvdaf/%
7 收到基低位发热量Qnet/(kJ·kg?1)
8 给水温度θwater/℃
9 目标参数 锅炉效率Eboiler/%
10 关键状态参数 炉膛温度θfurnace/℃
11 烟气含氧体积分数φoxygen/%
12 一二次风比例Rair
13 一次风体积流量qVprimaryAir/(m3·h?1)
14 二次风体积流量qVsecondaryAir/(m3·h?1)
15 操作参数 1#给煤机频率f1#GMJ/Hz
16 2#给煤机频率f2#GMJ/Hz
17 3#给煤机频率f3#GMJ/Hz
18 4#给煤机频率f4#GMJ/Hz
19 1#引风机频率f1#YFJ/Hz
20 2#引风机频率f2#YFJ/Hz
21 一次风机频率f1#SFJ/Hz
22 二次风机频率f2#SFJ/Hz
Tab.1 Table of parameters related to boiler operation optimization calculation

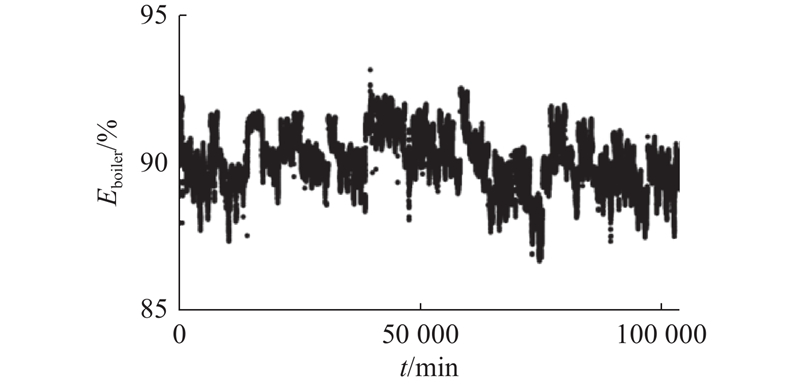

Fig.3 Normal operation data of 1 # boiler efficiency of thermal power plant

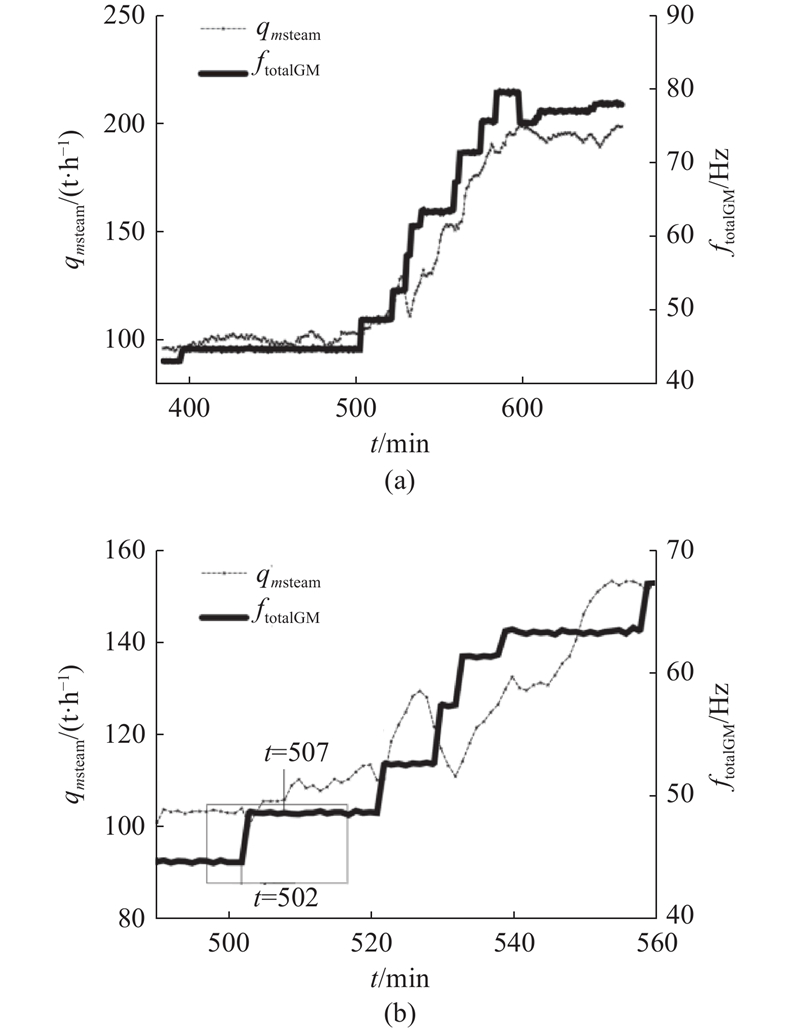

Fig.4 Curve between main steam mass flow rate and frequency of coal feeder

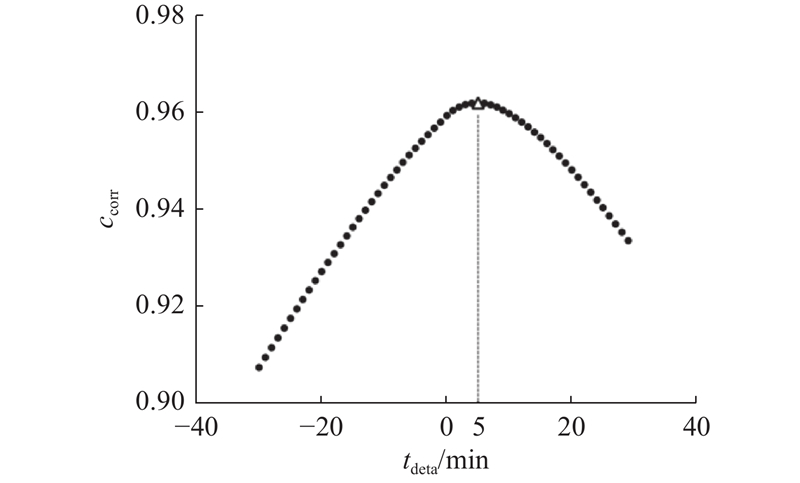

Fig.5 Hysteresis of main steam mass flow rate relative to coal feeder frequency
c m $ {{\varepsilon }} $ L lr
3 2 10 8.101 22
3 3 10 8.820 22
3 4 10 9.548 38
3 5 10 9.941 85
Tab.2 Influence of fuzzy index on error value and iteration number of clustering objective
c m $ {{\varepsilon }} $ L lr
3 2 10 8.101 22
4 2 10 9.086 81
5 2 10 9.576 19
6 2 10 9.648 23
Tab.3 Influence of clustering numbers on final error value and iteration times

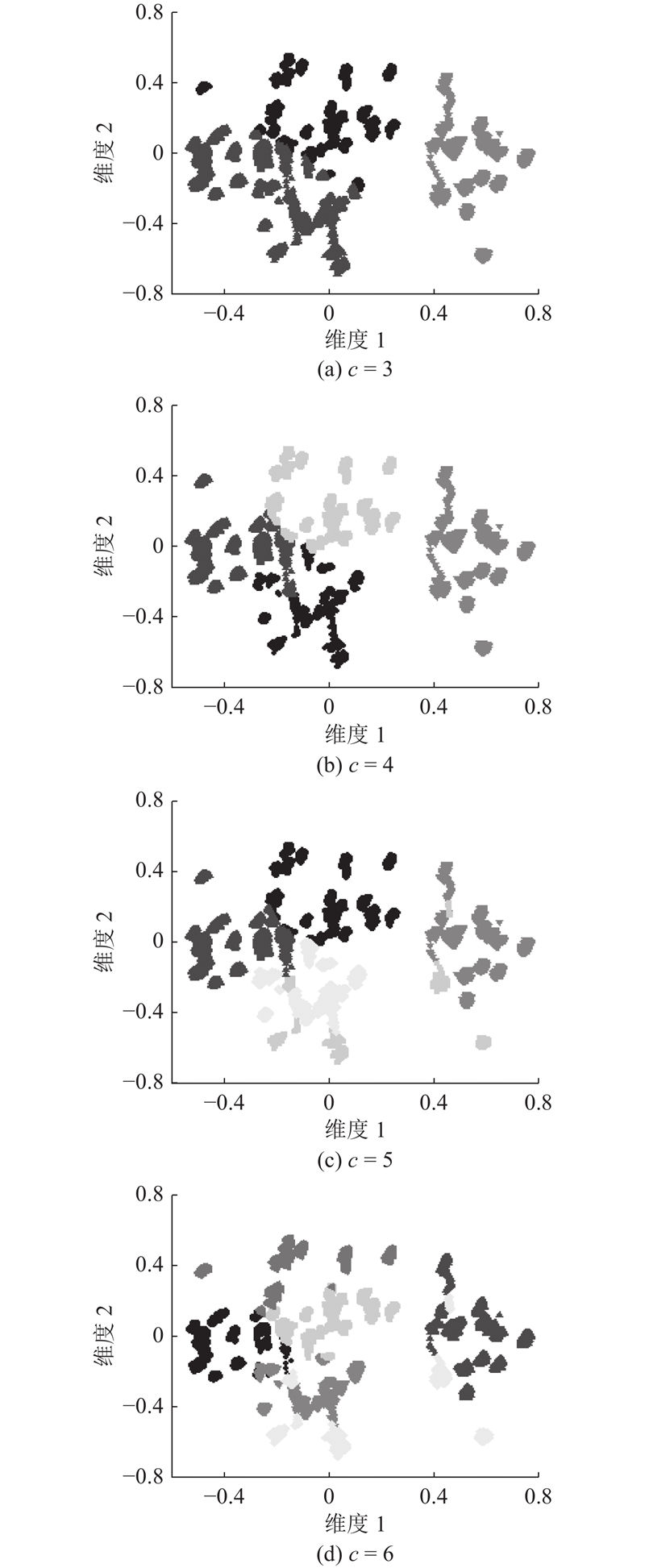

Fig.6 Clustering effect of different cluster number
c m $ {{\varepsilon }} $ L lr
3 2 0.01 0.009 47
3 2 0.1 0.081 39
3 2 1 0.927 30
3 2 10 8.101 22
Tab.4 Influence of update iteration thresholds on final error and iteration times
工况 qmsteam/(t·h?1) Sxm/% Sxo/% EdeBoiler/% ftotalGM/Hz ftotalSF/Hz ftotalYF/Hz
工况1(原始) 191.16 79.30 58.44 58.23
工况1(优化后) 199.06 98.28 97.27 1.92 78.22 58.51 59.45
工况1(仅考虑工况相似) 197.73 98.83 96.19 2.10 79.74 57.66 58.24
工况1(仅考虑工况相似与操作相似) 189.96 99.84 99.89 0.06 79.19 58.42 58.24
工况2(原始) 170.66 71.39 56.01 52.98
工况2(优化后) 162.98 98.47 95.14 0.41 67.23 54.01 51.96
工况3(原始) 140.58 55.29 49.97 42.28
工况3(优化后) 140.25 99.44 95.13 0.64 55.29 49.97 42.28
工况4(原始) 123.29 52.55 46.14 39.46
工况4(优化后) 120.31 97.00 93.76 0.22 52.15 45.73 39.68
工况5(原始) 103.55 47.47 45.77 39.30
工况5(优化后) 111.00 98.00 95.82 0.93 46.91 44.95 38.67
工况6(原始) 192.68 78.25 59.84 58.24
工况6(优化后) 201.55 97.40 94.46 0.73 74.23 61.74 63.34
工况7(原始) 194.62 78.06 61.89 62.31
工况7(优化后) 199.60 97.99 96.92 0.60 74.13 61.76 63.33
工况8(原始) 195.16 83.82 61.10 61.51
工况8(优化后) 201.70 97.51 92.63 0.76 74.20 61.74 63.34
工况9(原始) 201.01 82.22 60.30 61.51
工况9(优化后) 199.60 99.09 93.32 0.66 74.13 61.76 63.33
Tab.5 Optimization results of pattern matching under multiple working conditions-1# boiler

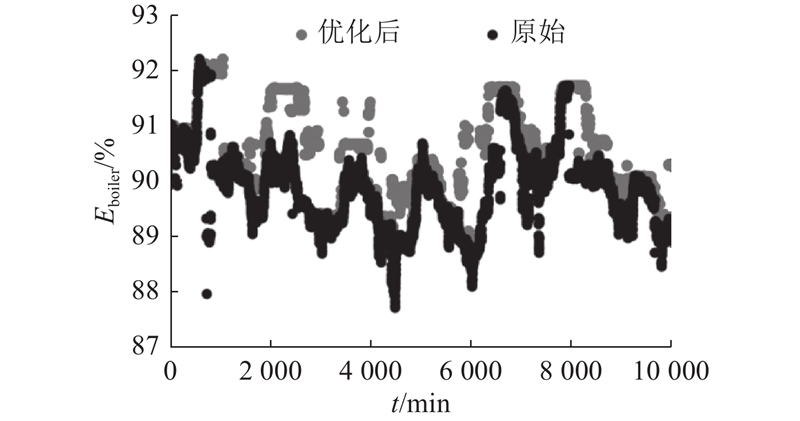

Fig.7 Batch optimization results of pattern-matching method

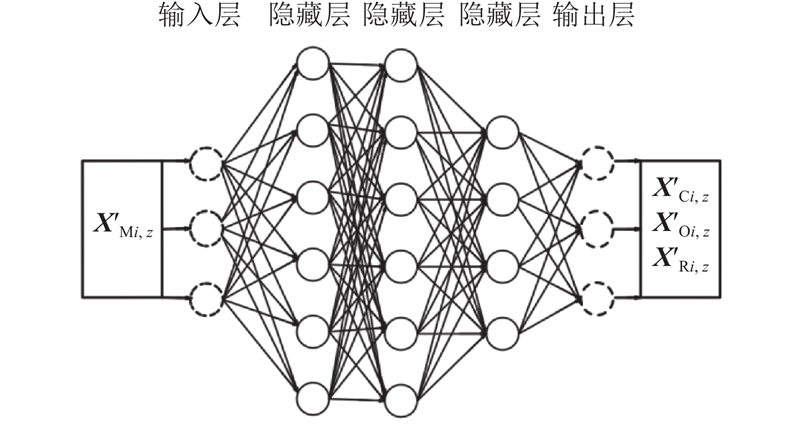

Fig.8 Neural network structure diagram adopted by PMAM agent model

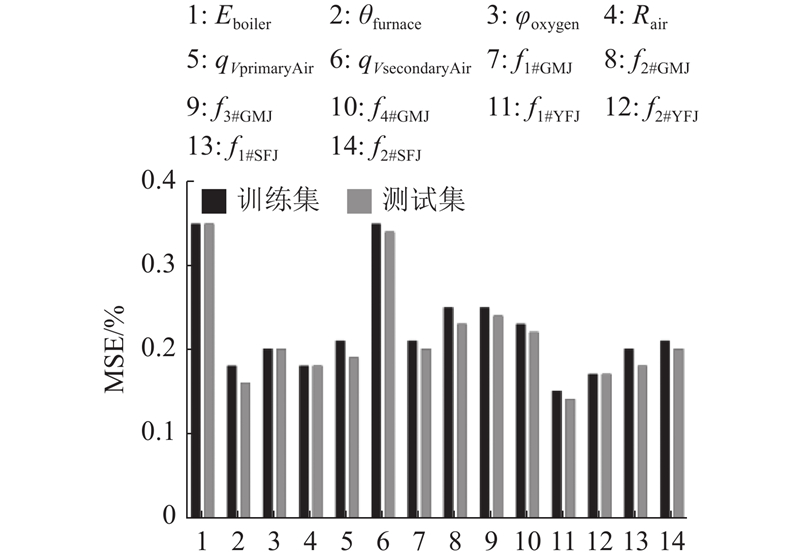

Fig.9 Error results of optimal agent model
序号 参数 e/%
第1次 第2次 第3次 第4次 第5次 第6次 第7次 第8次 第9次 第10次
1 Eboiler 0.33 0.36 0.37 0.33 0.31 0.29 0.38 0.32 0.35 0.33
2 θfurnace 0.16 0.16 0.16 0.16 0.16 0.16 0.16 0.16 0.17 0.16
3 φoxygen 0.20 0.20 0.20 0.21 0.21 0.20 0.20 0.20 0.20 0.20
4 Rair 0.18 0.18 0.18 0.19 0.17 0.18 0.19 0.17 0.17 0.16
5 qVprimaryAir 0.18 0.19 0.19 0.19 0.19 0.19 0.18 0.19 0.18 0.18
6 qVsecondaryAir 0.35 0.35 0.36 0.35 0.34 0.35 0.33 0.35 0.33 0.34
7 f1#GMJ 0.19 0.19 0.19 0.19 0.19 0.20 0.20 0.19 0.20 0.19
8 f2#GMJ 0.24 0.24 0.25 0.24 0.25 0.24 0.23 0.24 0.24 0.23
9 f3#GMJ 0.24 0.24 0.25 0.24 0.24 0.24 0.24 0.24 0.24 0.24
10 f4#GMJ 0.20 0.21 0.21 0.22 0.20 0.20 0.20 0.22 0.21 0.21
11 f1#YFJ 0.15 0.14 0.15 0.15 0.15 0.15 0.15 0.15 0.16 0.15
12 f2#YFJ 0.15 0.15 0.16 0.16 0.16 0.16 0.16 0.16 0.16 0.15
13 f1#SFJ 0.18 0.18 0.19 0.19 0.18 0.19 0.18 0.18 0.18 0.18
14 f2#SFJ 0.21 0.22 0.20 0.20 0.21 0.22 0.21 0.21 0.21 0.21
Tab.6 Cross validation-error percentage of test set
数据源 Eboiler/% f1#GMJ/Hz f2#GMJ/Hz f3#GMJ/Hz f4#GMJ/Hz f1#SFJ/Hz f2#SFJ/Hz f1#YFJ/Hz f2#YFJ/Hz tc/s
原始数据 90.22 18.54 17.08 23.05 20.63 36.05 22.39 29.09 29.14
由模式匹配计算 91.95 18.46 17.88 22.17 19.71 35.51 23.00 29.72 29.73 12.00
由代理模型计算 91.56 17.90 17.20 21.99 19.23 35.63 23.00 29.38 29.05 2.00
Tab.7 Examples of online application results

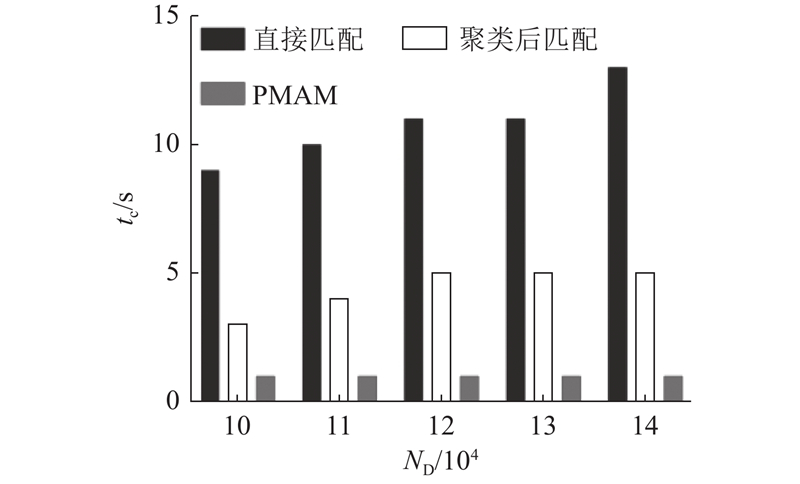

Fig.10 Calculation time of different methods

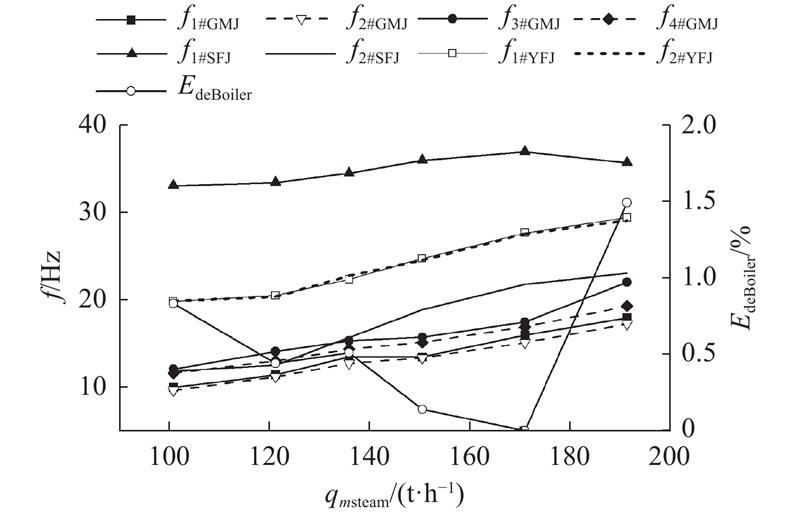

Fig.11 Online application results of PMAM method under different loads

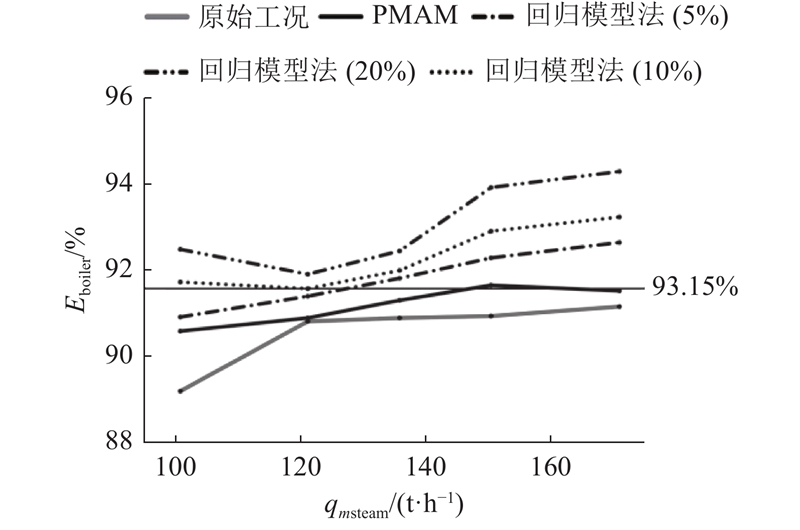

Fig.12 Comparison between PMAM and regression model
工况 qmsteam/(t·h?1) Sxm/% Sxo/% EdeBoiler/% ftotalGM/Hz ftotalSF/Hz ftotalYF/Hz
工况1(原始) 113.57 40.69 48.87 41.42
工况1(优化后) 119.95 97.57 97.57 0.65 41.42 50.29 40.61
工况2(原始) 133.93 46.12 52.96 45.06
工况2(优化后) 131.23 98.88 98.73 1.24 46.26 51.77 44.25
工况3(原始) 144.49 50.14 53.93 47.06
工况3(优化后) 141.24 98.67 99.86 0.04 50.02 53.92 47.04
工况4(原始) 158.02 55.72 55.68 52.96
工况4(优化后) 157.98 99.68 99.80 0.05 55.72 55.68 52.96
工况5(原始) 181.26 62.85 61.92 62.81
工况5(优化后) 189.13 97.61 99.13 0.77 64.41 62.57 62.02
工况6(原始) 197.58 70.14 66.28 65.64
工况6(优化后) 198.51 99.60 99.91 0.05 70.03 66.30 65.65
Tab.8 Optimization results of pattern matching under multiple working conditions-2#boiler
