A parallel-machine scheduling problem with time-changing effect and preventive maintenance
Xin-ying ZHANG(),Lu CHEN*(),Wen-hui YANG
Department of Industrial Engineering and Management, Shanghai Jiao Tong University, Shanghai 200240, China
Download: HTML     PDF(1420KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

A parallel-machine scheduling problem with time-changing effect and preventive maintenance was studied based on the fact that preventive maintenance (PM) could restore machine condition in the ion implantation process in a wafer fab thus reducing the prolongation of the wafer processing time. A mathematical nonlinear programming model including the machine reliability constraints and the actual job processing time constraints was developed with the objective to minimize the makespan. The learnable genetic algorithm (LGA) was designed to solve the problem. According to the characteristics of the problem, dominance properties were embedded into the LGA to improve the mutation operation and the PM knowledge base was constructed to guide the later stage of evolution to improve the search performance. Computational analyses demonstrate that LGA can effectively deal with the impact of time-changing effect on scheduling, and reduce the makespan. Sensitivity analyses provide valuable information about the impact of job’s dependency on machine deterioration and types of PM on scheduling, which provides decision supports for the real workshop.

Key words： parallel-machine scheduling      reliability      time-changing effect      preventive maintenance      learnable genetic algorithm
Received: 24 March 2021      Published: 03 March 2022
CLC:  F 406
Corresponding Authors: Lu CHEN     E-mail: zxysjtu@sjtu.edu.cn;chenlu@sjtu.edu.cn
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Xin-ying ZHANG
Lu CHEN
Wen-hui YANG
Cite this article:

Xin-ying ZHANG,Lu CHEN,Wen-hui YANG. A parallel-machine scheduling problem with time-changing effect and preventive maintenance. Journal of ZheJiang University (Engineering Science), 2022, 56(2): 408-418.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2022.02.022     OR     https://www.zjujournals.com/eng/Y2022/V56/I2/408


考虑系统时变效应与预防性维护的平行机调度

实施预防性维护(PM)能改善晶圆制造厂离子注入工序中设备状态从而改善晶圆卡（lot）加工时间延长的问题，基于此，研究考虑系统时变效应与预防性维护的平行机调度问题. 以最小化最大完工时间为优化目标，建立包括设备可靠性以及工件实际加工时间约束的数学非线性规划模型. 设计求解该模型的学习型遗传算法(LGA)，针对问题特性引入最优支配规则改进变异操作，构建预防性维护知识库指导进化后期预防性维护决策，以提升算法质量. 算例实验结果表明，改进的学习型遗传算法能有效应对系统时变效应对生产调度的影响，减少最大完工时间，具有实用价值. 通过灵敏度分析实验研究晶圆卡对设备状态衰退的敏感程度和预防性维护对调度决策的影响，为实际车间调度提供决策支持.


关键词： 平行机调度,  可靠性,  时变效应,  预防性维护,  学习型遗传算法

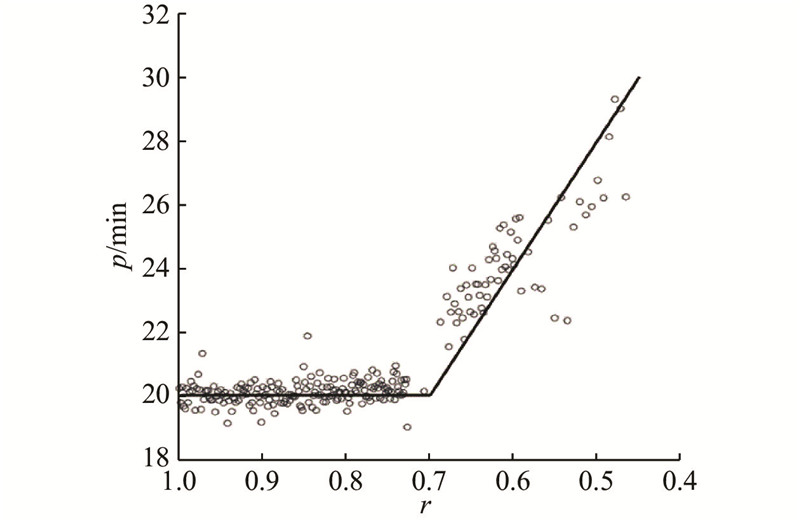

Fig.1 Relationship between actual processing time of a lot and machine reliability

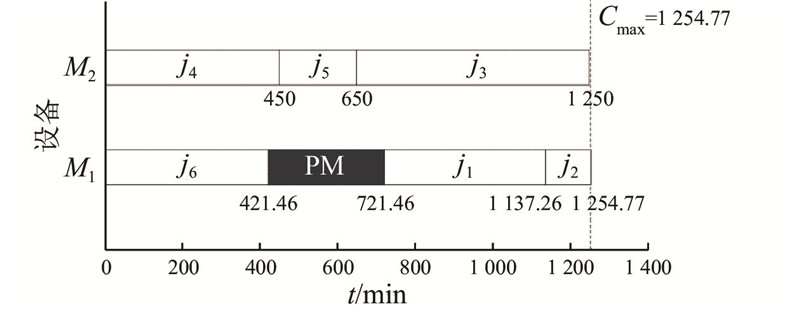

Fig.2 An optimal schedule of example

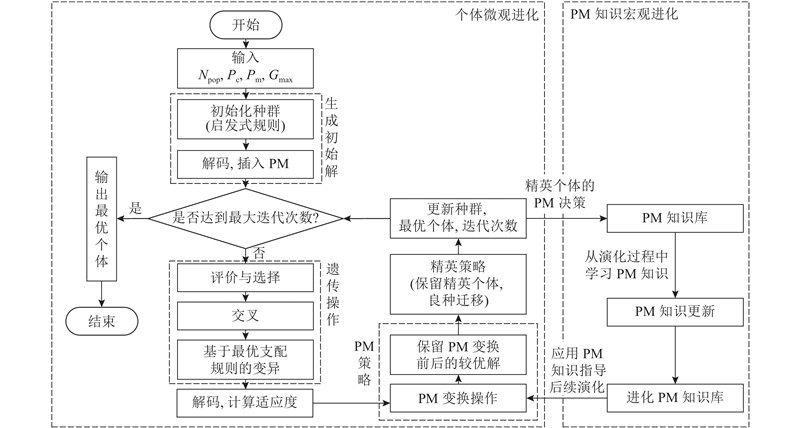

Fig.3 Flow chart of learnable genetic algorithm

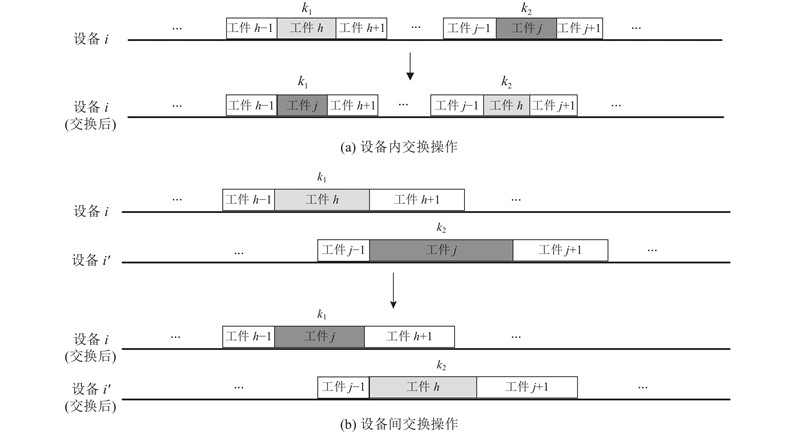

Fig.4 Job exchange operations

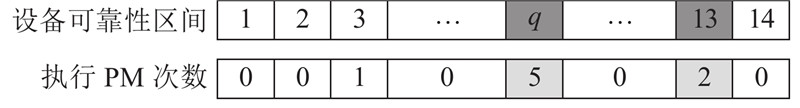

Fig.5 Chromosome representation
Fig.6 Knowledge base for preventive maintenance
工作种类 $ {\alpha }_{j} $ 工作种类 $ {\alpha }_{j} $
1 1.0 6 0.5
2 0.9 7 0.2
3 0.9 8 0.1
4 0.6 9 0.1
5 0.6 ? ?
Tab.1 Sensitivity factors for different job families
参数 取值 参数 取值
$ {\bar{p}}_{i,j} $/min N(20, 0.32) $ \theta $ 0.58
$ {S}_{{f}_{h},{f}_{j}} $/min U(38, 78) $ {N}_{\mathrm{p}\mathrm{o}\mathrm{p}} $ 50
$ {r}_{{\rm{th}}1} $ 0.7 ${P}_{\mathrm{c} }$ 0.8
$ {r}_{{\rm{th}}2} $ 0.4 ${P}_{\mathrm{m} }$ 0.1
$ \lambda $ 0.00035 $ {G}_{\mathrm{m}\mathrm{a}\mathrm{x}} $ 400
$ w $ 2 ${P}_{ {\rm{o} } }$ 0.2
$ {L}_{i,1}^{0} $/min {0, 1000, 1500, 2000} ${P}_{ {\rm{o} } }'$ 0.3
T/min 30 d 12
Tab.2 Parameters setting for scheduling and algorithm
|N| Lingo LGA Dev/%
$C_{\max }^{{\rm{Lingo}}} $/min tCPU/s $C_{\max }^{{\rm{Lingo}}} $/min tCPU/s
5 78.76 25.4 78.76 1.12 0.00
6 88.54 80.6 88.54 1.02 0.00
7 88.55 1884.4 88.55 1.20 0.00
8 96.54 3600.0 94.62 1.27 1.95
9 116.62 3600.0 112.83 1.27 3.25
10 126.85 3600.0 120.10 1.30 5.33
11 128.00 3600.0 117.38 1.27 8.32
12 153.87 3600.0 136.60 1.21 11.21
Tab.3 Comparison for Lingo and LGA
|N| LGA SGA DABC
Cmax/min tCPU/s Cmax/min tCPU/s Cmax/min tCPU/s
50 373.59 1.70 381.14 1.44 385.01 1.49
100 648.25 2.25 658.17 1.97 671.10 2.14
150 909.69 2.83 923.31 2.46 937.58 2.76
200 1171.71 3.64 1192.94 3.03 1212.75 3.38
250 1429.64 4.36 1454.86 3.65 1493.26 4.15
300 1696.91 5.44 1743.19 4.80 1789.49 5.38
Tab.4 Comparison for optimization results of three algorithms
Fig.7 Comparison of convergence curves of three algorithms
待加工
工件集合 		$ \phi $/%
$ {\alpha }_{j} $=1.0 或 0.9 $ {\alpha }_{j} $=0.6 或 0.5 $ {\alpha }_{j} $=0.2 或 0.1
高敏感性 80 10 10
中敏感性 10 80 10
低敏感性 10 10 80
Tab.5 Characteristic of job sets

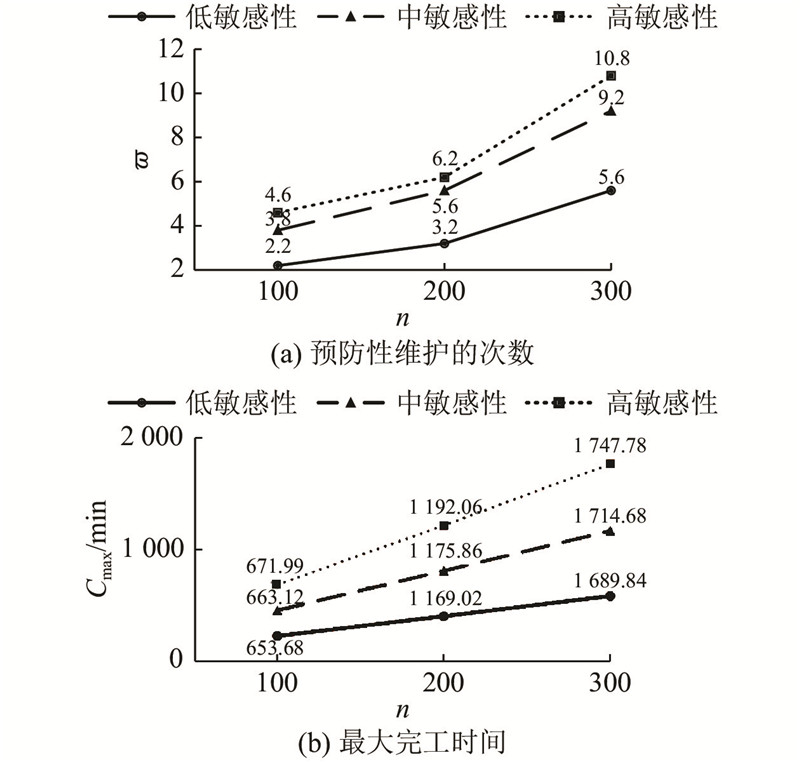

Fig.8 Impact of characteristic of job sets on scheduling

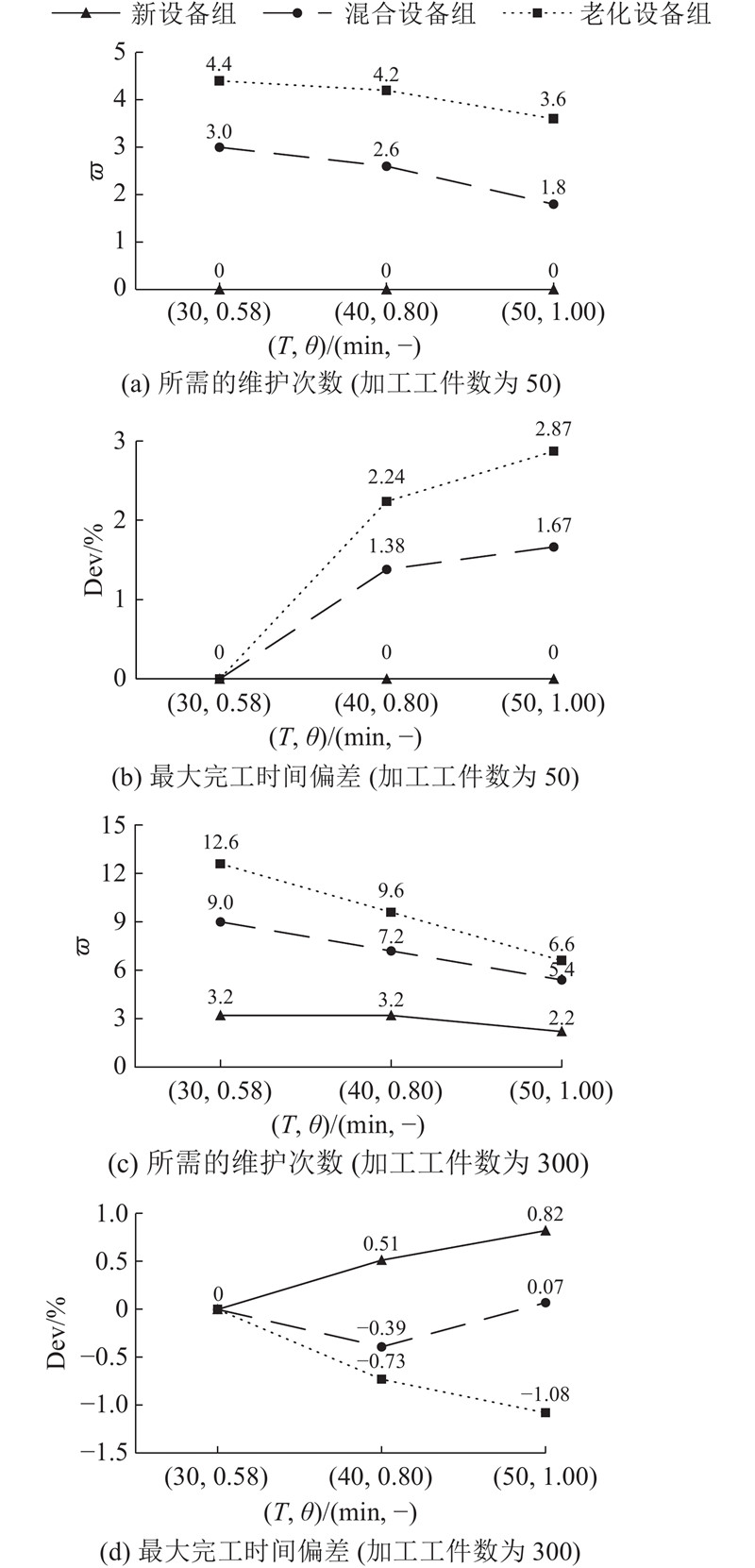

Fig.9 Impact of PM type on scheduling decision
