Journal of ZheJiang University (Engineering Science)  2020, Vol. 54 Issue (4): 804-815    DOI: 10.3785/j.issn.1008-973X.2020.04.020
Civil Engineering, Traffic Engineering
Numerical study on deposition characteristics of snow particle on bogie of high-speed train
Lu CAI(),Tian LI,Ji-ye ZHANG*()
State Key Laboratory of Traction Power, Southwest Jiao Tong University, Chengdu 610031, China
Download: HTML     PDF(2312KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

A snow particle deposition model based on the critical capture angle and the critical shear velocity was established in order to reveal the deposition distribution of snow particles on the bogie surface of high-speed trains. The Lagrangian method was used to simulate the motion of snow particles. The deposition characteristics of snow particle on the bogie surface were analyzed. Results show that the bottom of the bogie frame, the anti-snake damper, the intermediate brake clamps in the rear wheelset, the traction rod and the anti-rolling torsion bar are the areas prone to accumulate snow particles. The vertical surfaces of the rear region, the horizontal surfaces of the front region and the corner areas of the bogie have high adhesion rate. Whether it is the amount of snow accretion or the adhesion rate, the area of the cross beam of the bogie frame is the largest. The average snow accumulation of each component from high to low is traction rod, frame, bolster, brake clamp 2, anti-rolling torsion bar, brake clamp 1, transverse damper, axle box 2, axle box 1, air spring, anti-snake damper, tread cleaning device. The average snow accumulation on the traction rod, frame, bolster, and clamp 2 is about double that of other components, and the average snow accumulation on brake clamp 2 is about twice as high as on brake clamp 1. When the capture angle varies from 30 to 60 degrees, the change of the critical capture angle has slightly effect on the total snow accretion on each component.



Key wordshigh-speed train      bogie      discrete phase model      snow drift      snow particle deposition
Received: 30 March 2019      Published: 05 April 2020
CLC:  U 271
Corresponding Authors: Ji-ye ZHANG     E-mail: cailu@my.swjtu.edu.cn;jyzhang@swjtu.edu.cn
Cite this article:

Lu CAI,Tian LI,Ji-ye ZHANG. Numerical study on deposition characteristics of snow particle on bogie of high-speed train. Journal of ZheJiang University (Engineering Science), 2020, 54(4): 804-815.

URL:

http://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2020.04.020     OR     http://www.zjujournals.com/eng/Y2020/V54/I4/804


高速列车转向架雪粒沉积特性数值研究

为了揭示高速列车转向架表面的雪粒沉积分布,建立基于临界捕获角度和临界剪切速度的雪粒沉积模型,采用拉格朗日方法模拟雪粒在气流中的运动,研究转向架表面的雪粒沉积特性. 研究结果表明,转向架构架底部、抗蛇行减振器、后轮对中间制动夹钳、牵引拉杆、抗侧滚扭杆区域为雪粒易堆积部位;转向架后部区域垂向面、前部区域水平面、角落区域黏附率高;无论是积雪量,还是黏附率,都是以转向架中部横梁区域为最大;各部件平均积雪量由高到低依次为:牵引拉杆、构架、摇枕、二轴制动夹钳、抗侧滚扭杆、一轴制动夹钳、横向减振器、二轴轴箱、一轴轴箱、空气弹簧、抗蛇行减振器、踏面清扫装置,其中牵引拉杆、构架、摇枕、夹钳2的平均积雪量比其他部件高出约1倍,二轴制动夹钳的平均积雪量比一轴制动夹钳高出约1倍;当临界捕获角度为30~60°时,临界捕获角度的变化对部件总的积雪量影响较小.


关键词: 高速列车,  转向架,  离散相模型,  风雪流,  雪粒沉积

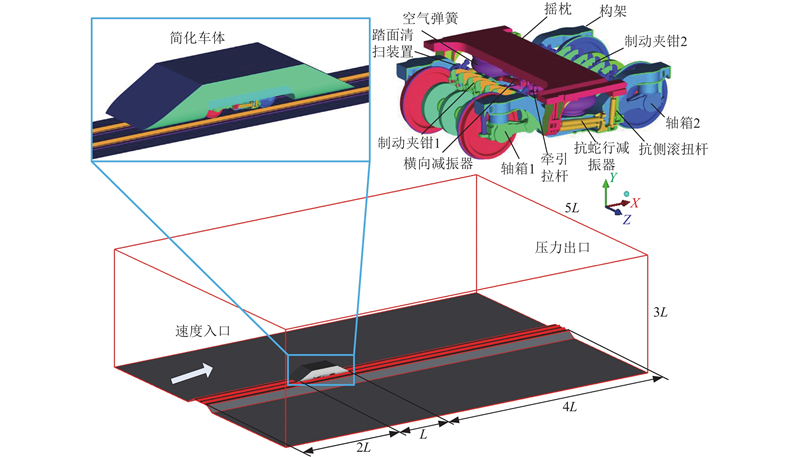

Fig.1 Computational domain and bogie model

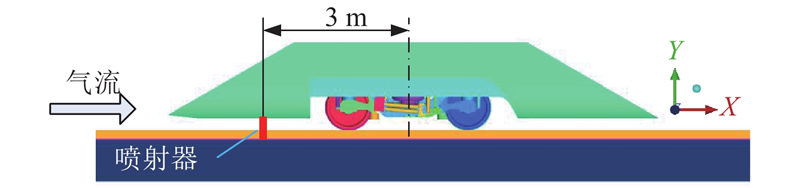

Fig.2 Position of particle injector

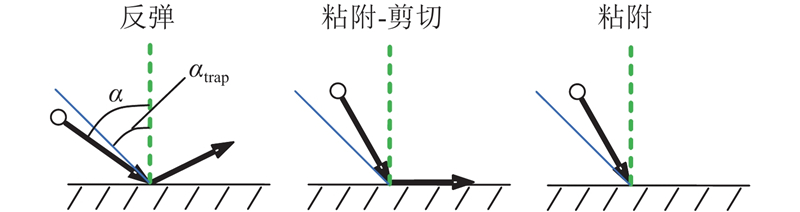

Fig.3 Collision results between snow particles and wall
Fig.4 Calculation procedure of particle-wall impact
Fig.5 Comparison of pressure coefficients along centerline under bogie in different grids
Fig.6 Computational grids of flow field in bogie region
边界区域 空气相边界条件 雪粒相边界条件
入口 速度入口 逃逸
出口 压力出口 逃逸
侧面、顶面 对称 ?
轨道、地面 移动壁面:平移 逃逸
轮对 移动壁面:旋转 反弹
转向架 无滑移壁面 自定义边界
简化车体 无滑移壁面 自定义边界
Tab.1 Boundary conditions of continuous phase and discrete phase

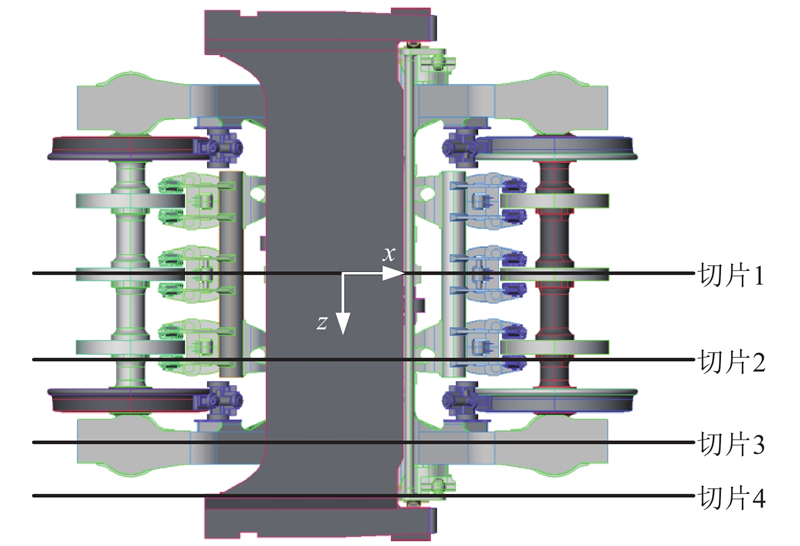

Fig.7 Positions of longitudinal slices in bogie region
Fig.8 Streamlines in longitudinal slices of bogie region

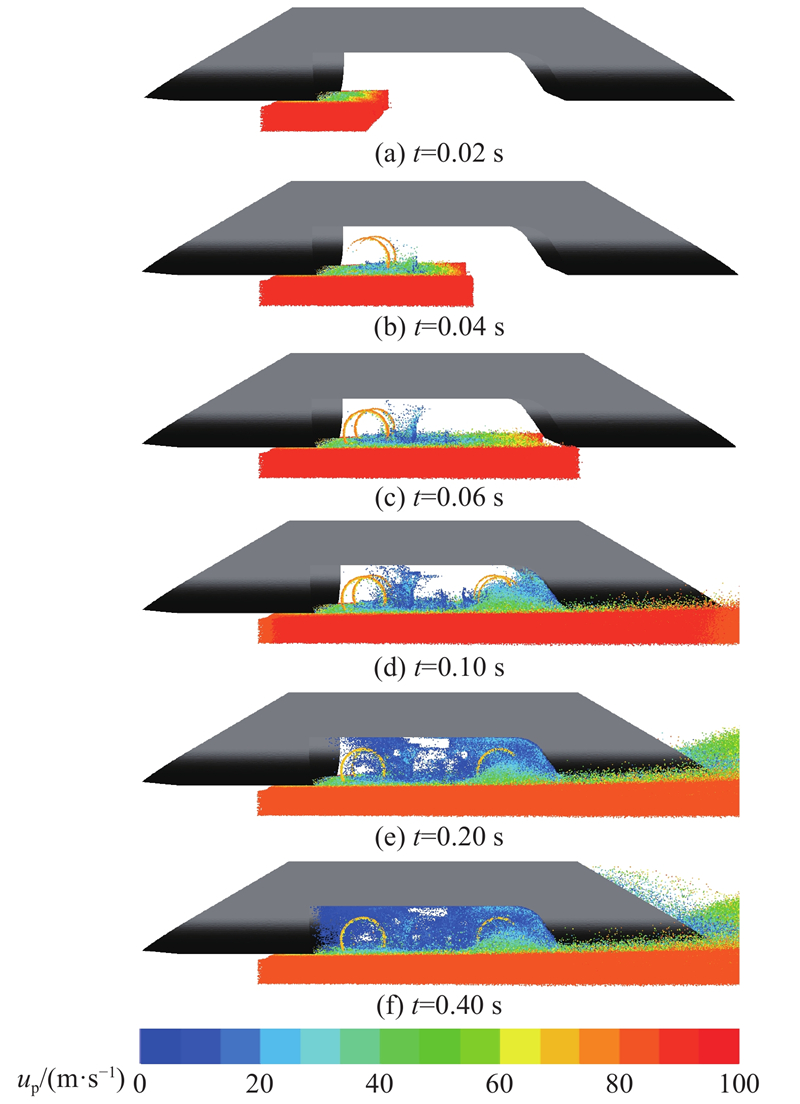

Fig.9 Processes of snow particles entering bogie region
Fig.10 Distributions of snow particles in bogie region
Fig.11 Friction wind speed in bogie surfaces
Fig.12 Distribution of incident mass of snow particles on bogie surfaces
Fig.13 Total number of snow particles impact on each component of bogie
Fig.14 Distribution of accumulation mass of snow particles on bogie surfaces
Fig.15 Comparison of snow accumulation and snow escape on each component of bogie
Fig.16 Distribution of adhesion rate of snow particles on bogie surfaces
Fig.17 Snow accretion on bogie region of high-speed train
Fig.18 Comparison of average incident mass,accumulation mass and adhesion rate of each component of bogie under different capture angles

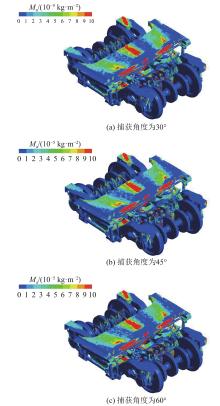

Fig.19 Distribution of accumulation mass of snow particles on bogie surfaces under different capture angles
[1]   KLOOW L. High-speed train operation in winter climate [R]. Stockholm: KTH Railway Group and Transrail, 2011.
[2]   OKAZE T, MOCHIDA A, TOMINAGA Y, et al Wind tunnel investigation of drifting snow development in a boundary layer[J]. Journal of Wind Engineering and Industrial Aerodynamics, 2012, 104-106: 532- 539
doi: 10.1016/j.jweia.2012.04.002
[3]   LV X H, HUANG N, DING T Wind tunnel experiments on natural snow drift[J]. Science China Technological Sciences, 2012, 55 (4): 927- 938
doi: 10.1007/s11431-011-4731-3
[4]   NISHIMURA K, HUNT J C R Saltation and incipient suspension above a flat particle bed below a turbulent boundary layer[J]. Journal of Fluid Mechanics, 2000, 417: 77- 102
doi: 10.1017/S0022112000001014
[5]   ZWAAFTINK C D G, DIEBOLD M, HORENDER S, et al Modeling small-scale drifting snow with a Lagrangian stochastic model based on large-eddy simulations[J]. Boundary-Layer Meteorology, 2014, 153 (1): 117- 139
doi: 10.1007/s10546-014-9934-2
[6]   BEYERS M, WAECHTER B Modeling transient snowdrift development around complex three-dimensional structures[J]. Journal of Wind Engineering and Industrial Aerodynamics, 2008, 96: 1603- 1615
doi: 10.1016/j.jweia.2008.02.032
[7]   BEYERS J H M, SUNDSBO P A, HARMS T M Numerical simulation of three-dimensional, transient snow drifting around a cube[J]. Journal of Wind Engineering and Industrial Aerodynamics, 2004, 92: 725- 747
doi: 10.1016/j.jweia.2004.03.011
[8]   周晅毅, 顾明, 朱忠义, 等 首都国际机场3号航站楼屋面雪荷载分布研究[J]. 同济大学学报: 自然科学版, 2007, 35 (9): 1193- 1196
ZHOU Xuan-yi, GU Ming, ZHU Zhong-yi, et al Study on snow loads on roof of terminal 3 of Beijing capital international airport[J]. Journal of Tongji University: Natural Science, 2007, 35 (9): 1193- 1196
[9]   SUNDSBO P Numerical simulations of wind direction fins to control snow accumulation in building steps[J]. Journal of Wind Engineering and Industrial Aerodynamics, 1998, 74-76: 543- 552
doi: 10.1016/S0167-6105(98)00049-X
[10]   THIIS T, FERREIRA A D Sheltering effect and snow deposition in arrays of vertical pillars[J]. Environmental Fluid Mechanics, 2015, 15 (1): 27- 39
doi: 10.1007/s10652-014-9356-1
[11]   TOMINAGA Y, OKAZE T, MOCHIDA A CFD modeling of snowdrift around a building: an overview of models and evaluation of a new approach[J]. Building and Environment, 2011, 46 (4): 899- 910
doi: 10.1016/j.buildenv.2010.10.020
[12]   TOMINAGA Y Computational fluid dynamics simulation of snowdrift around buildings: past achievement and future perspectives[J]. Cold Regions Science and Technology, 2018, 150: 2- 14
doi: 10.1016/j.coldregions.2017.05.004
[13]   周晅毅, 刘长卿, 顾明, 等 拉格朗日方法在风雪运动模拟中的应用[J]. 工程力学, 2015, 32 (1): 36- 42
ZHOU Xuan-yi, LIU Chang-qing, GU Ming, et al Application of Lagrangian method to snowdrift model[J]. Engineering Mechanics, 2015, 32 (1): 36- 42
[14]   KWON H B, PARK C S. An experimental study on the relationship between ballast flying phenomenon and strong wind under high speed train [C]// Word Congress on Rail Research. Montreal: [s. n.], 2006.
[15]   SHISHIDO M, NAKADE K, IDO A, et al. Development of, deflector to decrease, snow-accretion to the bogie of vehicle [C]// Preprints of the Annual Conference. Tokyo: Japanese Society of Snow and Ice, 2007: 120-120.
[16]   IDO A, SAITOU S, NAKADE K, et al. Study on under-floor flow to reduce ballast flying phenomena [C]// Word Congress on Rail Research. Seoul: [s. n.], 2008.
[17]   XIE F, ZHANG J, GAO G, et al Study of snow accumulation on a high-speed train's bogies based on the discrete phase model[J]. Journal of Applied Fluid Mechanics, 2017, 10 (6): 1729- 1745
doi: 10.29252/jafm.73.245.27410
[18]   WANG J B, ZHANG J, ZHANG Y, et al Impact of bogie cavity shapes and operational environment on snow accumulating on the bogies of high-speed trains[J]. Journal of Wind Engineering and Industrial Aerodynamics, 2018, 176: 211- 224
doi: 10.1016/j.jweia.2018.03.027
[19]   WANG J B, ZHANG J, XIE F, et al A study of snow accumulating on the bogie and the effects of deflectors on the deicing performance in the bogie region of a high-speed train[J]. Cold Regions Science and Technology, 2018, 148: 121- 130
doi: 10.1016/j.coldregions.2018.01.010
[20]   PARADOT N, ALLAIN E, CROUé R, et al. Development of a numerical modeling of snow accumulation on a high speed train [C]// International Conference on Railway Technology: Research, Development and Maintenance. Stirlingshire: Civil-Comp Press, 2014: 1-17.
[21]   WANG J B, GAO G J, ZHANG Y, et al Anti-snow performance of snow shields designed for brake calipers of a high-speed train[J]. Journal of Rail and Rapid Transit, 2019, 233 (2): 121- 140
doi: 10.1177/0954409718783327
[22]   GAO G J, ZHANG Y, XIE F, et al Numerical study on the anti-snow performance of deflectors in the bogie region of a high-speed train using the discrete phase model[J]. Journal of Rail and Rapid Transit, 2019, 233 (2): 141- 159
doi: 10.1177/0954409718785290
[23]   TRENKER M, PAYER W. Investigation of snow transportation and accretion on vehicles [C]// Proceedings of the 49th International Symposium of Applied Aerodynamics. Lille: [s. n.], 2006: 24-25-26.
[24]   SHIH T H, LIOU W, SHABBIR A, et al A new eddy-viscosity model for high Reynolds number turbulent flows: model development and validation[J]. Computers Fluids, 1995, 24 (3): 227- 238
doi: 10.1016/0045-7930(94)00032-T
[25]   MORSI S A, ALEXANDER A J An investigation of particle trajectories in two-phase systems[J]. Journal of Fluid Mechanics, 1972, 55 (2): 193- 208
doi: 10.1017/S0022112072001806
[26]   BEYERS J H M, HARMS T M Outdoors modeling of snow drifting at SANAE IV research station, Antarctica[J]. Journal of Wind Engineering and Industrial Aerodynamics, 2002, 91 (4): 551- 569
[27]   CLIFTON A, LEHNING M Improvement and validation of a snow saltation model using wind tunnel measurements[J]. Earth Surface Processes and Landforms, 2008, 33 (14): 2156- 2173
doi: 10.1002/esp.1673
[28]   KIND R J A critical examination of the requirements for model simulation of wind-induced erosion/deposition phenomena such as snow drifting[J]. Atmospheric Environment, 1976, 10 (3): 219- 227
doi: 10.1016/0004-6981(76)90094-9
