浙江大学学报(工学版)  2024, Vol. 58 Issue (11): 2230-2238    DOI: 10.3785/j.issn.1008-973X.2024.11.004
计算机技术、控制工程
基于离散余弦变换的快速对抗训练方法
王晓淼1(),张玉金1,*(),张涛2,田瑾1,吴飞1
1. 上海工程技术大学 电子电气工程学院,上海 201620
2. 常熟理工学院 计算机科学与工程学院,江苏 常熟 215500
Fast adversarial training method based on discrete cosine transform
Xiaomiao WANG1(),Yujin ZHANG1,*(),Tao ZHANG2,Jin TIAN1,Fei WU1
1. School of Electronic and Electrical Engineering, Shanghai University of Engineering Science, Shanghai 201620, China
2. School of Computer Science and Engineering, Changshu Institute of Technology, Changshu 215500, China
 全文: PDF(1747 KB)   HTML
摘要:

为了提升深度神经网络的鲁棒性,从频域的角度提出基于离散余弦变换(DCT)的快速对抗训练方法. 引入对抗初始化生成模块,根据系统的鲁棒性自适应地生成初始化信息,可以更精准地捕捉到图像特征,有效避免灾难性过拟合. 对样本进行随机谱变换,将样本从空间域变换至频谱域,通过控制频谱显著性提高模型的迁移与泛化能力. 在CIFAR-10与CIFAR-100数据集上验证提出方法的有效性. 实验结果表明,在以ResNet18为目标网络,面对PGD-10攻击时,本文方法在CIFAR-10上的鲁棒精度较现有方法提升了2%~9%,在CIFAR-100上提升了1%~9%. 在面对PGD-20、PGD-50、C&W等其他攻击以及架构更复杂的模型时,均取得了类似的效果. 提出方法在避免灾难性过拟合现象的同时,有效提高了系统的鲁棒性.

关键词: 对抗样本快速对抗训练离散余弦变换(DCT)鲁棒性样本初始化
Abstract:

A fast adversarial training method based on discrete cosine transform (DCT) was proposed from the perspective of the frequency domain in order to enhance the robustness of deep neural network. An adversarial initialization generation module was introduced, which adaptively generated initialization information based on the system’s robustness, allowing for more accurate capture of image features and effectively avoiding catastrophic overfitting. Random spectral transformations were applied to the samples, transforming them from the spatial domain to the frequency domain, which improved the model’s transferability and generalization ability by controlling spectral saliency. The effectiveness of the proposed method was validated on the CIFAR-10 and CIFAR-100 datasets. The experimental results show that the robust accuracy of the proposed method on CIFAR-10 improved by 2% to 9% compared to existing methods, and improved by 1% to 9% on CIFAR-100 by using ResNet18 as the target network and facing PGD-10 attacks. Similar effects were achieved when facing PGD-20, PGD-50, C&W and other attacks, as well as when applied to more complex model architectures. The proposed method not only avoids catastrophic overfitting but also effectively enhances system robustness.

Key words: adversarial example    fast adversarial training    discrete cosine transform (DCT)    robustness    example initialization
收稿日期: 2023-07-03 出版日期: 2024-10-23
CLC:  TP 391
基金资助: 国家自然科学基金资助项目(62072057);上海市自然科学基金资助项目(17ZR1411900);中国高校产学研创新基金资助项目(2021ZYB01003).
通讯作者: 张玉金     E-mail: m320121342@sues.edu.cn;yjzhang@sues.edu.cn
作者简介: 王晓淼(1999—),女,硕士生,从事对抗攻防的研究. orcid.org/0009-0003-0561-5610. E-mail:m320121342@sues.edu.cn
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章
王晓淼
张玉金
张涛
田瑾
吴飞

引用本文:

王晓淼,张玉金,张涛,田瑾,吴飞. 基于离散余弦变换的快速对抗训练方法[J]. 浙江大学学报(工学版), 2024, 58(11): 2230-2238.

Xiaomiao WANG,Yujin ZHANG,Tao ZHANG,Jin TIAN,Fei WU. Fast adversarial training method based on discrete cosine transform. Journal of ZheJiang University (Engineering Science), 2024, 58(11): 2230-2238.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2024.11.004        https://www.zjujournals.com/eng/CN/Y2024/V58/I11/2230

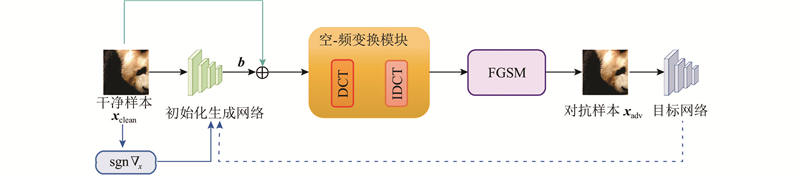

图 1  基于离散余弦变换的快速对抗训练方法的整体框架图

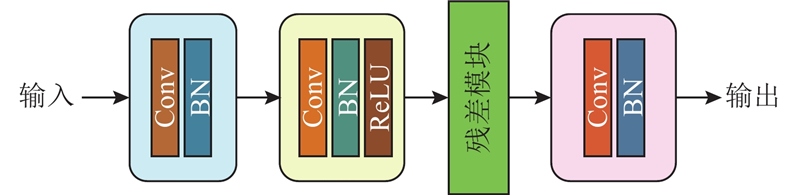

图 2  初始化生成网络的架构图

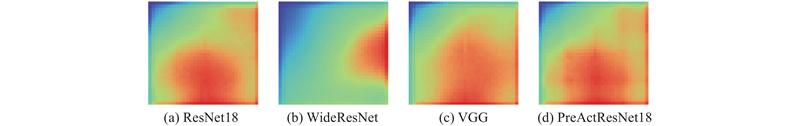

图 3  ResNet18、WideResNet、VGG、PreActResNet18的频谱显著性图

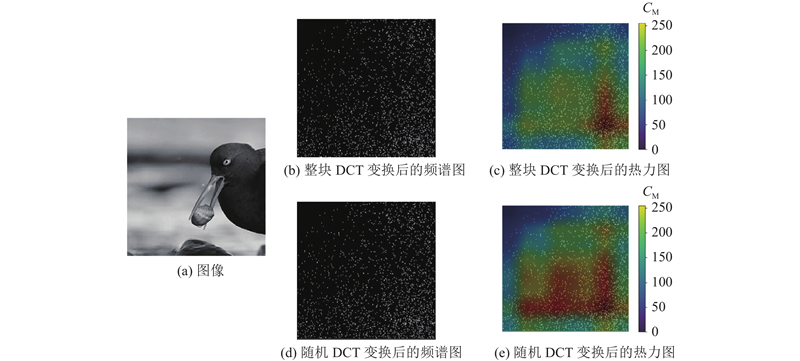

图 4  整块DCT和随机谱变换生成的频谱图及其热力图对比
算法1 基于离散余弦变换的快速对抗训练
输入: 训练次数$ M $、随机谱变换的次数$N$、最大扰动因子$\varepsilon $、步长$\alpha $、干净样本$ {\boldsymbol{x}} $及对应标签$ {\boldsymbol{y}} $、由${{\boldsymbol{w}}}$参数化的目标网络$f( \cdot )$、由${{\boldsymbol{m}}}$参数化的初始化生成网络$I( \cdot )$、随机谱变换函数$R( \cdot )$、离散余弦变换$D( \cdot )$及逆变换${D_{\mathrm{I}}}( \cdot )$、随机变量${\boldsymbol{\eta}} $(服从高斯分布)、随机变量${\boldsymbol{U}}$(服从均匀分布). ${\mathrm{Fo}}{{\mathrm{r}}_{}}\,i = 1,2,\cdots ,{M_{}}\;{\mathrm{do}}$${\boldsymbol{t}} = {\mathrm{sgn}}{\nabla _{\boldsymbol{x}}}( l (f({\boldsymbol{x}}),{\boldsymbol{y}}))$${\boldsymbol{b}} = I({\boldsymbol{x}},{\boldsymbol{t}})$${{\boldsymbol{x}}_{\boldsymbol{b}}} = {\boldsymbol{x}}+{\boldsymbol{b}}$${\boldsymbol{x}} = R({{\boldsymbol{x}}_{\boldsymbol{b}}}) = {D_{\mathrm{I}}}(D({{\boldsymbol{x}}_{\boldsymbol{b}}}+{\boldsymbol{\eta}} ) \odot {\boldsymbol{U}})$${\boldsymbol{\delta}} = \prod\limits_{{{[ - \varepsilon ,\varepsilon ]}^d}} {{\boldsymbol{b}}+\alpha {\mathrm{sgn}}({N}^{-1} \sum\limits_{i = 1}^N {{\nabla _x} l (f({\boldsymbol{x}}+{\boldsymbol{\delta}} ))} )} $$ {{\boldsymbol{m}}} \leftarrow {{\boldsymbol{m}}}+\nabla l (f({\boldsymbol{x}}+{\boldsymbol{\delta}} ),{\boldsymbol{y}}) $${{\boldsymbol{w}}} \leftarrow {{\boldsymbol{w}}} - \nabla l (f({\boldsymbol{x}}+{\boldsymbol{\delta}} ),{\boldsymbol{y}})$${\mathrm{End}}\;{\mathrm{For}}$

方法模型PcleanProbust
PGD-10PGD-20PGD-50C&WAuto-Attack
FGSM-RS[10]最好73.8142.3141.5541.2639.8437.07
FGSM-RS[10]最后83.820.090.040.020.000.00
FGSM-CKPT[12]最好90.2941.9639.8439.1541.1337.15
FGSM-CKPT[12]最后90.2941.9639.8439.1541.1337.15
FGSM-GA[11]最好83.9649.2347.5746.8947.4643.45
FGSM-GA[11]最后84.4348.6746.6646.0846.7542.63
Free-AT[12]最好80.3847.1045.8545.6244.4242.17
Free-AT[12]最后80.7545.8244.8244.4843.7341.17
本文方法最好83.3051.8650.6150.1549.6546.42
本文方法最后83.7651.5550.1649.8449.6846.21
表 1  使用ResNet18对CIFAR-10进行测试时的模型鲁棒精度

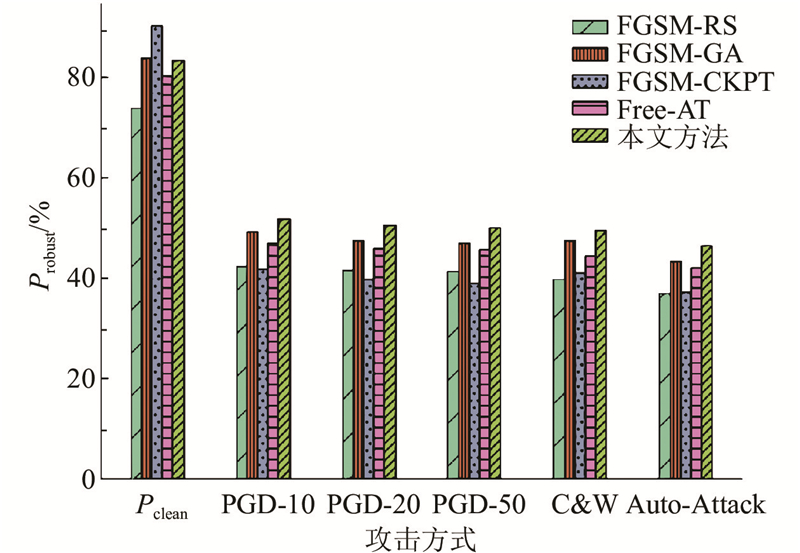

图 5  在不同攻击方式下ResNet18在CIFAR-10上的鲁棒精度对比
方法PcleanProbust
PGD-10PGD-20PGD-50C&WAuto-Attack
FGSM-RS[10]74.2941.2440.2139.9839.2736.40
FGSM-CKPT[12]91.8444.7042.7242.2242.2540.46
FGSM-GA[11]81.8048.2047.9746.6046.8745.19
Free-AT[12]81.8349.0748.1747.8347.2544.77
本文方法83.5451.0549.6649.2149.0644.76
表 2  使用WideResNet34-10对CIFAR-10进行测试时的模型鲁棒精度

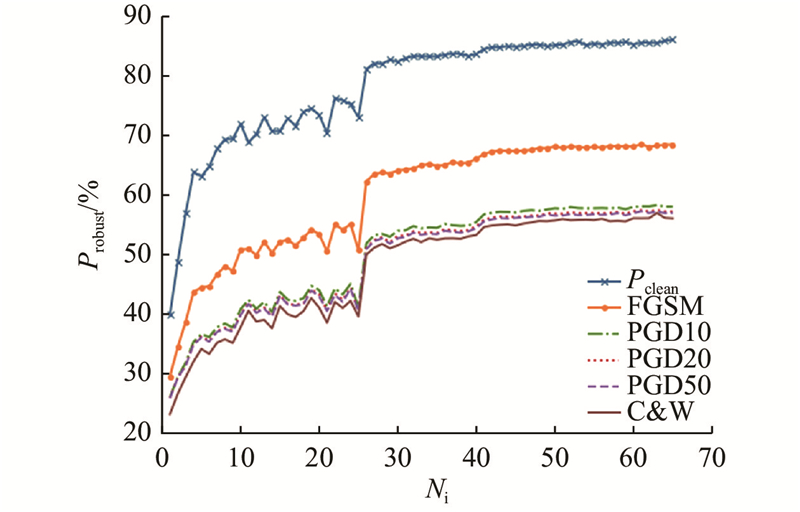

图 6  WideResNet34-10框架下不同攻击方法在训练过程中的鲁棒精度变化趋势

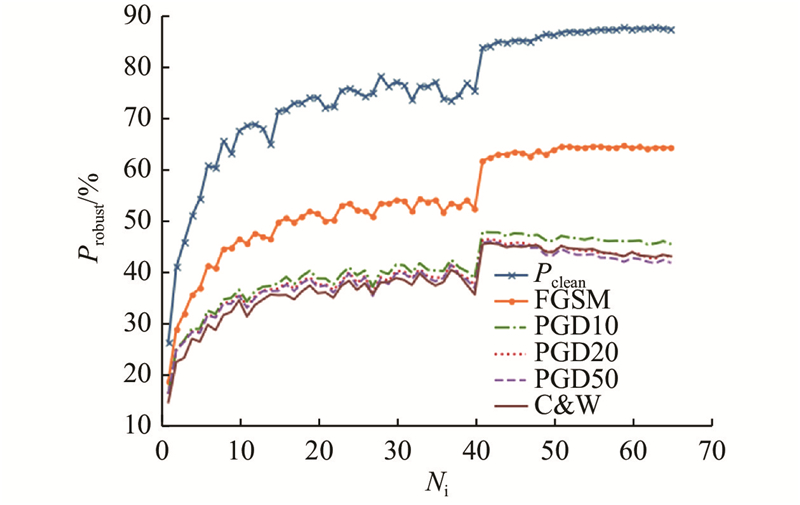

图 7  PreActResNet18框架下不同攻击方法在训练过程中的鲁棒精度变化趋势
方法模型PcleanProbust
PGD-10PGD-20PGD-50C&WAuto-Attack
FGSM-RS[10]最好49.8522.4722.0121.8220.5518.29
FGSM-RS[10]最后60.550.250.190.250.000.00
FGSM-CKPT[12]最好60.9316.5815.4715.1916.4014.17
FGSM-CKPT[12]最后60.9316.6915.6115.2416.6014.34
FGSM-GA[11]最好54.3522.9322.3622.2021.2018.80
FGSM-GA[11]最后55.1020.0419.1318.8418.9616.45
Free-AT[12]最好52.4924.0723.5223.3621.6619.47
Free-AT[12]最后52.6322.8622.3222.1620.6818.57
本文方法最好53.7725.9225.2224.8224.0719.28
本文方法最后54.0825.9125.0024.6723.8219.16
表 3  使用ResNet18对CIFAR-100进行测试时的模型鲁棒精度

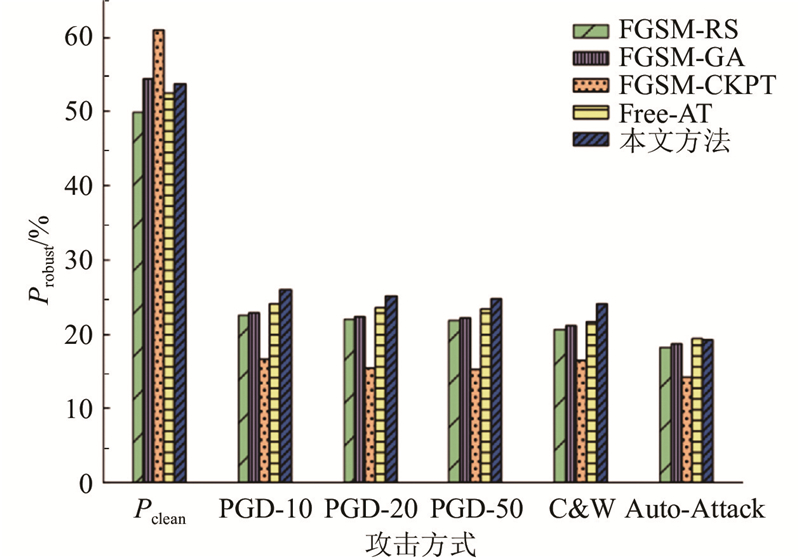

图 8  在不同攻击方式下ResNet18在CIFAR-100上的鲁棒精度对比

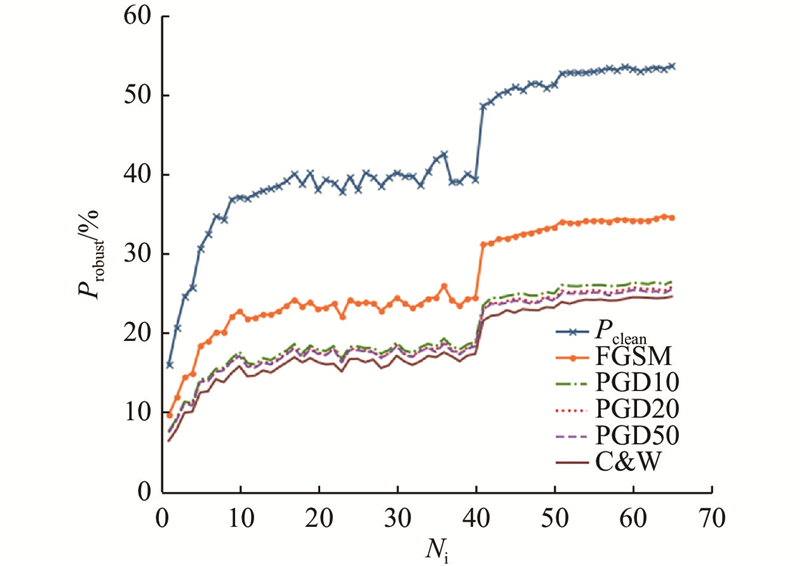

图 9  ResNet18框架下不同攻击方法在训练过程中的鲁棒精度变化趋势

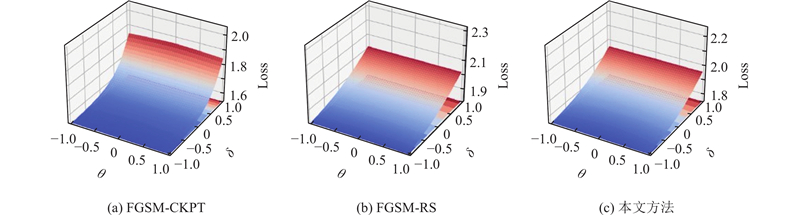

图 10  FGSM-CKPT、FGSM-RS和所提方法的交叉熵损失景观图对比
